什么是Custom Metrics? 可以解决什么问题?

juejin.cn/post/729935… 中讲到了 Aggregator APIServer的扩展机制

也讲到了promethues 通过metric server---> cAdvisor--->采集pod指标的方式

场景

我们想通过监控pod的请求数量来决定是否要扩容pod的副本以支撑更多的请求流量。

需要实现一个自定义的meritic 收集Pod 收到的 HTTP 请求数量，然后根据指定 Pod 收到的 HTTP 请求数量来配置 Auto Scaling 策略

例如访问以下URL 就可以获取到监控指标这里是访问的 pod对象后面会介绍访问service对象

https://<apiserver_ip>/apis/custom-metrics.metrics.k8s.io/v1beta1/namespaces/default/pods/sample-metrics-app/http_requests

请求这个URL时底层的访问路径:

client --- Aggregator apiserver ---> 路由到后端的Custom Metrics APIServer ---> 去 Prometheus查询sample-metrics-app的http_requests指标

sample-metrics-app的http_requests指标需要提前录入到promethues中需要从pod中进行采集

如何暴露http_requests 指标的值?

让 Pod 里的应用本身暴露出一个 /metrics API，然后在这个 API 里返回自己收到的 HTTP 的请求的数量

Custom Metrics 具体的使用方式

前提已经部署好了一套k8s集群

step1 部署promethues

使用 Prometheus Operator 来完成

具体的操作可以参考 juejin.cn/post/729818…

step2 部署Custom Metrics APIServer

具体yml参考 github.com/resouer/kub…

其实底层是用到了一个 k8s-prometheus-adapter 适配器

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: custom-metrics-apiserver
  namespace: custom-metrics
  labels:
    app: custom-metrics-apiserver
spec:
  replicas: 1
  selector:
    matchLabels:
      app: custom-metrics-apiserver
  template:
    metadata:
      labels:
        app: custom-metrics-apiserver
    spec:
      tolerations:
      - key: beta.kubernetes.io/arch
        value: arm
        effect: NoSchedule
      - key: beta.kubernetes.io/arch
        value: arm64
        effect: NoSchedule
      serviceAccountName: custom-metrics-apiserver
      containers:
      - name: custom-metrics-server
        image: luxas/k8s-prometheus-adapter:v0.2.0-beta.0
        args:
        - --prometheus-url=http://sample-metrics-prom.default.svc:9090
        - --metrics-relist-interval=30s
        - --rate-interval=60s
        - --v=10
        - --logtostderr=true
        ports:
        - containerPort: 443
        securityContext:
          runAsUser: 0
---
apiVersion: v1
kind: Service
metadata:
  name: api
  namespace: custom-metrics
spec:
  ports:
  - port: 443
    targetPort: 443
  selector:
    app: custom-metrics-apiserver
---
apiVersion: apiregistration.k8s.io/v1
kind: APIService
metadata:
  name: v1beta1.custom.metrics.k8s.io
spec:
  insecureSkipTLSVerify: true
  group: custom.metrics.k8s.io
  groupPriorityMinimum: 1000
  versionPriority: 5
  service:
    name: api
    namespace: custom-metrics
  version: v1beta1

可以看到创建了一个APIService资源类型叫 v1beta1.custom.metrics.k8s.io 接下来就是怎么能访问到这个API v1beta1.custom.metrics.k8s.io/endpoint/xx…

step3 为 Custom Metrics APIServer 创建对应的 ClusterRoleBinding

kubectl create clusterrolebinding allowall-cm --clusterrole custom-metrics-server-resources --user system:anonymous

step4 部署应用 sample-metrics-app

具体yaml参考 github.com/resouer/kub…

HPA 配置

kind: HorizontalPodAutoscaler
apiVersion: autoscaling/v2beta1
metadata:
  name: sample-metrics-app-hpa
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: sample-metrics-app
  minReplicas: 2
  maxReplicas: 10
  metrics:
  - type: Object
    object:
      target:
        kind: Service
        name: sample-metrics-app
      metricName: http_requests
      targetValue: 100

参数解释

scaleTargetRef中标注的是伸缩扩展的对象, 一旦出发策略将会对sample-metrics-app 这个Deployment进行扩缩容

minReplicas: 2 最小副本数

maxReplicas: 10 最大副本数

metrics 中配置的是扩展的策略监听的对象是名叫 sample-metrics-app 的 Service

通过这些字段里的定义， HPA 就可以向如下URL 发起请求来获取 Custom Metrics 的值

https://<apiserver_ip>/apis/custom-metrics.metrics.k8s.io/v1beta1/namespaces/default/services/sample-metrics-app/http_requests

测试

通过一个名叫 hey 的测试工具来为我们的应用增加一些访问压力


docker run -it -v /usr/local/bin:/go/bin golang:1.8 go get github.com/rakyll/hey

export APP_ENDPOINT=$(kubectl get svc sample-metrics-app -o template --template {{.spec.clusterIP}}); echo ${APP_ENDPOINT}

hey -n 50000 -c 1000 http://${APP_ENDPOINT}

应用 Service 的 Custom Metircs URL

curl -sSLk https:///apis/custom-metrics.metrics.k8s.io/v1beta1/namespaces/default/services/sample-metrics-app/http_requests

HPA(HorizontalPodAutoscaler) 请求自定义API(Custom Metric APIServer)

自定义的API 其实是一个Prometheus 的Adaptor, 会去Prometheus中读取指标

Prometheus 通过 ServiceMonitor object 配置需要监控的pod和endpoints，来确定监控哪些pod的metrics

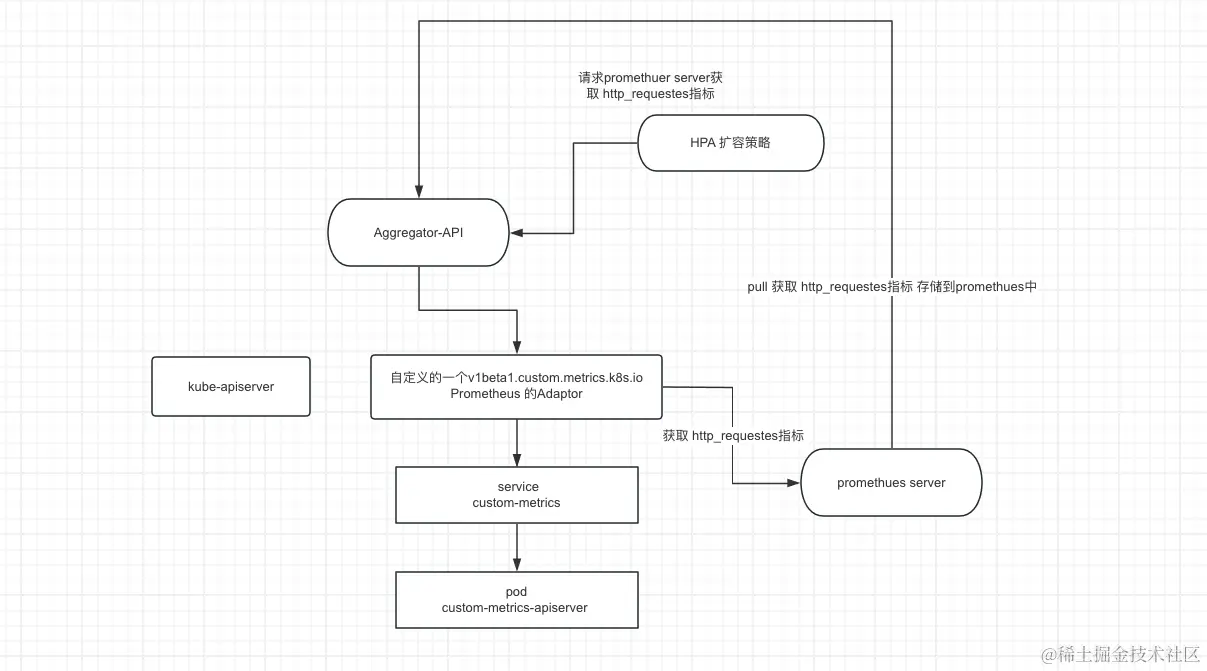

大致的请求路径

Prometheus 是如何知道采集哪些 Pod 的 /metrics API 作为监控指标的来源?

具体yaml参考 github.com/resouer/kub…

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: sample-metrics-app
  labels:
    service-monitor: sample-metrics-app
spec:
  selector:
    matchLabels:
      app: sample-metrics-app
  endpoints:
  - port: web

前面第step4的时候创建了一个ServiceMonitor对象

这是一个Prometheus的监控策略

Prometheus Operator用来指定被监控Pod

HPA是如何构建出URL请求的

HPA 配置

kind: HorizontalPodAutoscaler
apiVersion: autoscaling/v2beta1
metadata:
  name: sample-metrics-app-hpa
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: sample-metrics-app
  minReplicas: 2
  maxReplicas: 10
  metrics:
  - type: Object
    object:
      target:
        kind: Service
        name: sample-metrics-app
      metricName: http_requests
      targetValue: 100

HPA 构建出来的URL请求他是怎么知道访问哪个API service

https://<apiserver_ip>/apis/custom-metrics.metrics.k8s.io/v1beta1/namespaces/default/services/sample-metrics-app/http_requests

可以查看这个配置 github.com/resouer/kub…

前面定义了一个叫v1beta1.metrics.k8s.io的 APIService资源已经绑定到了metrics-server的Service

所以请求metrics-server的Service

---
apiVersion: v1
kind: Service
metadata:
  name: metrics-server
  namespace: kube-system
  labels:
    kubernetes.io/name: "Metrics-server"
spec:
  selector:
    k8s-app: metrics-server
  ports:
  - port: 443
    protocol: TCP
    targetPort: https
---
apiVersion: apiregistration.k8s.io/v1
kind: APIService
metadata:
  name: v1beta1.metrics.k8s.io
spec:
  service:
    name: metrics-server
    namespace: kube-system
  group: metrics.k8s.io
  version: v1beta1
  insecureSkipTLSVerify: true
  groupPriorityMinimum: 100
  versionPriority: 100
