集群及应用监控-基于Prometheus Operator部署Prometheus并监控K8S集群

使用operator部署

下载prometheus-operator

是基于已经编写好的yaml文件，可以将prometheus server、alertmanager、grafana、node-exporter等组件一键批量部署，部署环境为在当前已有的kubernetes环境执行部署

git clone -b release-0.11 https://github.com/prometheus-operator/kube-prometheus.git

准备镜像

因为网络原因 提前下载 上传到harbor中

准备kube-state-metrics镜像

docker pull bitnami/kube-state-metrics:2.5.0

docker tag bitnami/kube-state-metrics:2.5.0 harbor.linuxarchitect.io/baseimages/kube-state-metrics:2.5.0

docker push harbor.linuxarchitect.io/baseimages/kube-state-metrics:2.5.0

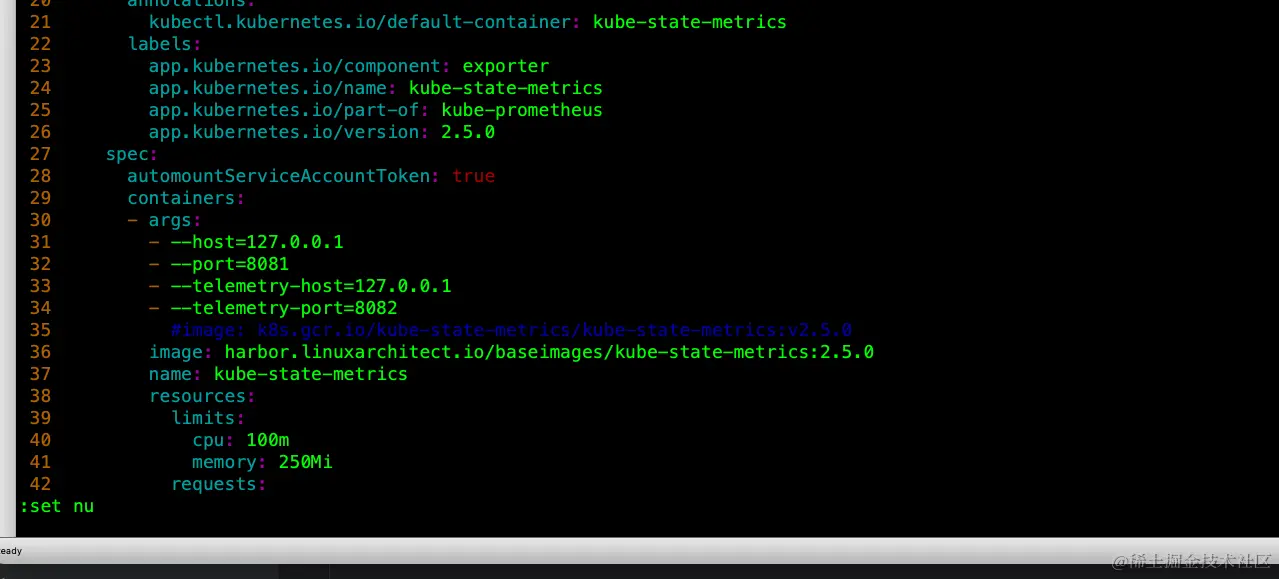

#修改镜像地址
vim manifests/kubeStateMetrics-deployment.yaml

准备prometheus-adapter镜像

docker pull willdockerhub/prometheus-adapter:v0.9.1

docker tag willdockerhub/prometheus-adapter:v0.9.1 harbor.linuxarchitect.io/baseimages/prometheus-adapter:v0.9.1

docker push harbor.linuxarchitect.io/baseimages/prometheus-adapter:v0.9.1

# 修改镜像地址
vim manifests/prometheusAdapter-deployment.yaml

cd /root/kube-prometheus/; kubectl create -f manifests/setup

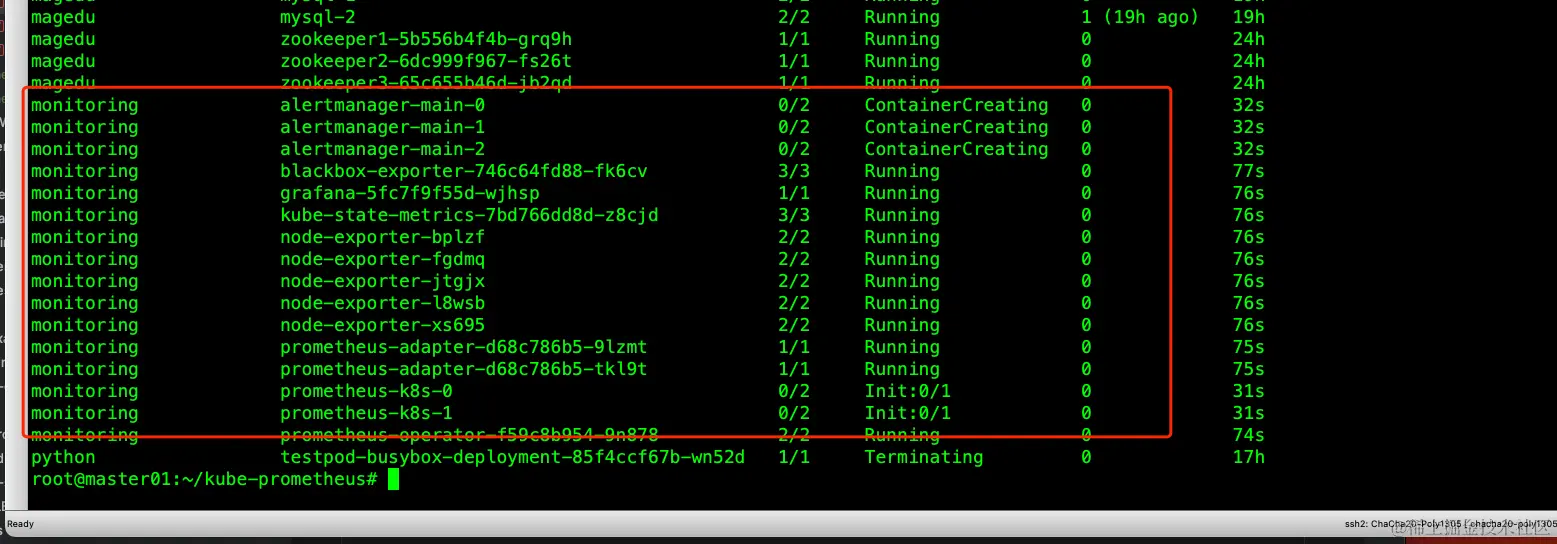

cd /root/kube-prometheus/;  kubectl apply -f manifests

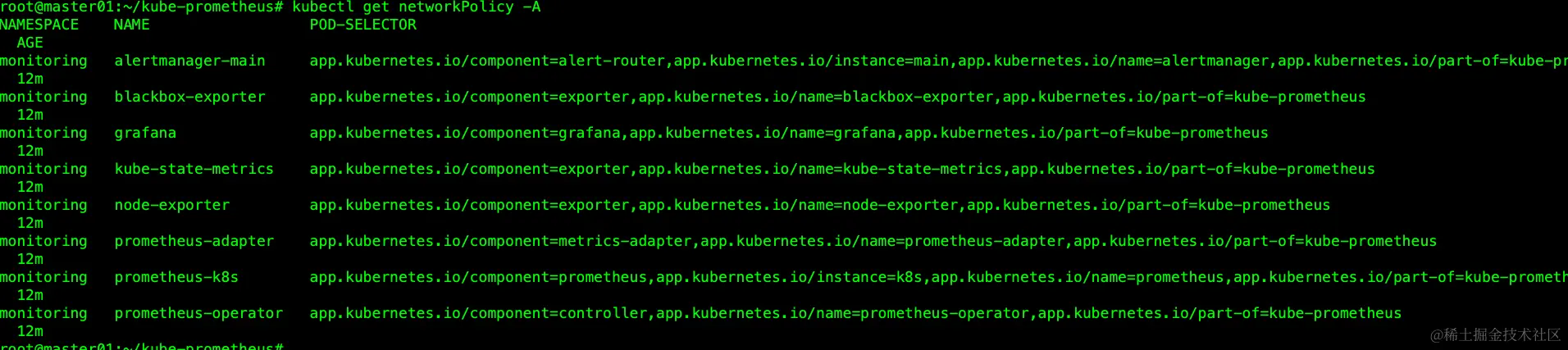

网络规则太多了 影响集群内访问

  908  cd manifests/
  914  mkdir networkpolicy
  915  ll manifests/*network*
  916  mv manifests/*network* networkpolicy/
  kubectl delete -f networkpolicy/

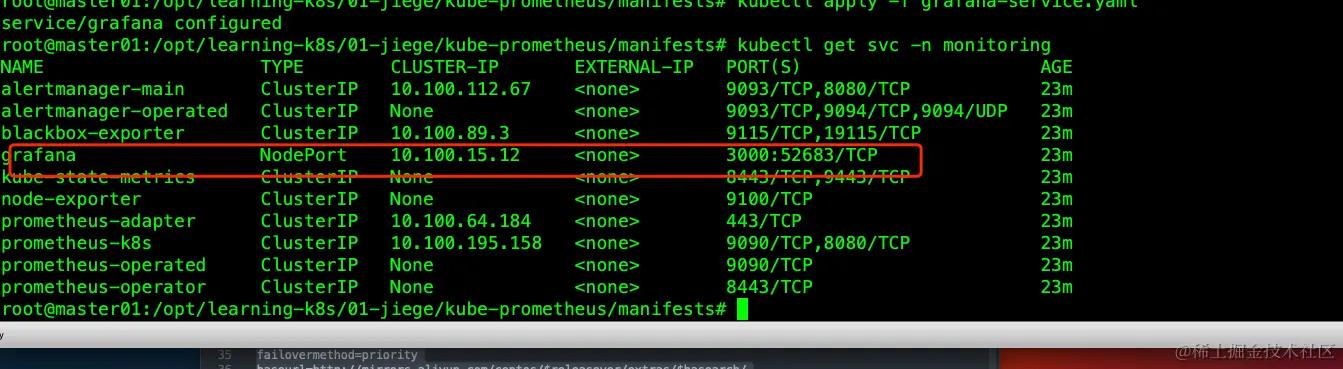

将grafna服务暴露出去

vim kube-prometheus/manifests/grafana-service.yaml

apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/component: grafana
    app.kubernetes.io/name: grafana
    app.kubernetes.io/part-of: kube-prometheus
    app.kubernetes.io/version: 8.5.5
  name: grafana
  namespace: monitoring
spec:
  type: NodePort
  ports:
  - name: http
    port: 3000
    targetPort: http
  selector:
    app.kubernetes.io/component: grafana
    app.kubernetes.io/name: grafana
    app.kubernetes.io/part-of: kube-prometheus

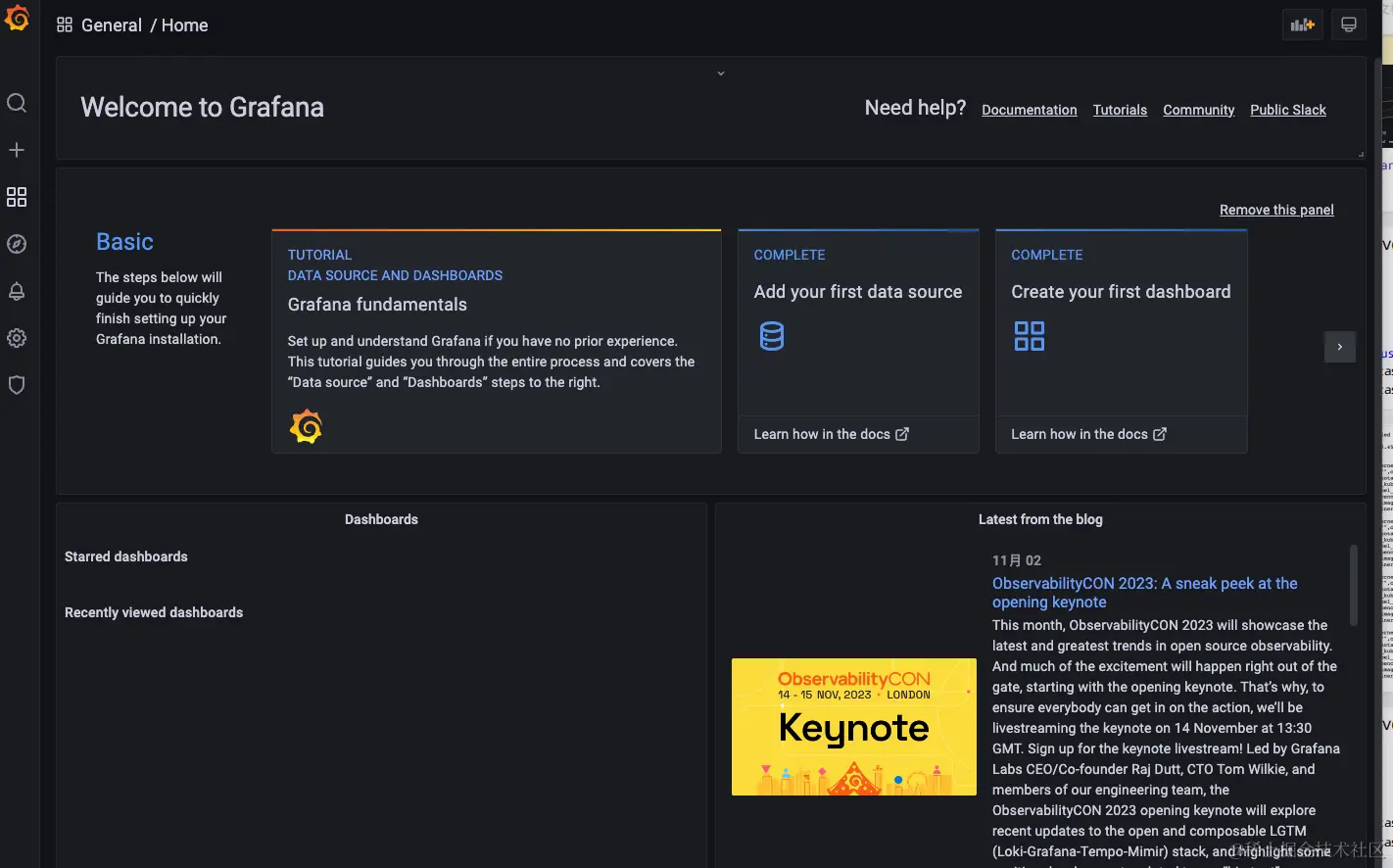

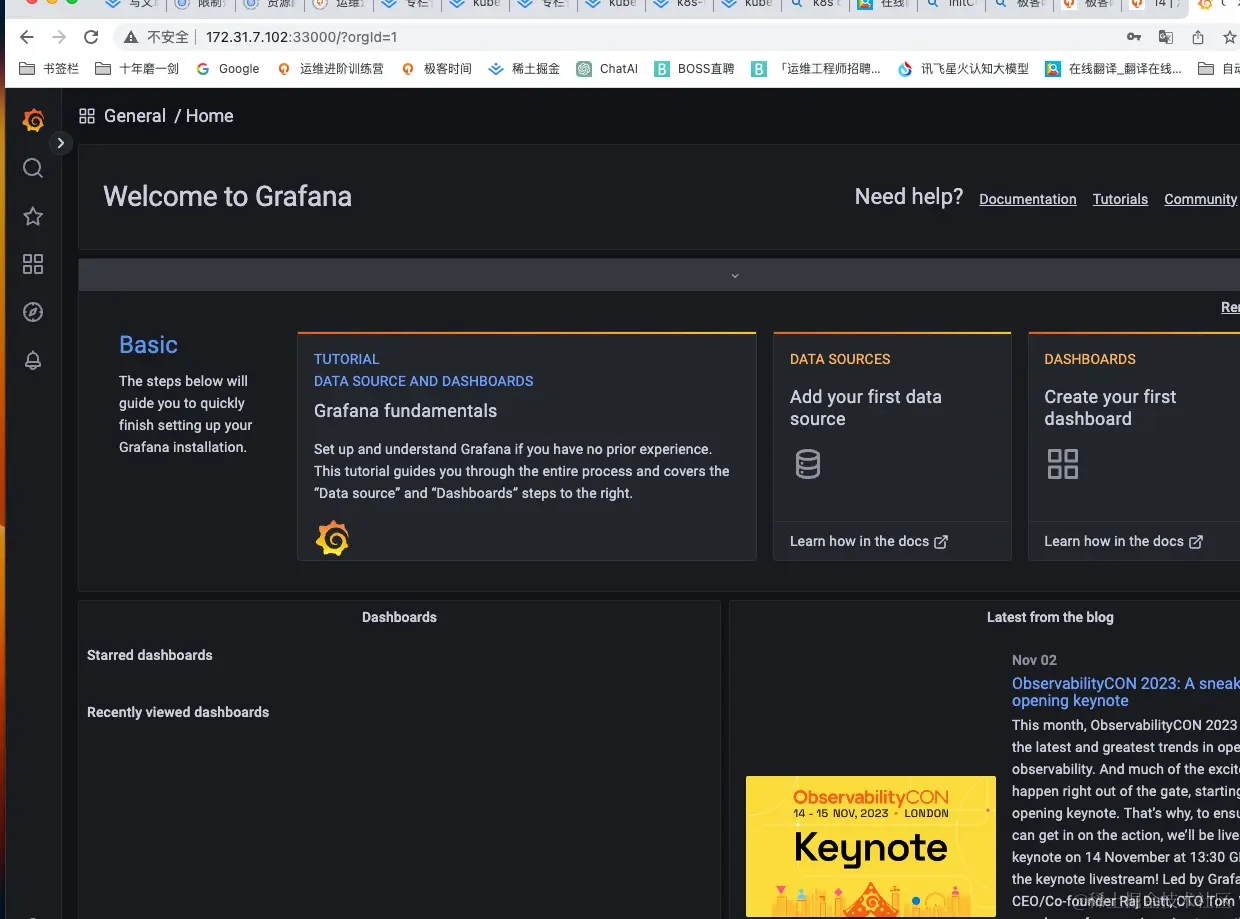

密码admin:admin

手工部署

部署cadvisor

收集pod的指标数据

cAdvisor是Google开源的一款用于展示和分析容器运行状态的可视化工具。它以守护进程的方式运行，

主要负责收集、聚合正在运行的容器相关信息，如资源隔离参数、历史资源使用情况、网络统计信息等。

这些信息包括CPU使用情况、内存使用情况、网络吞吐量以及文件系统的使用情况

vim case1-daemonset-deploy-cadvisor.yaml

apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: cadvisor
  namespace: monitoring
spec:
  selector:
    matchLabels:
      app: cAdvisor
  template:
    metadata:
      labels:
        app: cAdvisor
    spec:
      tolerations:    #污点容忍,忽略master的NoSchedule
        - effect: NoSchedule
          key: node-role.kubernetes.io/master
      hostNetwork: true
      restartPolicy: Always   # 重启策略
      containers:
      - name: cadvisor
        image: registry.cn-hangzhou.aliyuncs.com/zhangshijie/cadvisor-amd64:v0.45.0
        imagePullPolicy: IfNotPresent  # 镜像策略
        ports:
        - containerPort: 8080
        volumeMounts:
          - name: root
            mountPath: /rootfs
          - name: run
            mountPath: /var/run
          - name: sys
            mountPath: /sys
          - name: docker
            mountPath: /var/lib/docker
            #mountPath: /var/lib/containerd
      volumes:
      - name: root
        hostPath:
          path: /
      - name: run
        hostPath:
          path: /var/run
      - name: sys
        hostPath:
          path: /sys
      - name: docker
        hostPath:
          path: /var/lib/docker
          #path: /var/lib/containerd

kubectl create ns monitoring

kubectl apply -f case1-daemonset-deploy-cadvisor.yaml

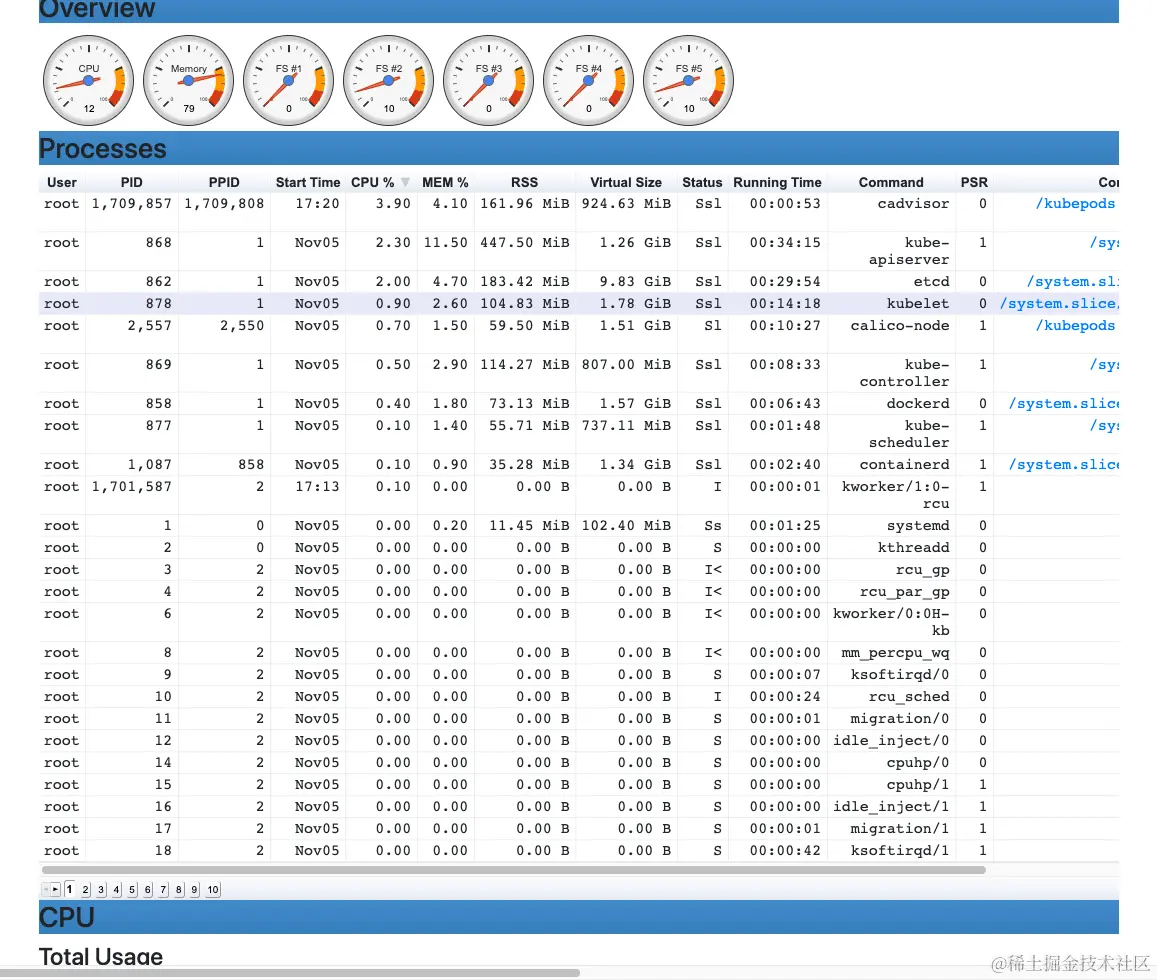

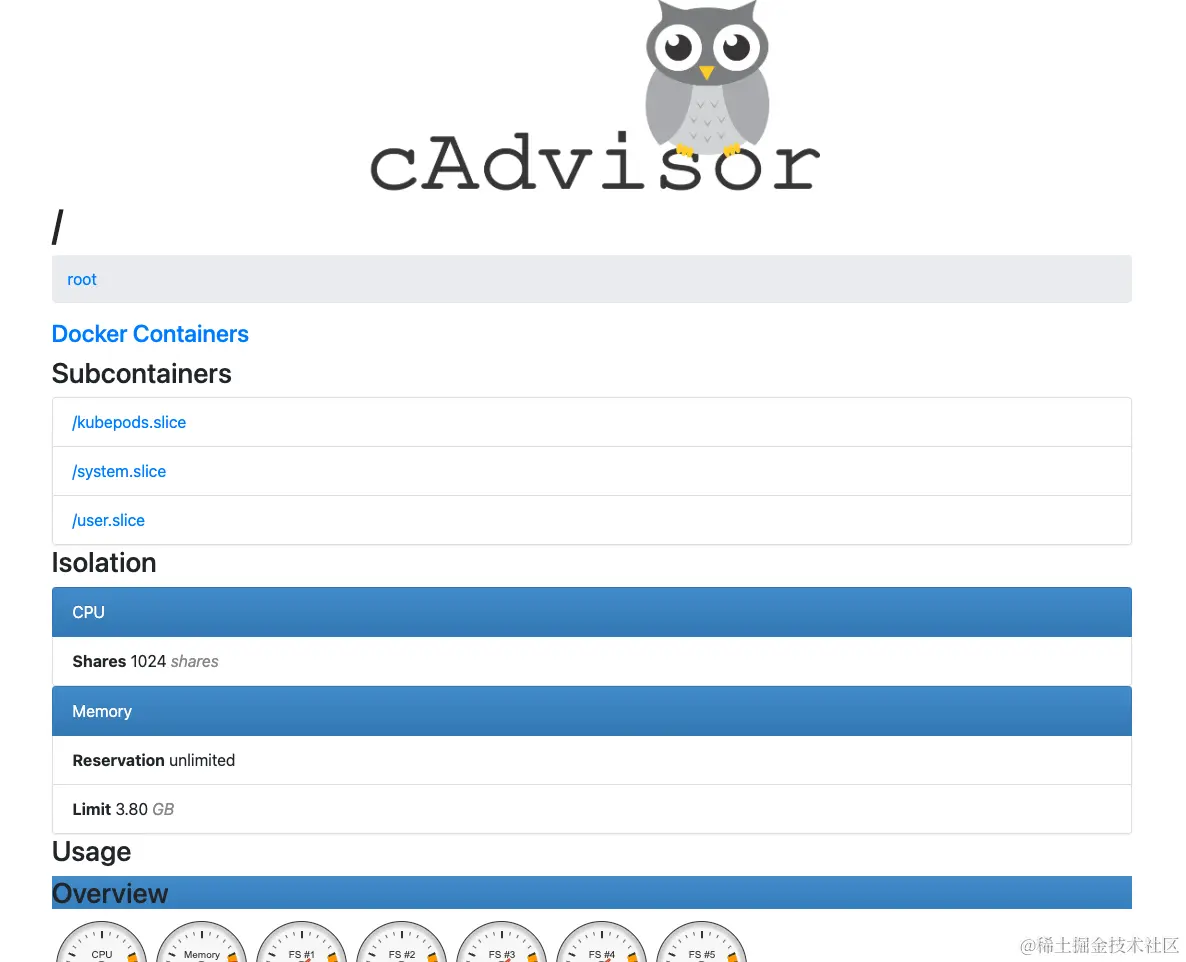

因为使用的是主机网络 所以可以直接访问 http://172.31.7.102:8080/containers/

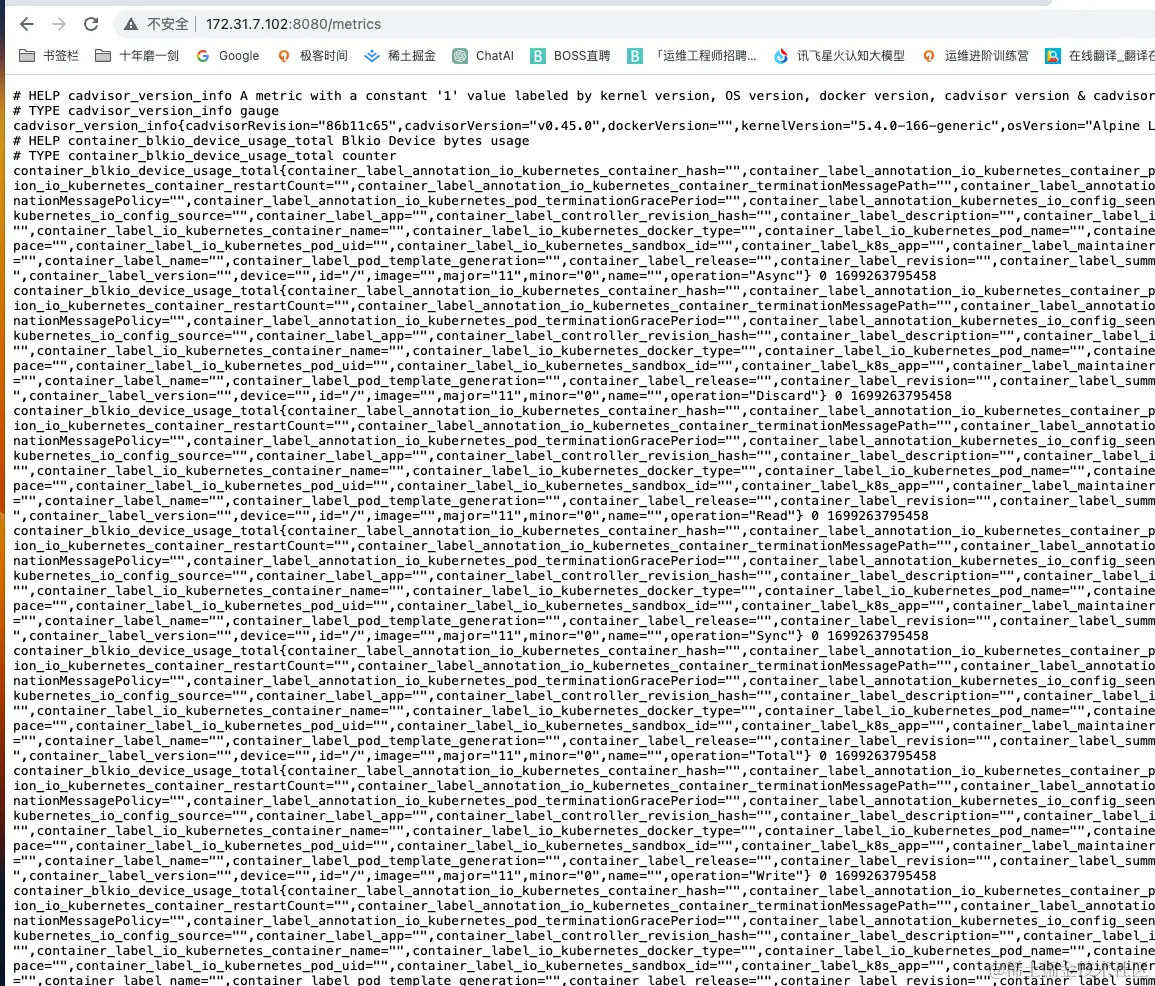

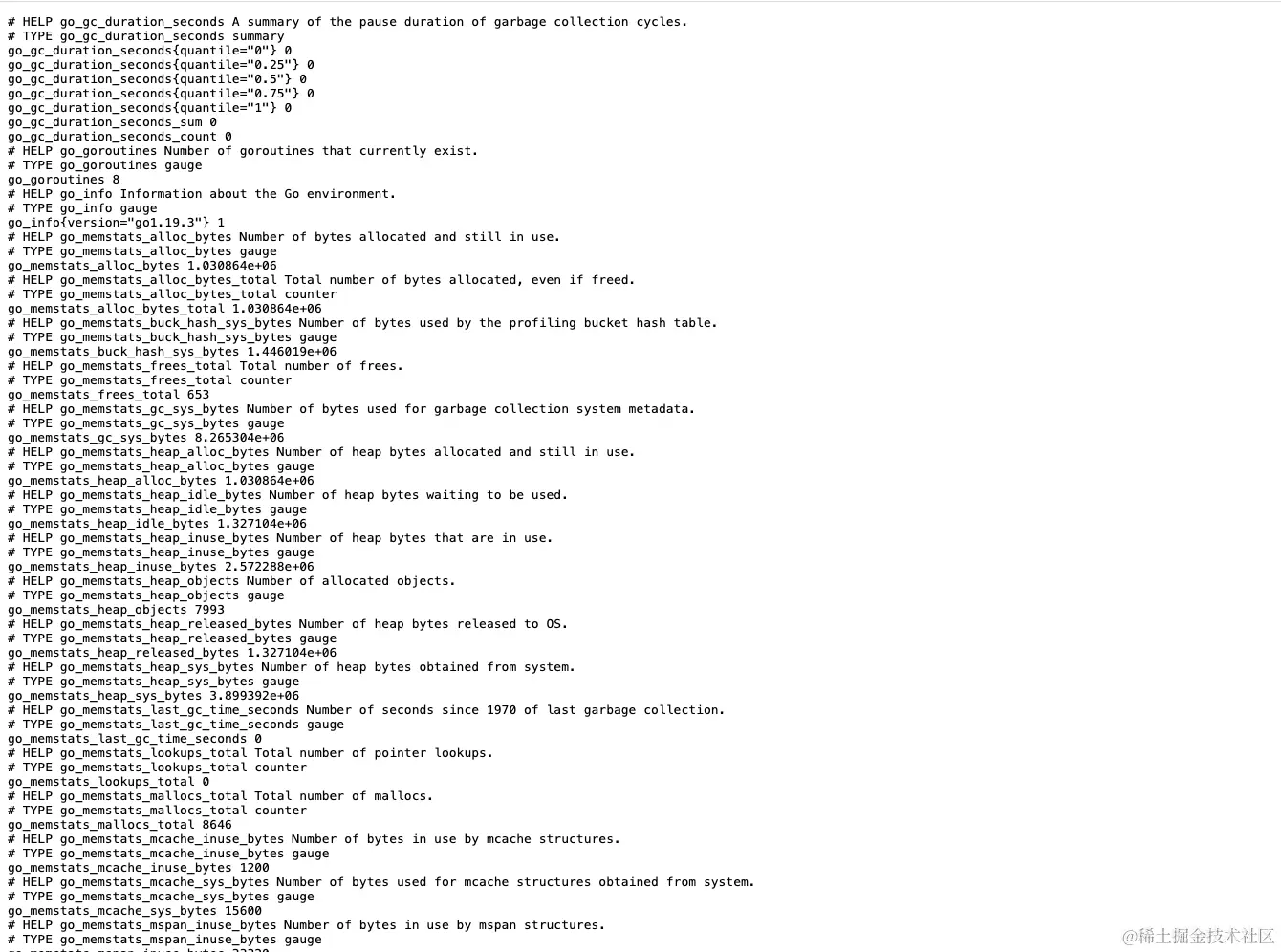

可以看到收集了很多的指标数据 http://172.31.7.102:8080/metrics

部署node_exporter

收集宿主机的数据

共享 宿主机网络 和 PID

apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: node-exporter
  namespace: monitoring
  labels:
    k8s-app: node-exporter
spec:
  selector:
    matchLabels:
        k8s-app: node-exporter
  template:
    metadata:
      labels:
        k8s-app: node-exporter
    spec:
      tolerations:
        - effect: NoSchedule
          key: node-role.kubernetes.io/master
      containers:
      - image: registry.cn-hangzhou.aliyuncs.com/zhangshijie/node-exporter:v1.5.0
        imagePullPolicy: IfNotPresent
        name: prometheus-node-exporter
        ports:
        - containerPort: 9100
          hostPort: 9100
          protocol: TCP
          name: metrics
        volumeMounts:
        - mountPath: /host/proc
          name: proc
        - mountPath: /host/sys
          name: sys
        - mountPath: /host
          name: rootfs
        args:
        - --path.procfs=/host/proc
        - --path.sysfs=/host/sys
        - --path.rootfs=/host
      volumes:
        - name: proc
          hostPath:
            path: /proc
        - name: sys
          hostPath:
            path: /sys
        - name: rootfs
          hostPath:
            path: /
      hostNetwork: true
      hostPID: true
---
apiVersion: v1
kind: Service
metadata:
  annotations:
    prometheus.io/scrape: "true"
  labels:
    k8s-app: node-exporter
  name: node-exporter
  namespace: monitoring
spec:
  type: NodePort
  ports:
  - name: http
    port: 9100
    nodePort: 39100
    protocol: TCP
  selector:
    k8s-app: node-exporter

kubectl apply -f case2-daemonset-deploy-node-exporter.yaml

kubectl get pod -n monitoring #验证pod状态

访问 http://172.31.7.102:9100/metrics 可以看到收集的宿主机指标

部署prometheus server

创建监控账户

# 创建监控账户
kubectl create serviceaccount monitor -n monitoring

# 对monitoring 账号授权
kubectl create clusterrolebinding monitor-clusterrolebinding -n monitoring --clusterrole=cluster-admin --serviceaccount=monitoring:monitor

vim case3-1-prometheus-cfg.yaml

---
kind: ConfigMap
apiVersion: v1
metadata:
  labels:
    app: prometheus
  name: prometheus-config
  namespace: monitoring
data:
  prometheus.yml: |
    global:
      scrape_interval: 15s
      scrape_timeout: 10s
      evaluation_interval: 1m
    scrape_configs:
    - job_name: 'kube-state-metrics'
      static_configs:
      - targets: ['172.31.7.111:31666']

    - job_name: 'kubernetes-node'
      kubernetes_sd_configs:
      - role: node
      relabel_configs:
      - source_labels: [__address__]
        regex: '(.*):10250'
        replacement: '${1}:9100'
        target_label: __address__
        action: replace
      - action: labelmap
        regex: __meta_kubernetes_node_label_(.+)
    - job_name: 'kubernetes-node-cadvisor'
      kubernetes_sd_configs:
      - role:  node
      scheme: https
      tls_config:
        ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
      bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
      relabel_configs:
      - action: labelmap
        regex: __meta_kubernetes_node_label_(.+)
      - target_label: __address__
        replacement: kubernetes.default.svc:443
      - source_labels: [__meta_kubernetes_node_name]
        regex: (.+)
        target_label: __metrics_path__
        replacement: /api/v1/nodes/${1}/proxy/metrics/cadvisor
    - job_name: 'kubernetes-apiserver'
      kubernetes_sd_configs:
      - role: endpoints
      scheme: https
      tls_config:
        ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
      bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
      relabel_configs:
      - source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_service_name, __meta_kubernetes_endpoint_port_name]
        action: keep
        regex: default;kubernetes;https
    - job_name: 'kubernetes-service-endpoints'
      kubernetes_sd_configs:
      - role: endpoints
      relabel_configs:
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
        action: keep
        regex: true
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scheme]
        action: replace
        target_label: __scheme__
        regex: (https?)
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
        action: replace
        target_label: __metrics_path__
        regex: (.+)
      - source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
        action: replace
        target_label: __address__
        regex: ([^:]+)(?::\d+)?;(\d+)
        replacement: $1:$2
      - action: labelmap
        regex: __meta_kubernetes_service_label_(.+)
      - source_labels: [__meta_kubernetes_namespace]
        action: replace
        target_label: kubernetes_namespace
      - source_labels: [__meta_kubernetes_service_name]
        action: replace
        target_label: kubernetes_name

    - job_name: 'kubernetes-nginx-pods'
      kubernetes_sd_configs:
      - role: pod
        namespaces: #可选指定namepace，如果不指定就是发现所有的namespace中的pod
          names:
          - myserver
          - magedu
      relabel_configs:
      - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape]
        action: keep
        regex: true
      - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scheme]
        action: replace
        target_label: __scheme__
        regex: (https?)
      - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port]
        action: replace
        target_label: __address__
        regex: ([^:]+)(?::\d+)?;(\d+)
        replacement: $1:$2
      - action: labelmap
        regex: __meta_kubernetes_pod_label_(.+)
      - source_labels: [__meta_kubernetes_namespace]
        action: replace
        target_label: kubernetes_namespace
      - source_labels: [__meta_kubernetes_pod_name]
        action: replace
        target_label: kubernetes_pod_name

参考这个文档 创建一个storageclass 输出一个nfs-csi juejin.cn/post/729444…

注意 prometheus需要写/prometheus/

vim case3-2-prometheus-deployment.yaml

---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: prometheus-storage-pvc
  namespace: monitoring
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 10Gi
  storageClassName: nfs-csi

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: prometheus-server
  namespace: monitoring
  labels:
    app: prometheus

spec:
  replicas: 1
  selector:
    matchLabels:
      app: prometheus
      component: server
    #matchExpressions:
    #- {key: app, operator: In, values: [prometheus]}
    #- {key: component, operator: In, values: [server]}
  template:
    metadata:
      labels:
        app: prometheus
        component: server
      annotations:
        prometheus.io/scrape: 'false'
    spec:
      initContainers:
        - name: chown-dir
          image: harbor.linuxarchitect.io/baseimages/centos:7.9.2009
          command: ['chmod', '777', '/prometheus/']
#          command: ['echo']
          volumeMounts:
            - mountPath: /prometheus/
              name: prometheus-storage-volume
      serviceAccountName: monitor

      containers:
      - name: prometheus
        image: registry.cn-hangzhou.aliyuncs.com/zhangshijie/prometheus:v2.42.0
        imagePullPolicy: IfNotPresent
        command:
          - prometheus
          - --config.file=/etc/prometheus/prometheus.yml
          - --storage.tsdb.path=/prometheus
          - --storage.tsdb.retention=720h
        resources:
          limits:
            memory: "512Mi"
            cpu: "500m"
          requests:
            memory: "512Mi"
            cpu: "500m"
        ports:
        - containerPort: 9090
          protocol: TCP
        volumeMounts:
        - mountPath: /etc/prometheus/prometheus.yml
          name: prometheus-config
          subPath: prometheus.yml
        - mountPath: /prometheus/
          name: prometheus-storage-volume
      volumes:
        - name: prometheus-config
          configMap:
            name: prometheus-config
            items:
              - key: prometheus.yml
                path: prometheus.yml
                mode: 0644
        - name: prometheus-storage-volume
          persistentVolumeClaim:
            claimName: prometheus-storage-pvc

case3-3-prometheus-svc.yaml

---
apiVersion: v1
kind: Service
metadata:
  name: prometheus
  namespace: monitoring
  labels:
    app: prometheus
spec:
  type: NodePort
  ports:
    - port: 9090
      targetPort: 9090
      nodePort: 30090
      protocol: TCP
  selector:
    app: prometheus
    component: server

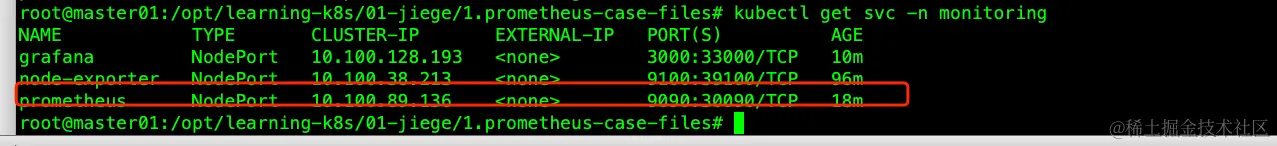

kubectl apply -f case3-1-prometheus-cfg.yaml
kubectl apply -f case3-2-prometheus-deployment.yaml
kubectl apply -f case3-3-prometheus-svc.yaml

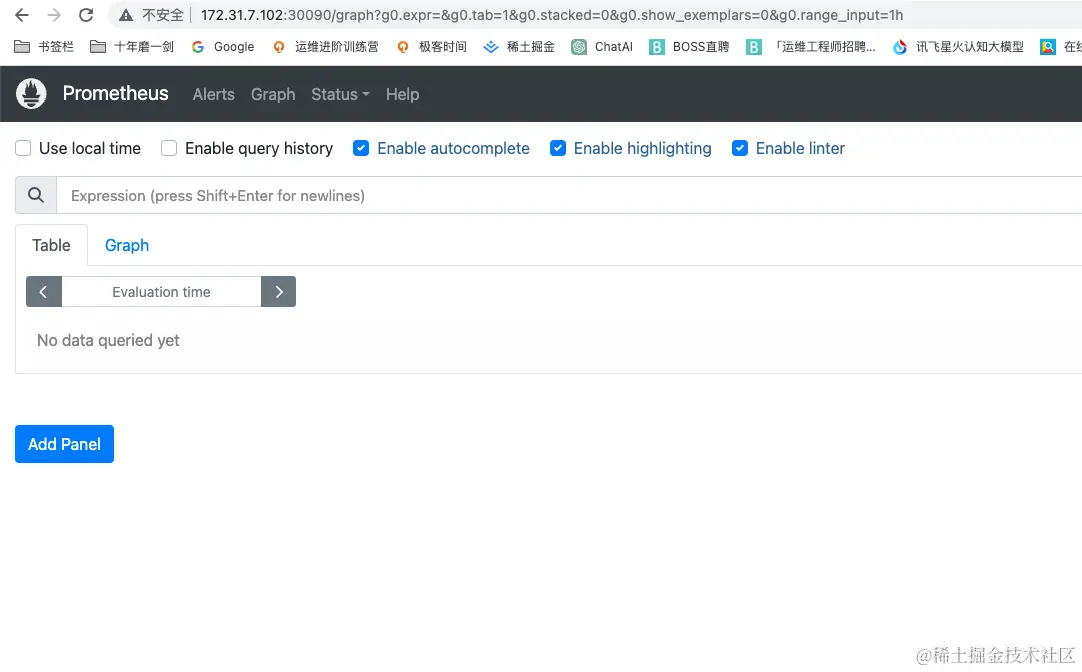

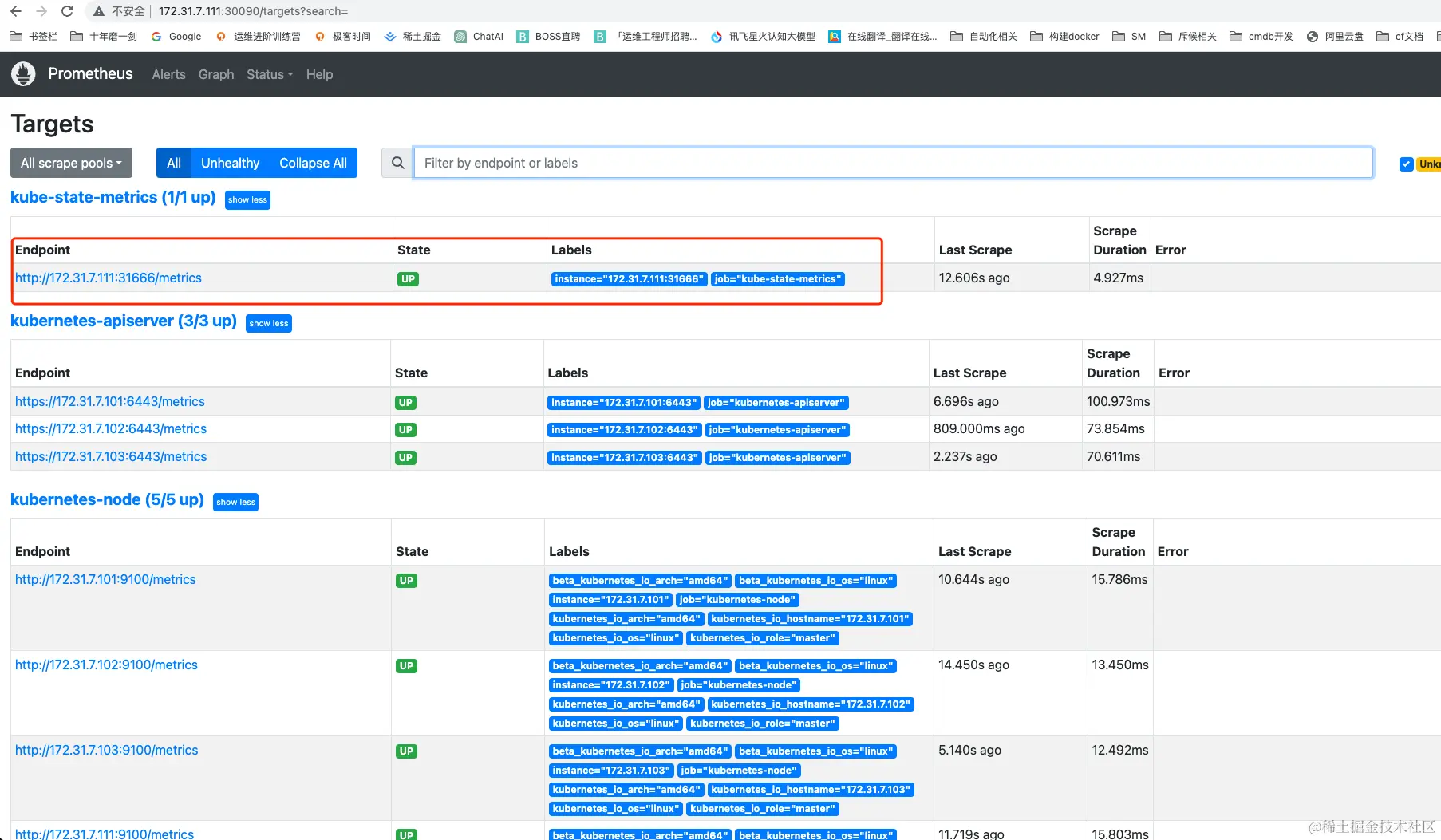

访问 http://172.31.7.102:30090

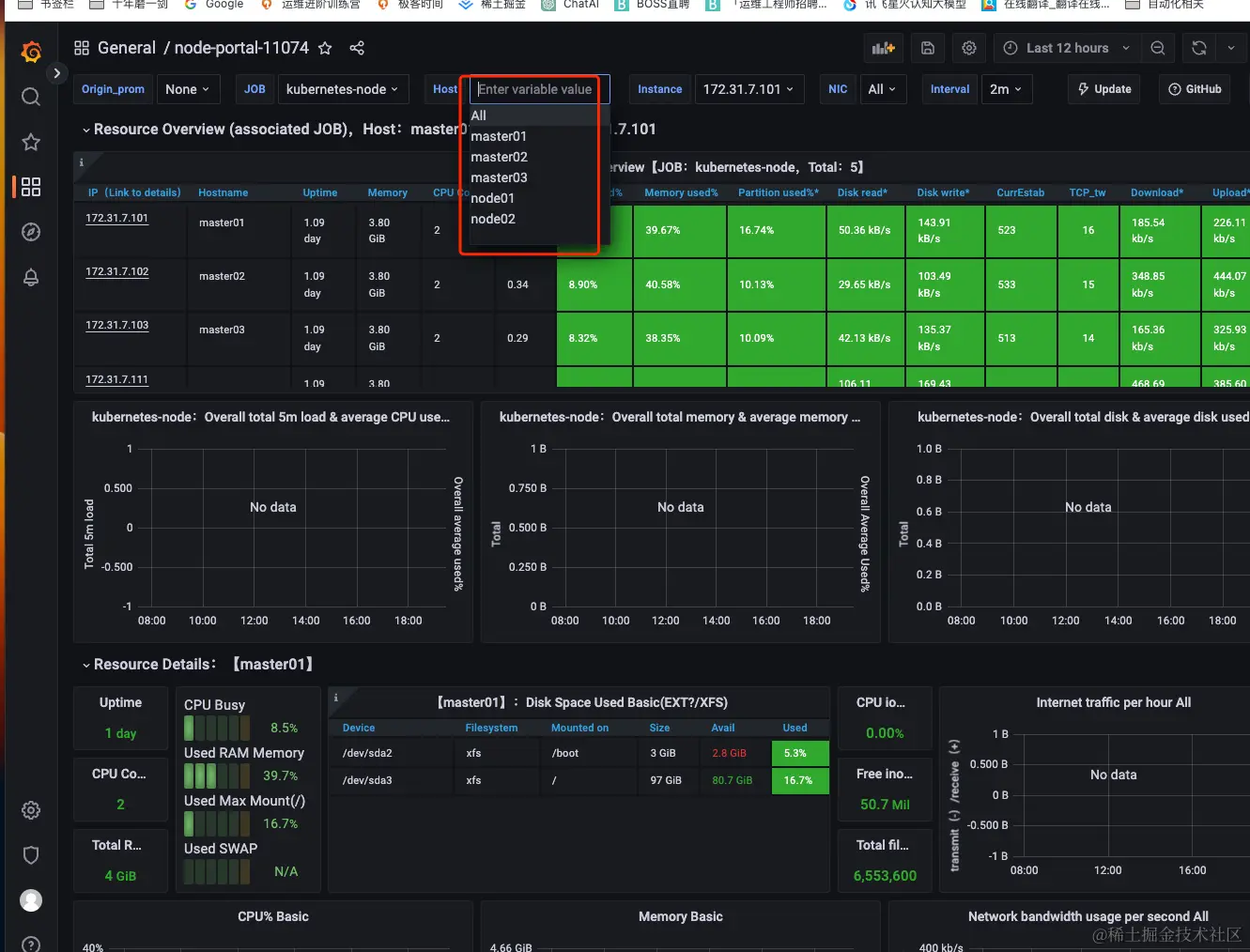

部署grafana server

case4-grafana.yaml

---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: grafana-pvc
  namespace: monitoring
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 10Gi
  storageClassName: nfs-csi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: grafana
  name: grafana
  namespace: monitoring
spec:
  selector:
    matchLabels:
      app: grafana
  template:
    metadata:
      labels:
        app: grafana
    spec:
      securityContext:
        fsGroup: 472
        supplementalGroups:
          - 0
#      nodeName: 172.31.7.113
      initContainers:
        - name: chown-dir
          image: harbor.linuxarchitect.io/baseimages/centos:7.9.2009
          command: [ 'chmod', '777', '/var/lib/grafana' ]
          volumeMounts:
            - mountPath: /var/lib/grafana
              name: grafana-volume
      containers:
        - name: grafana
          image: registry.cn-hangzhou.aliyuncs.com/zhangshijie/grafana:9.3.6
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 3000
              name: http-grafana
              protocol: TCP
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /robots.txt
              port: 3000
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 30
            successThreshold: 1
            timeoutSeconds: 2
          livenessProbe:
            failureThreshold: 3
            initialDelaySeconds: 30
            periodSeconds: 10
            successThreshold: 1
            tcpSocket:
              port: 3000
            timeoutSeconds: 1
          resources:
            requests:
              cpu: 250m
              memory: 750Mi
          volumeMounts:
            - mountPath: /var/lib/grafana
              name: grafana-volume
      volumes:
      - name: grafana-volume
        persistentVolumeClaim:
          claimName: grafana-pvc
---
apiVersion: v1
kind: Service
metadata:
  name: grafana
  namespace: monitoring
spec:
  type: NodePort
  ports:
    - port: 3000
      protocol: TCP
      targetPort: http-grafana
      nodePort: 33000
  selector:
    app: grafana
  #sessionAffinity: None
  #type: LoadBalancer

访问 http://172.31.7.102:33000/datasources

添加数据源

地址源直接写 prometheus.monitoring.svc.magedu.local:9090

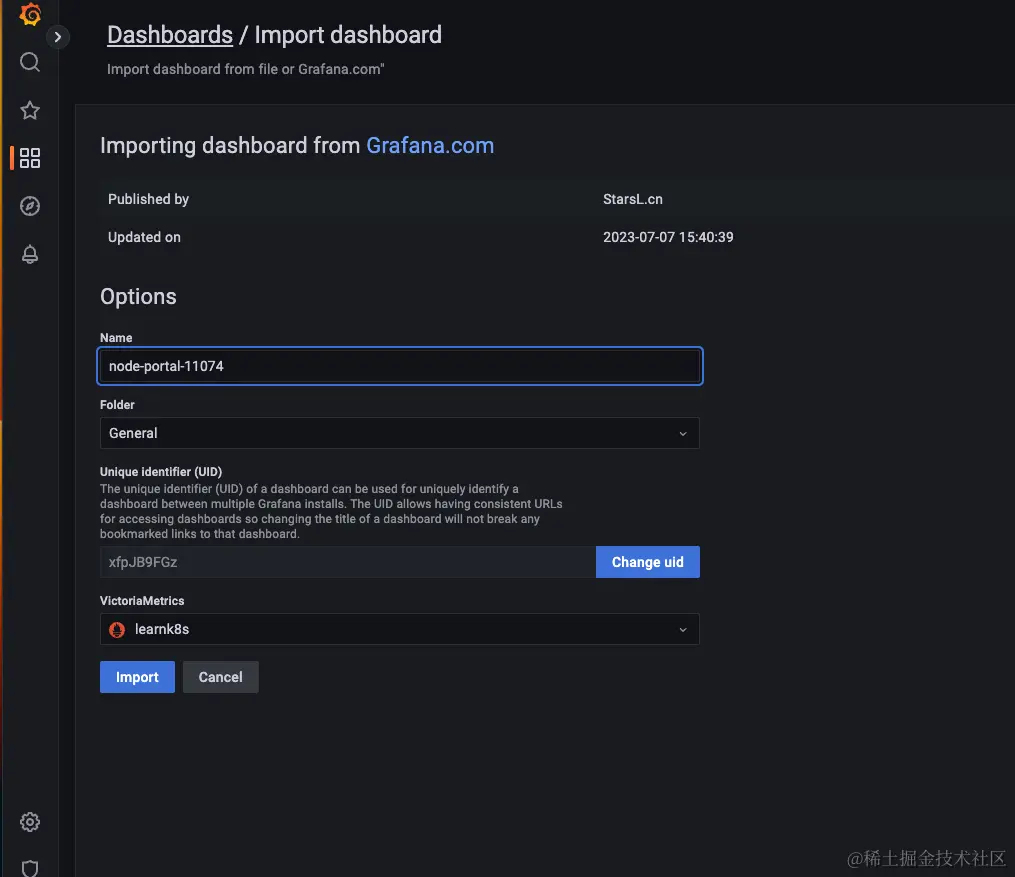

grafana导入node模板11074并验证数据

可以看到整个集群的node都加入进来了

grafana导入pod模板893并验证数据

部署kube-state-metrics

于kube-state-metrics监控Service、Deployment、ingress等资源对象的指标状态 可以理解为元数据信息

Kube-state-metrics:通过监听API Server生成有关资源对象的状态指标，比如Service、Deployment、Node、Pod等，

需要注意的是kube-state-metrics的使用场景不是用于监控对方是否存活，而是用于周期性获取目标对象的metrics指标数据并在web界面进行显示

或被prometheus抓取(如pod的状态是running还是Terminating、pod的创建时间等、Deployment、Pod、副本状态等，

• 调度了多少个replicas？
• 现在可用的有几个？
• 多少个Pod是running/stopped/terminated状态？
• Pod重启了多少次？
• 目前有多少job在运行中)

目前的kube-state-metrics收集的指标数据可参见官方的文档，github.com/kubernetes/…

kube-state-metrics 并不会存储这些指标数据，所以需要使用Prometheus来抓取这些数据然后存储

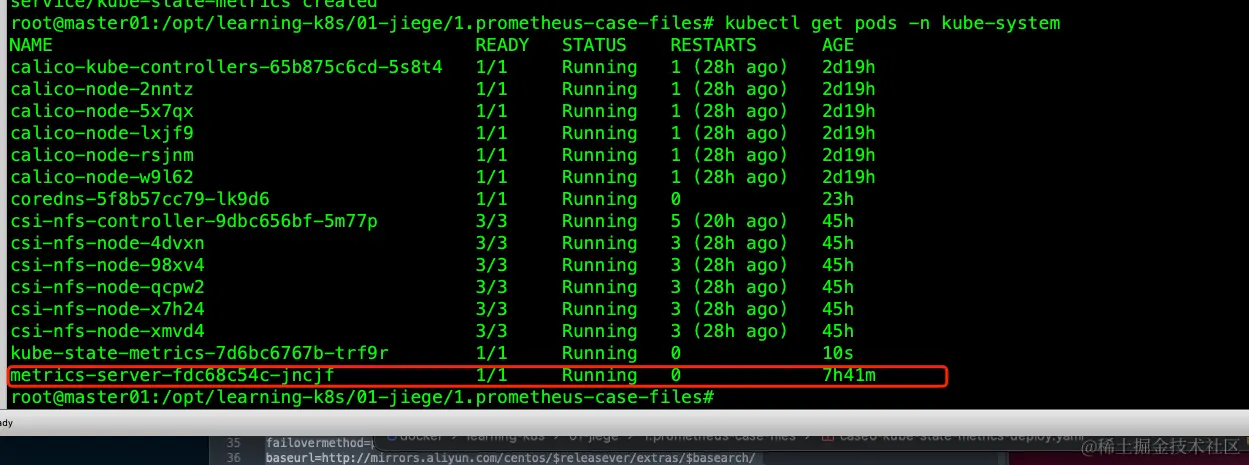

部署

apiVersion: apps/v1
kind: Deployment
metadata:
  name: kube-state-metrics
  namespace: kube-system
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kube-state-metrics
  template:
    metadata:
      labels:
        app: kube-state-metrics
    spec:
      serviceAccountName: kube-state-metrics
      containers:
      - name: kube-state-metrics
        image: registry.cn-hangzhou.aliyuncs.com/zhangshijie/kube-state-metrics:v2.6.0
        ports:
        - containerPort: 8080

---
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: kube-state-metrics
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: kube-state-metrics
rules:
- apiGroups: [""]
  resources: ["nodes", "pods", "services", "resourcequotas", "replicationcontrollers", "limitranges", "persistentvolumeclaims", "persistentvolumes", "namespaces", "endpoints"]
  verbs: ["list", "watch"]
- apiGroups: ["extensions"]
  resources: ["daemonsets", "deployments", "replicasets"]
  verbs: ["list", "watch"]
- apiGroups: ["apps"]
  resources: ["statefulsets"]
  verbs: ["list", "watch"]
- apiGroups: ["batch"]
  resources: ["cronjobs", "jobs"]
  verbs: ["list", "watch"]
- apiGroups: ["autoscaling"]
  resources: ["horizontalpodautoscalers"]
  verbs: ["list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kube-state-metrics
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kube-state-metrics
subjects:
- kind: ServiceAccount
  name: kube-state-metrics
  namespace: kube-system

---
apiVersion: v1
kind: Service
metadata:
  annotations:
    prometheus.io/scrape: 'true'
  name: kube-state-metrics
  namespace: kube-system
  labels:
    app: kube-state-metrics
spec:
  type: NodePort
  ports:
  - name: kube-state-metrics
    port: 8080
    targetPort: 8080
    nodePort: 31666
    protocol: TCP
  selector:
    app: kube-state-metrics

http://172.31.7.111:30090/targets?search=

http://172.31.7.111:31666/metrics

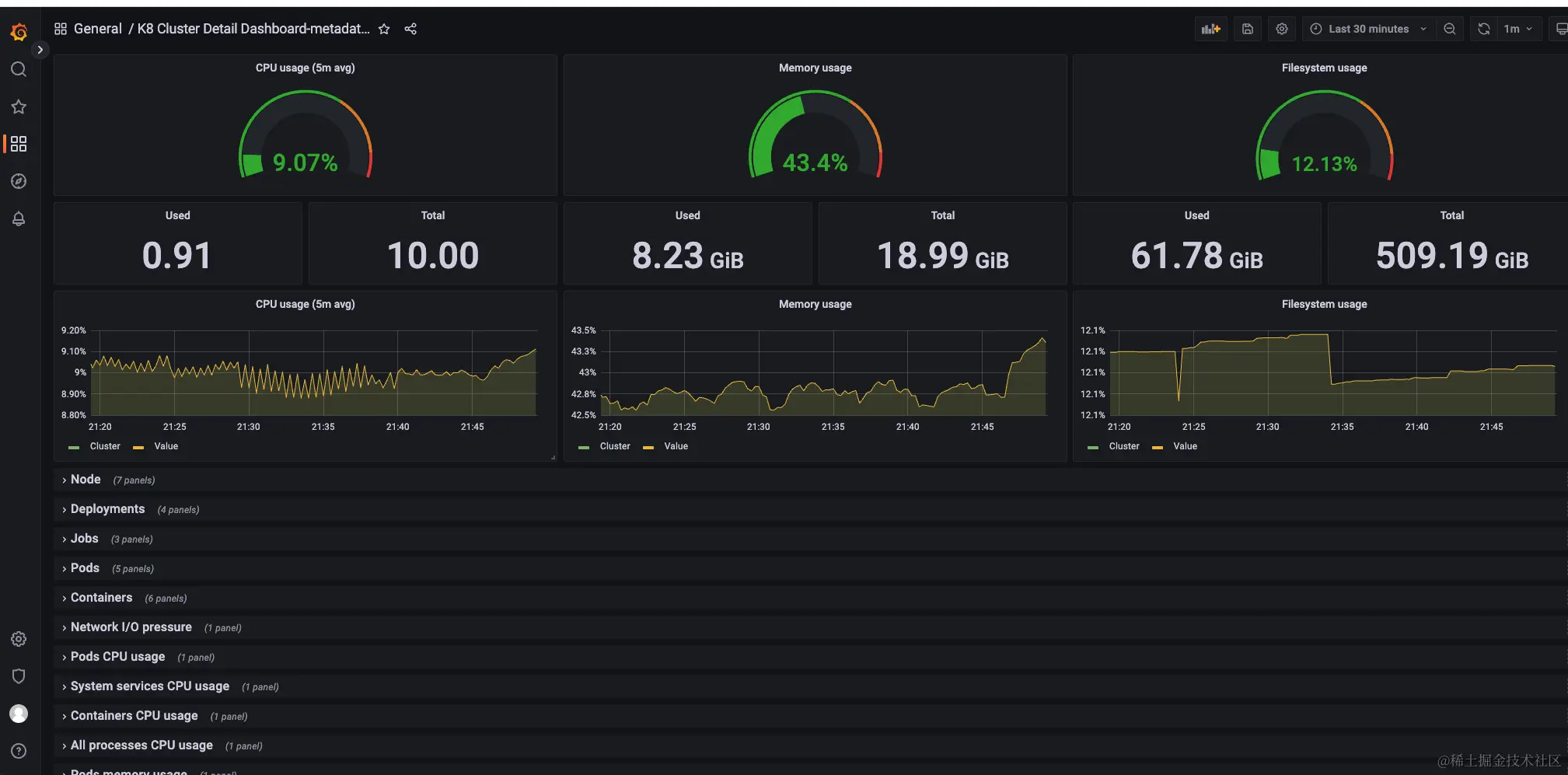

导入kube-state-metrics模板10856并验证数据

配置prometheus采集数据
