Java agent探针运用

Java Agent 是 Java 提供的一种在 JVM 启动时或运行时动态修改字节码的强大机制，广泛应用于 APM 监控（如 SkyWalking、Pinpoint）、热部署（如 JRebel）、代码覆盖率（JaCoCo）、故障注入、安全审计等场景。

一、Java Agent 的两种模式

模式	加载时机	典型用途
Premain Agent	JVM 启动时（-javaagent）	APM 探针、性能监控、字节码增强
Attach Agent	JVM 运行时动态 attach	线上诊断（如 Arthas）、动态开关

---

二、核心原理：Instrumentation

Agent 通过 java.lang.instrument.Instrumentation 接口实现：

• retransformClasses() ：重新转换已加载的类（需类支持 retransformation）
• redefineClasses() ：直接替换类的字节码（限制多，不常用）
• addTransformer() ：注册 ClassFileTransformer，在类加载时修改字节码

三、快速入门：编写一个简单 Agent

步骤 1：创建 Agent 入口类

package com.example;

import com.example.transformer.RestTemplateTraceAdvice;
import com.example.transformer.TraceAdvice;
import com.fasterxml.jackson.databind.ObjectMapper;
import net.bytebuddy.agent.builder.AgentBuilder;
import net.bytebuddy.asm.Advice;
import net.bytebuddy.description.method.MethodDescription;
import net.bytebuddy.matcher.ElementMatcher;

import java.lang.instrument.Instrumentation;
import java.util.Arrays;
import java.util.HashSet;
import java.util.Set;

import static net.bytebuddy.matcher.ElementMatchers.isAnnotatedWith;
import static net.bytebuddy.matcher.ElementMatchers.named;
import static net.bytebuddy.matcher.ElementMatchers.takesArguments;

public class TraceAgent {

    private final static String appId ;

    private static final Set<String> REQUEST_MAPPING_ANNOTATIONS = new HashSet<>(Arrays.asList(
            "org.springframework.web.bind.annotation.RequestMapping",
            "org.springframework.web.bind.annotation.GetMapping",
            "org.springframework.web.bind.annotation.PostMapping",
            "org.springframework.web.bind.annotation.PutMapping",
            "org.springframework.web.bind.annotation.DeleteMapping"
    ));

    private static CustomAgentListener customListener;

    static {
        appId = System.getProperty("appId");
    }

    public static void premain(String agentArgs, Instrumentation inst) {
        install(inst);
    }

    public static void agentmain(String agentArgs, Instrumentation inst) {
        install(inst);
    }

    private static void install(Instrumentation inst) {
        // 创建自定义监听器，输出到指定文件，只记录指定包的类
        customListener = new CustomAgentListener(
                "/Users/dsy/code/agent-demo/logs/"+appId+"-bytebuddy-agent.log",  // 日志文件路径
                "com.example"               // 只记录 com.example 包下的类
        );

        new AgentBuilder.Default()
                .with(customListener) // 👈 关键：输出匹配详情
                .disableClassFormatChanges()
                .with(AgentBuilder.RedefinitionStrategy.RETRANSFORMATION)
                .with(AgentBuilder.InitializationStrategy.NoOp.INSTANCE)
                .with(AgentBuilder.TypeStrategy.Default.REDEFINE)
                .with(AgentBuilder.DescriptionStrategy.Default.POOL_ONLY) // 👈 启用完整类型解析
                .type(
                        isAnnotatedWith(named("org.springframework.stereotype.Controller"))
                                .or(isAnnotatedWith(named("org.springframework.web.bind.annotation.RestController")))
                )
                .transform((builder, typeDescription, classLoader, module) ->
                        builder.visit(Advice.to(TraceAdvice.class)
                                .on(anyMethodAnnotatedWithRequestMapping()))
//                                builder.method(any()).intercept(MethodDelegation.to(NoOpInterceptor.class))
                )
                .type(named("org.springframework.web.client.RestTemplate"))
                .transform((builder, td, cl, module) ->
                        builder.visit(Advice.to(RestTemplateTraceAdvice.class)
                                        .on(named("exchange")
                                                .and(takesArguments(4))
                                                .or(takesArguments(5))
                                                .or(takesArguments(6))))
                )
                .installOn(inst);

        System.out.println("[Agent] Controller tracing agent installed.");
    }

    private static ElementMatcher.Junction<MethodDescription> anyMethodAnnotatedWithRequestMapping() {
        return isAnnotatedWith(named("org.springframework.web.bind.annotation.RequestMapping"))
                .or(isAnnotatedWith(named("org.springframework.web.bind.annotation.GetMapping")))
                .or(isAnnotatedWith(named("org.springframework.web.bind.annotation.PostMapping")))
                .or(isAnnotatedWith(named("org.springframework.web.bind.annotation.PutMapping")))
                .or(isAnnotatedWith(named("org.springframework.web.bind.annotation.DeleteMapping")));
    }

    // 添加关闭方法，用于清理资源
    public static void shutdown() {
        if (customListener != null) {
            customListener.close();
        }
    }
}

步骤 2：实现 TraceAdvice

package com.example.transformer;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.ObjectMapper;
import net.bytebuddy.asm.Advice;

import javax.servlet.http.HttpServletRequest;
import java.util.Arrays;
import java.util.UUID;

import static com.example.transformer.TraceContextHolder.PARENT_APP_ID;
import static com.example.transformer.TraceContextHolder.X_TRACE_ID;

public class TraceAdvice {

    public final static String appId ;

    public final static ObjectMapper objectMapper;

    static {
        appId = System.getProperty("appId");
        objectMapper = new ObjectMapper();
    }

    @Advice.OnMethodEnter
    public static void enter(@Advice.AllArguments Object[] args) {

        TraceContextHolder.TraceContext traceContext = TraceContextHolder.traceContext();

        // 尝试从参数中提取 HttpServletRequest
        HttpServletRequest request = null;
        for (Object arg : args) {
            if (arg instanceof HttpServletRequest) {
                request = (HttpServletRequest) arg;
                break;
            }
        }

        String traceId = null;
        String parentAppId = null;
        if (request != null) {
            // 优先从 Header 中获取 traceId（例如：X-Trace-Id）
            traceId = request.getHeader(X_TRACE_ID);
            parentAppId = request.getHeader(PARENT_APP_ID);
        }

        if (traceId == null || traceId.trim().isEmpty()) {
            // 未传入，则生成新 traceId（建议用 UUID 或 Snowflake）
            traceId = "trace-" + UUID.randomUUID().toString().replace("-", "").substring(0, 32);
        }

        if (parentAppId == null || parentAppId.trim().isEmpty()){
            parentAppId = "0" ;
        }

        traceContext.setTraceId(traceId);
        traceContext.setArgs(args.toString());
        traceContext.setAppId(appId);
        traceContext.setParentAppId(parentAppId);
        traceContext.setTraceSpanStartTime(System.currentTimeMillis());

        // 绑定到当前线程
//        TraceContextHolder.setTraceContext(traceContext);

        System.err.println(">>> Entering method with args: " + Arrays.toString(args));
    }

    @Advice.OnMethodExit
    public static void exit(@Advice.Return Object result) {
        TraceContextHolder.TraceContext traceContext = TraceContextHolder.traceContext();
        traceContext.setTraceSpanEndTime(System.currentTimeMillis());
        try {
            traceContext.setResult(objectMapper.writeValueAsString(result));
        } catch (JsonProcessingException e) {
            throw new RuntimeException(e);
        }
        System.err.println("<<< Exiting method, returned: " + traceContext.toSting());
    }
}

步骤 3：用于跟踪调用链的上下文

在 src/main/resources/META-INF/MANIFEST.MF 中声明：

// com/example/transformer/TraceContextHolder.java
package com.example.transformer;

public class TraceContextHolder {

    public final static String X_TRACE_ID = "X-Trace-Id";
    public final static String PARENT_APP_ID = "X-Parent-APP-Id";

    static String FORMAT = "traceId:%s,parentAppId:%s,appId:%s,traceSpanStartTime:%d,traceSpanEndTime:%d,args:%s,result:%s";
    private static final ThreadLocal<TraceContext> TRACE = new ThreadLocal<>();

    public static void setTraceContext(TraceContext traceContext) {
        TRACE.set(traceContext);
    }

    public static void clear() {
        TRACE.remove();
    }

    public static TraceContext traceContext() {
        TraceContext object;
        if (TRACE.get() != null) {
            object = TRACE.get();
        } else {
            object = new TraceContext();
            TRACE.set(object);
        }
        return object;
    }

    public static class TraceContext{
        private String traceId;
        private String parentAppId;
        private String appId;
        private Long traceSpanStartTime;
        private Long traceSpanEndTime;
        private String args;

        private String result;

        public String getTraceId() {
            return traceId;
        }

        public void setTraceId(String traceId) {
            this.traceId = traceId;
        }

        public String getParentAppId() {
            return parentAppId;
        }

        public void setParentAppId(String parentAppId) {
            this.parentAppId = parentAppId;
        }

        public String getAppId() {
            return appId;
        }

        public void setAppId(String appId) {
            this.appId = appId;
        }

        public Long getTraceSpanStartTime() {
            return traceSpanStartTime;
        }

        public void setTraceSpanStartTime(Long traceSpanStartTime) {
            this.traceSpanStartTime = traceSpanStartTime;
        }

        public Long getTraceSpanEndTime() {
            return traceSpanEndTime;
        }

        public void setTraceSpanEndTime(Long traceSpanEndTime) {
            this.traceSpanEndTime = traceSpanEndTime;
        }

        public String getArgs() {
            return args;
        }

        public void setArgs(String args) {
            this.args = args;
        }

        public String getResult() {
            return result;
        }

        public void setResult(String result) {
            this.result = result;
        }

        public String toSting(){

            return String.format(FORMAT,traceId,parentAppId,appId,traceSpanStartTime,traceSpanEndTime,args,result);

        }
    }
}

步骤 4：打包 & 使用

如果用 Maven，可通过 maven-jar-plugin 自动生成：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.example</groupId>
        <artifactId>agent-demo</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <artifactId>agent3</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <!-- ByteBuddy 核心 -->
        <dependency>
            <groupId>net.bytebuddy</groupId>
            <artifactId>byte-buddy</artifactId>
            <version>1.12.10</version>
        </dependency>
        <dependency>
            <groupId>net.bytebuddy</groupId>
            <artifactId>byte-buddy-agent</artifactId>
            <version>1.12.10</version>
        </dependency>

        <!-- Spring Web（仅用于类型判断，非强制） -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>5.3.31</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>4.0.1</version>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>1.7.36</version>
            <scope>compile</scope>
        </dependency>

        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.17.0</version> <!-- 使用最新稳定版 -->
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <!-- 使用 shade plugin 打包 fat jar -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-shade-plugin</artifactId>
                <version>3.5.0</version>
                <executions>
                    <execution>
                        <phase>package</phase>
                        <goals>
                            <goal>shade</goal>
                        </goals>
                        <configuration>
                            <transformers>
                                <transformer implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
                                    <manifestEntries>
                                        <Premain-Class>com.example.TraceAgent2</Premain-Class>
                                        <Agent-Class>com.example.TraceAgent2</Agent-Class>
                                        <Can-Redefine-Classes>true</Can-Redefine-Classes>
                                        <Can-Retransform-Classes>true</Can-Retransform-Classes>
                                    </manifestEntries>
                                </transformer>
                            </transformers>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>

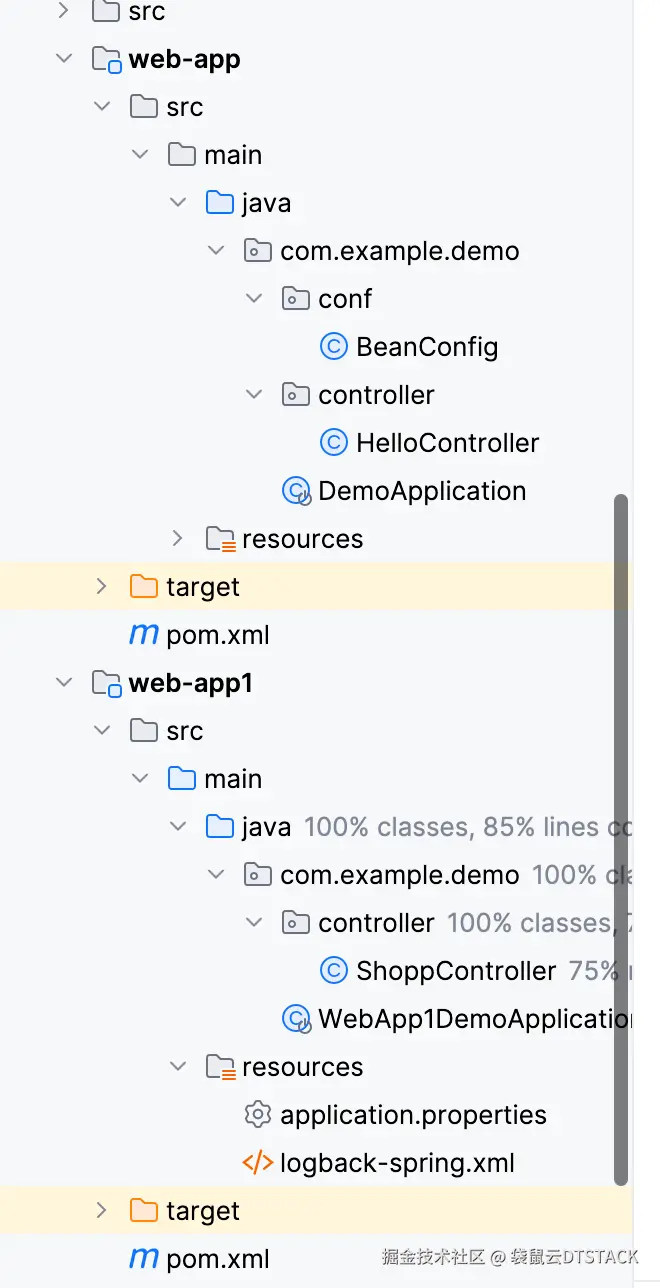

四、创建两个web应用验证trace到调用生命周期

1、web-app

package com.example.demo.conf;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;

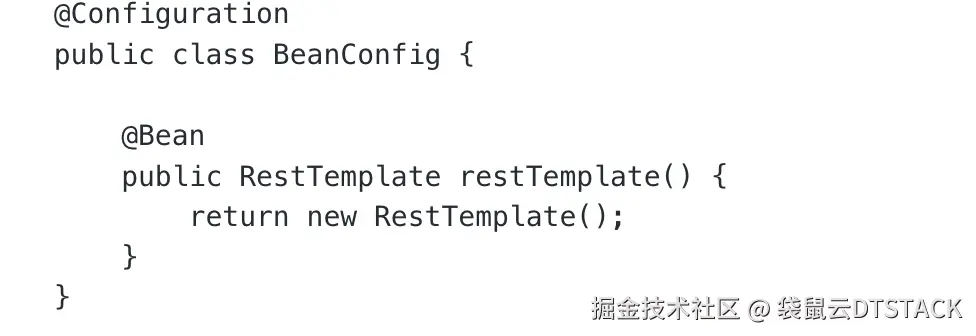

@Configuration
public class BeanConfig {

    @Bean
    public RestTemplate restTemplate() {
        return new RestTemplate();
    }
}

package com.example.demo.controller;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.http.HttpMethod;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

import javax.annotation.Resource;

@RestController
public class HelloController {

    private static final Logger logger = LoggerFactory.getLogger(HelloController.class);

    @Resource
    private RestTemplate restTemplate;

    @GetMapping("/hello")
    public String hello(@RequestParam(defaultValue = "World") String name) {
        logger.info("Processing hello request for: {}", name);
        String url = "http://localhost:8081/shopping?commodity=香蕉";
        String r = restTemplate.exchange(url, HttpMethod.GET,null,String.class).getBody();
        return "Hello, " + name + "!" + " commodity = " + r;
    }

    @PostMapping("/user")
    public String createUser(@RequestBody String userData) {
        logger.info("Creating user with data: {}", userData);
        return "User created: " + userData;
    }

    @GetMapping("/error")
    public String error() {
        logger.info("Triggering error");
        throw new RuntimeException("Test exception");
    }
}

2、web- app1

package com.example.demo.controller;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class ShoppController {

    private static final Logger logger = LoggerFactory.getLogger(ShoppController.class);

    @GetMapping("/shopping")
    public String hello(@RequestParam(defaultValue = "苹果") String commodity) {
        logger.info("Processing hello request for: {}", commodity);
        return "commodity, " + commodity + "!";
    }

    @PostMapping("/user")
    public String createUser(@RequestBody String userData) {
        logger.info("Creating user with data: {}", userData);
        return "User created: " + userData;
    }

    @GetMapping("/error")
    public String error() {
        logger.info("Triggering error");
        throw new RuntimeException("Test exception");
    }
}

从上面可以看到我们在web-app的应用中的hell接口中调用了web-app1的shopping接口，且web-app的接入方式是无代码入侵形式的RestTemplate，主要是依赖agent对asm对增强能实现对trace调用透传

且web-app和web-app1两个进程起来时要通过-javaagent方式将agent的探针无入侵的方式接入应用中

而-DappId时接入的应用id，用于跟踪tarce所在的应用和构建应用的拓扑图

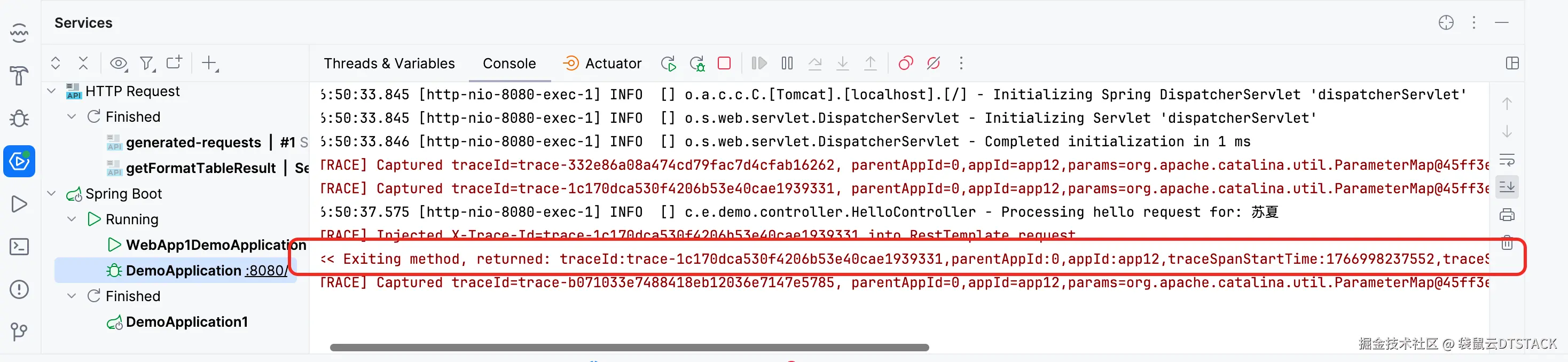

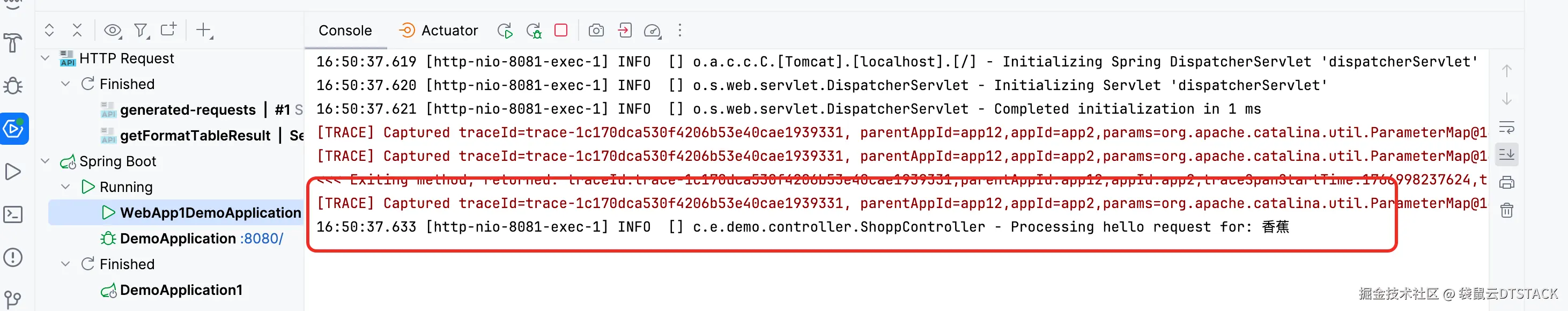

五、验证

触发接口

至此可以通过Agent的探针实现对应用无入侵式，实现调用链的APM 监控、构建应用的拓扑图，

并切基于Agent Advice 的增强方式可以进一步实现对中间件的跟踪和观测，如接入DB的观测。
