Jetpack Compose Brush API 详解 —— 新手指南
本文详细介绍了如何在 Jetpack Compose 中实现文本渐变效果的方法，利用 Brush API提供的更符合 Compose 习惯用法的新方法，在 TextStyle 和 SpanStyle 中使用 Brush等，这使得为文本添加复杂的颜色变化变得前所未有的简单。

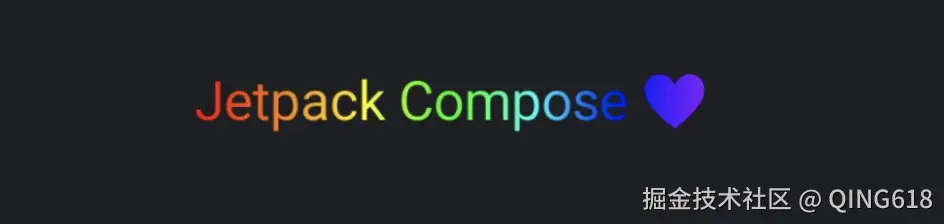

1. Brush 使用 drawWithCache 修饰符 “emoji" 表情也会被绘制
Text(
text = "Jetpack Compose ❤",
fontSize = 18.sp,
modifier = Modifier.padding(start = 16.dp, top = 24.dp, end = 16.dp)
.graphicsLayer(alpha = 0.99f).drawWithCache {
val brush = Brush.horizontalGradient(rainbowColors)
onDrawWithContent {
drawContent()
drawRect(brush, blendMode = BlendMode.SrcAtop)
}
}
)

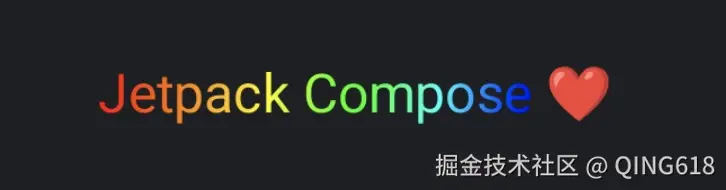

2. Brush 简单使用
Text(
modifier = Modifier.padding(start = 16.dp, top = 24.dp, end = 16.dp),
text = "Jetpack Compose ❤",
fontSize = 18.sp,
style = TextStyle(
brush = Brush.linearGradient(
colors = rainbowColors
)
)
)

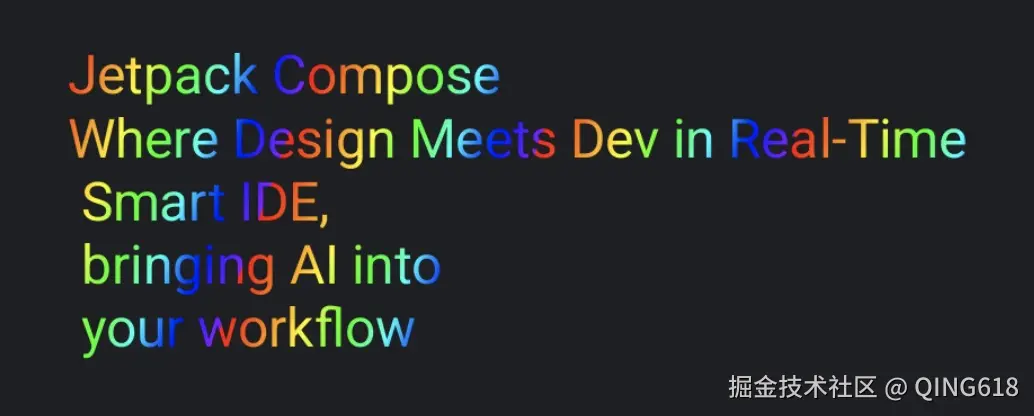

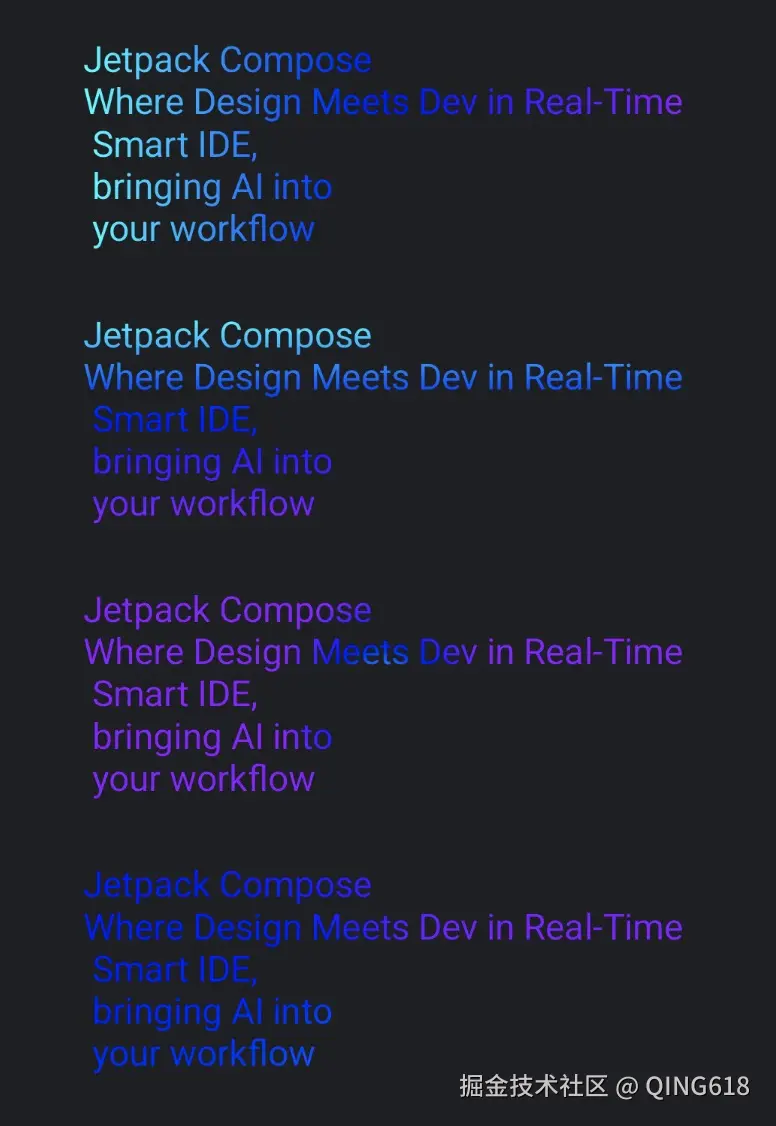

3. Brush 简单使用2(横向、竖向、径向渐变、扇形)
// 横向笔刷
Text(
modifier = Modifier.padding(start = 16.dp, top = 24.dp, end = 16.dp),
text = "Jetpack Compose" +
"\nWhere Design Meets Dev in Real-Time" +
"\n Smart IDE," +
"\n bringing AI into" +
"\n your workflow",
fontSize = 18.sp,
style = TextStyle(
brush = Brush.horizontalGradient(
colors = rainbowColors2
)
)
)
// 竖向笔刷
Text(
modifier = Modifier.padding(start = 16.dp, top = 24.dp, end = 16.dp),
text = "Jetpack Compose" +
"\nWhere Design Meets Dev in Real-Time" +
"\n Smart IDE," +
"\n bringing AI into" +
"\n your workflow",
fontSize = 18.sp,
style = TextStyle(
brush = Brush.verticalGradient(
colors = rainbowColors2
)
)
)
// 放射笔刷
Text(
modifier = Modifier.padding(start = 16.dp, top = 24.dp, end = 16.dp),
text = "Jetpack Compose" +
"\nWhere Design Meets Dev in Real-Time" +
"\n Smart IDE," +
"\n bringing AI into" +
"\n your workflow",
fontSize = 18.sp,
style = TextStyle(
brush = Brush.radialGradient(
colors = rainbowColors2
)
)
)
// 扫掠笔刷
Text(
modifier = Modifier.padding(start = 16.dp, top = 24.dp, end = 16.dp),
text = "Jetpack Compose" +
"\nWhere Design Meets Dev in Real-Time" +
"\n Smart IDE," +
"\n bringing AI into" +
"\n your workflow",
fontSize = 18.sp,
style = TextStyle(
brush = Brush.sweepGradient(
colors = rainbowColors2
)
)
)

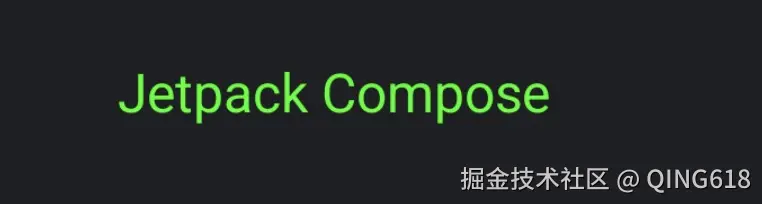

4. Brush 单色
// 单色笔刷
Text(
modifier = Modifier.padding(start = 16.dp, top = 24.dp, end = 16.dp),
text = "Jetpack Compose" +
"\nWhere Design Meets Dev in Real-Time" +
"\n Smart IDE," +
"\n bringing AI into" +
"\n your workflow",
fontSize = 18.sp,
style = TextStyle(
brush = SolidColor(Color.Green)
)
)
5. Brush自定义
Text(
modifier = Modifier.padding(start = 16.dp, top = 24.dp, end = 16.dp),
text = "Jetpack Compose" +
"\nWhere Design Meets Dev in Real-Time" +
"\n Smart IDE," +
"\n bringing AI into" +
"\n your workflow",
fontSize = 18.sp,
style = TextStyle(
brush = ScaledRepetitionBrush(Brush.linearGradient(
colors = rainbowColors,
tileMode = TileMode.Repeated
) as ShaderBrush)
)
)
//自定义笔刷
class ScaledRepetitionBrush(val shaderBrush: ShaderBrush): ShaderBrush() {
override fun createShader(size: Size): Shader {
return shaderBrush.createShader(size / 4f)
}
}
色值集
val rainbowColors = listOf(
Color(0xFFFF0000),// Red
Color(0xFFFF7F00),// Orange
Color(0xFFFFFF00),// Yellow
Color(0xFF00FF00),// Green
Color(0xFF00FFFF),// Cyan
Color(0xFF0000FF),// Blue
Color(0xFF8B00FF)// Purple (or Violet)
)
