AI 智能体(Agents)已经将大型语言模型(LLMs) 的能力提升了一个台阶,而深度智能体(Deep Agents)又承诺,它不仅仅可以回答你的问题,而且还能够预先思考分解任务、创建自己的待办事项(TODOs),甚至可以生成子智能体来完成工作,让 AI Agents的能力有提升了一个档次。

深度智能体是基于 LangGraph 构建的,LangGraph 是一个专门为创建能够处理复杂任务的智能体而设计的库。让我们了解下深度智能体,理解它们的核心能力,然后使用该库来构建我们自己的 AI Agents。

Deep Agents

LangGraph 为有状态的工作流提供了基于图(graph-based)的运行时,但你仍然需要从零开始构建自己的规划、上下文管理或任务分解逻辑。DeepAgents(基于 LangGraph 构建)则将规划工具、基于虚拟文件系统内存子智能体编排等功能开箱即用地打包在一起。

可以通过独立的 deepagents 库来使用深度智能体(Deep Agents)。它不仅包含了规划能力、还可以生成子智能体,同时利用文件系统进行上下文管理。它还能与 LangSmith 结合使用,用于部署和监控。本文中构建的智能体默认使用 “claude-sonnet-4-5-20250929” 模型,但可以根据需要进行自定义。在我们开始创建智能体之前,先来了解一下它的核心组件。

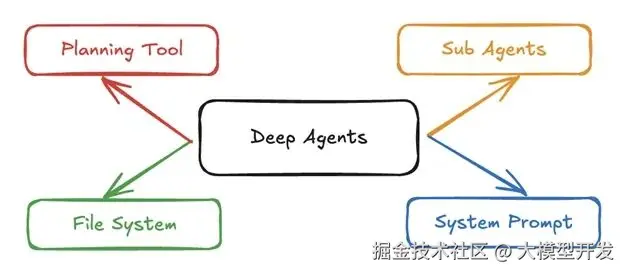

核心组件

  • 详细的系统提示词(Detailed System Prompts):  深度智能体使用带有详细说明和示例的系统提示词。
  • 规划工具(Planning Tools):  深度智能体内置了用于规划的工具,智能体使用 TODO 列表管理工具来实现规划。这有助于它们即使在执行复杂任务时也能保持专注。
  • 子智能体(Sub-Agents):  子智能体被用于处理委派的任务,它们在上下文隔离的环境中执行。
  • 文件系统(File System):  虚拟文件系统用于上下文管理内存管理。这里的 AI 智能体将文件作为工具,在上下文窗口满时将上下文卸载到内存中。

Deep Agents 示例

让我们使用 deepagents 库来构建一个Research Agent,它将使用 Tavily 进行网络搜索,并具备深度智能体的所有组件。

环境准备

需要一个 OpenAI API 密钥来创建这个智能体,你也可以选择使用 Gemini/Claude 等其他模型提供商。请从以下平台获取你的 OpenAI 密钥:platform.openai.com/api-keys

同时,还要从这里获取用于网络搜索的 Tavily API 密钥app.tavily.com/home

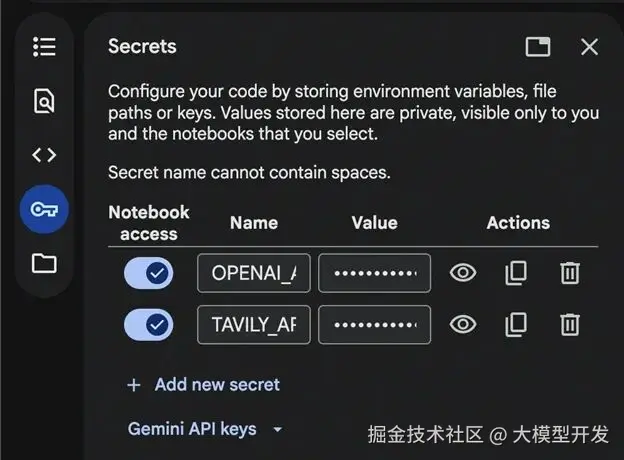

在 Google Colab 中打开一个新的 Notebook 并添加密文:

将密钥保存为 OPENAI_API_KEY 和 TAVILY_API_KEY 用于演示,并且不要忘记开启 Notebook 对这些密文的访问权限。

安装依赖库

!pip install deepagents tavily-python langchain-openai

我们将安装运行代码所需的这些库。

导入和 API 设置

import os
from deepagents import create_deep_agent
from tavily import TavilyClient
from langchain.chat_models import init_chat_model
from google.colab import userdata

# Set API keys
TAVILY_API_KEY = userdata.get("TAVILY_API_KEY")
os.environ["OPENAI_API_KEY"] = userdata.get("OPENAI_API_KEY")

我们将 Tavily API 密钥存储在一个变量中,并将 OpenAI API 密钥设置到环境变量中。

定义工具、子智能体和主智能体

# Initialize Tavily client
tavily_client = TavilyClient(api_key=TAVILY_API_KEY)

# Define web search tool
def internet_search(query: str, max_results: int5) -> str:
"""Run a web search to find current information"""
  results = tavily_client.search(query, max_results=max_results)
return results

# Define a specialized research sub-agent
research_subagent = {
"name""data-analyzer",
"description""Specialized agent for analyzing data and creating detailed reports",
"system_prompt""""You are an expert data analyst and report writer.
  Analyze information thoroughly and create well-structured, detailed reports.""",
"tools": [internet_search],
"model""openai:gpt-4o",
}

# Initialize GPT-4o-mini model
model = init_chat_model("openai:gpt-4o-mini")

# Create the deep agent
# The agent automatically has access to: write_todos, read_todos, ls, read_file,
# write_file, edit_file, glob, grep, and task (for subagents)
agent = create_deep_agent(
  model=model,
  tools=[internet_search],  # Passing the tool
  system_prompt="""You are a thorough research assistant. For this task:
  1. Use write_todos to create a task list breaking down the research
  2. Use internet_search to gather current information
  3. Use write_file to save your findings to /research_findings.md
  4. You can delegate detailed analysis to the data-analyzer subagent using the task tool
  5. Create a final comprehensive report and save it to /final_report.md
  6. Use read_todos to check your progress

  Be systematic and thorough in your research.""",
  subagents=[research_subagent],
)

我们定义了一个用于网络搜索的工具,并将其传递给了我们的智能体。我们在这个演示中使用了 OpenAI 的 gpt-4o-mini 模型,你可以将其更改为任何其他模型。

另请注意,我们没有创建任何文件,也没有为上下文卸载所需的文件系统或 TODO 列表定义任何内容。这些功能都已在 create_deep_agent() 中预构建,并默认可供智能体访问。

运行

# Research query
research_topic = "What are the latest developments in AI agents and LangGraph in 2025?"

print(f"Starting research on: {research_topic}\n")
print("=" * 70)

# Execute the agent
result = agent.invoke({
  "messages": [{"role""user""content": research_topic}]
})

print("\n" + "=" * 70)
print("Research completed.\n")

注意:  智能体的执行可能需要一些时间。

输出结果

# Agent execution trace
print("AGENT EXECUTION TRACE:")
print("-" * 70)
for i, msg in enumerate(result["messages"]):
if hasattr(msg, 'type'):
    print(f"\n[{i}] Type: {msg.type}")
    if msg.type == "human":
      print(f"Human: {msg.content}")
    elif msg.type == "ai":
      if hasattr(msg, 'tool_calls'and msg.tool_calls:
        print(f"AI tool calls: {[tc['name'for tc in msg.tool_calls]}")
      if msg.content:
        print(f"AI: {msg.content[:200]}...")
    elif msg.type == "tool":
      print(f"Tool '{msg.name}' result: {str(msg.content)[:200]}...")
# Final AI response
print("\n" + "=" * 70)
final_message = result["messages"][-1]
print("FINAL RESPONSE:")
print("-" * 70)
print(final_message.content)

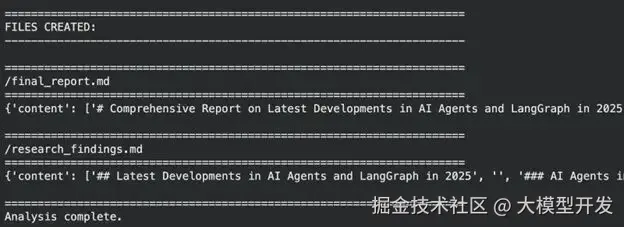

# Files created
print("\n" + "=" * 70)
print("FILES CREATED:")
print("-" * 70)
if"files"in result and result["files"]:
for filepath in sorted(result["files"].keys()):
    content = result["files"][filepath]
    print(f"\n{'=' * 70}")
    print(f"{filepath}")
    print(f"{'=' * 70}")
    print(content)
else:
  print("No files found.")

print("\n" + "=" * 70)
print("Analysis complete.")

正如我们所看到一样,这个智能体做得很好。它维护了一个虚拟文件系统,经过多次迭代后给出了响应,并认为自己应该是一个“深度智能体”。但我们的系统仍有改进的空间,让我们看看下一节中可以进行哪些改进。

我们构建了一个简单的深度智能体,如果你感兴趣的话,可以基于此并构建出更好的东西。以下是可以改进这个智能体的一些方法:

  • 使用长期记忆(Long-term Memory):  深度智能体可以将用户偏好和反馈保存在文件(/memories/)中。这将帮助智能体给出更好的答案,并从对话中建立知识库。
  • 控制文件系统(Control File-system):  默认情况下,文件存储在虚拟状态中,你可以使用 deepagents.backends 中的 FilesystemBackend 将其更改为不同的后端或本地磁盘。
  • 优化系统提示词(Refining the System Prompts):  你可以测试多个提示词,看看哪个最适合你的需求。

成功构建了我们的深度智能体,现在可以看到 AI 智能体如何能够利用 LangGraph 来处理任务,将 LLM 的能力提升一个台阶。凭借内置的规划子智能体虚拟文件系统,它们能够顺畅地管理 TODO 列表、上下文和研究工作流。深度智能体功能强大,但也要记住,如果一个任务更简单,可以通过一个简单的智能体或 LLM 来完成,那么就不建议使用深度智能体。
