1.6 Trigonometric functions

35 阅读1分钟

Radian measure: 弧度的概念,指的是一个角在单位圆上对应的弧度的长度。

比如已知单位圆的周长为2π2\pi,整圆旋转一周是360360^{\circ},那么弧度和角度换算公式为:

1 degree =π180 radian1\ degree\ = \frac{\pi}{180}\ radian
1 radian =180π degree1\ radian\ = \frac{180}{\pi}\ degree

同时,一个预定是以笛卡尔坐标系原点为起点的射线,它与x轴的夹角,当射线逆时针旋转时夹角为正,当射线顺时针旋转时夹角为负。\

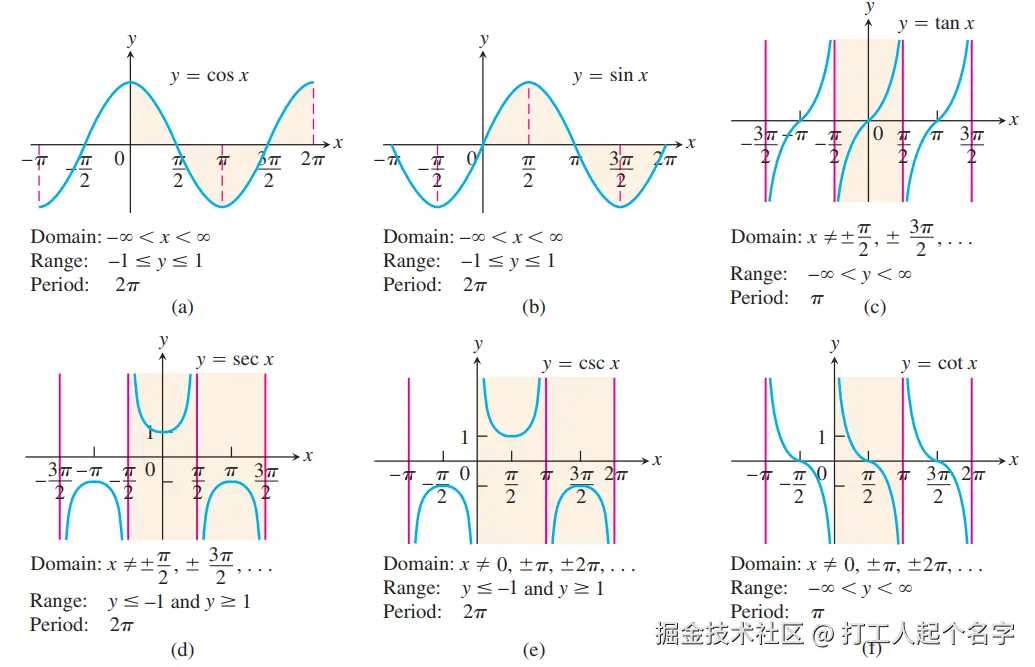

一些常见的三角函数和它们的图像:


Periodic function: 周期函数的定义

"A function f(x) is periodic if there is a positive number p such that f(x+p)=f(x)f(x+p) = f(x) for every value of x. The smallest such value of p is the period of f."

三角函数的最重要两个公式:

cos2ϕ+sin2ϕ=1\cos^2\phi + \sin^2\phi = 1

cos(A+B)=cosAcosBsinAsinB\cos(A + B) = \cos A\cos B - \sin A\sin B
sin(A+B)=sinAcosB+cosAsinB\sin(A + B) = \sin A\cos B + \cos A\sin B

这两个公式,加上三角函数本身的定义和属性,可以推导出绝大部份的公式。这些包括:

tanϕ=sinϕcosϕ\tan\phi = \frac{\sin\phi}{\cos\phi}
cotϕ=1tanϕ\cot\phi = \frac{1}{\tan\phi}
secϕ=1cosϕ\sec\phi = \frac{1}{\cos\phi}
cscϕ=1sinϕ\csc\phi = \frac{1}{\sin\phi}

tanϕ\tan\phicotϕ\cot\phi的周期为ϕ\phi,其它三角函数的周期为2ϕ2\phi

cos和sec是偶函数,其它为奇函数。\

The law of cosines: 这个定律在三角形求边长的时候很有用,它是指已知一个三角形有a,b,c三边,c边对应的角为ϕ\phi,那么三边和角之间存在以下关系。

c2=a2+b22abcosϕc^2 = a^2 + b^2 - 2ab\cos\phi

将三角形画到笛卡尔坐标上


c的长度即是A和B点之间的距离,根据两点间距离公式可得:

c2=(acosϕb)2+(asinϕ0)2   =a2(cos2ϕ+sin2ϕ)+b22abcosϕ   =a2+b22abcosϕc^2 = (a\cos\phi - b)^2 + (a\sin\phi - 0)^2 \\ \ \ \ = a^2(\cos^2\phi + \sin^2\phi) + b^2 - 2ab\cos\phi \\ \ \ \ = a^2 + b^2 - 2ab\cos\phi

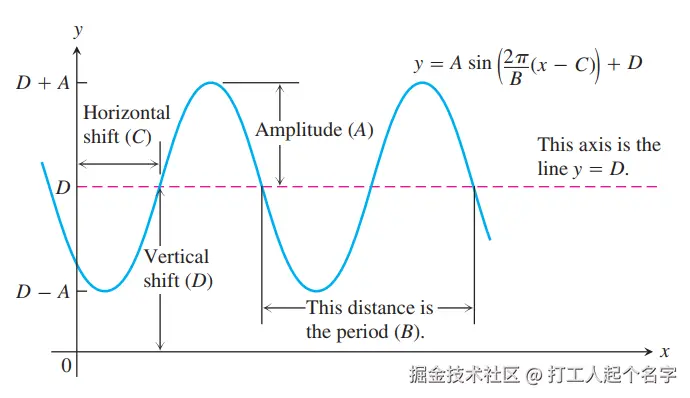

三角函数最重要的性质是它的周期性,可以说任何有周期属性的关系,都可以用三角函数拟合出来。根据上一节关于函数转换的特性,应用到三角函数上,可以得到很多周期函数的特性:

f(x)=Asin[2πB(xC)]+Df(x) = A\sin[\frac{2\pi}{B}(x - C)] + D
