金融数据分析与可视化系统 - 简介
基于Hadoop+Django的金融数据分析与可视化系统是一个集大数据处理、智能分析和可视化展示于一体的综合性平台。该系统采用Hadoop分布式存储架构作为底层数据基础设施，利用HDFS实现海量金融数据的可靠存储，通过Spark计算引擎进行高效的数据处理和分析计算。系统后端基于Django框架构建，提供稳定的Web服务接口，前端采用Vue+ElementUI+Echarts技术栈，实现交互友好的用户界面和丰富的数据可视化效果。系统核心功能涵盖客户基本画像维度分析、营销活动成效评估、客户通话行为分析和宏观经济环境分析四大模块，能够对银行客户的职业分布、年龄结构、婚姻状况、教育背景等维度进行深度挖掘，同时评估不同营销渠道和策略的转化效果，分析客户通话时长与订阅意愿的关联性，并结合消费者物价指数、就业率等宏观经济指标，为金融机构提供全方位的数据洞察。系统通过Pandas和NumPy进行数据预处理，利用Spark SQL实现复杂查询，最终以直观的图表形式展现分析结果，帮助决策者更好地理解客户行为模式和市场趋势。
金融数据分析与可视化系统 -技术
开发语言：java或Python
数据库：MySQL
系统架构：B/S
前端：Vue+ElementUI+HTML+CSS+JavaScript+jQuery+Echarts
大数据框架：Hadoop+Spark（本次没用Hive，支持定制）
后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)
金融数据分析与可视化系统 - 背景
当前金融行业正面临着数据爆炸式增长的挑战，银行、证券、保险等金融机构每天产生大量的交易记录、客户信息、市场数据和风险指标。传统的数据处理方式往往依赖于关系型数据库和单机计算，在面对TB级甚至PB级的海量数据时显得力不从心，分析效率低下且难以挖掘数据背后的深层价值。金融机构迫切需要借助大数据技术来提升数据处理能力，实现对客户行为的精准分析和营销策略的科学制定。与此同时，监管部门对金融机构的数据治理和风险管控要求日益严格，要求金融机构建立完善的数据分析体系，能够及时发现潜在风险并做出预警。在这样的背景下，开发一套基于大数据技术的金融数据分析与可视化系统，既能满足金融机构的业务需求，也符合行业发展的技术趋势。 本系统的开发具有一定的理论探索价值和实际应用意义。从技术角度来看，通过将Hadoop生态系统与Web开发框架相结合，探索了大数据技术在金融领域的具体应用模式，为类似的跨领域技术融合提供了可参考的实践案例。从业务角度来看，系统能够帮助金融机构更好地理解客户需求和行为特征，优化营销资源配置，提升服务质量和客户满意度。对于个人学习而言，通过完整的系统开发过程，能够深入掌握大数据处理的核心技术，熟悉从数据采集、存储、计算到可视化展示的完整技术链路，提升解决复杂工程问题的能力。虽然作为毕业设计项目，系统在规模和复杂度上相对有限，但其设计思路和技术架构为后续的深入研究和工程实践奠定了基础，同时也为其他同类项目的开发提供了借鉴和参考价值。
金融数据分析与可视化系统 -视频展示

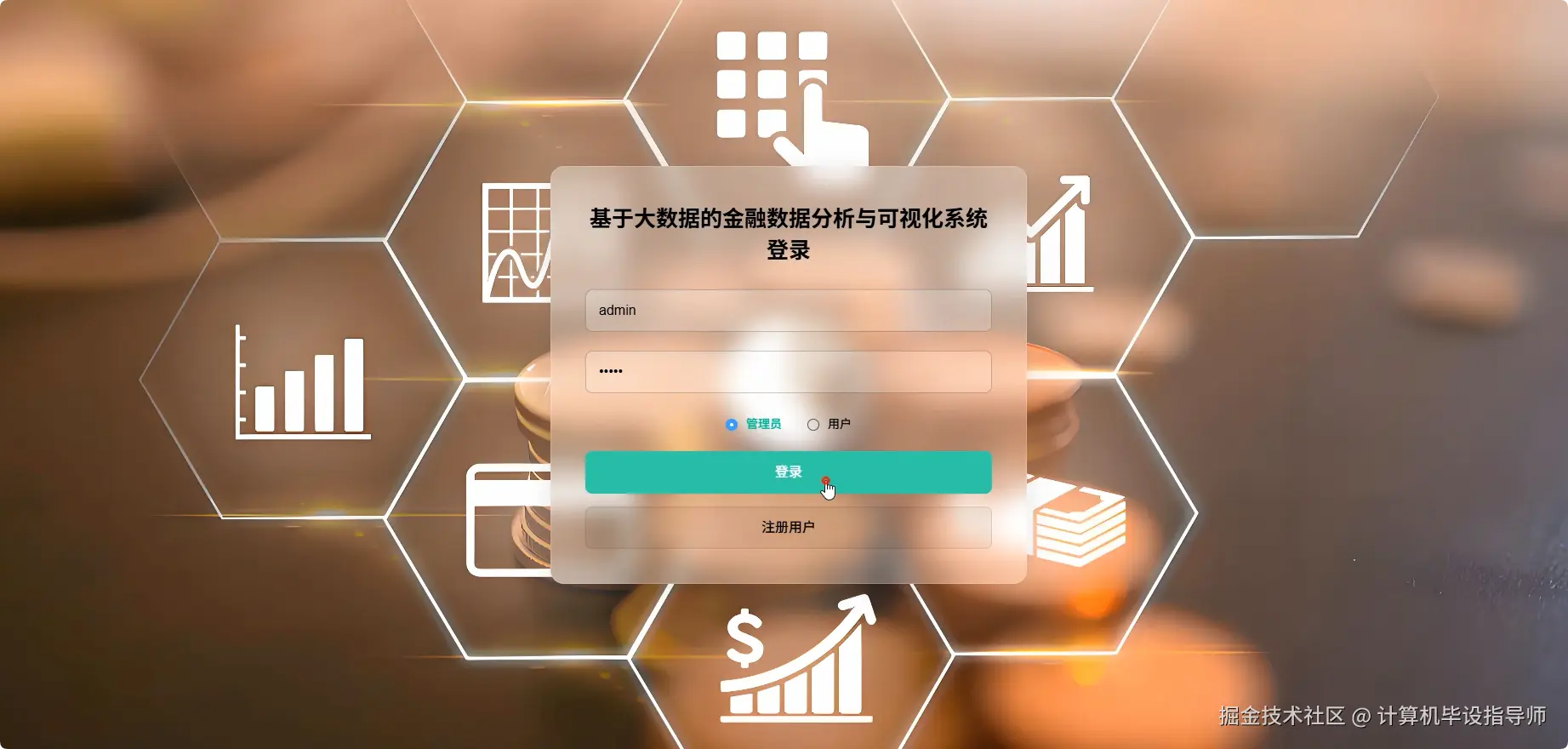

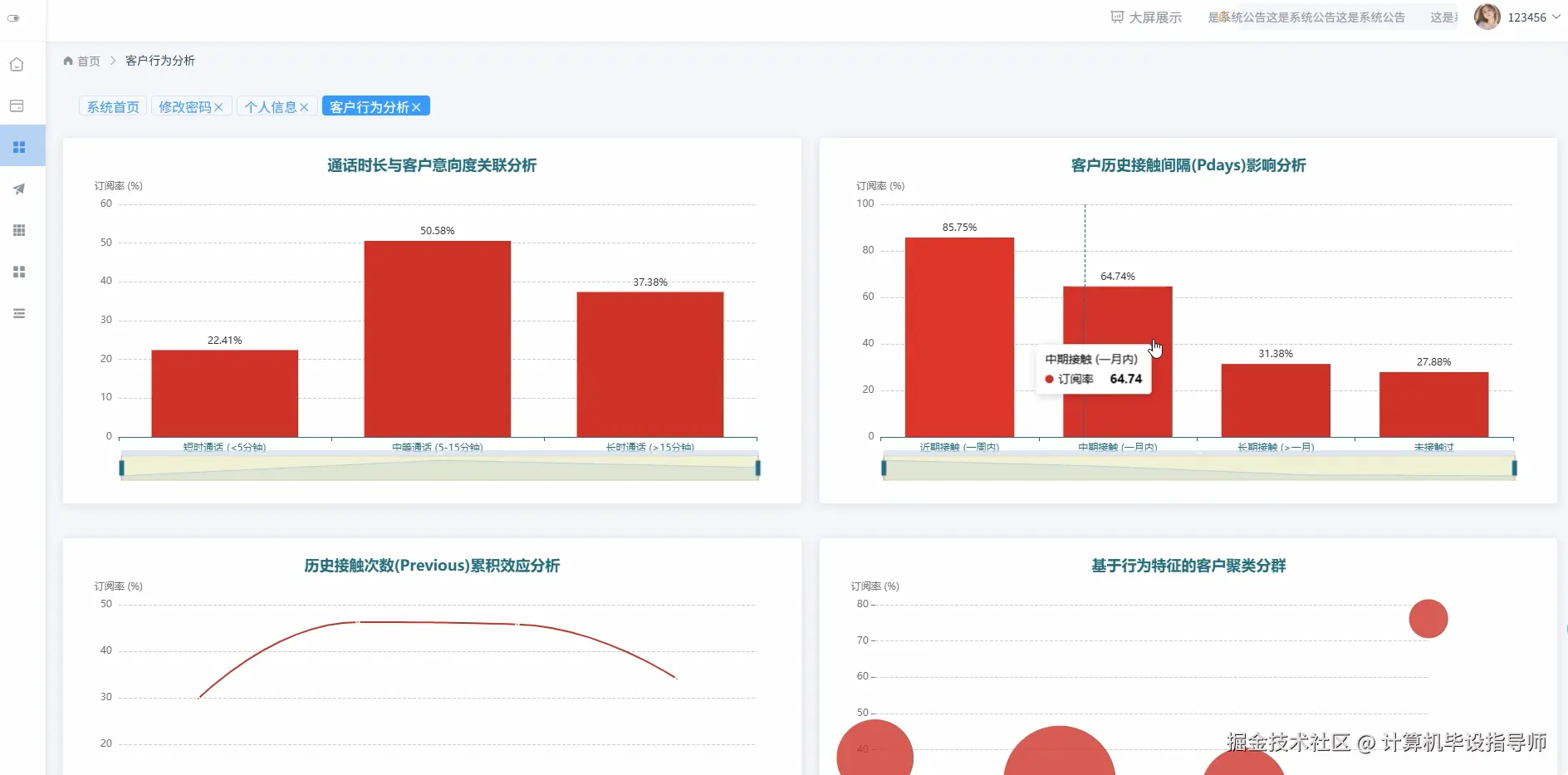

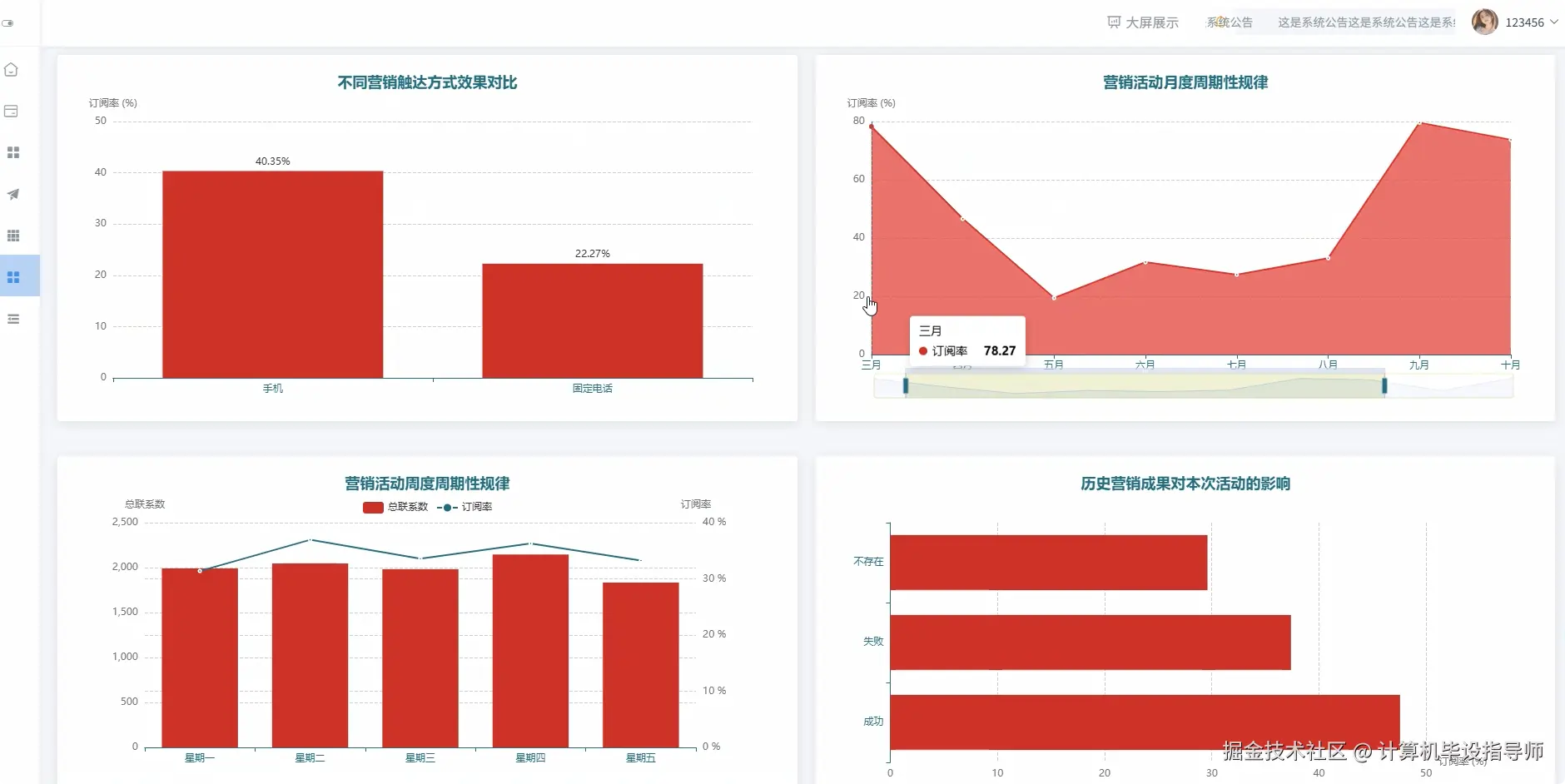

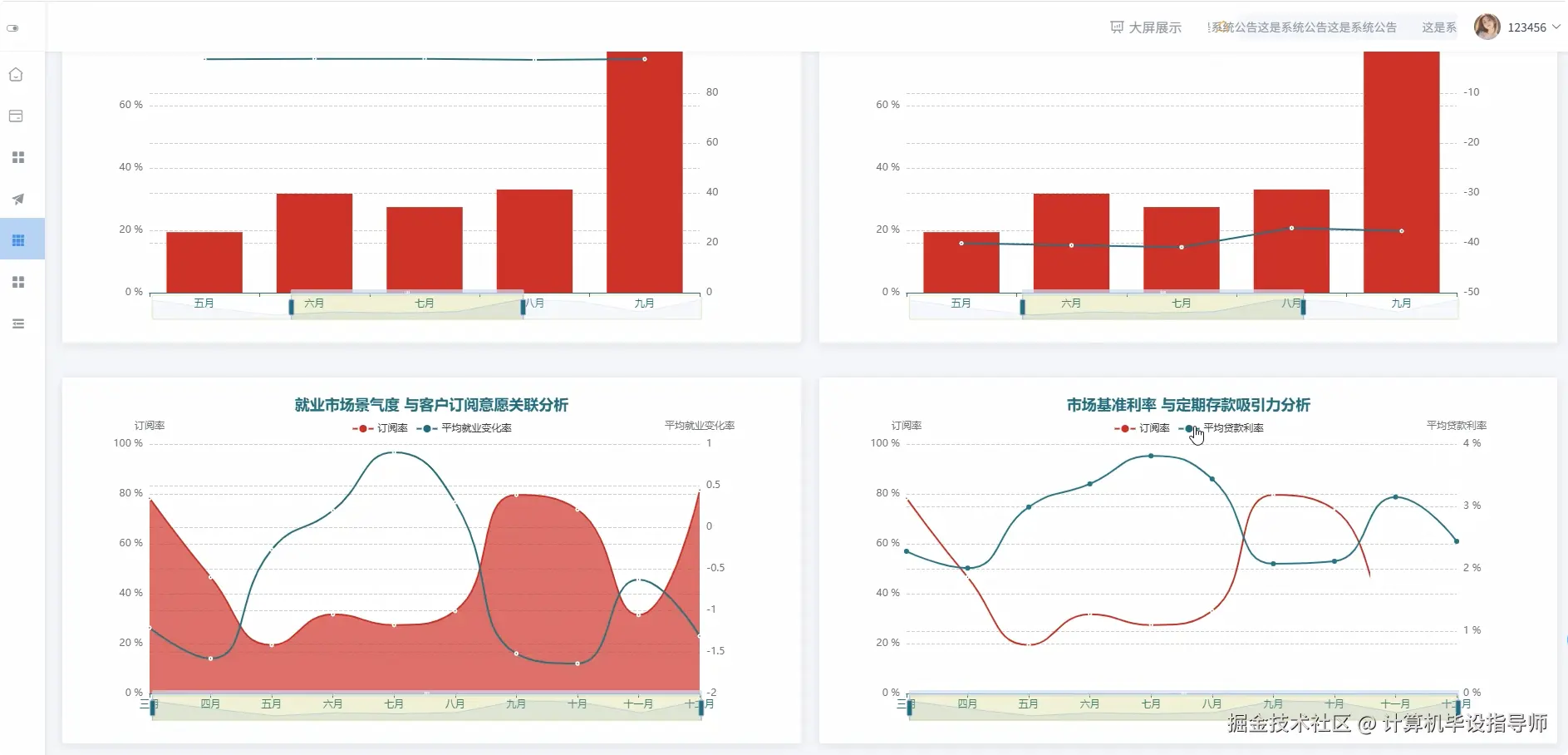

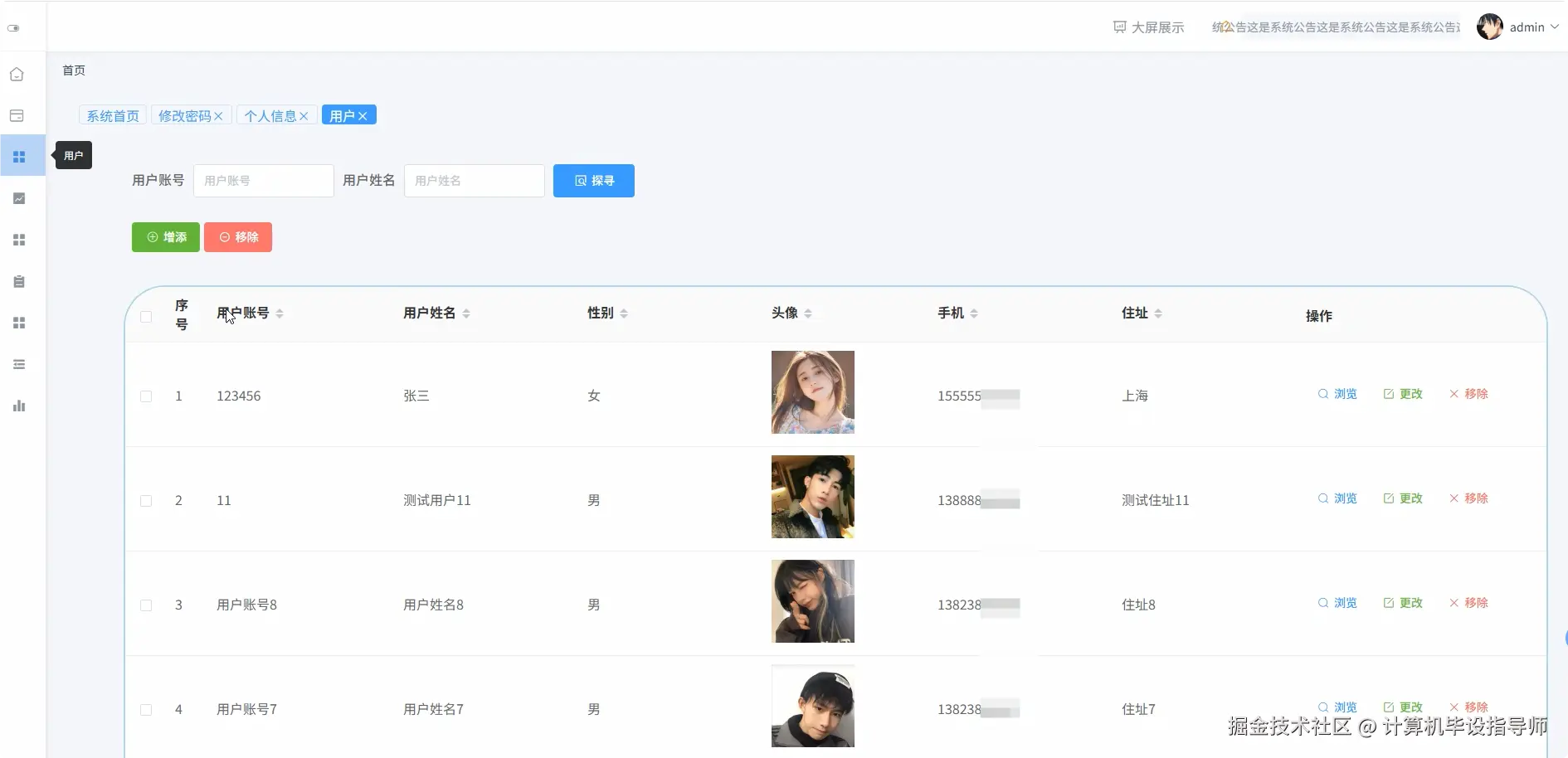

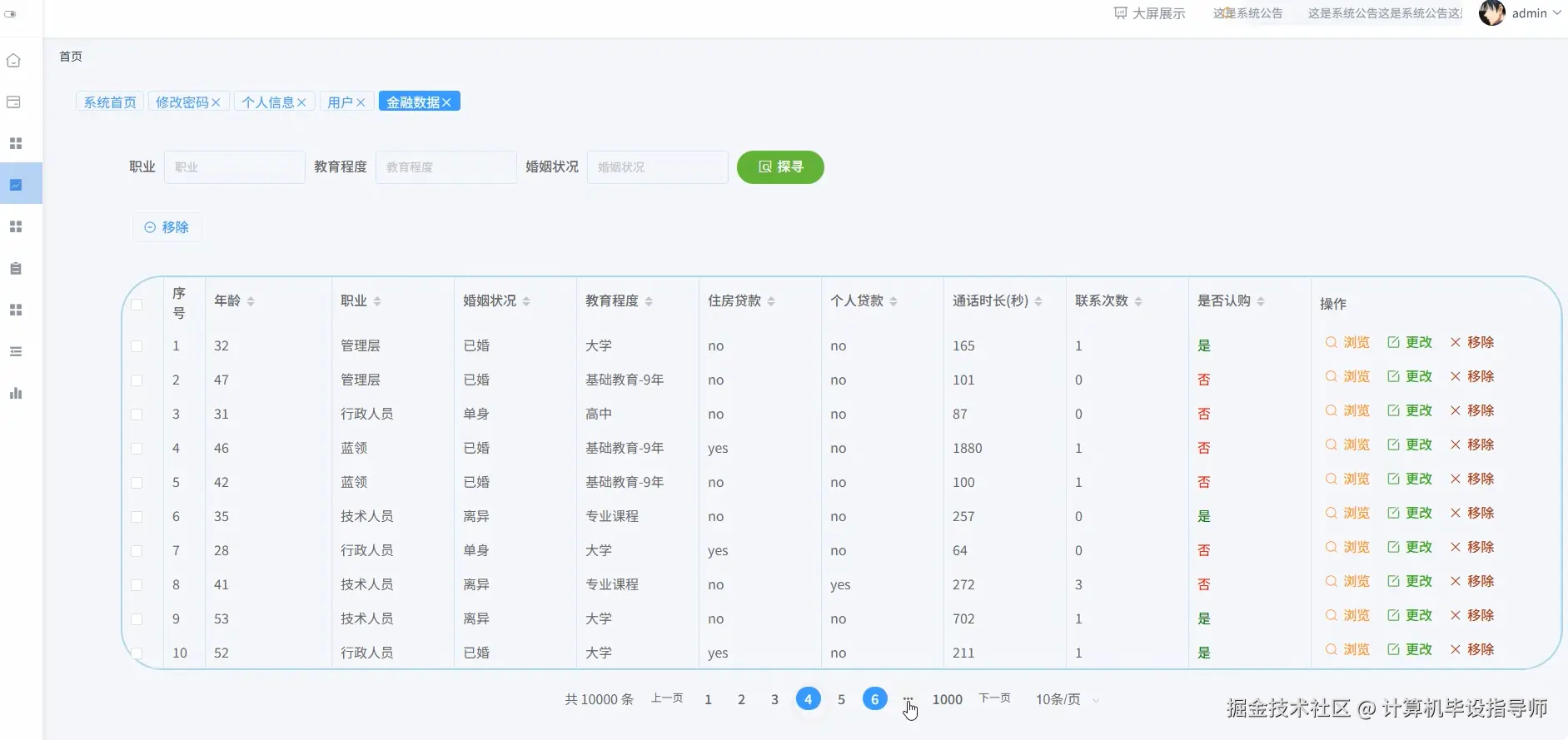

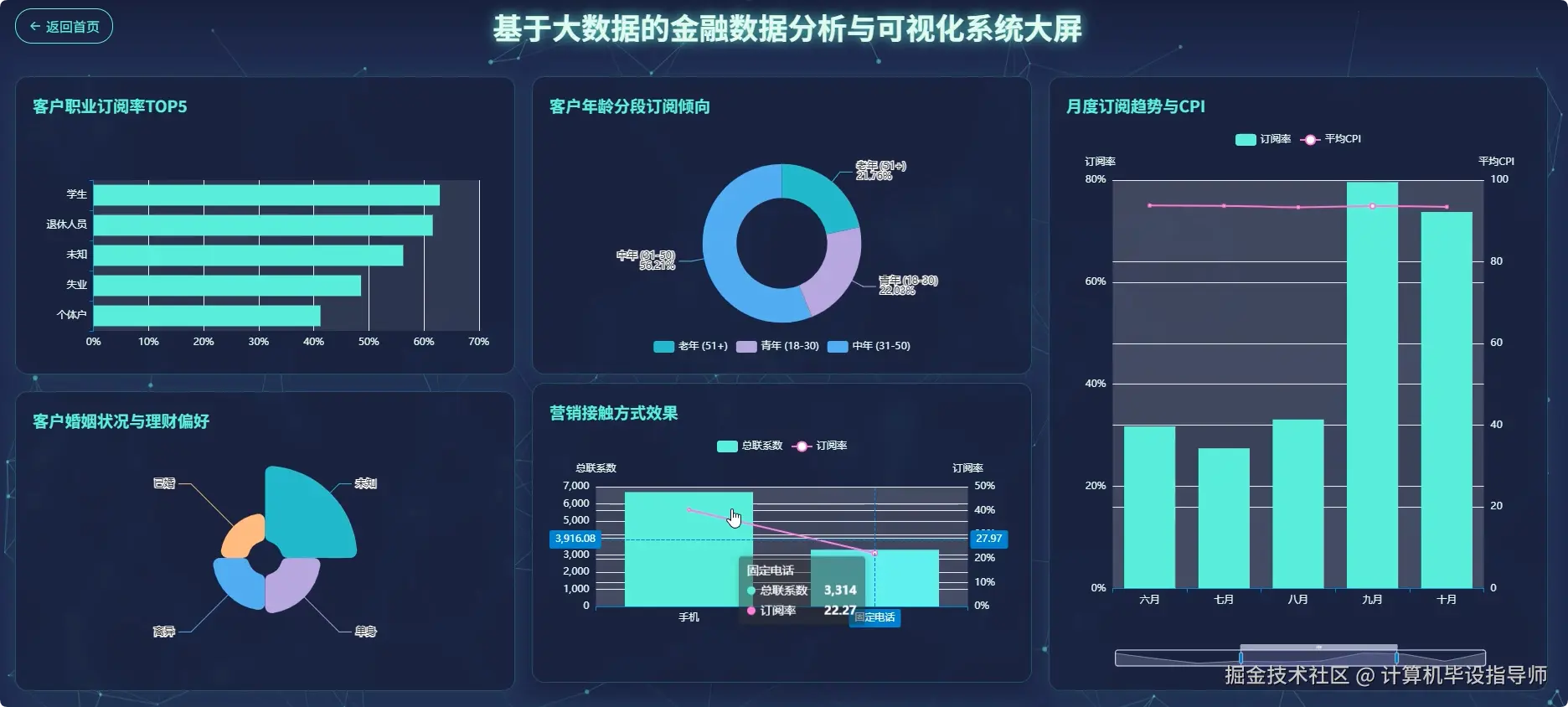

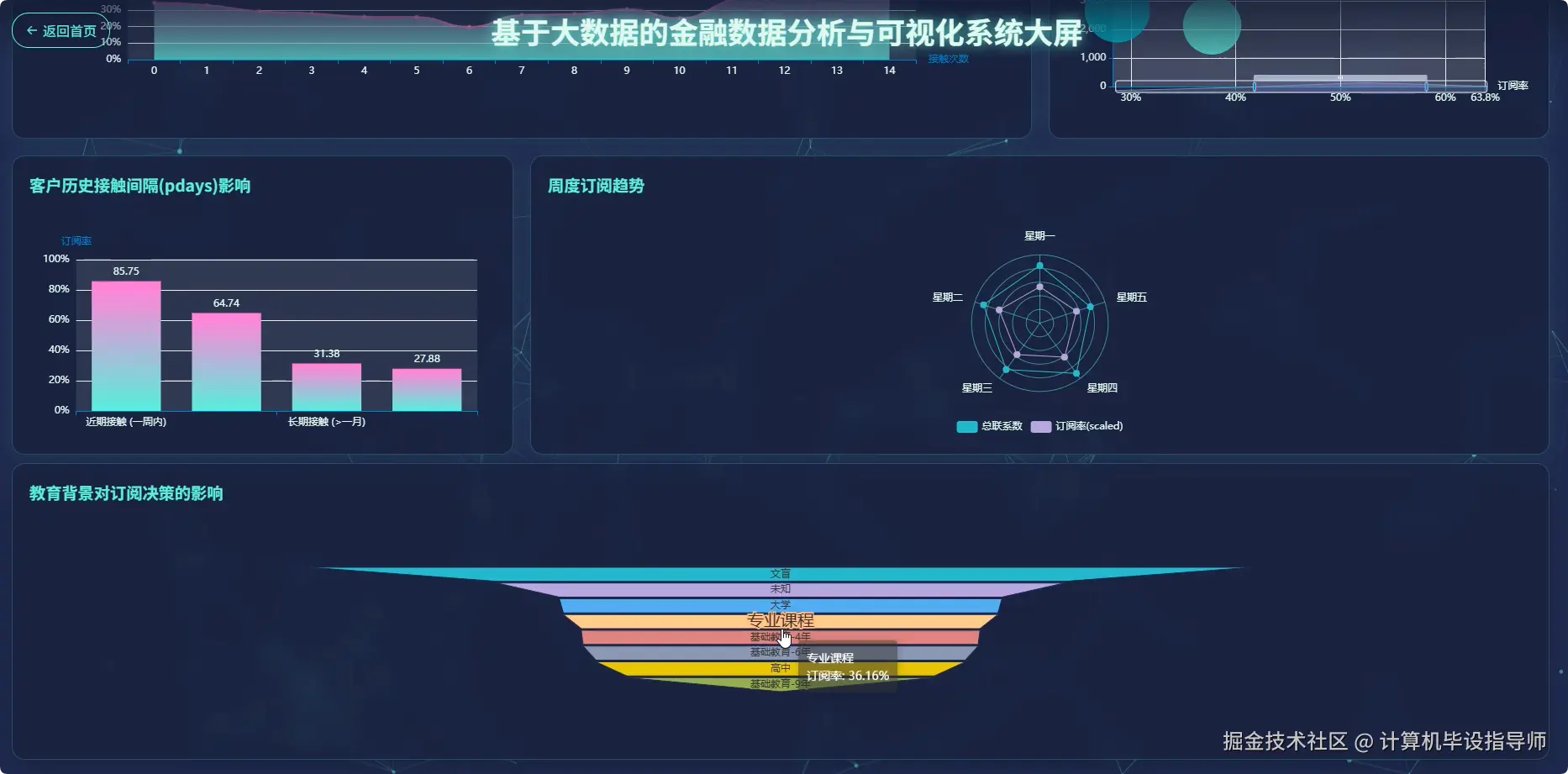

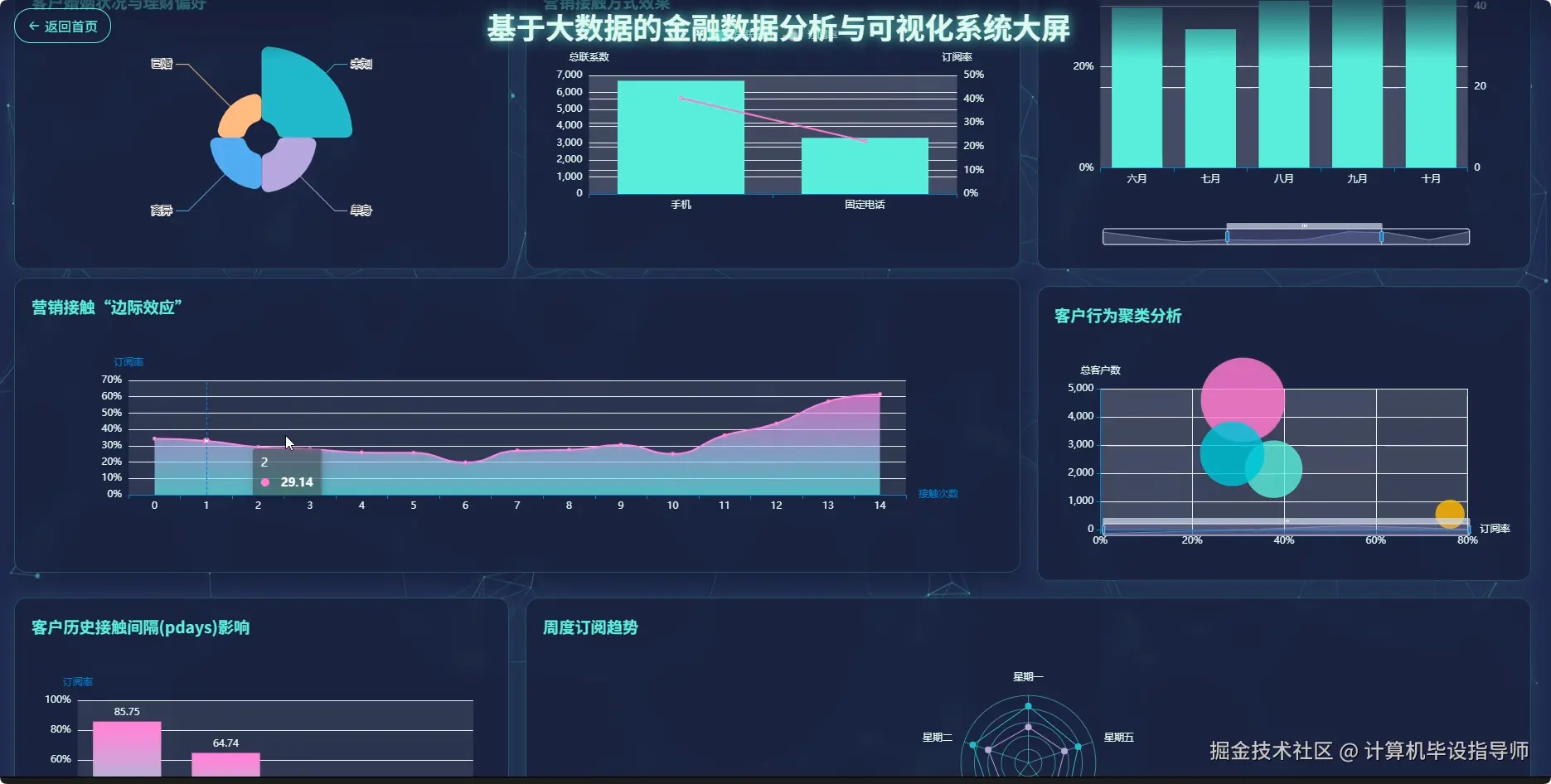

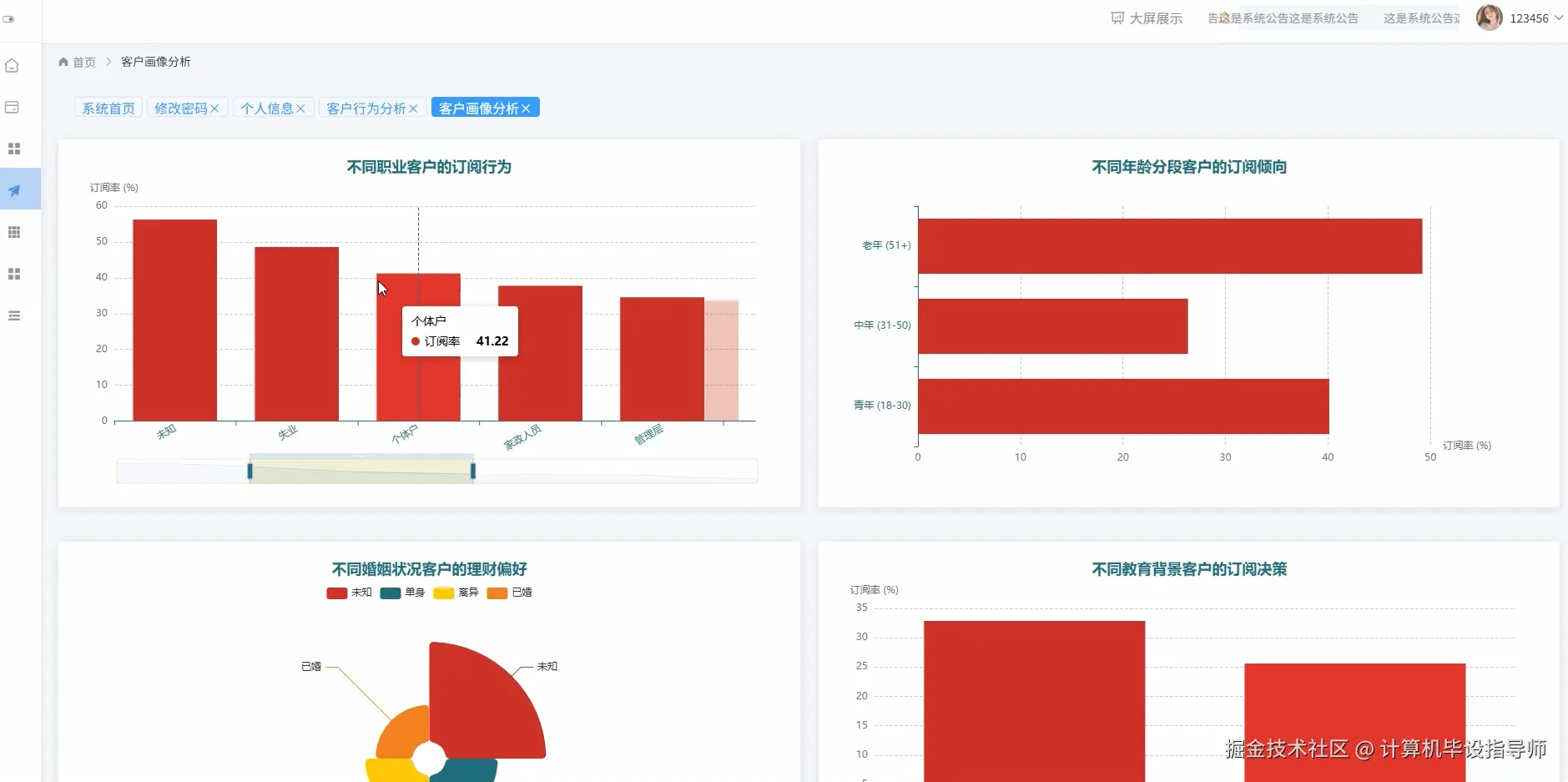

金融数据分析与可视化系统 -图片展示
金融数据分析与可视化系统 -代码展示
from pyspark.sql.functions import col, count, avg, when, sum as spark_sum, desc, asc
from django.http import JsonResponse
from django.views.decorators.csrf import csrf_exempt
import json
import pandas as pd
import numpy as np
spark = SparkSession.builder.appName("FinancialDataAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
@csrf_exempt
def analyze_customer_profile(request):
if request.method == 'POST':
data = json.loads(request.body)
analysis_type = data.get('analysis_type', 'job')
df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/financial_db").option("dbtable", "customer_data").option("user", "root").option("password", "password").load()
if analysis_type == 'job':
job_analysis = df.groupBy("job").agg(count("*").alias("total_customers"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("subscribed_customers")).withColumn("subscription_rate", col("subscribed_customers") / col("total_customers") * 100).orderBy(desc("subscription_rate"))
job_result = job_analysis.collect()
job_data = [{"job": row["job"], "total": row["total_customers"], "subscribed": row["subscribed_customers"], "rate": round(row["subscription_rate"], 2)} for row in job_result]
return JsonResponse({"status": "success", "data": job_data, "analysis_type": "job_subscription_analysis"})
elif analysis_type == 'age':
age_df = df.withColumn("age_group", when(col("age") < 30, "青年").when(col("age") < 50, "中年").otherwise("老年"))
age_analysis = age_df.groupBy("age_group").agg(count("*").alias("total_customers"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("subscribed_customers")).withColumn("subscription_rate", col("subscribed_customers") / col("total_customers") * 100).orderBy(asc("age_group"))
age_result = age_analysis.collect()
age_data = [{"age_group": row["age_group"], "total": row["total_customers"], "subscribed": row["subscribed_customers"], "rate": round(row["subscription_rate"], 2)} for row in age_result]
return JsonResponse({"status": "success", "data": age_data, "analysis_type": "age_subscription_analysis"})
else:
marital_analysis = df.groupBy("marital").agg(count("*").alias("total_customers"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("subscribed_customers")).withColumn("subscription_rate", col("subscribed_customers") / col("total_customers") * 100).orderBy(desc("subscription_rate"))
marital_result = marital_analysis.collect()
marital_data = [{"marital": row["marital"], "total": row["total_customers"], "subscribed": row["subscribed_customers"], "rate": round(row["subscription_rate"], 2)} for row in marital_result]
return JsonResponse({"status": "success", "data": marital_data, "analysis_type": "marital_subscription_analysis"})
@csrf_exempt
def analyze_marketing_effectiveness(request):
if request.method == 'POST':
data = json.loads(request.body)
time_dimension = data.get('time_dimension', 'month')
df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/financial_db").option("dbtable", "customer_data").option("user", "root").option("password", "password").load()
if time_dimension == 'month':
month_analysis = df.groupBy("month").agg(count("*").alias("total_contacts"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("successful_subscriptions"), avg("duration").alias("avg_duration")).withColumn("success_rate", col("successful_subscriptions") / col("total_contacts") * 100).orderBy(asc("month"))
month_result = month_analysis.collect()
month_data = [{"month": row["month"], "total_contacts": row["total_contacts"], "successful": row["successful_subscriptions"], "success_rate": round(row["success_rate"], 2), "avg_duration": round(row["avg_duration"], 2)} for row in month_result]
contact_analysis = df.groupBy("contact").agg(count("*").alias("total_contacts"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("successful_subscriptions")).withColumn("success_rate", col("successful_subscriptions") / col("total_contacts") * 100).orderBy(desc("success_rate"))
contact_result = contact_analysis.collect()
contact_data = [{"contact_method": row["contact"], "total": row["total_contacts"], "successful": row["successful_subscriptions"], "rate": round(row["success_rate"], 2)} for row in contact_result]
return JsonResponse({"status": "success", "monthly_data": month_data, "contact_data": contact_data, "analysis_type": "marketing_effectiveness"})
else:
day_analysis = df.groupBy("day_of_week").agg(count("*").alias("total_contacts"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("successful_subscriptions")).withColumn("success_rate", col("successful_subscriptions") / col("total_contacts") * 100).orderBy(asc("day_of_week"))
day_result = day_analysis.collect()
day_data = [{"day": row["day_of_week"], "total": row["total_contacts"], "successful": row["successful_subscriptions"], "rate": round(row["success_rate"], 2)} for row in day_result]
campaign_analysis = df.groupBy("campaign").agg(count("*").alias("total_contacts"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("successful_subscriptions")).withColumn("success_rate", col("successful_subscriptions") / col("total_contacts") * 100).orderBy(asc("campaign"))
campaign_result = campaign_analysis.collect()
campaign_data = [{"campaign_count": row["campaign"], "total": row["total_contacts"], "successful": row["successful_subscriptions"], "rate": round(row["success_rate"], 2)} for row in campaign_result]
return JsonResponse({"status": "success", "daily_data": day_data, "campaign_data": campaign_data, "analysis_type": "marketing_timing_analysis"})
@csrf_exempt
def analyze_economic_impact(request):
if request.method == 'POST':
data = json.loads(request.body)
indicator_type = data.get('indicator_type', 'cpi')
df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/financial_db").option("dbtable", "customer_data").option("user", "root").option("password", "password").load()
if indicator_type == 'cpi':
cpi_analysis = df.groupBy("month").agg(avg("cons_price_index").alias("avg_cpi"), count("*").alias("total_contacts"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("successful_subscriptions")).withColumn("success_rate", col("successful_subscriptions") / col("total_contacts") * 100).orderBy(asc("month"))
cpi_result = cpi_analysis.collect()
cpi_data = [{"month": row["month"], "avg_cpi": round(row["avg_cpi"], 3), "total_contacts": row["total_contacts"], "successful": row["successful_subscriptions"], "success_rate": round(row["success_rate"], 2)} for row in cpi_result]
cpi_correlation = np.corrcoef([row["avg_cpi"] for row in cpi_result], [row["success_rate"] for row in cpi_result])[0, 1]
return JsonResponse({"status": "success", "data": cpi_data, "correlation": round(cpi_correlation, 4), "analysis_type": "cpi_impact_analysis"})
elif indicator_type == 'confidence':
conf_analysis = df.groupBy("month").agg(avg("cons_conf_index").alias("avg_confidence"), count("*").alias("total_contacts"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("successful_subscriptions")).withColumn("success_rate", col("successful_subscriptions") / col("total_contacts") * 100).orderBy(asc("month"))
conf_result = conf_analysis.collect()
conf_data = [{"month": row["month"], "avg_confidence": round(row["avg_confidence"], 2), "total_contacts": row["total_contacts"], "successful": row["successful_subscriptions"], "success_rate": round(row["success_rate"], 2)} for row in conf_result]
conf_correlation = np.corrcoef([row["avg_confidence"] for row in conf_result], [row["success_rate"] for row in conf_result])[0, 1]
return JsonResponse({"status": "success", "data": conf_data, "correlation": round(conf_correlation, 4), "analysis_type": "confidence_impact_analysis"})
else:
emp_analysis = df.groupBy("month").agg(avg("emp_var_rate").alias("avg_employment"), count("*").alias("total_contacts"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("successful_subscriptions")).withColumn("success_rate", col("successful_subscriptions") / col("total_contacts") * 100).orderBy(asc("month"))
emp_result = emp_analysis.collect()
emp_data = [{"month": row["month"], "avg_employment": round(row["avg_employment"], 2), "total_contacts": row["total_contacts"], "successful": row["successful_subscriptions"], "success_rate": round(row["success_rate"], 2)} for row in emp_result]
emp_correlation = np.corrcoef([row["avg_employment"] for row in emp_result], [row["success_rate"] for row in emp_result])[0, 1]
interest_analysis = df.groupBy("month").agg(avg("lending_rate3m").alias("avg_rate"), avg("duration").alias("avg_duration")).orderBy(asc("month"))
interest_result = interest_analysis.collect()
interest_data = [{"month": row["month"], "avg_interest_rate": round(row["avg_rate"], 3), "avg_call_duration": round(row["avg_duration"], 2)} for row in interest_result]
return JsonResponse({"status": "success", "employment_data": emp_data, "interest_data": interest_data, "employment_correlation": round(emp_correlation, 4), "analysis_type": "economic_comprehensive_analysis"})
金融数据分析与可视化系统 -结语
2026年大数据毕设首选：基于Hadoop+Django的金融数据分析与可视化系统
计算机专业的你还在犹豫选题？金融数据分析与可视化系统的Hadoop实战来了
如何用Hadoop技术栈做出高质量毕设？金融数据分析系统完整开发流程
感谢大家点赞、收藏、投币+关注，如果遇到有技术问题或者获取源代码，欢迎在评论区一起交流探讨！
