客户购物订单数据分析与可视化系统 - 简介********
基于大数据的客户购物订单数据分析与可视化系统是一个集海量数据处理、深度分析挖掘与直观可视化展示于一体的综合性数据分析平台。该系统以Hadoop分布式文件系统作为海量订单数据的存储基础设施，充分利用HDFS的高容错性和可扩展性来应对TB级别的客户交易数据存储需求，通过Spark计算引擎的内存计算优势实现高效的数据处理和复杂分析任务，采用Django框架构建稳定可靠的后端服务接口，前端运用Vue+ElementUI+Echarts技术栈打造交互友好的数据可视化界面。系统核心功能围绕五个主要分析维度展开：整体运营绩效分析维度包含月度销售额与利润趋势分析、年度销售与利润增长分析、核心盈利能力分析和不同交易类型贡献度分析；区域与市场分布分析维度实现各销售大区贡献度分析、各国家销售表现排行和平均客单价分析；产品销售与盈利能力分析维度提供明星产品排行、利润奶牛产品识别和产品类别结构分析；客户价值与行为分析维度通过高价值客户排行、RFM模型客户分层算法和新老客户贡献分析来精准识别用户群体；交叉销售机会挖掘维度运用FP-Growth关联规则算法进行产品关联分析和产品类别间关联分析。整个系统通过Spark SQL和Pandas实现复杂的数据清洗、转换与聚合计算，能够有效处理大规模的客户购物订单数据，为企业运营决策提供科学的数据支撑和多维度的商业洞察，技术架构设计合理且具备良好的扩展性和实际应用价值。
客户购物订单数据分析与可视化系统 -技术****
开发语言：java或Python
数据库：MySQL
系统架构：B/S
前端：Vue+ElementUI+HTML+CSS+JavaScript+jQuery+Echarts
大数据框架：Hadoop+Spark（本次没用Hive，支持定制）
后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)
客户购物订单数据分析与可视化系统 - 背景****
随着电子商务平台的快速发展和消费者购物行为的数字化转型，企业在日常运营中积累了海量的客户购物订单数据，这些数据记录着消费者的购买偏好、消费习惯、地域分布等重要商业信息。传统的数据分析方法在处理这些大规模、多维度的订单数据时面临着存储容量不足、计算效率低下、分析深度有限等技术挑战，往往只能进行简单的统计汇总，难以深入挖掘数据背后隐藏的商业价值和客户行为规律。随着大数据技术的不断成熟，Hadoop生态系统为海量数据的分布式存储和处理提供了可行的解决方案，Spark作为新一代内存计算引擎在复杂数据分析和实时处理方面表现出色，这些技术的发展为构建高效的客户订单数据分析系统奠定了坚实的技术基础。当前市场上虽然存在各种数据分析工具，但专门针对客户购物订单进行全方位分析、集成多种数据挖掘算法的完整系统相对较少，特别是能够同时处理大规模数据并提供友好可视化界面的系统更是稀缺，这为本课题的研究和实现提供了现实需求和技术发展背景。
本课题的研究和实现在技术探索和实践应用方面具有一定的价值和意义。从技术层面来看，通过整合Hadoop分布式存储、Spark大数据计算、Django Web框架和Vue前端技术，探索了不同技术栈在实际项目中的协同工作方式，为大数据技术在商业数据分析领域的应用提供了一个具体的实践案例，虽然在技术创新程度上有所局限，但在工程实现和技术集成方面仍有一定的学习价值。系统中实现的RFM客户分层模型、FP-Growth关联规则算法等经典数据挖掘方法的应用，能够加深对这些算法原理和适用场景的理解。从实际应用角度而言，该系统能够为中小型电商企业提供一套相对完整的数据分析思路和技术方案，帮助其从海量订单数据中挖掘客户价值、发现产品关联关系、分析市场表现等商业洞察，这些分析结果可以为企业的运营决策、营销策略制定和客户关系管理提供一定的数据参考。当然，作为毕业设计项目，系统在数据处理规模、算法优化程度和工程化水平方面还存在诸多不足，但其研究思路和技术框架对类似的数据分析项目具有一定的参考意义。
客户购物订单数据分析与可视化系统 -视频展示****

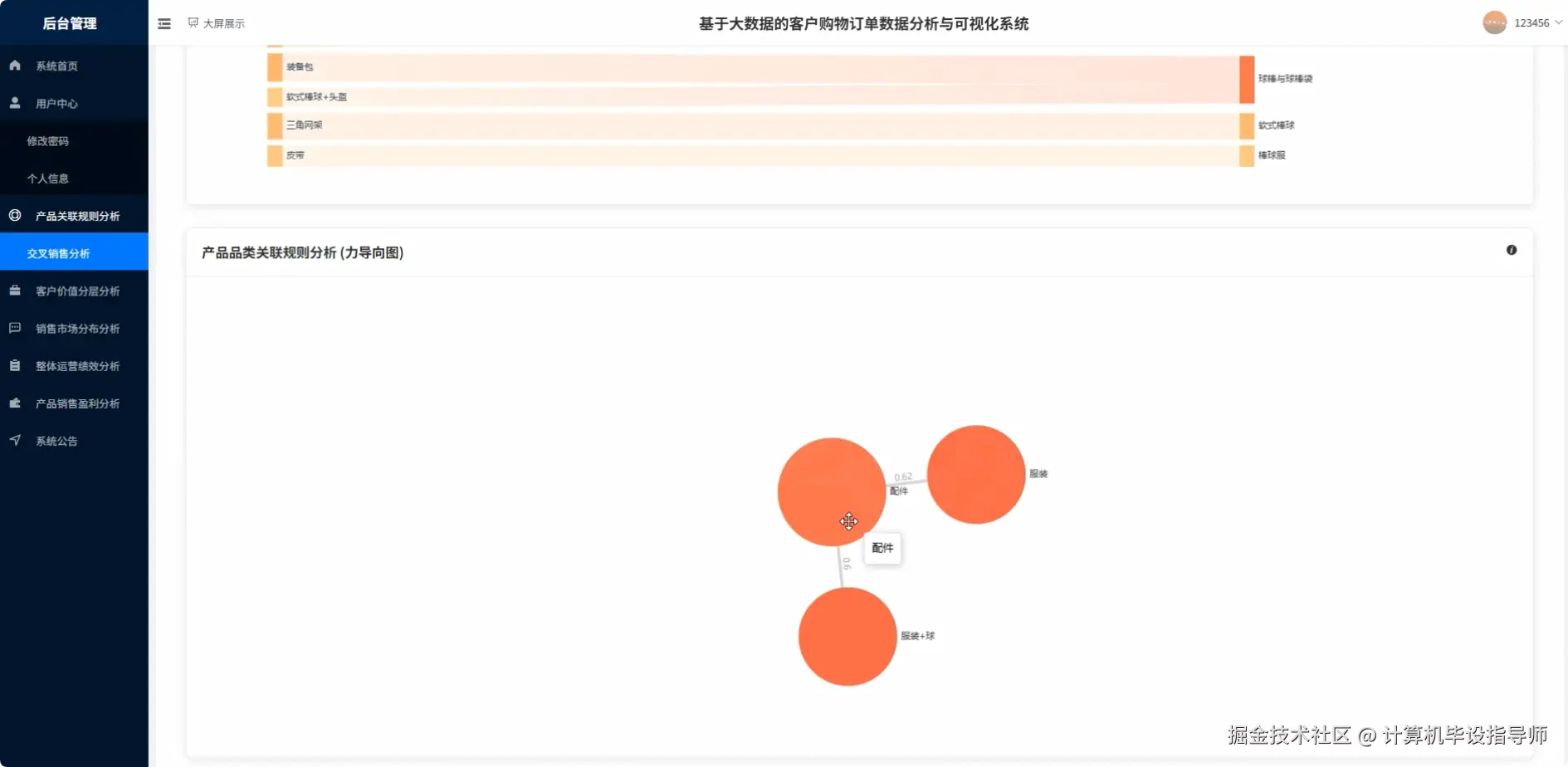

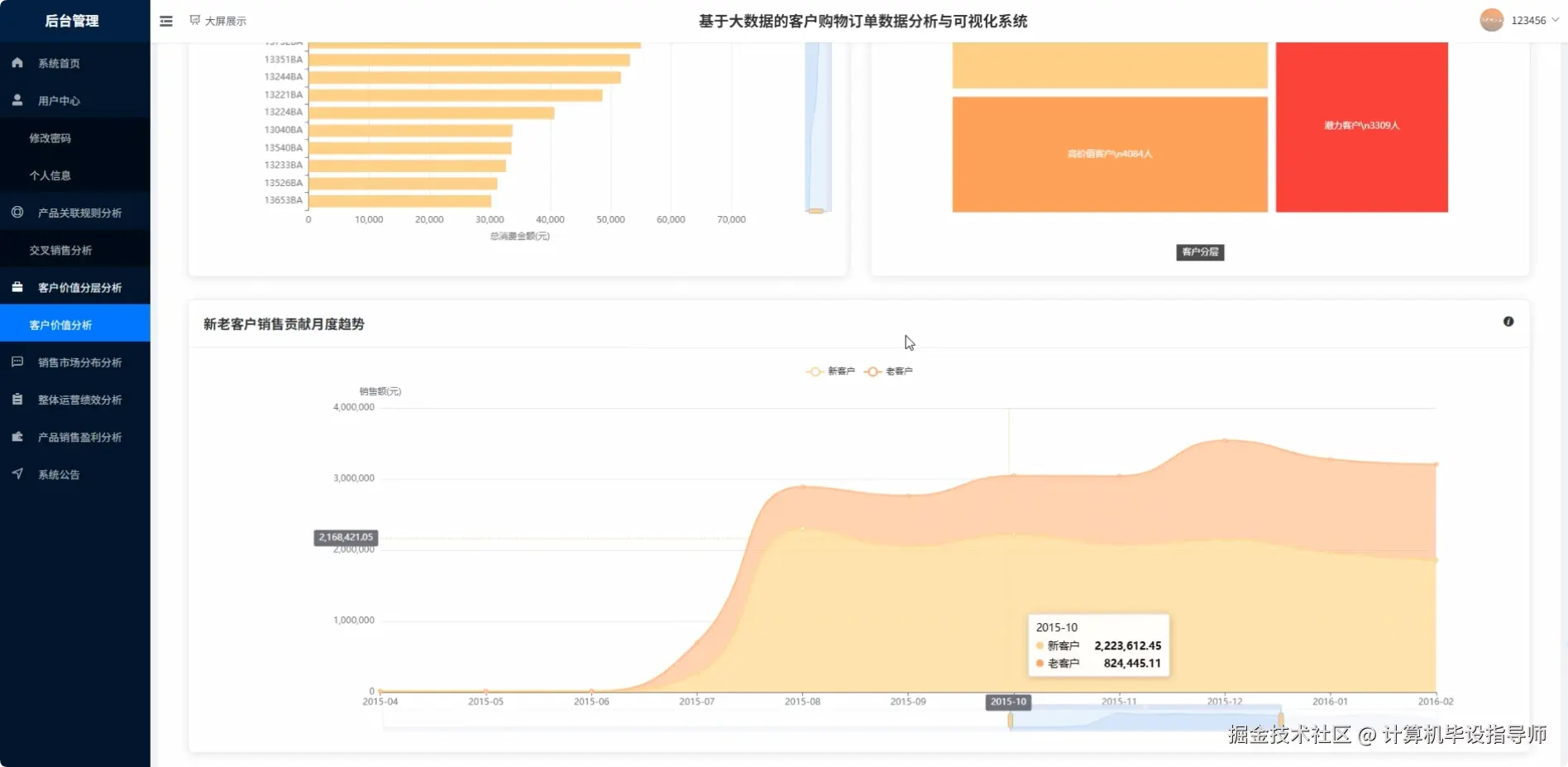

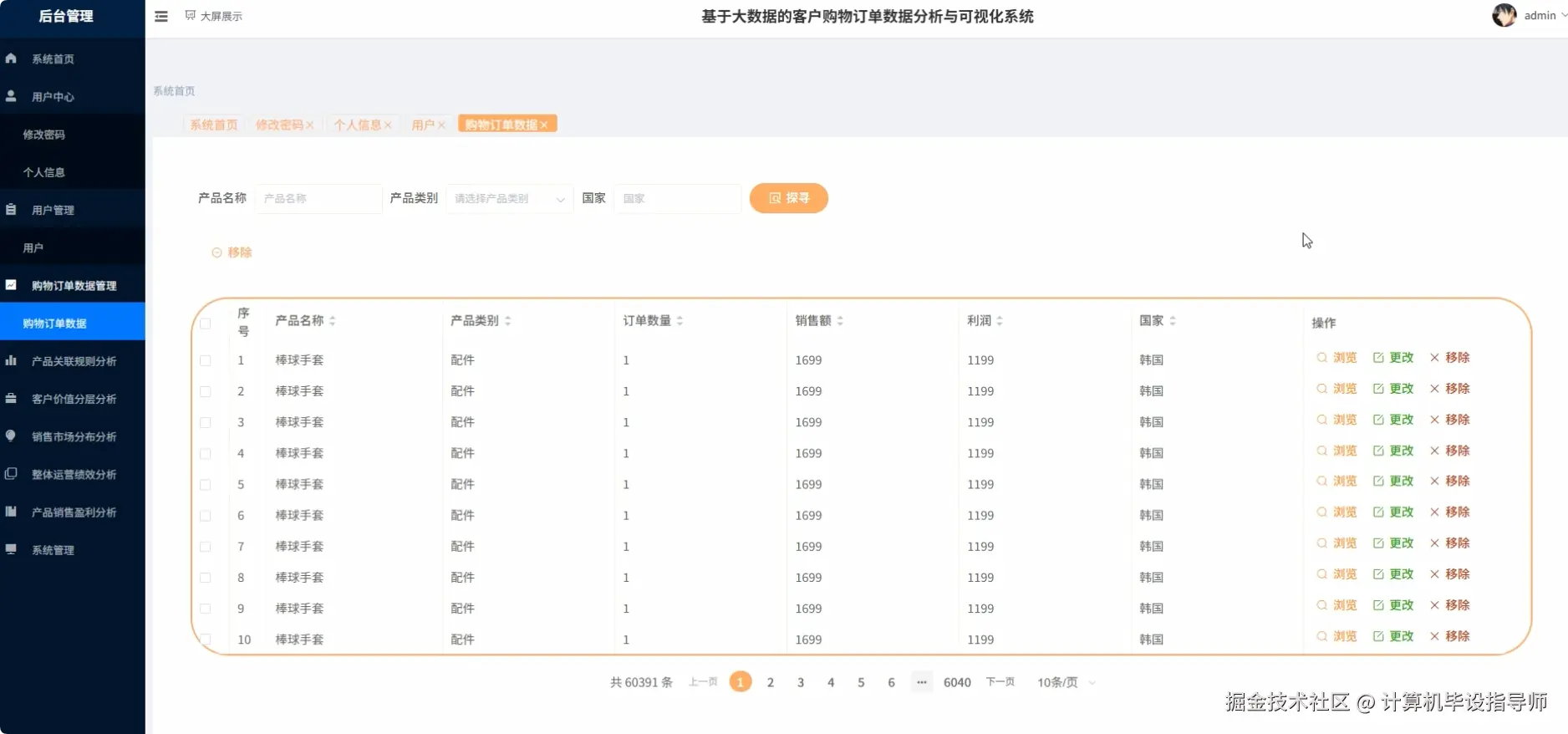

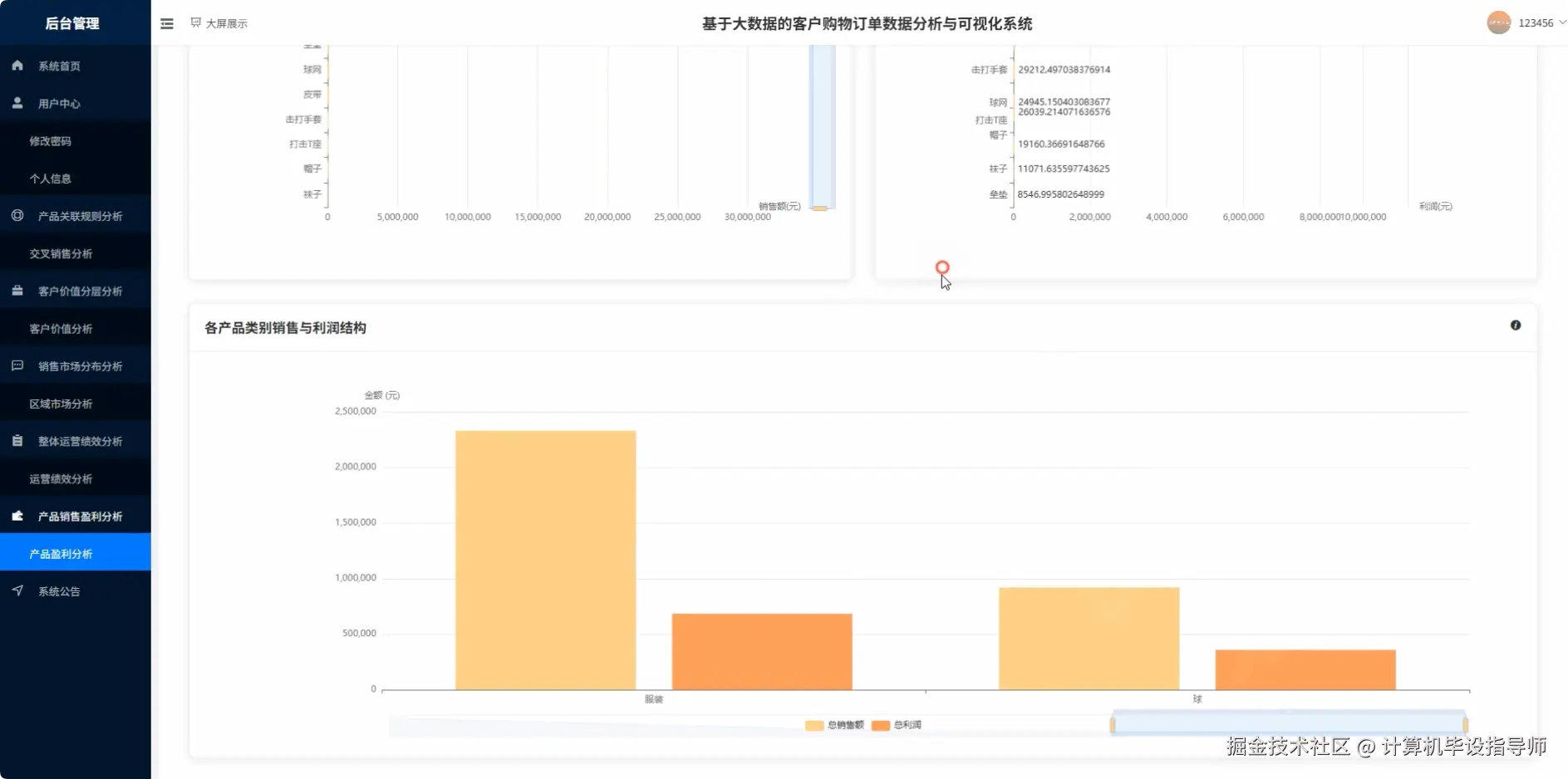

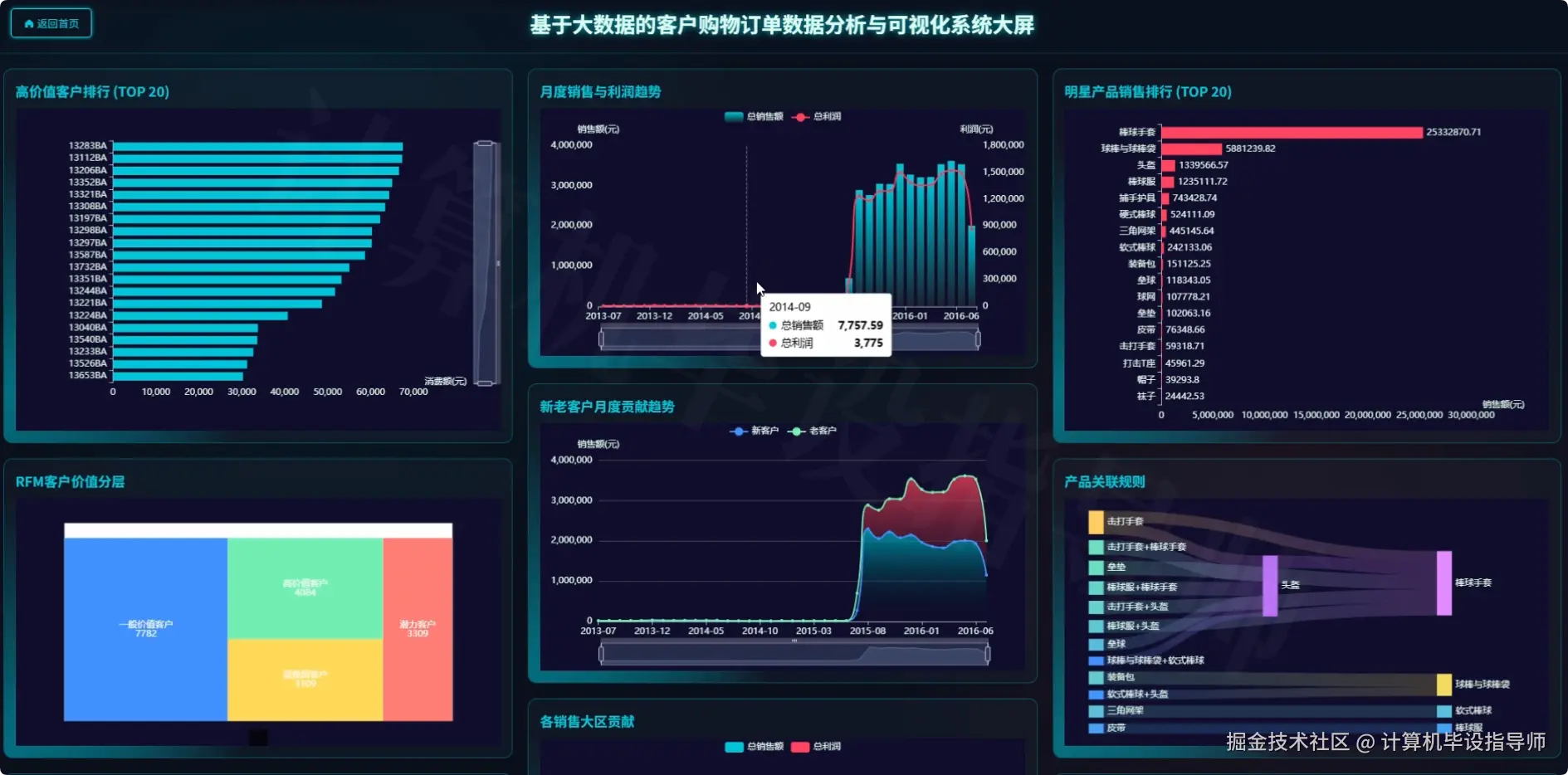

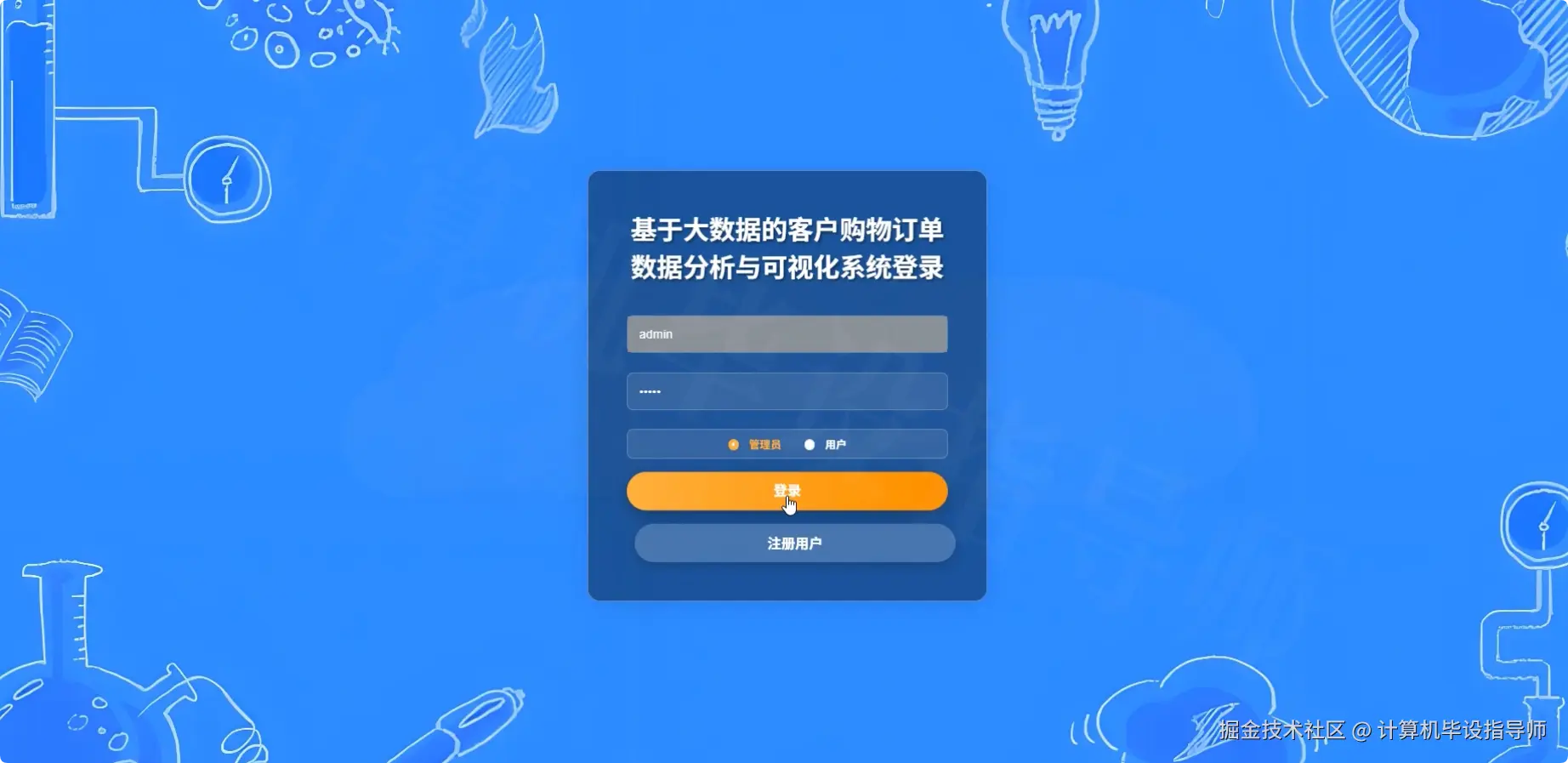

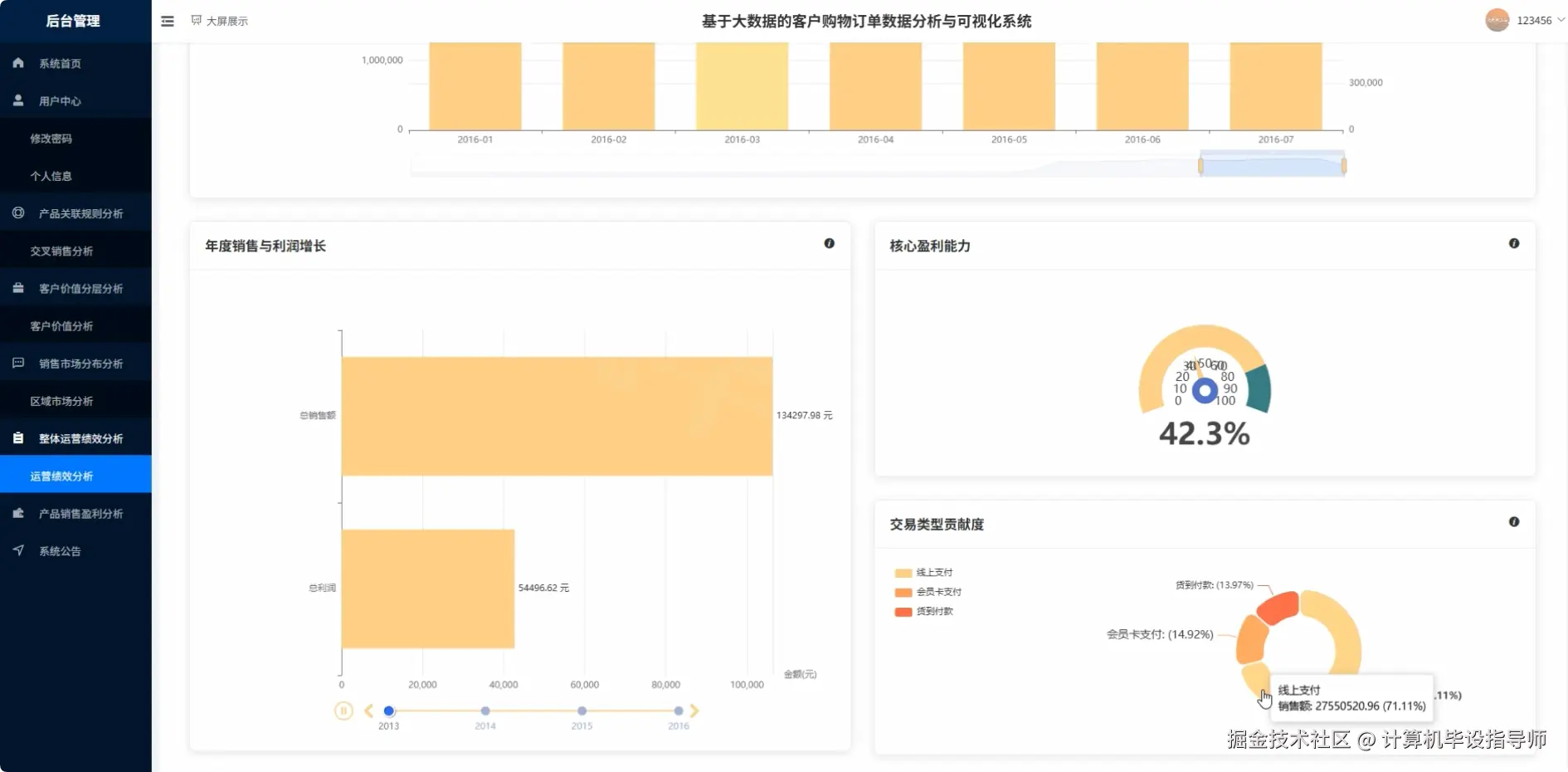

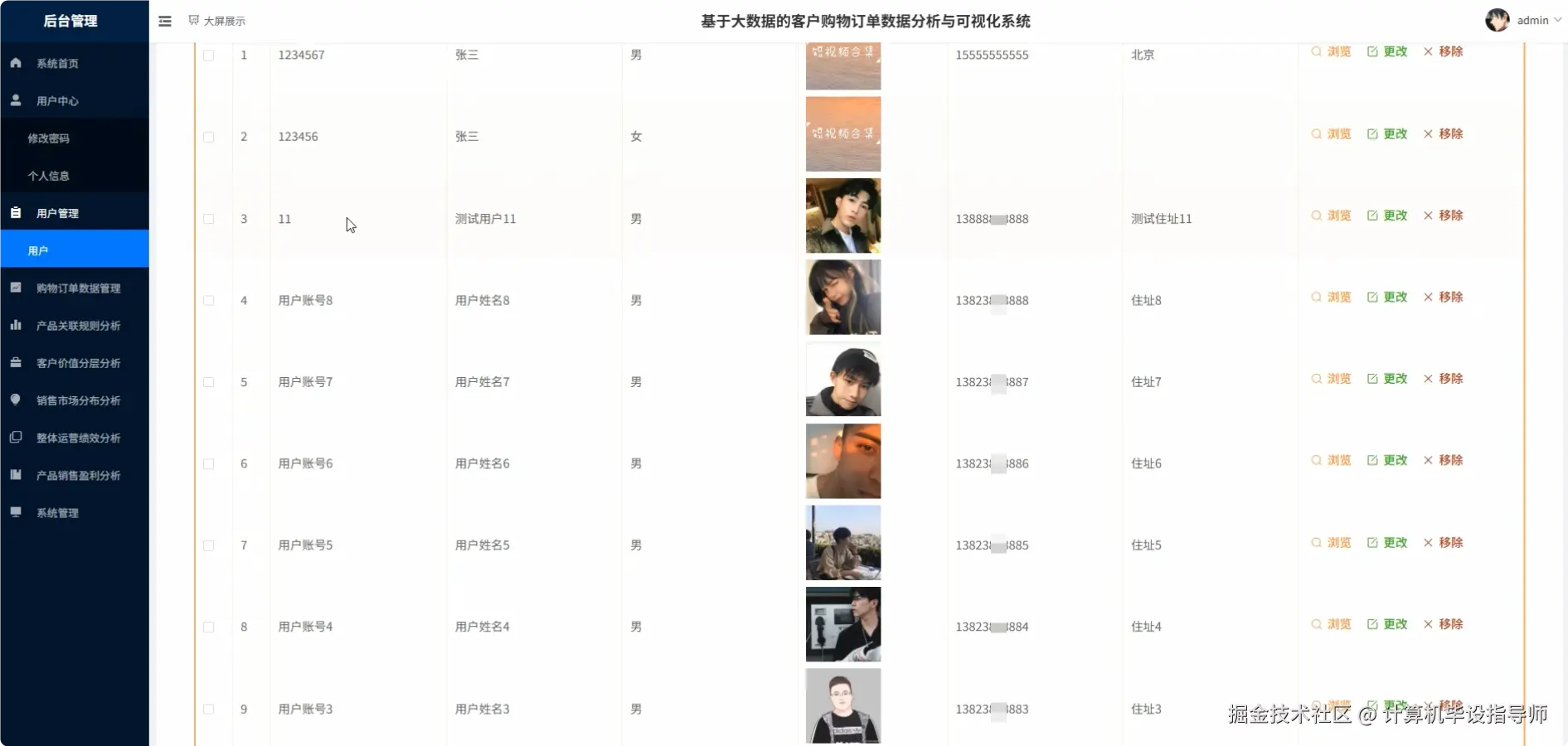

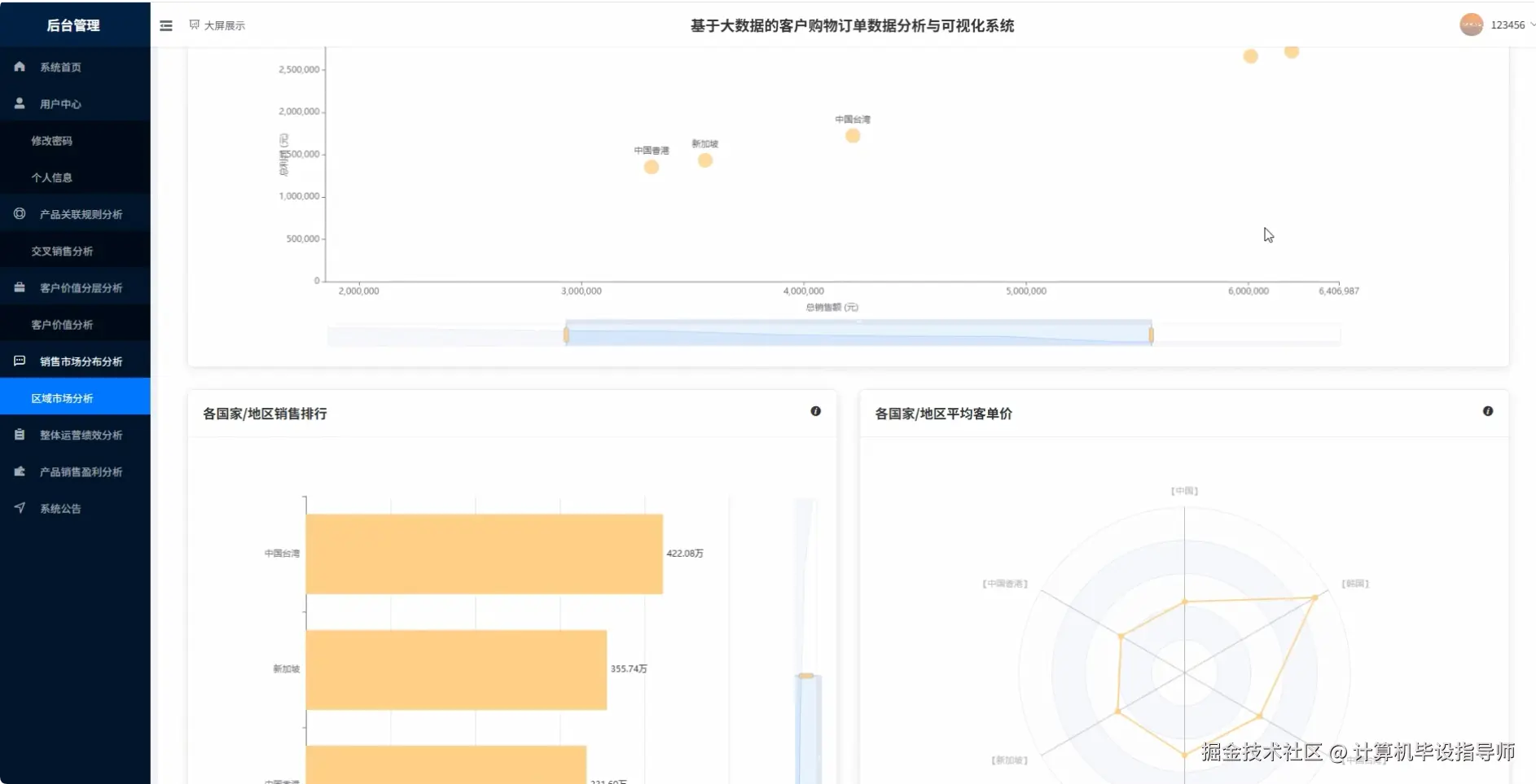

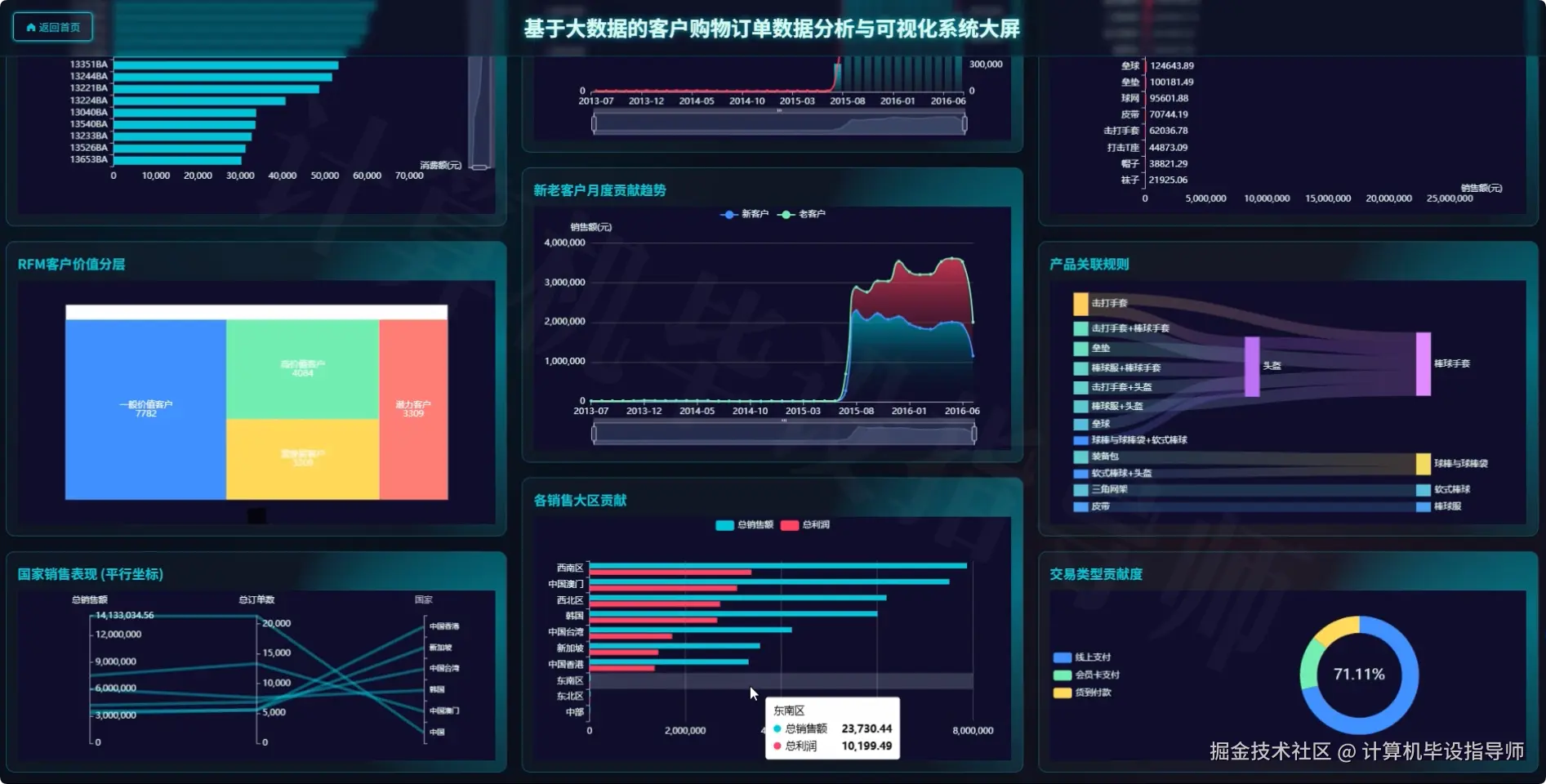

客户购物订单数据分析与可视化系统 -图片展示****
客户购物订单数据分析与可视化系统 -代码展示****
from pyspark.sql.functions import col, sum, avg, count, when, desc, asc, month, year, datediff, max as spark_max, min as spark_min, lit, collect_list, size
from pyspark.ml.fpm import FPGrowth
from pyspark.ml.feature import VectorAssembler
import pandas as pd
import numpy as np
from django.http import JsonResponse
from django.views.decorators.http import require_http_methods
from datetime import datetime, timedelta
import json
spark = SparkSession.builder.appName("CustomerOrderBigDataAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").config("spark.serializer", "org.apache.spark.serializer.KryoSerializer").config("spark.sql.execution.arrow.pyspark.enabled", "true").getOrCreate()
@require_http_methods(["GET"])
def monthly_sales_profit_trend_analysis(request):
df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/order_analysis_db").option("dbtable", "customer_orders").option("user", "root").option("password", "password").load()
monthly_data = df.withColumn("order_month", month(col("order_date"))).withColumn("order_year", year(col("order_date")))
monthly_stats = monthly_data.groupBy("order_year", "order_month").agg(sum("sales_amount").alias("total_sales"), sum("profit").alias("total_profit"), count("order_id").alias("order_count"), avg("sales_amount").alias("avg_order_value"))
monthly_trends = monthly_stats.withColumn("profit_margin", (col("total_profit") / col("total_sales")) * 100).withColumn("sales_growth_rate", (col("total_sales") - lag("total_sales").over(Window.orderBy("order_year", "order_month"))) / lag("total_sales").over(Window.orderBy("order_year", "order_month")) * 100).orderBy("order_year", "order_month")
trend_results = monthly_trends.collect()
trend_data = []
for row in trend_results:
month_info = {"year": int(row["order_year"]), "month": int(row["order_month"]), "total_sales": float(row["total_sales"]), "total_profit": float(row["total_profit"]), "order_count": int(row["order_count"]), "avg_order_value": round(float(row["avg_order_value"]), 2), "profit_margin": round(float(row["profit_margin"]), 2), "sales_growth_rate": round(float(row["sales_growth_rate"]) if row["sales_growth_rate"] else 0, 2)}
trend_data.append(month_info)
seasonal_analysis = monthly_trends.groupBy("order_month").agg(avg("total_sales").alias("seasonal_avg_sales"), avg("profit_margin").alias("seasonal_avg_margin")).orderBy("order_month")
seasonal_data = [{"month": int(row["order_month"]), "avg_sales": round(float(row["seasonal_avg_sales"]), 2), "avg_margin": round(float(row["seasonal_avg_margin"]), 2)} for row in seasonal_analysis.collect()]
year_over_year = monthly_trends.withColumn("prev_year_sales", lag("total_sales", 12).over(Window.orderBy("order_year", "order_month"))).withColumn("yoy_growth", (col("total_sales") - col("prev_year_sales")) / col("prev_year_sales") * 100).filter(col("yoy_growth").isNotNull())
yoy_data = [{"year": int(row["order_year"]), "month": int(row["order_month"]), "yoy_growth": round(float(row["yoy_growth"]), 2)} for row in year_over_year.collect()]
return JsonResponse({"status": "success", "data": {"monthly_trends": trend_data, "seasonal_analysis": seasonal_data, "year_over_year_growth": yoy_data}})
@require_http_methods(["GET"])
def rfm_customer_segmentation_analysis(request):
df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/order_analysis_db").option("dbtable", "customer_orders").option("user", "root").option("password", "password").load()
current_date = datetime.now().date()
customer_rfm = df.groupBy("customer_id").agg(spark_max("order_date").alias("last_order_date"), count("order_id").alias("frequency"), sum("sales_amount").alias("monetary"))
customer_rfm_with_recency = customer_rfm.withColumn("recency", datediff(lit(current_date), col("last_order_date")))
recency_quantiles = customer_rfm_with_recency.approxQuantile("recency", [0.2, 0.4, 0.6, 0.8], 0.01)
frequency_quantiles = customer_rfm_with_recency.approxQuantile("frequency", [0.2, 0.4, 0.6, 0.8], 0.01)
monetary_quantiles = customer_rfm_with_recency.approxQuantile("monetary", [0.2, 0.4, 0.6, 0.8], 0.01)
rfm_scored = customer_rfm_with_recency.withColumn("r_score", when(col("recency") <= recency_quantiles[0], 5).when(col("recency") <= recency_quantiles[1], 4).when(col("recency") <= recency_quantiles[2], 3).when(col("recency") <= recency_quantiles[3], 2).otherwise(1)).withColumn("f_score", when(col("frequency") >= frequency_quantiles[3], 5).when(col("frequency") >= frequency_quantiles[2], 4).when(col("frequency") >= frequency_quantiles[1], 3).when(col("frequency") >= frequency_quantiles[0], 2).otherwise(1)).withColumn("m_score", when(col("monetary") >= monetary_quantiles[3], 5).when(col("monetary") >= monetary_quantiles[2], 4).when(col("monetary") >= monetary_quantiles[1], 3).when(col("monetary") >= monetary_quantiles[0], 2).otherwise(1))
rfm_segments = rfm_scored.withColumn("rfm_segment", when((col("r_score") >= 4) & (col("f_score") >= 4) & (col("m_score") >= 4), "Champions").when((col("r_score") >= 3) & (col("f_score") >= 3) & (col("m_score") >= 3), "Loyal Customers").when((col("r_score") >= 4) & (col("f_score") <= 2), "New Customers").when((col("r_score") <= 2) & (col("f_score") >= 3), "At Risk").when((col("r_score") <= 2) & (col("f_score") <= 2), "Lost Customers").otherwise("Others")).withColumn("customer_value", col("r_score") + col("f_score") + col("m_score"))
segment_analysis = rfm_segments.groupBy("rfm_segment").agg(count("customer_id").alias("customer_count"), avg("recency").alias("avg_recency"), avg("frequency").alias("avg_frequency"), avg("monetary").alias("avg_monetary"), avg("customer_value").alias("avg_value_score"))
segment_results = []
for row in segment_analysis.collect():
segment_info = {"segment": row["rfm_segment"], "customer_count": int(row["customer_count"]), "avg_recency": round(float(row["avg_recency"]), 1), "avg_frequency": round(float(row["avg_frequency"]), 1), "avg_monetary": round(float(row["avg_monetary"]), 2), "avg_value_score": round(float(row["avg_value_score"]), 1)}
segment_results.append(segment_info)
total_customers = rfm_segments.count()
segment_distribution = [{**segment, "percentage": round((segment["customer_count"] / total_customers) * 100, 2)} for segment in segment_results]
high_value_customers = rfm_segments.filter((col("r_score") >= 4) & (col("m_score") >= 4)).orderBy(desc("monetary")).limit(50).select("customer_id", "recency", "frequency", "monetary", "rfm_segment").collect()
top_customers = [{"customer_id": row["customer_id"], "recency": int(row["recency"]), "frequency": int(row["frequency"]), "monetary": float(row["monetary"]), "segment": row["rfm_segment"]} for row in high_value_customers]
return JsonResponse({"status": "success", "data": {"rfm_segments": segment_distribution, "total_customers": total_customers, "top_customers": top_customers}})
@require_http_methods(["GET"])
def product_association_rules_analysis(request):
df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/order_analysis_db").option("dbtable", "customer_orders").option("user", "root").option("password", "password").load()
transaction_data = df.select("customer_id", "order_date", "product_name").groupBy("customer_id", "order_date").agg(collect_list("product_name").alias("items"))
transaction_items = transaction_data.select("items").filter(size(col("items")) >= 2)
fp_growth = FPGrowth(itemsCol="items", minSupport=0.01, minConfidence=0.1)
model = fp_growth.fit(transaction_items)
frequent_itemsets = model.freqItemsets.filter(size(col("items")) >= 2).orderBy(desc("freq")).limit(30)
association_rules = model.associationRules.filter(col("confidence") >= 0.3).orderBy(desc("confidence"), desc("lift")).limit(50)
frequent_patterns = []
for row in frequent_itemsets.collect():
pattern_info = {"items": row["items"], "frequency": int(row["freq"]), "item_count": len(row["items"]), "support": round(float(row["freq"]) / transaction_items.count(), 4)}
frequent_patterns.append(pattern_info)
association_results = []
for rule in association_rules.collect():
rule_info = {"antecedent": rule["antecedent"], "consequent": rule["consequent"], "confidence": round(float(rule["confidence"]), 3), "lift": round(float(rule["lift"]), 3), "support": round(float(rule["support"]), 4)}
association_results.append(rule_info)
category_df = df.select("product_name", "product_category").distinct()
category_transaction = df.select("customer_id", "order_date", "product_category").groupBy("customer_id", "order_date").agg(collect_list("product_category").alias("categories"))
category_items = category_transaction.select("categories").filter(size(col("categories")) >= 2)
category_fp_growth = FPGrowth(itemsCol="categories", minSupport=0.05, minConfidence=0.2)
category_model = category_fp_growth.fit(category_items)
category_rules = category_model.associationRules.filter(col("confidence") >= 0.4).orderBy(desc("confidence"), desc("lift")).limit(20)
category_associations = []
for rule in category_rules.collect():
category_rule = {"antecedent_category": rule["antecedent"], "consequent_category": rule["consequent"], "confidence": round(float(rule["confidence"]), 3), "lift": round(float(rule["lift"]), 3), "support": round(float(rule["support"]), 4)}
category_associations.append(category_rule)
cross_sell_opportunities = association_rules.filter(col("lift") >= 2.0).orderBy(desc("lift")).limit(15)
cross_sell_data = [{"antecedent": row["antecedent"], "consequent": row["consequent"], "lift": round(float(row["lift"]), 3), "confidence": round(float(row["confidence"]), 3)} for row in cross_sell_opportunities.collect()]
return JsonResponse({"status": "success", "data": {"frequent_patterns": frequent_patterns, "product_associations": association_results, "category_associations": category_associations, "cross_sell_opportunities": cross_sell_data}})
客户购物订单数据分析与可视化系统 -结语****
