慢性肾病数据可视化分析系统- 简介
基于数据挖掘的慢性肾病数据可视化分析系统是一套综合运用大数据技术的医疗数据分析平台，采用Hadoop分布式存储架构和Spark大数据处理引擎作为核心技术栈。系统通过Python语言开发数据挖掘算法，结合Django后端框架构建稳定的服务接口，前端采用Vue.js配合ElementUI和Echarts组件实现交互式数据可视化界面。系统主要针对慢性肾病患者的多维度医疗数据进行深度分析，包含患病情况统计分析、肾功能指标深度分析、血液生化指标综合评估、多指标联合诊断价值分析、疾病进展与严重程度评估以及临床特征模式识别等六大核心功能模块。通过Spark SQL对存储在HDFS中的大量患者数据进行高效查询和统计计算，利用Pandas和NumPy进行数据预处理和特征工程，最终通过可视化图表展现慢性肾病的发病规律、危险因素关联性及疾病进展模式，为医疗研究人员提供直观的数据洞察工具。
慢性肾病数据可视化分析系统-技术
开发语言：java或Python
数据库：MySQL
系统架构：B/S
前端：Vue+ElementUI+HTML+CSS+JavaScript+jQuery+Echarts
大数据框架：Hadoop+Spark（本次没用Hive，支持定制）
后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)
慢性肾病数据可视化分析系统- 背景
慢性肾病作为全球范围内发病率持续上升的重要疾病，其复杂的病理机制和多样化的临床表现给医疗诊断带来了巨大挑战。传统的医疗数据分析方法往往局限于单一指标的统计，难以有效挖掘大量患者数据中隐藏的关联模式和预测规律。随着医疗信息化程度的不断提高，医院积累了海量的患者检验数据，包括血液生化指标、尿液分析结果、血压监测数据等多维度信息，这些数据蕴含着丰富的临床价值却缺乏有效的分析工具。现有的医疗数据处理系统大多停留在简单的统计报表层面，无法深入挖掘数据背后的医学规律，也无法为临床决策提供有力的数据支撑。在这种背景下，运用现代大数据技术构建专门针对慢性肾病的数据挖掘分析系统，成为提升医疗数据价值利用效率的迫切需求。
本系统的开发具有重要的实际应用价值和技术探索意义。从医疗实践角度来看，系统能够帮助医护人员更好地理解慢性肾病患者的临床特征分布规律，通过对大量患者数据的统计分析，识别出疾病的高危因素和典型表现模式，为临床诊断提供数据参考。系统通过多指标关联分析功能，可以揭示血压、肾功能、血液指标之间的内在联系，有助于建立更加完善的疾病评估体系。从技术发展角度来说，本系统将Hadoop和Spark等大数据技术应用于医疗数据处理领域，验证了分布式计算在处理医疗大数据方面的可行性和优势。项目通过Python数据科学库与大数据框架的结合使用，为后续类似的医疗数据分析项目提供了技术参考方案。虽然作为毕业设计项目在规模和复杂度上相对有限，但其在医疗数据挖掘方向的探索具有一定的学习和实践价值。
慢性肾病数据可视化分析系统-视频展示

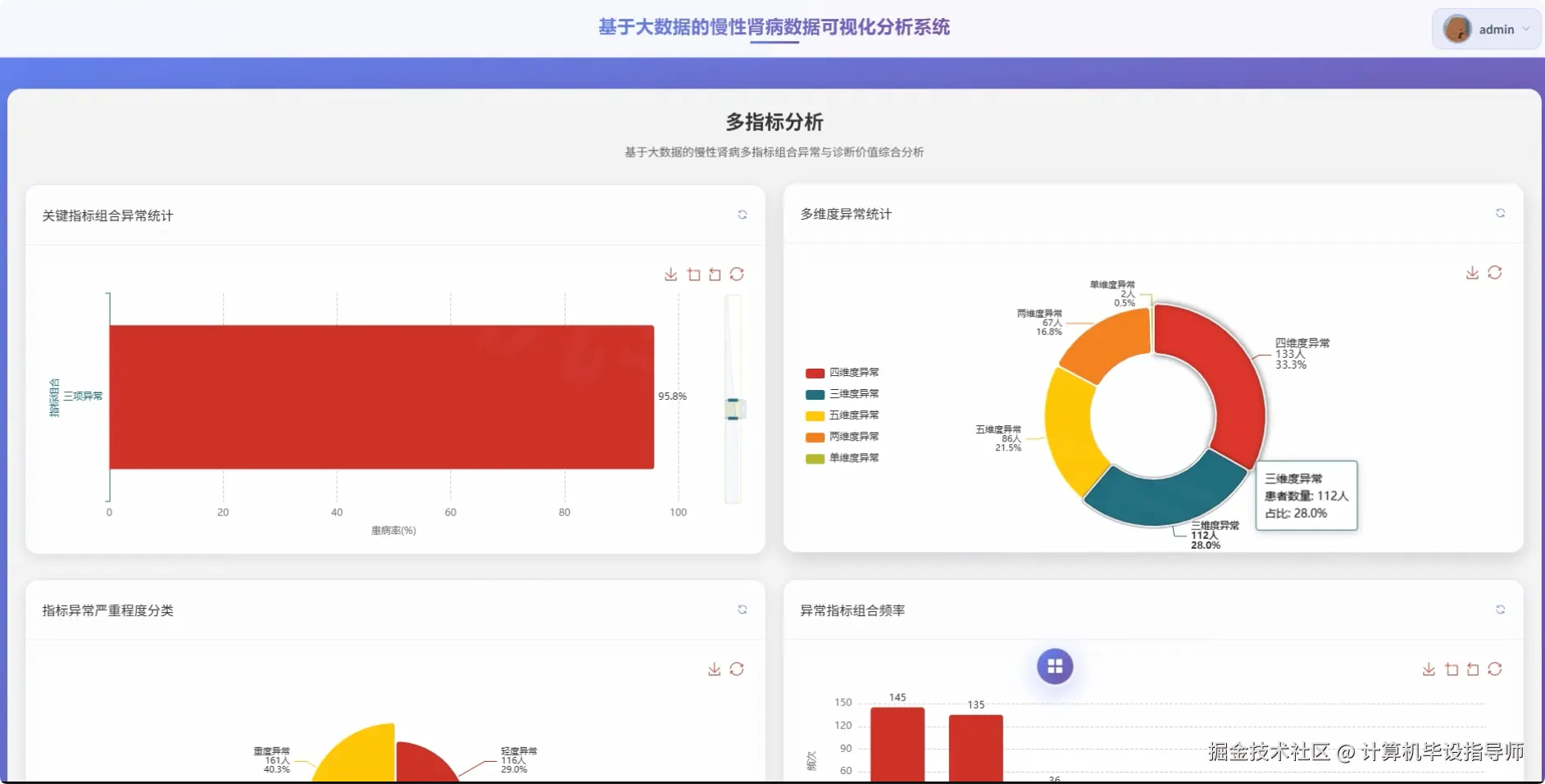

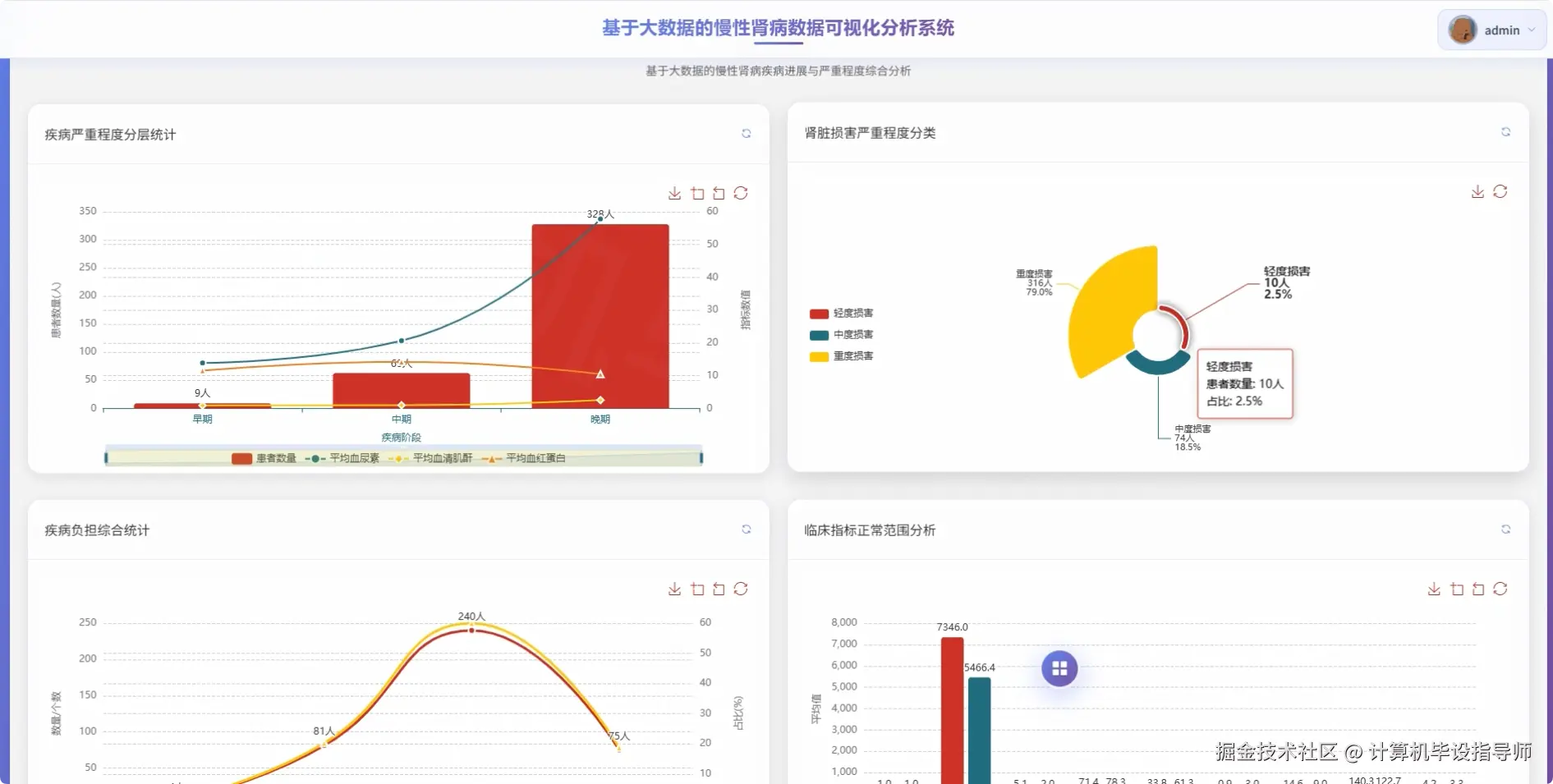

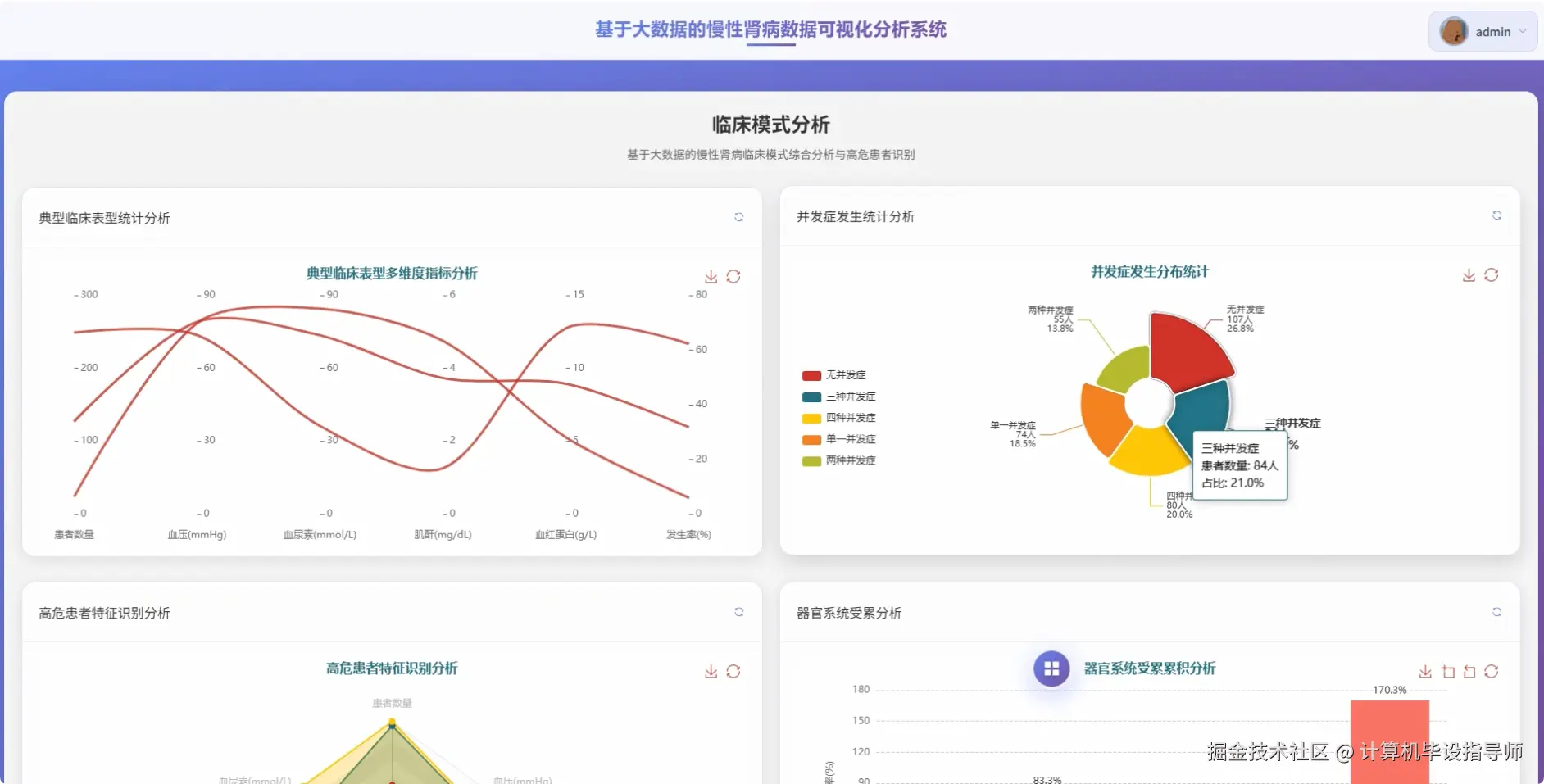

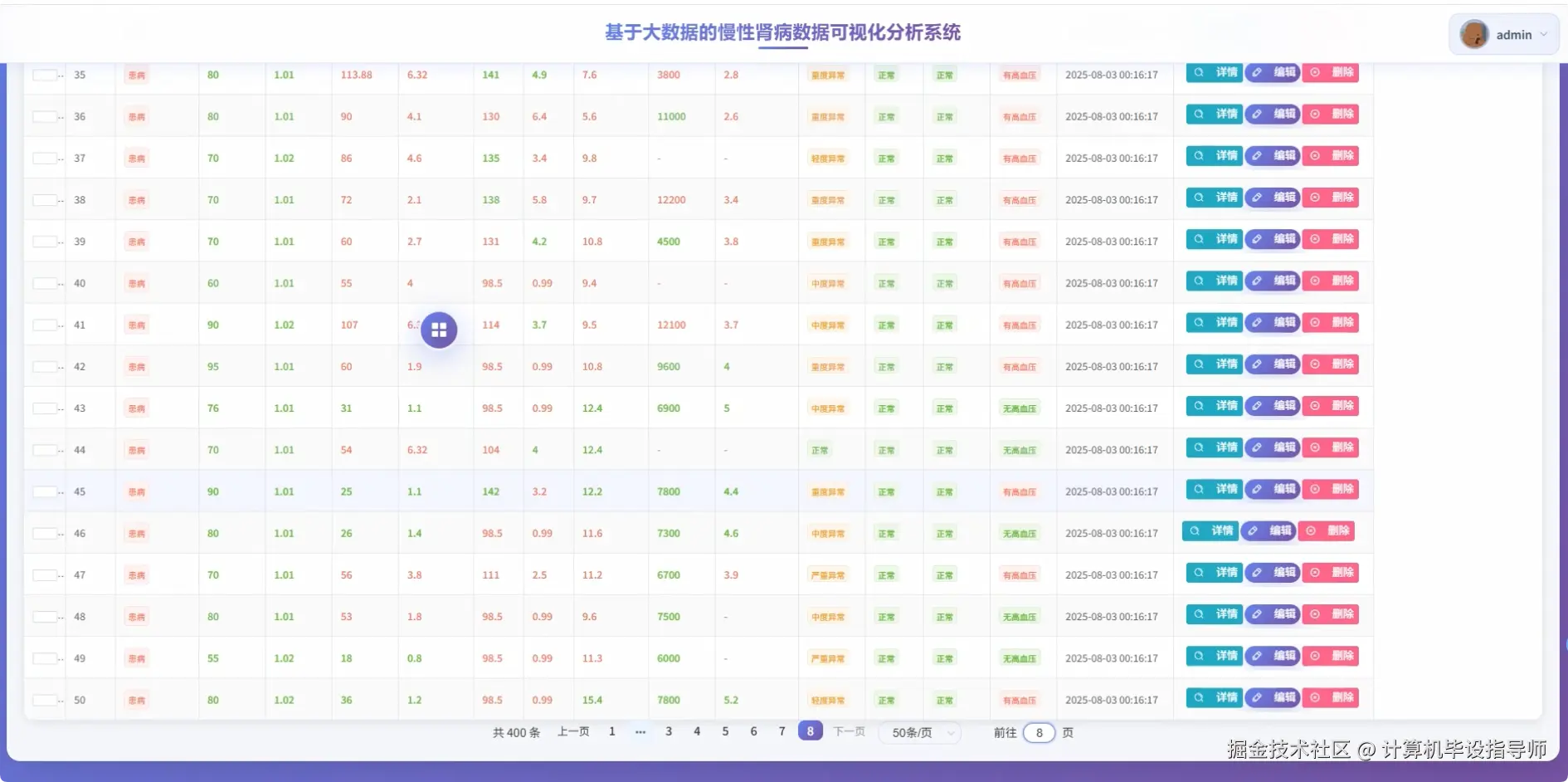

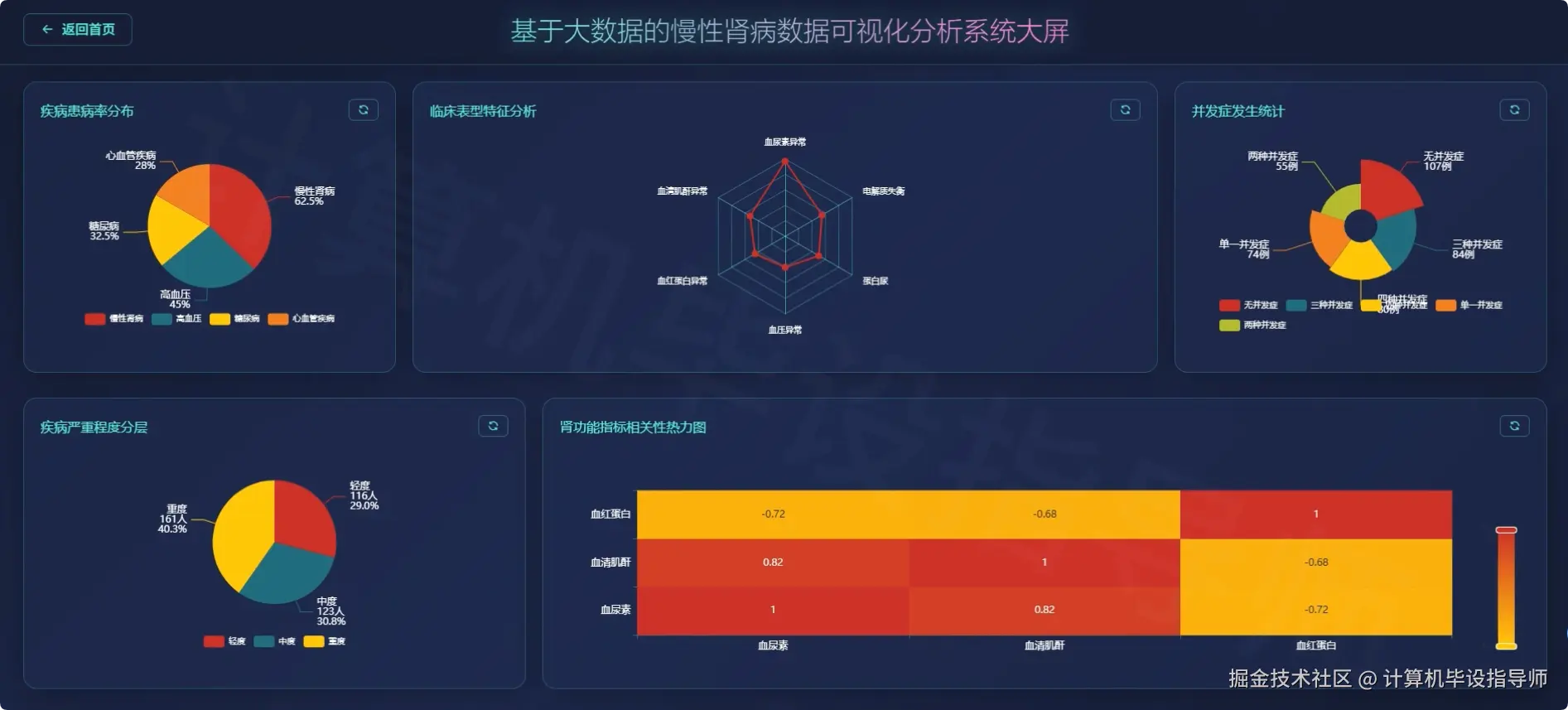

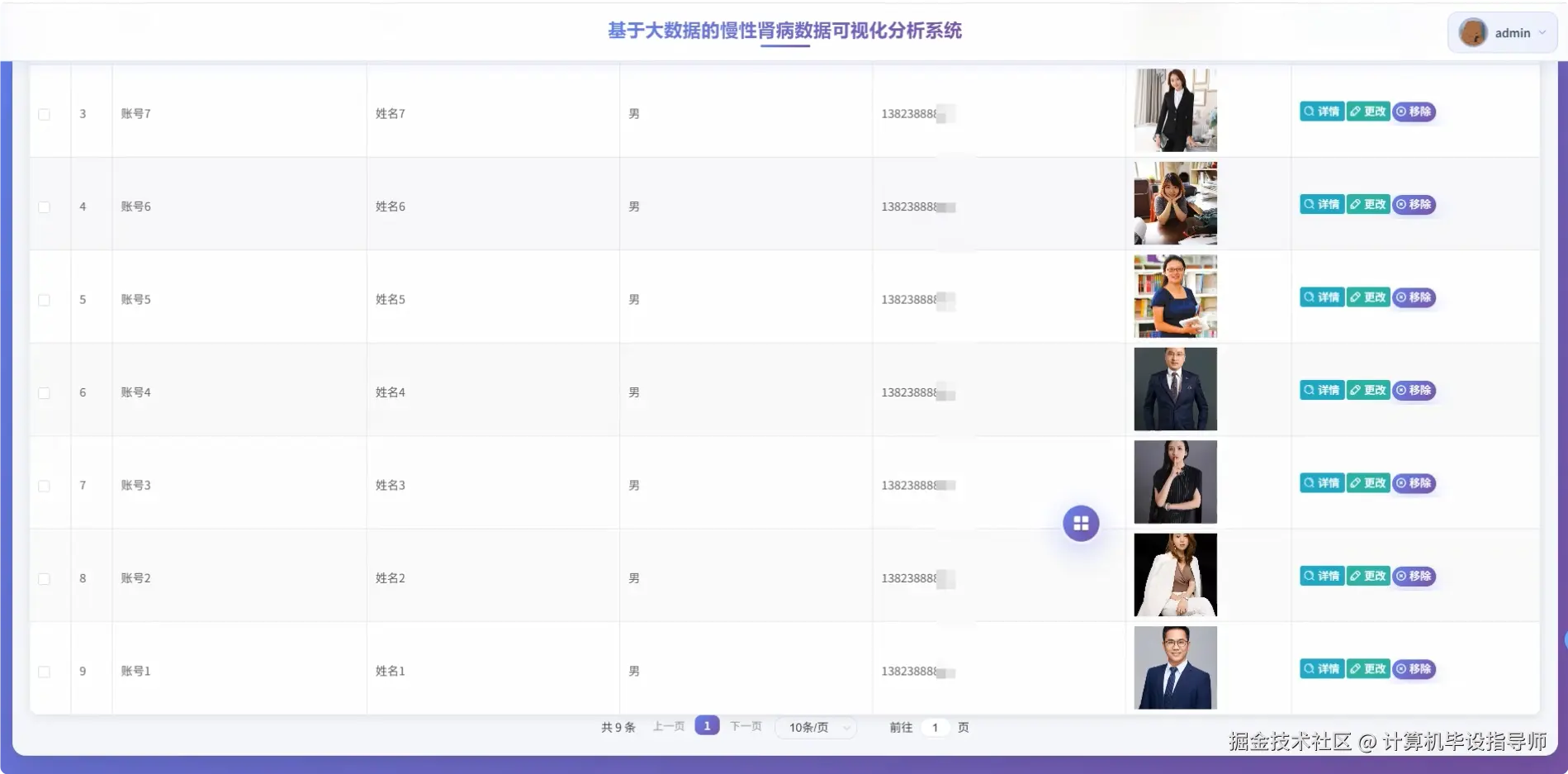

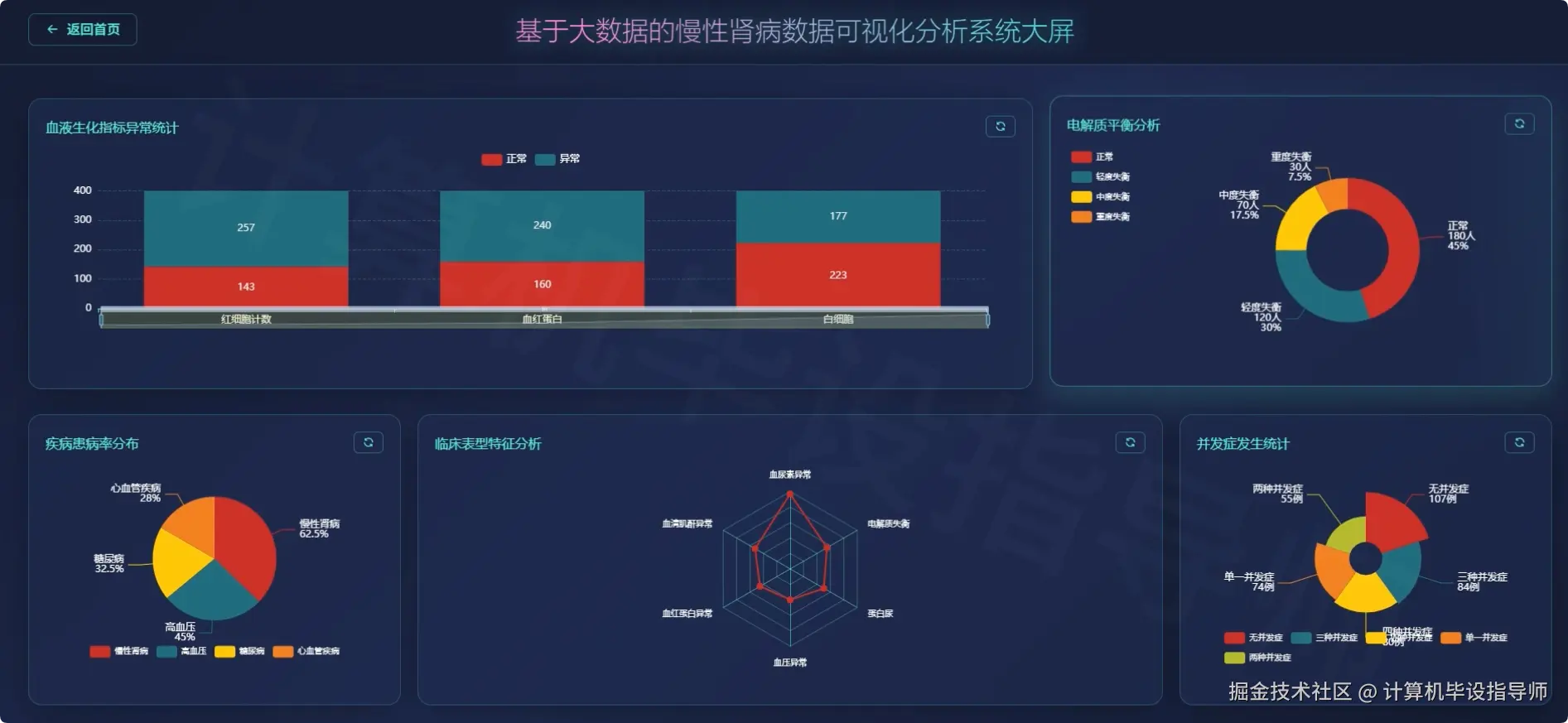

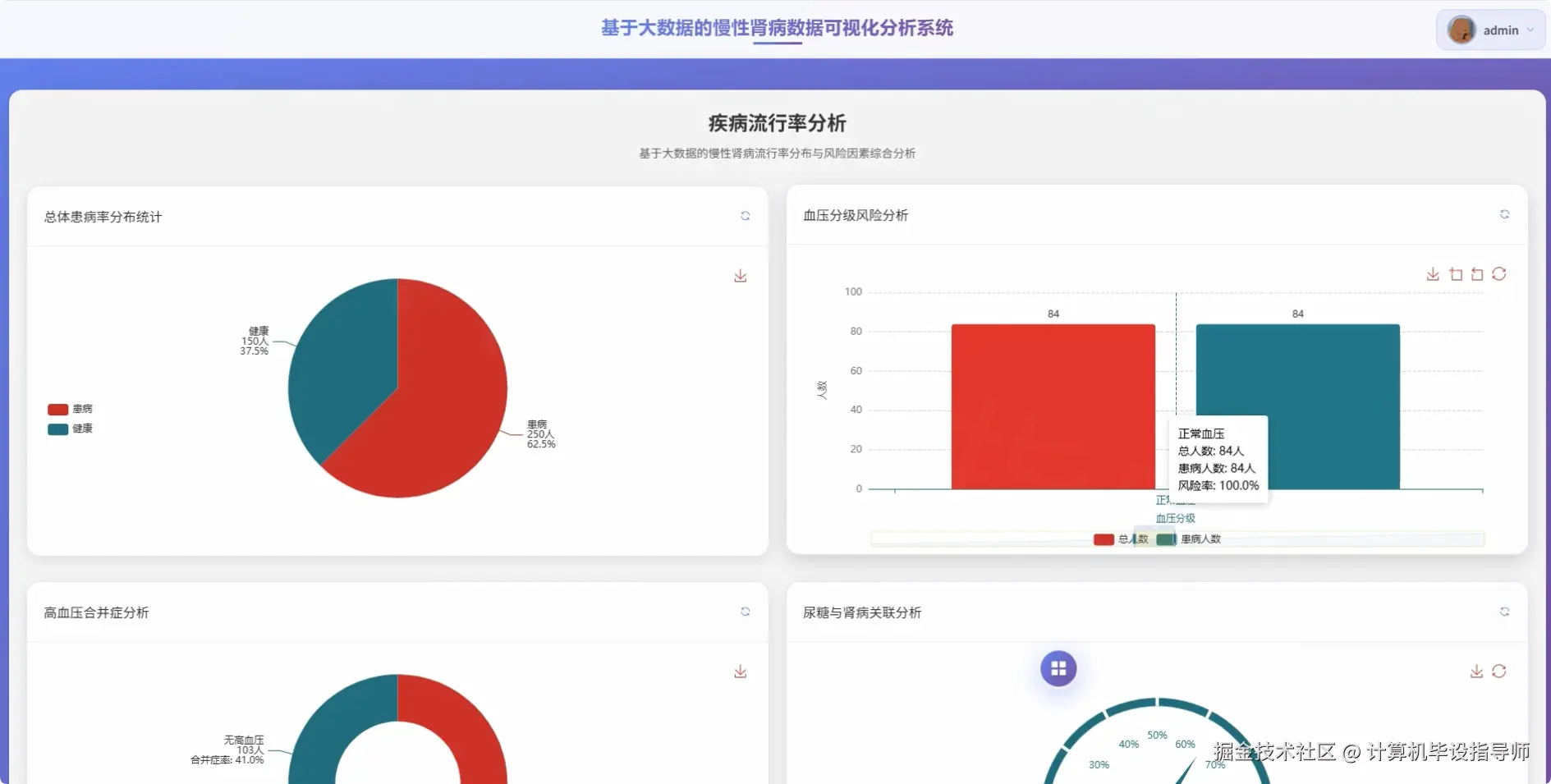

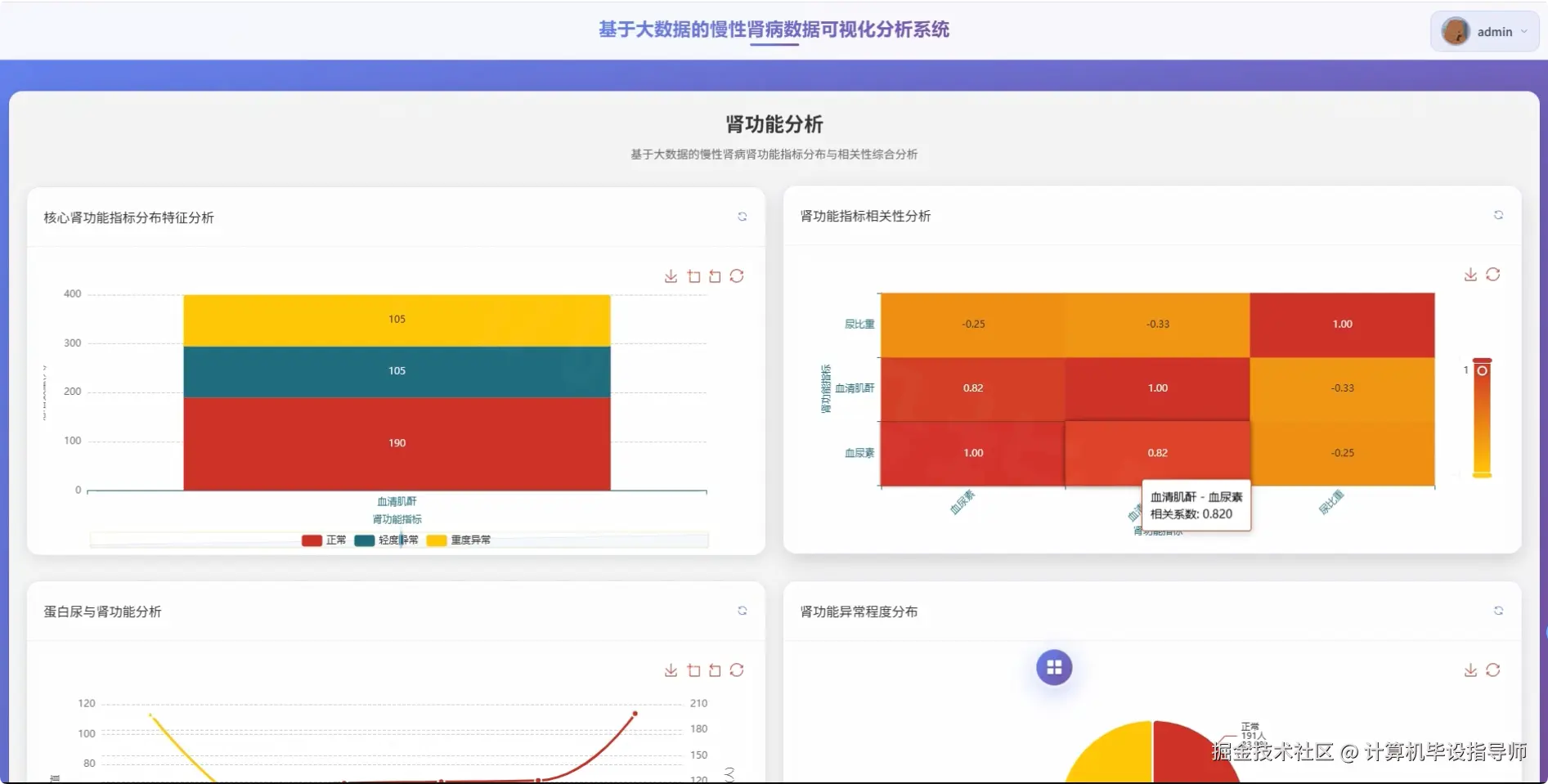

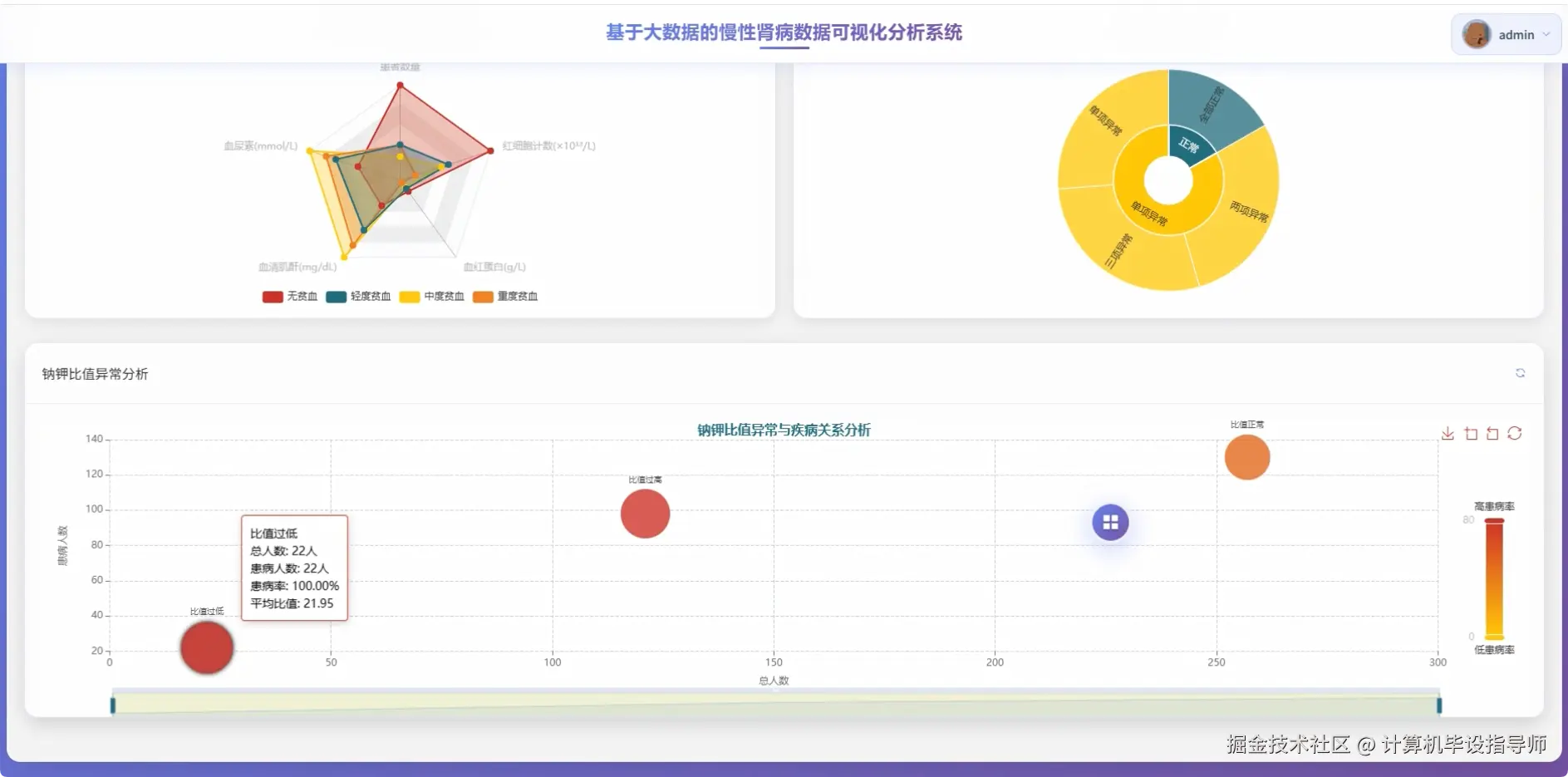

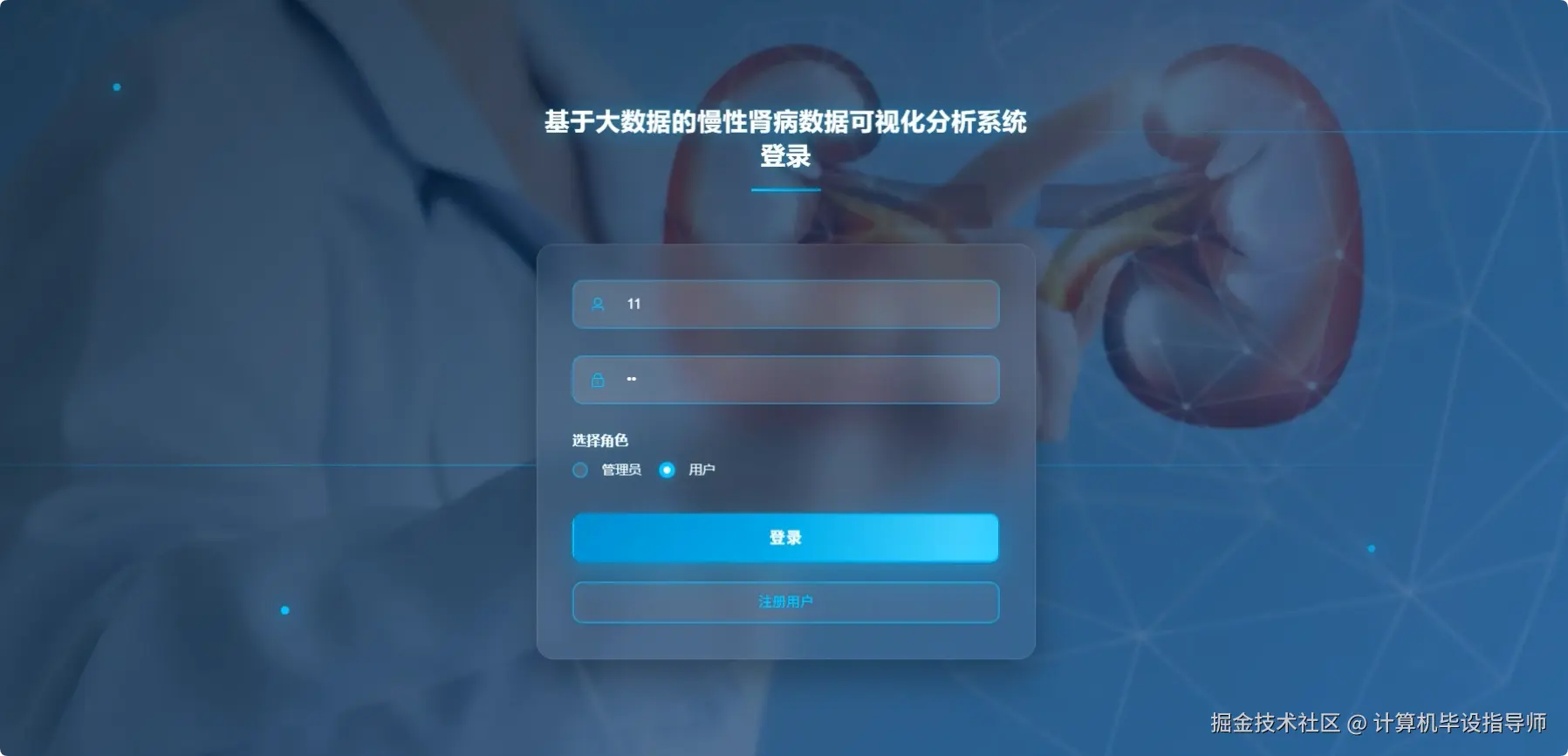

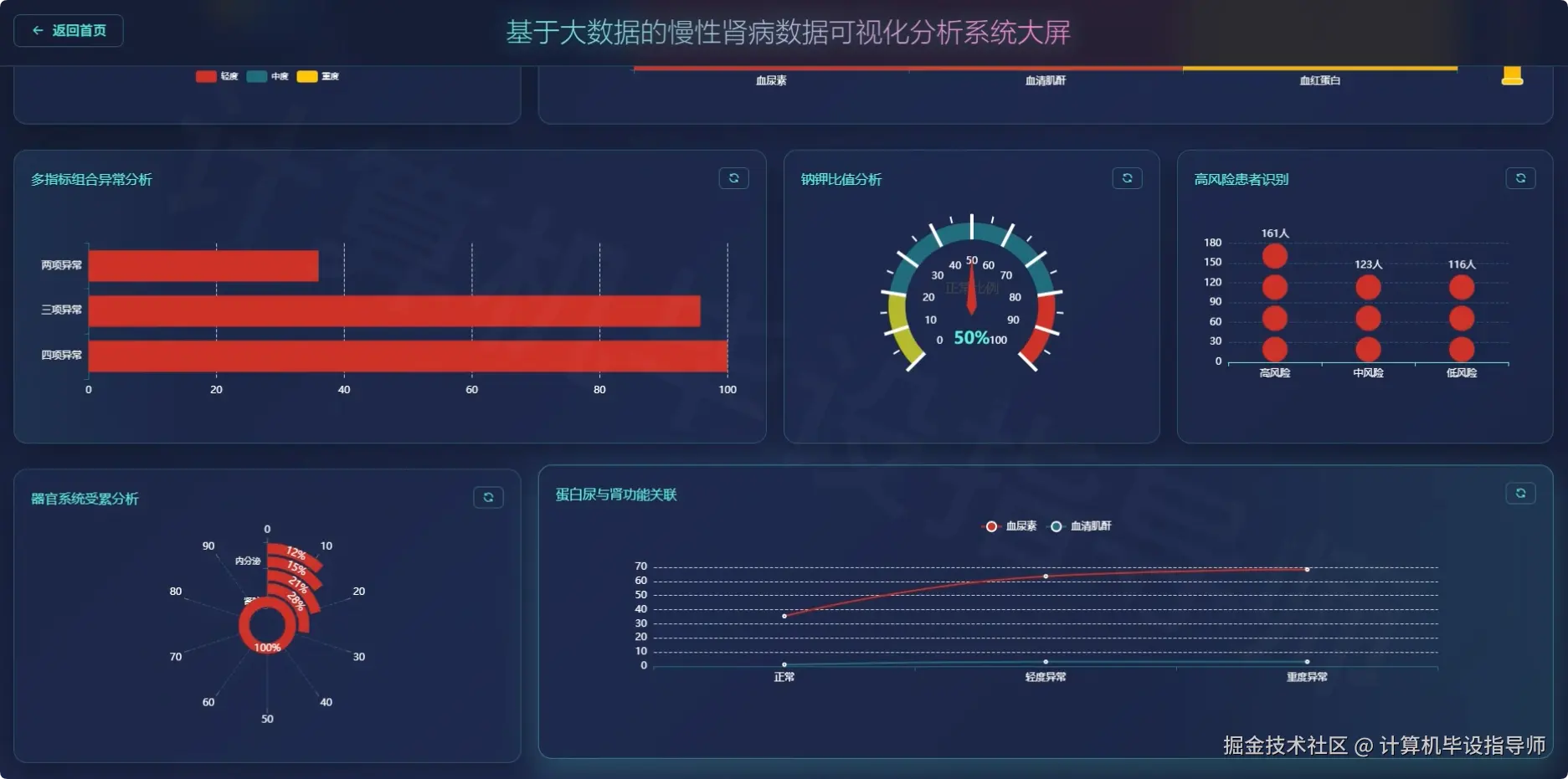

慢性肾病数据可视化分析系统 系统-图片展示
慢性肾病数据可视化分析系统-代码展示
from pyspark.sql.functions import col, count, when, isnan, isnull, mean, stddev, corr
import pandas as pd
import numpy as np
from django.http import JsonResponse
spark = SparkSession.builder.appName("ChronicKidneyDiseaseAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
def analyze_patient_disease_distribution():
df = spark.read.option("header", "true").option("inferSchema", "true").csv("hdfs://localhost:9000/kidney_disease_data.csv")
total_patients = df.count()
disease_stats = df.groupBy("Class").agg(count("*").alias("patient_count")).collect()
disease_distribution = {}
for row in disease_stats:
disease_status = "患病" if row["Class"] == "ckd" else "健康"
patient_count = row["patient_count"]
percentage = round((patient_count / total_patients) * 100, 2)
disease_distribution[disease_status] = {"count": patient_count, "percentage": percentage}
bp_disease_analysis = df.filter(col("Bp").isNotNull()).groupBy("Bp", "Class").agg(count("*").alias("count")).collect()
bp_disease_stats = {}
for row in bp_disease_analysis:
bp_level = row["Bp"]
disease_class = row["Class"]
count_val = row["count"]
if bp_level not in bp_disease_stats:
bp_disease_stats[bp_level] = {"ckd": 0, "notckd": 0}
bp_disease_stats[bp_level][disease_class] = count_val
for bp_level in bp_disease_stats:
total_bp = bp_disease_stats[bp_level]["ckd"] + bp_disease_stats[bp_level]["notckd"]
if total_bp > 0:
bp_disease_stats[bp_level]["ckd_rate"] = round((bp_disease_stats[bp_level]["ckd"] / total_bp) * 100, 2)
htn_analysis = df.filter(col("Htn").isNotNull()).groupBy("Htn", "Class").agg(count("*").alias("count")).collect()
htn_stats = {"yes": {"ckd": 0, "notckd": 0}, "no": {"ckd": 0, "notckd": 0}}
for row in htn_analysis:
htn_status = row["Htn"]
disease_class = row["Class"]
count_val = row["count"]
if htn_status in htn_stats:
htn_stats[htn_status][disease_class] = count_val
for htn_status in htn_stats:
total_htn = htn_stats[htn_status]["ckd"] + htn_stats[htn_status]["notckd"]
if total_htn > 0:
htn_stats[htn_status]["ckd_rate"] = round((htn_stats[htn_status]["ckd"] / total_htn) * 100, 2)
result_data = {"disease_distribution": disease_distribution, "bp_disease_analysis": bp_disease_stats, "htn_disease_analysis": htn_stats, "total_patients": total_patients}
return JsonResponse(result_data)
def analyze_kidney_function_indicators():
df = spark.read.option("header", "true").option("inferSchema", "true").csv("hdfs://localhost:9000/kidney_disease_data.csv")
bu_analysis = df.filter(col("Bu").isNotNull()).select("Bu", "Class")
bu_stats = bu_analysis.groupBy("Class").agg(mean("Bu").alias("avg_bu"), stddev("Bu").alias("std_bu"), count("Bu").alias("count_bu")).collect()
bu_distribution = {}
for row in bu_stats:
disease_class = "患病组" if row["Class"] == "ckd" else "健康组"
bu_distribution[disease_class] = {"average": round(row["avg_bu"], 2), "std_deviation": round(row["std_bu"], 2), "sample_count": row["count_bu"]}
bu_abnormal_analysis = df.filter(col("Bu").isNotNull()).withColumn("bu_level", when(col("Bu") <= 20, "正常").when((col("Bu") > 20) & (col("Bu") <= 50), "轻度异常").otherwise("重度异常"))
bu_level_stats = bu_abnormal_analysis.groupBy("bu_level", "Class").agg(count("*").alias("count")).collect()
bu_level_distribution = {}
for row in bu_level_stats:
level = row["bu_level"]
disease_class = row["Class"]
count_val = row["count"]
if level not in bu_level_distribution:
bu_level_distribution[level] = {"ckd": 0, "notckd": 0}
bu_level_distribution[level][disease_class] = count_val
sc_analysis = df.filter(col("Sc").isNotNull()).select("Sc", "Class")
sc_stats = sc_analysis.groupBy("Class").agg(mean("Sc").alias("avg_sc"), stddev("Sc").alias("std_sc"), count("Sc").alias("count_sc")).collect()
sc_distribution = {}
for row in sc_stats:
disease_class = "患病组" if row["Class"] == "ckd" else "健康组"
sc_distribution[disease_class] = {"average": round(row["avg_sc"], 2), "std_deviation": round(row["std_sc"], 2), "sample_count": row["count_sc"]}
correlation_analysis = df.filter(col("Bu").isNotNull() & col("Sc").isNotNull() & col("Al").isNotNull()).select("Bu", "Sc", "Al")
correlation_matrix = {}
correlation_matrix["bu_sc"] = correlation_analysis.stat.corr("Bu", "Sc")
correlation_matrix["bu_al"] = correlation_analysis.stat.corr("Bu", "Al")
correlation_matrix["sc_al"] = correlation_analysis.stat.corr("Sc", "Al")
for key in correlation_matrix:
if correlation_matrix[key] is not None:
correlation_matrix[key] = round(correlation_matrix[key], 3)
al_analysis = df.filter(col("Al").isNotNull()).groupBy("Al", "Class").agg(count("*").alias("count")).collect()
al_stats = {}
for row in al_analysis:
al_level = row["Al"]
disease_class = row["Class"]
count_val = row["count"]
if al_level not in al_stats:
al_stats[al_level] = {"ckd": 0, "notckd": 0}
al_stats[al_level][disease_class] = count_val
result_data = {"bu_statistics": bu_distribution, "bu_level_distribution": bu_level_distribution, "sc_statistics": sc_distribution, "correlation_matrix": correlation_matrix, "albumin_analysis": al_stats}
return JsonResponse(result_data)
def analyze_blood_biochemical_indicators():
df = spark.read.option("header", "true").option("inferSchema", "true").csv("hdfs://localhost:9000/kidney_disease_data.csv")
hemo_analysis = df.filter(col("Hemo").isNotNull()).select("Hemo", "Class")
hemo_stats = hemo_analysis.groupBy("Class").agg(mean("Hemo").alias("avg_hemo"), stddev("Hemo").alias("std_hemo"), count("Hemo").alias("count_hemo")).collect()
hemo_distribution = {}
for row in hemo_stats:
disease_class = "患病组" if row["Class"] == "ckd" else "健康组"
hemo_distribution[disease_class] = {"average": round(row["avg_hemo"], 2), "std_deviation": round(row["std_hemo"], 2), "sample_count": row["count_hemo"]}
anemia_analysis = df.filter(col("Hemo").isNotNull()).withColumn("anemia_level", when(col("Hemo") >= 120, "正常").when((col("Hemo") >= 90) & (col("Hemo") < 120), "轻度贫血").when((col("Hemo") >= 60) & (col("Hemo") < 90), "中度贫血").otherwise("重度贫血"))
anemia_stats = anemia_analysis.groupBy("anemia_level", "Class").agg(count("*").alias("count")).collect()
anemia_distribution = {}
for row in anemia_stats:
anemia_level = row["anemia_level"]
disease_class = row["Class"]
count_val = row["count"]
if anemia_level not in anemia_distribution:
anemia_distribution[anemia_level] = {"ckd": 0, "notckd": 0}
anemia_distribution[anemia_level][disease_class] = count_val
for level in anemia_distribution:
total_level = anemia_distribution[level]["ckd"] + anemia_distribution[level]["notckd"]
if total_level > 0:
anemia_distribution[level]["ckd_rate"] = round((anemia_distribution[level]["ckd"] / total_level) * 100, 2)
wbcc_analysis = df.filter(col("Wbcc").isNotNull()).select("Wbcc", "Class")
wbcc_stats = wbcc_analysis.groupBy("Class").agg(mean("Wbcc").alias("avg_wbcc"), stddev("Wbcc").alias("std_wbcc"), count("Wbcc").alias("count_wbcc")).collect()
wbcc_distribution = {}
for row in wbcc_stats:
disease_class = "患病组" if row["Class"] == "ckd" else "健康组"
wbcc_distribution[disease_class] = {"average": round(row["avg_wbcc"], 0), "std_deviation": round(row["std_wbcc"], 0), "sample_count": row["count_wbcc"]}
electrolyte_analysis = df.filter(col("Sod").isNotNull() & col("Pot").isNotNull()).select("Sod", "Pot", "Class")
sod_stats = electrolyte_analysis.groupBy("Class").agg(mean("Sod").alias("avg_sod"), stddev("Sod").alias("std_sod")).collect()
pot_stats = electrolyte_analysis.groupBy("Class").agg(mean("Pot").alias("avg_pot"), stddev("Pot").alias("std_pot")).collect()
electrolyte_distribution = {}
for row in sod_stats:
disease_class = "患病组" if row["Class"] == "ckd" else "健康组"
electrolyte_distribution[disease_class] = {"sodium_avg": round(row["avg_sod"], 2), "sodium_std": round(row["std_sod"], 2)}
for row in pot_stats:
disease_class = "患病组" if row["Class"] == "ckd" else "健康组"
if disease_class in electrolyte_distribution:
electrolyte_distribution[disease_class]["potassium_avg"] = round(row["avg_pot"], 2)
electrolyte_distribution[disease_class]["potassium_std"] = round(row["std_pot"], 2)
sodium_potassium_ratio = df.filter(col("Sod").isNotNull() & col("Pot").isNotNull()).withColumn("na_k_ratio", col("Sod") / col("Pot"))
ratio_stats = sodium_potassium_ratio.groupBy("Class").agg(mean("na_k_ratio").alias("avg_ratio"), stddev("na_k_ratio").alias("std_ratio")).collect()
ratio_distribution = {}
for row in ratio_stats:
disease_class = "患病组" if row["Class"] == "ckd" else "健康组"
ratio_distribution[disease_class] = {"avg_na_k_ratio": round(row["avg_ratio"], 2), "std_na_k_ratio": round(row["std_ratio"], 2)}
result_data = {"hemoglobin_analysis": hemo_distribution, "anemia_distribution": anemia_distribution, "wbcc_analysis": wbcc_distribution, "electrolyte_analysis": electrolyte_distribution, "sodium_potassium_ratio": ratio_distribution}
return JsonResponse(result_data)
慢性肾病数据可视化分析系统-结语
大导师最喜欢什么样的大数据毕设？慢性肾病数据挖掘可视化系统给你答案
数据毕设不会做？基于数据挖掘的慢性肾病可视化分析系统一次搞定
大学导师极力推荐：2026年最值得做的慢性肾病大数据分析毕设系统
