气候驱动的疾病传播可视化分析系统 - 简介
基于Hadoop+Django的气候驱动的疾病传播可视化分析系统是一个集成了大数据处理与Web可视化技术的综合性平台，专门用于分析和展示气候因素与疾病传播之间的复杂关系。该系统采用Hadoop分布式计算框架作为底层数据处理引擎，结合Spark进行大规模气候数据的并行计算和统计分析，有效处理包含24年全球气候数据的海量信息。系统前端采用Vue+ElementUI构建现代化用户界面，通过Echarts图表库实现多维度数据可视化展示，包括时序趋势分析、地理空间分布、相关性热力图等多种图表形式。后端基于Django框架开发RESTful API接口，与MySQL数据库协同工作，支持复杂的数据查询和聚合操作。系统核心功能涵盖全球气候与疾病24年总体趋势分析、季节性模式识别、地理空间风险评估、多指标相关性分析等四大分析维度，能够从温度、降水、空气质量、紫外线指数等多个气候变量角度，深入探究其与疟疾、登革热等媒介传播疾病发病率的关联模式，为公共卫生决策提供科学的数据支撑和可视化展示。
气候驱动的疾病传播可视化分析系统 -技术
开发语言：java或Python
数据库：MySQL
系统架构：B/S
前端：Vue+ElementUI+HTML+CSS+JavaScript+jQuery+Echarts
大数据框架：Hadoop+Spark（本次没用Hive，支持定制）
后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)
气候驱动的疾病传播可视化分析系统 - 背景
当前全球面临着日益严峻的气候变化挑战，温度即使是微小的上升也会引发媒介生物数量和分布的巨大变化，病原体在媒介生物体内的繁殖与扩增也受到气候因素的影响。随着全球气温持续升高，传统的疾病传播模式正在发生根本性改变，传播疟疾的蚊子正在扩大其地理分布，这种变化趋势引起了国际公共卫生领域的高度关注。气候变化正在改变携带登革热病毒媒介-蚊虫的分布范围和季节性，使得原本局限于特定地理区域的疾病开始向新的区域扩散。2023年全球疟疾病例数量为2.63亿例，比上一年增加约1100万例，这一数据变化反映出气候变化对疾病传播产生的实际影响。在这样的背景下，如何准确分析和预测气候变化对疾病传播的影响机制，成为了当前亟需解决的重要科学问题。传统的单点数据分析方法已经无法满足大规模、多维度气候与健康数据的处理需求，迫切需要借助大数据技术来构建更加精确和全面的分析体系。
基于Hadoop+Django的气候驱动疾病传播可视化分析系统的研发具有多方面的实践价值和学术意义。从技术层面来看，该系统将大数据处理技术与公共健康领域相结合，为处理海量气候与疾病数据提供了可行的技术路径，特别是通过Spark分布式计算框架实现的并行数据处理能力，能够有效提升大规模数据分析的效率和精度。从应用价值角度分析，系统通过构建多维度的分析模型，可以帮助相关研究人员更好地理解气候变量与疾病传播之间的复杂关系，为制定针对性的公共卫生政策提供数据依据。系统设计的四大分析维度涵盖了时间序列、空间分布、因果关联等多个方面，能够从不同角度揭示气候与疾病传播的规律性特征。对于计算机专业学生而言，该项目涉及了分布式计算、数据可视化、Web开发等多个技术领域，有助于提升大数据技术的综合应用能力。虽然作为毕业设计项目在规模和复杂度上有所限制，但其研究思路和技术架构仍然具备一定的参考价值，能够为相关领域的后续研究提供基础性的技术框架和实现方案。
气候驱动的疾病传播可视化分析系统 -视频展示

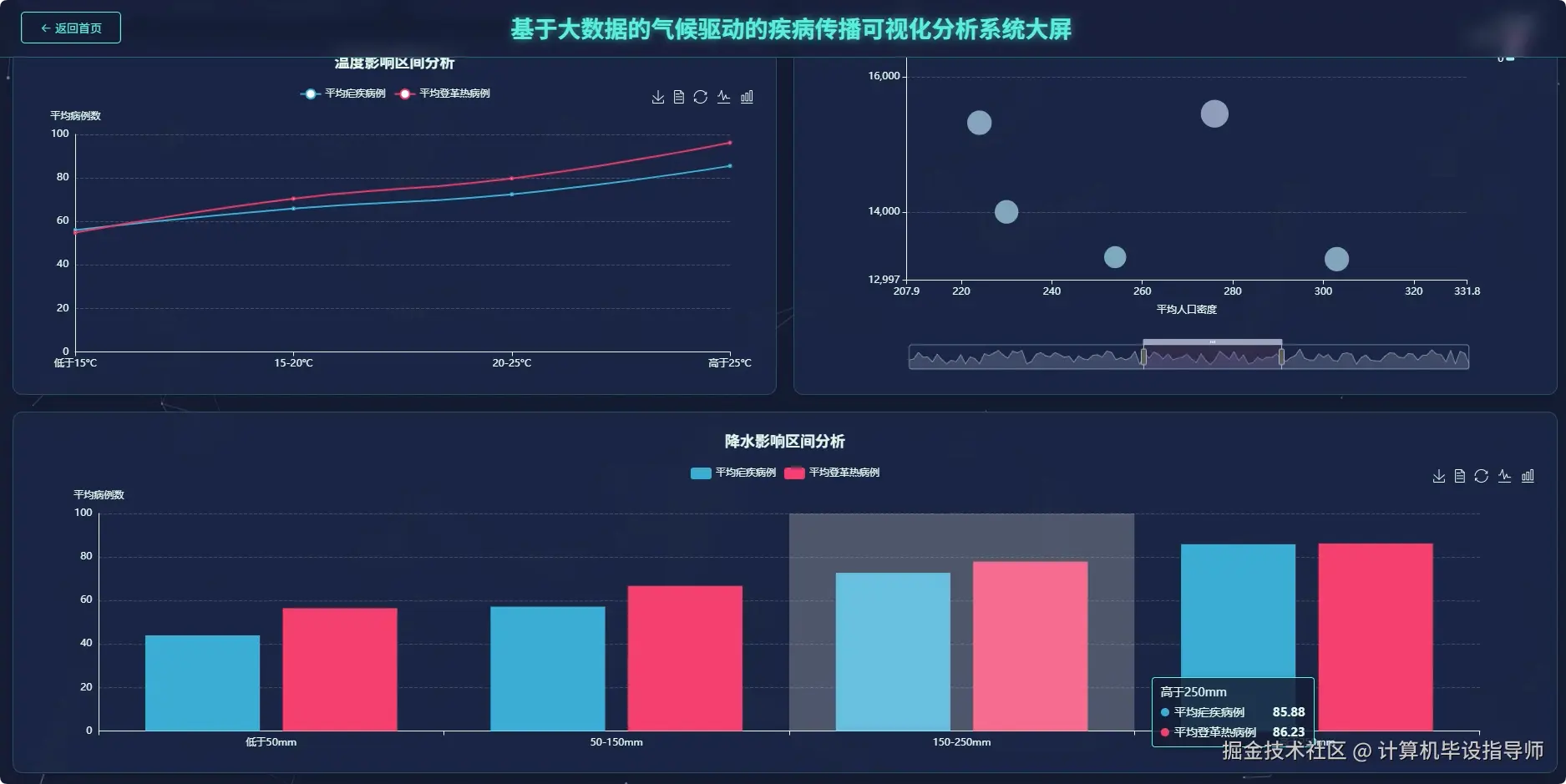

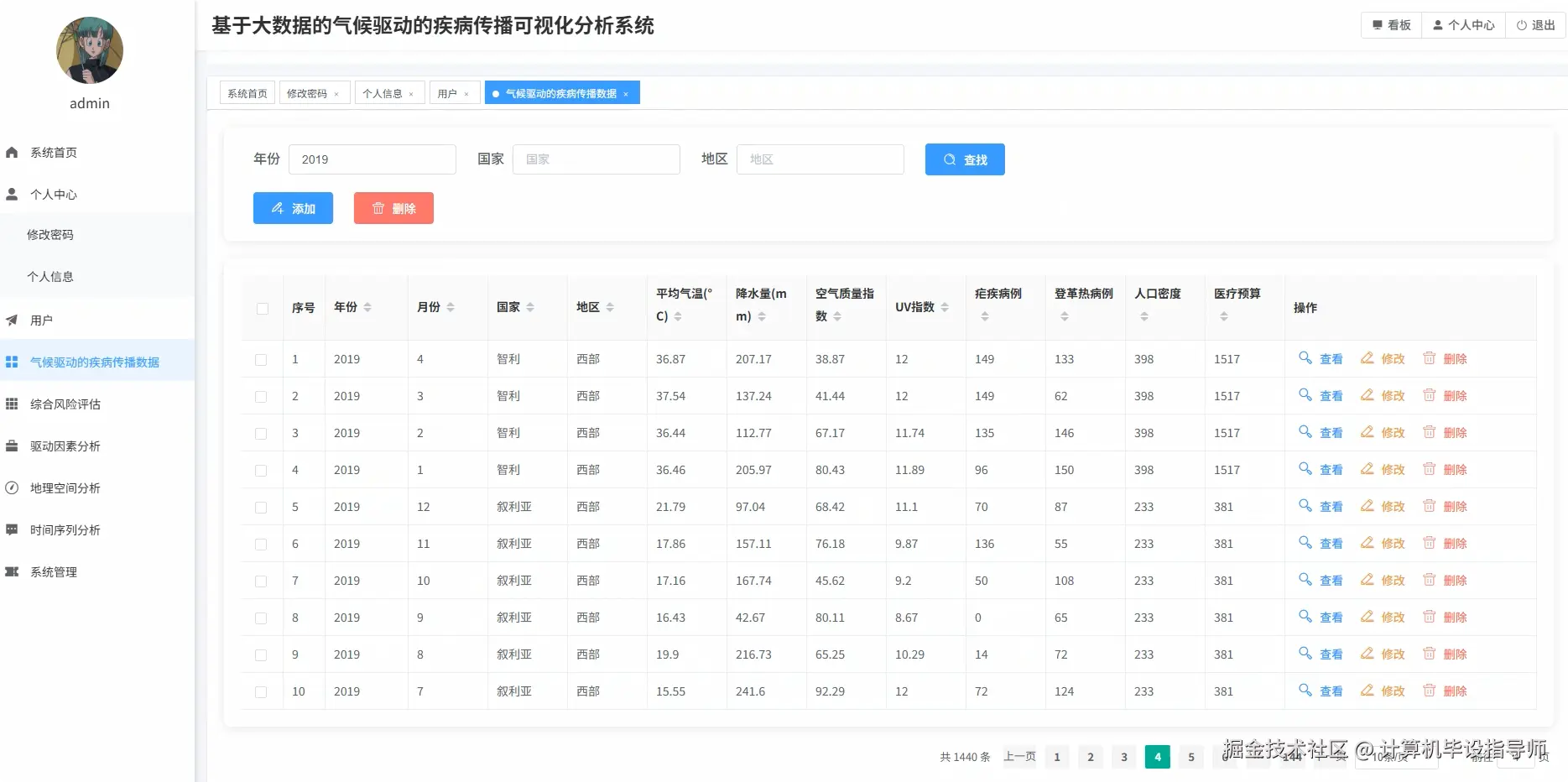

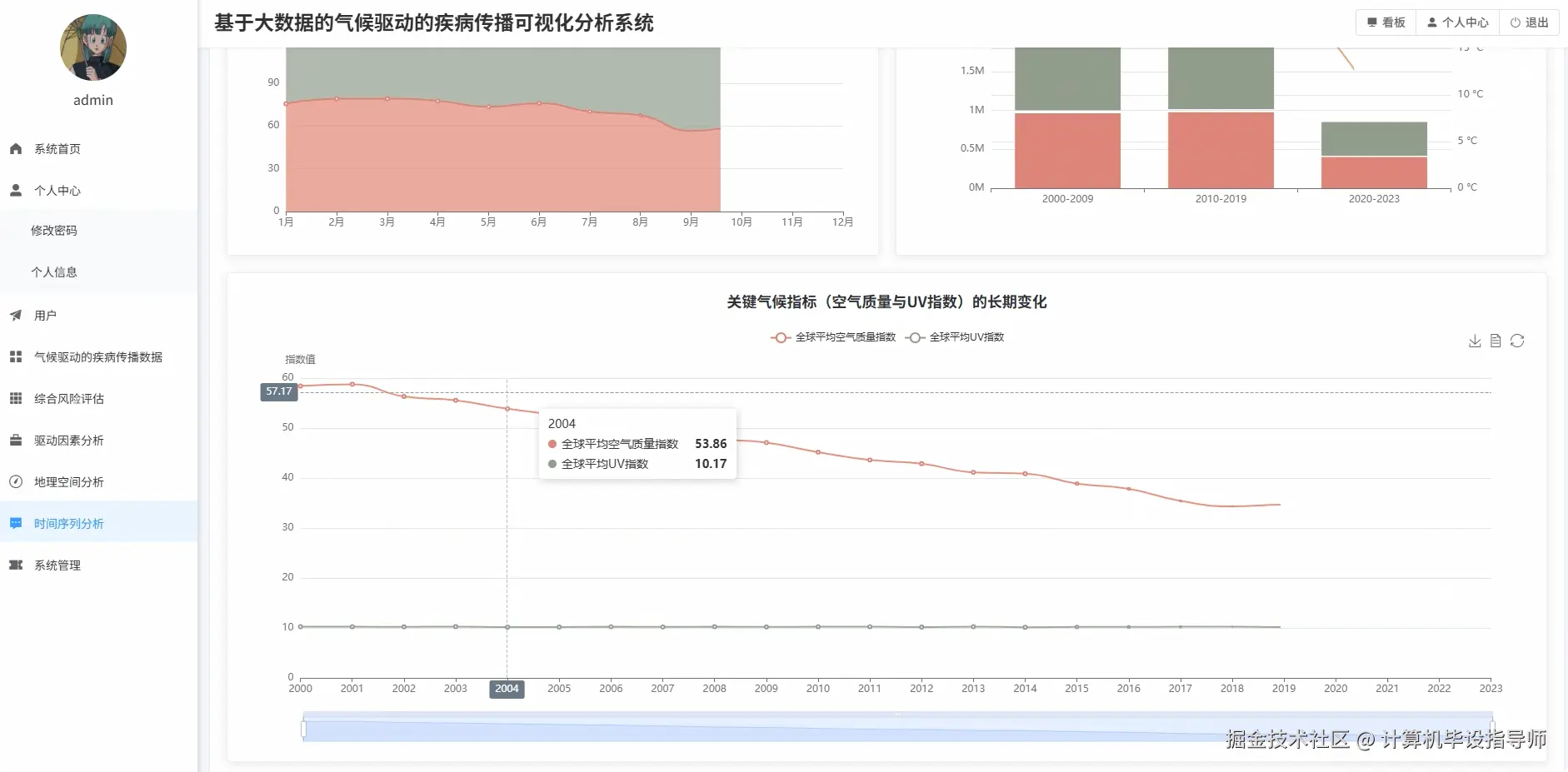

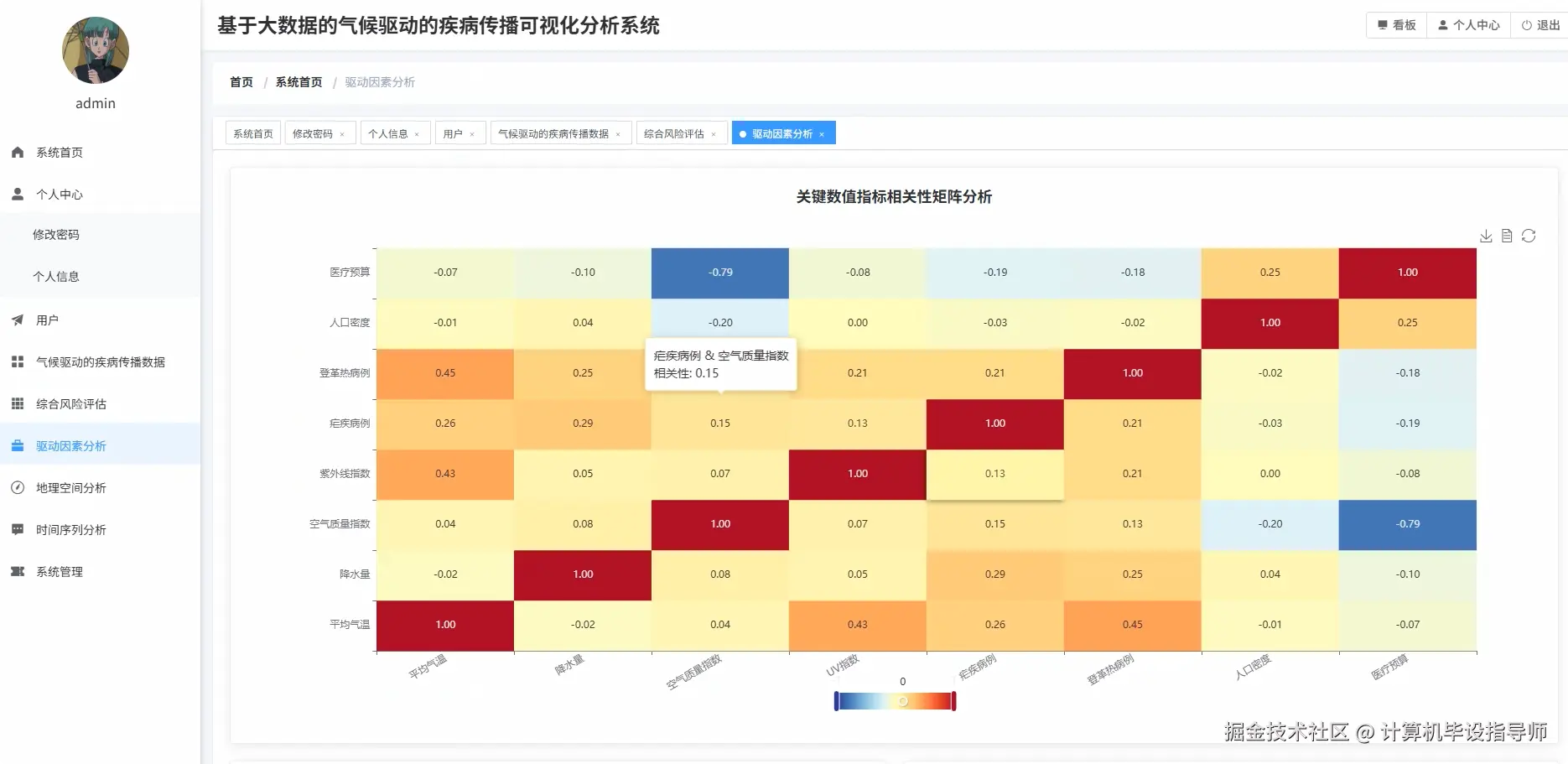

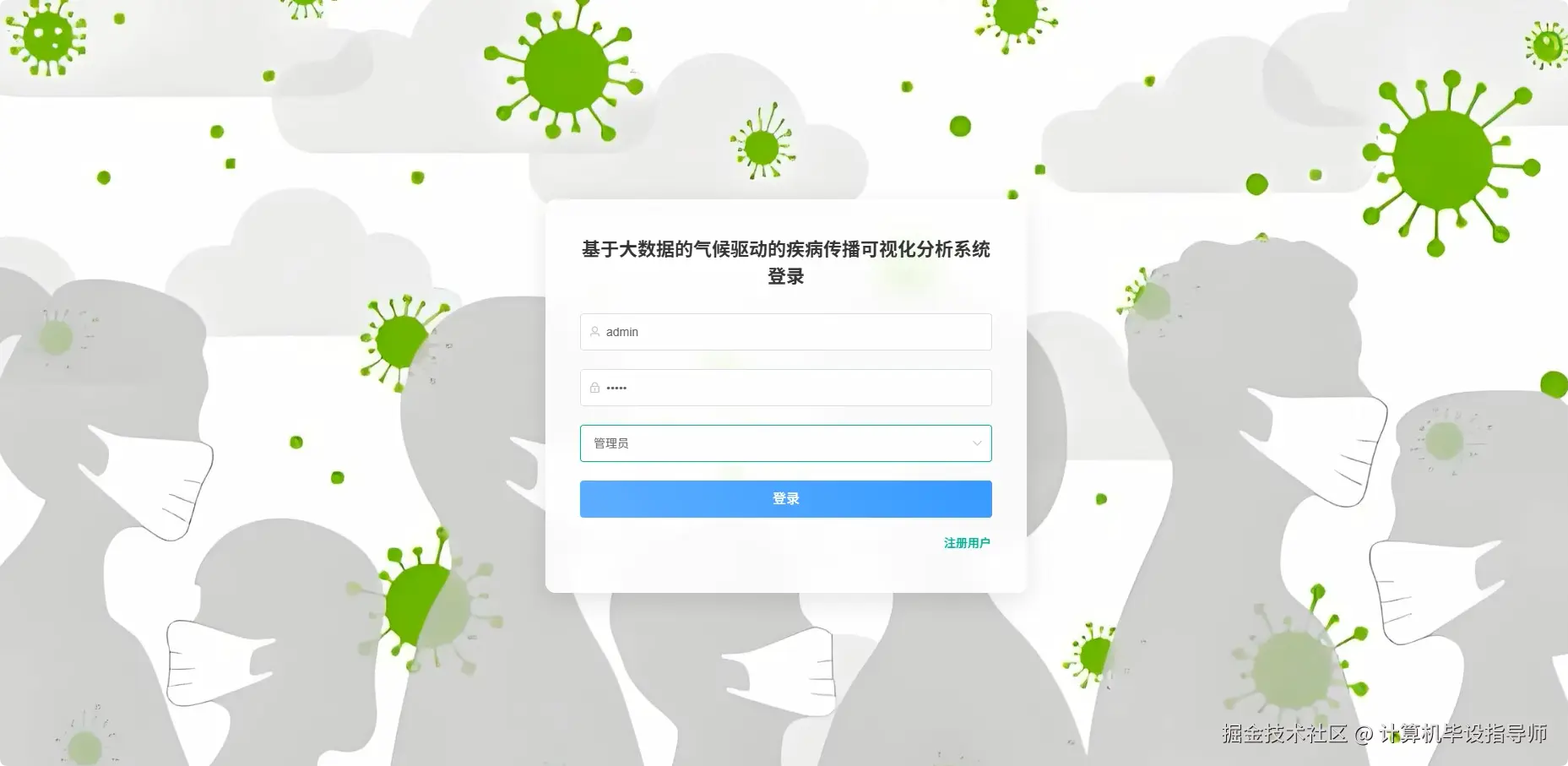

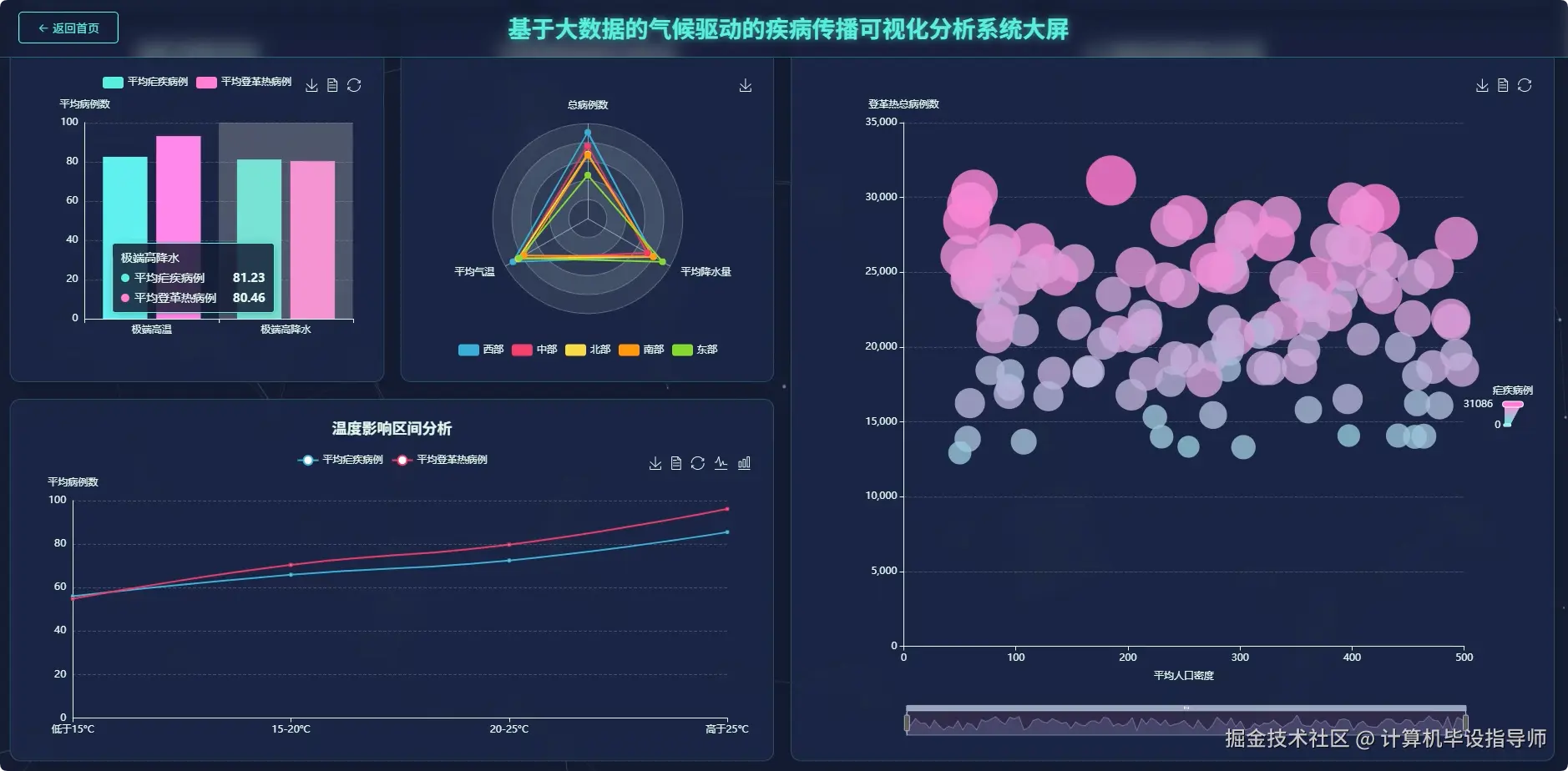

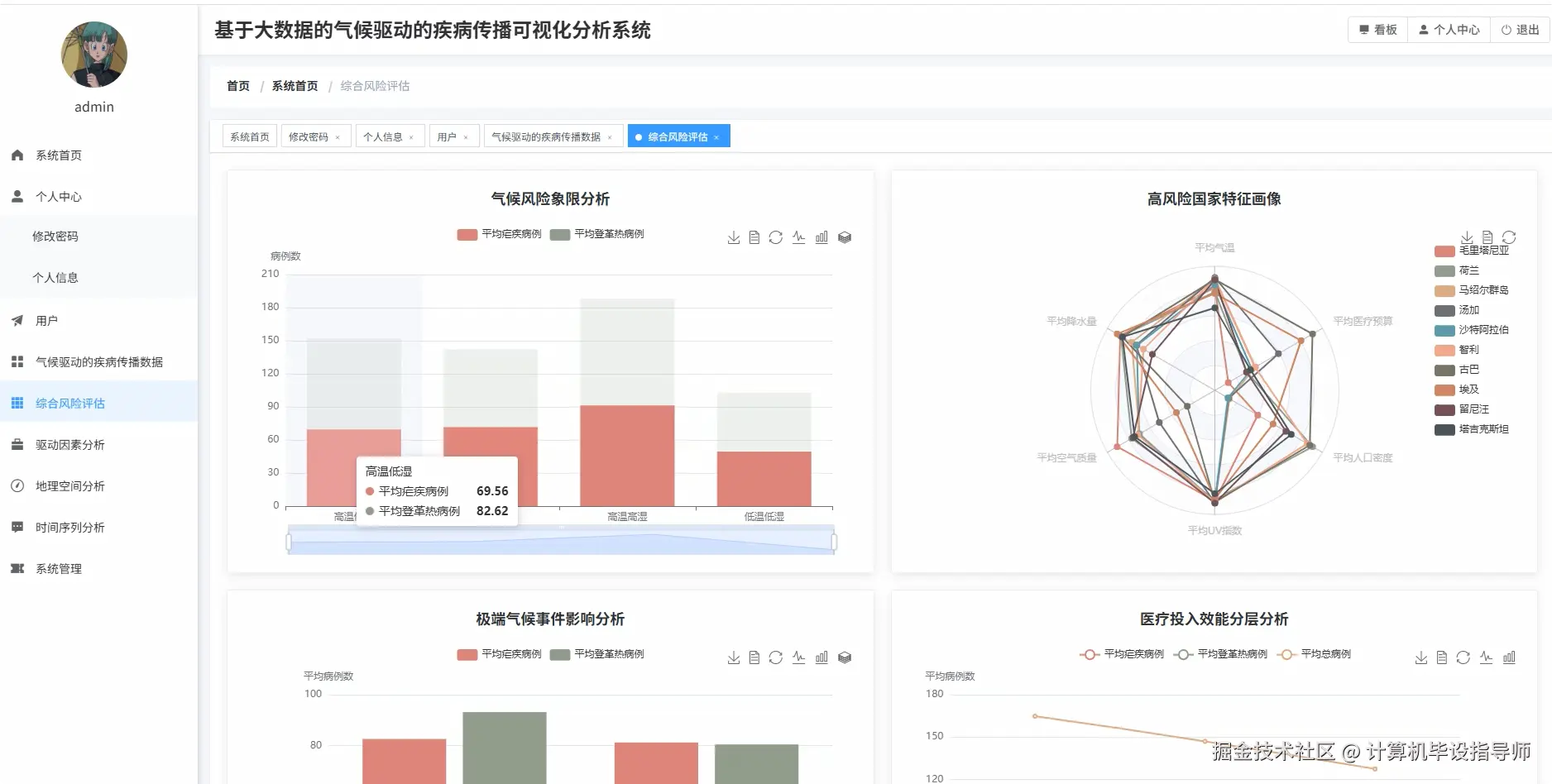

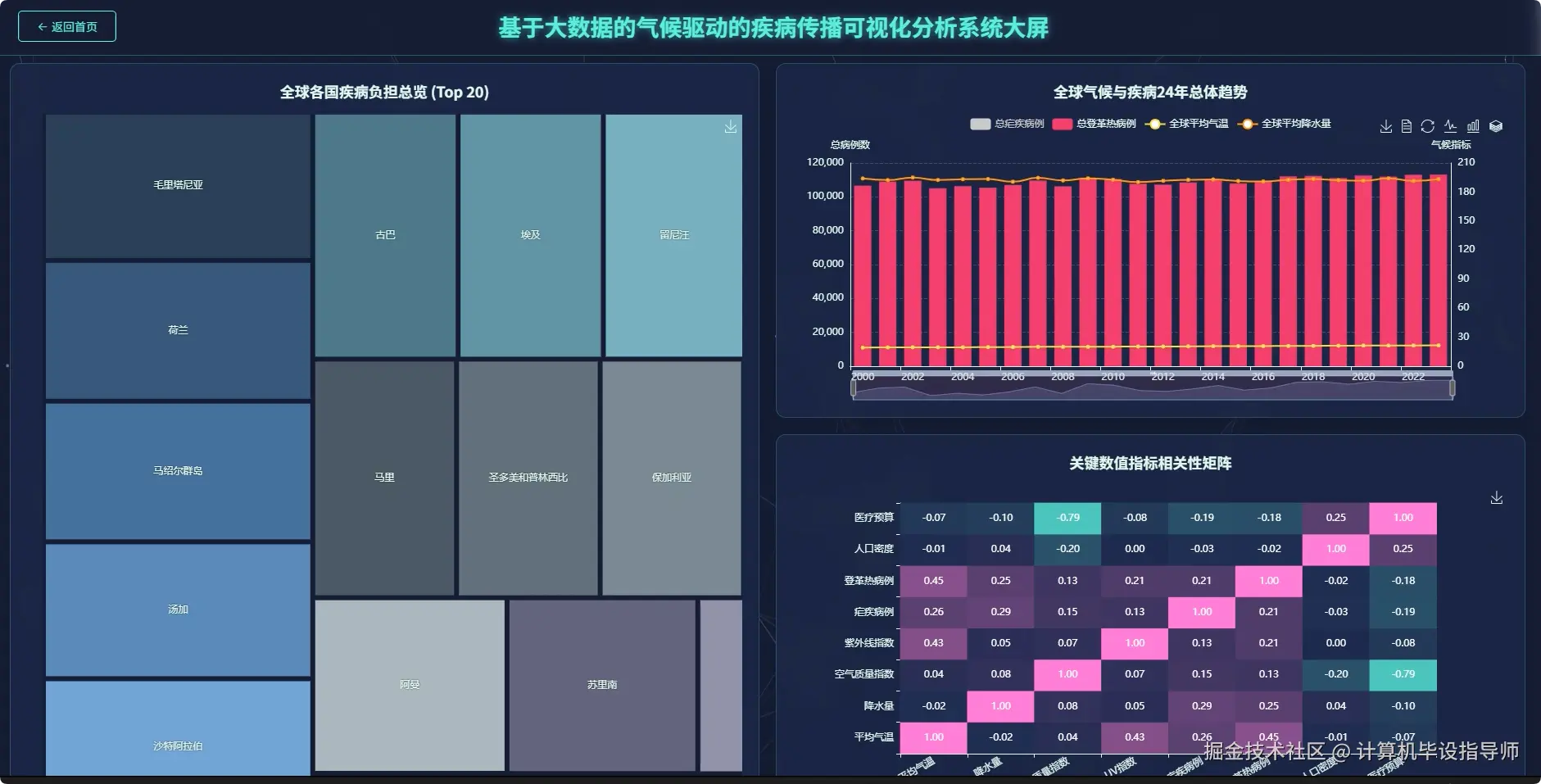

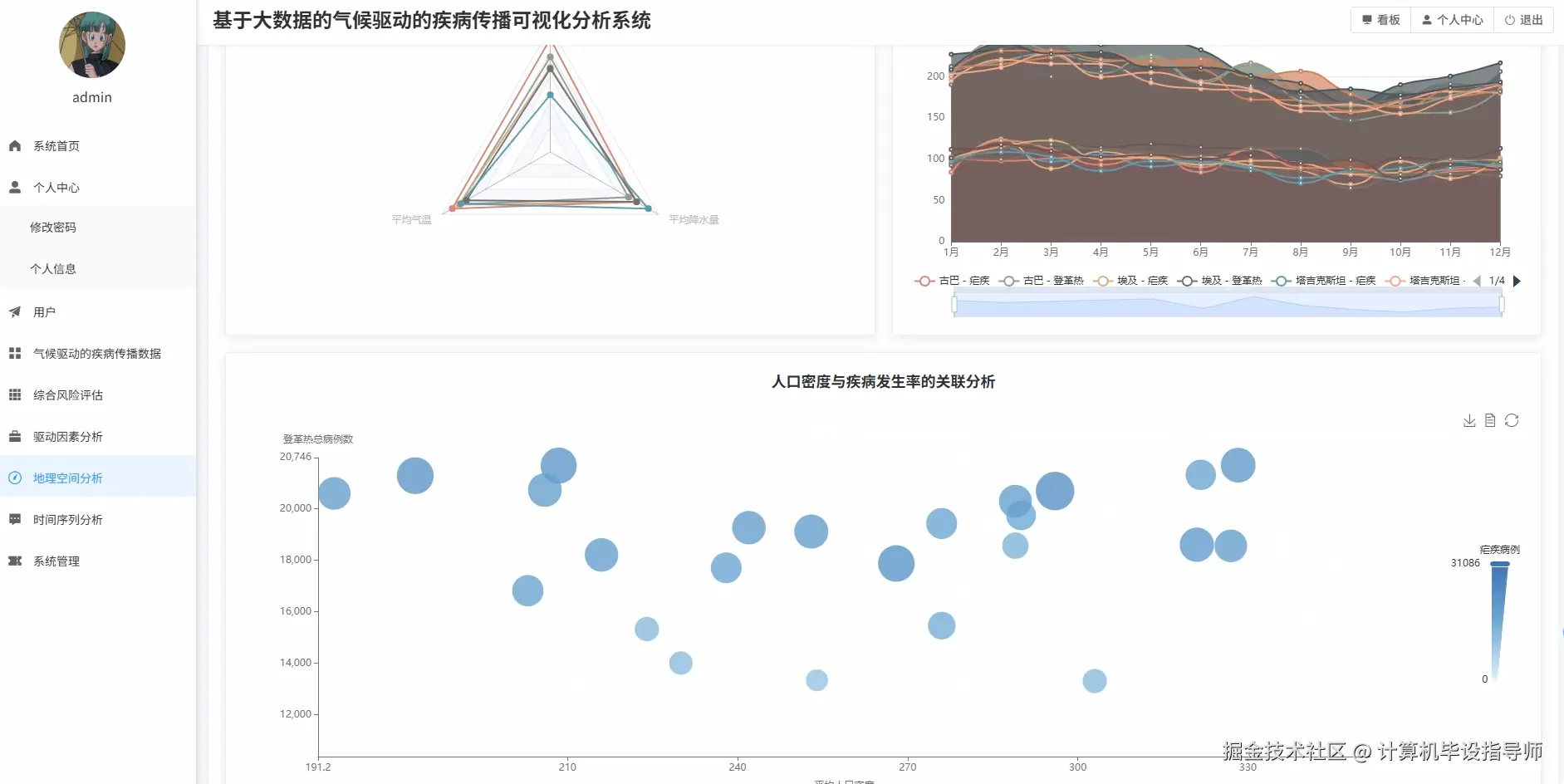

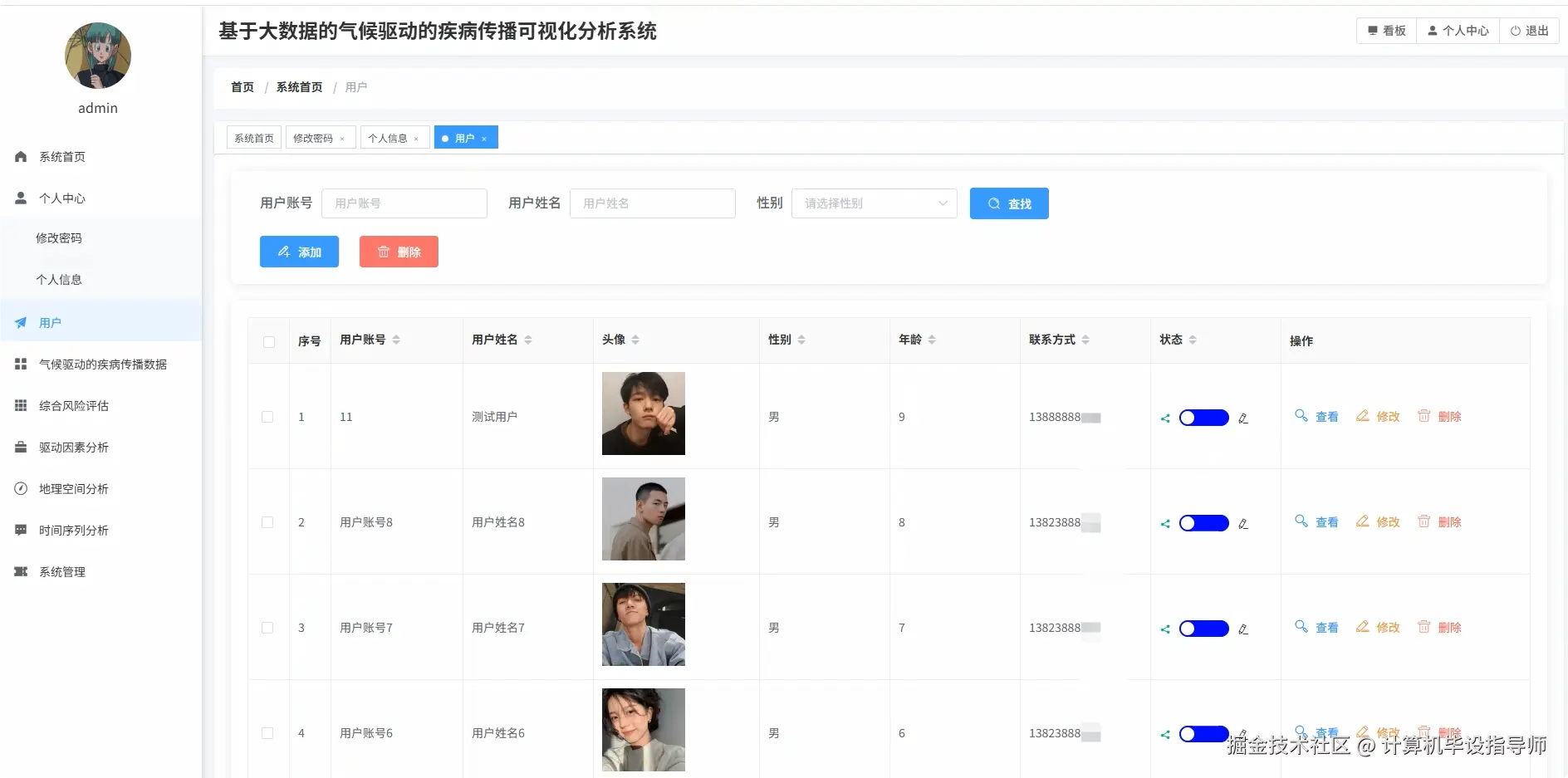

气候驱动的疾病传播可视化分析系统 -图片展示
气候驱动的疾病传播可视化分析系统 -代码展示
from pyspark.sql.functions import *
from django.http import JsonResponse
from django.views import View
import pandas as pd
import numpy as np
import json
spark = SparkSession.builder.appName("ClimateDisease").getOrCreate()
class GlobalTrendAnalysisView(View):
def get(self, request):
climate_df = spark.sql("""
SELECT year,
AVG(avg_temp_c) as avg_temperature,
AVG(precipitation_mm) as avg_precipitation,
SUM(malaria_cases) as total_malaria,
SUM(dengue_cases) as total_dengue
FROM climate_disease_data
GROUP BY year
ORDER BY year
""")
trend_data = climate_df.collect()
temperature_trend = []
precipitation_trend = []
malaria_trend = []
dengue_trend = []
years = []
for row in trend_data:
years.append(row.year)
temperature_trend.append(float(row.avg_temperature))
precipitation_trend.append(float(row.avg_precipitation))
malaria_trend.append(int(row.total_malaria))
dengue_trend.append(int(row.total_dengue))
correlation_temp_malaria = np.corrcoef(temperature_trend, malaria_trend)[0,1]
correlation_precip_dengue = np.corrcoef(precipitation_trend, dengue_trend)[0,1]
seasonal_df = spark.sql("""
SELECT month,
AVG(malaria_cases) as avg_malaria_monthly,
AVG(dengue_cases) as avg_dengue_monthly
FROM climate_disease_data
GROUP BY month
ORDER BY month
""")
seasonal_data = seasonal_df.collect()
monthly_malaria = [float(row.avg_malaria_monthly) for row in seasonal_data]
monthly_dengue = [float(row.avg_dengue_monthly) for row in seasonal_data]
peak_malaria_month = monthly_malaria.index(max(monthly_malaria)) + 1
peak_dengue_month = monthly_dengue.index(max(monthly_dengue)) + 1
result = {
'years': years,
'temperature_trend': temperature_trend,
'precipitation_trend': precipitation_trend,
'malaria_trend': malaria_trend,
'dengue_trend': dengue_trend,
'correlations': {
'temp_malaria': round(correlation_temp_malaria, 3),
'precip_dengue': round(correlation_precip_dengue, 3)
},
'seasonal_patterns': {
'monthly_malaria': monthly_malaria,
'monthly_dengue': monthly_dengue,
'peak_months': {
'malaria': peak_malaria_month,
'dengue': peak_dengue_month
}
}
}
return JsonResponse(result)
class GeospatialAnalysisView(View):
def get(self, request):
country_df = spark.sql("""
SELECT country, region,
SUM(malaria_cases + dengue_cases) as total_disease_burden,
AVG(avg_temp_c) as avg_country_temp,
AVG(precipitation_mm) as avg_country_precip,
AVG(population_density) as avg_population_density,
AVG(healthcare_budget) as avg_healthcare_budget
FROM climate_disease_data
GROUP BY country, region
ORDER BY total_disease_burden DESC
""")
country_data = country_df.collect()
top_risk_countries = []
region_summary = {}
for i, row in enumerate(country_data[:20]):
country_info = {
'rank': i + 1,
'country': row.country,
'region': row.region,
'total_burden': int(row.total_disease_burden),
'avg_temp': round(float(row.avg_country_temp), 2),
'avg_precip': round(float(row.avg_country_precip), 2),
'population_density': round(float(row.avg_population_density), 2),
'healthcare_budget': round(float(row.avg_healthcare_budget), 2)
}
top_risk_countries.append(country_info)
region = row.region
if region not in region_summary:
region_summary[region] = {
'total_burden': 0,
'country_count': 0,
'avg_temp': 0,
'avg_precip': 0
}
region_summary[region]['total_burden'] += int(row.total_disease_burden)
region_summary[region]['country_count'] += 1
region_summary[region]['avg_temp'] += float(row.avg_country_temp)
region_summary[region]['avg_precip'] += float(row.avg_country_precip)
for region in region_summary:
count = region_summary[region]['country_count']
region_summary[region]['avg_temp'] = round(region_summary[region]['avg_temp'] / count, 2)
region_summary[region]['avg_precip'] = round(region_summary[region]['avg_precip'] / count, 2)
population_disease_df = spark.sql("""
SELECT population_density,
SUM(malaria_cases + dengue_cases) as disease_total
FROM climate_disease_data
GROUP BY population_density
ORDER BY population_density
""")
pop_disease_data = population_disease_df.collect()
population_densities = [float(row.population_density) for row in pop_disease_data]
disease_totals = [int(row.disease_total) for row in pop_disease_data]
pop_disease_correlation = np.corrcoef(population_densities, disease_totals)[0,1] if len(population_densities) > 1 else 0
result = {
'top_risk_countries': top_risk_countries,
'region_summary': region_summary,
'population_disease_analysis': {
'correlation': round(pop_disease_correlation, 3),
'scatter_data': [{'x': pop, 'y': disease} for pop, disease in zip(population_densities, disease_totals)]
}
}
return JsonResponse(result)
class ClimateFactorAnalysisView(View):
def get(self, request):
correlation_df = spark.sql("""
SELECT avg_temp_c, precipitation_mm, air_quality_index, uv_index,
malaria_cases, dengue_cases, population_density, healthcare_budget
FROM climate_disease_data
WHERE avg_temp_c IS NOT NULL AND precipitation_mm IS NOT NULL
""")
correlation_data = correlation_df.toPandas()
correlation_matrix = correlation_data.corr()
correlation_result = correlation_matrix.to_dict()
temperature_ranges = [
("低温区 (<20°C)", "avg_temp_c < 20"),
("中温区 (20-25°C)", "avg_temp_c >= 20 AND avg_temp_c < 25"),
("适温区 (25-30°C)", "avg_temp_c >= 25 AND avg_temp_c < 30"),
("高温区 (≥30°C)", "avg_temp_c >= 30")
]
temp_analysis = []
for range_name, condition in temperature_ranges:
temp_df = spark.sql(f"""
SELECT AVG(malaria_cases) as avg_malaria,
AVG(dengue_cases) as avg_dengue,
COUNT(*) as record_count
FROM climate_disease_data
WHERE {condition}
""")
temp_result = temp_df.collect()[0]
temp_analysis.append({
'range': range_name,
'avg_malaria': round(float(temp_result.avg_malaria or 0), 2),
'avg_dengue': round(float(temp_result.avg_dengue or 0), 2),
'record_count': int(temp_result.record_count)
})
precipitation_ranges = [
("干旱区 (<100mm)", "precipitation_mm < 100"),
("半干旱区 (100-200mm)", "precipitation_mm >= 100 AND precipitation_mm < 200"),
("湿润区 (200-300mm)", "precipitation_mm >= 200 AND precipitation_mm < 300"),
("多雨区 (≥300mm)", "precipitation_mm >= 300")
]
precip_analysis = []
for range_name, condition in precipitation_ranges:
precip_df = spark.sql(f"""
SELECT AVG(malaria_cases) as avg_malaria,
AVG(dengue_cases) as avg_dengue,
COUNT(*) as record_count
FROM climate_disease_data
WHERE {condition}
""")
precip_result = precip_df.collect()[0]
precip_analysis.append({
'range': range_name,
'avg_malaria': round(float(precip_result.avg_malaria or 0), 2),
'avg_dengue': round(float(precip_result.avg_dengue or 0), 2),
'record_count': int(precip_result.record_count)
})
climate_quadrant_df = spark.sql("""
WITH climate_medians AS (
SELECT percentile_approx(avg_temp_c, 0.5) as temp_median,
percentile_approx(precipitation_mm, 0.5) as precip_median
FROM climate_disease_data
)
SELECT
CASE
WHEN c.avg_temp_c >= m.temp_median AND c.precipitation_mm >= m.precip_median THEN '高温高湿'
WHEN c.avg_temp_c >= m.temp_median AND c.precipitation_mm < m.precip_median THEN '高温低湿'
WHEN c.avg_temp_c < m.temp_median AND c.precipitation_mm >= m.precip_median THEN '低温高湿'
ELSE '低温低湿'
END as climate_quadrant,
AVG(c.malaria_cases + c.dengue_cases) as avg_total_cases,
COUNT(*) as record_count
FROM climate_disease_data c
CROSS JOIN climate_medians m
WHERE c.avg_temp_c IS NOT NULL AND c.precipitation_mm IS NOT NULL
GROUP BY climate_quadrant
""")
quadrant_data = climate_quadrant_df.collect()
quadrant_analysis = {}
for row in quadrant_data:
quadrant_analysis[row.climate_quadrant] = {
'avg_cases': round(float(row.avg_total_cases), 2),
'record_count': int(row.record_count)
}
result = {
'correlation_matrix': correlation_result,
'temperature_analysis': temp_analysis,
'precipitation_analysis': precip_analysis,
'climate_quadrant_analysis': quadrant_analysis
}
return JsonResponse(result)
气候驱动的疾病传播可视化分析系统 -结语
