人口普查收入数据分析可视化系统- 简介
基于大数据的人口普查收入数据分析与可视化系统是一个运用现代大数据技术深度挖掘人口经济特征的综合性分析平台。该系统采用Hadoop+Spark分布式计算框架作为核心引擎，能够高效处理海量人口普查数据，通过Python和Java双语言支持，为用户提供灵活的开发选择。系统后端基于Django和Spring Boot双框架架构，前端采用Vue+ElementUI+ECharts技术栈构建直观的交互界面。系统从五个核心维度展开数据分析：整体人口画像与收入分布、工作职业特征影响、教育背景作用、个人家庭状况关联以及资本性收益结构分析。通过Spark SQL和Pandas、NumPy等数据处理库的协同工作，系统能够实现从基础的收入水平分布统计到复杂的多维度交叉分析，包括性别收入差异、种族间经济状况对比、年龄分段收入能力评估等多项深度分析功能。系统还集成了K-Means聚类算法，能够自动识别数据中的潜在群体结构，为用户画像提供科学依据。整个系统通过HDFS分布式存储确保数据安全，利用ECharts实现丰富的数据可视化效果，为政策制定者、学者研究人员和社会分析师提供了一个功能完整、技术先进的人口经济数据分析工具。
人口普查收入数据分析可视化系统-技术
开发语言：java或Python
数据库：MySQL
系统架构：B/S
前端：Vue+ElementUI+HTML+CSS+JavaScript+jQuery+Echarts
大数据框架：Hadoop+Spark（本次没用Hive，支持定制）
后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)
人口普查收入数据分析可视化系统- 背景
随着社会经济的快速发展和人口结构的不断变化，深入理解不同群体的收入分布规律和影响因素成为社会科学研究的重要课题。人口普查作为国家掌握基本国情的重要手段，其数据蕴含着丰富的社会经济信息，但传统的统计分析方法在处理这类大规模、多维度数据时往往效率低下，难以发现数据背后的深层规律。现有的人口数据分析多停留在简单的描述性统计层面，缺乏对不同社会群体收入差异成因的深度挖掘，特别是在性别、种族、教育程度、职业类型等多重因素交互影响下的收入分布模式研究还不够充分。同时，随着大数据技术的快速发展，Hadoop、Spark等分布式计算框架为处理海量人口数据提供了强有力的技术支撑，但如何将这些先进技术有效应用于人口经济数据的实际分析中，构建一个集数据处理、深度分析和可视化展示于一体的综合性系统，仍是当前研究中亟需解决的问题。
本课题的研究具有多方面的理论价值和实践意义，虽然作为毕业设计项目规模有限，但在技术应用和分析思路上仍有一定的探索价值。从技术角度来看，该系统将大数据处理技术与人口经济数据分析相结合，为类似的社会科学数据处理提供了可参考的技术方案，展示了Hadoop+Spark技术栈在非商业领域的应用潜力。从分析方法角度，系统构建的五维度分析框架能够较为全面地展现人口收入分布的多重影响因素，为相关研究提供了一种系统性的分析思路。在实际应用层面，虽然项目规模相对较小，但其产生的分析结果仍可为相关部门的政策制定提供一定的数据支撑，特别是在教育投资回报、职业发展指导、社会公平评估等方面具有参考价值。此外，系统的可视化功能让复杂的统计数据变得更加直观易懂，有助于提高数据分析结果的传播效果和社会影响力。对于计算机专业学生而言，该项目也提供了一个将理论知识与实际应用相结合的良好实践平台，有助于加深对大数据技术的理解和掌握。
人口普查收入数据分析可视化系统-视频展示

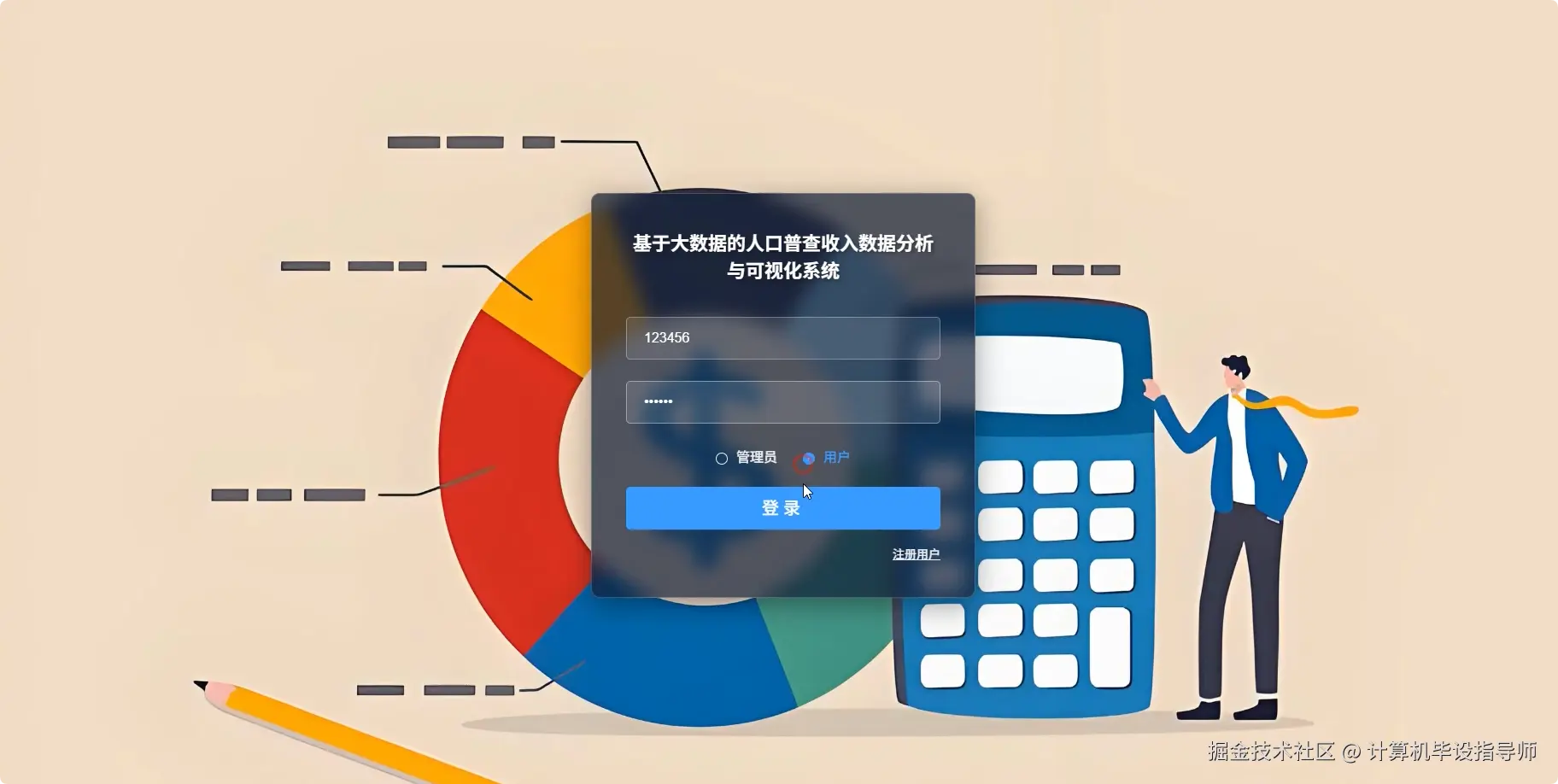

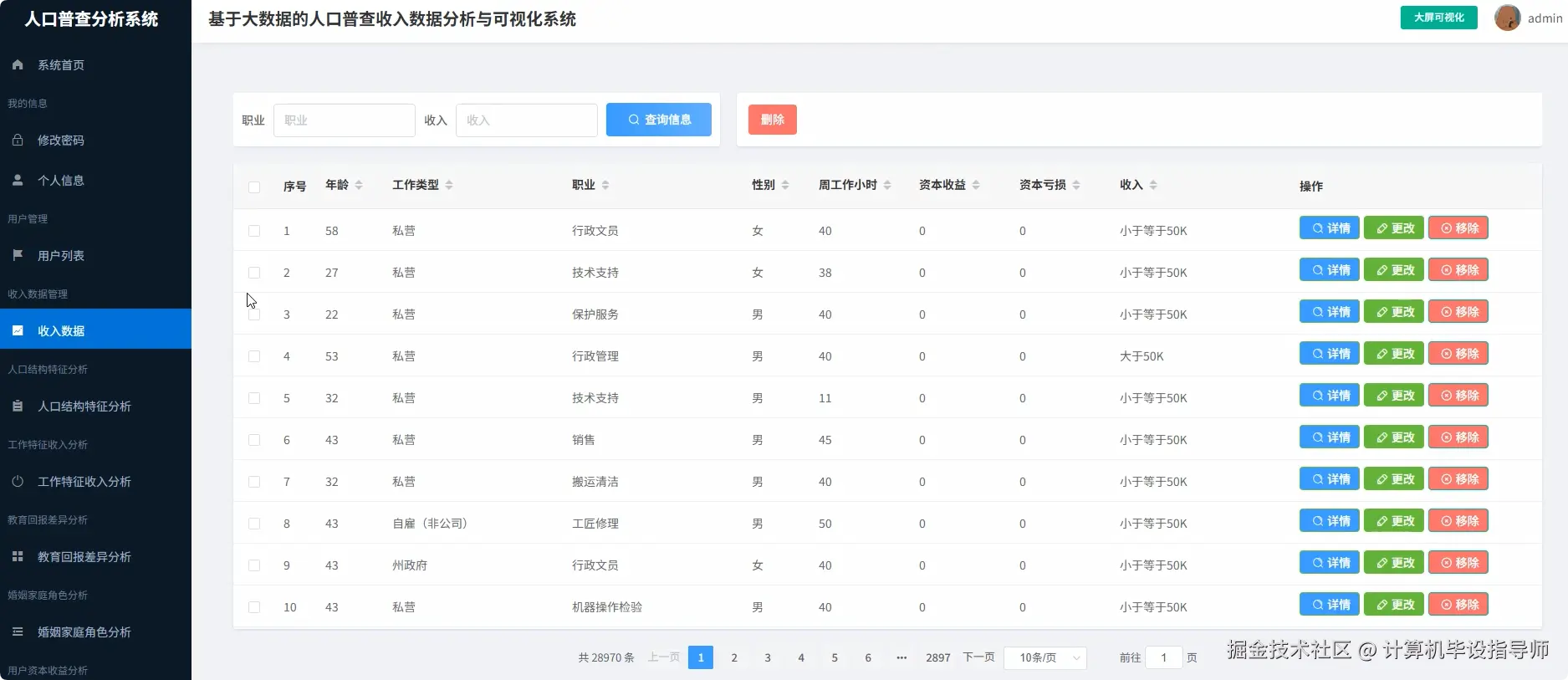

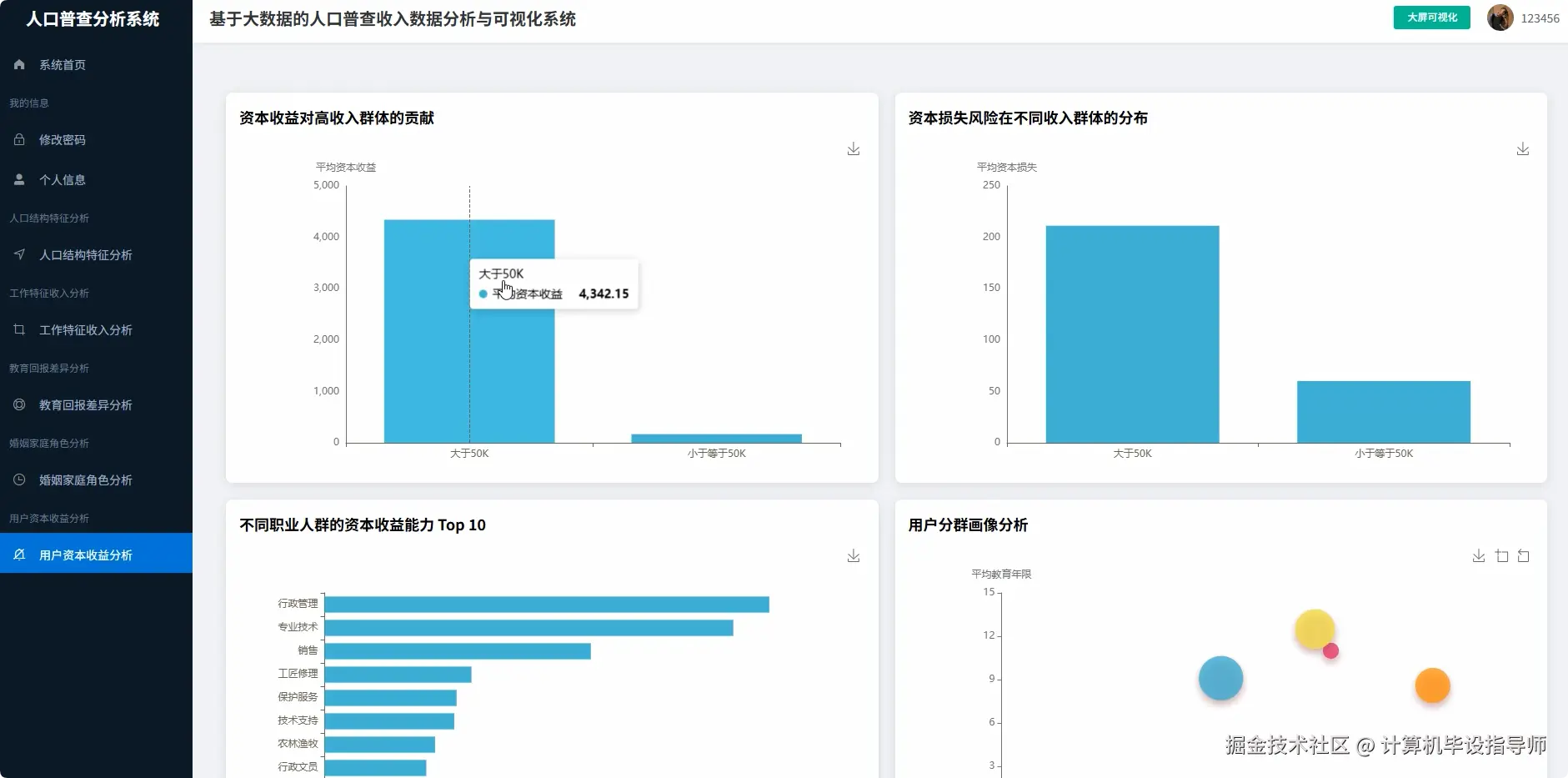

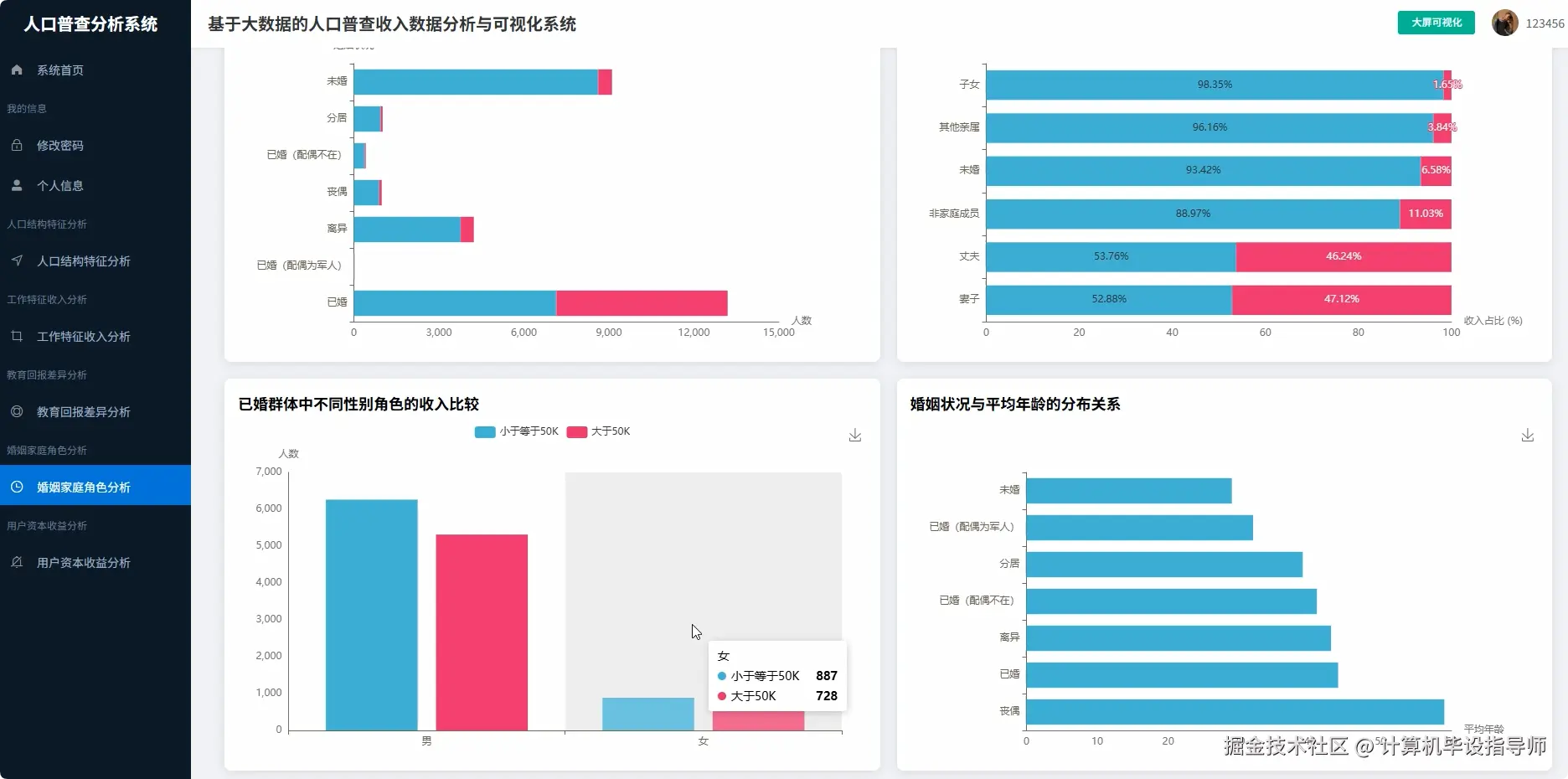

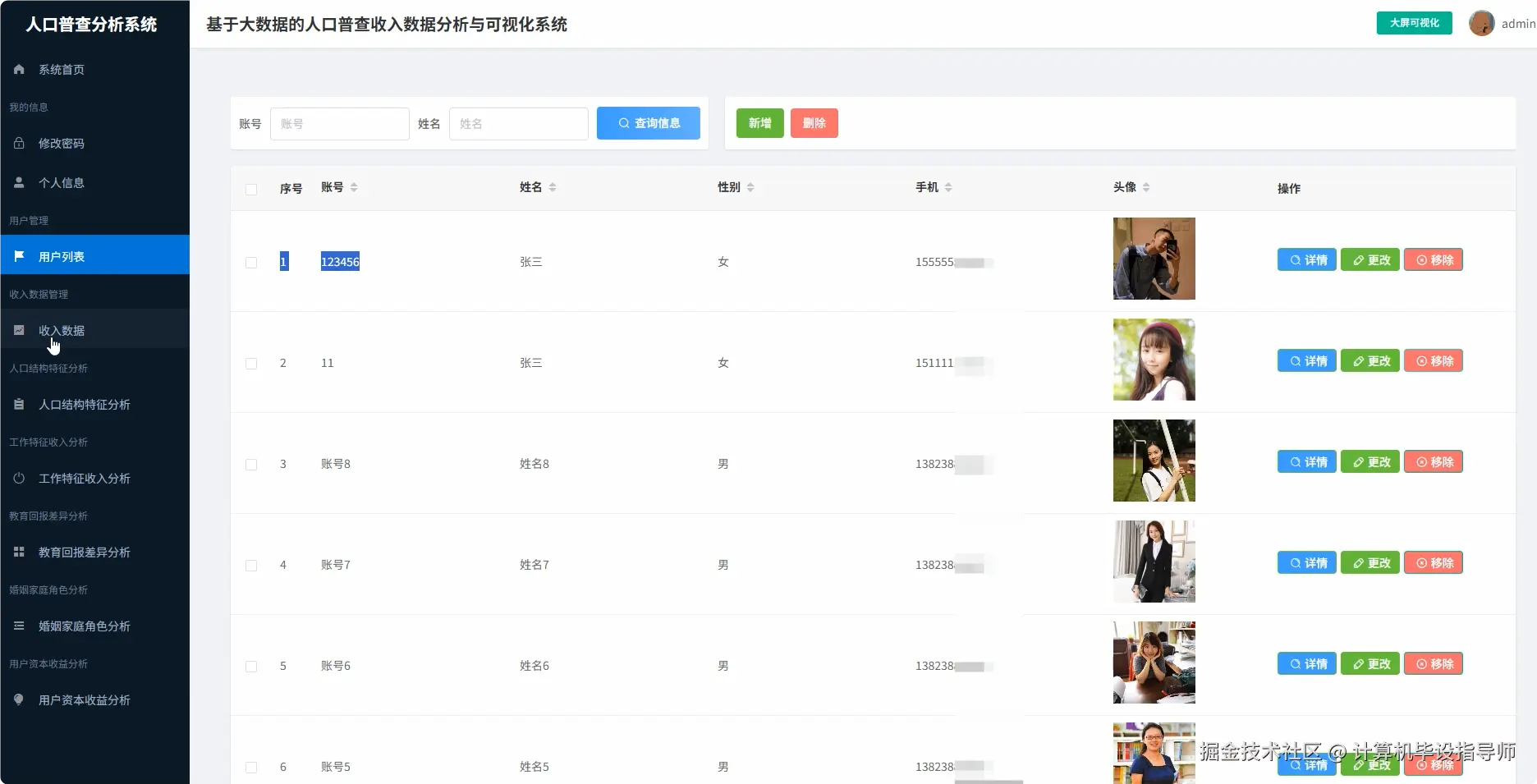

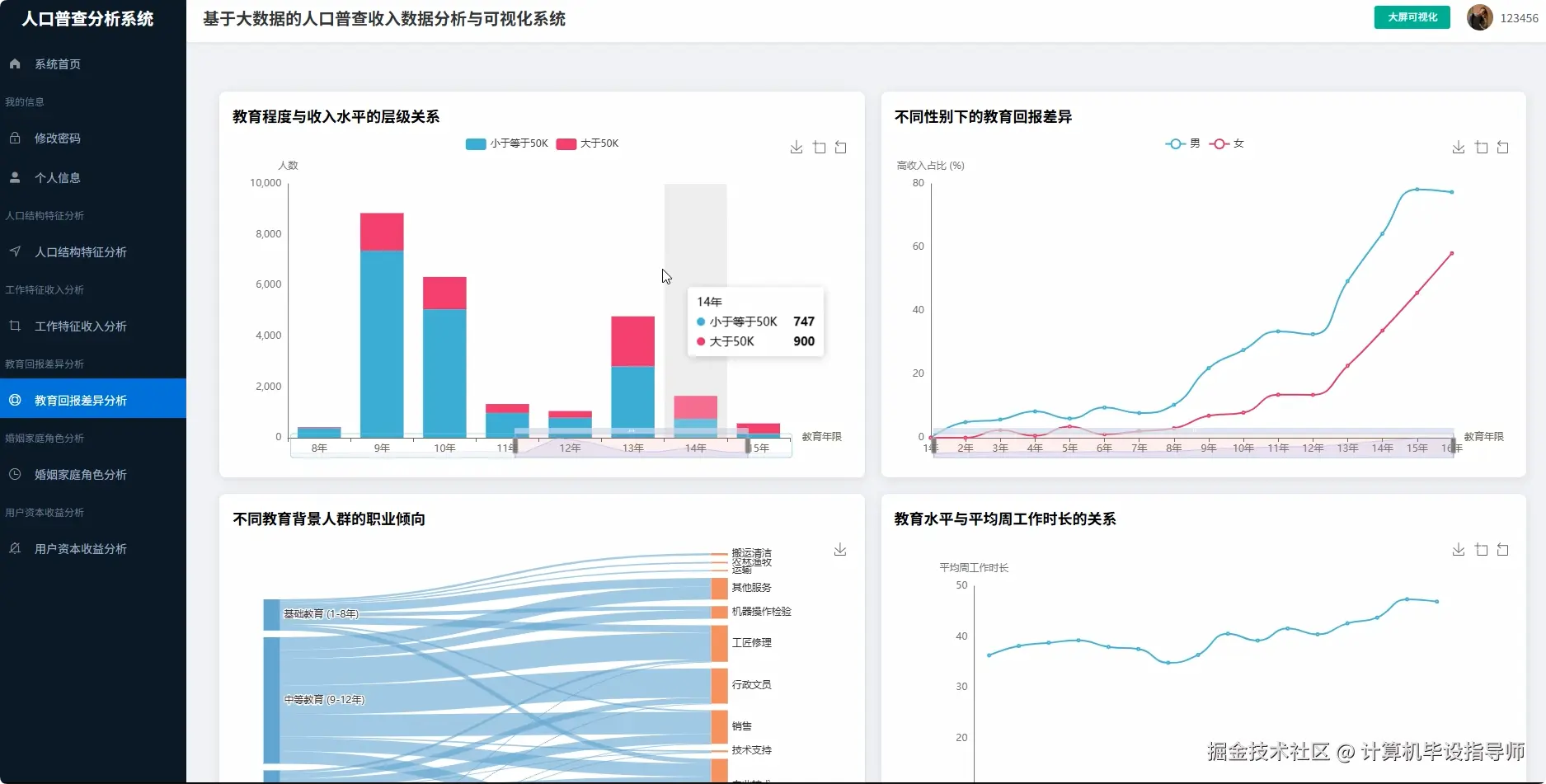

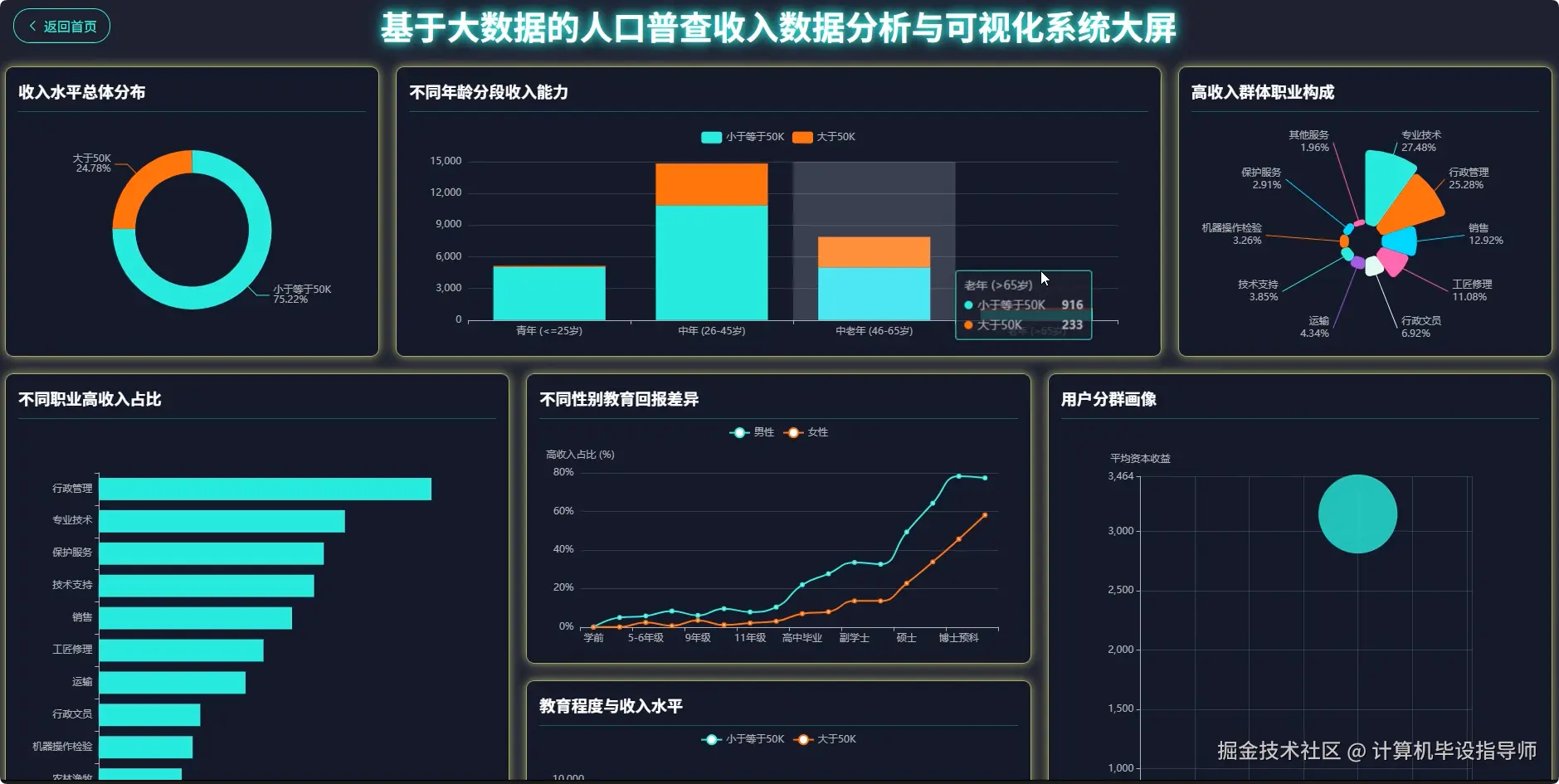

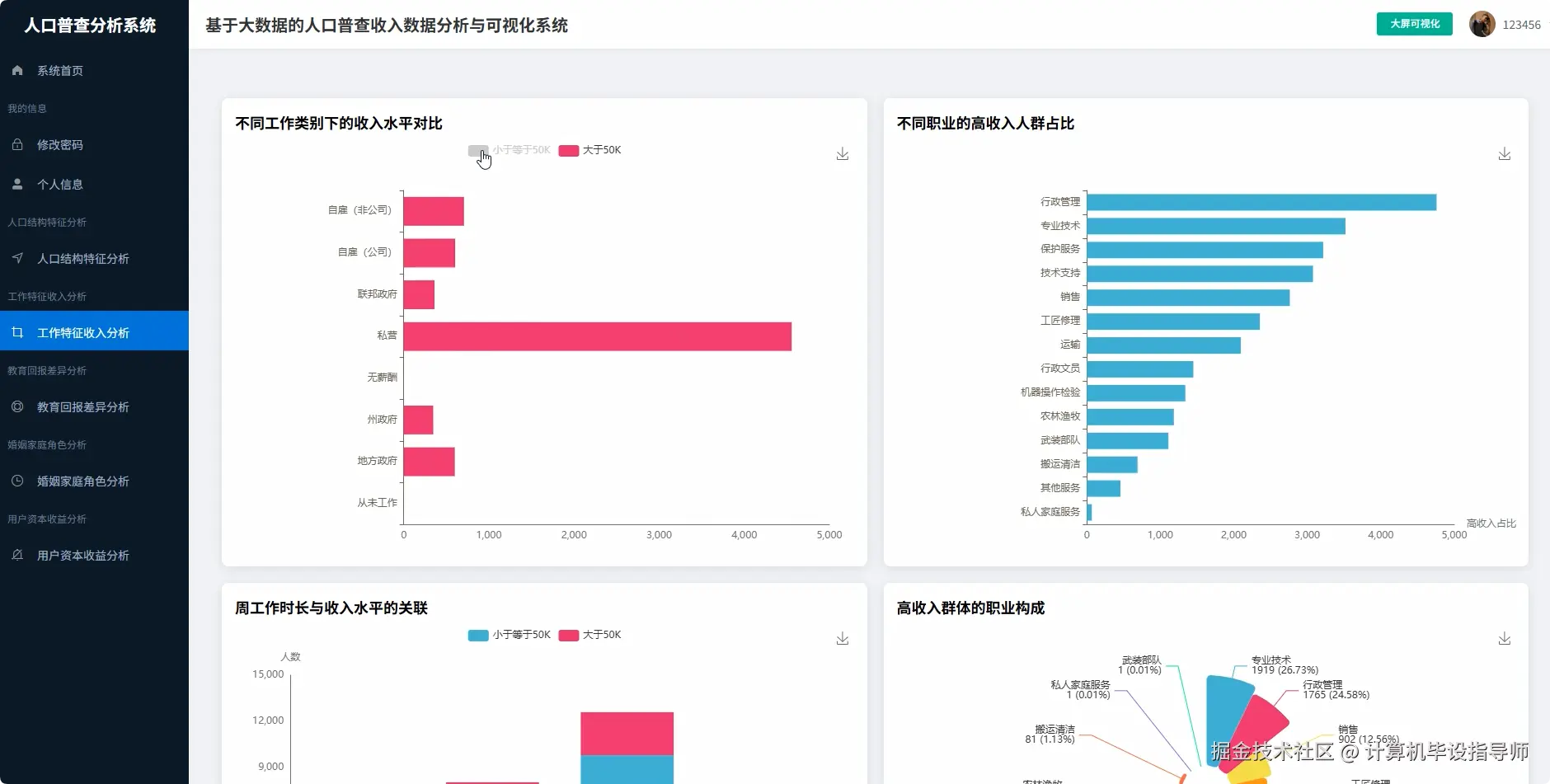

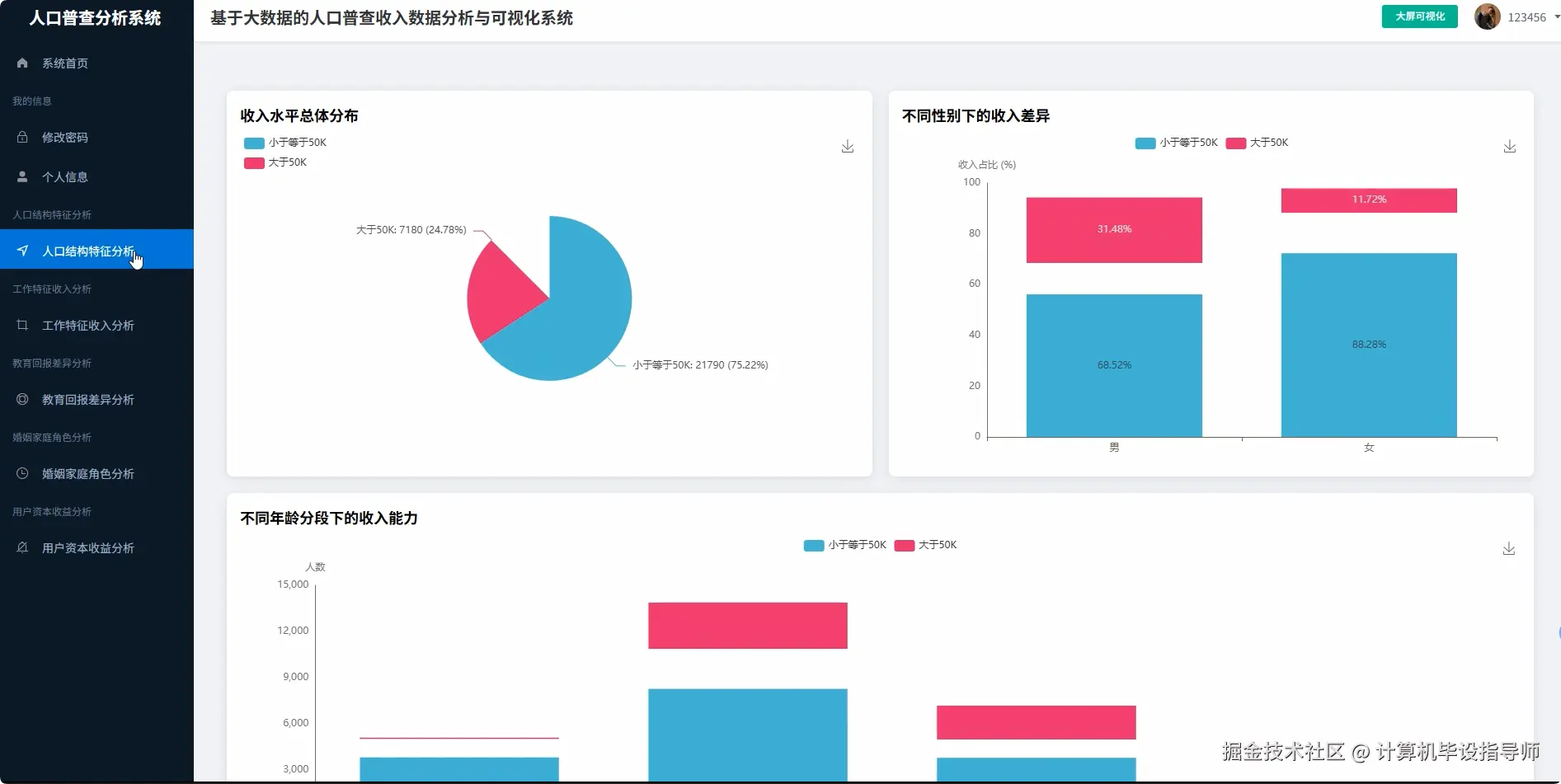

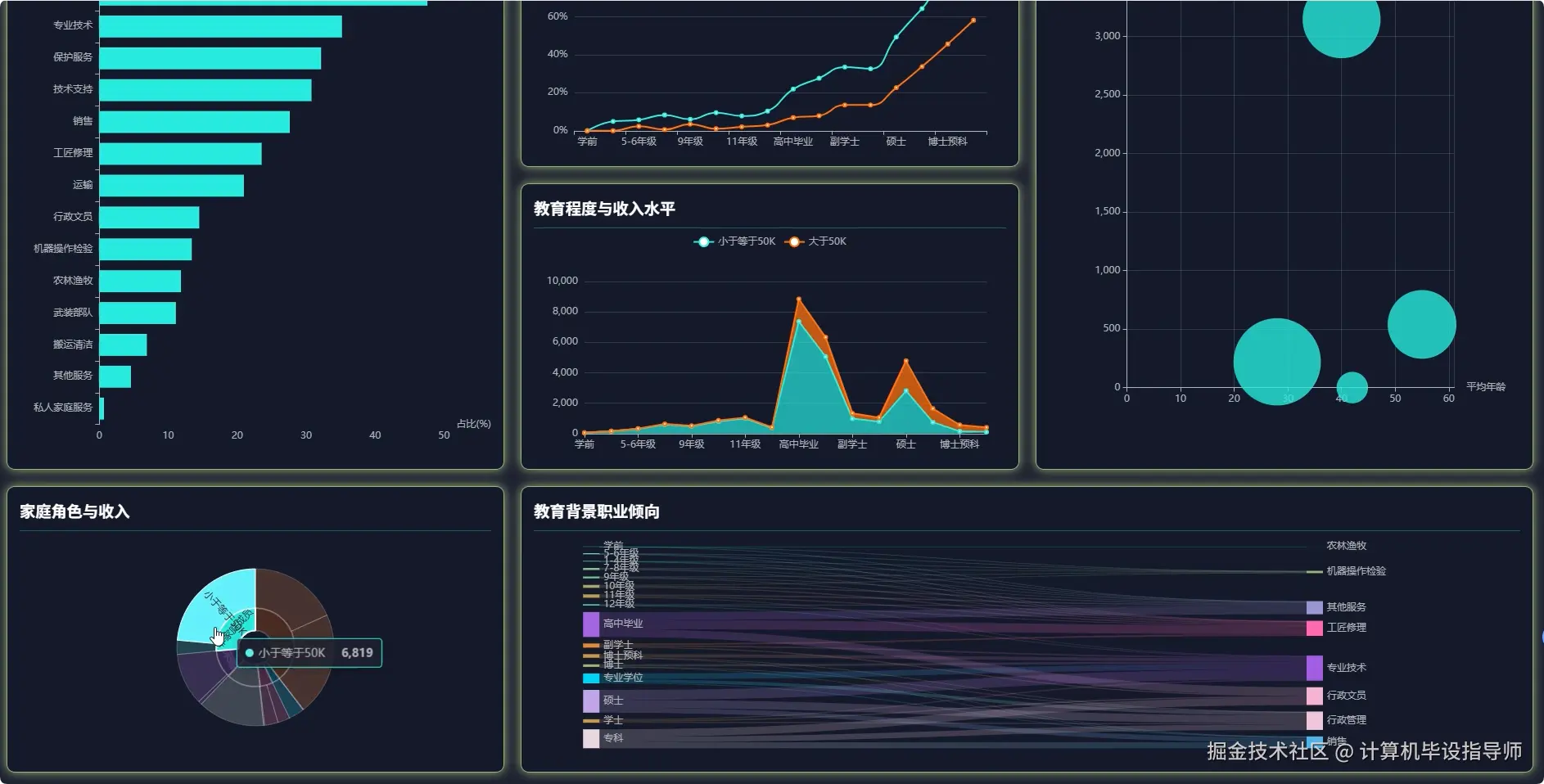

人口普查收入数据分析可视化系统-图片展示
人口普查收入数据分析可视化系统-代码展示
from pyspark.sql.functions import col, count, when, avg, desc, asc
from pyspark.ml.clustering import KMeans
from pyspark.ml.feature import VectorAssembler
import pandas as pd
import numpy as np
from django.http import JsonResponse
spark = SparkSession.builder.appName("PopulationIncomeAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
def income_distribution_analysis(request):
"""收入水平总体分布分析"""
df = spark.read.option("header", "true").option("inferSchema", "true").csv("hdfs://localhost:9000/data/census_data.csv")
df.createOrReplaceTempView("census_data")
total_count = df.count()
high_income_count = df.filter(col("income") == ">50K").count()
low_income_count = df.filter(col("income") == "<=50K").count()
high_income_rate = round((high_income_count / total_count) * 100, 2)
low_income_rate = round((low_income_count / total_count) * 100, 2)
gender_income_stats = df.groupBy("sex", "income").count().orderBy("sex", "income").collect()
gender_analysis = {}
for row in gender_income_stats:
gender = row["sex"]
income_level = row["income"]
count_val = row["count"]
if gender not in gender_analysis:
gender_analysis[gender] = {}
gender_analysis[gender][income_level] = count_val
race_income_distribution = df.groupBy("race").agg(
count(when(col("income") == ">50K", 1)).alias("high_income"),
count(when(col("income") == "<=50K", 1)).alias("low_income"),
count("*").alias("total")
).collect()
race_stats = []
for row in race_income_distribution:
race_name = row["race"]
high_count = row["high_income"]
total_count = row["total"]
high_rate = round((high_count / total_count) * 100, 2) if total_count > 0 else 0
race_stats.append({
"race": race_name,
"high_income_rate": high_rate,
"total_population": total_count
})
age_groups = df.withColumn("age_group",
when(col("age") < 30, "青年(18-29)")
.when((col("age") >= 30) & (col("age") < 50), "中年(30-49)")
.otherwise("中老年(50+)")
)
age_income_analysis = age_groups.groupBy("age_group").agg(
count(when(col("income") == ">50K", 1)).alias("high_income"),
count("*").alias("total"),
avg("age").alias("avg_age")
).collect()
country_analysis = df.groupBy("native.country").agg(
count(when(col("income") == ">50K", 1)).alias("high_income_count"),
count("*").alias("total_count")
).withColumn("high_income_rate",
(col("high_income_count") / col("total_count") * 100)
).orderBy(desc("high_income_rate")).limit(10).collect()
result_data = {
"overall_stats": {
"total_population": total_count,
"high_income_count": high_income_count,
"low_income_count": low_income_count,
"high_income_rate": high_income_rate,
"low_income_rate": low_income_rate
},
"gender_analysis": gender_analysis,
"race_statistics": race_stats,
"age_group_analysis": [row.asDict() for row in age_income_analysis],
"top_countries": [row.asDict() for row in country_analysis]
}
return JsonResponse(result_data)
def occupation_income_analysis(request):
"""职业收入分析与工作特征分析"""
df = spark.read.option("header", "true").option("inferSchema", "true").csv("hdfs://localhost:9000/data/census_data.csv")
workclass_income_stats = df.groupBy("workclass").agg(
count(when(col("income") == ">50K", 1)).alias("high_income"),
count(when(col("income") == "<=50K", 1)).alias("low_income"),
count("*").alias("total"),
avg("hours.per.week").alias("avg_hours")
).withColumn("high_income_rate",
(col("high_income") / col("total") * 100)
).orderBy(desc("high_income_rate")).collect()
occupation_ceiling_analysis = df.groupBy("occupation").agg(
count(when(col("income") == ">50K", 1)).alias("high_earners"),
count("*").alias("total_workers"),
avg("hours.per.week").alias("avg_weekly_hours"),
avg("age").alias("avg_age")
).withColumn("success_rate",
(col("high_earners") / col("total_workers") * 100)
).orderBy(desc("success_rate")).limit(15).collect()
hours_income_correlation = df.withColumn("hours_category",
when(col("hours.per.week") < 35, "兼职(<35小时)")
.when((col("hours.per.week") >= 35) & (col("hours.per.week") <= 45), "标准(35-45小时)")
.when((col("hours.per.week") > 45) & (col("hours.per.week") <= 60), "加班(45-60小时)")
.otherwise("超时(>60小时)")
).groupBy("hours_category").agg(
count(when(col("income") == ">50K", 1)).alias("high_income"),
count("*").alias("total"),
avg("hours.per.week").alias("exact_avg_hours"),
avg("age").alias("avg_worker_age")
).withColumn("high_income_ratio",
(col("high_income") / col("total") * 100)
).collect()
high_earner_occupations = df.filter(col("income") == ">50K").groupBy("occupation").agg(
count("*").alias("count"),
avg("age").alias("avg_age"),
avg("hours.per.week").alias("avg_hours"),
avg("education.num").alias("avg_education_years")
).orderBy(desc("count")).limit(10).collect()
weekly_hours_bins = df.select("hours.per.week", "income").rdd.map(lambda x: (x[0], x[1])).collect()
hours_distribution = {}
for hours, income in weekly_hours_bins:
hour_range = f"{int(hours//10)*10}-{int(hours//10)*10+9}"
if hour_range not in hours_distribution:
hours_distribution[hour_range] = {"high": 0, "low": 0}
if income == ">50K":
hours_distribution[hour_range]["high"] += 1
else:
hours_distribution[hour_range]["low"] += 1
occupation_workclass_cross = df.groupBy("occupation", "workclass").count().orderBy("occupation", desc("count")).collect()
cross_analysis_result = {}
for row in occupation_workclass_cross:
occupation = row["occupation"]
workclass = row["workclass"]
count_val = row["count"]
if occupation not in cross_analysis_result:
cross_analysis_result[occupation] = {}
cross_analysis_result[occupation][workclass] = count_val
result_data = {
"workclass_analysis": [row.asDict() for row in workclass_income_stats],
"occupation_rankings": [row.asDict() for row in occupation_ceiling_analysis],
"hours_income_relation": [row.asDict() for row in hours_income_correlation],
"top_high_earner_jobs": [row.asDict() for row in high_earner_occupations],
"hours_distribution": hours_distribution,
"occupation_workclass_matrix": cross_analysis_result
}
return JsonResponse(result_data)
def education_impact_clustering_analysis(request):
"""教育影响分析与用户聚类分析"""
df = spark.read.option("header", "true").option("inferSchema", "true").csv("hdfs://localhost:9000/data/census_data.csv")
education_income_hierarchy = df.groupBy("education", "education.num").agg(
count(when(col("income") == ">50K", 1)).alias("high_income"),
count("*").alias("total"),
avg("age").alias("avg_age"),
avg("hours.per.week").alias("avg_hours")
).withColumn("roi_rate",
(col("high_income") / col("total") * 100)
).orderBy("education.num").collect()
education_occupation_matrix = df.groupBy("education", "occupation").count().orderBy("education", desc("count")).collect()
edu_occupation_mapping = {}
for row in education_occupation_matrix:
education = row["education"]
occupation = row["occupation"]
count_val = row["count"]
if education not in edu_occupation_mapping:
edu_occupation_mapping[education] = []
edu_occupation_mapping[education].append({
"occupation": occupation,
"count": count_val
})
gender_education_gap = df.groupBy("education", "sex").agg(
count(when(col("income") == ">50K", 1)).alias("high_income"),
count("*").alias("total"),
avg("hours.per.week").alias("avg_hours")
).withColumn("success_rate",
(col("high_income") / col("total") * 100)
).orderBy("education", "sex").collect()
education_hours_relationship = df.groupBy("education.num").agg(
avg("hours.per.week").alias("avg_weekly_hours"),
count("*").alias("population"),
avg("age").alias("avg_age")
).orderBy("education.num").collect()
feature_columns = ["age", "education.num", "hours.per.week", "capital.gain", "capital.loss"]
assembler = VectorAssembler(inputCols=feature_columns, outputCol="features")
df_numeric = df.select(*feature_columns).na.fill(0)
feature_df = assembler.transform(df_numeric)
kmeans = KMeans(k=4, seed=42, featuresCol="features", predictionCol="cluster")
model = kmeans.fit(feature_df)
clustered_df = model.transform(feature_df)
original_with_clusters = df.select("*").withColumn("row_id", monotonically_increasing_id())
clustered_with_id = clustered_df.withColumn("row_id", monotonically_increasing_id())
final_clustered = original_with_clusters.join(
clustered_with_id.select("row_id", "cluster"),
"row_id"
).drop("row_id")
cluster_profiles = final_clustered.groupBy("cluster").agg(
count("*").alias("cluster_size"),
avg("age").alias("avg_age"),
avg("education.num").alias("avg_education"),
avg("hours.per.week").alias("avg_hours"),
avg("capital.gain").alias("avg_capital_gain"),
count(when(col("income") == ">50K", 1)).alias("high_income_count")
).withColumn("high_income_rate",
(col("high_income_count") / col("cluster_size") * 100)
).collect()
cluster_occupation_analysis = final_clustered.groupBy("cluster", "occupation").count().orderBy("cluster", desc("count")).collect()
cluster_demographic_details = final_clustered.groupBy("cluster").agg(
count(when(col("sex") == "Male", 1)).alias("male_count"),
count(when(col("sex") == "Female", 1)).alias("female_count"),
count(when(col("marital.status").contains("Married"), 1)).alias("married_count"),
avg("capital.loss").alias("avg_capital_loss")
).collect()
result_data = {
"education_hierarchy": [row.asDict() for row in education_income_hierarchy],
"education_occupation_mapping": edu_occupation_mapping,
"gender_education_comparison": [row.asDict() for row in gender_education_gap],
"education_hours_correlation": [row.asDict() for row in education_hours_relationship],
"cluster_profiles": [row.asDict() for row in cluster_profiles],
"cluster_occupations": [row.asDict() for row in cluster_occupation_analysis],
"cluster_demographics": [row.asDict() for row in cluster_demographic_details],
"clustering_centers": [center.toArray().tolist() for center in model.clusterCenters()]
}
return JsonResponse(result_data)
人口普查收入数据分析可视化系统-结语
Hadoop+Spark太复杂？基于大数据的收入分析可视化系统详解
2026大数据专业毕设必过选题：人口普查收入数据分析可视化系统完整实现
