小儿阑尾炎数据可视化分析系统-简介
基于Hadoop+Spark的小儿阑尾炎数据可视化分析系统是一个专门针对儿科医疗数据处理的大数据分析平台。该系统充分利用Hadoop分布式存储架构和Spark内存计算引擎的技术优势，对小儿阑尾炎患者的临床数据进行深度挖掘和智能分析。系统采用Python作为主要开发语言，结合Django后端框架构建稳定的服务端架构，前端使用Vue框架配合ElementUI组件库和Echarts图表库，为医疗工作者提供直观友好的数据可视化界面。在数据处理层面，系统运用Spark SQL进行复杂的数据查询和统计分析，通过Pandas和NumPy进行精确的数值计算，将原本需要耗费大量时间的医疗数据分析工作转化为高效的自动化处理流程。系统核心功能涵盖患者群体特征分析、阑尾炎诊断影响因素挖掘、疾病严重程度关联分析以及临床治疗方案决策支持等多个维度，通过多样化的图表展示方式，帮助医疗研究人员从海量的临床数据中发现有价值的医学规律和诊疗模式，为儿童阑尾炎的精准诊断和个性化治疗提供数据支撑。
小儿阑尾炎数据可视化分析系统-技术
大数据框架：Hadoop+Spark（本次没用Hive，支持定制） 开发语言：Python+Java（两个版本都支持） 后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持） 前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery 数据库：MySQL
小儿阑尾炎数据可视化分析系统-背景
随着现代医疗信息化程度的不断提升，医院在日常诊疗过程中积累了海量的患者临床数据，这些数据蕴含着丰富的医学知识和诊疗规律。小儿阑尾炎作为儿科急腹症中最常见的疾病之一，其诊断过程往往面临着症状不典型、病情发展迅速、并发症风险高等挑战。传统的医疗数据分析方法在处理大规模患者信息时存在效率低下、分析维度单一等局限性，难以充分挖掘数据背后的深层次关联关系。医疗工作者迫切需要借助现代大数据技术，对小儿阑尾炎患者的各类临床指标、检验结果、影像学特征等多维度信息进行综合分析，以提升诊断准确率和治疗效果。大数据技术的快速发展为医疗数据分析提供了新的技术路径，Hadoop和Spark等分布式计算框架能够高效处理医疗机构产生的大规模结构化和半结构化数据，为临床决策提供更加精准的数据支持。
本课题的研究意义主要体现在技术创新和实际应用两个层面。从技术角度来看，将大数据分析技术引入小儿阑尾炎的临床研究中，能够验证Hadoop+Spark技术栈在医疗数据处理场景下的实际效果，为后续类似的医疗大数据项目提供技术参考和实施经验。通过构建完整的数据可视化分析系统，能够探索大数据技术在医疗领域应用的最佳实践，积累相关的技术开发经验。从实际应用价值来说，该系统能够帮助医疗工作者更好地理解小儿阑尾炎患者的临床特征分布规律，为制定更加个性化的诊疗方案提供数据依据。通过对大量患者数据的统计分析，系统可以揭示影响阑尾炎诊断准确性的关键因素，协助医生在临床决策过程中减少漏诊和误诊的风险。同时，系统生成的可视化分析报告也能够为医学教育和科研工作提供便利，帮助医学院校学生和年轻医生更直观地了解疾病的发展规律。当然，作为一个毕业设计项目，其主要目的还是在学习过程中掌握大数据技术的实际应用方法，为今后从事相关技术工作奠定基础。
小儿阑尾炎数据可视化分析系统-视频展示

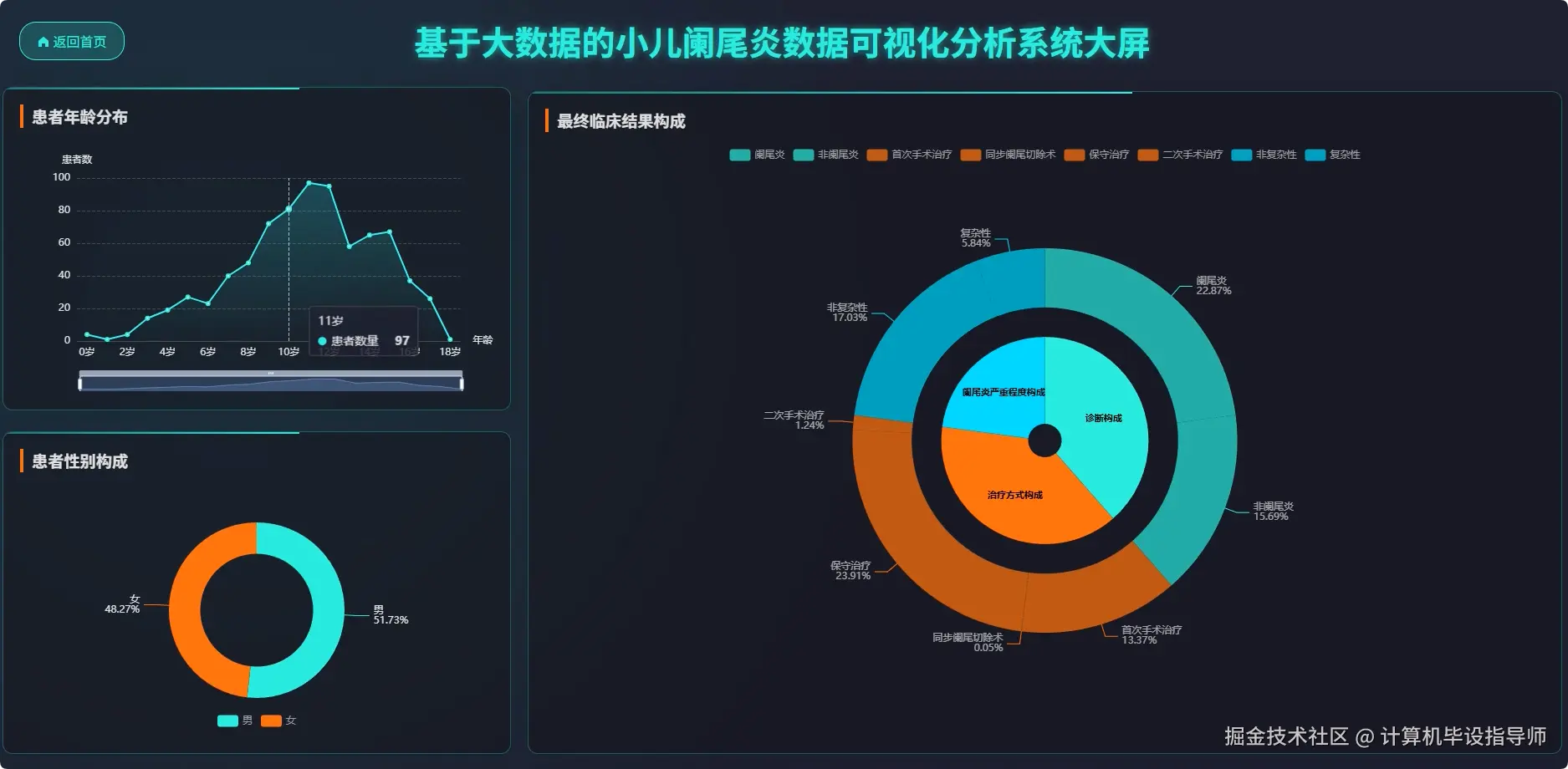

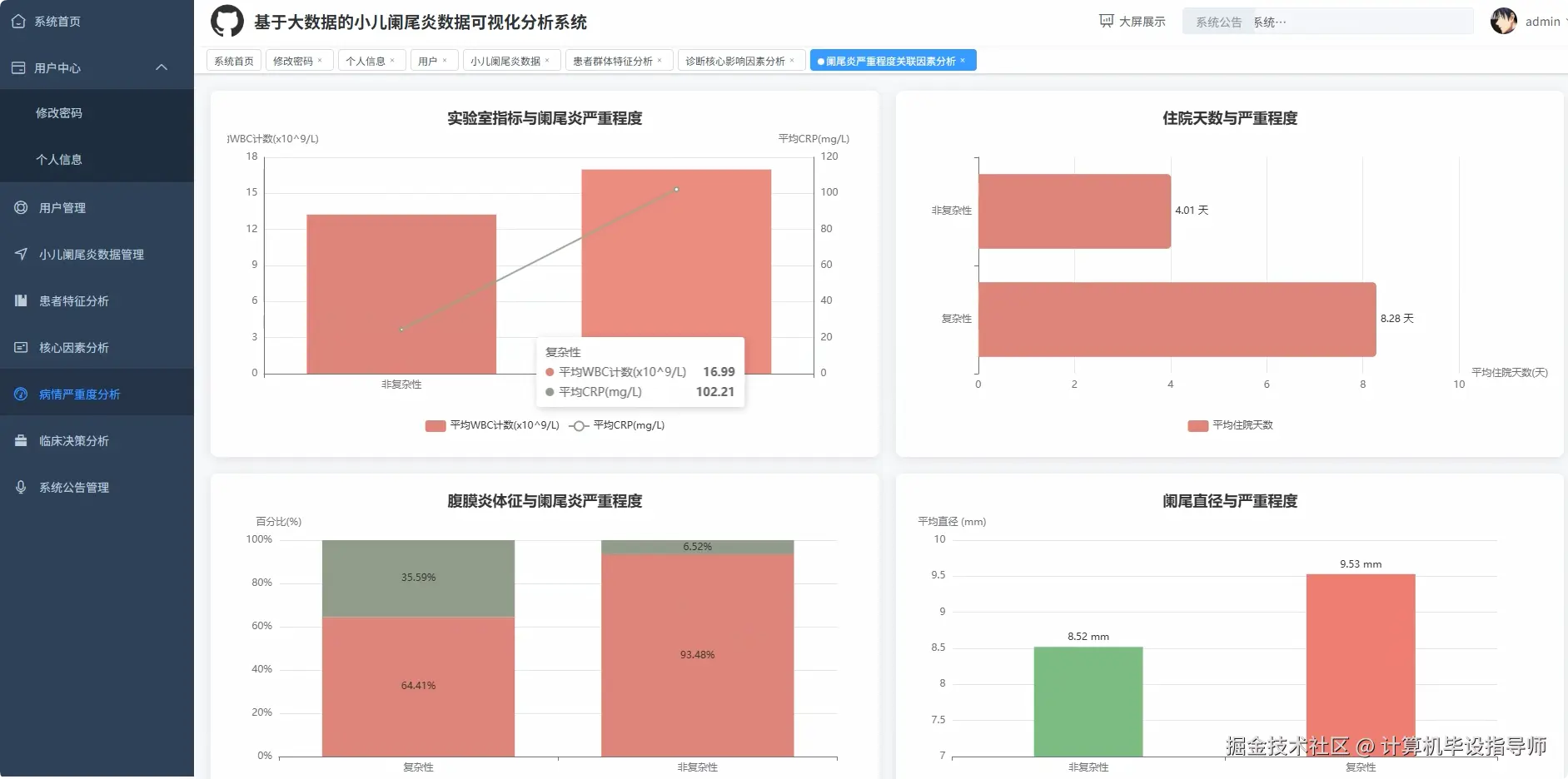

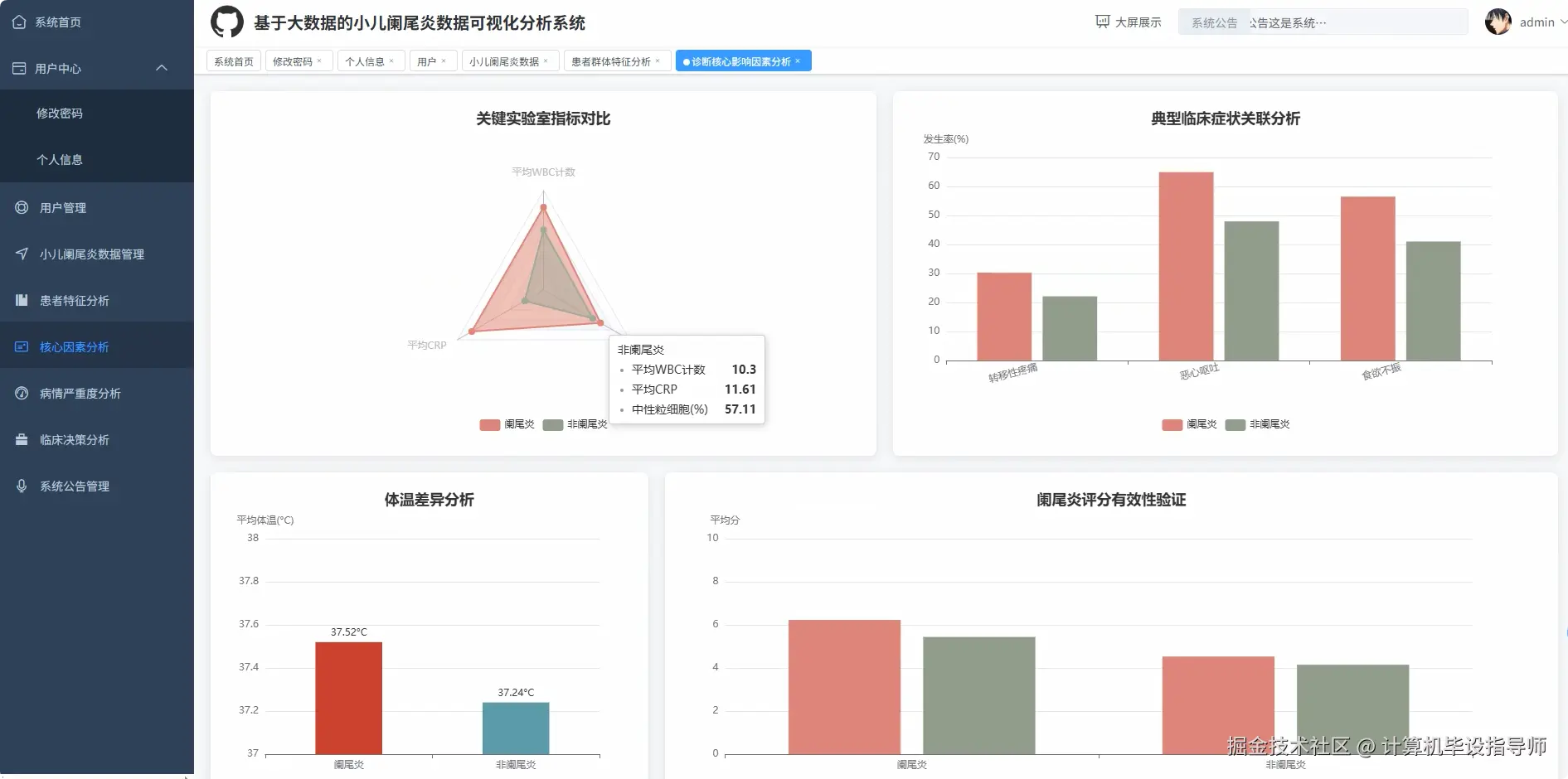

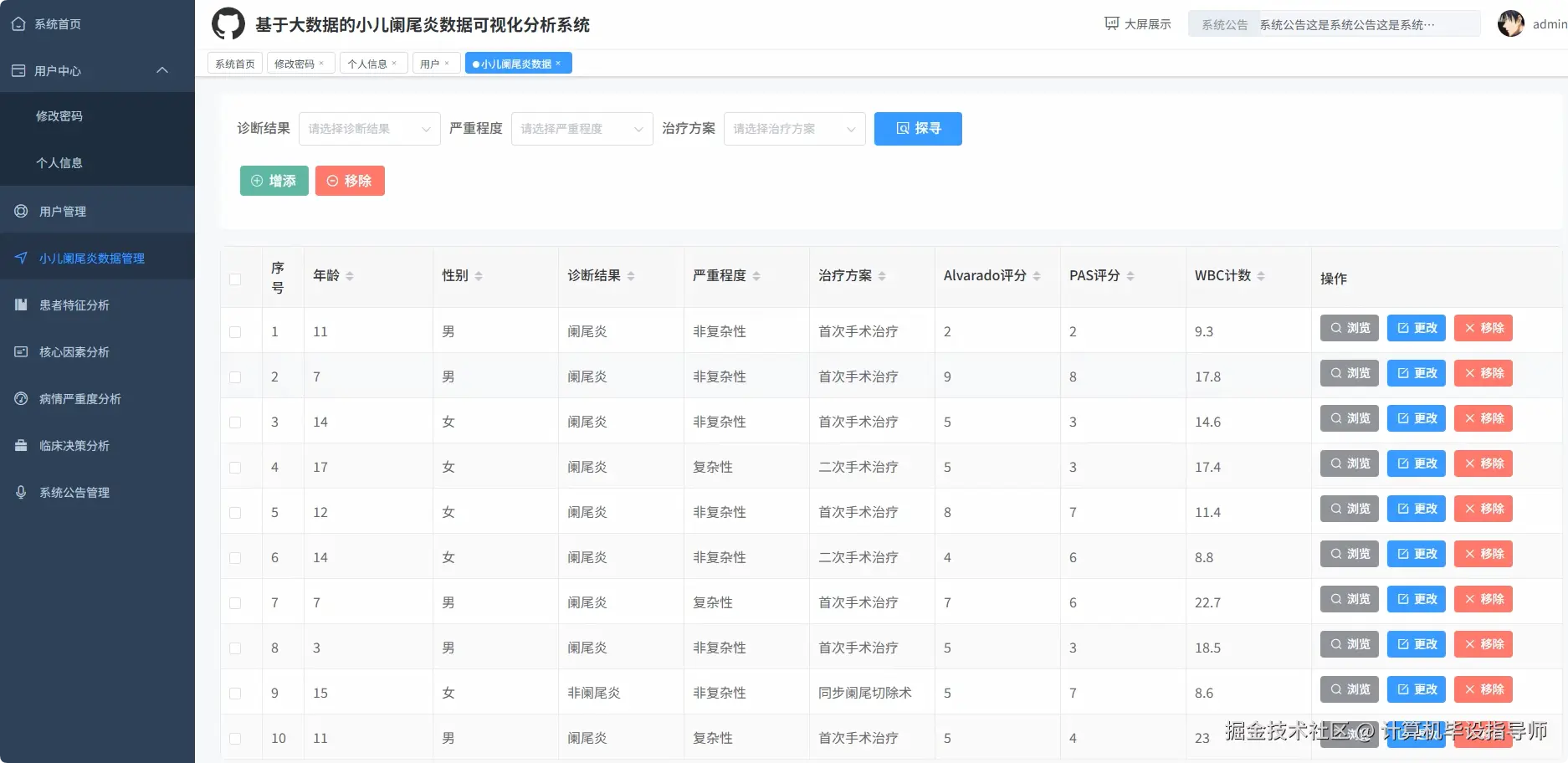

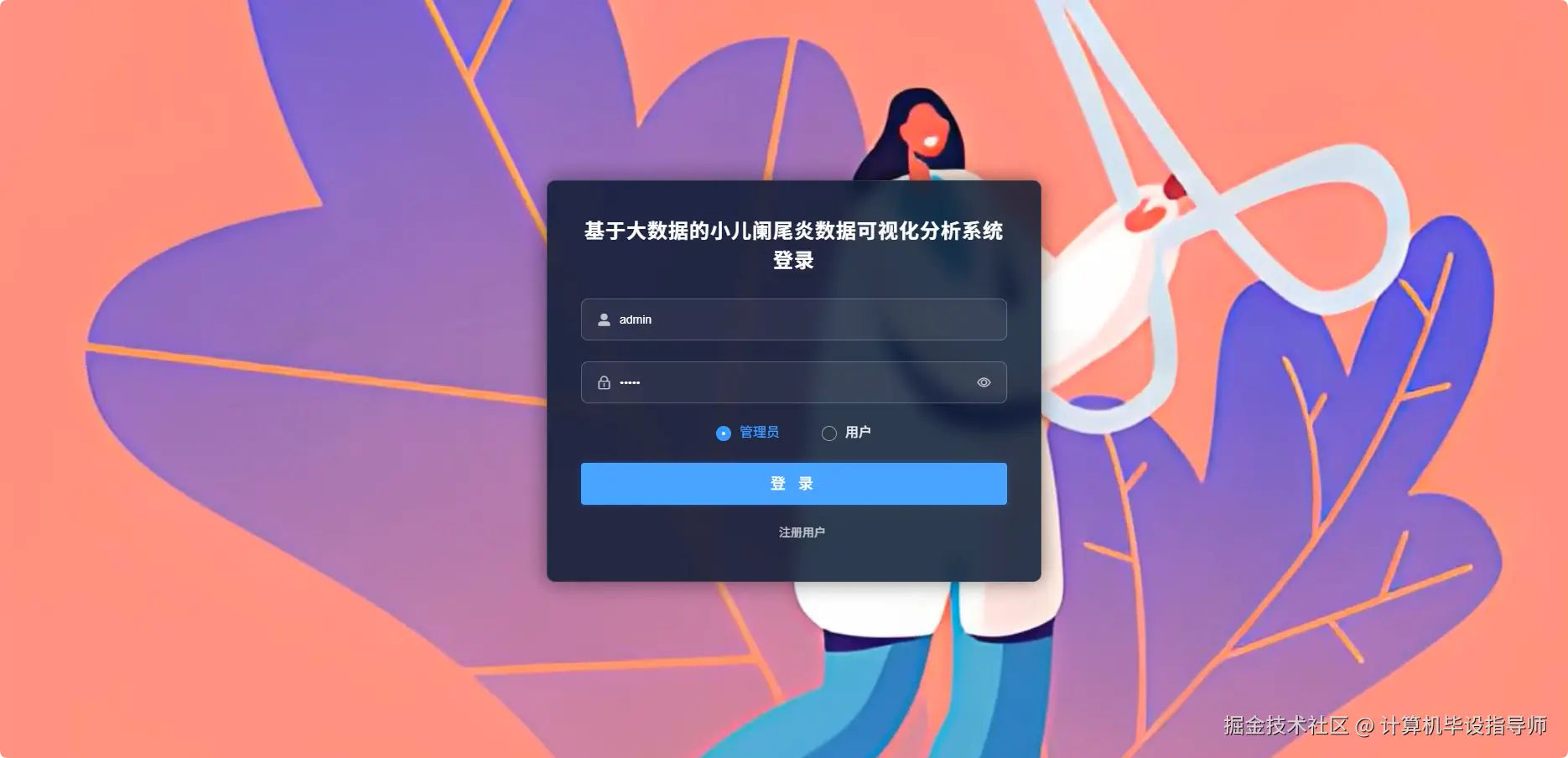

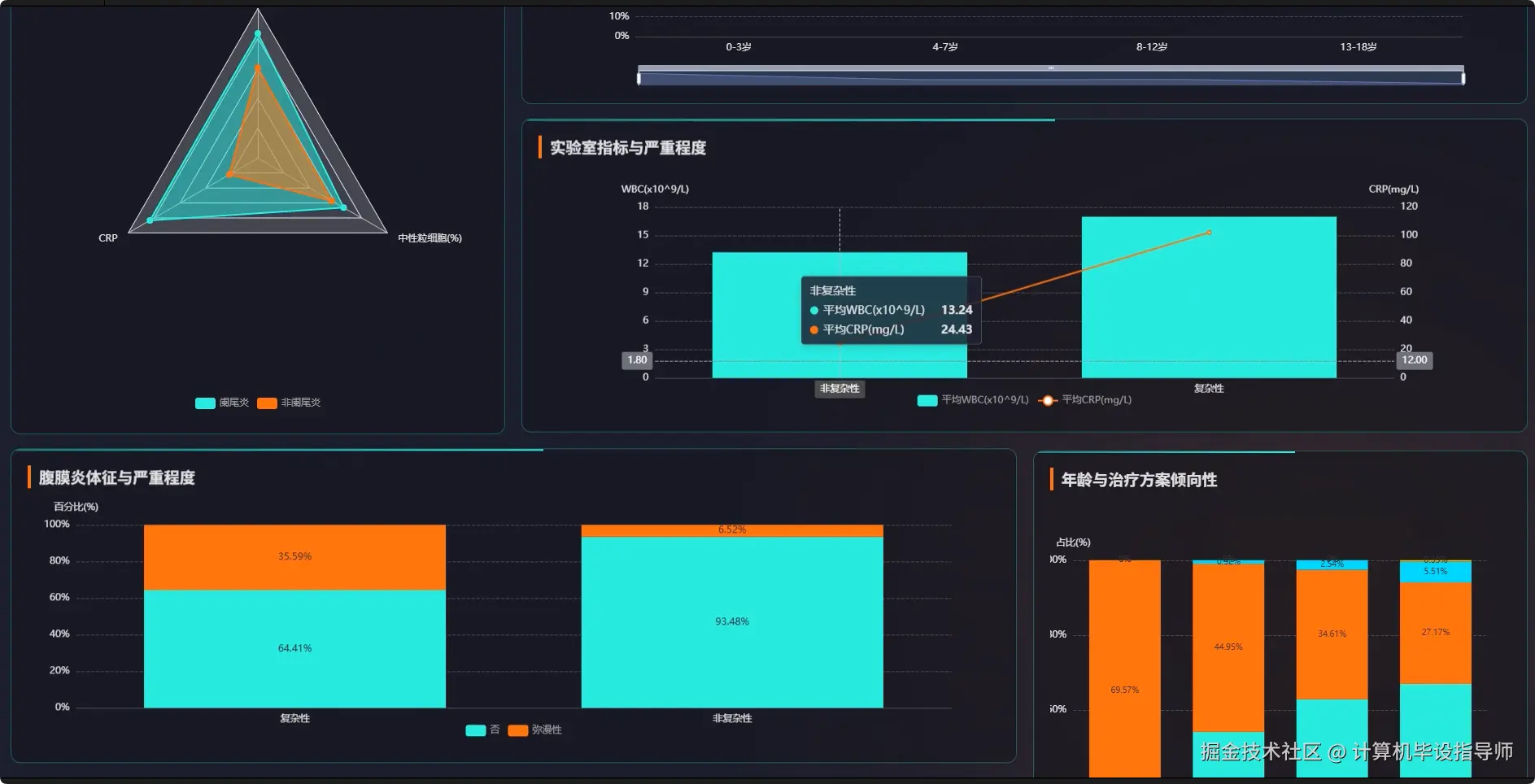

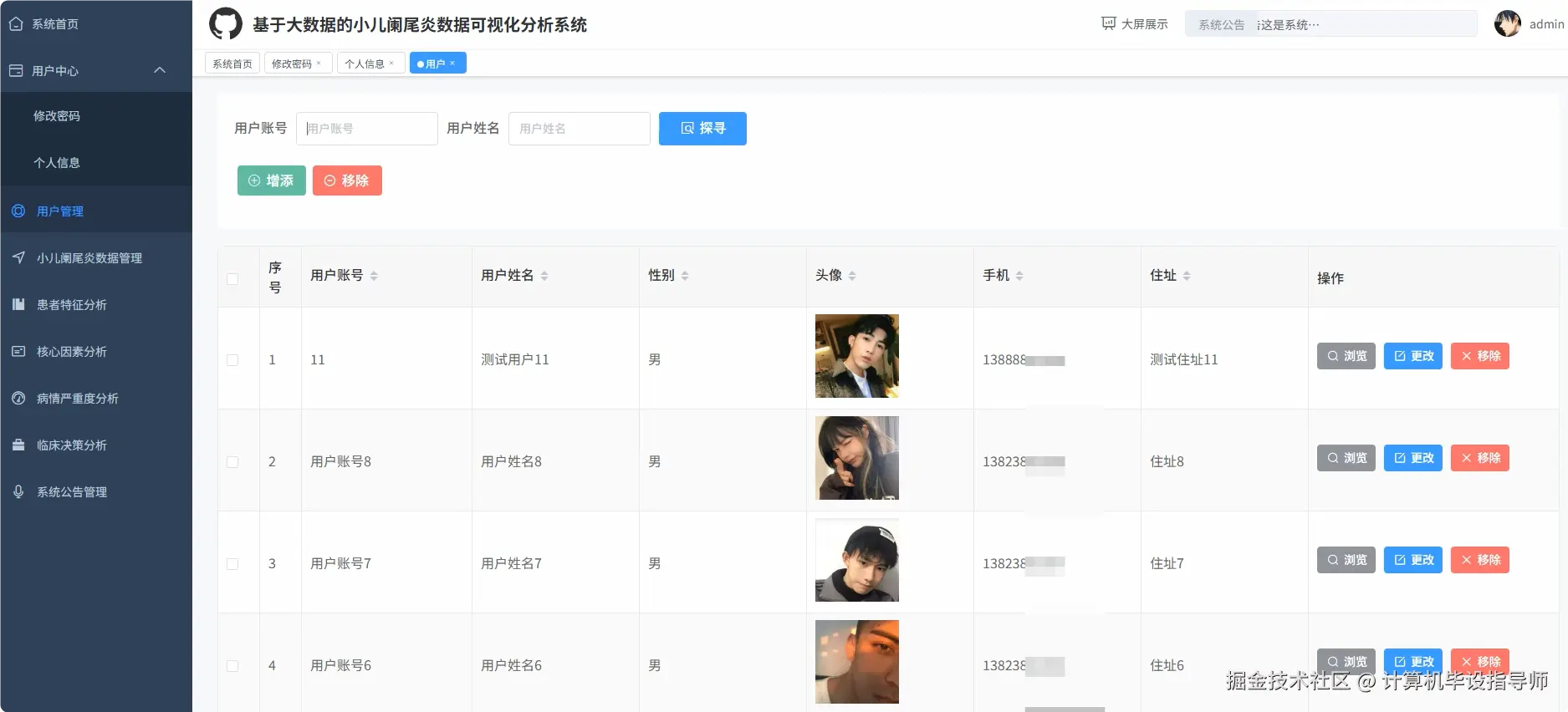

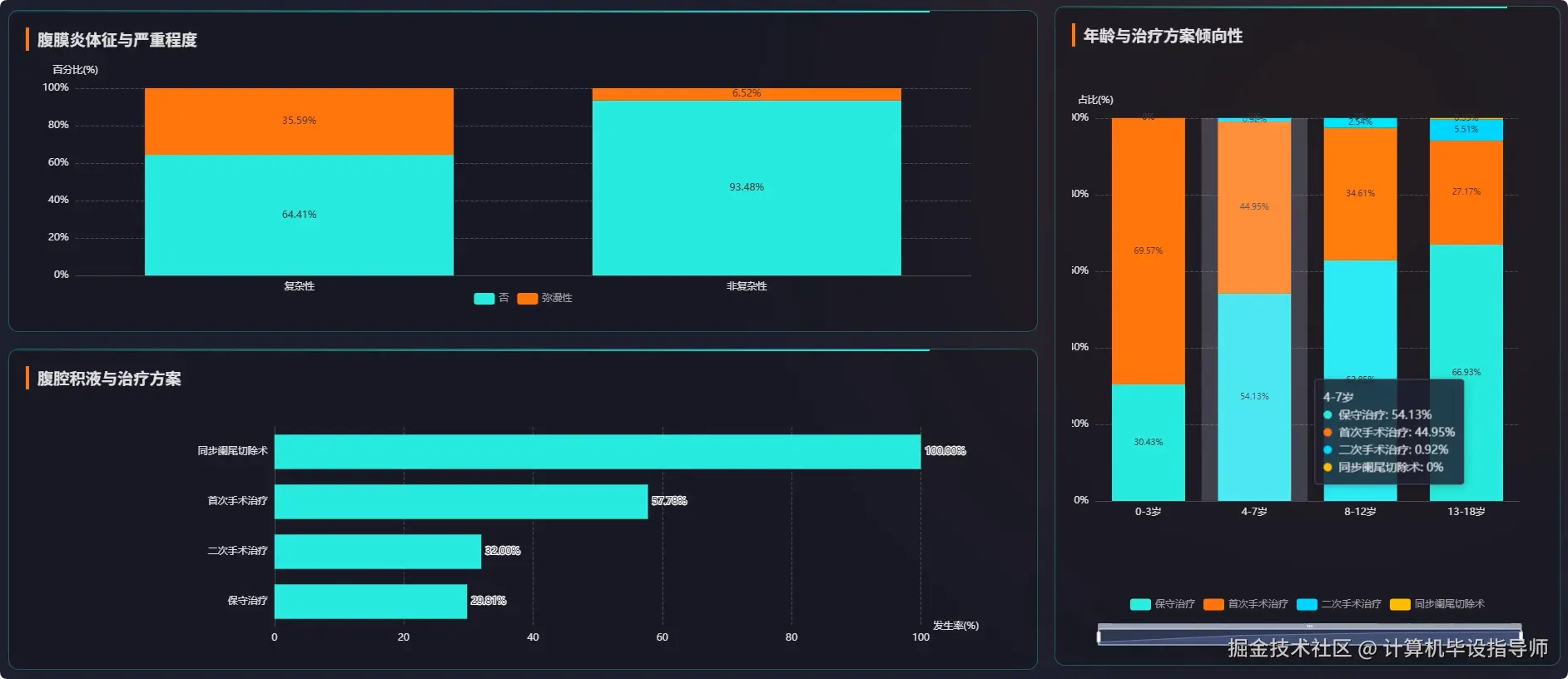

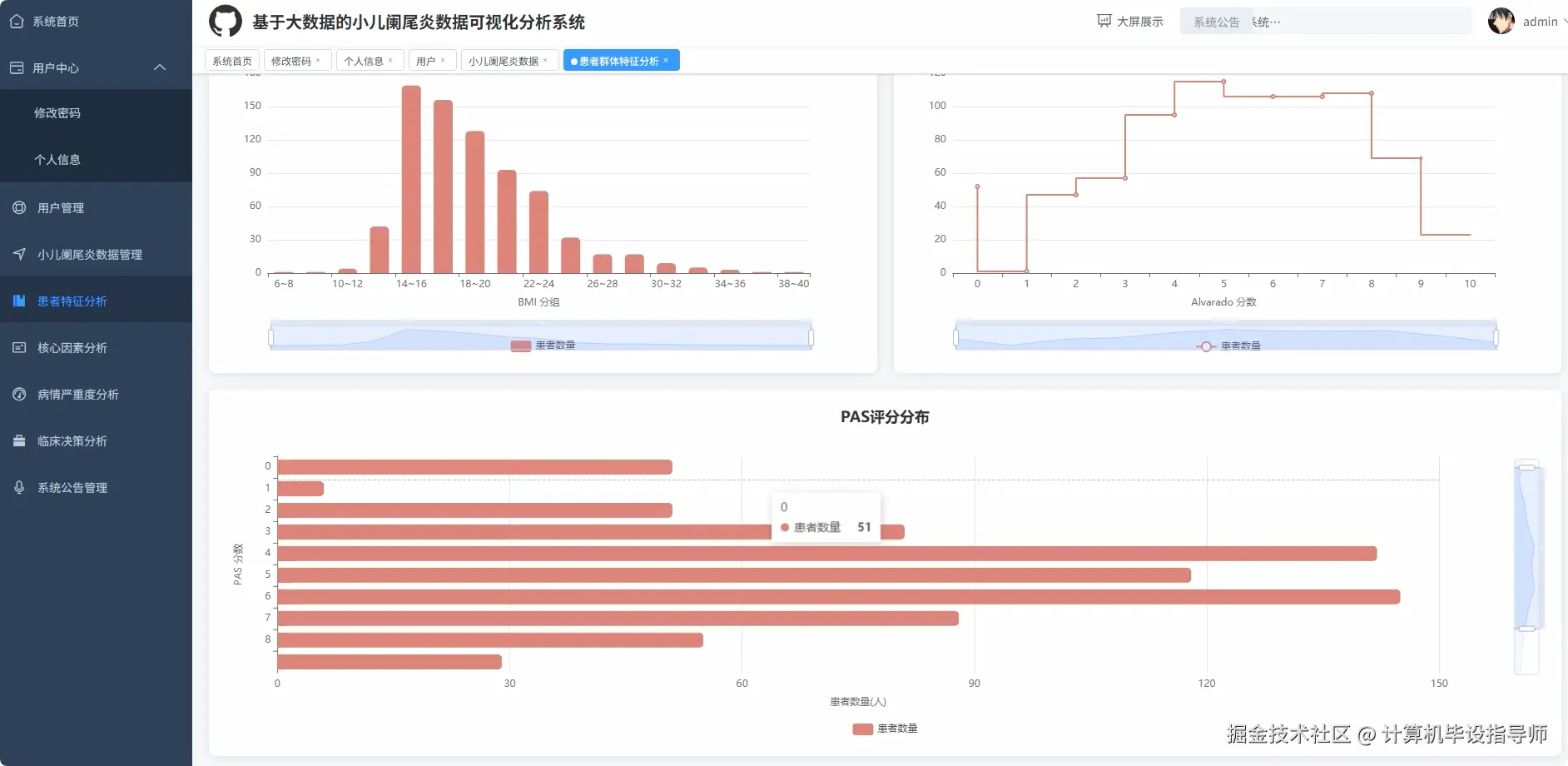

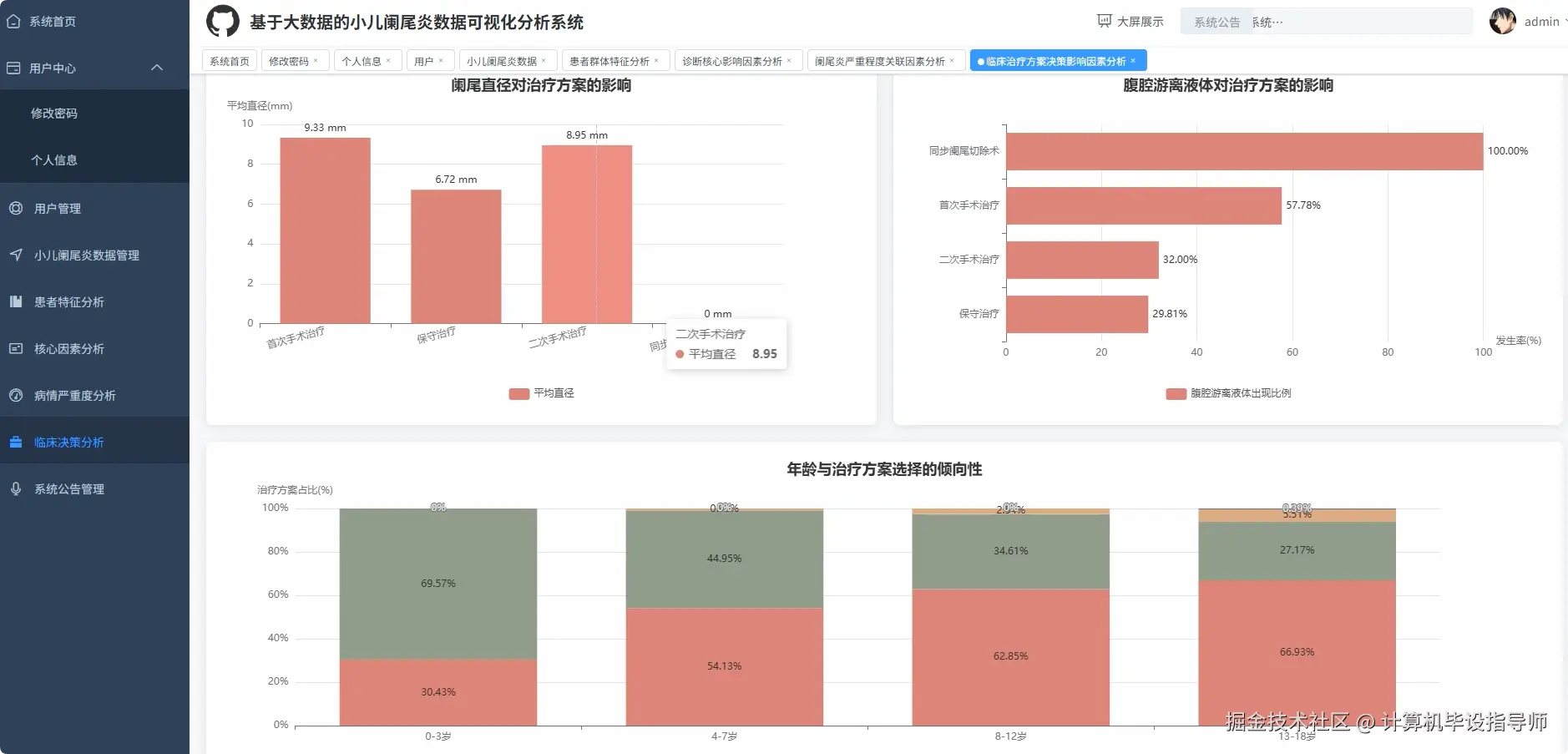

小儿阑尾炎数据可视化分析系统-图片展示
儿阑尾炎数据可视化分析系统-代码展示
from pyspark.sql.functions import col, when, count, avg, sum, desc, asc, round as spark_round
from pyspark.sql.types import IntegerType, FloatType, StringType
import pandas as pd
import numpy as np
from django.http import JsonResponse
from django.views.decorators.csrf import csrf_exempt
import json
import mysql.connector
def patient_demographic_analysis():
spark = SparkSession.builder.appName("PatientDemographicAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
df = spark.read.option("header", "true").option("inferSchema", "true").csv("hdfs://localhost:9000/medical_data/app_data.csv")
age_distribution = df.groupBy("Age").agg(count("*").alias("patient_count")).orderBy(asc("Age"))
age_stats = df.agg(avg("Age").alias("avg_age"), spark_round(avg("Age"), 2).alias("rounded_avg")).collect()[0]
gender_distribution = df.groupBy("Sex").agg(count("*").alias("count")).withColumn("percentage", spark_round((col("count") * 100.0 / df.count()), 2))
bmi_ranges = df.withColumn("bmi_category", when(col("BMI") < 18.5, "underweight").when(col("BMI") < 25.0, "normal").when(col("BMI") < 30.0, "overweight").otherwise("obese")).groupBy("bmi_category").agg(count("*").alias("count"))
alvarado_distribution = df.groupBy("Alvarado_Score").agg(count("*").alias("frequency")).orderBy(desc("frequency"))
pediatric_score_stats = df.agg(avg("Paedriatic_Appendicitis_Score").alias("avg_score"), spark_round(avg("Paedriatic_Appendicitis_Score"), 2).alias("rounded_avg")).collect()[0]
diagnosis_summary = df.groupBy("Diagnosis").agg(count("*").alias("count")).withColumn("percentage", spark_round((col("count") * 100.0 / df.count()), 2))
management_summary = df.groupBy("Management").agg(count("*").alias("count")).orderBy(desc("count"))
severity_distribution = df.filter(col("Diagnosis") == "appendicitis").groupBy("Severity").agg(count("*").alias("count"))
age_gender_cross = df.groupBy("Age", "Sex").agg(count("*").alias("count")).orderBy("Age", "Sex")
combined_scores = df.withColumn("score_difference", col("Alvarado_Score") - col("Paedriatic_Appendicitis_Score")).agg(avg("score_difference").alias("avg_diff")).collect()[0]
result_data = {"age_distribution": age_distribution.toPandas().to_dict("records"), "age_statistics": {"average_age": float(age_stats["avg_age"]), "rounded_average": float(age_stats["rounded_avg"])}, "gender_distribution": gender_distribution.toPandas().to_dict("records"), "bmi_categories": bmi_ranges.toPandas().to_dict("records"), "alvarado_scores": alvarado_distribution.limit(10).toPandas().to_dict("records"), "pediatric_score_avg": float(pediatric_score_stats["avg_score"]), "diagnosis_breakdown": diagnosis_summary.toPandas().to_dict("records"), "management_methods": management_summary.toPandas().to_dict("records"), "severity_levels": severity_distribution.toPandas().to_dict("records"), "age_gender_matrix": age_gender_cross.toPandas().to_dict("records"), "score_comparison": float(combined_scores["avg_diff"])}
spark.stop()
return result_data
def diagnostic_factors_analysis():
spark = SparkSession.builder.appName("DiagnosticFactorsAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.serializer", "org.apache.spark.serializer.KryoSerializer").getOrCreate()
df = spark.read.option("header", "true").option("inferSchema", "true").csv("hdfs://localhost:9000/medical_data/app_data.csv")
appendicitis_cases = df.filter(col("Diagnosis") == "appendicitis")
non_appendicitis_cases = df.filter(col("Diagnosis") != "appendicitis")
lab_indicators_comparison = df.groupBy("Diagnosis").agg(avg("WBC_Count").alias("avg_wbc"), avg("CRP").alias("avg_crp"), avg("Neutrophil_Percentage").alias("avg_neutrophil"), spark_round(avg("WBC_Count"), 2).alias("rounded_wbc"), spark_round(avg("CRP"), 2).alias("rounded_crp"))
clinical_symptoms_analysis = df.groupBy("Diagnosis").agg(sum(when(col("Migratory_Pain") == 1, 1).otherwise(0)).alias("migratory_pain_count"), sum(when(col("Nausea") == 1, 1).otherwise(0)).alias("nausea_count"), sum(when(col("Loss_of_Appetite") == 1, 1).otherwise(0)).alias("appetite_loss_count"), count("*").alias("total_cases"))
symptom_percentages = clinical_symptoms_analysis.withColumn("migratory_pain_rate", spark_round((col("migratory_pain_count") * 100.0 / col("total_cases")), 2)).withColumn("nausea_rate", spark_round((col("nausea_count") * 100.0 / col("total_cases")), 2)).withColumn("appetite_loss_rate", spark_round((col("appetite_loss_count") * 100.0 / col("total_cases")), 2))
temperature_analysis = df.groupBy("Diagnosis").agg(avg("Body_Temperature").alias("avg_temp"), spark_round(avg("Body_Temperature"), 2).alias("rounded_temp"))
fever_cases = df.withColumn("fever_status", when(col("Body_Temperature") > 37.5, "fever").otherwise("normal")).groupBy("Diagnosis", "fever_status").agg(count("*").alias("count"))
scoring_system_validation = df.groupBy("Diagnosis").agg(avg("Alvarado_Score").alias("avg_alvarado"), avg("Paedriatic_Appendicitis_Score").alias("avg_pediatric"), spark_round(avg("Alvarado_Score"), 2).alias("rounded_alvarado"), spark_round(avg("Paedriatic_Appendicitis_Score"), 2).alias("rounded_pediatric"))
age_group_analysis = df.withColumn("age_group", when(col("Age") < 5, "toddler").when(col("Age") < 10, "child").otherwise("adolescent")).groupBy("age_group").agg(sum(when(col("Diagnosis") == "appendicitis", 1).otherwise(0)).alias("appendicitis_count"), count("*").alias("total_count")).withColumn("diagnosis_rate", spark_round((col("appendicitis_count") * 100.0 / col("total_count")), 2))
high_risk_indicators = df.filter((col("WBC_Count") > 12000) | (col("CRP") > 10) | (col("Body_Temperature") > 38.0)).groupBy("Diagnosis").agg(count("*").alias("high_risk_count"))
correlation_matrix_data = df.select("WBC_Count", "CRP", "Neutrophil_Percentage", "Body_Temperature", "Alvarado_Score").toPandas()
correlation_matrix = correlation_matrix_data.corr().round(3).to_dict()
diagnostic_accuracy_metrics = df.groupBy("Diagnosis").agg(avg(when(col("Alvarado_Score") > 7, 1).otherwise(0)).alias("alvarado_high_score_rate"), avg(when(col("Paedriatic_Appendicitis_Score") > 6, 1).otherwise(0)).alias("pediatric_high_score_rate"))
analysis_results = {"laboratory_comparison": lab_indicators_comparison.toPandas().to_dict("records"), "clinical_symptoms": symptom_percentages.toPandas().to_dict("records"), "temperature_analysis": temperature_analysis.toPandas().to_dict("records"), "fever_distribution": fever_cases.toPandas().to_dict("records"), "scoring_validation": scoring_system_validation.toPandas().to_dict("records"), "age_group_diagnosis": age_group_analysis.toPandas().to_dict("records"), "high_risk_patients": high_risk_indicators.toPandas().to_dict("records"), "correlation_data": correlation_matrix, "diagnostic_metrics": diagnostic_accuracy_metrics.toPandas().to_dict("records")}
spark.stop()
return analysis_results
def severity_treatment_analysis():
spark = SparkSession.builder.appName("SeverityTreatmentAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.skewJoin.enabled", "true").getOrCreate()
df = spark.read.option("header", "true").option("inferSchema", "true").csv("hdfs://localhost:9000/medical_data/app_data.csv")
appendicitis_patients = df.filter(col("Diagnosis") == "appendicitis")
severity_lab_correlation = appendicitis_patients.groupBy("Severity").agg(avg("WBC_Count").alias("avg_wbc"), avg("CRP").alias("avg_crp"), spark_round(avg("WBC_Count"), 2).alias("rounded_wbc"), spark_round(avg("CRP"), 2).alias("rounded_crp"))
diameter_severity_analysis = appendicitis_patients.groupBy("Severity").agg(avg("Appendix_Diameter").alias("avg_diameter"), spark_round(avg("Appendix_Diameter"), 2).alias("rounded_diameter"))
diameter_ranges = appendicitis_patients.withColumn("diameter_category", when(col("Appendix_Diameter") < 6, "normal").when(col("Appendix_Diameter") < 10, "enlarged").otherwise("severely_enlarged")).groupBy("Severity", "diameter_category").agg(count("*").alias("count"))
peritonitis_severity_relation = appendicitis_patients.groupBy("Severity").agg(sum(when(col("Peritonitis") == 1, 1).otherwise(0)).alias("peritonitis_cases"), count("*").alias("total_cases")).withColumn("peritonitis_rate", spark_round((col("peritonitis_cases") * 100.0 / col("total_cases")), 2))
hospital_stay_analysis = appendicitis_patients.groupBy("Severity").agg(avg("Length_of_Stay").alias("avg_stay"), spark_round(avg("Length_of_Stay"), 2).alias("rounded_stay"))
extended_stay_cases = appendicitis_patients.withColumn("stay_category", when(col("Length_of_Stay") <= 3, "short").when(col("Length_of_Stay") <= 7, "medium").otherwise("long")).groupBy("Severity", "stay_category").agg(count("*").alias("count"))
treatment_decision_factors = df.groupBy("Management").agg(avg("Alvarado_Score").alias("avg_alvarado"), avg("Paedriatic_Appendicitis_Score").alias("avg_pediatric"), avg("WBC_Count").alias("avg_wbc"), avg("CRP").alias("avg_crp"), spark_round(avg("Alvarado_Score"), 2).alias("rounded_alvarado"), spark_round(avg("WBC_Count"), 2).alias("rounded_wbc"))
ultrasound_treatment_influence = df.groupBy("Management").agg(avg("Appendix_Diameter").alias("avg_diameter"), sum(when(col("Free_Fluids") == 1, 1).otherwise(0)).alias("fluid_cases"), count("*").alias("total_cases")).withColumn("fluid_percentage", spark_round((col("fluid_cases") * 100.0 / col("total_cases")), 2))
age_treatment_preference = df.withColumn("age_category", when(col("Age") < 6, "young_child").when(col("Age") < 12, "child").otherwise("adolescent")).groupBy("age_category", "Management").agg(count("*").alias("count"))
surgical_indication_analysis = df.filter(col("Management") == "surgical").agg(avg("Alvarado_Score").alias("surgical_avg_alvarado"), avg("WBC_Count").alias("surgical_avg_wbc"), avg("Appendix_Diameter").alias("surgical_avg_diameter"))
conservative_criteria_analysis = df.filter(col("Management") == "conservative").agg(avg("Alvarado_Score").alias("conservative_avg_alvarado"), avg("CRP").alias("conservative_avg_crp"))
complicated_cases_predictors = appendicitis_patients.filter(col("Severity") == "complicated").agg(avg("WBC_Count").alias("complicated_avg_wbc"), avg("CRP").alias("complicated_avg_crp"), avg("Length_of_Stay").alias("complicated_avg_stay"))
treatment_outcome_metrics = df.groupBy("Management", "Severity").agg(avg("Length_of_Stay").alias("avg_recovery_time"), count("*").alias("case_count"))
comprehensive_results = {"severity_laboratory": severity_lab_correlation.toPandas().to_dict("records"), "diameter_severity": diameter_severity_analysis.toPandas().to_dict("records"), "diameter_categories": diameter_ranges.toPandas().to_dict("records"), "peritonitis_correlation": peritonitis_severity_relation.toPandas().to_dict("records"), "hospital_stay_stats": hospital_stay_analysis.toPandas().to_dict("records"), "stay_distribution": extended_stay_cases.toPandas().to_dict("records"), "treatment_factors": treatment_decision_factors.toPandas().to_dict("records"), "ultrasound_influence": ultrasound_treatment_influence.toPandas().to_dict("records"), "age_treatment_trends": age_treatment_preference.toPandas().to_dict("records"), "surgical_indicators": surgical_indication_analysis.collect()[0].asDict(), "conservative_criteria": conservative_criteria_analysis.collect()[0].asDict(), "complicated_predictors": complicated_cases_predictors.collect()[0].asDict(), "outcome_metrics": treatment_outcome_metrics.toPandas().to_dict("records")}
spark.stop()
return comprehensive_results
小儿阑尾炎数据可视化分析系统-结语
