当浏览器也开始"造轮子":Web Components 的觉醒之旅

2,183 阅读4分钟

一、框架的狂欢与原生之痛

前端开发者常陷入这样的循环:为React重写日期选择器,为Vue重构表单组件,给Angular移植图标库——就像被迫携带Type-C、Lightning、MicroUSB三根数据线才能保证设备兼容。那些data-v-xxxx的样式隔离标记,本质是框架在DOM层面打的"隔离补丁"。

Web Components 的提出旨在解决这些问题 — 它由三项主要技术组成:

  • 定制基因(Custom Elements)
  • 视觉结界(Shadow DOM)
  • 骨骼模板(HTML Template)

二、拆解 Web Components 三件套

让我们像组装乐高积木一样,逐步认识 Web Components 的三大核心部件。先从一个最简单的需求开始:创建一个会打招呼的按钮


第一步:创造新标签(Custom Elements)

想象你可以发明新的 HTML 标签,这是 Custom Elements 的能力:

<!-- 页面中直接使用 -->
<hello-button></hello-button>

<script>
// 定义新元素
class HelloButton extends HTMLElement {
  constructor() {
    super();
    // 给元素添加内容
    this.textContent = '点击我打招呼';
    this.style.cursor = 'pointer';
  }

  // 当元素被添加到页面时
  connectedCallback() {
    this.onclick = () => {
      alert('你好,世界!');
    };
  }
}

// 注册新标签(名字必须带短横线)
customElements.define('hello-button', HelloButton);
</script>

关键点解析

  1. customElements.define() 像商标注册,告诉浏览器新标签的名字和功能
  2. connectedCallback 正如它的名字,是生命周期钩子,类似组件的"上岗"
  3. 自定义元素必须继承 HTMLElement 基类

第二步:封装私有空间(Shadow DOM)

现在要给按钮添加样式,但不想影响页面其他元素。这就是 Shadow DOM 的用武之地:

<hello-button></hello-button>

<script>
class HelloButton extends HTMLElement {
  constructor() {
    super();
    // 创建 Shadow DOM 隔离区
    const shadow = this.attachShadow({ mode: 'open' });

    // 在隔离区内构建内容
    const button = document.createElement('button');
    button.textContent = '带样式的按钮';
    button.style.backgroundColor = '#4CAF50'; // 绿色背景
    button.style.color = 'white';
    button.style.padding = '10px 20px';
    button.style.border = 'none';

    shadow.appendChild(button);
  }

  connectedCallback() {
    this.shadowRoot.querySelector('button').onclick = () => {
      alert('样式不会影响其他元素!');
    };
  }
}

customElements.define('hello-button', HelloButton);
</script>

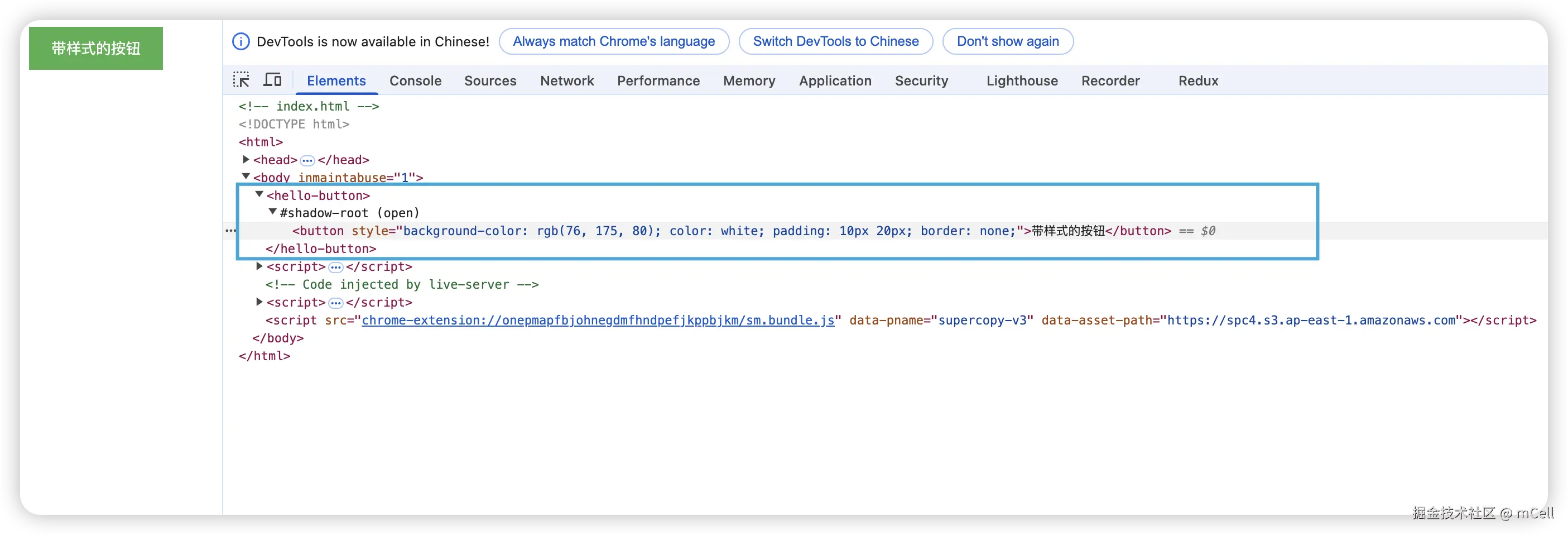

关键变化

  • 使用 attachShadow() 创建隔离容器
  • 所有样式和 DOM 操作都在 Shadow Root 内进行
  • 外部 CSS 无法影响 Shadow DOM 内的元素(试试在页面添加 button { background: red !important; }

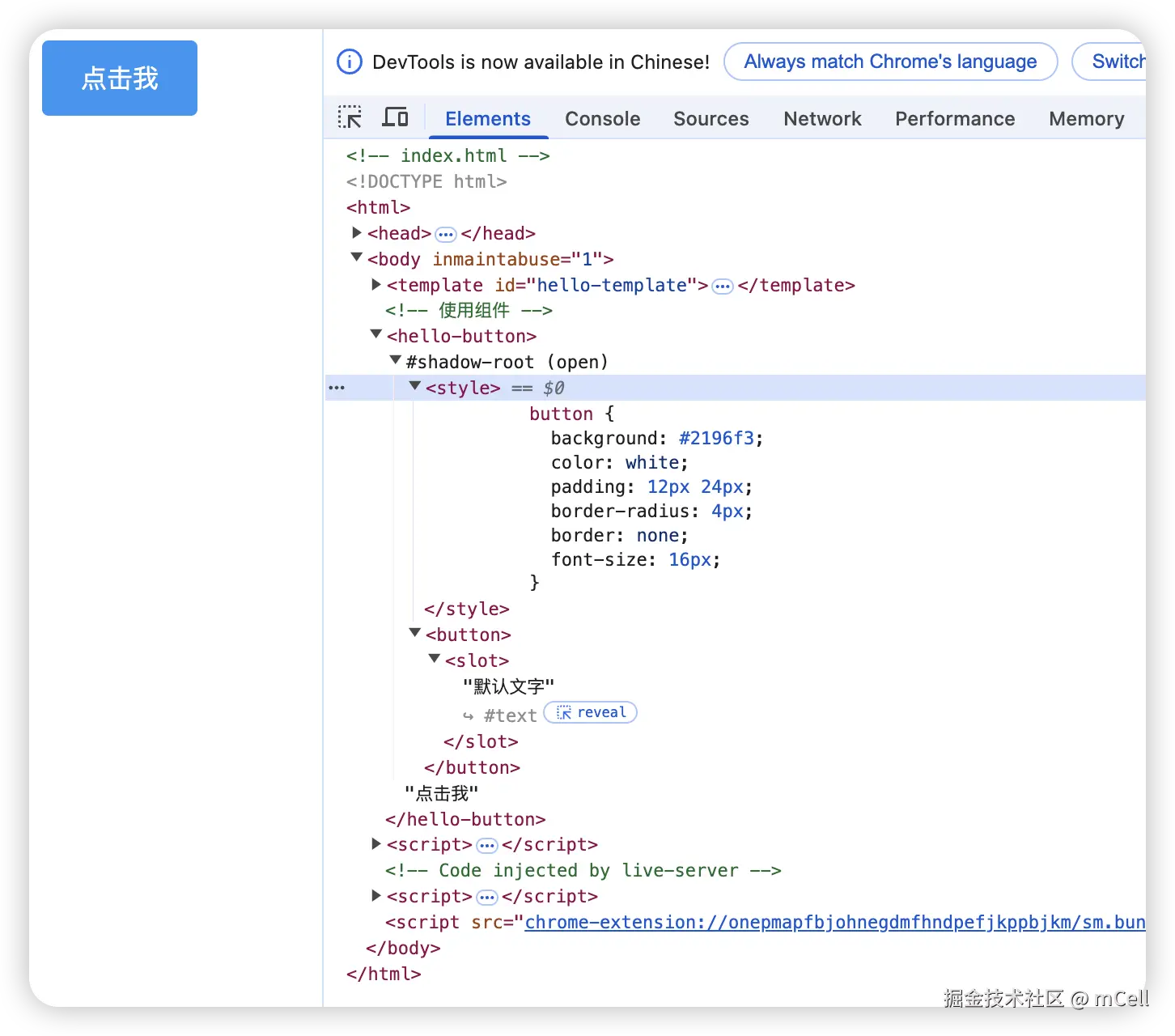

可视化理解
在浏览器开发者工具中:

  1. 找到 <hello-button> 元素
  2. 点击展开旁边的 #shadow-root,就像打开一个秘密盒子



第三步:预制模板(HTML Templates)

第二部中代码也许看上去有些不太美观,这一点就可以用 <template> 标签预置 HTML 结构:

<!-- 定义模板 -->
<template id="hello-template">
  <style>
    button {
      background: #2196F3;
      color: white;
      padding: 12px 24px;
      border-radius: 4px;
      border: none;
      font-size: 16px;
    }
  </style>
  <button><slot>默认文字</slot></button>
</template>

<!-- 使用组件 -->
<hello-button>点击我</hello-button>

<script>
class HelloButton extends HTMLElement {
  constructor() {
    super();
    const shadow = this.attachShadow({ mode: 'open' });

    // 获取模板内容
    const template = document.getElementById('hello-template');
    const content = template.content.cloneNode(true); // 深拷贝模板

    shadow.appendChild(content);
  }

  connectedCallback() {
    this.shadowRoot.querySelector('button').addEventListener('click', () => {
      const slotText = this.textContent; // 获取插入的内容
      alert(`你点击了: ${slotText}`);
    });
  }
}

customElements.define('hello-button', HelloButton);
</script>

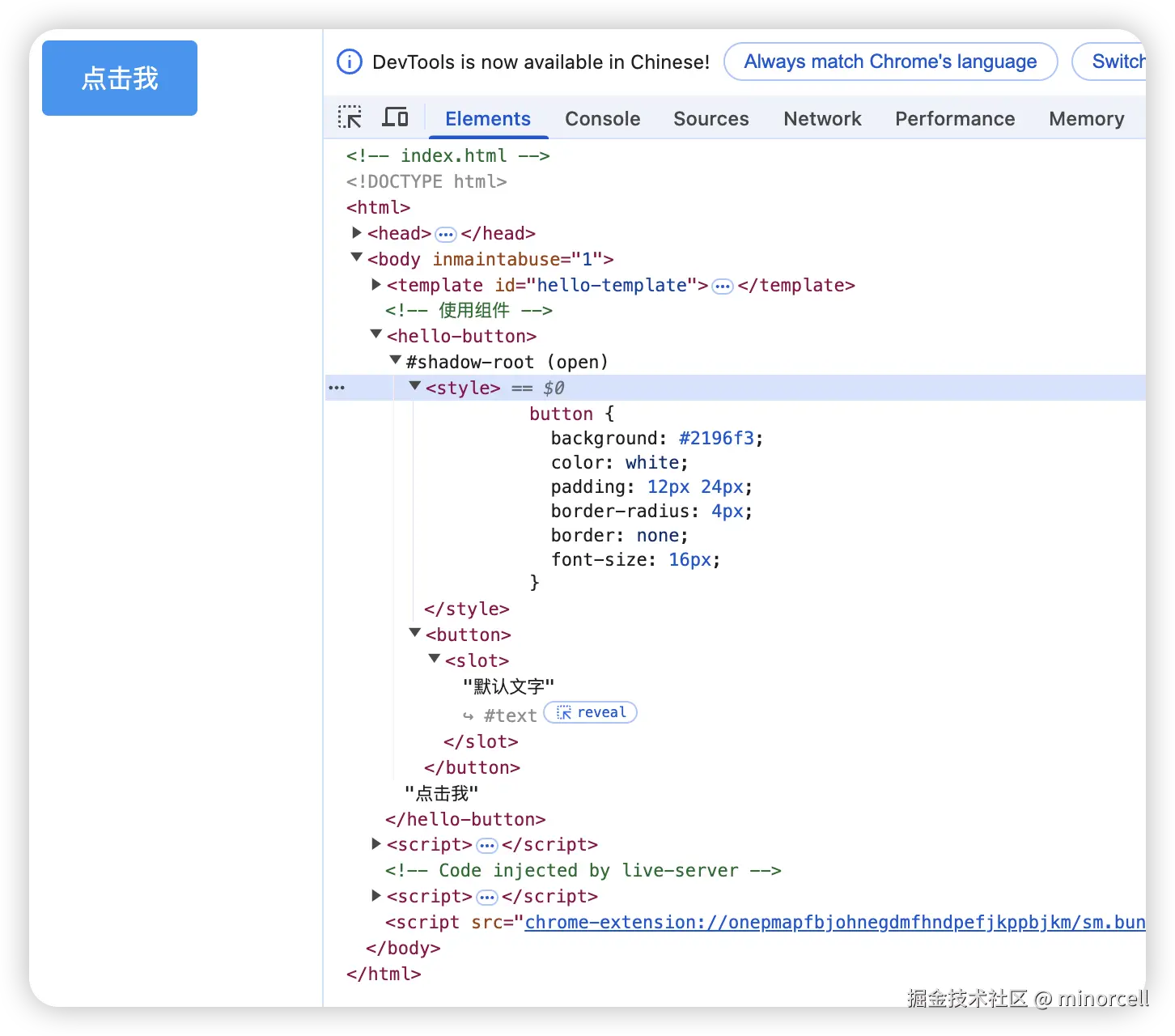

技术亮点

  • <slot> 标签像占位符,允许外部插入内容
  • 模板中的样式自动限定在 Shadow DOM 内
  • cloneNode(true) 复制模板内容,类似复印设计图纸

进阶实验
尝试在页面中添加多个 <hello-button>,观察它们的样式是否互相影响。



通过这三步,你完成了:

  1. 发明新标签(Custom Elements)
  2. 创建私有空间(Shadow DOM)
  3. 预置组件结构(HTML Templates)

现在你已经掌握了浏览器原生的组件化能力!下次遇到跨框架组件共享的需求时,不妨试试这套浏览器原生的解决方案。


三、用 Web Components 复刻 Element Plus 按钮

让我们用浏览器原生能力,实现一个具备 Element Plus 风格的可定制按钮组件。最终效果将支持以下特性:

  • type 属性primary | success | warning | danger | info
  • hover 效果:透明度变化
  • 点击事件:标准 DOM 事件
  • 插槽内容:自定义按钮文字
<!-- 定义组件模板 -->
<template id="el-button-template">
  <style>
    :host {
      display: inline-block;
      --el-button-primary: #409eff;
      --el-button-success: #67c23a;
      --el-button-warning: #e6a23c;
      --el-button-danger: #f56c6c;
      --el-button-info: #909399;
    }

    .el-button {
      padding: 10px 20px;
      border: none;
      border-radius: 4px;
      cursor: pointer;
      color: white;
      transition: opacity 0.3s;
    }

    .el-button:hover {
      opacity: 0.8;
    }

    /* 类型样式映射 */
    .primary { background: var(--el-button-primary); }
    .success { background: var(--el-button-success); }
    .warning { background: var(--el-button-warning); }
    .danger { background: var(--el-button-danger); }
    .info { background: var(--el-button-info); }
  </style>

  <button class="el-button">
    <slot>按钮</slot>
  </button>
</template>

<script>
class ElButton extends HTMLElement {
  static observedAttributes = ['type'];

  constructor() {
    super();
    // 创建 Shadow DOM 并附加模板
    const shadow = this.attachShadow({ mode: 'open' });
    const template = document.getElementById('el-button-template');
    shadow.appendChild(template.content.cloneNode(true));

    // 获取按钮元素
    this.button = shadow.querySelector('.el-button');
  }

  // 属性变化监听
  attributeChangedCallback(name, oldVal, newVal) {
    if (name === 'type') {
      this.updateButtonType(newVal);
    }
  }

  // 更新按钮类型
  updateButtonType(type) {
    const validTypes = ['primary', 'success', 'warning', 'danger', 'info'];
    const finalType = validTypes.includes(type) ? type : 'primary';

    // 移除旧类型样式
    this.button.classList.remove(...validTypes);
    // 添加新类型样式
    this.button.classList.add(finalType);
  }

  // 组件挂载时初始化
  connectedCallback() {
    const type = this.getAttribute('type') || 'primary';
    this.updateButtonType(type);

    // 绑定点击事件
    this.button.addEventListener('click', () => {
      this.dispatchEvent(new CustomEvent('click'));
    });
  }
}

// 注册自定义元素
customElements.define('el-button', ElButton);
</script>

使用el-button

<!-- 基础使用 -->
    <el-button>默认按钮</el-button>

    <!-- 指定类型 -->
    <el-button type="success">成功按钮</el-button>
    <el-button type="danger">危险按钮</el-button>

    <!-- 事件监听 -->
    <el-button type="warning" id="demo">测试按钮</el-button>

    <script>
      document.getElementById("demo").addEventListener("click", () => {
        alert("按钮被点击!");
      });
    </script>

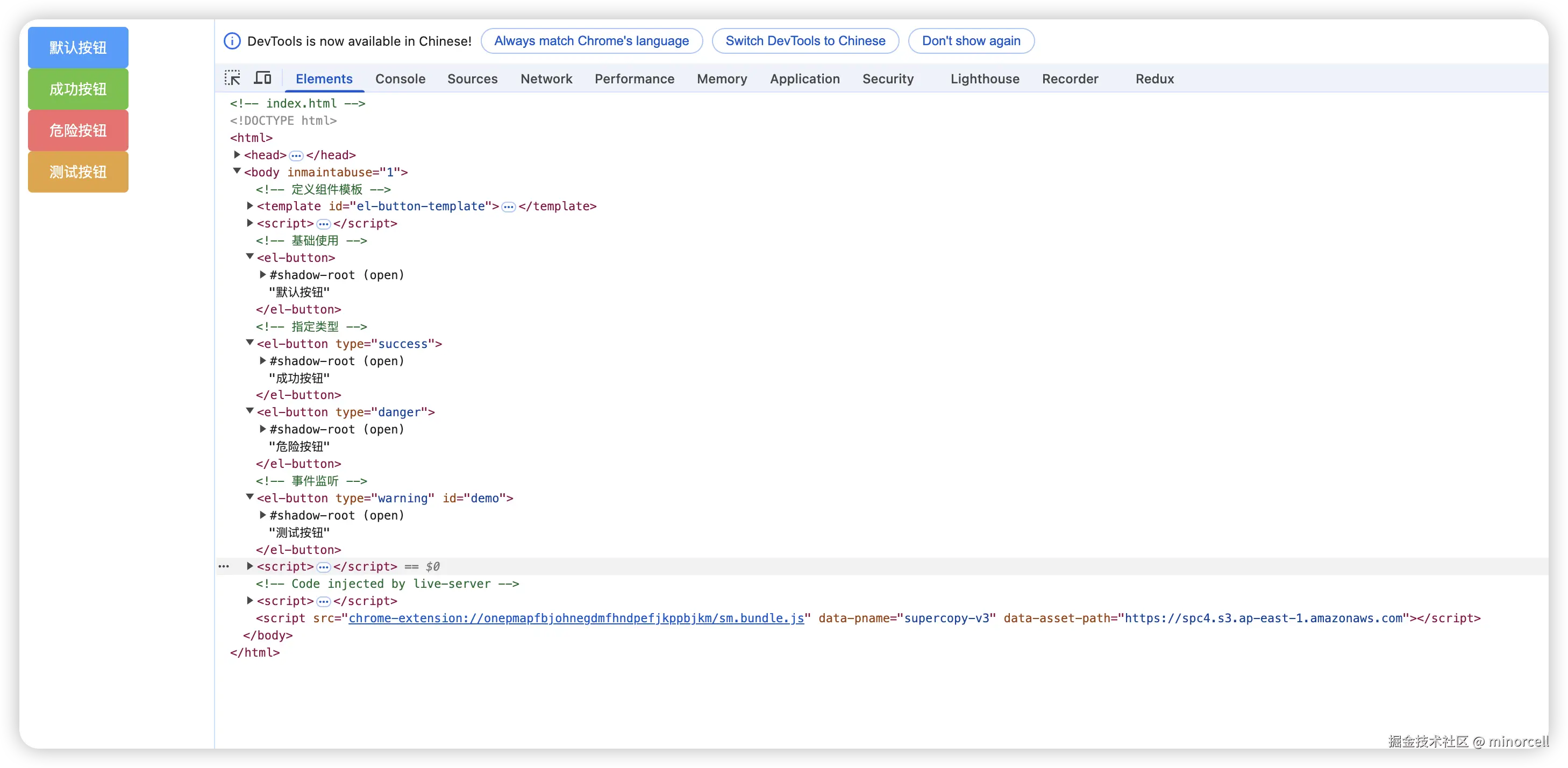

在页面中的效果如下:



参考资料

  1. MDN Web Components 文档
  2. Web Components 实战指南
  3. Web Components 入门实例教程 - 阮一峰
