UCB CS162 操作系统笔记（三）
P13：Lecture 13： Memory 1 Address Translation and Virtual Memory - RubatoTheEmber - BV1L541117gr
Okay， let's get started。
We're going to finish up with deadlock， and in particular looking at deadlock avoidance。
and prevention algorithms。 And then we're going to switch gears and look at memory management。
This is the first of several lectures we're going to have on address translation and virtual。
memory。 Okay。 All right， so remember that deadlock is basically a form of starvation。
That with starvation， we have threads that wait indefinitely， like a low priority thread。
that waits on a high priority thread。 And the key difference between deadlock and starvation is that in deadlock。
we have a circular， waiting of resources。 So here we have thread A that is waiting for resource two。
which is being held by thread， B， which is waiting for resource one。
which is being held by thread A。 The second key difference between deadlock and starvation is that while starvation can。
end， right， those high priority threads that are blocking that low priority thread can， leave。
with deadlock， we have to have external intervention to stop it。 Otherwise， it'll just。
it'll remain in that situation forever。 Okay。 Now， remember。
there are four requirements for deadlock。 All right。 First being mutual exclusion。
the second being hold and wait， the third being no preemption。
and the fourth being circular waiting。 Remove any of those conditions and you don't have deadlock。
All right。 So here's a hint。 You might see a question about this on the midterm where you're given a situation where。
there's preemption。 Can deadlock occur if we have preemption？ No。 Right。 Likewise。
if there isn't a circular waiting， then we can't have deadlock。
So the other way to think about this is that these might be some of the things。
If we can guarantee that our system always has preemption， then we can guarantee that our。
system will be deadlock free。 Similar if we can guarantee that there's no circular waiting for resources。
we can guarantee， that we won't have deadlock。 Okay。
So some of the techniques that we can use to prevent deadlock are to make threads request。
everything that they need at the very beginning。 Right。 But that's not practical。 Right。
If you tell programmers， request everything that you might possibly potentially need， and。
if you get it wrong， I'm going to kill your job after it's run for three hours。
They're going to overestimate。 And so this will lead to poor utilization and low efficiency。
Another alternative is to force all threads to request resources in some order。 Right。
If we can guarantee that everybody does their requests in some order， then we don't have， a cycle。
Right。 We won't have a cyclic request for resources。 We've removed one of those four conditions。
and so we won't have deadlock。 We might have starvation in our system for other reasons。
but that can resolve itself。 So one example would be that we impose some lexicographic ordering on lock acquisition。
So we say you do X dot acquire， then Y dot acquire， then Z dot acquire。
So that bans us from the situation where one thread holds X and wants Y and the other thread。
holds Y and wants X。 Because that would not be lexicographic ordering。
We can do this across resources to say， first you always have to request all of the memory。
that you need。 Then you request all the disk resources you need， then all the printer resources。
and， all the network resources， and so on。 By guaranteeing that order。
and you can't go back and request something earlier， again。
we won't have a cyclic waiting on requests for resources。 And thus we won't have deadlock。
Any questions？ Okay。 So another approach is to say， I'll just request all of the resources at once。
So here I've modified it， so instead of doing thread A doing X dot acquire， Y dot acquire。
and B doing Y dot acquire， and X dot acquire， we instead call this primitive acquire both。
So A will just acquire X and Y， and B will acquire Y and Z。
And we'll say that those occur atomically。 So either get both X and Y or you don't。 Right？
Now what happens if I want to add another， like， I don't know， I want to add W。 Right？
And maybe I need acquire triple。 And then I want to add， I don't know， U to it。
So now I need to acquire quad。 Right？ Well， another way to think about this is that's just why don't we have a guard around the。
acquisition of the locks？ So we'll have， you know， a Z will be our guard new text。
And so you acquire Z， then you acquire all the locks you want， then you release Z。 Right？
And so now it doesn't really matter what the order is inside this critical section， because。
only one thread is going to be able to acquire the locks at a time。 Right？ So another way to do it。
as I said， is to have a consistent ordering。 So we assign some lexic， in this case。
a lexical graphic ordering that you go from A to Z in， acquiring your locks。
So that bans B from doing this。 You can't do acquire Y then acquire X。 So instead。
B has to do acquire X and then acquire Y。 Now what about the releases？
Does it matter that we're releasing X before we release Y？ Yes？ No？ All right， let's do a poll。
How many people think that the order that we do， the releases， does not matter？ Raise your hand。
Okay？ How many people think the order that you do the release does matter？ Okay。 Guess what？
You're both right。 Everybody's right。 So from a semantic standpoint， it doesn't matter。
It doesn't matter whether we release one lock and then release another lock。
But what would happen if we release X while thread A is waiting for Y or waiting for X。
and then waiting for Y？ Right？ It's going to wake up， grab X because now X is free。
and then go to grab Y and find， oh， why is being held？ Right？
And so then it'll just go back to sleep， then we'll release Y and then we'll come back context。
which again and wake it up。 If we flip it around and we release Y first and then release X。
then when A wakes up because， it can now access X， it'll grab X and then it'll go in and acquire Y。
So from a semantic standpoint， ordering doesn't matter。
From a performance and efficiency standpoint， order does matter。
So we want to avoid the number of context which is and wait and queuing that we have。 Questions？
All right。 Okay。 So again， remember another example of where we can do ordering was our train network where。
we have these trains that are all trying to turn right。
And we can simply set a dimension ordering rule that says first you go and route east， west。
then you're allowed to route north south。 And that disallows this train that's going north south and then trying to go east west。
and this train that's going north south and then trying to go east west。
And so that removes the ability for us to have deadlock。
And the great thing about this is my multiprocessor network that this was developed for actually。
are multi-dimensional。 So they may be like hypercubes。
And so you have XYZ directions and you just order。 So you say you route first in the X。
then you route in the Y， then you route in the Y， then you route in the Z。
And so that avoids us having deadlock in these networks。
And you extend them infinitely and they wrap around and all that。 Okay。
So let's look at some techniques for recovering from deadlock。 So first is， you know。
we could terminate the thread。 Forces to give up its resources。
So if we go back to our singling bridge example， you've got the two cars that are sitting there。
in a stalemate， you know， no one can go forward because the other car is blocking the segment。
it has to acquire。 And the simple solution is Godzilla comes up from the ocean。
picks one of the cars up， throws it into the ocean， and now the cars can go。 Deadlock resolved。
Okay。 So it's not so good for the people that were in the car that are now in the ocean， but you。
know， we solved the problem。 Not really。 The bigger issue here is that oftentimes， right。
we require mutex because we want to modify， some state。
And we want to do it in a way that's atomically that occurs atomic because we might be doing。
something that creates inconsistencies。 Like we're transferring money from one bank account to another。
And we also need to update the branch bank account branch of the bank's account balances。
So if we just take the lock away and let somebody else run。
we're going to be operating on inconsistent， data。 So in general。
this is not a good approach to try and do。 So another approach that we could do is to preempt the resources without actually killing。
the thread。 So we've seen this already， right？ You know， we have one CPU and we preempt that CPU。
take it away from the thread that's running， save all the state that's thread specific in the CPU out to memory。
load the state for， the new thread， and then we run it。
So maybe we can do that with some of these other resources。
It might not work for like a lock or something， but it could work for something like memory。
We'll come back to that in just a moment。 And we're going to spend a lot of time in the rest of the lecture talking about it。
But it's not always going to fit with the semantics of computation。
There's no real notion of like preempting a lock and taking away a lock from someone。
So another approach is to roll back the actions of the deadlock threads。
So it's like hitting the rewind button on Tivo， which by the way， was the original DVR copied。
by all the cable companies and everybody else。 And then it's just like it never happened。
And then we let things roll forward again。 Now one problem is if we roll everybody back to the original starting conditions and then。
roll them forward， we might end up back in deadlock。 So maybe we pick one of the threads。
So we back up one of the cars and roll back all the cars behind it。
Now the car is going in that other direction can proceed。
So you just have to figure out which makes the most sense。
This is an approach that's commonly used in databases around transactions。
If transactions cause the system to end up in a deadlock state， you simply abort a bunch。
of the transactions and trial over again。 When we look at operating systems。
there's lots of other options that they use for avoiding， or rather in this case。
we're covering from deadlock。 In most cases， they just simply ignore that deadlock could occur and try to be designed。
such that they won't cause deadlock themselves。 All right。
so coming back to that comment about preempting resources， remember our example。
that we had where thread A and B are trying to allocate two megabytes on our machine that。
only has two megabytes of physical memory。 So if one gets one megabyte and the other gets one megabyte。
then they can't get the， other megabyte that they need to proceed， neither of them can proceed。
Now if we instead of operating on physical memory， say these threads are going to operate。
on virtual memory， then we can provide the illusion that there's infinite memory。
Now we don't really have to make it infinite。 We could just say， you know。
make the illusion that there's two gigabytes of memory。
That's more than enough for these two threads to be able to get their two megabytes each。
And in fact， we could have dozens， hundreds of threads all doing the same thing。
And to each one of those threads， it would look like there's an infinite amount of memory。
Just have to have that illusion look large enough such that you don't run into problems。 Okay。
Another way to think about this is instead， if we didn't have virtual memory， when we wanted。
to grant one， we could preempt say， you know， a， by copying its contents of its one megabyte。
region out to disk， clearing them， and then letting B use that region。 When B is done。
we then wake A back up， copy its contents of memory back into physical memory。
and allow it to proceed。 So from its point of view。
it just has to wait a long time to get its second allocation， of one megabyte。
but otherwise it sees， it doesn't see any other side effects。 That doesn't affect the semantics。
just the timing of the computation。 Questions？ Okay。 All right。
So let's look at a technique for trying to avoid deadlock。 So here's a， I'll， I'll。
I'll propose this as an idea。 When a thread goes to request a resource。
the operating system checks to see would it result， in deadlock if it granted that request？
If the answer is no， then it goes ahead and grants the request for the resource right， away。
If the answer is yes， then it makes that request wait for other threads to release resources。
So this seems like it might be reasonable， but you know， actually it doesn't work。
Let's look at why。 So let's look at our example， our running example thread A and thread B。
So thread A runs， it does x dot acquire。 So we check。 All right。 If we grant x dot acquire。
is that going to deadlock the system？ No。 All right。
Because it could be the case that we run x dot acquire， then y dot acquire and， you know。
A leaves and then sometime later B gets to run。 All right。 So now we come back to thread B。
Is granting B， why dot acquire going to deadlock the system？ No。 So we grant that。
Now we come back to A and A tries to do why dot acquire and it blocks。
Now we come back to B and B tries， oh， it has to wait。 So we can't grant x dot acquire。
It would actually put the system in deadlock。 Wait， the system is already in deadlock。
So the issue here is that we're looking just at the request itself。
We're not looking at what implications it might have on the future。
And so anything we're going to have to do is going to have to look at what the future。
state of the system might be。 So really what we have is three different states for our system。
There's a safe state， which is the system can delay a resource request and keep us out， of deadlock。
But we're not currently in deadlock。 We're not at risk of deadlock。 There's deadlock。
It's too late now。 Nothing we can do at this point。 And then there's this weird state in the middle。
which is we're not in deadlock yet， but， the threads could make requests that are going to lead to a deadlock situation with high certainty。
So we want to keep the system in a safe state。 Because as soon as we get into that unsafe state。
there's the risk that things just go， downhill and then it's game over。 Nothing we can do。
All right。 Note that being in the deadlock state， that's also considered unsafe。
You're going to deadlock。 You are deadlock rather already。 Okay。
So deadlock avoidance is all about keeping us from entering an unsafe state and therefore。
not being able to deadlock。 All right。 So now what we want to do instead of our idea is going to be the following。
Request comes in。 The operating system is going to check that request to see if I grant this request。
could， it leave the system in an unsafe state？ The answer is no。 We can grant it right away。
If the answer is yes， we're going to make it wait。 All right。 So let's look at an example。
So here we do X dot acquire。 Does that have any potential of putting the system into a deadlock？
Is there a path forward？ Sure。 There's a path forward， right？
If Y is available right now and so if Y was granted， A could exit the system。
So now when we look at the right B and we do Y dot acquire， what's going to happen？ Well。
if we grant that， is there a path forward？ No， right？ Because by granting that lock Y to be。
now we've put it into a situation where X can't， finish。
And if we look forward to what B is going to want to do， B is going to want to acquire。
lock X and that's being held by A。 And so there's no way for A to proceed or for B to proceed if we grant Y。
So we have to wait。 And then there is a path forward where now A can grab Y。
do its work and exit the system。 And once it's exited the system and released X， then B can grab Y。
grab X and exit the system。 Okay， so now， so that's kind of like a lot of hand waving to kind of get to what we want。
to do。 So now let's turn this into a more formal algorithm。 All right。
so this is getting us towards what we want to do。 We want to state the maximum resources that we're going to need in advance。
And then we're going to allow a thread to proceed if we look at the available resources。
minus what it's requesting。 And if that's greater than or equal to the maximum remaining resources that any thread。
might need。 All right， because if that's the case， if there's still going to be enough resources。
left after we grant this request for the maximum of some thread to proceed， we know that thread。
can finish。 And if that thread finishes， it'll release its resources。
And then we can check to see is that the case that for the other threads， this also holds， true。
And we'll just keep going and keep going until we've checked all of our threads。 Okay。
so this is a lot less conservative in the bankers algorithm。
We're going to allow you to allocate the resources dynamically。
So rather than saying you have to specify and request all of your resources upfront。
we're just going to say you need to specify the resources upfront。
Then we'll evaluate it dynamically so we can be less conservative。 So we'll evaluate each request。
If it won't， if there's some ordering that is not deadlocked for the threads， we can grant。
that request。 All right， so。 The technique we're going to use is we're going to pretend as if we granted the request and。
then run our deadlocked detection algorithm。 But with a little bit of a tweak in it。
So the tweak is that we're going to substitute， instead of having looking at the request from。
a node to see if that's less than or equal to what's available， we're going to look at。
the max request that could be requested by that node， minus what's already allocated to， that node。
If that's less than or equal to what's available。 All right。
so what's this going to actually look like？ Again， remember from last time we had bankers algorithm。
we start by taking all of our resources， and putting that our free resources。
putting that into our available vector。 All right。
and then we add all of the nodes that are in the system unfinished。 And then we're going to iterate。
What we're going to do is in each of these iterations， we're going to pull a node and。
we're going to check to see if the max allocation， the maximum request for that node， minus what's。
already allocated to that node is less than or equal to what's available。 Right。
what's that it's going to mean is if the remaining what it could ask for is less。
than what's available， then we know that that node can finish。 There's a path。
And so we can let it finish， remove it from the set of unfinished nodes， put all of its。
allocated resources into our pool of available resources， and we just iterate on this through。
all of our nodes。 And if we still have nodes left and unfinished， we iterate again。
And if we don't make any changes， then we know we're done。 All right， and so when we get to the end。
we get to the end， if we have nothing left in， unfinished。
that means that all of the nodes were able to exit the system successfully after。
we virtually granted this request。 There was some path， some ordering that let them finish。
If there's any nodes left in unfinished， it means that granting this request could potentially。
put us into a deadlock situation。 So we can't grant it。 Yes。 So the question is。
how would this connect back to the last example where we were acquiring， the locks？
So in the case of a lock， that's a case where you just have one instance of a resource。
So your vector resources here would be x， y， z， and so on。 So you're looking to see， so for example。
each of those threads is going to want a maximum， of one instance of x and one instance of y。
So if we get into a situation where one's got one instance of x and one's got one instance， of y。
and we know that their max is that they're going to need the other， and each of those， is now zero。
then we know that we'd be in a deadlock situation。 You're welcome。 Any other questions？ Yeah。
So the question is， when I'm talking about available， am I talking about available in。
terms of all of the resources in the system or just for that process？ So two things。
One is when I say available， it's the resources that are unallocated。
So like the locks that aren't acquired or the disk channels that aren't reserved and， so on。
And then you can look at this at whatever scope you're trying to do deadlock detection on。
So if you're doing it on a system-wide level， then it would be all of the system resources。
If you're just doing it within your program， let's say you're implementing a network file， server。
you want to make sure that its execution is deadlock free， then it would just be within， that。
But since it's dependent on external resources， you'd have to make sure that all your uses。
of those external resources wouldn't potentially lead you to a deadlock situation。 Yes？
[ Inaudible ]， Yeah， so the question is， how does knowing the remaining resources help you because you。
might have a lot of different kinds of resources and you might be requesting different resources。
from the resources that are remaining。 So again， remember that these are vectors。
So available free resources， those are all vectors where each element of the vector is。
a different resource。 Similarly， when I look at the max for a node。
that's the node specific vector of what resources， that node wants。 So I just， you know。
there's an entry for each of the potential resources I might want。 Some of the resources。
we may have multiple instances。 If you remember from the resource graph。
we could have a box with say three instances。 So in that case。
we'd start initial condition would be three。 Right？ Whereas for a lock。
we'd start with just one instance of that lock。 Other questions？
That's a really good question because this can be， Benker's algorithm can be really confusing。
I recommend you try a couple of toy examples and play with it so you can understand it again。
That's the kind of thing that sometimes shows up on the midterm。 Any other questions？ Okay。 So。
again， if we're able to end up in a situation where there are no nodes left and unfinished。
what it's telling us is that we've got the system in a safe state。
If any nodes are left and unfinished， it means that there is not a clear path from granting。
this request to all of the threads being able to exit the system。 That's an unsafe condition。
It does not guarantee that we will deadlock， but it means that we potentially could deadlock。
So it's conservative。 All right。 We don't know what the future is going to hold in terms of what the actual ordering of。
requests might be。 And so we're going to be conservative in granting any requests to prevent us from entering into。
an unsafe situation。 Okay。 So we could apply Benker's example and we'll do that with our dining lawyers。
So， safe， I would not cause deadlock is if when you try to grab a chopstick， it's either。
not the last chopstick。 There's at least one more chopstick left。 Or it is the last chopstick。
but someone has two already。 Think about that for a moment。 If there's a chopstick left。
it means somebody else who has one chopstick could take that， chopstick and finish。
If there's no chopsticks left， but someone has two， they can eat， but their chopsticks。
back into the pool。 And then other people will be able to finish。
So we've guaranteed that there will be some path forward。
Now the cool thing is we can extend this to multiple requirements in terms of how many。
chopsticks it takes to eat。 So if we have a bunch of octopus armed lawyers。
we can extend it to K arms。 So a K handed lawyer， our rule for granting is we don't allow that request if granting。
that request would mean it's the last one and no one has K。
Or it's the second to last one and no one has K minus one or the third to last one and。
no one has K minus two and so on。 Right？ So this is really nice because we don't have to change the algorithm if we change number。
of threads or the number of instances or the number of resources。 It's independent of all of those。
Okay。 So summarizing deadlock。 Four conditions， again remember mutual exclusion， hold and wait。
no preemption and circular waiting。 We looked at a couple of different techniques that we can use for trying to avoid。
for addressing， deadlock。 We can prevent deadlock from happening by writing our code in such a way that deadlock won't。
occur。 We can do lexical graphic ordering on resource requests。 We can do recovery。
So deadlock happens。 We detect that the system is in deadlock and then we have some mechanism whether it's。
preempting or it's terminating or it's rolling back that allows us to proceed。
We can avoid deadlock in the first place， again doing things like Banger's algorithm。
where we dynamically delay the servicing of requests in order to preserve a safe situation。
or we could just simply say deadlock doesn't exist。 And so the system deadlocks， you know， oh well。
Again， most operating systems tend to take the last approach especially when dealing with。
applications。 They just assume deadlock never exists。 Those write perfect code and if you don't。
well that's your fault。 Not the operating system developers。 So there was a question about。
so this is kind of like priority except the highest priority。
is who's closest to having the resources that they need。 It's not exactly like priority。
It's more making sure that someone can get the resources that they need。
It's not that one thread is more important than another。
It's just figuring out whether there is some path from the current state where you grant。
the request to an end state where all threads have completed and been able to get the resources。
they need。 So you're simply just looking at that's why， you know， there's no ordering。
Just the ordering that you're using for the nodes that you're looking at doesn't really， matter。
You can use random ordering when you're going through the nodes that are in unfreeing。
It doesn't matter what order you're going through。
You're just looking for is there an ordering that lets all of those nodes finish。 Yes。
[ Inaudible ]， Yeah， so in the case of locks， you know， there isn't a semantic notion of being able。
to preempt a lock。 If I've granted you the lock， I can't take it away because you might have left the world。
in an inconsistent state while you're doing something in a critical region。 So in the case of locks。
you can't have preemption。 But as we're about to see with memory， you can。
And we just saw in a bunch of lectures， you can do the same thing with the processor。
I can take the processor away from one thread and give it to another thread。 Okay。
so now we're going to switch gears and talk about some more virtualization。
So we looked at virtualizing the CPU and scheduling。
Now we're going to look at how we might virtualize memory。 And in future lectures。
we're going to look at how we might virtualize IO devices like， disks and network and so on。
So it's all about the fact that we've got this notion that we want to provide the illusion。
of exclusive access。 I have my own dedicated machine。
When the physical reality is that we've got hundreds of threads that we're trying to schedule。
onto a single set of physical resources。 So the question is。
why is the max allocation bank or algorithm less conservative than the， request one？
So it's actually the other way around。 The max allocation， oh， it's max minus the allocated。
That's less conservative because we're not looking at everything that the user wants upfront。
Rather， we're looking at just what is the current situation if we grant this request。
That's a little different。 Okay， so why do we want to do memory sharing？ Very simple。
If we look at the state of a program， it's fully defined by the contents of the CPU， working。
state that's in the CPU， and memory。 So if we can share memory。
then we can have lots of programs running at the same time。 Problem is we can't share memory， right？
We can't have two programs occupying the same physical memory at the same time。
So we're going to need some way of multiplexing their use of that memory。
The second reason is one of protection。 I don't want some other program having access to my program's data。
So we both want to be able to do controlled sharing or no sharing， so protection， and we。
want to be able to multiplex those programs onto the limited physical RAM that we have。 All right。
so remember some fundamental concepts。 We have a thread。 That's our execution context。
It's the active part of our program， fully describes the program's state。 We have our address space。
That's the passive part of a program， which might or might not have translation。
So we might be dealing with physical addresses or we might be dealing with virtual addresses。
and it's the set of memory addresses that a program can read and write and execute off， of。
When we think about an address space， it might actually be separate in terms of the program's。
view of memory from the physical instantiation in memory。
So the program might be looking at a virtualized view of the world， then we have to translate。
that into a physical view of the world。 In a process， again。
it's just an instance of a running program that consists of a protected。
address space along with one or more threads of execution。
The last component we need is dual mode operation or protection。
Only the system has the ability to access and manipulate certain resources。
We combine this with translation to isolate one program from one process from another。
and from the operating system。 We also， it's the way that we control， right？
If we let the process control the translation， then it could simply set the translation to。
let it see anything it wanted to see， including the operating system。
So this is where dual mode operation comes in， where you can only manipulate translation。
stuff while you're in the operating system。 Okay。 So basics of an address and address space。
So an address is k bits in length。 And if it's k bits in length。
we can reference an address space that has two to the k elements。
Now in almost all the machines you're going to encounter， those machines are byte addressable。
And so those two to the k things are two to the k bytes。 So an address space。
when someone says there are k bits， it means you can reference an。
address space that contains two to the k bytes。 Now， what's two to the 10 bytes？
You have to memorize all this stuff。 You'll be using it so much you're going to remember it by the end of the semester。
Exactly。 It's one kilobyte or 1，024 bytes。 All right。 Note that it is not 1，000。 Right。
Little of a side， if you buy a hard drive and it says it's five terabytes， if you read。
in the fine print， it'll say that it is 1，000 times 1，000 times 1，000 bytes。
That's not five terabytes。 That's marketing speak， but it has nothing to do with terabytes。
Terabytes would be 1024 times 1024 times 1024。 Why would they do that？
Because they can sell you a smaller disk and say that it's a larger disk。 It's kind of annoying。
but we used to run into the same problem with displays。
There's actually a law which specifies how you measure the display because manufacturers。
were including the parts of the panel that you couldn't see as the size of the display。
Because then they can tell you it's a larger display than they're actually selling you。 Okay。
So let's say we have a page that has four kilobytes in it。
How many bits do we need to address each byte on that page？
Doesn't everybody think in like powers of two？ Yes。 Yes， it is 12。 So two to the 12 is 4，096。 Okay。
So how much memory if we have a 20-bit address space or 32-bit address space or 64-bit address。
space， can we reference how many individual distinct bytes？
The answer is just going to be 2 to the K。 Here's a little hint for exams。
We ask you something and you can't remember what the translation， what the calculation。
is going to be， leave it in symbolic form。 You should be amazed at the number of students who think。
you know， I don't know， 2 to the， 2 is 8 or other things because under the pressure of an exam it's very easy to make。
mistakes like that。 So worst case， always leave in symbolic form。 Okay。
So now when we think about an address space， right， it's the set of accessible addresses。
and the data associated with those addresses。 So if we have a 32-bit machine。
that means our addresses are 32 bits in size and we can。
reference approximately 4 billion bytes on that machine。
So how many 32-bit numbers will fit into this address space？ Well， that's just simply going to be。
each word is 4 bytes in size。 It's just going to be that 2 to the 32nd divided by 2 to the 2。
So it'll be roughly a billion。 Now when we try to access。
when the processor tries to read and write one of these addresses， in our address space。
what happens？ Well it depends is the answer。 Maybe you can just read and write it like normal memory。
Maybe writing to that address causes some IO operation to happen on the disk or the network。
or something else。 Or maybe if you like for example try to write in this region right here。
it causes a segmentation， fault。 Your program crashes。 The operating system terminates it。
Or maybe it's how we communicate with another program。

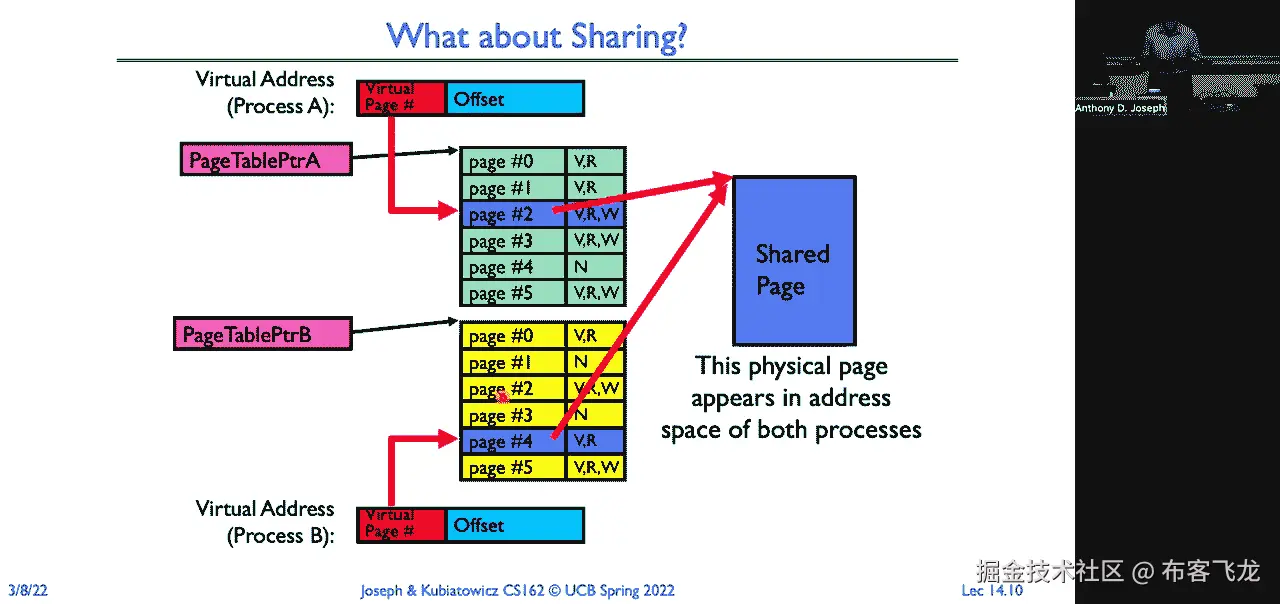

So maybe two programs actually can look at the same physical memory locations。
You can use it to signal one another or to use shared data structures。
The key thing is with translation we can do anything we want。
Within the bounds of the hardware implementation of translation， we'll see that we can do some。
very powerful things with translation。 You don't have to just think of memory as a blob that all you do is read。
write， and run， instructions out of。 Okay。 So remember the typical structure for a program is typically we have a code segment。
So that's where all our instructions live。 We might have some static data。
We might have some uninitialized data。 There's all sorts of like data segments that we might have data portions that we might。
have。 Then there's a heap。 This is where we're dynamically allocating things when we do things like malloc。
That might in this case be growing， this is kind of flipped upside down。
So that's kind of growing up towards the top of memory。
And then a stack segment which we put all the way up at the top of memory and is growing。
down as we do recursion。 All right。 And then we have processor registers that point into various parts of this like a program。
counterpoints into something in the code segment and the stock pointer points to something in。
the stack segment。 Now what happens if， you know， say we try to reference a memory location that's outside。
of our heap because we want to malloc something really large。
But we're going to reference a region that's not translated， not mapped。
And so that's going to generate a system call， you know， trap into the kernel and the kernel。
will actually realize， oh， you want more memory and it'll give us more memory。
Ubring system dependent， some operating systems will just simply terminate you that some require。
you to be explicit about how much heap you want and so on。 But in many cases。
just going off the end of the stack or the heap causes the operating。
system to allocate more space for you。 Okay。 So remember we have single and multi threaded processes threads again are the active component。
of an address of a process。 And the address space is the passive component that gives us protection。
Which what keeps other programs from being able to affect us。
And it's what it keeps our process from being able to affect other processes or even affect。
the operating system itself。 That's our protection。
Now why do we have multiple threads per address space？ Efficiency， communication， you know。
context switching is very low cost。 Okay。 So let's look at some of the aspects of memory multiplexing。
So the first and the most important one is protection。
We want to protect our process from other processes and protect other processes from， us。 Right。
And so we might also within the process have different protection levels。 So for example。
we might mark some pages as we don't want。 We try to write to them。
it'll generate a fault to the operating system。 We might have regions that are instruction only。
execute only。 Right。 This is a modern security technique that we do to guarantee that you can't inject code。
into a process。 Because it's execute only and read only。
And you can only execute out of regions that are marked execute only。
And you can't modify them since they're read only。
You can also have regions as we'll see in a moment that we mark as invisible to the user， program。
It sounds a little weird。 Why would I have a region in the address space of a program that the program actually。
can't look at？ Trust me， I'll make it clear in just a slide or two。 So kernel data。
we want to protect from user programs。 And other programs data。
we want to protect from those programs。 And in some cases。
we want to protect programs from themselves by doing things like marking， regions read only。
The second important aspect is translation。 We want to be able to translate from the virtual address space that a program thinks。
about to how we physically put it into the memory。 And by controlling translation。
it gives us a lot of flexibility on where that program， actually lives in physical memory。 In fact。
it gives us the ability to even take it out of physical memory， preempt it out of， physical memory。
and put it out on the disk。 Not the program， semantically having any idea that that's been done。
And we'll see that there are a lot of benefits to be able to do that in future lectures。 Okay。
another benefit is we can use it to avoid physical overlap between two processes。
in physical memory， even if they have the same virtual addresses。
We just simply map them to different physical addresses。
The flip side of it is we can do controlled overlap and let them actually see each other。
if we want。 So we can have windows between two programs that allow them to share data between two。
programs。 Okay， so if you think about it， when you do IO， the operating system interposes itself。
on every IO operation。 It does this so it can do access control。
It does this so it can translate between you thinking about bytes in a file and the actual。
physical blocks of a file on disk。 There's lots of reasons why we want to interpose。
We do buffering and other sorts of things。 The operating system also interposes on processes use of the CPU。
You impose priority and other sorts of things and we share that CPU across multiple processes。
So here we want to do the same thing。 We want the operating system to interpose on memory access。
So we can control that mapping between what the program sees and what is the physical。
reality on the physical memory。 Now of course we don't want the operating system to actually get you don't want like。
every instruction fetch every memory read write that cause you to trap into the operating。
system the operating system does a bunch of work in order to service that。 That would be very slow。
So we typically do this with hardware and we use that hardware to accelerate that translation。
process。 And then in the really uncommon case where something weird is happening， that's when。
we page fault or trap into the operating system and then the operating system decides how。
am I going to handle this situation。 But the common case has to be used to hardware because the hardware is going to be really。
fast。 Really， really uncommon case can be the slow case where I have to go through the operating。
system。 Alright， so remember how loading works， right？
We start with our program。 Programs out on storage。
Operating system uses the IO controller and other things to load that program into memory。
That's the loading process。 Now when we take that program from disk and put it into memory。
there's a binding of those。
instructions and the data of that program to physical memory。 Alright。
so we go from this code here on the left， the processes view of memory， which。
is it's got some data， it's got some code， it's got some subroutines and loops and things。
like that。 And we have the physical addresses that are associated with that process。
Now you might wonder why is this， you know， data one here， the physical address for it is。
a hex 300 and yet this load here is load word is loading C zero hex。
What's because it's word addressed and we're loading a word and so the assumption is words。
are four bytes and so C zero times four is 300 hex。 Okay。
so now these physical addresses live in our physical memory。 So on the left again。
over here we have the processes view of memory and then on the right。
here we have what it actually looks like if we look at the bytes。 Okay， so we loaded our program in。
Let's say， I don't know， it's your favorite ID or EMAC or whatever。
Now somebody else on the system also wants to run that same ID or EMACs。
So we're going to load a second copy。 Now if we had the same exact physical addresses。
their copy would land right on top of ours， in physical memory。
So when we're doing that loading process， we need to put it somewhere else in memory。
So that was our first application instance， our second application instance has to go somewhere。
else。 So we need address translation。 Whether we're going to do it when we load or when we're going to do it dynamically。
we， need some way to be able to have two copies of the same program or even end copies of。
the same program resident and running at the same time。
The translation would let us have a different set of physical addresses associated with the。
same program。 So I'm running EMACs。 You're running EMACs。
They're living in two different locations in memory。 This is just one of many possible translation。
We're going to look at a bunch as we continue on in the next set of lecturers and where translation。
takes place， it could be when we compile it， we compile it and give it physical addresses。
It could be when we load it， it just addresses to be where we want it to be or it could be。
on every single memory reference。 Do it dynamically at one time。 So let's think about that。
When we create a process， ultimately end up with a process， we start with a program。
So you write your code。 First thing you do is then compile it and you're going to link it to link in static libraries。
and then at execution time we're going to link it， load it and then link in any dynamic libraries。
that you're using。 So addresses could be bound to final values。
to the physical values anywhere on this path。 And if we look at the history of computers。
the earlier you go in history， the earlier， you did this binding。 So early first computers。
when you compiled it， that's when you generated the physical， addresses。
Because you're only running one program at a time， so you wouldn't have multiple copies。
And now when we look at modern computers， the binding is occurring when you're actually。
referencing the addresses at execution time。 Little aside about dynamic libraries。
so when you write your programs and you're using， things like libc functions and other things。
libc doesn't get linked into your program。 Rather。
stubs get linked in and then we actually go to execute it and load it into memory。
There's a loader linker that links it with the actual dynamic library。
That's why it's called dynamic libraries。 And those dynamic libraries will see you could be shared across everybody who's running and。
using libc。 I don't need to have 100 copies of libc in memory。
It also is handy because if you have a new operating system version that updates some。
of the libc functions， you don't have to go back and relink your program。
Because your program is just linked with a stub， when you actually run， you're going。
to run with the latest version of libc。 I mentioned this already。
but in the uni programming environment， you don't need protection。 This is only one thing running。
That application can always be in the same physical location in memory and it can access。
any physical address。 That's simple。 But it has the advantage that we're giving the illusion of a dedicated machine by giving。
you a dedicated machine。 Disadvantage being this application can scribble all over the operating system。
But it's shared fate。 It's the only thing running if it breaks the operating system。
application isn't going， to be running anymore。 It's power cycle machine。
So we don't need translation。 We don't need protection because we're not trying to do anything except run that one。
application。 And you still see， in， for example， IoT devices， you'll see this as the default model。
Right？ You don't need translation because there's only one program that's running。 So， you know。
for example， there's a little thermostat on the wall there that's a digital。
thermostat with a microcontroller in it or microprocessor。
It's only running one program and so there's no need to do any translation。 If the thing crashes。
well， then it， I don't know， it gets really hot in here or something。 Okay。
Fast forward to the early PC era and we had really primitive multi-programming because。
we had multi-programming without translation， without protection。 So somehow or other。
you're going to need some way to be able to load your word and then。
load your PowerPoint without the two colliding。 And so their solution was to have the loader linker adjust addresses when we load programs。
into memory。 So every program when it's compiled would have a relocation table。
That would tell the loader linker what is the address of every location in the program that。
has like a jump， has a load of data or store of data。 And then when you loaded。
you'd use that relocation table to go and patch all of those locations。
to set them to what the actual physical addresses were。 All right。
And so whatever I said is my target here， I said it is zero。
I just adjust everything in the relocation table based on that offset of zero。 And here it's 20。
000 hex。 I just set everything to be off that offset of 20，000 hex。 All right。
And so this was very common use for Windows 3。1， Windows 95， Windows 98 and so on。 However。
there's an issue here。 There's no protection。 There's nothing that keeps a program from taking an address and adding a million to it。
and then just scribbling all over memory or just reading what's there。
And so there's no protection for between programs。 So if word crashes。
it could take out PowerPoint crashes。 It could take out the operating system。
That's why I say this was really primitive because any crashes were problematic。
And anything malicious was also problematic because there's nothing to keep a malicious。
version of word from accessing your browser and seeing contents of passwords and things。
like that or any other secrets。 But it let you run more than one thing。
So how could we do protection without having translation？
Well， one approach is an approach called base and bound。
And so this is the approach that was used by the Cray1 supercomputer。
So this was the first supercomputer that was built。 And it worked like this。
We're going to have two registers， a bound register and a base register。 All right。
And so we're going to use the base register to specify where a program starts。
We're going to use the bound register to specify where the program ends。 Now little aside。
this is a picture of a Cray1 computer。 A couple of things to notice about it。
One is it's kind of shaped like a C。 That was done on purpose because then it makes the。
distance between all of the components uniform。 Instead of having a linear back plane。
they basically folded the back plane。 It also is kind of cool because it was created。
The company founder is Seymour Cray and so you had a computer that also looked like from。
above like his initial。 But does anybody know what this black thing is around it？
That's where all the cooling stuff was。 But it doesn't look like it's metal actually。 And it's not。
It was actually covered in like leather。 You can see more Cray had this vision that supercomputers were not these things that you。
would lock away in data centers。 But there were things that you could like you could imagine it being in your living room。
And so wouldn't you want to sit next to the supercomputer？ Needless to say。
if you were to go visit a data center and see this thing with a nice， leather at， you know。
I don't know， seats around it and you sat on it， you'd probably。
be escorted out of the data center and not invited back。 Another little fun aside。 So you know。
working on the first supercomputer was like an amazing thing。
It's like going to Google X and getting to work on some crazy， you know， flying contraption。
So one of my fraternity brothers， he got to spend a summer as an intern at Cray。
And he was so excited。 He's like， oh， I can't believe this。 You know， I'm going to work on。
you know， the next generation of computers and all。
So remember how I said that they had this back plane that was folding？
One of the things that they did as an innovation to make designing and building machines a lot。
easier is they thought of everything in units of speed of light。
So it takes the speed of like roughly one nanosecond to travel 12 inches in copper。
It's a little bit， it's a little bit different from that， but roughly。
And so everything in the machine was done in all the copper was done in lengths that were。
multiples of roughly 12 inches。 His job as an intern was to spend the summer cutting wires to multiples of lengths of 12。
inches。 It was a really exciting internship。 Needless to say。
the following summer he did not go back to Cray。 Okay。
pick internships that are going to be way more fun than sitting there cutting wires。
all summer。 All right， so how does basin bound work？ We take address generated by the program。
All right， so that's this address here on the left。 And we use it to reference memory。 All right。
and what we're going to do is we're going to do two checks。
One is to make sure that that address is greater than or equal to the base。
The second check we're going to do is to make sure that it's less than the bound。
So we take our original program and when we load it into memory， in this case， it's original。
addresses were zero based。 We're going to adjust them all to be whatever 1000 something based。
All right， so we're going to translate all of those using our relocation table all of。
those references。 But by having this dynamic check on the bound and on the base。
it means that if I have a， program that takes a pointer and just randomly adds a billion to it and then tries to reference。
memory， it's going to fail because it's going to be greater than our bound。 All right。
and notice that we're not doing any manipulation of the address。 So this is very fast。
We can do the checks in parallel with the memory references。
So that's going to make it extremely efficient。 So this protects the operating system and it isolates programs from each other。
One program can't go and reference another program's memory and vice versa。
And they can't reference the operating system。 But it still requires us to do that relocation step when we load the program。
So it also requires the compiler and the linker to generate that relocation table for when。
we load it in。 But no addition on the address path。
All right， so again， remember， we have these two views of memory。 Right here on the left。
we have virtual addresses that are being generated by the CPU。 And on the right。
we have our actual sticks of DRAM that are physically addressed。
And it's the job of this thing in the middle， the memory management unit， to translate from。
those virtual view of memory to the physical view of memory。
We can implement anything we want in that black box that is the MMU。 All right。
so base and bound is just one example of what we could implement in the MMU。
We're going to see a lot more complicated approaches。 With translation。
it makes it much easier to implement protection。 Right。
because we can use the MMU to make sure that we can't generate addresses that would。
reference someone else。 And I see there's a question in chat。
where are the base and bound numbers stored？ And the answer is they're stored in processor registers。
Can they be changed by the user？ Is the second part of that question？ The answer is no。
They can only be changed by the operating system。 Right， if we were to go back here。
and we allowed the user program to change base or。
change bound， then it could set it to be all of memory and access anything in memory。
And for efficiency and speed， we keep them in the processor because they're small。 Right。
they're each just two words that we need to keep in memory。
So when we context switch from one process to another， we will have to save out the base。
and bound for one process， load in the base and bound for the next process。
One of the things you're going to see is， depending on the different approaches we use。
we already had to save and load a lot of stuff， the context switch， all the processor registers。
maybe the floating point registers。 Now we're adding additional state that we're going to have to save and load on a context。
switch。 Some of it we don't have to。 If we're context switching between threads in the same address space and we don't have。
to， but if we're context switching between threads in two different address spaces， then。
all of the translation stuff that's in the processor has to get context switched out。
And we have to load that for the new one。 Okay。 Now。
the cool thing with translation is with translation， we can allow everybody to just。
have zero based programs and we just dynamically translate those addresses into actual physical。
addresses。
So let's look at how we could do that。 So a little modification that we're going to make to base and bound。
The modification we're going to make is instead of making base be a check， we're going to。
make it be something we add to the address。 And now we can take our original program that's zero based。
load it wherever we want 1000， whatever set base to be 1000。 And every address that's generated。
we're just simply going to add base。 And then we're going to check also make sure that that address is within the bound。
So this gives us hardware relocation。 Right。 Now， can the program touch the operating system with this？
No， the program touch other programs with this。 No， we've isolated them。
But the disadvantage here is we've now added an addition， right。
So before we were able to just take that address， start referencing memory and then in parallel。
we check to see is it within base and bound。 Now before we can reference memory。
we have to do an addition。 These are pretty fast， but it does take time。
Now added some number of nanoseconds to the path。 And what we'll see is with some of the more complicated approaches。
we'll be adding a， lot of nanoseconds to the time it takes to actually read and write memory。
All right。 So some issues that we might have with this approach。 All right。
So let's say we've got a bunch of processes running。 We've got process two， process five。
process six and our operating system。 Well now process two finishes。 All right。
So now we have a gap， some unallocated memory and a long comes process nine。
We just put it in that region。 Now process nine is running。 Now at some point， you know。
later process 10 comes along。 We start running it and process five ends。
It's now a memory looks like this。 And now a long comes process 11。 And we have a problem。
We're not out of physical memory。 If we look at the size of the region between nine and six plus the region between 10 and。
the operating system， it's smaller than process 11。 But we don't have a contiguous region。
That's the size of process 11。 And this is the problem we're going to have。
We're fragmenting over time because not every process is the same size。 So what do we do？
Well one thing would be to say， sorry process 11， you can't run。 Try running later。
That would be really unpleasant and really painful。 Like imagine， you know。
it's 1150 and you're trying to submit to the autograder and we say， oh sorry。
fragmentation come back tomorrow。 All right。 I don't think you'd be too happy。 So what do we do？
Well， we could move process nine and process 10 down and give ourselves enough room。
That's really expensive copying memory。 But you know， it would be what we would have to do。
And it's what systems that use this kind of approach would do。
They'd end up over time doing a lot of copying to deal with that fragmentation。
Another problem is that address spaces are not big， continuous blocks。
Remember when I showed you earlier， right， our code segment， our data segment， our stack， segment。
our heap segment， it's not one compact block。 They're all over memory。
all over our virtual address space。 Yet we're treating them as if they were one monolithic block。
And so that can't be efficient because our address spaces are really sparse in practice。
And so those blocks are going to be much， much larger than they need to be。
It's also not easy or possible to do inter-process sharing。
You have to do some kind of weird overlapping and， you know， that just， it would not work， well。
Right？ We really want to share like a specific region in our virtual address space with another。
specific region in a virtual address space， not like the top and bottoms of our address， spaces。
So that really wouldn't work。 Another thing is， remember I said， you know。
we've got 10 people running EMACs。 We don't want to have 10 copies of EMACs running。
With this approach， that's exactly what we'd have to do。
We're taking our precious memory and we're wasting it on the same code 10 times。
So that can't be efficient。 So really what we want is more flexible segmentation。 Right？
If we look at what's in our address space， there's lots of different segments。 There's the stack。
there's code， there's uninitialized data， initialized data， and so on。
There's segments that we want to share。 So really what we want is an approach that lets us have a user of space。
which is， you， know， I've got segment one， two， three， four。
somewhere scattered in my virtual address space， and I map that into separate regions of my physical memory space。
That's not all in one。 So each segment will think of as a base and bell。
Each segment will be contiguous， but the segments as a set can be very discontinuous。
So how do we do this？ So here's an example of an implementation of a multi-segment model。
The segment map lives in the processor。 It's not very large。 So in this case。
we have eight segments。 So it's relatively small。 It's going to be， you know。
a little over probably like eight words in size。 And we're going to take our virtual address and we're going to divide it up into fields。
So our upper bits are going to be our segment number， and we're going to use those as an。
index into our segment map。 And then we're going to take the offset and we're going to add it to the base and use。
that to generate the physical address。 So all we've got now is just a set of base and bounds。
That's it。 So instead of having just one base and bound per process， now we have eight。
So we're going to have eight different segments。 All right。
we need some error checking because we've got to make sure we're not going outside， of the bound。
the limit for our segment。 And we can have as many chunks of physical memory in use as we have entries。
So in this case， we have eight。 So we're going to have up to eight physical chunks of memory that we use。
Now in this case， I'm giving you an example where we're referencing the segment by using。
bits from the address。 On x86 architecture， there's actually bits from the instruction。
which allow you to say， this is from the ES segment or the CS segment or the SS and so on。
But it's all the same。 Ultimately， you're just interacting into a table of these base and bound pointers。
Now we also need some additional bits。 In this case。
I just have a V and an end bit valid and not valid。 But you also might have that it's read only。
it's an execute only， and so on。 So you could have a lot of different bits。
And you'll see later when we get into more complex paging and things like that， we need。
a bunch of metadata bookkeeping bits that we'll use。
So just really quickly， if we look at the x86 architecture， it has a segment register。
And then we divide up the segment， the fields of the segment register。 So the， the， uh。
request or privilege level is the low order bit。 And then the index is actually the upper bits。
There are multiple different segment registers。 So we have ES segment， SS segment， code segment。
data segment and so on。 And you actually can't turn off segmentation。 So in the next lecture。
we're going to look at paging and we're going to look at combining。
paging and segments and when you get into a situation like that where maybe you just。
don't want to use segments， you want to use paging because it might be more appropriate。
an x86 you actually can't turn it off。 So the hack that people do is they just simply set the base and bound to be all of memory。
And then it effectively turns it off because it's not used。 So a little too much detail。
We'll， we'll come back to that in future lecture。 All right。
so here is an example with four segments， 16 bit addresses。 We're going to use the upper two bits。
because we have four segments， two to two is four， as our index into our segment map。
And we're going to use the rest of our bits， our 14 bits as our offset。 All right。
so here we have code is segment zero， data is segment one， share to segment。
two and stack is segment three。 So where do these live in memory？ Well。
if we look at segment equal to zero， that's going to live at four thousand， four thousand hacks。
the forty eight hundred hacks。 If we look at segment one。
it's going to live at forty eight hundred and go up to five， five C hundred x。
If we look at segment two， it's going to start at f zero， zero， zero。
And that is a segment which is shared， so that might be shared with other applications。 And so on。
right？ So everything else here that's， uh， unallocated， that's space for other applications。
All right， and so we're going to take these segments and it's like a little game of Tetris。
we're just going to pack them into memory。 Again， the problem we may run into is with fragmentation and needing to move segments around。
so that we can satisfy a contiguous request。 But one thing that's going to help us a little bit is the fact that these segments are going。
to be smaller than those big monolithic process sized segments。 They're still going to be large。
they're still different sized， so we still can run into the。
fragmentation problem。 Okay， so let's look at an example of how we do translation。
So we're going to use our same segment map and now let's simulate what happens with this， code。
So we've got some code here， it's got a main that starts at 240 hex， it's got a variable。
here at 4050 hex that has some data in it and then it's got a little subroutine right。
here for string length and so on。 These addresses here in blue are those virtual addresses or those physical addresses。
Virtual addresses， right？ So we're going to need to translate them to where they live in physical memory。
So we start out with our program counter at 240 hex。 So we're going to fetch。
do an instruction fetch for the data stored at 240 hex in physical， memory。
So I've color coded here in green， our segment， zero and that's 4000。
So we're going to take 4000 and add to it our offset 240。
So that's going to generate the physical address 4240。
So we fetch the instruction which is a load absolute of the pointer var x into a zero。
So we're going to take this location and load it into register a zero。 So I have to do translation。
right？ Yes？ No？ Maybe？ What is the program thinking？ Virtual addresses。 So the answer is no。
When I'm loading a pointer， I'm loading the pointer in virtual address。
When I actually reference it， that's when I'll turn it into a physical address。
But from the point of view of the program， everything it sees is virtual addresses。
This is really important concept because this is one of the things that really confuses。
students is the difference between when I'm dealing with a virtual address and when I'm。
dealing with a physical address。 The programs they always deal with virtual addresses and then translation gives us the。
physical addresses。 Okay， so we're going to store 4050 into a zero。
Increment our program counter by four and fetch from 244， translates to 4244。
We'll fetch the jump to the string length， recursion to string length。
So that's going to cause us to move 2048 into our return address register， RA。
And we're going to set our program counter to be string length。 That procedure， which is at 360。
Again， we're setting the program counter to be the virtual address。
We'll worry about what it is really when we do the actual execution。
So now we're going to fetch that instruction at hex 360。 And again， we'll do a translation。
It'll be 4360 and we'll get the load immediate of zero into V0。 We'll move zero into V0。
update our program counter。 And now we want to fetch 364。 Again。
that's fetching 4364 and that's load the byte pointed to the by the region at a， zero。
And since a zero is 4050， we have to translate now we do the translation， our hex 450 into。
a physical address。 And so that's going to be segment one。 And so that'll be 4800。
So it'll be 4800 plus the offset of 50。 So it'll be 4850。
So we'll load the byte from 4850 into our register。 All right， increment our program。
Everybody follow that？ Okay， so we'll finish up on this slide。
So some observations about segmentation。 We're doing our translation on every memory reference。
So when we do an instruction fetch， when we do a load， when we do a store， that's when。
we actually do translation。 That's a big difference from where we relocated everything when we loaded it and we only did。
that translation step once。 But we get protection by doing translation because we can enforce the addresses that can。
be generated to make sure that invalid addresses cannot be generated。
Our virtual address space has holes。 Right between the segments are regions of memory that if you try to access them。
something， happens。 Right？ Sometimes it's okay。 Like if you go off the end of the stack。
operating system will allocate more memory。 If you go off the end of an initialized data region。
you'll get a seg fault。 If you go off the end of a code segment。
you'll get a seg fault and your program will be terminated。
Now we need a protection mode bit in the segment table。 I didn't go over that， but you know。
we might mark our code segment as read only and execute， only。
We might mark as read/write because we want to allow stores。
Last thing is what do we need to save and restore on a context switch？ Everything in the CPU。
So that segment map， we have to save it out and we have to load the segment map for the。
new process that we're going to run。 We could also store some of the segments that are in physical memory out to disk。
We used to do that when we had programs that were too big to fit in physical memory。
We might swap portions of the program or we might swap entire programs when we went from。
running one process to running another process。 All right。 Any questions？ Okay。
I'll see you next week。 Okay。 I'll see you next week。 Bye。 (crowd chattering)。
(buzzing)， [BLANK_AUDIO]。
P14：Lecture 14： Memory 2 Virtual Memory (con't), Caching and TLBs - RubatoTheEmber - BV1L541117gr
Okay， let's get started。
So we're going to continue talking about virtual memory and then we're going to dive。
into caching and translation locuside buffers。 We'll get to TLBs。 Okay。
so remember that with general address translation， the CPU， the processor， and what。
the process sees is virtual addresses。 And then it's the job of the memory management unit or MMU to translate those into physical。
addresses， which is how we actually access memory。 Now。
we can also have untranslated reads and writes。 So there are two views of memory， right？
There's the view of memory that the processor has and then there's the view from memory of。
actual physical addresses。 And this translation box is what converts between the two。
So if you think about translation， it makes it a lot easier for us to implement protection。 Right？
If one process can't see other processes' memory， can't see the operating system's memory， then。
implicitly we're protecting those processes from that process and we're protecting the。
operating system from that process。 Okay， now there's another benefit。
which is if we've decoupled what one processes as， its view of memory from all other processes。
then we can let every process have the same， view of memory。
So memory that starts in a virtual address space at zero and goes to， you know， two to。
the 31st minus one。 Okay， so remember from last time we had the multi-segment model where we have a segment。
map that gets stored in the processor， the segment map just contains a set of base and， limit pairs。
So here we have， you know， eight of them and we take our virtual address， divide it up。
into two fields。 One field is a segment number that we use to index into that table。
That gives us a base。 We add our offset and that gives us the physical address that we're going to use。
We have to perform some checks。 We have to make sure we didn't run off the end of the table。
We also have to make sure that the size of the region is greater than the offset。 Now we can also。
here I have the segment number encoded into the virtual address。
It can also be coded into the instruction。 So for example， in x86。
here we have a move and we're going to use the ES or extra segment。
with the address being the BX register。 We're going to move the contents of memory at that location into AX。
We also need some metadata here。 We're going to， over the next few lectures。
really look at what that metadata is right， now。 In this case， it's just a valid and not valid bit。
But it could also be permission bits like read， write， read or read write or execute only。
or whatever。 Okay。 So the question is， does translation save us from copying 100 copies of the same program？
So to a certain extent， yes。 We could have one shared code segment for everyone who's running the IDE。
And that would just be marked as say， execute only and could be mapped to the same base。
zero register。 So the same zero segment rather。 So then the code would appear in everybody's virtual address space at the same location。
All right。 Now， what do we do if we're in a situation where not all of the segments will fit in memory。
either for an individual program or for a set of programs？
Well we can do an extreme form of context switching。 All right。 So if you think about it。
like in this case， when we context switch， what do we have to， do？
Save this segment map out and load the new segment map。
That will change the processor's view of memory to be that for the new process。 For the new process。
Same thing we have to load all the CPU registers for the old process， load all the CPU registers。
for the new process。 Well an extreme form of this would say if everything doesn't fit into memory。
then we， just swap out segments from memory out to disk。 So when we're going to run process P1。
we load its segments into memory and unload process， P0 out to disk。
Now that seems extremely slow and kind of unreasonable， but that was actually the approach。
that was used on many early computers because we didn't have enough physical memory and we。
wanted to do multi programming。 So we paid the price with very， very expensive context switches。
Okay。 So what might be a better alternative？ Well if you think about it。
programs spend most of their time in a relatively small amount， of their code。 For most programs。
not all， but for many programs if you look at like what are the hotspots。
the active regions of a program， they're much smaller。 Now with the segment model。
we either have to have an entire segment in memory or an entire， segment out on disk。
We can't have both。 Right， there's no way to say well I just want this part of the segment to be in memory。
and this part you can put out the disk。 So we want finer granularity of control。
We just keep those parts of a segment in memory that are actually being used and everything。
else we can leave out on the disk and pay a really expensive cost if we actually go and， access it。
Okay， so if we look at segmentation， you know， some of the problems that we run into are like。
these variable size chunks that we have to fit into memory。 We play Tetris with memory。
As programs start and finish， we're going to end up with different size holes based on。
the sizes of their segments in memory。 Now when new processes come along and we're trying to fit their segments into memory。
you， may have to do a lot of copying around and move things around。 So that gets very expensive。
Everything with if we want to grow a segment， you might have to shuffle things around。
So lots of moving around。 We also have these limited options for swapping to disk in that we can only swap at the granularity。
of an entire segment。 And segments are large。 That's a lot of data to copy out and if it contains some regions that are active。
we're， then going to turn around and copy it back into memory。
So we have two different types of fragmentation issues。 So one is external fragmentation。
Those are the gaps that are created between segments。
And our solution there is we have to move things around。
The other is that segments may grow over time， but they don't shrink。
And so we end up with internal fragmentation where say we've allocated a stack segment。
that's 64 kilobytes， but we're only actually using 16 kilobytes of that 64。
So that other 48 is just wasted space。 Everybody can use it。 So we need something that's better。
And if we think about what we want to do， what we want to do is we have this view of。
memory from a processes virtual address space here， program one and program two。
And we're using the translation map to convert that into what are the physical addresses and。
the physical layout of memory。 And here I've done a segment like model。
There's a code region in virtual address space and that maps to a contiguous code region in。
physical memory。 But this is just a map function。 And so we could map any virtual address to any other physical address。
So there's no need for this to be all nice contiguous regions。
That would give us a lot more flexibility。 And so the really the question is like。
what's the right granularity？ Is it down to the individual byte， the translation map？
Is it down to the individual bytes of the address space to give them locations？
Or is it at the granularity of segments？ Well， we saw there's a bunch of issues with segments。
so we know we want something smaller。 We probably don't want it down at the granularity of bytes because that would make the complexity。
of these translation maps really， really hot。 We'd have more bookkeeping information than we'd actually have memory and use。
So that brings us to paging， which is we're going to think about organizing our physical。
memory into fixed size uniform chunks。 So instead of allocating memory in these variable size。
segment size chunks， we're going to allocate， them in pages。 Now if you think about it。
if I allocate with pages， how can I determine whether a given， chunk of memory is free or allocated？
Well， if they're fixed sizes， I can just use a bit vector。 And in that bit vector。
if there's a zero， it means that page is free。 If there's a one。
it means it's been allocated to some process。 So now when I need to find a free page to give it to a process because it wants some memory。
I just scan quickly through that bit vector， as soon as I hit a zero， I allocate it。
Now an important thing to think about is that every page in memory is equivalent。
It takes the exact same amount of time to read or write any page in memory。
It doesn't matter if I allocate two pages continuously or I allocate them at opposite。
ends of memory。 The access time is the same。 So now we really can think about this translation map。
It's just mapping any virtual page to any physical page。 Okay。 Now， how big do we make those pages？
It's like kind of like alluded to it。 We don't want to make it so small that the bookkeeping overhead exceeds the size of our。
pages。 But we don't want to make it as large as segments because if we make it really large。
we'll end， up with a lot of internal fragmentation。
If we had four megabyte size pages and we have 64 kilobyte size stacks， then that page。
allocated to the stack is mostly going to be wasted。 And again， memory in this case。
physical memory is precious。 So not as big， but not too small。 And so over time。
people have evolved and typical sizes today are about one kilobyte to。
four kilobytes or even 16 kilobytes in size。 Some architectures include support for much larger page sizes where we know we have physical。
objects that are going to be very large。 And we'll touch on that later on。
So now if we think about it， to represent the sort of same information that we were storing。
in a segment， we potentially are going to need a lot of pages。
It's not going to be like before we just had one segment， we had eight segments， so we'll。
just have eight pages to represent our program。 It might have many， many more。
hundreds more of pages than we had segments or even more。 Okay。
so how do we implement simple paging？ We're going to start with the very simplest way we can do it。
which is in the processor， we're going to have a page table pointer。
That page table pointer will point to a location in physical memory that contains a table。
That table just consists of a combination of physical page numbers and permission bits。 All right。
so now we're going to take our virtual address and again we're going to split， it into two fields。
So there's going to be an offset field， which will be the offset into a page of the data。
that we're trying to retrieve。 Now since it's into a page and we're dealing with things on page granularity。
we can just， copy that offset over into our physical address。
So there's no addition that we have to do like with segments。
Because we don't know where a segment starts in physical memory， that's why we had to increment。
that start point， that base with our offset。 Here we know the boundaries of pages are uniform。
And so it's just the offset from the start of a page。 Okay， so for example。
if we have a 10-bit offset， that gives us pages that are 1，024 bytes in， size。
If we have a 12-bit offset， how big are our pages going to be？ Yeah， 4，096。 Okay。
you're going to learn powers of two if you didn't learn them already。 Okay。
so now we're going to take the rest of our address， the virtual page number， and。
that's just an index into our table here。 So we index into the table that gives us the physical page number。
We combine that with the offset and we get the physical address。 Now， of course。
we always have to do lots of checking。 I'll say it again。 Don't forget to do checking。
It might show up on the midterm or something like that。
You want to make sure that the entry that is being referenced is actually valid。
Both it's a valid entry and also for the access mode that the processor is using。 Okay。
so like for example， this page here is a read-only page。
So we want to make sure that the access is like an instruction fetch or a load and not， a store。
Okay， so we check the permission bits。 If they don't match。
like you're trying to write to this page， that would generate a fault。
Or if the page is invalid or if you run off the end of the page table。
So we also have to look at the virtual page number versus the page table size。
So two registers that we're going to store in the processor， the page table pointer， and。
the page table size。 Okay， so the rest of the bits of our address。
our virtual address is going to be our virtual， page number。 So if we had a 32-bit address。
it would be 10 bits for our page and then the remaining 22。
bits would be used for our virtual page number。 And two to the 22 is roughly 4 million。
So we could have up to 4 million， roughly 4 million entries in our page table。 Okay， questions？ Yes。
So the question is given a physical address， how do we know if that physical address represents。
the data that's in memory or maybe out on disk？ So that's where the metadata and the bookkeeping will come into play。
So for example， if it was out on disk， we might mark that entry as invalid。
So now if I try to reference it， what's going to happen？ When a page fall， right？
Because I tried to access something that's marked as invalid。
Now the operating system checks its books and realizes， oh， that page is actually out， on disk。
And so it'll have to fetch it into disk and then put it someplace， update the page table。
entry with the actual physical page number of where it put it and then set the bit valid。
and then it'll restart the instruction。
Okay， so let's go through a really simple example。
So we're going to have four byte pages and here's our virtual memory。
We got three pages in our virtual memory。 We've got a page table with three entries and here's our physical memory。
Okay， four byte pages。 How many bits do we need to represent that for our offset？ Two。 Two， two。
two is four。 Okay， so the rest of our address will be our virtual page number。
So if we look at address zero， right， that's going to be virtual page number zero and so。
that's going to be， if we look in our page table， we'll see it's at physical page four。
which will write everything out in binary， that's one zero zero and so here it is at。
10 hex in physical memory。 Similarly， if we look at our next one， so where is four hex located？
That's zero， one， zero， zero。 So offset zero， page is one， that maps to three， which is one。
one and so that maps to， Charlie hex。 And finally， if we look at eight hex， that's going to be one。
zero， zero， zero， zero， two， to the three and then that'll be page two and that's one。
so that's going to be up down， here， rather up here at four hex， so one， zero， zero， right？ Okay。
that's the simple。 Now let's actually look at some offsets。 So what if I give you address six？
What is that map to？ So all we're going to do is we're just going to write it out in binary。
So if we write it out in binary， we'll see that it is zero， one， one， zero。 So our offset is one。
zero， so we copy that over to our physical address and it's on page。
one and page one is three or one， one。 So we're going to end up with one， one， one， zero， right？
Which in hex is zero， e hex， right？ And do one more， we'll do， let's do nine。
So where does nine hex lie？ So again， we'll convert nine hex into binary。 So that's going to be one。
zero， zero， one。 So offset is one and page is one， zero， or two。 So there's page two， that's one。
so it's going to be one， zero， one， or five。 Five hex。 Okay。 So again， we're doing paging。
copy over the offset， look up the virtual page number， check， the permission bits。
combine the physical page number， and you get your target address。 All right。
Now there was a question about sharing in the chat。 So how do we do sharing with pages？ Well。
it's actually very easy。 So here is one process， process A's， page table。
and it's associated with a page table， pointer。 If we want to share a particular page。
let's say we want to share page two， we just simply。
add that same entry into that second page processes page table。 All right。 Now a caveat here。
So they're both， the same physical page will appear in both processes。
But does it appear in the same place？ Now， right， and one， it's virtual page two， and the other。
it's virtual page four。 What might be the implications of that？ A potential problem？ Yeah。 Exactly。
Yeah。 So we'll have different virtual addresses that are pointing to the same physical addresses。
which means if we have objects that say process A creates that have pointers and things like， that。
those virtual addresses for those pointers won't work when we look at it from process B's。
point of view。 So we can share， basically， we can share just values and things like that。
But if we wanted to share objects， we'd want to make sure that we map them both， say， in， page two。
or we map them both in virtual page four so that the virtual addresses with the。
same mapping to the same physical addresses。 That way， if I had a tree or something like that。
the pointers would all work， otherwise， they won't work。 Okay。
So this is a little caveat that you just have to worry about if you're going to map the same。
page into different address spaces。 So the question and chat is。
does this mean both processes can modify the same address？
They can both modify the same physical address with different virtual addresses。
And they can read the same physical address with different virtual addresses。 The question is。
when we do swapping， do we just swap the page or the whole segment in， which the page is located？
So here， we can swap on the granularity of an individual page。
So an individual page could live in physical memory or it could live out on disk。
Whereas with segments， it was the entire segment lived in memory or the entire segment。
lived out on disk。 So now you can kind of think， you know， how we can use this to our advantage。
If most of the pages in our address space aren't really being used actively， they don't。
need to be in memory。 It can be out on disk。 And that frees up physical memory。
which is expensive for other processes。 So we can now fit more processes。
active portions into memory。
Okay。 So where do we use sharing of pages？ Well we can map the kernel region of a process to have the same operating system kernel code。
and data structures across all processes。 And this is nice because now it means that when we go into kernel mode。
the operating， system can access all of its code and data and it can access the processes code and data。
And so it doesn't have to do any translation。 The translation is done for the kernel。 Now of course。
we have to make sure that when we're in user mode， we can't access that， portion of the page table。
Okay。 We can also have， as you know， first question we got today。
we can also have different processes， that are using the same binary。
We just map the pages for the code into the physical pages for the code， into all of the。
processes running that binary。 Market execute only， and that way nobody can modify it。 Okay。
We can also use it for user level libraries， system libraries。
So only one copy of libc needs to be loaded。 Not multiple copies。 Again。
we market execute only so that we don't have to worry about anybody modifying it。
And then we can also， as we talked about earlier， have shared memory between processes。
The two processes that can see the same set of data， if we put it at the same place in。
the virtual address space， they can share objects。 So if you think about it。
it's like very similar to the sharing that we have between threads。
It doesn't require any context which is， into the kernel， to do communication between two。
processes。 I just read and write memory， and other processes that are sharing that same memory can see my。
reads and my writes。 So that's a good thing。 It's also a bad thing because obviously we're going to need things like synchronization。
and all of those sorts of things to make sure that everybody sees consistent views of data。
structures we modify。 All right。 So remember the layout that we had for memory？
We have the kernel getting mapped into every single address space。 Again。
this gives us the advantage of the kernel can copy to and from its buffers， from， user buffers。
and have all the translation be done in hardware。 We have our stack。 We have our memory。
We have our heap。 We have our code， our initialized， and our uninitialized data segments。 Now。
some of the security things that we do， and it might be a little hard to read this。
on the slide as it's projected， but the start of our stack starts somewhere randomly offset。
from 2 to the 31st minus 1。 Similarly， our heap starts at some random offset。
and our code can start at some random， offset from 0。
And we do that as part of a address space randomization。
So to make it harder for an attacker to guess where a particular data structure might be。
located in memory or where a return value， a return address might be located on the stack。
or local variables in the stack frame are located， we do this randomization。
That way if someone's doing some kind of buffer overflow or code injection attack， they're。
not able to know directly where a particular routine might be loaded or where a particular。
data value might be。 The caveat here is if you operate with a 32-bit machine。
that's only 4 gigabytes， and， the amount of randomization you can do is going to be limited。
And so if I have enough ability to probe， I can usually guess where things are located。
On a 64-bit machine， that's not an issue because it's very hard to try and guess where。
something might be randomly placed in a 64-bit address space。 Okay。
another thing is because of Meltdown， we realized that user programs could figure。
out what kernel data structures contained， especially security sensitive ones。
And so now what we do is we actually don't map the entire kernel into all address spaces。
So those sensitive things get mapped into a separate kernel address space。
And we only map things like buffers for copying to and from the kernel and simple code routines。
into the processes address space。 So that protects the kernel from these kinds of observation attacks。
but it comes at a， cost。 Now when the kernel wants to access that code or access that data。
it has to switch the， context for the address space。 And that's expensive。 We'll see why， you know。
when we get into caching and TLBs。
Okay so to summarize what we get with paging。 So we're able to now take that view of the virtual address space and through the page。
table we can map it to any physical memory view that we want on a page granular。
Now here I've just used the same sort of models we had with segments。
So contiguous regions in our virtual address space happen to map the contiguous regions。
in our physical address space。 But that's not a requirement。 If our stack here grows down。
if we look over here in physical memory， there isn't enough。
space for those two additional page frames we need。 But that's fine。
Because every page in memory is， physical memory is equal。
So we can put those two stack frames anywhere we want。 So I might choose to， let's say。
put them there。 Or I could put one here and put another one down here。 Or anywhere else。
It doesn't matter。 There's no benefit that we gain from making them be contiguous。 Because of that。
you know， we get a lot of flexibility in how we can place things in memory。
We now don't have to worry about external fragmentation。
We're not going to ever have to move things around to make room for another process。
The only thing we might do is we might take one or more pages and copy them out to disk。
to free up memories that we can allocate memory to another process。
But we're not going to do random moving around within memory。 Okay。 But there's some challenges。
Look at this table in the middle。 Which maps all of our virtual addresses or virtual pages rather to physical pages。
And what do you notice？ It's got a lot of empty spots。
And you also notice that the size of the table is proportional to the number of pages。
in our virtual address space。 So we've got a table that's mostly empty that's really large。 So that。
of course， you can ask the question， well， just how big do things get？
Well if we had a 32-bit address space， right， that allows us to have 4 gigabytes。
And we use a typical page size of 4 kilobytes。 How many bits do we need for our offset？ 12。
The 12 is 4096。 And so how many bits are we going to end up for our virtual page numbers？
We end up with 20。 Right？ So those 20 bits translates into a page table。
each of which entry was about a word。 So we're going to have 4 megabytes for our page table。
So 4 megabytes of physical memory where again， if we look back here， it's mostly empty。
So that's not very efficient， right？
What about a 64-bit machine？ Well， if you think about it， okay， a 64-bit。
2 to the 64 divided by 2 to the 12， how many， virtual pages are we going to have。
is 2 to the 52nd virtual pages？ Or what is that？ 4。5 exa entries。
Each of which is going to be 8 bytes in size。 So we're going to need 36 times 10 to the 15 bytes of physical memory。
Just to store the page table。 So clearly that's not going to work as an approach。
We're going to have more memory taken up with the bookkeeping than actually used by the program。
And so that's just not going to work。 Okay。 So the problem we have here is our address space is sparse。
And yet with the single table that we have， we need to keep track of every single entry。
So what if instead we had a way of trying to keep track of just the entries that were。
likely to be in use？ How could we do that？ That's what we'll get to in just a moment。 Oh。
so there was a question， why do we need to map some kernel space into user space？
Because the user never able to access things in the kernel space。 Yes， that's correct。
So the user can never access kernel space。 The reason why we map things into the back to it。
So the reason why we map this kernel space into the process of the process space is that。
when you go from user mode to kernel mode and the kernel let's say you want to write something。
into a file。 Do you provide the kernel with a buffer that buffer could be spread across many different。
pages depending on how your virtual address space maps those pages to physical pages。
By being able to use the processes process map， it's a table page table， the kernel can。
just simply say， oh， just copy in virtual address space， this buffer for this number。
of bytes into a buffer in kernel space。 Since the kernel space is mapped into the processes page table。
So it makes that really convenient。 Otherwise， if you were in kernel space。
you'd then have to manually kind of walk the page。
table and translate all of the addresses in order to do that copy。 So this makes it much easier。
let's just use the hardware to do that。 And we use protection to make sure that the user process can't access the kernel data。
structures or code。 Okay， so some discussion。 So what do we need to switch on a context switch？
Well， we just need to switch the page table pointer and the limit。
Those are the only things that we need to say。 Yeah， question？ [inaudible]， Yeah。
so the question is if we're in kernel mode and we want to access the kernel data。
the memory of another process from one process， then typically what you would do is you would。
copy from the source process into a kernel buffer， then change the page table to point。
to the new process。 Now you're going to have its translations， then copy from that same buffer。
Again， this is why you map the kernel into all of the processes into that processes buffer。
So that would be an example of inter-process communication。
So I do like a Unix pipe or something like that and that's going to copy from one processes。
address space into another。 But it's mediated by the kernel and so I have to do a system call into the kernel in order。
to do that。 That's why being able to map a page of memory into multiple processes is really nice。
Because then I'm just reading and writing directly to that page。
The kernel isn't getting involved in copying the data。 And in fact， there is no copy。
You just copy it into that page。 No additional copying， I should say。 Okay。
What provides a protection for us？ Well， we get protection through translation。
The page table entries limit what you can actually access。
If there's no virtual to physical mapping that lets you access another processes memory。
or the kernels memory， then you can't access them。
You can only generate physical addresses that correspond to mappings in your table。
We use dual mode operation to keep the user from modifying that table。
The only the kernel gets to modify the table。 All right。 So what are some of the advantages here？
Well， we get really simple memory allocation。 Right。
We just use a bit vector to tell us this page is in use。 That page is not in use。
So we can just scan right through and find a free page really quickly。
It's really easy to do sharing。 Right。 We just map the same page into multiple address spaces。
But what are some of the disadvantages？ Well， our address spaces oftentimes are sparse。
And so we end up with these really huge tables that could be larger than the actual data。
that we're actually trying to code data， heap， stack， and everything else。 So that's a problem。
Another problem is that not all the pages are being used at any given time。
And we want to really kind of think about just keeping in memory those pages that are。
being used and letting the rest of the pages live out on disk。
We need some mechanism for doing that in the context of page tables。 All right。
So this simple page table is just too big。 So this is not an approach that we can use unless we're going to go to maybe really large。
pages and then we'd end up with tremendous amount of internal fragmentation。
So what if we had some kind of multi-level scheme？ Right。
Where we had multiple levels of page tables， like a tree of page tables or a tree with segments。
and pages。 Let's look at what that might look like。
So if we think first about what a page table is kind of providing for us， it's just a map。
that maps from some virtual page number to a given physical page number that we've allocated。
for that page。 If we take a virtual address， give it to the page table and the page table returns the。
associated physical address。 And so really it's just a lookup table， a really large lookup table。
But there are lots of different ways that we can implement a lookup table。
So we can use those to try and do something that's more efficient than just having a giant。
linear table that takes up a ton of contiguous memory， physical memory， and also。 Okay。
So what are some of the other structures we might be able to use here？ We kind of gave one away。
which is maybe a tree。 We could also use something like a hash table。
All we need is just some mapping function that we give it a virtual page number and it。
returns a physical page number。 That's all。 All right。 So let's look at one potential fix。
which is a two level page table。 Okay。 So we're going to have a tree of page tables and we're going to take our virtual address。
and we're going to divide it up in kind of a magical way。
So we're going to take 12 bits and use that for our page size。 12 bits is 4096 bytes。 All right。
So that takes away 12 bits out of our 32 bit address that leaves us with 20 bits。
We're going to divide that evenly and have 10 bits for our top level page table and 10。
bits for our next level of page tables。 Each page table entry is going to be four bytes in size。
All right。 How big is our page？ Four kilobytes。 How big is our page table entry？ Four bytes。
How many entries do we have per page？ 1024。 How many bits do we need to index into 1024？
Due to the 10 or 10 bits。 So that's where our magic 10 comes from。 Right。 If you think about it。
this page here contains the entire page table for that level。
So a page table for a level is 4096 bytes divided into four byte entries， 1024 of those。
entries indexed with 10 bits。 That's why this is kind of a magic breakdown of a 32 bit number。 Okay。
So we have a page table pointer which we store in the processor。
We don't need a page table size pointer。 Why？ It's fixed size。 Right。
It's limited by the size of this page。 And the fact that the size of that page contains all two to the 10 entries。
So we just need one pointer。 And we're going to take our top level， top 10 bits。
index into our root of our page table。 And that is going to give us the physical page number of our next level page table。
Right。 So that's this physical page here。 Right。 And then we will。 Oh， so I should point out。
you know， when we do a context switch， the only thing we have。
to save is this page table pointer on x86。 It's the CR3 register。 Okay。
So we're going to take our next 10 bits and use that as an index into this page table。
And it's going to give us the physical page number of the page in memory。
We then combine that with our offset。 And that gives us the physical page and the actual offset on that page。
All right。 Now we also need to have valid bits on all of these entries because now we don't have a。
length。 So， you know， it might be that we're only using the first， you know， 500 entries in our top。
level page table。 So we need valid bits to tell us whether some entries are valid or invalid。
We don't need every one of these second level page tables。 Right。
If the entry here is invalid in the top level table， then there's going to be no associated。
second level table。 So now we only really need to map those regions of the virtual address space that are in use。
If it's not in use， we don't need to have a second level table associated with it。
So for our sparse address spaces， this is going to be really good。
Because we've now drastically reduced the number of these like second level tables that， we need。
The other thing is while we keep our top level table in memory， these second level tables。
can actually live out on disk if they're not being used。 And again。
we just need to do some bookkeeping in this top level table to tell us， oh， hey。
I put this second level table out on disk。 It's not actually the case that it's invalid。
It's just out on disk。 All right。 So we get a lot more flexibility。
Now we can just keep the page tables and memory that are actually being used。
And the ones that are actually active stay in memory。 The ones that aren't as active go out to disk。
Okay。 So here's an example of 32-bit address translation on x86。
Their terminology is the top level directory is called a page directory and it has page。
directory entries， PDEs instead of PTEs。 And this base register。
CR3 provides the physical address of that page directory。 We take our top bits。
We use that as an index into that to get our PDE。 That gives us the physical page number of our page table。
our second level table。 We use the next 10 bits to index into that。
That gives us our physical 4K page。 And we use our offset to get the physical address。 All right。
So when we context switch， we just save out the CR3 from the old process， load the CR3。
from the new process， and now we get a different page directory。 Yes， question。 Okay。
So he's the guy I asked to be in the audience so he could ask the question that set me up。
for the next slide。 So the reason why we need lots of bits in the page table is because what do we need？
We need to know what's the pointer to the next level of the page table or what's the。
pointer to the physical page？ That's not a lot of bits， right？ So what else are we doing？
We have permission bits， right？ So we need to keep track of is this valid， is it invalid。
is it read right， is it read-only， is it execute-only， is it out on disk？ When was it last access。
is it clean， dirty？ You know， there's lots and lots of information that we're going to store in the page table。
entry。 And so that's why that's the answer to why it's four bytes。 So you can see here， for example。
there's some free bits。 These are allocatable to the operating system。
The operating system can use these bits for bookkeeping。 So it could use these bits to say， oh。
this page is actually out on disk。 So use the other bits in the PTE to figure out where it's on disk。
Like maybe it's the logical block number of the disk block that contains the page table。 All right。
But there's a lot of other things。 So， you know， valid， writeable。 Has it been accessed recently？
When we get into paging， that's something that we'll use to say， this is a page。
It's been accessed recently， so it's active as opposed to a page that has not been accessed。
recently。 So， you know， it doesn't really need to live in memory。 Maybe it could live out on disk。
There's other bits like， is it dirty？ So has it been modified？ Has it been written recently？
And that's going to be important because if we wanted to say， evict this page from memory。
it means we'd actually have to copy it to disk。 Okay。 And there are other bits that are， you know。
architecturally dependent。 Okay。 So how do we use the PTE？ Right。
And in valid page table entry could mean multiple things。 It could mean that， yeah。
really this is invalid and your program stepped in this location。
It's a landmine and we're just going to seg fault and terminate your program。 Right？
Or it could mean， you know， the page or the directory is just somewhere else。 It's not in memory。
It's out on disk。 So we check the validity and then we use those other bits to figure out， hey。
where is it， located on disk？ If it's not in memory。
So demand paging is where we're only going to keep the active pages， as I said， in memory。
We're going to use that active bit to tell us which pages are active。 If the page is not active。
we can feel free to send it out to disk。 And of course then we mark the page table entries invalid and the bookkeeping bits to tell。
us where that page got stored on disk。 Another example is remember fork。 Right？ When I do a fork。
it's really fast。 Right？ Because I don't actually copy all of the parents address space and create a copy for。
the child。 Instead， I just copy the page tables。 So I copy all of the page tables。
which is going to be much， much smaller。 And I mark any entries that were read right as read only。
So now it's going to happen。 The program， the child or the parent is running along and it goes to write something。
It's going to generate a fault because I'm trying to write a page that's marked as read， only。
Now I trap into the operating system。 The operating system looks at the page table entry and says。
oh， I did a copy on write。 So now what it will do is it will take that page and it will clone it。
Take two copies， one in the parent， one in the child and mark both pages as write， write。
a vote read write， and then restart the instruction。 So that's where copy and write comes from。
Because we're only going to copy the pages when the child or the parent actually tries。
to do a write to them。 Everybody follow that？ That's how we make fork really fast。 Okay。
Another example is allocating memory。 So when I allocate memory to a process。
I call malloc or I call espray to get more memory， I ask the operating system。
give me some physical pages。 And the operating system returns a set of physical pages。
Now if those pages were used by another application， the operating system has to zero out those。
pages。 Why？ Well， what if that was a sensitive server process or it was the kernel using that physical memory？
It might contain secrets or SSH keys or other sensitive information。
And so the kernel always will give you a memory page that's been zero。
But it's expensive to actually go through and zero 4，096 bytes and do that a lot。
And so typically what the operating system does is it allocates the page table entries。
and then in the background it's got a process that's running through and scrubbing empty。
pages and making sure they're zero。 Then when you actually try to reference that page。
it swaps in one of those zero pages。 And that way you don't have to wait when you're allocating for zero pages to be created。
They're created basically， they're allocated basically on demand。 Or I should say assign。
they're allocated when you make your request assigned actually。
on demand。 Okay， how do we do sharing？ Well， sharing is really easy。 Right？
So here we have multi-level page tables。 We can share at the granularity of an entire page table。
Or we can share at the granularity of an individual page or both。 All right。
so we get a lot more flexibility。 So we can have the page tables associated with code and those get shared across all of the。
programs， processes rather running the same binary。
Or pages assigned to libc and all of those get mapped into every address space。
So it makes it really efficient for us to do sharing between processes。 So there was a question。
so the physical page number is 20 bits。 Yeah， so the actual physical page number。
in this case it was 20 bits， it'll depend on， the machine architecture。
20 bits is not a lot of memory。 And so， you know， as machines have gotten larger and larger。
now you can have， you know， machines with a terabyte of memory， you need more physical bits。
More physical page number bits。 Okay， so summary for two-level pageing is before we just had one table in the middle。
that kind of mapped any page on the left to any page on the right。
Now we're going through a top-level page table and then going through a second-level page， table。
So you can see here I've divided up our addresses into three fields。
So our lower three bits are offset。 Then our， what is our next two bits in green。
our second-level table， and our three top bits， are our top-level page table。
So top-level page table has eight entries。 And then our middle tables here have four。
and then we have eight bytes on each page。 Yes。 So the question is。
did the page table structure at the top level the same as the page table。
structure at the next level？ Yeah， usually。 It's the page table entries are the same at every level。
And that's just because it's easiest to do that in hardware to have uniformity。
If you had two different types of page table structures that it would make for more complex。
hardware。 Yes。 [ Inaudible ]， The question is， if the operating system wants to modify a page table。
does it do it， in virtual space or physical？ It's in physical address space。
So page tables are stored in physically addressed memory。
But you could also store page tables in virtually addressed memory。
But it depends on the machine architecture。 [ Inaudible ]， Yes。 Well。
it's never the kernel isn't doing the address translation。 It's setting up the tables。
Then the memory management unit in hardware is walking through the tables to actually do。
the translation for you。 So operating system sets everything up and says， these are the rules。
This is what these tables look like in terms of mapping from virtual to physical。
And then the hardware actually implements walking through these tables so that it's fast。
[ Inaudible ]， Yes。 So the operating system can either generate translated addresses。
But it can also remember， I don't know where it is in my slides now。 But we have two views， right？
There we go。 Slide number two。
So there's the CPU generating virtual addresses， but the kernel can generate untranslated addresses。
The kernel can actually say， I want to write this physical location of memory。
It has to be able to do that because if it's going to pull a page in from disk and write。
it somewhere， it has to be able to access untranslated addresses also。 Okay。 Question？
[ Inaudible ]。
So the question is， when I do a malloc， am I going to get a page that， if I read it， is。
going to have all zeros or could it have random data on it？ The answer， unfortunately， is yes。
You could， if the page is freshly allocated by the kernel， get a page that is all zeros。
and has been zeroed out。 If， however， you've done a bunch of mallocs and a bunch of freeze and a bunch of mallocs。
it depends on the implementation of malloc and whether you call something like zalloc which。
will zero the page。 When you do a free， it just puts the page or puts the memory back into the heap。
It doesn't necessarily zero it out for you。 That's why there's a zalloc， I think it's called zalloc。
a c library function which gives， you a zero， a zero out page。
It guarantees the page is going to be zero。 Okay。 So here， you know， if we want to grow the heap。
you know， add a new page to the heap， we simply， just， or a reference a page rather on the heap。
We simply just look in the top level tables， so this is going to be entry 100 in red。
Then the next level is going to be one zero。 We look there and that gives us this 10。
000 in binary which maps to right here， 80 hex。 Right？
So we just walk through our tables and that tells us what the physical address is。
Copy over the offset。 So in the best case， right， the total size of the pages that we're going to have our page。
tables here is going to be proportional to the number of pages being used by the program's。
virtual address space。 Right？ That's much smaller than before where it was proportional to the maximum size of the virtual。
address space。 So assuming the programs are relatively small。
it means our page tables are going to be relatively， small and for these second level tables。
they can live out on disk if we're not using it。 The price we pay now is just to do a memory read or write or instruction fetch。
We're now going to do two additional memory reads。
So we effectively made our memory three times slower。
And it's already expensive to go out to memory。 It's nanoseconds to access something on chip。
It could be hundreds of nanoseconds to go out to memory。
Now we've made that three times more expensive。 And if some of these second level tables are living out on disk。
that's going to make that， even more expensive。 We're going to need a solution。
And we'll come back to that in a moment。
Okay。 Let's look at another approach。 That was a tree of tables。
Instead we can try and combine the benefits we get from segments with the benefits we get。
from pages。 So the lowest level is going to be a page table in any tree-oriented structure。 Why？
Because a really simple allocation， right？ We don't have to worry about external fragmentation。
We put page tables at the top and segments at the bottom。
We have to worry about moving these segments around in physical memory， finding large enough。
contiguous chunks of memory to be able to allocate those segments。
So it's much better to use page tables at the lowest level。 Okay。 Then we just use our bitmap。
Our levels could be segments。 We could have any number of levels。
But we'll make our top level in this case be a segment。
So now our virtual address is going to look like this。 At the top we have a segment number。
a virtual segment number。 And then we have our virtual page number。 And then we have our offset。
Because our lowest level is a page table， we can just copy the offset over。 Fix size pages。
Our top level， we use a segment map that we store in the processor。 So here we have eight entries。
base and limit。 And those each point to a page table。
And then we use our second level of our address， our virtual page table of virtual page number。
rather， the index into that table to find the physical page number。 And of course， as always。
don't forget we have to check to make sure we didn't run off， the end of the table。
We have to also check all of our permission bits to make sure there's no issues with the。
access mode。 All right。 Now， when we do a context switch before when we had a tree of tables。
we just needed to， save out that page table base pointer， CR3 register。
Now it's just like with segments， we have to save out the segment map。 All right。
So it's a relatively small amount of data that we have to save on a context switch between。
two different address spaces， between two processes。
Now how can we do sharing？ Well， we can share now at the level of a complete segment。
So we just simply point to a page table representing the shared segment， like our shared code。
Now if we have another process B， it's just simply going to point to that same segment。
It's going to have a segment point to that same shared segment page table。
And now we have the same data that's visible in both programs。 And again。
if we're dealing with virtual addresses and references and things like that， our pointers。
we're going to want to make sure that we put them into the same segment， that the virtual。
addresses are valid in both address spaces。 If it's just a table of integers or other sorts of strings。
then we don't have to put， them in the same place。
If we want to have pointers or code or anything like that， they have to go into the same virtual。
segment。
Okay。 So let's take a step back and look at what we learned with multi-level translation techniques。
So advantages。 Well， we only are going to end up allocating as many page table entries as we need for。
our application's usage。 So if we have a really sparse address space， all that sparseness。
it doesn't matter。 There's no data structures that we need to have to track that sparseness。
That'll all get captured in the top level of our data structure。 Now。
if we just allocate one page uniformly throughout large gaps in the space， yes， then。
we'll end up with something that's not very sparse as a set of data structures。
But that's not typically how we operate。 We typically have code， data， stack， and heap。
And so those regions can be really far apart and we'll take up that much space overall for。
our bookkeeping。 We get easy memory allocation。 As long as we always use page tables at the lowest level。
we can use a bitmap to do our， allocation。 We get easy sharing。
We can share an individual set of pages or we can share at the level of a page table。
our entire segment。 So a lot of flexibility。 But everything comes at a price。
And so some of the disadvantages are we still have a pointer per page。
So for every four or 16 kilobytes of memory we want to allocate， we're going to have a。
page table entry。 So that could be expensive。 Oh， there was a question about what is the advantages of using segments and pages versus。
just using a multi-level page table？ It's a design choice。
So whether you choose to use multiple levels of page tables or you choose to use multiple。
levels of segments is really just an architectural design choice。
When the architects are looking at what's the target market for this processor or architecture。
and how are people going to use it， they try to design a memory system that will work well。
with both the applications and the operating systems。
And so segments and page tables or multiple levels of page tables are just two examples。
of the approaches that people have taken。 We're going to look at another example in just a moment。
But they're all trying to accomplish the same base idea。 Okay。
the other issue we have is that our page tables themselves where they can be more。
than one page have to be stored in contiguous memory。
So that does lead to some potential external fragmentation issues。
If I have a page table that is 20 pages long， I need to find 20 contiguous runs of zeros。
in order to store that page table in memory。 So I might have to do some moving data around in order to make it work。
But if I use the， you know， for a 32-bit machine， if I use the 10， 10， 12， my page tables are。
one page and I never will run into that kind of problem。
So another disadvantage which we just saw is that I have to do multiple lookups in order。
to find each reference。 So I have to walk through multiple page tables doing multiple memory references in order。
to do one reference to memory， a read， write， or instruction fetch rather。
So that's going to be expensive。 That tells us we can't。
there's no way that it could be feasible for us to do translation。
to actually do the full translation for every single memory reference。
We're going to have to figure out a way of amortizing those costs across many memory references。
Okay， so remember dual mode operation， right？ Do we let the process access its translation table？
No， right？ Because otherwise it could access any memory。
it could access memory associated with other， processes。
could access operating system code and data。 The hardware gives us two modes of operation typically。
a user mode and then a kernel， mode or protected mode or supervisor mode or whatever you want to call it。
But it's a special mode that has complete access。 User mode is very restricted。
Kernel mode you can do anything。 Now some processors like Intel processors include multiple levels。
So there's actually four different rings that you have that allow you to have different levels。
of access。 So you have your supervisor， your protected mode that has the highest access and then。
you have lower levels all the way down to user mode。
And on x86 the level below the highest privilege level is typically used by hypervisors。
Sometimes it's used by device drivers so you can limit what they do and their ability to。
corrupt or cause problems for the operating system。 Now certain operations。
again with dual mode operation， we're going to restrict to being， in kernel mode。
So changing that CR3 register， changing the segment map， you can only do that in kernel， mode。
And that way we can guarantee that the user can't change what their translation mapping， is。
And also， you know， as was， there was a question about reading and writing the page table entries。
themselves that has to be done when you're in kernel mode。
You can't modify them or read them from the user mode。 Okay， so let's make it all real。
So here is an example of x86 which combines both segments at the top level along with， paging。
a multi-level paging scheme。 So it's taking everything and putting it all together。
So you get the segment。 So here we have a logical address or virtual address or what they call a far pointer。
And it could either contain the segment or the segment can come from the instruction itself。
So here the segment comes from the instruction， it's the GS segment and that's the segment。
selector。 The segment selector selects a segment descriptor。
We look it up in our global descriptor table。 Right？ That's global across all processes。
There's also an LDT or local descriptor table which is specific to an individual process。
And you can actually control which one the lookup happens in。 Okay。
and that is going to give us a base address here for a segment within our linear， address space。
So this is how we go from like our what they call their logical address to our actual address。
in our linear address space。 That linear address is now what we're going to look up in our multi-level page table。
So we're going to divide that linear address into a directory， a table and an offset and。
just do our walkthrough of those tables in order to actually get the physical address that， we want。
Right？ So in most cases in x86 they just simply map this linear address space to be all of in。
every segment to be from zero to the top of memory so they're not really using segments。
They're just kind of ignoring it。 The addresses you're generating then are just going to be these linear addresses。
Okay。 So here's an example in x86 for 32-bit addresses。
So here segments are either again implicit in the instruction or they come from the implicit。
in the instruction or they come from the address。 So there's six segment registers， stack segment。
code segment， data segment， extra segment， and， F and G segments。
And the segment register is just a pointer to this segment descriptor。 So again。
if we look back here， it's an index into this table， the global descriptor table。
or an index into the local descriptor table。 So local descriptor table is a per process segment map you can kind of think of it as。
And the global descriptor table is global。 So for example， if I'd shared binaries。
I would put those entries into the global descriptor， table。 So like for shared code。
Then there's the current requestor privilege level。
And so this is what the actual descriptor looks like。 It contains a lot of information。
I'm not going to go through all of it。 It tells you what kind of segment it is， whether it's a code。
data， or other segment。 And that's important because code segments are executed only。
What else is important？ It tells you what privilege level is required to access it。
You have to make sure that the requestor privilege level is less than the actual segment level。
That way it guarantees that you can， whether you can access it or not。 So if it's kernel。
you wouldn't be able to access it from user mode。 And then there are extra bits that you can use for the operating system。
The bits in A。
And that's probably all that's really important。 OK。
So let's say we wanted to be able to have a 48-bit virtual address space。
Like it's on a 64-bit machine， I could potentially have really large pointers， like 64-bit pointers。
Or more commonly， you have something like a 48-bit pointer。 So that。
I could do with a four-level page table。 So I'm going to use the lower 12 bits for my offset。 Now。
because my page table entries are going to have to be bigger， because my physical addresses。
are going to end up being larger， now I'm going to have to go to 8-byte entries。
So if I go to 8-byte entries and I have 4 kilobyte pages， how many entries do I have？ 4。
096 divided by 8。 Hours are 2。 5-12。 Half of 1024。 OK。 How many bits do I need？
The index into a table with 512 entries？ 9。 It's right there on the slide too。 OK。
so our page table pointer， our CR3 register， points to our base or directory or whatever。
you want to call it， each of these page table entries is 8 bytes in size， there's 512 of， them。
and I just simply go walking through all of these tables until I get the actual。
physical page number of the page that I want to reference。 Combine that with my offset。
my 12-bit offset， and now I have my physical address。 All right， and so you can actually do this。
Would you want to do this？ Probably not。 Right， because for every memory reference， I'm doing 1， 2。
3， 4 just to get the address， to then be able to do the fifth reference。
which is actually going to be my construction， fetch load or store。 All right。
but not very efficient。 Not doable， but not efficient。 So one thing the x86 supports。
which kind of helps with some of this， is larger page， sizes。 Right。
and so here's an example where you have five levels of paging。
If instead I have pages that are 2 megabytes in size， right， now I need fewer levels。
But why-- and I can go even larger， right？ I can have one gigabyte-sized pages。
So one might want to do that。 Any ideas？ What would be the benefit to having one gigabyte-sized pages？
What would be an application？ Let's see some creativity。 Yeah。 Yeah， exactly。 Databases， right？
If I have a database， I want to manage the objects in my database。
I might want to keep a large blob in memory。 And so having a 1 gigabyte page means that I could keep all of that in memory。
right， and manage my access to it。 Video would be another example。 From editing video。
I might have very large video segments， and I can completely fill， the pages。
The key thing is thinking about applications where， either for， you know， a 2 megabyte page。
size or a 1 gigabyte page size， I can completely fill the page。 If I don't completely fill the page。
you know， if I put a 64 kilobyte stack on a 1 gigabyte， page。
then I have a lot of internal fragmentation， and I've just wasted my expensive memory。
But if I have an application where I'm going to keep those pages full， then this makes。
it very efficient to have a large virtual address space and not have to do 5 memory references。
to do one read/write operation。 Okay。 So， Great for Colonel， you know。
the Colonel can all be in one page rather than in lots， of pages。
and it's great for large libraries and so on。 Okay。 What about 64-bit addresses on a 64-bit machine？
You know， I could just have a 6-level page table。 No。 That would be way too slow， right。
because we're going to have to walk through this。 This page table， then this page table。
then this page table， then this page table， then， this page table， this page table。
And then finally， we actually get to do our load in store on every single operation。 So。
it would be just really inefficient。 Okay。 So， an alternative is what's called for not really good reasons an inverted page table。
You create something， a data structure， you get to name it。
And people don't always pick the best names， let's just say。 So， the way to think about this。
why it's called an inverted page table， is if you think， about what we've looked at so far。
all of these we kind of walk through the table。 So， it's a forward path that we take。
mapping from our virtual address to our physical page， number。 And so。
the size of our page table is going to be proportional to the amount of virtual。
memory that we've allocated to this process。 We'll use one of these multi-level schemes so we don't have sparseness in our data structure。
But the actual physical memory that we have could be much， much less， right。
If you look at a 64-bit machine， with 64-bit pointers， that's a much， much， much larger。
virtual address space， than the actual physical space， you know， our machine might only have。
64 gigabytes of memory。 So， we've got this huge data structure for our mapping and the actual pages that are。
in memory is much， much smaller。 Most of our code and data and everything might be living out on disk。
So， what we're going to use is a hash table。 We're going to take our virtual page number and give it to this hash table。
And it's going to give us back our physical page number。 Now， it's called an inverted page table。
The nice thing here is the size of this hash table is proportional to the size of physical， memory。
Because it's just keeping track of what's actually in physical memory。 And where is it？
It's not on the hash table， then we have to go look in our bookkeeping data structures。
to figure out， hey， where is it out on disk？ So， that's nice。
The size is now independent of the virtual address space。
It's proportional to the amount of physical memory that we have。 And so。
it becomes a really nice solution to when we have a 64-bit address space， right。
And we don't want to have six or seven or whatever levels of our page table。 So。
the downside here is that hashing， it's hard to come up with good universal hashing。
functions that have short chains。 By chains are where you have a collision。
you go and you look in the bucket and it's not， the item you look for。 So。
you've got to rehash and look in another bucket， rehash and look at another bucket。
We don't want to do a lot of that because then that will be really slow and expensive。
You want hashing functions that generate very short chains。
And you're doing this typically in hardware。 And so。
that makes it even harder to figure out what are good hash functions。
The other issue you have is if I want to walk through the page table itself， there's no locality。
here， right， because one virtual page number hashes to some location in the hash table。
the next virtual page could hash to something far away。
The next virtual page could hash to something far away。 So， there's no locality。 Whereas。
with the approaches we were looking at before， one virtual page table entry was。
right next to the next entry。 It was right next to the next entry。 And in fact。
they all fit on one page。 So， it was very efficient。 Okay。
But the benefit here is the size of our hash table here is proportional to the number of。
pages being used in physical memory， which is going to be much， much smaller than the。
number of pages used in virtual memory。 Okay。 So， I'm just going to end with the next slide。
So， we looked at a bunch of different translation approaches。 The segmentation。
really fast context switching， I just save out the segment map。 The disadvantage。
we can end up with external fragmentation。 Paging is nice at the single level because we now we have a uniform rapid way of allocating。
memory， no external fragmentation rather。 But we end up with table sizes that are proportional to our virtual address space and are mostly。
full of empty entries。 So， it doesn't work well for sparse address spaces。
Page segmentation or multi-level paging， both of those approaches make the table size now。
proportional to the number of pages in use in virtual memory。
We get the advantages of fast allocation by using paging at the lowest level。
But the disadvantage is it can be many multiple or many memory references just to do one read。
or one write。 So， we're going to have to fix that。
And that's what we're going to fix in the next lecture。 Inverted page tables。
Now we have a table size that is proportional to the number of pages in physical memory。
But the downside is we have these hardware hash functions that can be super complex and。
we don't have locality for our cache of page table entries。 On that， we'll continue on Thursday。
