UCB CS162 操作系统笔记（二）
P11：Lecture 11： Scheduling 2 Case Studies, Real Time, and Forward Progress - RubatoTheEmber - BV1L541117gr
Okay， I'm not sure if we're going to get speaker or not。 So as long as you guys can still hear me。
can you hear me still。 Say yes， somebody。 Okay。 All right。
so welcome back everybody we have a little technical difficulty。 So。
those of you that see me here get to see me。 Ta-da。 Maybe we'll grab it from course capture as well。
Let me zoom into。 The tighter camera angle and so I want to pick up where we left off last time with scheduling。
And if you remember from last time。 We were kind of talking about scheduling as deciding which of a set of things that happen to be in a queue。
Get to go next。 Okay， and so。 In particular， the ready queue is one of the things that we often talk a lot about here。
And so in that instance that's going to be， whoops， where did this go here。 This is going to be。
This queue right here。 Okay， and it's， it's the queue that feeds into the CPU。 So now。
Scheduling is basically making a decision。 And over the course of today and next time we're really going to talk more about possible scheduling policies。
All right， and so if you remember from last time we talked about the simple policies like minimizing response time。
By minimizing the elapsed time for something to be done。 Or。
And the response time typically what a user sees right so when you're typing。
If it takes has to schedule a thread to get your keystroke to then put it up on the screen。
That can be a scheduling question。 Another thing we talked about is maximizing throughput。 Okay。
and this is a。 Maybe maximizing the number of operations per second so you're doing some cloud computing。
And if you remember one of the things we talked about last time is that response time and throughput are。
Sometimes it odds with each other right because response time means。 Quickly preempt and go with。
The thread that's the here just we can't do that let's just keep going。 Because I need the。
This is feeding microphone to people on zoom right now so。 So。
If you think about it minimizing elapsed time。 Is preempting for the thread that's going to do that。
He stroke maximizing throughput is really。 Not not preempting letting it run through so that you get good cash behavior。
Okay， and then fairness was another thing that was a little。
Complex here and we'll try to get to that in a moment。 Sorry about the interruptions everybody。
So if you remember an example of round Robin。 With the time。
Quanta was really one of the things we talked about。 You know。
FIFO was the first thing but that's not very interesting。
And so the way to think of round Robin really was that you have a set of processes。
They each have a burst time。 Which is the time they run until they're done and start doing IO or something like that。
And so in this example here we have P one P two P three P four with their burst times and a quantum of 20。
And so really， you know， this is not rocket science you can kind of work this through the P one。
Runs for 20 units and then it gets swapped out because the quantum spin exceeded。 P two takes over。
It's going to end up only running for eight。 Why is that？ Well， because P two only has a。
And then P three runs for 20 P four runs for 20。 And then we go back around。
And so there's a file queue involved here。 When we pull something off the CPU we put it at the end of the queue and we just keep doing that。
Okay。 And so then we talked about metrics like average waiting time and average completion time。
That are important metrics， especially the users who are interactive。 Okay。
and average waiting time is basically just adding up all the times that process has to be weighted in the queue。
And then dividing by the number of processes and average completion time is sort of just looking at the end。
And adding those times up and dividing。 Okay， so I want to pause here because this is like the most basic schedule or other than FIFO which nobody actually uses that we talk about。
So were there any questions on this。 Because I'm going to assume that this is kind of yeah go ahead。
Good question so our first time's pre calculated no first times are something we know about after the fact。
So that's going to be a little bit of a challenge when we try to do an optimal policy based on birth time because we're going to have to do some prediction。
Okay， so all I've done for this slide is I've said well let's suppose that we knew in advance those were the birth time。
Okay， good question。 Any other questions。 Okay， so。 But if we knew the future。
Could we always mirror the best first come first serve so if you remember the thing about first come first serve was it's great if you go shortest job next shortest job all the way up。
And then you get the best average time for waiting and response time。
And so we came up with this idea of either shortest job first or shortest time to completion first。
Okay， they're pretty pretty close to the same thing。
And the idea really is in shortest remaining time first is really that。
And it's all the possible things on the queue， if we knew the first time because we have a crystal ball。
we would pick the one with the shortest first time and we just run it and then we pick the next one and we pick the next one。
Okay， and this is kind of where we were at at the end of the lecture we kind of rush through it so I want to make sure this made sense to everybody。
The difference between s js F and s r t F is really just the preemptiveness so if you have s r t F and a new short thing comes in it will implement it will interrupt the thing that happens to be running on the process or if the thing on the。
processor has a longer burst time。 Okay。 And you know you can apply this the whole program or the current CPU verse。
etc。 But the idea here is to get the shortest jobs out of the system as quickly as possible thereby making your average response time faster。
Okay。 And the way to think of us， I'll say this again。
is if we knew the future and a bunch of jobs came in， we rearrange them and do FIFO。
but we do it in a way that always had the shortest one first and the next one then the next。
Any questions on this。 So I think in reference to the question earlier。
the issue here is that this seems crucially to depend on there being a crystal ball。 Okay。
that we somehow know what the various times are here for birth so that we can then pick the shortest one。
And so what we were doing at the very end last time was we were looking at。
And then we had examples of SRTF and why it would be useful if we had it so this example was an example with two long threads and one interactive thread or one real time thread I'll say the long threads a and B will run for a week。
Okay， thread C has some very special special properties of it it needs to run for a millisecond。
and then do a millisecond worth of disk。 And then run again。 Okay， and so if we have that situation。
you can see that it becomes very important that we somehow always start that thread whenever it's ready to go so the idea here is that one millisecond。
It then starts a disk operation that takes nine。 And then right after those nine milliseconds are done it runs again。
and this will be the maximum throughput we can get out of the disk， it'll be a 90% busy disk。
but only if we manage to schedule this little thread。 Red when it's time to go。 Okay。
And so with first come first serve。 This is bad right if a or B gets in there。 They run for a week。
the disc is idle， get zero percent out of the disk。
What about round robin or shortest remaining time first。 Okay， can anybody kind of guess。
What would happen with round robin here。 Okay， a lot of context switch so what do you need by that。
Yeah， so somehow， remember that round robin's kind of a blunt instrument。
we would have to pick our timing， so that we're switching what every one millisecond so that we could somehow make sure that see always get scheduled。
But even that wouldn't necessarily work right， because you have to be ready to schedule the moment that it's the disk is done。
So if you look here， here's basic。 For instance， that's the time I told you is pretty standard。
you run for one millisecond。 The disk runs for nine。
but by then a has started it's running for 100 milliseconds B runs for 100 milliseconds。
And then see gets to pick up。 And what do we get here our disc utilization is nine out of every 201 time units it gets to run and so our disc is down to 4。
5% of it's bandwidth。 So that's very bad。 Right， but all we're doing is we're switching every 100 milliseconds。
Now if we go faster what if we switch over one millisecond。
maybe we can get about a 90% like we want except that we've got a huge number of wakeups because we keep switch switch switching。
Right。 So， before we talk about alternatives。 Ask your questions。
So does this make sense what we're talking about here。 Yeah。 Yeah。
so this is this is the disc is busy for nine milliseconds。
And then it's busy for nine milliseconds and then that's out of a cycle of 201。 Okay。
And actually it just occurred to me that I could probably use the camera on my laptop to at least give you guys a little bit of a view of me。
Oh wait， that's not that'll take the mic out。 So no， I can't do that。 Okay， never mind。 Oh。
let's look at another option here。 So， SRTF is a much better scenario。 Why is that？ Well。
because the burst time of C is short， millisecond。
So anytime C's ready to be scheduled it immediately picks up and says， Oh， run C。
but otherwise a or B get to run。 And the interesting thing about that is that when。
A starts running both A and B were a week long， but as soon as they starts running。
A is now shorter than B and so A will always run in preference over B。 Okay。 Good question。
So if we could。 Yeah， go ahead。 How do you know what？
How do you know the time of completion of a job you got a crystal ball。 Okay。
so SRTF is great if you can predict the future。 Okay。
so obviously you can't really predict the future。 And so， at least not yet I guess。 So。
we need to think of this as a guaranteed not to exceed good policy that we can get close to if we can approximate。
So that's going to be where we go next。 All right。 I just want to make sure everybody's got it。
Okay。 So other questions on this before we move forward and yes indeed we have to predict the future。
That's why I told you guys all bring your stock portfolio today。
There does seem to be a little aggression in Europe that may be messing up stock futures at the moment anyway though。
Okay， can I go on。 So。 And by the way the dis utilization is 90%。 Okay， so。
One of the obvious things I hope we can see here is starvation is a problem。
So if you have a huge number of small jobs。 They're going to completely overwhelm any big job。
And so in fact in this situation we see here at the bottom be never gets to run at all。
At least not for a week。 Okay， so that's a problem。
Now somehow we got to predict the future that's also a problem so some systems might actually ask the user how long do you think your birth are。
Now in the case of that disc problem maybe they could say they know。
Because they met they run it a bunch of times by itself and maybe they measure it and it's regular enough they could do something。
However， most predictions of that form are hard to do correctly。 And basically wrong。 Okay。
so you can guarantee that the best intentioned programmer has no idea how long it takes to run something。
And a malicious one is a course going to tell you what it only runs for a microsecond。
Why do they tell you that so they can run all the time。 Okay。
so perhaps asking the user is not a good idea。 So the bottom line here is you can't really know how long a job will take。
but we're going to use SRTF is a yard stick for measuring other policies and it's optimal。
So you can't do any better so how is it optimal once again it's optimal by giving you the smallest average wait time。
And average completion time。 Okay， it's optimal in that sense。 Okay。
So the pros and cons are optimal that's a pro。 Requires predicting the future that's kind of a con。
Okay， unfair。 Well， perhaps the world is unfair so we're not going to， but we'll call that a minus。
Okay。 So this one， whatever your notion of fairness is SRTF is definitely not。 So。
how do we predict。 Well， one of the things we can do is we can look at the history of runs of a given thread and predict based on that。
So， come up with an adaptive policy that uses past behavior。
And it works pretty well in computer systems and the reason is most computer systems have high predictability in how they behave。
Okay， so asking a user to tell you exactly how long it takes to do something。 That's a not too good。
An option， but measuring it and building a model。 Might be a good option。 Okay。
and this is Berkeley is like， you know， machine learning central。
So you can imagine that some form of machine learning might be good。
but we're not going to go that hard so we could use an estimator function。
which is much simpler something like a Coleman filter which you probably run into and like one of the 16 series classes。
And so the idea is if you know a stream of previous histories。
you put them into a function that might give you the ability to estimate the next first。 Okay。
And so a simple one here is this idea of exponential averaging。
where you have an alpha parameter that tunes kind of between the， the immediate past。
and the aggregate past。 Okay， and so basically you do alpha times the last time。
plus one minus alpha times this。 Overall average， and that gives you the new average and I realize that there's some subscripts here that got lost in the transfer somehow。
But this is pretty simple。 It's an averaging window。 Okay。
and this is something you've run across many times。 And if we did that averaging window。
that would basically say， well， this thing behaves kind of like an average of its past behavior。
And either do that in a way that sort of keeps an infinite version of the history in the past or just uses a couple of past values that are averaged together these are both two options you can do。
So， questions on that before we go on to lottery schedule。 So， I guess， idea。
I'd use the prediction from this filter as my burst time for each thread。
I gather that history and then as it got more and more accurate。
then I'd use that to schedule so whenever the threads in。 So， they're ready to。
I would associate it with its model and use that to decide which thread is the shortest remaining time and bring that forward to run。
Yeah， question。 So， it started probably with， I don't know some short amount of time 10 milliseconds or something these these kind of filters。
especially when they only have one parameter or two parameters they adapt really quickly。
To the average。 It's if you have a really many parameter model that it takes a while for it to adapt。
So， it would be a good medium time and it would quickly be erased by the actual values。
Good question。 Any other ones。 Okay， so this is one way of predicting the future。
I'll show you something else。 So here's a question。
What's the difference between first come first serve and shortest job first。 So。
the shortest job first is like the optimal first come first serve where it finds it resorts the queue。
like putting the shortest first and then next and next。 Okay， hopefully that answered that question。
So， all right， so let's talk about some more interesting scheduling mechanisms now so lottery scheduling is a is a pretty interesting idea where what we're going to try to do is hand out chunks of CPU time to processes。
Okay， and so we're going to give each job some number of lottery tickets and we're going to run a continuous lottery and proportional to the number of lottery tickets you are you get that many time slices。
Okay， so if there's a hundred total tickets， somebody has five that will on average get 5% of the CPU。
Okay， because every time the time timer goes off you run a new lottery。
see whose ticket it is you go forward。 Okay， and so how do we assign the tickets well to approximate SRTF。
We have something that uses the models to kind of put short running jobs。
First by giving them more tickets and long running jobs getting fewer tickets。 Okay。
and what's interesting about lottery scheduling， and several the other ones we'll talk about later in the lecture is we can we can avoid entire starvation by making sure that anybody who's in the system always gets at least one ticket。
Okay， so in the case where there's a hundred outstanding tickets。
making sure everybody gets at least one ticket means that they get at least 1% of the total CPU no matter what happens。
Okay， so I will contrast this with what we talked about when we talked about priority scheduling we'll get back to that again。
where if you have enough high priority things the low priority things never run。 Okay。
whereas with lottery scheduling you can arrange to the low priority things at least get to run a little。
So the advantage over strict priority scheduling in this instance is it behaves gracefully as a load changes。
and it adds or deletes a job。 As you add a deleted job it kind of proportionally slows everything down so you could say。
when I add a new job， I add another some number of lottery tickets into the system that will gracefully slow everybody down。
Okay， so that's one thing that we can do by adding adding or deleting a job basically affects everybody proportionally。
So there's a lot of ways to play with lottery scheduling。 Here's a here's an example。
where we have some short jobs get 10 tickets long jobs get one ticket。
And so then in an instance where you have one short job and one long job。
The short job gets 91% of the CPU and the long job gets 9% of the CPU。
In the case where you have no short jobs and too long jobs。
then both of the long jobs get the same amount of CP。
And so on you can look at other ones here like if they're 10 short jobs and one long job。
then each of the short jobs gets 9。9% and the long job is 0。99%。 So you can play with these a lot。
but can anybody remind me why in this particular example， I'm giving more tickets to short job。
what would be my goal there。 Yeah。 That's right， why do I want to get the short jobs out of the system as quickly as possible。
What started us down this path。 Yes。 Lowest average wait time， yes， leading to。 Responsiveness， yes。
So if we're interested in a mix of interactive and computing jobs。
We want to somehow figure out how to give the short jobs。 Some precedence。
And the assuming that you've modeled them somehow then the lottery scheduling gives you a nice clean way to do that。
Where you don't make， you don't basically give 100% precedence to the short jobs。
the long jobs still get to go。 So there's no permanent starvation。 Now， of course。
if there's too many short jobs to give a reasonable response time。
That it's really hard to make progress， right。 And so this example that I gave earlier。 Actually。
I don't think let's see where did I give that example so for instance。
if we have 10 short jobs and one long job。 You know。
the CPU that the short jobs get starts decreasing。 And if I have 100 short jobs。
It's going to go down and down and down and none of those jobs are going to make forward progress。
Okay， so this none of these scheduling mechanisms。
Fixed extreme over consumption extreme over commitment of resources。 And you know。
you should keep that in mind。 At some point， it's possible that you just need a faster computer。
Okay， so scheduling is something that you use。 And you get sophisticated at to do a good job of dealing with resources that are contended by multiple players。
but it can't fix extreme lack of sufficient resources。 Okay， so keep that in mind。
That's important to know。 Yeah， question。 Okay。 Say that again。 Yeah。
so if you had a lot of short jobs， let me make sure I understand your question。
But you had a really fast CPU or you had a lot of cores。 That could be fun。 Yes。
Because in that situation， you have enough resources and the scheduler can help hand them out。
So schedulers can't make up for completely insufficient resources。
but it can do a good job of distributing the ones you've got。 Yes。 So。
so they all have an associated quanta was your question。
So what happens with the lottery scheduling is you have a big set of tickets。 Okay。
you guys have all seen bingo right there， you know， they roll the ball。 You know。
and they say which token wins， but they just throw the ball back in in this case so you just keep randomly choosing。
Yes。 Yes。 So remember now。 In this instance， so the question was。
does the long job just keep going until it's finished。 Really by a long job。
I'm talking about something with a large burst time。 Okay。
which really means that it's got to run all of its instructions and then it goes to sleep on an I O Q and later it'll wake up again and be long again。
So really what we're talking about here is that long jobs and short jobs represent how long they need to stay into the CPU。
but the quanta here is shorter。 And so when you draw a ticket。
maybe it lets you run for five milliseconds。 And then you wake up and you get another guy gets to run for five milliseconds。
The long job might run for many of those five millisecond chunks。
whereas a short job would run for a few of them。 Good question。 There was another。 Yes。 Yes。
So in this situation， we are only talking about jobs that are already on the ready queue and can run。
So the only resource we're talking about right now are things that are contending for one CPU。
Things that are sleeping on I O Qs， but happens is when the I O comes in。
they get taken off the I O wait queue and now they're put back on the ready queue and they become a new job。
That's contending。 Good question。 Any other questions。 Now。
lottery scheduling has been around for a while。 What's interesting about it is assuming you know how to distinguish long and short jobs。
which is challenging。 It's a good way to give a smooth fraction of the CPU to different jobs in a way that doesn't have starvation。
Okay， there's going to be others and we'll get there in a moment。 Okay。 So。
how do you actually evaluate whether a scheduling algorithm is better not。 Well。
one thing you can do is you can somehow build a mathematical model and come up with a deterministic modeling of that。
And the problem with that is that you have to not only define the scheduling workload or the scheduler mathematically。
which you might imagine lottery scheduling has a mathematical description。
But you also have to describe all of that workload。
all the apps that are going to run against it mathematically so that then you can somehow combine it all together mathematically。
Okay， this is a great aspiration but very rarely works out well because it's just too hard。 Okay。
so another is you can do a little better sometimes than fully deterministic modeling with a queuing model。
And we'll talk some some about queuing theory later in the term we're not going to go there now。
What people mostly do is they build a simulator that has a scheduler in it。
Some some approximation of the scheduler you're trying to test。
And you've taken a bunch of applications and you measure a trace of how they behave。
What are all the birth times。 Okay， and you leave those and you take those traces and you can feed them into the scheduler simulator to see how the scheduler does。
And that why you would do that rather than actually running it is building a full simulator and putting it into Linux is a lot of work because you got to debug it you got to make sure it does all the right stuff。
Whereas if you have a new scheduling algorithm and already you should start to think there's many of them right if I give you that impression。
there'll be more。 But you can build a model of a particular scheduling algorithm you can feed traces to it without having to fully implement it in a real operating system。
And without having to take all the time to really run all of the applications。 Okay， and so this is。
you'll see scheduling papers from the past， where they did， they did simulation。 Okay。
because it's usually something that systems people can do pretty well。 Okay。
And it's usually it can end up as accurate as some of the other more mathematical models because the mathematical models you have to approximate so many things that they're not always that accurate。
Okay。 Questions。 So how to do simulation without building the real thing is a question here in the in the chat and the answer is imagine。
since we're scheduling based on burst time what you do is you have input files that represent all of the burst times of the threads for application one application to application three。
Read them you store it into a simulation of the ready queue， you have a simulation of the scheduler。
It pulls the next thing off but then you say well it was a burst time of 12 I'm just going to pretend it ran for 12 and I'm an advanced time for 12。
And you keep doing that and then you don't actually have to run the real thing。 Okay。
We can talk more about that another time。 So now let's go back to our goal for these lectures which is how do you handle a simultaneous mix of different types of apps。
So even kind of implying that if you have interactive and computational things together at the same time。
You want to do the best thing you can for everybody。
And then you want to sort of said heuristically like well if you just make sure the short ones always run。
and then the long ones keep making progress you're probably okay。 But really。
the tricky part is you can have computational apps that go through phases that do a bunch of short IOs and you can have interactive apps that go through places that do a lot of computation。
And it's always easy to know for sure just based on the burst size whether the thing is interactive or not。
Okay。 And then the other funny thing is if you think about all the computers you interact with。
say even right now on your way between here and home。
You've got your laptop you've got your phone there's stuff in the cloud there's lots of different types of computers。
and a good question could be should they all have the same scheduler。 What do you think。 Yeah。
Probably not。 Why not。 So they're very differently constructed in terms of computational power yes。
and the application makes it's very different。 Yeah， go ahead。
You're going to say that sorry I stole your thunder thunder。 Okay， so， you know。
so for instance we said something about maybe first time is something we can observe and build a model on short burst mean interactivity mean high priority。
I mean these are questions。 And what's interesting about this is if you look at all the schedulers that have run over time and different operating systems。
They actually have at their base some assumptions that the people that designed the scheduler put in there to try to figure out whether something's interactive or not。
So to give it more priority or not。 And I'm going to show you one in a moment。
called the 01 scheduler from the original to 2。0 version of Linux that was supposedly great because it was order one so it wasn't computationally expensive。
But it had a lot of heuristics to try to recognize application types。 Okay。 And so， you know。
again what about apps that sleep for a long time but then compute for a long time or apps that run under all circumstances periodically。
etc。 Could be a problem。 So， think， think that recognizing apps is hard。 So what about this。
So this is what's something that was done in several operating systems call a multi level feedback scheduler。
So what you should see here is you see a bunch of cues and the top cue feeds into the second cue feeds into the third cue。
etc， etc。 And each one of these cues potentially has a different scheduler on it。 Okay。
and the way I've got this here is for instance the top cue is around Robin with quantum equal to eight the next cue is around Robin with quantum equal to 16。
And this one is a cue is a is a first come first serve。
And this is a way of exploiting past behavior this showed up very。
very early in the game in the CTS system。 And basically every cue has a different priority and a different scheduling mechanism。
And so what you do is you start by putting a thread up top。
And if it turns out that it's got such a short burst time that it doesn't exceed the top quantum。
then you keep putting it up top。 But if it exceeds quantum equal to eight。
you then put it into the quantum equal 16 cue， and it runs with lower priority。
And if it exceeds that one， then you put it into the bottom cue where it runs with the lowest priority。
And so， and every cue can have its own scheduling algorithm I'm showing you here to around Robin's and a first come first serve。
And there's many versions of this。 And we can adjust each prior jobs priority is the way I said where you start at the top and you kind of work your way down。
Why the heck might we do something so complicated。 What are we getting after here。 Okay， so。
you're on the right track you said you could have an interactive cue and a non interactive you right now there's just this structure。
How does this help us figure out interactive versus non interactive。 Yeah。
So the interactive ones stay toward the top because they have really short first。
And the compute computational one stay at the bottom。
And if you have ones that kind of have short bursts and then a few long ones。
They'll filter their way down but they'll never get to the bottom because they'll get back up to the top pretty quickly。
Okay。 And you get back up to the top when you end without exceeding a quantum so here。
You could think of this as a way of approximating。 As our TF as well。
So this is like trying to get a crystal ball by by going after what the history was。
But the history in this sense is which cue did you land it。 Okay。
And this by the way is very was very common in a lot of operating systems to have multiple priorities with multiple cues and ways of feeding one into another。
Okay。 And， you know， the long running compute tests keep getting demoted down to the bottom。
So the result is kind of like our TF because the CPU bound jobs dropped like a rock to the bottom short running I owed jobs stay up top。
And now we have to figure out how to schedule between the cues because I've just introduced priorities。
High priority low priority in between。 So how do I deal with that。
So one idea is fixed priority scheduling you always do everything at the top first and then the next you and then the next you。
Or we could time slice。 So that each cue gets a certain amount of CPU times the first the top one gets 70%。
The next one gets 20% the next one gets 10%。 So， can somebody tell me which one of these they might favor and why。
Go ahead。 Which one。 You want to fix priority or the time。 Okay。 Okay。
so if you notice here the fixed priority scheme has straight priority so that the short ones always run first。
So the question that you should be thinking about is why might I do time slice instead of fixed priority maybe that's the way I should ask the question yeah go ahead。
Yeah， so the time slice version is avoiding starvation of the poor jobs that happen to fall to the bottom。
Because we're continuing to give them at least 10%。 So it's kind of like priority。
but with an out to make sure these guys already run always run a little bit。 Okay now。
Notice the heuristic we're talking about here sort of starts things at high priority and slowly demotes them。
If they run too long。 You can imagine an arbitrarily number of interesting complex heuristics to try to assign what you things are in。
And pulling it up or down based on how it's behaving isn't that what we've got here。
If it behaves with a bunch of short bursts it close to the top of it behaves with a lot of long bursts it close to the bottom。
And then we schedule based on that。 Okay， and you could almost imagine this is a very simple idea but you could have something more complex。
Where every job that comes in gets classified by some heuristics put on a cue and scheduled with that cue。
And now， whoops， we just lost our better camera back and now the question is。
how do you build those heuristics。 And why not just say well， doom。 Okay。
I like doom we're going to call that interactive and I like this other thing。 Okay。
and we're going to just keep。 Classifying apps in a huge table。 Okay。
you can imagine heuristics like that。 And you know the history of scheduling and operating systems is kind of rife with people trying to do exactly that。
Okay， so， and an interesting thing I will tell you here is once you start having heuristics complicated or not。
You can start thinking about this as the user。 If they know the scheduling policy can now be foil can foil the policy。
So they can come up with countermeasures like if a user wants a lot of CPU。
what they do is they do a bunch of print apps because those are I also make short bursts for them。
and they'll stay at the top and they'll get a lot of CPU。 Okay， and in fact。
in the early days of computer games where you have to a fellow program playing with each other whatever。
So， there's actually an example of somebody who figured this out and one of the fellow programs got a lot more CPU time because they figured out to do enough I always to keep themselves to the top of the scheduling queue。
Okay， so heuristics can be gained。 Let's talk about the Linux 01 scheduler。 Okay。
so this was in the two。0 version of Linux。 It had 140 priorities。 Okay。
where now lower here is higher priority。 The bottom hundred priorities， 0 to 99。 So， you know。
so we'll call real time priorities。 All right， and the top 40 were ones that were used by regular user programs。
Okay。 So there's 40 for user tasks and that's set by a nice， how many people have discovered Nice。
Okay， so nice is a program that you run in the shell that says okay this guy's running but make it higher priority or lower priority using that。
And unfortunately for many people running on shared machines you can only make the entire priority if you're super user。
Okay， you can always lower your priority。 So what was good about the 01 scheduler was it had lots of options。
And run real time stuff we'll talk about that in a moment on the lower priority ones。
and it had a bunch of heuristics in the high priority ones to try to figure out whether something was interactive or not。
and to move things among those 40 priorities。 Okay。
and there were two separate priority cues and active and expired queue。
And so the way that it avoided starvation was， it would take all of the jobs。
and it would run the highest priority first and the next and the next。 Meanwhile。
new jobs would come in on this other inactive thing yet。
And then when you emptied out everybody on the active queue you'd swap them。
And you'd run the next one and swap them and run the next one。 And so as a result。
you made sure that every priority got to run a little。 Okay， and it adjusted the quanta downward。
So， so that as you went down you've got less and less of the CPU。 Okay。
and so the time slice dependent on priority was linearly mapped onto the time slice range。
And then you've got a multi level queue， one queue per priority so you can think this is like there's 140 cues。
Okay， and execution got split into time slice granularity chunks。
And it was round robin through priority。 So this is kind of like。
we took all the stuff we taught between last class and this one。
and he put it all together into 140 priorities， and you decided you wanted to have real time stuff at the same time you had interactive stuff。
You might come up with this。 Okay， I could imagine this would be something you might come up with over coffee sometime。
All right。
All right， and this is just showing how the two users swap。
And the thing about the 01 scheduler was there's a huge number of ad hoc heuristics。
So if you look at those 40 priorities， what it did was it tried to you take the nice value that was given oftentimes right in the middle。
because that's sort of the default。 And then based on its assumption。
It's observation and some heuristics， it would even move it would move it down in priority or up in priority plus or minus five。
Purely based on whether it thought something was interactive or not， and it did that on heuristics。
Okay。 So heuristics plus or minus five in the priorities they had they would compute sort of how often it sleeps and use that to decide what to go up or down。
give you something called an interactive credit。 You earn credit when you sleep。
you spend it when you run a long time。 You get some here hysteresis so you're not flopping around in your priorities。
Whatever you come up with the interactive ones get to run more。
Isn't this great because it solves all of the world scheduling problems。 Okay。
And then the real time tasks don't do this adjustment on priority they run strict priority。
Because if you've decided you really want them to run in a certain priority you do。
How many people think this sounds great。 I'll have a couple of you yeah there was a question go for it。
So hysteresis is basically anytime you have something that's， say， moving a value back or forth。
Hysteresis is a time averaging concept of trying to prevent it from flopping too rapidly so when there's。
you have to wait for the pressure to raise it to be around for a little while and then you raise it。
And then hysteresis is preventing it from flopping the priorities frequently。
Okay there's lots of different types of hysteresis you'll run into over time here but。
So this sounds flexible。 I will tell you Linus hated the old one scheduler it got so complicated and let me tell you why you put in some heuristics。
You're trying to do better at your scheduler but you don't want to piss off your existing application holders because they already know how the scheduler is supposed to behave。
So if you change anything you got to keep the old heuristics in there maybe you have some new ones and the heuristics get more and more and more complicated。
And there's an implicit assumption that your users will always， you know。
get the same heuristics they had before。 Yeah， messy。 All right。 And so by the way it got。
but it got punted for something we'll talk about later in the lecture。 Okay， so we have the exam。
This is。 Oh， I guess this is this type here so our mean is kind of around 53 or so。
If you have any regrade requests they have to be in by Sunday。 Okay。 Solutions are posted。
I've already seen there's a thread up on Piazza for people asking questions about solution。 So。
please do。 I want to apologize for the size of the answer key boxes or the answer boxes that was really not。
A good thing we this was an experiment to see whether it made everybody's life easier and I think it certainly made your lives harder。
So， we'll do something better next time。 So this is。
I just realized that these numbers are actually not correct at the moment。
Somehow I put in the right answer the right。 I put in the right。
Herb and then it seems to have disappeared on the version I'm showing you so this is not correct。
But the numbers I remember roughly was that the mean and median were pretty close to each other about 53。
That's about the right number and that tends to be about a B。 Okay， so that's a good question。
Project one final report do next week。 Also next week we have pure evaluations。
So what I want to say a little bit about why we do that is we're very interested in how your groups are performing。
Okay， and so the key idea behind。 Here evaluations is to get us give us a flavor of who's contributing what in principle if there's somebody who's not contributing ever anything at all。
In principle， we take a zero some approach and some of the points from people who are not contributing at all get transferred over to the people that are。
Okay， but this is based on a lot of things， especially your TAs understanding what's going on。
Part of the data that we want to understand what's going on is the peer evaluation process which everybody needs to do。
And the idea is simple。 If you have four partners or if you're in a four person group。
Your other partners are how many of them are there three right those are the other not you。 Okay。
four people。 The other people are the three people that are out there。
Every person in your group gets 20 points。 You add it all up that's 60 total points and you can hand that out to your other members any way you want。
Okay， you can't give yourself points。 You are notoriously bad judge of how good you are。
We don't we don't want to know how good you think you are we want to know how you believe the other folks are working and we want some justification based on。
you know， right， right up what you say。 Okay。 Questions。 So if you're in a three person group。
how many people are in the other。 Two。 The other is not you right so three minus one is too。
How many total points you get 120。 You get to distribute 60 times to wherever you want。 Okay。
do we got or not 120 40。 You get to distribute 40 however you want。 Okay。 Good。
If you're in a two never mind。 Okay， we won't go through that anymore。 Okay。 Any questions。
I will point out by the way that the first midterm tends to be pretty hard in this class because it's about synchronization which is one of the hardest topics in this class。
Yeah， go ahead。 Yes。 Well， they're kept。 We know them。
Now we're not going to tell your we're not going to tell your group members。
unless you want us to what you put in your evaluation。
And this is just one of many tools we use to try to figure out how you're doing。 Okay。
Your TA is your， your main person who needs to know how you're doing。 Okay。
so make sure they know how you're doing and they find they see you at design reviews。
They see you in section。 Okay。 Questions。 All right， so let's go forward。
So does the OS schedule processes or threads。 Well。
many textbooks use the old model with one thread for process。 So in a lot of cases。
if they don't make it clear， they're talking about a one thread for process thing and they might say schedule processes when they mean schedule threads。
Switching threads versus processes have different overheads。 We already talked about that。
So switching processes has more overhead because you're switching the translation tables and flushing TLBs and so on。
Okay。 And if you remember， however， simultaneous multi threading is a good example where the hardware switches for you and that's fast。
Now， multi core is something we haven't talked a lot about in this in this class so far。
but algorithmically it's not a huge difference from single core scheduling except that there's more cores to use。
Okay， but one thing where it is very interesting is you can have a per core scheduling data structure for reasons of cash coherence。
etc。 But you can have what's called affinity scheduling so affinity scheduling says if I have a bunch of threads and thread a was right was running on core one in the past。
The scheduler might try to keep affinity with core one and rerun that thread on the same core。 Why？
Well， because there's better cash state better TLB state， etc。 Okay。
So one of the things you can take advantage of differently in multi core than you could in single core is affinity scheduling。
And let me show you a different one。 Okay， so we talked about spin locks that look like this where a choir says while test and set。
You know， wait， and the release that's required release is set the value to zero。
Now is this a good thing to do。 Well， we said no。 Why not。 Busy waiting， right。
we're wasting cycles。 Yeah。 However， when might this be preferable。 Well。
when you have a multi core and you can make sure that the threads that are synchronizing are on different cores and running at the same time。
It might actually be better to do a spin lock on one core if you know the other threads running on the other core because it'll keep running and release you and go forward。
Okay。 So， the only way and by the way， this is what that test and test and said I talked about really comes into play。
Okay， because then you're not wasting a lot of memory bandwidth。
And basically that looks like this you basically say while the lock is taken。
Just have a really tight loop here。 And then as soon as it goes to zero。
then you do the test and set。 And this test and test and set actually avoids problems with ping ponging of values。
But you only time you want to do spin locks is when you know for a fact that the person that might be the thread that might be releasing is also running on a different floor。
Makes sense。 Okay。 And so the only way you do that is with all gang scheduling。
So we talked about affinity scheduling couple slides ago gang scheduling is a simple idea that if you have threads that are known to be working together。
you gang scheduled them so that they are always running simultaneously on a set of cores。
And so there's a lot of multi processor gang schedulers that you can use。 Okay。
and we won't talk much more about them。 And so there's some alternatives where the OS kind of tells the parallel program how many processors are actually running。
And we're not going to talk about that right now。 But I do want to talk about something else。
which is real time scheduling。 And that Tesla we talked about that better stop when you hit the brakes。
or when it decides you want to break。 So， the goal of real time scheduling is very different from the goal of the scheduling we've talked to up until now。
right， the set of goals we started out with last time and this lecture as well。
Minimizing response time or maximizing throughput or fairness。 Okay。
the case of real time scheduling is that predictability is more important than any of those things。
It's far more important to know that when you hit the break。
The breaks will engage in less than pick a number， nine milliseconds， whatever it is。
so that you can design the hardware to do that。 Okay， so that's a real time requirement deadline。
Okay， and we don't care if it happens in two milliseconds， or seven or nine。
It's just got to happen by nine。 Okay， and so if we can use scheduling to guarantee deadlines without worrying about the fastest possible but the most predictable possible that's where we get into real time。
Okay， everybody see the difference。 So you can kind of think of the previous things the previous goals were really optimizing up some performance metrics。
This is optimizing a predictability metric。 Okay， different problem。
So hard real time is typically when you have time critical safety oriented systems。 Basically。
you got to meet all the deadlines。 Because if you don't somebody might hit a deadline， right。
so this is， this is a situation where you're kind of dealing with the breaks in a car。
or you've got a heart monitor in a hospital and there's some deadlines there or there's other things。
These are hard deadlines that have to be met。 And there's some pretty good standard things I'm going to show you the earliest deadline first scheduler but there's also least laxity first and rate monotonic scheduling。
etc。 So， software real time is like hard real time but softer。 Don't think about that too long。
It's basically says that missing a few deadlines is okay。 Because nobody will die。
Good example of that is video right so video you can occasionally miss a frame without noticing too badly right in fact you could often pick it up。
So， good video and coders will be able to adapt to network problems by dropping frames and doing other things。
Why is it real time at all well because you need to have a frame every well defined period of time。
but we call it soft real time because we can allow a little bit of flop。 Okay， so the， you know。
slop， not too much slop but a little bit of slop may make it easier to implement。 Okay。
and there's some examples of that which if you take 262 with me we'll talk about， for instance。
the constant bandwidth server， which gives you soft real time by using earliest deadline first did a clever way。
Okay， question。 So the most important thing to think about for real time is it's a little different than what we've been talking to up till now。
And for instance we're going to talk about what typical characteristics of a real time task are。
So rather than tasks having burst times in this case they have deadlines and known computation times。
So for instance here is a set of three threads and notice that we have the time when thread for arrives by the way time is left to right。
So thread for arrives first in this great rectangle here represents the computation that that thread needs to do。
And over here， I'm sorry I'm not showing you。 Okay， so， there's a pointer。 So。
thread for arrives at this point the greatest of computation but the deadlines here。
So what you can get from this figure is that if we schedule that computation anytime between arrival and deadline we're okay。
Okay， so that's C， which is the gray rectangle there has to represent worst case time of computation。
So a lot of these real time compilers and so on have to do very careful analysis of the code under all circumstances so that you know what the worst case compute time is。
Okay， now take a look at these three， these four threads and tell me if you only have one CPU is this a valid schedule for those four threads。
Why are one up。 Why is that。 Well， the simple answer here is simpler than you're going for notice that we've got computing overlapping that's not possible with their only one。
So， we're going to take a slice through time here you see we've got two things computing at the same time。
And so on the， on the chat here somebody says， not valid should prioritize test with earlier deadline。
Good idea。 So this is why earliest deadline first might actually be a good policy for us。
Here's why round Robin is not a good policy。 If what I do is I take that that set of things I showed you earlier。
and I try to schedule them with round Robin， what you see here is that round Robin really doesn't have anything to do with deadlines。
So， we just sort of switches out on a quanta， right。 So if you look。
we have thread four is the only one in the system so it gets to quanta。
and then when thread three shows up and thread two shows up。
Now we're alternating between four three and two， and then one shows up and now we're alternating between all of them。
And then， surprisingly we missed a deadline。 Why is that not surprising well round Robin has no idea about deadlines。
Okay， so why should it work。 Questions。 Early as deadline first assumes a couple of things so first of all tasks come in periodically。
So rather than a deadline， we have a period。 So what that just means is every time the thing arrives。
One period later is the deadline。 One period later is the deadline。
So we look at typically look at periodic tasks。 And it's a preemptive priority based dynamic scheduling so every task ends up with the current priority。
It ends up with a priority based on when it arrives， computing its deadline。
and the test whose current deadline is closest to now is the one that gets to run。
we'll preempt and run that。 So here's an example， where we have thread one has a period of four and needs one compute。
thread two has a period of five and needs to compute thread three as a period of seven and needs to compute。
they all arrive at zero。 All right， which one has the earliest deadline。 Number one， why。
Because it has the shortest period， which means that its deadline is for out。 Okay。
And so here I'm just computing the deadlines。 Notice that thread one's deadline is here thread two deadlines here thread three deadlines here。
which ones the earliest deadline。 Oh， thread one。 So it's going to get to run in the first place。
But now at this point， now we have to start running thread to because it has the next earliest deadline and so on。
And if you work your way through this。 You'll find it works。 But with some constraints。
does this always work for any set of threads。 Okay， somebody was shaking their head， why not。 Yeah。
why might the deadline be not possible。 Yeah。 So if I were to add up all of the blue here and it were to take more than 100% of the time。
It can't， it's not possible to schedule the CPU。 Okay。
And so the way we figure that out is take a look here this thread one really needs 25% CPU。
Why do I say that it needs one unit of CPU every four units。 Okay。
And so you could imagine in the best of all possible world that perhaps if I added up all of those utilization and it was less than what。
What do I want to be less than if I had all the utilization up 100% or one。 Then it might work。
And in fact， even EDF of course won't work if you have too many tasks。 Just what we said。
although P is for deadline here。 It's basically out of all the utilization if they're less than one。
you have a feasible thing。 Okay。 And so that is what's great about EDF is you can give a very simple feasibility test。
which is sufficient。 Okay， and necessary for this to be a scheduleable and you can run your run this very simple equation and see whether you can schedule it。
Okay， so questions。 Yes。 Ah， yes。 Very good。 I'm glad that you brought that up。 So he says， well。
the scheduler has to trust what the user said。 Professor Cooby。
didn't you say at the beginning that the user never knows。 So this is impossible， right？
I did you didn't say that， but I'm saying that， right？ So the answer is。
in the case of real time scheduling。 The only way you could schedule is if you have very careful tools that evaluate what the maximum compute time is。
and then you relay that information into the kernel。
So real time scheduling is a good example where you have to trust what comes in with the threads。
Okay， but you know that behind all of that is some pretty complicated compiler analysis and so on to know。
Okay。 Good。 Good question。 Other questions。 Yeah。 How does it do it？ Well。
in it's very hard to get it right。 Okay。 And in fact。
what you need to do is it's worse than what you just said with computing number lines of code。
You have to turn it into assembly and then you have to compute cash misses and figure out what's the worst case cash misses and then add it all up。
And under the， you know， all possible circumstances。 What's the longest it could be。 Okay。
not an easy cap。 Lots of papers。 We could point you to on people doing that。
What's kind of an interesting alternative is folks over in Corey。
have even talked about building processors without any cash is there any other unpredictable things precisely so it's easier to get compute。
Okay， so you could imagine when you're doing a lot of real time scheduling you might actually build a custom processor to make it possible。
Okay。 Now of course the， the goal would be to use a regular processor so you could do both real time stuff and regular stuff like watch videos。
And so， you know， then what has to happen is you have to way overestimate the computer。
Good question。 All right。 So， let's talk a little bit at one more topic here。 So。
I want to leave real time with you。 So what do you want to get out of the real time thing one。
You need to have really good estimates on compute to the deadlines really matter。
especially if it's hard real time because， you know， somebody could die as a result。
So that's very important。 And certain schedulers like EDF allow you to compute upfront whether it's even possible。
Let me tell you why EDF is not always used。 The problem is that to order to run you。
you notice how we're actually splitting。 We actually end up splitting things up if you were to follow it you would see that we pre up。
And some threads will run for a little bit and then be preempted and then come back and run。 Okay。
And I noticed I don't have that here in this example but it's that comes up with EDF。 And so。
you know， you may not want to preempt。 And so there are simpler things that don't require preemption that don't allow you to have this 100% utilization。
So there's a bunch of different schedulers will talk and if you， you know。
come to 262 will actually talk about several of them。 So， let's circle back for a moment。
And then the next question is what starvation is what starvation is when a thread fails make progress for an indefinite period of time。
And starvation in this lecture is not deadlock。 That's kind of the next lecture。
because starvation in principle can resolve。 So start a nation is a situation where you're not making progress。
But if the right circumstances show up， you'll eventually make progress。
So what are causes of starvation well scheduling policy。 For instance。
if you have a priority scheduler， and you're， you have a stream of high priority things maybe the low priority task never runs。
That's starvation it's that deadlock because the high priority queue could finish and then the low priority thing would run。
Okay。 Now， deadlock is going to be distinguished next time by the fact that there's an actual cyclic dependency that can't even in principle be resolved。
So， there's a straw man so called non work conserving scheduler。
where a work conserving scheduler is one that never leaves the CPU idle when there's work to do a non work conserving scheduler could trivially decide not to run stuff。
And now you got starvation。 Okay。 So we'll assume that we're not going to do a non work conserving scheduler because that's the bad idea。
So what about last come for a serve。 So this is a stack。
So if you have this as a scheduling structure， a late arrivals run get really fast service。
And the ones that arrived earlier may sit back there in the depth of the stack and never run。
So this should be a pretty trivial about。 Pretty trivial clue as to why this has starvation。 Okay。
Now， of course， the flip side of life， oh， it's bifo。
The problem there is if too many jobs arrived and there's not enough compute time。
Then the new jobs just never run。 So is first come for serve prone to starvation。 Well， if a task。
So this was from last time we kind of showed this example of the convoy。
where the red task runs for really long time and all of these things build up。 This， however。
is not starvation because it eventually lets things run。
What would be starvation is if it gets stuck in an infinite loop。 Okay。
and that's why first come for service， not a particularly good general operating system policy。
And why we want to put preemption with timers into the picture。 Okay。
but I will tell you some of the early personal operating systems actually could be subject to。
Is round robin prone to starvation。 Well， each of the end processes get one over answer the CPU。
Always。 And if there's a quantum cue， then you know for a fact that you'll always get to run。
In N minus one times Q milliseconds or whatever so there's no starvation there either。 Right。
because you always get to run。 Now， of course， round robin then it's fair in terms of how long you have to wait。
It's not necessarily fair in terms of throughput because you can voluntarily give up your time slot and then you won't get that time back。
How about priority scheduling。 That prone to starvation。 I mean。
people think priority scheduling is prone to starvation。 Okay， not too many of you。 Yes。
we've been saying it's prone to starvation the whole lecture。 Right。 So yeah。
why because you could have a bunch of high priority jobs and never let the low ones run。 All right。
But there's more serious problem which I want to kind of close out with today。
such as priority inversion。 Okay， and this is a situation where even high priority threads might become starved。
Let me show you the example。 Here's a priority scheduler job one running at priority level one。
Doesn't acquire。 I'm a lot。 Okay。 So at this point。
which job does the scheduler choose while job one was running。
but now we got three jobs on the queue which one gets to run next。 Well。
assuming for a moment that high priority is priority three。
not always a clear thing and you have to ask yourself but in this case job three gets to run。
So what happens if job three runs and tries to do an acquire will acquire succeed。
Because the low priority job one already has a lot right。 So here job three is blocked on a choir。
Job one has the lock。 And so job three won't get to run until job one completes except job two is stuck there in the middle running。
Okay。 This is called a priority inversion because the low priority thing is preventing the high priority thing from running。
And so whatever you thought you were doing with priorities by putting them in this priority it just failed。
Okay， because your attempt to classify priorities didn't work。
Does everybody see why this is a priority inversion？ Yes。 So why don't I let job which run。 To well。
but job to may run forever for a long time。 See， and as long as job two still has time to run。
it's not going to let job one run。 So the point of this was。
if we let this run for a while and job two has a lot to do we're stuck。 Okay。
and and job three is stuck not making progress because of a low priority test that's a priority inversion。
And so we have to say it won't resolve but right now we're stuck in a priority inversion。 Yeah。 Yes。
Great。 He says， would it make sense for job three to somehow change job one's priority to let this happen。
Yes。 So we'll get there in just a second。 Good。 Good question。 I paid him to say that。
So we're a high priority task is blocked waiting on a low priority task。
And the low priority one must run for the high priority to make progress。
And a medium priority task can starve the high priority one。
You may think that this is ridiculously complicated。 But it isn't。 I'll show you in just a second。
What else might lead to this starvation。 Well， here's another one where the high priority thread does a spin lock attempt to acquire but the low priority one already has the lock。
Okay， now the high priority one's just going to be spinning in a loop and the low priority one's never going to run and we're never going to resolve。
Okay。 So， here's the donation idea。 Very good。 So， right。 Job three tries to do the acquire。
It goes to sleep， but it gives its priority to job one。 And job one runs for a while until release。
And then the priorities are restored and job three gets to acquire no priority inversion。 Okay。
Great。 Everybody catch that you want to see that here we go。 Job three is blocked。 Okay， wait。
let's go back here。 Okay， so job three tries to acquire job three block。
but it gives its priority job one job run runs releases the lock。
Job three gets to go and everybody's happy without priority inversion。
Welcome to project number two。 But let's close on something more interesting than project two for now。
In July 4 of 1977 pathfinder lands on Mars。 Pretty amazing process of landing with balloons that bounced it out of orbit onto the ground and the balloons clap so it's great。
It worked perfectly。 First us Mars landing since Vikings in 1967。
Now we'll delivery mechanism as I said with with balloons around it and they bounced it out of orbit onto the ground and then the balloons deflated and the rover went off。
It's beautiful。 You know， the best example of technology gone。 You know， perfectly。
And then few days into the mission。 Multiple system resets happen reboot reboot reboot。
That's the old。 That's kind of scenario where you've done all this great job of delivering a rover and it's not working。
Okay， the system is rebooting randomly。 I'm sorry。 How many people ever had that happen to a phone。
I actually had that happen to one of my phones， but。 What was the problem priority inversion？
Believe it or not。 A low priority task， which is collecting data grabs a lock on a bus。
And then the high priority task。 Needs to grab that lock to actually transfer the data。
And meanwhile， there's a medium priority thing that's running。 It actually happened。 Okay。
and why did this reboot？ Well， fortunately， they had a watchdog that noticed the progress wasn't happening and it decided to reboot everything。
So that it could keep going。 Why is that fortunate？ Well。
it meant that they could debug it from earth and figure out what was going on。 Okay。
and what they figured this out， believe it or not。 And the solution was。
Somebody in the instance in the interest of making everything be high performing decided to turn off the automatic priority or donation mechanism in the operating system because well that's going to waste time tracing locks down so we don't want it。
And it turned out if they hadn't done that， this would never have happened。 But through debug。
Through the debug mode remotely from earth， they were able to go in and turn the tri priority and donation back on and voila。
they fixed the problem。 Okay， so if you think the priority donation is not necessary。
You will be surprised。 All right， so let's finish this up。

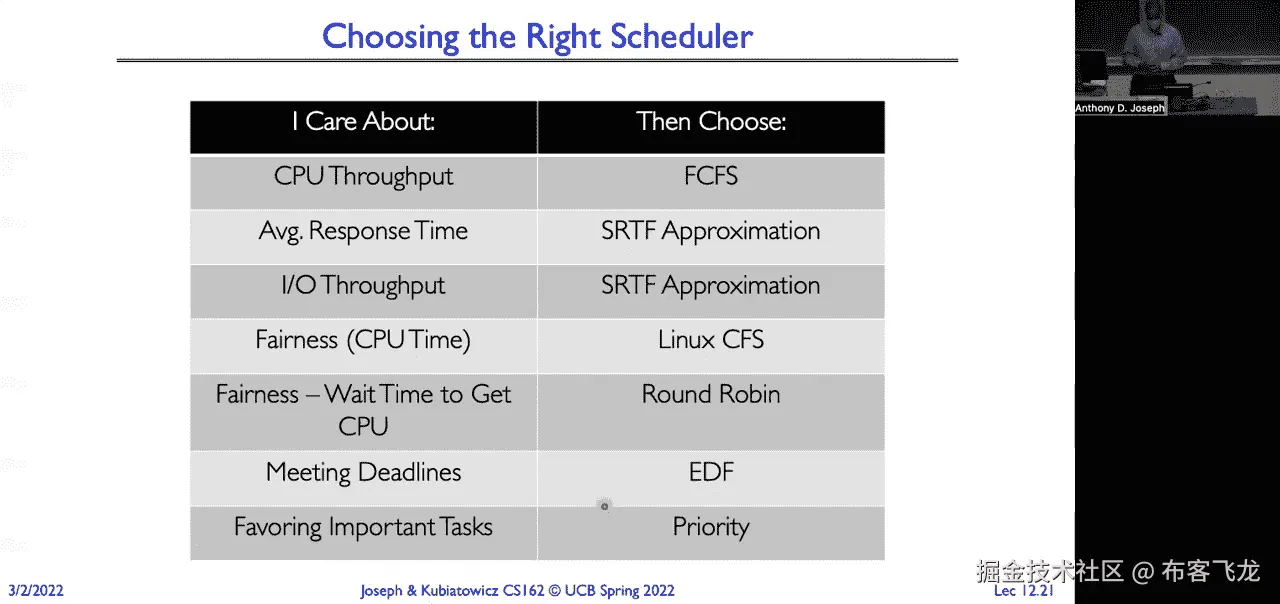

So we talked about some traditional performance based scheduling for goals minimizing response time maximizing throughput fairness。
But then we introduced predictability。 So I wanted to make sure you were aware that real time schedulers might have a very different set of goals。
We talked about round robin scheduling a little bit more。 Pros are it's better for short jobs。
We talked about the guaranteed not to exceed optimal shortest job first or shortest remaining time first。
We talked about the multi level feedback scheduler as an approximation of shortest job。
shortest remaining time first。 We talked about real time schedulers like we talked about lottery scheduling。

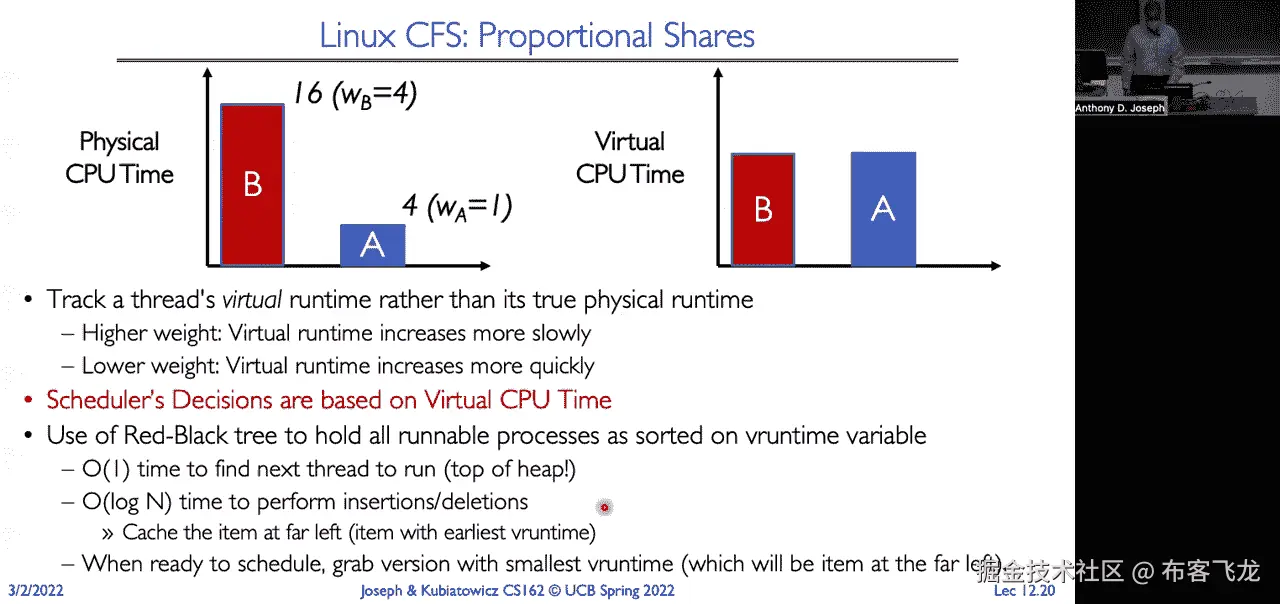

The thing we didn't quite get to which we'll get to next time is the Linux CFS scheduler。
which is what Linus after getting really annoyed if you'll one scheduler decided to do instead。
All right， next time Anthony will be here teaching。 He's back。 So I will see you， Mignana。
but have a good rest of your day and have a good weekend。 Thank you。 [ Silence ]。
P12：Lecture 12： Scheduling 3 Starvation (Finished), Deadlock - RubatoTheEmber - BV1L541117gr
Okay， can everyone hear me？
All right， let's get started。 So this is our third lecture on scheduling。
And we're going to talk about some more scheduling albums。
Then we're going to talk about starvation。 And then we're going to talk about deadlock。
how to detect it， and how to avoid it or prevent， it。 Okay。
so remember from the previous lectures on real-time scheduling that the goal here。
is predictability of performance。 So we want to predict with high confidence what the worst case response time is going。
to be for a given system。 Now in a real-time system。
the performance guarantees are going to be either task or they， could also be class related。
And we want to guarantee them in advance， a priori。
So we want to contrast that when we think about conventional systems where performance。
is going to be system-oriented or it might be throughput-oriented。 And we kind of look back to see。
you know， how did we do in terms of our throughput， our， performance in the last， you know。
say minute or 10 minutes。 Now for real-time systems， it's all about enforcing predictability， right？
And that's not necessarily going to be the same thing as fast computing。
So when we think about hard real-time systems， right， so this is like the anti-awk breaks。
in your car or something like that， right， they're time-critical safety systems many， times。
It could also be factory automation， you've got robots or something like that。
We want to meet all of the deadlines if it's at all possible。 We want to design our system。
resource our system， to ensure that we can always meet， the deadline。
So the number of tasks we're going to put into the system versus the resources we have。
to service those tasks and determine that in advance。
Lots of different scheduling algorithms that we looked at for being able to do that。
Now in contrast， there are soft real-time systems that we use for multimedia。
So for those of you who are at home， there's lots of systems between me and you。
All of them are using soft real-time to try and guarantee that my video， my audio gets。
there uninterrupted。 But there's no guarantees which means occasionally you may see a frame skip or hear an audio。
skip。 Okay， now if we look at algorithms like shortest remaining time first or multi-level feedback。
cues， are they prone to starvation？ So if you think about it， right。
in something like shortest remaining time first， we might。
starve those long running jobs in favor of the short running jobs， right， because it's。
shortest remaining time first。 We have that same fundamental problem with priority scheduling where we give all of the。
time to the high priority jobs and no time to those low priority jobs。
Now if we look at something like multi-level feedback cues， that's just an approximation。
for us trying to implement SRTF。 We're looking back at the past to see what the performance was rather than knowing what。
the performance is going to be in the future in terms of like the CPU bursts for an application。
So it's going to have the same problem， right？ We're going to start with， right， jobs are going to。
long running jobs are going to start， up here in the high priority， the short quantum cues。
and they're going to keep hitting the， end of the quantum and still want to run。
And so they're just going to get demoted all the way down to the lowest cue。
And if we look at how much CPU gets allocated， well if there are things in these higher priority。
cues， they're going to get run， which means those other jobs are just， the long running。
jobs are going to get started。 Okay， now think about it， right？
The policies that we've studied so far for scheduling are all around priorities。
We want to give the CPU to some job that has higher priority， which means that those jobs。
that have low priority or no priority， they might never get to run。 They get started。
But we didn't use priorities as， here's what we want the system to do。
It was more to basically give classes of actions for the system。
We wanted to give intentions of the system to say， hey， this job is more important than， this job。
not to say only run this job and completely ignore that other job。 So instead。
if you think about it， our end goal here is we have systems with lots of different， jobs。
some are CPU-bound， some are I/O-bound， some are interactive computations， some are， multimedia。
and we want the system to run all of the jobs， not just simply favor one class。
and only run one class over the others。 So we think about it， right？ Our I/O-bound jobs。
when they complete an I/O burst， they need just enough CPU so they。
can schedule the I/O device to do the next I/O operation。 Similarly， if we have interactive jobs。
we want performance to be good。 When you type a keystroke。
we don't want it to take several seconds for that keystroke， to pop up。 And for our CPU-bound jobs。
we want to be efficient。 We want to run those through。
grind them through the system as quickly as we can。 Things like context switching。
those are only going to make those CPU jobs run， bound jobs， run slower。
because you can be overhead of context switching。
At the same time， think about the landscape we're operating it。
When we think back to the dawn of computing， back in the 50s and the 60s， it was all about。
the mainframe， right？ And you had a lot of people per computer。
There were only a few mainframes in the world at the very start， and they were serving millions。
of users。 And so if you think about the cost of those mainframes。
it was anywhere from tens of millions， to hundreds of millions of dollars。
So very expensive cycles on those machines。 But now look where we're at， at the Internet of Things。
If you sit in a modern automobile， you're surrounded by dozens of computers。
There could be potentially 40 different computers， microcontrollers， microprocessors around you。
Just look around this room。 There's computers and everything that you look at。
So the ratios have completely flipped。 Lots of computers per people。 Cycles are cheap now。
But when we first started thinking about scheduling， it was in this context where it's these ever。
so precious cycles that we need to share between thousands of users using our mainframe。
And so schedulers really were designed around priorities for doing that， for allocating for。
the CPU intensive， the I/O intensive， and so on。 In the 80s， we saw the rise of personal computing。
So now that ratio flipped from being thousands to being one person per computer。
Cycles are a lot less valuable at that point。 Even when we look at workstations or server on the network。
a departmental file server， serves 100 people， maybe。
So different machines now we also start to think about having different purposes。
I have a network file server。 It's a computer dedicated just to serving files。
Not doing any compute。 Nothing interactive， just serving up content。
The shift now is sort of the fairness and avoiding the extremes。
We don't want to have starvation in these environments。 Now we think about in the 90s。
we had the emergence of cloud computing data centers。 So 50，000 machines in a warehouse。
Now I think about running Google's Docker， Google slides to make my slides for the class。
Not running it on my laptop。 It's running in a data center that I'm sharing with millions of other users in the area。
It almost got back to the mainframe error， except instead of a single computer， it's。
tens of thousands of computers that are working together as efficiently as possible。
to give me an interactive experience that's identical to if I was running PowerPoint locally。
on my machine。 And so now when you start to think about it。
it's now instead about predictability in terms， of things like the 95th percentile performance guarantees。
And it's pretty amazing the amount of engineering that systems engineering that you have to do。
to make that 50，000 computer perform the same as my local application running locally。
But I get advantages around server consolidation。 Far more efficient to manage a data center filled with 50。
000 computers than it is to， manage a bunch of desktop PCs。 At the same time。
you also have to deal with things like flash crowds。 Think about if you're， I don't know， CNN。
com or you're the New York Times。 Last week， you watched your network and system traffic go from whatever your baseline is。
up by a hundredfold in the matter of a few minutes to hours。 And yet for the end users。
they saw that same 95th percentile performance because of the。
tremendous amount of scaling that you can do in these data centers。
Much harder if it's just a single machine and I've suddenly got to deal with 100x the， traffic。
Okay。 So we can ask really the question here is if we're going to prioritize some jobs， does。
that necessarily mean that we're going to starve those jobs that aren't prioritized？ Well。
with the approaches we've looked at， that's exactly what's going to happen。 Right？
Those jobs that have lower priority， if there are enough high priority jobs， those lower。
priority jobs will never get to run。 All of our CPU will get allocated to those higher priority jobs。
So we can look at some approaches that can work to guarantee that you always get some。
share of the CPU given to those lower priority jobs。 Right？ So with priority based scheduling。
we're always going to prefer to give the CPU to a job that， has higher priority。
If there is a job on the ready queue with higher priority， it gets to run。
Which means lower priority jobs could get starved。 So in contrast。
what we could do is think about allocating the CPU proportionally。
Because ultimately that's what we want。 Right？ You know。
we have this mix of diverse applications that are running and we want each of those。
applications to get some fraction of the CPU。 The higher priority ones。
we want to get more of a fraction of the CPU。 The lower priority ones。
we want to get less but some CPU。 If we didn't want them to get any CPU。
we would just simply not admit them to the system。 Right？ Okay。
So the goal is if each job is share of the CPU according to its priority， low priority。
jobs will run less often but they will run， there will be no starvation until they'll be。
able to make progress。 Right。 So remember lottery schedule。 The basic idea here is you give。
given a set of jobs， our mix of jobs， we're going to allocate， each with a share of tickets。 Right？
So in this case， we're going to give 50% of the CPU to job A， we're going to give 30%。
to job B and we're going to 20% the last 20% to job C。 And so we're going to give out。
tickets according to a jobs priority。 So we can see here that for example。
job A in red gets lots of tickets。 It gets 50% of the tickets。
And job C gets 20% of the tickets and job B in blue gets 30% of the tickets。 Now in every quantum。
every tick， we have to make a scheduling decision。
We're going to draw one of those tickets at random and schedule that job or thread to， run。
So simple mechanism that we can use is to just take the sum of all of our tickets that are。
outstanding， pick a dart， throw that dart and jobs record the allocated number of tickets。
they have， order them by their tickets and then we just select the first J tickets such。
that the sum of that is greater than where our dart landed。 All right。
The problem with this approach is it works well when we look at the long term but in the。
short term we can have tremendous amount of unfairness。 So we have two jobs。
job A and job B that have the same priority and the same runtime。
So we give them each 50% of the tickets you would expect that the runtime of A relative。
to the runtime of B would be the same。 That ratio would be， if we took a ratio it would be 1。
What you find is for shorter running job lengths it can be very unfair。 Now why？
Why wouldn't it just be 50%？ It has half the tickets。 Any ideas？
How am I picking which one gets to run？ I use a pseudo， oh， how do I pick？
I use a pseudo random number generator which has that keyword pseudo。
It's not a truly random generator。 It's going to have some biases in the values it produces。
And as an aside， the author of a lot of rescheduling spent months trying to design a random， pseudo。
random number generator that was both fast and efficient but also was very uniform in。
the distribution of values that it generated。 Turns out in practice even if you try to do that if you look at smaller draw sets from。
drawing only a few because my scheduling， the amount of time I'm going to make scheduling。
number of times I'm going to make scheduling decisions is small， I'm going to see those， biases。
If I generate millions of pseudo random number from my pseudo random number generator it'll。
look very uniform。 But in a small subset it could look very， very biased。
And that's a problem when you're trying to generate random numbers。
Just same problem shows up all over the place it shows up in security contexts where I'm。
trying to generate random bits for a key。 And if I know what pseudo random number generator using and I know the biases and I know the。
starting conditions and seeds， I can oftentimes with high probability predict what your secret。
key is going to be。 There's a lot of work that goes into designing the random number generators for cryptographic。
applications where we don't want people to be able to guess the keys simply by guessing。
what random numbers get picked。 Okay， so that's the problem here is a randomness is not truly random and that throws off the。
scheduling decisions。 So as an alternate approach people proposed stride schedule。
So here the ideas we want to achieve this proportional share of schedule given to CPU。
given each one of our jobs but we're going to do it without having to use randomness。
So we'll avoid that sort of inverse of the law of large numbers， the law of small numbers。
biases problem that we saw。 So the stride of a job is going to take some big number divided by the number of basically。
your share。 And so if you think about it the larger the share of tickets that you have the smaller。
the stride that you're going to end up。 So here in this example if we set w to be 10。
000 and we give a hundred tickets then we're going。
to give b 50 tickets and see 250 tickets then a ends up with a stride of 100 b ends up with。
a stride of 200 and c ends up with a stride of 40。
Now each job is going to have a pass counter and what we're going to do is a scheduler is。
going to pick the job to run that has the lowest pass。
After that job runs we take the stride and add it to the pass counter。
After it runs for the quanta add the pass counter。
So if you think about this what this is going to mean is jobs that have lots of tickets。
have low stride are going to be moving that pass counter up more slowly than jobs that。
have fewer tickets larger strides and so their pass counter is going to go up much faster。
And since we're picking the one that has the lowest pass counter we're going to run those。
jobs that have more tickets more often。 But eventually their pass counter is going to exceed that of the jobs that have fewer。
tickets their pass counter and so then that job that has fewer tickets will get to run。
You can see here we're pre computing what we want that fraction to be effectively and。
we've removed randomness from the equation。 Yeah so the question is what if we have a really long running job that has like really。
small number of tickets do we have to deal with things like the counter overflowing。
And yeah so there are lots of messy issues we have to worry about because we want to。
be able to deal with the fact that over time even if we have lots of short running jobs。
eventually our pass counter is going to roll over also you have new jobs coming into the。
system what do you set their default pass counter to be so that they don't always just。
get to run till they catch up with the rest of the system。
So there's always like you know details like that that we have to worry about。
But the key thing is that even for that really long running job that only has a few tickets。
it still gets to run and so that solves a problem that we have with priority based systems。
Any other questions or comments？ Okay all right so let's look at another schedule the Linux completely fair scheduler。
So the goal of this scheduler is we want to give each process an equal share of the CPU。
Oh the question is is W just an arbitrarily chosen large number。
Yeah we want to pick a W that is really large so that we have a good range for our basically。
for our strides。 Okay so the goal here is each process gets an equal share of the CPU we have n threads。
that are simultaneously executing on so the way to think about it is you've got n threads。
simultaneously executing on one end of the CPU。 So it's sort of like that concept we looked at earlier with simultaneous multi threading。
where we could take and run multiple threads simultaneously by using the fact that we have。
extra functional units。 So giving each thread one one end of the CPU cycles。
So if it was a perfect environment perfect world you know if we looked at it at any given。
time what we would see is an equal allocation of the CPU time that's been used right so T1。
would have 1n， T2 would have 1n and thread 3 would have 1n。
And on general we can't do that right because real hardware doesn't work that way we have。
to give the entire CPU or you know with SMT we could potentially schedule a small number。
like 2 simultaneous threads。 So for a given quanta for now we're just going to assume one thread gets the CPU one for some。
cycles。 So we're going to need something that's going to keep us in sync so that we ultimately have。
this situation where you know when we look at it we're a little bit of time we basically。
see that they're all getting the equal amount of CPU time。
Alright so here's the kind of basic framework for what we're going to do。
We're going to track how much CPU time has been used for thread and then schedule the。
threads to make sure that we get to that one end point right so everybody's at the one。
end equivalent。 So same average rate of execution basically。 So how do we do this？
Well it's all about the scheduling decisions。 Which thread do we pick to run？
Well when we have to make that decision we look at all the threads and we try to repair。
the thread that's farthest behind on its average rate of execution。
So that's going to repair this illusion of complete fairness。
So here's an example where thread one it's ahead it's run for more than one end。
Thread two has run for less than one end and thread three hey we actually hit one over。
end for thread three。 So which one are we going to pick if we're trying to repair the illusion？
Yeah we'll pick the blue one thread two。 Because thread two is behind。
So it doesn't have that illusion of having gotten its fair share because its fair share。
would be one over end。 And it's very similar to a concept called fair queuing that we'll talk about later in。
the semester when we talk about networking。 Alright so we're going to do this using a heap like scheduling queue that gives us nice。
behavior in terms of it'll be order log n where ends are number of threads to add or remove。
threads and so we get nice efficiency for making our scheduling decisions。
Okay now if you think about it thread that's asleep it's CPU time's not going to advance。
So what's going to happen when you type a keystroke and the thread that was waiting on。
that IO event gets woken up。 Well it's going to be behind so it's going to run right away。
That's going to be really good for interactive performance and responsible。
Okay so in addition to having fairness we want to have a system that has a low response。
time that makes it good for interactive computing and we want to make sure it's free from any。
kind of starvation。 But everyone should get to run at least a little bit。
So we have a couple constraints we have to deal with here。
One is that we want to have a target latency so we want to have a bound on how long it takes。
before a thread gets responded to the response time。
So this will be our quanta so then we have to set our scheduling quanta and our scheduling。
quanta is going to be a function of our target latency over the number of threads that we。
have in the system。 So if our target latency is 20 milliseconds and we have four processes then our quanta。
is just simply going to be a 5 millisecond time slice。
Okay that makes a lot of sense but what if we have a lot of threads， a lot of processes， 200？
Well that would argue that we should have a 0。1 millisecond quanta。 That's a problem。
Remember back to round robin what was one of the big issues with round robin was picking。
the right size quantum so we didn't end up just spending all of our time saving and。
loading registers。 So that's why we're going to want to have a minimum bound on our quantum。
Even if it means we can't hit that target latency the tradeoff is yeah we could try。
to run with a 0。1 millisecond quanta and we just spend all our time context switching。
So we wouldn't hit it anyway。 Okay another goal that we have with the Linux CFS is throughput and so that means we have。
to avoid excessive overhead which means we can't have too many context switches。
So that's really going to set us give us a minimum granularity that we're going to want。
to have on our quantum。 So that we're not spending all of our time context switching。
So we're going to pick for given architecture what should be a reasonable lower bound on。
quanta and thus a reasonable upper bound on the overhead that we're going to have from。
context switching。 Alright so now our target latency might be 20 millisecond with a minimum granularity of。
1 millisecond and say 200 processes so we'll give each process a 1 millisecond time slice。
Alright a little bit of an aside because we need to talk about how priorities get how。
users interact with priorities and practice and Unix systems。
So when we look at the industrial operating systems that people use back in the 60s and。
70s priority was just like an integer you'd specify and that enforced whatever your target。
scheduling policies were。 When they were developing Unix here at Berkeley they were thinking well you know rather than。
thinking about it as just like priorities we want users to be nice to each other。
And so in Unix there's actually a system call a nice system call that you use to set the。
priority of a process。 And priority ranges from negative 20 to positive 19。
Negative values as sort of the connotation would imply they're not nice。 Positive values are nice。
So if you want to be nice to your friends who you're sharing a system with you nice your。
processes to higher values。 That will cause the system to give less time to you your process will spend more time on。
the ready queue。 Their processes will get more of the CPU。
That's where the opposite side is if you don't want to be nice to your friends then you just。
nice all your processes to minus 20 and they run and you know that's not a good way to。
keep friends out。 Okay so the scheduler is going to take those higher nice processes and keep them on the。
ready queue。 They're not going to get to run as often whereas the lower nice processes they get to run more。
often。 Now with an order one scheduler this is just going to translate directly into priorities。
But we're going to look at it differently with Linux CFS。
Okay so with Linux CFS we're going to change instead the rate of the CPU cycles that we。
give to processes as a function of their nicest or prior。 So how are we going to do that？
Well think about it right if we want to give more CPU to some and less CPU to others so。
we want different proportional shares but guarantee everybody gets some you know our。
model is we want to effectively want different threads to get different numbers of cycles。
over a period of time。 So those that we want to give higher priority to will get more cycles over some period of。
time。 Those we want to give less priority to go get less cycles over that period of time。
So the easiest way for us to do this is just with weight。
So we're going to assign a weight to each process W sub i and that will compute what。
our switching quanta is going to be how long we let it run for。
So if everyone were to get an equal share we just simply set everyone's weight to one。
And then what we're going to do is apply basically so that would be one over so it would be one。
over。 With a weighted share if we set everybody to one what's it going to be it will be one。
over the sum of all of our weights times the target latency。 Well that's just n。
It's just going to be one over n times our target latency so that's our basic equal share。
And now we have the flexibility if we want to increase or decrease somebody's priority。
we just change their weight and that's going to give them a different share。
Let's look at this in practice。 So we're going to reuse nice as our stand in for priority because that's how users and。
Unix tell the system this is higher priority or lower priority so lower value negative not。
nice higher priority higher values are nicer than lower priority so it's a little little。
inverse if you want to think about it that way。 And so we're going to use the nice value to scale our weights we're going to do it with。
an exponential function。 So it's going to be 1024 divided by 1。
25 raised to the power of the nice value。 So if we have two CPU tasks that are separated by a nice value of five。
And that means the lower priority or lower nice value is going to end up with three times。
the weight of that higher priority。 So it's 1。25 to the fifth is roughly three。 Yes。
So the question is if it is three times the rate does it run three times as much。
Yeah it's going to run three times longer。 It's going to get longer quanta that it gets scheduled for。
And then we also you'll see in a moment we also have to deal with like how do we deal with。
CPU time and accounting for who we select to run next。
Okay and that gets us right at our next point which is instead of using actual CPU time。
so sort of wall clock time we're going to use this notion of virtual runtime。
I'll explain what that is in just a moment。 Alright so here's an example our target latency is 20 milliseconds and our minimum granularity。
is one millisecond we have two CPU bound threads so they could just run continuously if we。
let them。 We'll say thread A has weight one and thread B has weight four。
What's going to be our time slice for thread A but what's our total weight five。
Alright so A has a weight of one so again if we go back to here it's going to be one over。
the sum five times our target latency so one fifth of twenty which is going to be four。
milliseconds。 That's how long A will run when it's scheduled。
For B its time slice will be four that's its weight over the sum five times the target。
latency twenty or fifths times twenty is sixty so it'll run for sixteen milliseconds。
So we'll hit our target latencies or we're going to allocate it with one fifth twenty。
percent going to A and eighty percent going to B。 So if we were to look at what our physical CPU time or wall clock time might look like。
we would see this kind of asymmetry right B is running in these sixteen millisecond chunks。
and A is running in these smaller four millisecond chunks but instead we're going to track a。
thread virtual time and basic way to think about it it's actually really complicated but。
the simplistic way of thinking about it is that if you have a higher weight your virtual。
runtime is going to grow slower and if you have a lower weight your virtual runtime is。
going to grow more quickly。 And so in this sort of virtual world we can keep A and B getting equal shares but when。
they actually run B is going to run a lot longer and get scheduled more often。
Okay so all of our scheduler decisions are based on virtual time so we just keep our。
red black tree that holds all the runnable processes and we look for the left most element。
the smallest element the smallest virtual time because again we're trying to repair that。
illusion of everyone getting one end but it's one end in virtual time not one end in CPU。
time we get order one to decide which to run and we can even cache that so it's always。
in memory and then it's going to be order log in when we need to add or remove a thread。
from the red black tree。 So when we're ready to schedule we just grab that left most node and that's what we schedule。
Okay so we've shown you lots of different scheduling algorithms and at the end of the。
day when you're designing a system you look at the application and then you pick one of。
these scheduling algorithms to run and it's going to depend on what is the application， use case。
Now in some cases you'll need something that works for general purpose computing in other。
cases you might need something that like a robot operating system or something like a。
network file storage operating system and so you'll pick a scheduler that meets those。
requirements so if you care about CPU throughput then you use first come first serve。
If you care about which is like what you might use in a high performance computing environment。
if you care about average response time then maybe you use something that's an approximation。
of shortest remaining time first。 You care about IO throughput similar SRTF works well for that。
If you care about fairness in terms of CPU time you could use something like the Linux， CFS。
If you care about fairness in terms of say the wait time to get the CPU then maybe use。
something like round robin if you care about meeting deadlines it's a real time system。
and you use EDF or another real time scheduling algorithm or the earliest deadline first。
If you care about favoring the most important tasks maybe you just use a strict priority。
schedule but you have to be aware that there might be starvation that occurs。
The bottom line is in many cases we're dealing with systems that are multipurpose with a。
diverse workload and so you kind of pick one of these that meets most of the workloads。
requirements but that means it's not going to meet all of the workloads requirements。
Final word on scheduling。 When do the details of which scheduling policy and fairness and all of that really matter？
The answer is we don't have enough resources to go around。 We don't have enough resources。
The other way to think about this is like I've got a bunch of engineers when do I buy an。
engineer a faster computer or if I'm an urban planner when do I need to add another lane。
to a highway or bridge or get a faster network link for my company。
So one approach is buy it when it's going to pay for itself and improve response time。
If you think about it like that engineer that developer you're paying them a couple hundred。
thousand dollars a year。 If they're sitting there at their computer waiting for the computer to do something that's。
lost productivity you're paying for them to just sit there and stare at the screen or。
maybe play wordle in a window or something。 And so buying them a faster computer will pay for itself very quickly in terms of improved。
productivity。 If you're serving a web population putting in a faster computer means they can check。
out their orders faster。 Because they're less likely to go to some competitor which has a faster check out process or more。
convenience。 And so there's lots of reasons why you want to make sure you've right sized your resources。
Now you might think okay as I hit that you know hundred percent utilization point that's。
when I just go out and I buy the next computer。 But here's a graph of response time versus utilization。
What you can see is as utilization approaches a hundred percent response time goes to infinity。
You end up spending all your time context switching or entering and leaving queues and。
dealing with all the overhead。 The overhead starts to dominate。
And so really the time to buy where all the scheduling algorithms matter and where they。
work is in this linear portion of the curve。 And it's right before you get to this knee that's when you buy the new computer the faster。
link that's where you make that decision to increase resources。
Before that it doesn't you know you can pick the algorithm the algorithm will help you manage。
the available resources because you're not overloading those resources。
It's when you start to get closer to overloading them that it just doesn't matter。
Okay any questions about schedule？ Yes。 Between which two ones？ LLC。
Yeah so the question is what is the difference between the Linux completely fair scheduler and。
say round robbing。 The round robbing is just simply giving everybody an equal shot at the CPU giving them equal。
size quanta。 With the CFS we adjust the size of that quanta dynamically as a function of priority。
Yeah so the question is if we had equal， so like for example if it equal priorities。
between all of the threads would it then be pretty much the same between the Linux completely。
fair scheduler and round robbing。 Yeah they both basically be going through round robbing through right because you're always。
going to be picking with the CFS the thread that's furthest you know sort of behind in。
virtual time they're all going to be advancing virtual time the same rate since they all have。
the same fairness and so you're just going to simply cycle through。
Quances are all going to be the same since they have the same priority。
Yeah so they'd be very similar。 Yeah so the question is if a thread goes to sleep and then you wake up do you compensate。
for the fact that it's like kind of behind in its content。 Yeah exactly。
So that's the benefit is like if you're always looking at like who's furthest behind and those。
threads are going to be further behind and you're going to like sort of catch them up。
The devil's in the details of how you catch them up like and not just give them all of。
the CPU so you still are running the other jobs also。
And also again you have new jobs that come into the system and you know you have to figure。
out where they fall in terms of their virtual time。
It's not easier thinking about these in steady state but in implementation you have to worry。
about all the edge cases。 Okay so we have some administrative stuff。
I have office hours that will start next week， Tuesdays from one to two and Thursdays from。
twelve to one。 I'm still trying to find a room but it'll be somewhere on the fourth floor of soda。
Today you have a deadline， project one， code， report， final report and your group evaluations。
is due。 homework two is due on Thursday and we have midterm two， seems like we just had the midterm。
but midterm two conflict requests are due Friday。 The term is moving very quickly。
Okay so with that we'll take a four minute break。 Okay so now let's switch gears and talk about sort of the deadly version of starvation。
So people get very confused when we talk about deadlock and we talk about starvation。
I'm going to try and go through it and explain it if you have any questions you know raise。
your hand and we'll go over it again。 So with starvation。
starvation means that the thread waits indefinitely。
So a low priority thread like we talked about could end up starve because there is a continuous。
stream of high priority threads coming through the system。 Deadlock is different。
Deadlock means that we have some circular waiting for resources。
So here we have thread A that owns resource one。 So it's using resource one while it's waiting for resource two。
resource two is being is owned being held being used by thread B。
Thread B is waiting for resource one which we just heard was being held and owned by， thread A。
So there's this circular waiting for resources。 Now the key distinction here is thread A is waiting indefinitely。
Thread B is waiting indefinitely。 So there is starvation。
So deadlock implies that you have starvation。 There are threads that cannot make progress。
The difference between deadlock and starvation is starvation can end。
If we stop getting high priority threads into the system， those low priority threads will。
start to run。 With deadlock it will not end unless we have some external intervention。
There's no way that we can change this situation here such that thread A is going to run or。
thread B is going to run。 There's nothing that those threads can do that will change that situation。
Those are both stuck in on wait piece。 Let's look at an example。
Let's start with a real world example。 This is a bridge across a canyon。
It's on California Route 140 on your way to Yosemite National Park or if you're coming。
back from Yosemite National Park。 For this example we're going to assume that cars have to own segments of roads。
We'll think of our resource here as being segments of the highway。
Car has to own the segment under them and if it wants to move forward it has to acquire。
the segment in front of it that it's going to move into。
It's holding the segment under it and trying to acquire the segment in front。
For the bridge we're going to divide the bridge into two halves。 Why two halves？
Because that makes it easier to think about。 Across the bridge you're going to have to acquire a segment to go onto the bridge。
You're going to have to acquire the segment for the other half of the bridge and enter。
that and then you're going to have to exit the bridge。
We can only have traffic in one direction at a time if you think about it。
We've got these two segments and we've got the orange and red car that's owning its。
half of the bridge。 We're trying to acquire the segment held by the green car which is holding that segment。
and trying to go in the other direction。 Here we have dead land。
Orange and red is waiting for the east half and owning the west half and green is owning。
the east half and waiting for the west half。 We have dead land。 How can we resolve this situation？
Well， the green car could back up releasing that segment allowing the orange and red。
car to acquire it。 But it's not that simple because there's the blue car right behind the green car。
The blue car would have to back up but it can't back up because there's the purple car behind， it。
The purple car would have to back up and the blue car backs up and the green car backs。
up and now the orange and red car can go through。 So starvation but not deadlock would be the situation where we have a convoy of cars going。
from west to east。 In that situation every car is acquiring the segment in front of it as it's being released。
by the car going in the same direction。 And those are starving the traffic that wants to go west instead。
That's a situation that will resolve。 Once the east going cars stop then the west going cars can go。
That's different from this situation that we have right here where there's no resolution， here。
There's no way for either of those cars to make forward progress。
They're both stuck waiting on something held by someone else。
Okay。 So now let's look at locks。 Here's an example using two threads thread A and thread B where thread A is going to。
try and acquire the X lock and the Y lock do some work and release Y release X。
Thread B is going to acquire the Y lock then acquire the X lock do some work then release。
X then release Y。 This is the worst kind of deadlock because it's non-deterministic。
Sometimes it doesn't happen。 Other times like two o'clock in the morning before the project is due it keeps happening。
As soon as you look at it it stops happening。 As soon as you submit it to the autograder it happens。
Non-deterministic is a really bad thing because it makes it really hard to debug。
The app debugging changes the timing and makes the bug go away。 But it also is bad for deployment。
If you're deploying this for your company and just randomly it deadlocks that's a problem。 Okay。
So let's look at the unlucky case。 So in the unlucky case thread A acquires lock X。
Then for whatever reason a context which occurs thread B gets scheduled。 It acquires lock Y。
Now we context switch back to A and it tries to acquire Y and it gets put on the way queue。
So Y is being held by B。 So now we pick another thread to run eventually B gets to run and it goes to acquire X and。
X is being held by thread A。 So it gets put on the way queue。 And it's also stalled。
And the rest of the code is unreachable。 And there's no way this situation is going to resolve itself because A cannot make progress。
and B can't make progress。 So we have no alternative here。
So we have the situation where thread A is holding lock X while waiting for lock Y which。
is being held by thread B which is waiting for lock X。
So you can see again we have this circular dependency graph。 All right。
So neither thread gets to run。 It's deadlock。 Now in the lucky case and there are many examples of lucky cases but one lucky case is that。
A runs acquires X acquires Y starts doing something。 We context switch。 B goes to acquire Y。
It stalls。 We context switch back and finish whatever we're doing in A。
Release X or release Y rather， release X and then eventually we context switch back to B。
It acquires X。 That's what it wanted to do。 Then releases X releases Y。
And there are many other similar lucky interleaving that we can have。
There's only a couple of unlucky interleaving but there are lots of lucky interleaving。
So most of the time this will work。 And then occasionally the rocket blows up。 Okay。
Here's another example from networking。 So here we have a set of trains and all of the trains these are we have these crossings。
here。 Trains can go east west。 They can go north south or in this case south north。
And then they're trying to turn。 So this every train is trying to turn right。 Right。
So we end up with a circular dependency where it wants to turn right but that track is。
occupied by another train and that train is trying to turn right on to track occupied。
by another train and so on for our complete circle between the four trains。
Very similar problem that we have in multi-processor networks where we're trying to route a train。
of messages packets between one microprocessor and another microprocessor and our multi-processor。
And the messages are like a little worm。 That's why it's called wormhole routing。 The fix。
Even that our grid extends in all four directions and we impose rules。
We say there's an ordering of channels。 The way you route something a train a message or whatever is you always go in the east west。
direction first and then you go in the north south direction。
So that forces us to disallow this north south train trying to turn right or this south。
or north south train here also trying to turn right。
Because they have to do that east west first not second。
This is called dimension ordering where we do x dimension first and y dimension and z， and so on。
We're going to see in a little bit why ordering is also the way we could solve that problem。
that we just saw with thread A and thread B。 Okay lots of other types of deadlock that we can have。
Pick a resource if threads have to wait on that resource we can have deadlock so that。
could be locks it could be terminals it could be printers it could be CD drives DVD drives。
memory it could be other threats threads will block waiting on pipes waiting on sockets。
from other threads。 Any of those anything that's a resource that meets certain criteria that we block on we。
can have deadlock on。 Okay we could for example deadlock on space。
So here's a program thread A is going to allocate or wait for megabyte of memory and。
it's going to allocate or wait for another megabyte of memory do some stuff then free。
that megabyte and then free the other megabyte。 And thread B is going to try and do the same thing。
Well we have a machine that only has two megabytes of memory we can have the same deadlock。
situation。 If we first run thread A and it grabs a megabyte and then we run thread B and it grabs a megabyte。
then now neither thread can grab another megabyte of memory and they're both just going to sit。
there waiting。 Okay so there's a famous problem in computer science called the dining philosophers problem。
We like to call it instead the dining lawyers problem。 Here's the basic parameters of the problem。
These lawyers they go to a restaurant it's an inexpensive restaurant they're seated at。
a circular table all five of the lawyers here but the restaurants really cheap and so they。
only give them each they only put five chopsticks around on the table。
This is a nice big bowl of rice in the middle。 Now we all know if we want to eat some rice we're going to need not one but two chopsticks。
And so we say okay dinner time time to eat what are the lawyers going to do well every。
lawyer is going to go and grab a chopstick。 What happens if every lawyer grabs a chopstick at the same time？
Deadlock。 Right？ Everyone's going to have one chopstick and they're all going to stare at each other with this。
nice bowl of rice in the middle and they're going to starve。 Really starve。
Okay well how could we fix this deadlock？ Well we could turn to one of the lawyers and say be nice give up your chopstick to someone。
else。 Good luck with that。 I don't think that's going to happen。 Right？
But if they did if there was an altruistic lawyer if we found a unicorn they would give。
up the chopstick and then another lawyer would have two chopsticks。
And they could eat then return the chopsticks to the pool to more lawyers could eat and。
so on and so on until all the lawyers had to eat。 Right？
And so that might give us a flavor for how we could resolve these kinds of deadlock situations。
But the caveat here is it would require convincing one of them to give up a resource that they。
hold。 All right how could we prevent deadlock？ Well we could set table rules and say you can't take the last chopstick if it means that。
somebody at the table would not have two chopsticks。 Right？
Because as long as there's one chopstick left and there's one lawyer at least with one chopstick。
they could take that chopstick and have two chopsticks they could eat and then return those。
chopsticks to the pool and the other lawyers could eat。 All right？
So that's a way we could avoid a deadlock situation with a rule like that。
So you could think about like trying to formalize that right？ How would we formalize this？
What happens if you know we had a bunch of octopuses sitting at the table right？
How would we turn that kind of thing into a rule which would guarantee that all of the。
octopuses as they're super smart would be able to eat with you know a chopsticks and all。
that kind of stuff。 All right。 Let's first start by formalizing what we mean by deadlock。
So there are four requirements for deadlock to occur。 The first is we have to have mutual exclusion。
So only one thread at a time gets to use a particular resource or an instance of that， resource。
Second is we have to have hold and wait。 So a thread holding at least one resource is waiting to acquire some additional resources。
that are being held by other threads。 Next no preemption。
So if a thread is holding a resource we cannot take that resource away from the thread until。
it's done using that resource。 So in the case of the dining lawyers it means if a lawyer is holding a chopstick we can't。
go over grab the chopstick out of their hand before they finish eating。 We can't preamble。
And then finally we have to have circular waiting。
That is that there's a set of threads and threads where T1 is waiting for some resources。
held by T2。 T2 is waiting for resources held by T3。
T3 is waiting for resources held by T4 and so on and so on all the way up to Tn is waiting。
for resources held by bread one。 Now here's the thing about deadlock。
These are the four requirements for a system to be in deadlock。
Remove any one of those requirements。 We don't have deadlock。
We might have starvation but we do not have deadlock。
If a system is in deadlock and we can remove any one of these we can take it out of deadlock。
Alright， any questions？ Okay。 Alright， so first thing we need to do is figure out how can we tell that our system is in。
deadlock。 So we're going to use what we call a resource allocation graph。 So here's the model。
We have threads。 So here we have threads T1 and T2。
We have a little box here and we have end of those threads and then we have resources。
There are different resource types。 So there could be CPU， it could be memory。
CPU is not actually a really good example because we can preempt the CPU。
So we can take the CPU away from someone and give it to someone else but it's a resource。
We can have disk drives， printers， locks， anything can be a resource and then we have。
some resources that have multiple instances and we'll denote having multiple instances。
by these extra dots。 The extra dots mean there's like in this case resource two has three instances。
That means three threads that hold an instance of resource two or one thread can hold all。
three or whatever some combination。 Okay。 Now， threads utilize a resource by requesting that resource。
Like acquire using that resource and then releasing that resource back into the pool。
We generate a resource allocation graph as follows。 Our graph V is partitioned into two types。
We have one set of， we have threads and we have resources and then we have directed edges。
between those sets of resources， those two sets， our threads and our resources。
Now a request edge is an edge directed from a thread to a resource like so from T1 to R1。
this instance of R1。 Assignment， so something holding a resource is a directed edge in the opposite direction。
So from the resource instance to the particular thread。
So say from this first dot here to thread two， that would mean that an instance of that resource。
is owned by or held by thread two。
Okay。 So here's an example of a resource allocation graph。 So here resource one。
an instance of it is held by thread two。 Resource two， an instance is held by thread three。
resource four， an instance is held by， thread three and then resource three here has two instances。
One is held by thread one and one is held by thread two。 So first question。
is this system in deadlock？ No。 It's not in deadlock。 Because for example。
thread two here is waiting for resource two， which is held by thread three。
And thread three is not waiting for anything。 It holds an instance of resource two。
it holds an instance of resource four。 So it can run the completion and exit the system。
And that would free up this resource two。 Then thread one， two rather could run， right？
Because it would have an instance of resource one， instance of resource two and instance of。
resource three。 It would then release resource one and then thread one could get an instance of that and。
run to completion。 So this is not a system that's in deadlock。 Here is an example of deadlock。
We have a circular graph here， right？ Thread one holds an instance of resource three is waiting for an instance of resource。
one， which is being held by thread two， which is waiting for an instance of resource two。
which is held by thread three， which is waiting for an instance of resource three， which is。
held by thread two and by thread one。 We have circular weight here。
None of these threads can proceed。 There's nothing that's going to change it。
There isn't a thread that can change the free up one of the resources and let the other。
threads run。 Now simply because you have a cycle does not mean you have deadlock。 Again。
you have to have all of those conditions old true because here， thread three is waiting。
on resource two while holding resource， an instance of resource one。
Thread one is waiting on resource one while holding an instance of resource two。 So you might think。
oh， we've got a cycle here。 That's deadlock。 But we have two other threads， right？
Here we have thread two， which is holding an instance of R one。
Doesn't need anything and so could run and exit the system。 Right？
That would then free up an instance of R one。 So T one could then grab it。
And then T one would have everything it needs to run or thread T four has everything it， needs。
It has an instance of R two。 It could run to completion， release that instance。
And then thread three could grab it， have everything it needs to one to completion。
So as long as there are threads that can run and yield a solution schedule， then we know。
our system is not in deadlock。 But in this middle case。
there is no way for us to make forward progress。
Okay。 So this， if you think about it， gets us towards what we could use as a deadlock detection algorithm。
So we're going to say our vector X represents an M-ary vector of non-negative integers， which。
are quantities of a given resource。 So we have free resources for each type。 Right？
So each element of our vector is going to be a given resource resource one， two， three， and so on。
And how many instances of that resource are available？ We have a request vector。
which is the current request from a given thread for each of those， resources。
And then we have an allocation vector， which is per thread， and represents the resources。
that are already allocated to that thread。 So now we can see if task can eventually finish on their own。
So here's the algorithm we're going to use。 We're going to initialize available that vector to be the free resources that we have。
We're going to add all of the nodes into an unfinished set。
And then we're just going to do a while loop here， and we're going to iterate over all。
of the nodes in the unfinished set。 And for each node。
we're going to do this check if the request vector for the node is。
less than or equal to the resources that are available。 What does that mean？
It means that no could grab all of the resources it needs and run to completion。
So we're going to act like it did。 So it'll run to completion， then what's it going to do？
It's going to release all of the resources that it was allocated to。
So we're going to return its allocated resources to the pool of available resources。
Now we're going to look at the next node。 Now maybe that node doesn't have the resources it needs。
Maybe its request is greater than the available resources。 So it's going to remain in unfinished。
And we'll look at the next node。 And we'll just keep iterating over this。
going through all of the nodes in unfinished multiple。
times as long as things are changing until we get to a point where either nothing changes。
and so our done variable remains true or we just simply have no nodes left in unfinished。
Now what does it mean if we exit this and we have nodes left in unfinished？ Or alternatively。
what does it mean？ If we finish this and exit and there's nothing left in unfinished。 Of nothing？
Yeah。 Yeah。 So if there's nothing left in unfinished， then there's no deadlock。
If there's nodes left in unfinished and we're deadlocked。
There was nodes that could not get the resources they needed even after all the other nodes。
exited the system。 There was no path that could be found to let the nodes complete。
Let the all of the brides complete now。 So that's our deadlock detection of it。
That's going to be how we can tell whether the system currently is deadlocked or not。 Okay。
So now the question becomes we're in deadlock。 What do we do？ Well。
there are a couple of choices or four different choices。
One is we could just simply prevent deadlock。 We write our code in such a way that we can't deadlock。
So think about that logical ordering of channels。 You route in dimension X first， then dimension Y。
then dimension Z and so on。 You impose an ordering on the acquisition of walks。
a lexical graphical ordering。 So you have to always acquire X before Y。
You're not allowed to acquire Y in the next。 Those types of approaches avoid deadlock from happening in the first place。
The second approach you could use to deal with deadlock is to recover。 The system， you know。
deadlock detection says， "Oh， the system is deadlock。 What do you do？
You figure out how to recover it from it。 Maybe you kill off processes or you roll things back。"。
Another approach is to use that things like that deadlock detection algorithm to try and， predict。
could a system， if I grant it a request， end up in deadlock and then avoid granting。
that request and causing the system to potentially deadlock。
Another approach would be just to ignore deadlock。 There's no such thing as deadlock。 Move on。
Sometimes use all of these different approaches。 This last approach is the easiest approach because you just -- deadlock doesn't exist。
so， I'm not going to bother checking for it if it happens a little。 Okay。
so modern operating systems， they try to make sure that the operating system doesn't。
have deadlocks。 That's mostly true。 There are bugs that sometimes do cause the system to deadlock。
but pretty much， you know， well-designed code， you don't have deadlock。 Applications。
they can deadlock all they want。 The operating system is just going to ignore that。
So we'll tell you that's the ostrich approach。 Deadlocks don't exist for applications。 Okay。
so what are some techniques we could use to try and avoid getting into a deadlock， situation？
So one is if we have infinite resources， right？ Remember there's instances of those resources？ Well。
if we just have an infinite number of instances， then threads will never get in。
the situation where they have to wait for a particular resource。
Now it doesn't really have to be infinite。 It just has to be large enough that we're not going to run out of it。
right？ So we can give the illusion that we have infinite amounts of memory by using virtual， memory。
Then we won't run into that problem where two threads are trying to request two megabytes。
of memory， we don't have enough。 Inside a two megabytes， we can make it two gigabytes。 Right now。
if you made it two terabytes， that might be a problem， right？
That's why I say the illusion isn't perfect， but we can make the illusion large enough that。
it appears that we have infinite resources， right？ A beybridge with 12，000 lanes。
you're never going to have to wait。 Also not very feasible to actually implement。
Same with like infinite disk space。 If we don't have any sharing。
but if we have completely independent threads with no shared， resources。
then we can't have deadlock。 We also don't have anything very useful。 You know。
it's very hard to do something if you never interact with the real world， you're。
never going to use a terminal， never going to use a printer， never going to do any IO。 Yeah。
it's not really feasible。 We get disallow waiting。 This is actually how telephone networks work。
If you say， "Oh， call mom and Toledo，" right？ Your call gets routed。
the setup for that call through the phone company network。
If it ever encounters a trunk line that's full or network switch that's full， you just。
get a fast busy。 Try again later。 It's kind of like， you know。
imagine you wanted to go to San Francisco， you get in your car。
if you ever hit a red light or traffic， you just simply get teleported back to Berkeley。
It kind of take a while to get into San Francisco。 And it's very inefficient， right？
Because you have to just keep retrying every time you're getting that busy signal to get， through。
Okay。 So， coming back to the notion of virtually infinite resources， again， if we had something。
like virtual memory， we could avoid this being a problem where we've got two threads that。
are trying to request two megabytes of physical memory in a system that only has two megabytes。
If we make our virtual address space be four gigabytes， we will not have a problem。
And with hundreds of threads， they can all request their two megabytes of memory and。
we won't run into a hold and wait situation。 All right。 So， last slide I want to cover。
some of the techniques for preventing deadlock。 You could make threads request everything that they need at the very beginning。
The problem is how do I predict everything that I'm going to need at the very beginning？
It's really hard。 So， what are you going to do as a developer？ If you get told if you're wrong。
your program gets terminated and you have to start all over， again。
you're just going to overestimate。 And so， that's going to be very inefficient。 All right。
But if you could figure out I'm only going to need two chopsticks， you could request those。
two chopsticks at the same time。 If you don't know if you're going to need two or you're going to need five and it's kind。
of the death penalty， if you get it wrong， then you're going to request five chopsticks。
even if you only need two。 You could force all threads to request resources in a particular order。
So， this is again where like that order of routing x， y， z or lexicographic ordering。
comes into play。 So， we say every lock you're going to acquire。
you have to acquire that in lexicographic order， like x， y。
and z or request disc first and request memory and so on， you prevent that。
circular chain of waiting。 Since everybody is going to request in that same order。 And so。
that's another approach that we can do， but you have to enforce that then either。
with programming or other practices and tools to make sure that that happens。 Okay。 Any questions？
All right。 I will see everybody on Thursday。 Okay。
(breathing deeply)。
