JavaScript 开发高级教程（六）
十、移动 JavaScript 开发
在最近几年的所有技术进步中，很少有哪一项能像移动智能手机和平板电脑革命那样影响深远。行业趋势表明，台式电脑的销售正在下降，而移动设备的采用正在以极快的速度增长。对许多人来说，在小屏幕设备上上网比在台式机上更频繁。我们需要确保跟上这种变化，使我们的网站和应用适应我们用户的需求，他们中的许多人很快就会熟悉通过手指访问的万维网。
在本章中，我们将学习移动设备 web 开发的限制以及如何克服这些限制，如何通过 JavaScript 从这些设备上的传感器访问数据，如何处理网络问题和不良连接，最后，如何调整我们的 JavaScript 以适应采用响应式设计原则和技术的网站。
移动网络发展的制约因素
由于设备比台式电脑小得多，不难相信在移动设备的设计和构造中会做出一些妥协。其中一些损害与设备本身的技术有关，一些损害是用于在设备和最近的手机发射塔或 WiFi 网络之间传输数据的网络的连锁效应。了解这些限制可以让我们调整我们的网站和应用开发，以尽量减少它们的影响，并为我们的最终用户提供最佳体验。
电池寿命
在撰写本文时，大多数智能手机电池在正常情况下只能给用户一两天的电池寿命。性能密集型应用和网站消耗的电池电量可能会超过设备空闲时的标准功耗。
我们需要在网站和应用中构建代码，尽可能减少对电池寿命的影响。这包括尽可能少地更新页面的显示区域，并尽可能少地执行 JavaScript 来提供所需的用户体验。避免使用 JavaScript 在页面上执行动画和过渡；如果这些是必要的，使用 CSS3 转场( http://bit.ly/css_trans )和动画( http://bit.ly/css_anims )来代替，它们更有效地利用 CPU，节省电池。如果您打算从移动设备的传感器访问数据，如地理位置或方向，请仅在您实际需要的时间内偶尔访问这些值，并在您不再需要访问数据时断开代码中任何事件侦听器的连接。使用第四章中讨论的事件框架原理，在传感器数据频繁变化时执行较少的代码。
网络带宽速度和延迟
移动网络提供商宣传的速度并不总是与现实相符，你可能不会对此感到惊讶。事实是，移动设备的连接速度可能会受到许多因素的限制，包括与您所连接的手机信号发射塔的距离、连接到同一发射塔的其他人的数量以及环境因素，如天气和周围建筑物的密度。在现代 4G/LTE 移动网络中，速度问题变得不那么尖锐，因为潜在的数据传输速率要高得多；然而，影响设备感知网络速度的另一个因素是延迟，即 HTTP 数据包从设备到达服务器并返回所需的时间。WiFi 和有线网络的延迟很低，这意味着客户端-服务器通信很快，感觉响应很快；然而，在移动网络上，延迟是一个更大的问题，主要是因为设备和手机信号塔之间的距离要远得多。
低延迟会影响网站或应用发出的每一个 HTTP 请求。因此，你的请求越多，你的应用的响应就越慢，因为完整的页面需要更长的时间来呈现。记住这一点，尽可能将 JavaScript 文件缩小并连接在一起用于页面加载，并使用第四章和第九章中介绍的技术在需要时卸载不必要的脚本以按需加载。以同样的方式缩小和连接 CSS 文件(在 http://bit.ly/css_min 尝试 CSS 缩小器)，并将图像文件合并到精灵中(在 http://bit.ly/css_sprite 中详细解释了该技术)，如果可能，或者使用 base64 编码直接从 CSS 文件中引用较小的图标大小的图像文件作为数据 URIs(在 http://bit.ly/data_uris 阅读更多关于 base64 编码和数据 URIs 的信息)。浏览器对每个域名同时下载的文件数量有限制，因此通过在多个域之间分割资源，可以同时下载更多文件，这一过程称为并行化。然而，这是一项需要非常小心使用的技术，因为每次 DNS 查找都需要时间，并且会增加页面加载的总延迟。通过尝试同时下载大量文件，没有一个文件会在合理的时间内完成下载的风险会增加，因为可用的网络带宽分布在所有文件上。明智地使用这种并行化技术，因为它很容易产生与预期相反的效果。确保您的 web 服务器支持 JavaScript 和 CSS 文件的缓存和 help 压缩，因为这将有助于减少每次从服务器加载的数据量。在这一章的后面，我们将看看如何使用 HTML5 应用缓存来存储文件，以减少页面每次请求 HTTP 的次数。
板载内存大小
在最近的智能手机普及浪潮之前，Web 开发人员不必担心设备上的可用内存量；一段时间以来，桌面设备已经容纳了相当数量的内存，足够用。在撰写本文时，大多数入门级台式计算机现在都配有 2GB 的板载内存，而最高端的移动设备只有大约 512MB。也不是所有的可用内存都可以被网页访问，因为它必须在操作系统和其他后台应用和进程之间共享。实际上，一个 512MB 的设备可能只有不到一半的空间可用于实际的前台运行应用。
考虑图像；一旦从服务器上下载了图像，它就会以未压缩的像素数据形式出现在设备的内存中。包含大量图像的网页会消耗更多的设备可用内存，图像越大，使用的内存就越多。因此，在通过网络将大图像传输到移动设备上，然后在页面上将它们调整得更小时要小心，因为它们与大得多的图像消耗相同的内存量。这同样适用于 JavaScript，它可能会被压缩以更有效地传输数据，但一旦它到达设备，就会被解压缩并存储在内存中。确保不要为了显示页面而传输过多或过大的文件，因为每个文件都会消耗内存。当内存被填满时，操作系统将试图通过关闭未使用的后台任务和应用来释放内存，从而影响用户移动体验的响应性和便利性。
除了标准处理器之外，许多移动设备还配备了图形处理器(GPU ),每个处理器都有自己分配的内存。通过将清单 10-1 所示的 CSS 转换应用到包含图像的元素，可以将图像卸载到图形内存中，在那里对图像进行硬件加速。
清单 10-1。将可视页面元素卸载到图形内存的 CSS 规则
.element {
/* enforces hardware acceleration on the GPU */
-webkit-transform: translateZ(0); /* Vendor-specific prefix for Safari 3.1+ / Chrome */
-moz-transform: translateZ(0); /* Vendor-specific prefix for Firefox 3.5 - 15 */
-ms-transform: translateZ(0); /* Vendor-specific prefix for Internet Explorer 9 */
-o-transform: translateZ(0); /* Vendor-specific prefix for Opera 10.50—12.00 */
transform: translateZ(0); /* Standard rule (Firefox 16+, IE 10+, Opera 12.10+) */
}
但是，使用这种技术时要小心，并且要有限度，因为硬件合成图像占用的视频内存是标准内存中相同图像的四倍，对应于 GPU 上单独显示的图像中的红色、蓝色、绿色和 alpha 通道。
操作系统响应能力
我们网站和应用的用户希望他们的应用有一定程度的响应能力。轶事证据表明，如果用户在 300 毫秒内没有收到动作的反馈，他们会感到明显的滞后，并对应用形成负面印象。出于这个原因，他们与页面的任何交互都必须在这个时间段内产生一些可见的反应。如果他们点击了一个触发 Ajax 调用的按钮，但是由于延迟或连接速度的原因，该调用在 300 毫秒内没有产生响应，那么您应该在页面上显示一个指示器，表明后台正在发生一个操作。这可以采取纺车指示器的形式，尽管许多开发人员和设计师选择使用新一代的指示器，如蒂姆·霍尔曼在线在 http://bit.ly/loaders_and_spinners 收集和策划的指示器。
让这个问题更加复杂的是，大多数移动设备上的标准click事件处理程序直到用户在屏幕上点击后抬起手指 300 毫秒后才被触发。这种延迟是有意的，因为设备需要等待以查看用户是否想要双击屏幕来触发不同的动作，例如页面缩放；如果没有延迟，每个动作都将被解释为单击。为了在用户轻击屏幕后抬起手指的瞬间触发一个动作，将你的代码连接到touchend事件，而不是click事件，尽管要记住这对想要双击屏幕上该元素的用户来说意味着什么。
使用 JavaScript 访问移动设备传感器
正如我们人类依靠我们的感官为我们提供关于我们环境的数据一样，智能手机和平板设备也使用自己的数字感官——触摸屏、地理位置、方位、方向和运动——来提供交互，并根据用户及其现实世界的环境来定制应用和游戏。添加外部附件可以给移动设备带来更多的感官体验——这些包括:健康附件，如测量血糖水平( http://bit.ly/bg_module )或跟踪血压(http://bit.ly/blood_pressure)；健身的附加装置，如心率监测器( http://bit.ly/hr_monitor )和鞋内传感器(http://bit.ly/nike_ipod)；以及用于小型企业的附加设备，例如用于接受支付的信用卡读卡器( http://bit.ly/cc_readers )。
web 开发人员可以通过三种主要方式访问内置设备传感器报告的数据:
- 为他们希望支持的每个平台(例如 Google Android、Apple iOS、Microsoft Windows Phone)使用本地操作系统应用编程接口(API)。
- 使用 PhoneGap (
http://phonegap.com)之类的框架，这使得开发人员可以在 HTML5 中编写一次代码，并将其重新编译为适用于每个操作系统和设备的原生应用，使用原生 API 进行交互。 - 可以使用标准化的 web 标准 API(API 的细节通过
http://bit.ly/1aIQV0x)来访问传感器数据，这些 API 可以在移动浏览器中使用 JavaScript 与不同的设备一起工作，例如 iOS 的 Mobile Safari、Android 的 Chrome、Windows Phone 的 IE、Opera Mobile 和 Firefox 等。
第三种基于 web 标准的方法的优势在于，它避开了每次更新应用或发布漏洞修复时都要经过应用商店审批流程的要求。用户也不必手动更新他们的应用(它可以自动完成)，它仍然允许构建功能性和美观的应用。这是最吸引我的方法，我将在本节中详细介绍。
我将依次讨论每个传感器，并描述如何通过 JavaScript 访问其数据，给出真实世界的使用示例，并提供一些我的个人经验以获得最佳结果。请参考移动 HTML5 兼容性表( http://mobilehtml5.org )了解当前哪些浏览器和设备支持访问传感器数据的完整详细信息。
访问地理定位传感器
地理定位传感器是移动地图应用背后的动力，定位用户在地球上的位置，以帮助他们绘制通往不同目的地的路线。该传感器使用多种方法的组合，可能包括 WiFi 定位(通过 http://bit.ly/wifi_positioning 读取更多)、GSM 蜂窝塔三角测量(通过 http://bit.ly/mobile_tracking 读取更多)、GPS 卫星定位(通过 http://bit.ly/gps_triangulate 读取更多)来检索代表用户位置的经纬度坐标。为了保护用户的隐私，网站或应用在从地理位置传感器访问数据之前必须请求许可(通过 http://bit.ly/geo_api 指定 W3C 指南)。用户会看到一个对话框，询问他们是否允许访问他们的位置，如图 10-1 所示，这是向苹果 iOS 7 用户显示的。

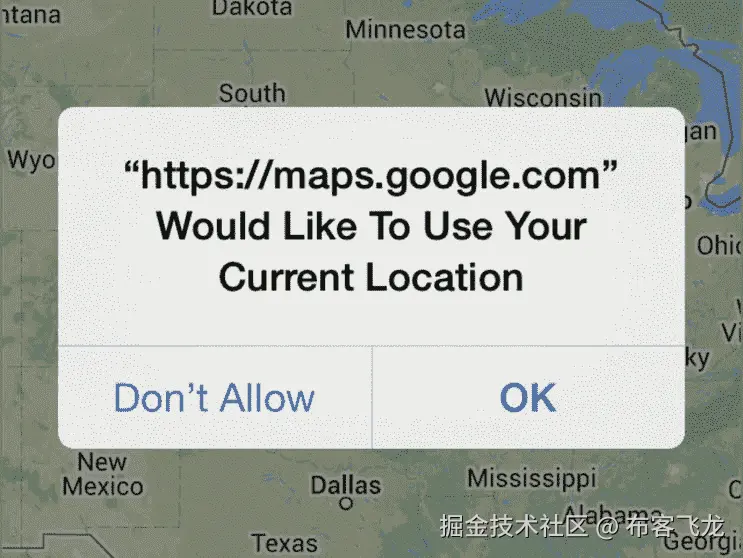

图 10-1。
Operating system dialog asking the user to permit access to their location from a website
使用这些地理位置数据，开发人员可以改善他们网站或应用的用户体验，例如，在 web 表单中自动预填充城市和国家字段，或者查找用户附近的电影院在什么时间上映什么电影。将这些数据与谷歌地图 API(使用说明通过 http://bit.ly/maps_api )结合使用，意味着我们可以构建专用的地图和路线应用，当用户改变位置时，这些应用会动态更新用户界面。知道位置还使 Web 应用能够使用 Panoramio API(通过 http://bit.ly/panoramio_api 的使用说明)或训练助手(通过 http://bit.ly/exercise_app 跟随教程)显示在用户附近区域拍摄的照片，以计算跑步者跑完一定距离需要多长时间，并能够与过去和未来的跑步进行比较。
W3C 地理定位 API ( http://bit.ly/w3c_geo_api )允许我们通过 JavaScript 访问用户的位置坐标，提供一次性的位置锁定，或者在用户移动时持续跟踪用户的能力。浏览器的navigation.geolocation.getCurrentPosition()方法只执行一次传递给它的回调函数，该函数接收用户的位置坐标，而navigation.geolocation.watchPosition()方法在每次用户位置改变时执行一次传递的回调函数，从而允许地理位置监控。该 API 还允许我们确定返回坐标的准确性，并指定我们是希望位置被正常返回还是以高精度返回。
Note
精确定位将花费更长的时间来确定用户，并且在此过程中可能会消耗更多的设备电池电量。
清单 10-2 中的例子显示了如何使用这个 API 根据用户的位置动态更新屏幕上的地图，为了简单起见，使用了谷歌的静态地图 API(使用说明通过 http://bit.ly/static_maps )。它假设它正在 HTML 页面的上下文中运行，它将在该页面中放置地图切片图像。
清单 10-2。访问地理定位传感器并在地图上显示位置
// Create a <img> element on the page to display the map tile in
var mapElem = document.createElement("img");
// Define a function to execute once the user's location has been established,
// plotting their latitude and longitude as a map tile image
function successCallback(position) {
var lat = position.coords.latitude,
long = position.coords.longitude;
mapElem.setAttribute("src", "http://maps.googleapis.com/maps/api/staticmap?markers
}
// Define a function to execute if the user's location couldn't be established
function errorCallback() {
alert("Sorry - couldn't get your location.");
}
// Detect the Geolocation API before using it—'feature detection'—exposed in the
// navigator.geolocation object in the browser
if (navigator.geolocation) {
// Start watching the user's location, updating once per second (1s = 1000ms)
// and execute the appropriate callback function based on whether the user
// was successfully located or not
navigator.geolocation.watchPosition(successCallback, errorCallback, {
maximumAge: 1000
});
// Size the map tile image element and add it to the current page
mapElem.setAttribute("width", 300);
mapElem.setAttribute("height", 300);
document.body.appendChild(mapElem);
}
为了防止 JavaScript 错误，我们使用功能检测来确保在针对其 API 编码之前可以访问地理位置传感器，在代码周围使用简单的if语句，浏览器可能支持也可能不支持。可以在页面加载时请求访问用户的位置，但最好避免这样做，因为这会迫使他们在知道如何使用之前选择共享他们的位置，从而引起怀疑。为用户提供一个按钮，让他们按下就可以访问他们的位置，这让他们对网站或应用有更强的控制感，这使他们更有可能授予权限。
如果用户拒绝访问他们的位置，您可以使用基于 IP 的回退(例如在 http://freegeoip.net 的 FreeGeoIP)来定位他们在城市或国家级别的大致位置。如果这不合适，礼貌地向用户解释，在他们授予你权限之前，你不能向他们提供某些特定的功能，这样让他们觉得他们可以控制自己的数据以及数据的使用方式。
地理定位的进一步阅读
如果您想了解 W3C 地理定位 API 的更多信息，下面的链接将帮助您更深入地了解这个迷人的传感器。
- Mozilla 开发者网络上的“使用地理定位”(通过
http://bit.ly/using_geo) - Jef Claes 的“地理定位 API 的异常处理”(通过
http://bit.ly/geo_exception) - “使用地理定位 API 的简单行程表”，作者 Michael Mahemoff，HTML5 Rocks (via
http://bit.ly/trip_meter)
访问触摸传感器
触摸屏允许用户以简单自然的方式控制他们的移动设备的界面。屏幕下方的触摸传感器可以检测一个或多个手指的接触，并跟踪它们在屏幕上的移动。在 JavaScript 中，这种移动导致了一个touchevent，你可以通过 http://bit.ly/w3c_touch_event 在 W3C 网站上读到更多。
使用 W3C 触摸事件 API ( http://bit.ly/w3c_touchevents )在 JavaScript 中访问来自触摸传感器的数据。这使得网站和应用能够通过图像传送带和幻灯片来增强，例如，对手指滑动做出反应。它还允许开发先进的 Web 应用，允许人们用手指画画，如 Artistic Abode 通过 http://bit.ly/abode_touch 演示的一个，如图 10-2 所示，或者通过用手指翻动卡片找到配对来测试他们的记忆，如在 http://bit.ly/mem_vitamins 在线找到的 MemoryVitamins。
图 10-2。
A picture being drawn using a finger on a touchscreen with Artistic Abode’s web app
每当用户触摸、移动或从屏幕上移开手指时，浏览器中就会触发一个触摸事件，首先是手指放在屏幕上时的touchstart事件，当手指移动时的touchmove事件，最后是手指从屏幕上移开时的touchend事件。可以为每个事件分配事件处理函数，从而为我们的 web 应用创建所需的行为。除了给我们当前触摸点的位置，传感器还可以通过我们的事件处理程序告诉我们哪个页面元素被触摸，并提供当前屏幕上所有其他手指触摸的列表，那些在特定元素内的触摸，以及那些自上次触发触摸事件以来发生变化的触摸。
某些触摸动作触发移动设备本身的操作系统内的行为:例如，在图像上按住手指可能会触发上下文菜单出现，或者两个手指在页面上分开可能会触发页面缩放。如果您正在为触摸传感器编写代码，那么当触摸事件触发时，您可以使用传递给事件处理程序的event对象的preventDefault()方法，在您的事件处理程序函数中覆盖这个默认的操作系统行为。
清单 10-3 展示了如何使用触摸屏 API 来显示屏幕上任意时刻的当前触摸次数，每当一个或多个手指被添加到屏幕上或从屏幕上移除时都会更新。它假设运行在一个 HTML 页面的上下文中，并向其中添加了一个用于显示屏幕触摸次数的<p>元素。
清单 10-3。从触摸传感器访问数据
// Create a <p> element on the page to output the total number of current touches
// on the screen to
var touchCountElem = document.createElement("p");
// Define an event handler to execute when a touch event occurs on the screen
function handleTouchEvent(event) {
// Get the list of all touches currently on the screen
var allTouches = event.touches,
allTouchesLength = allTouches.length;
// Prevent the default browser action from occurring
// when the user touches and holds their finger on the screen
if (event.type === "touchstart") {
event.preventDefault();
}
// Write the number of current touches onto the page
touchCountElem.innerHTML = "There are currently " + allTouchesLength + " touches on the screen.";
}
// Add the output <p> element to the current page
document.body.appendChild(touchCountElem);
// Assign the event handler to execute when a finger touches (touchstart) or is removed
// from (touchend) the screen
window.addEventListener("touchstart", handleTouchEvent, false);
window.addEventListener("touchend", handleTouchEvent, false);
苹果 iOS 设备支持一组更高级的与手势相关的 JavaScript 事件。当用户在屏幕上捏或旋转两个或更多手指并报告数字移动了多远时，这些事件就会触发。然而，这些都是特定于设备的，因此如果您希望在不同的设备上复制这些事件，您可能会发现 JavaScript 库 Hammer.js ( http://bit.ly/hammer_js )很有用，它使您能够在网站和应用中的多个设备之间轻松使用触摸手势。
触摸传感器的进一步阅读
如果您想了解更多关于 W3C touch events API 的信息，您可能会发现以下链接很有用:
- Boris Smus 在 HTML5 Rocks 上开发多点触控浏览器(
http://bit.ly/multitouch_dev) - Mozilla 开发者网络上的触摸事件(
http://bit.ly/touchevents) - 在 Apple Safari Web 内容指南上处理手势事件(
http://bit.ly/handling_events)
访问方位和方向传感器
方位传感器确定设备被握持的方向；它还可以检测设备如何围绕三个不同的旋转轴定位，如图 10-3 所示，假设设备具有内部陀螺仪。一些设备，如苹果的 iPhone 和 iPad，也包括磁力计，有助于确定设备指向的精确方向。围绕 x 轴、y 轴和 z 轴的旋转可以分别称为滚动俯仰和偏航，或者用β、γ和α旋转的度数来表示。
图 10-3。
Rotation around the x, y, z axes of a mobile device. Source: http://hillcrestlabs.com
通过了解移动设备的方向，我们可以调整我们网站的功能来适应，比如在主要内容区域的上方或旁边重新定位导航菜单。JavaScript 中的 W3C 屏幕方向 API ( http://bit.ly/screen_orientation )通知我们设备的当前方向，是纵向还是横向，以及它是否被倒置。它触发一个orientationchange事件，我们可以将代码挂入其中，在设备重定向的那一刻执行。清单 10-4 中的例子显示了如何使用屏幕方向 API 来添加一个 CSS 类到你的页面的<body>标签中，以指示设备是纵向的还是横向的，并允许通过它进行适当的样式改变。
清单 10-4。根据移动设备的方向更改 HTML 页面上的类名
// Define an event handler function to execute when the device orientation changes between
// portrait and landscape
function onOrientationChange() {
// The device is in portrait orientation if the device is held at 0 or 180 degrees, and in
// landscape orientation if the device is held at 90 or -90 degrees
var isPortrait = window.orientation % 180 === 0;
// Add a class to the <body> tag of the page according to the orientation of the device
document.body.className += isPortrait ? " portrait" : " landscape";
}
// Execute the event handler function when the browser tells us the device has
// changed orientation
window.addEventListener("orientationchange", onOrientationChange, false);
// Execute the same function on page load to set the initial <body> class
onOrientationChange();
如果您只想在设备重定向时更改可见的页面样式，请考虑使用 CSS 媒体查询( http://bit.ly/css_mq )而不是 JavaScript 来实现，因为这将提供正确的关注点分离( http://bit.ly/concerns_web )。
使用内置陀螺仪可以让我们创建游戏的移动版本，如 Jenga ( http://bit.ly/jenga_game )或 Marble Madness ( http://bit.ly/marble_madness )来测试用户的稳定性和神经。当旋转包含陀螺仪的移动设备时，浏览器根据 W3C device orientation API(http://bit.ly/orientation_event)触发重定向事件。此事件提供的数据表示设备围绕其三个轴旋转的量，以度为单位。将这些运动数据反馈给我们的 JavaScript 代码允许我们根据程序逻辑更新显示。清单 10-5 中的代码展示了如何使用内置的陀螺仪和 DeviceOrientation API 来根据设备的精确方向旋转 3D 页面上的图像。它将一个<img>标签添加到当前的 HTML 页面中以显示图像。由此产生的伪 3D 效果可以在图 10-4 中看到。
清单 10-5。根据移动设备的精确方位以伪 3D 旋转图像
// Create a <img> element on the page and point to an image of your choosing
var imageElem = document.createElement("img");
imageElem.setAttribute("src", "Listing10-5.jpg");
// Create an event handler function for processing the device orientation event
function handleOrientationEvent(event) {
// Get the orientation of the device in 3 axes, known as alpha, beta, and gamma, and
// represented in degrees from the initial orientation of the device on load
var alpha = event.alpha,
beta = event.beta,
gamma = event.gamma;
// Rotate the <img> element in 3 axes according to the device's orientation using CSS
imageElem.style.webkitTransform = "rotateZ(" + alpha + "deg) rotateX(" + beta + "deg) rotateY(" + gamma + "deg)";
}
// Add the <img> element to the page
document.body.appendChild(imageElem);
// Listen for changes to the device orientation using the gyroscope and fire the event
// handler accordingly
window.addEventListener("deviceorientation", handleOrientationEvent, false);
图 10-4。
Running Listing 10-5, creating a pseudo-3D effect on an image using device sensors
我们可以将磁力计的数据与 CSS 旋转变换结合起来，构建一个虚拟罗盘，或者将屏幕上的地图与用户面对的方向对齐。Apple 的 Mobile Safari 浏览器提供了一个特定于 Webkit 的实验性属性，每当设备移动时，都会返回以正北度数为单位的当前指南针方向，允许我们相应地更新显示。目前没有用于访问磁力计的标准化 API，尽管这被设想为已经提到的 DeviceOrientation API 的扩展。
清单 10-6 中的代码显示了如何根据设备当前指向的方向，旋转一个表示指南针的 HTML 页面上的<img>标签(正北由页面上直接向上的图像表示)。
清单 10-6。根据移动设备的罗盘航向旋转图像
// Create a <img> element on the page and point to an image of a compass
var imageElem = document.createElement("img");
imageElem.setAttribute("src", "Listing10-6.jpg");
// Create a function to execute when the compass heading of the device changes
function handleCompassEvent(event) {
// Get the current compass heading of the iPhone or iPad, in degrees from due north
var compassHeading = event.webkitCompassHeading;
// Rotate an image according to the compass heading value. The arrow pointing to due north
// in the image will continue to point north as the device moves
imageElem.style.webkitTransform = "rotate(" + (-compassHeading) + "deg)";
}
// Add the <img> element to the page
document.body.appendChild(imageElem);
// Observe the orientation of the device and call the event handler when it changes
window.addEventListener("deviceorientation", handleCompassEvent, false);
方位和方向传感器的进一步阅读
要了解更多关于方位和方向传感器的编码，请通过 http://bit.ly/detect_orientation 查看 Mozilla 开发者网络网站上的“检测设备方位”。
访问运动传感器
移动设备的运动传感器告诉我们用户在三个线性轴(x(左右)、y(向前/向后)、z(向上/向下)上移动设备的速度，对于内置陀螺仪的设备，还告诉我们设备围绕三个旋转轴(x(β旋转角度，即滚动)、y(γ，即俯仰)和 z(α，即偏航)移动的速度。
运动传感器用于 flip-to-silence 应用，如 Flip4Silence(通过 http://bit.ly/flip4silence 通过 Google Play 提供给 Android)和游戏，如世嘉的《超级猴子球 2》(通过 http://bit.ly/smball2 在 App Store 上提供给苹果 iOS)。运动传感器开辟了各种可能性，从让用户通过摇动他们的设备来重置表格或撤销动作，到高级 Web 应用，如通过 http://bit.ly/is_quake 在线找到的虚拟地震仪。
W3C DeviceMotionEvent API(http://bit.ly/device_motion)规定，每当移动设备移动或旋转时，移动设备都会触发一个 JavaScript 事件，这将传递传感器数据，给出设备加速度(以米每秒平方为单位— m/s²)和旋转速度(以度每秒为单位— deg/s)。加速度数据以两种形式给出:一种考虑重力的影响，另一种忽略重力的影响。在后一种情况下，即使完全静止不动，该设备也会报告每秒平方 9.81 米的向下加速度。清单 10-7 中的代码展示了如何使用 DeviceMotionEvent API 向用户报告设备的当前加速度。它假设运行在一个 HTML 页面的上下文中，并添加了两个<p>标签来显示运动传感器返回的值，分别是没有重力的影响和有重力的影响。
清单 10-7。访问运动传感器以显示设备在任何方向上的最大加速度
// Create <p> elements for displaying current device acceleration values in
var accElem = document.createElement("p"),
accGravityElem = document.createElement("p");
// Define an event handler function for processing the device's acceleration values
function handleDeviceMotionEvent(event) {
// Get the current acceleration values in 3 axes and find the greatest of these
var acc = event.acceleration,
maxAcc = Math.max(acc.x, acc.y, acc.z),
// Get the acceleration values including gravity and find the greatest of these
accGravity = event.accelerationIncludingGravity,
maxAccGravity = Math.max(accGravity.x, accGravity.y, accGravity.z);
// Output to the user the greatest current acceleration value in any axis, as well as the
// greatest value in any axis including the effect of gravity
accElem.innerHTML = "Current acceleration: " + maxAcc + "m/s²";
accGravityElem.innerHTML = "Including gravity: " + maxAccGravity + "m/s²";
}
// Add the <p> elements to the page
document.body.appendChild(accElem);
document.body.appendChild(accGravityElem);
// Assign the event handler function to execute when the device is moving
window.addEventListener("devicemotion", handleDeviceMotionEvent, false);
运动传感器的进一步读数
要了解有关在移动设备上使用运动传感器的更多信息，请查看以下在线资料。
- Apple Safari 开发者库的“设备运动事件类参考”(
http://bit.ly/devicemotion) - Mozilla 开发者网络的“方向和运动数据解释”(
http://bit.ly/orientaton_motion)
失踪的传感器
在撰写本文时，无论是摄像头还是麦克风传感器都无法在移动浏览器中通过 JavaScript 访问。例如，如果我们能够访问这些传感器，我们就有可能捕获用户面部的图像并分配给一个在线帐户，或者允许用户为自己录制音频笔记。
不同浏览器供应商之间的分歧是缺乏访问这些数据的标准化 API 的部分原因。然而，最近的 W3C 媒体捕获和流 API ( http://bit.ly/media_capture )正在获得关注，并及时使开发人员能够从相机中捕获静态图像或视频流，或者从麦克风中捕获音频流(在用户允许的情况下)，以便在我们的 JavaScript 代码中使用。目前，这个 API 只在谷歌的 Chrome 浏览器和 Mozilla 的 Firefox 浏览器上可用，但支持看起来很快就会添加。通过访问浏览器中的 http://bit.ly/caniuse_stream ，查看浏览器对此功能的最新支持。
传感器数据的事件帧
在第四章的中，我描述了处理频繁触发事件的事件框架过程，通过减少每次触发事件时执行的代码量来提高性能。当涉及到移动设备时，应该认真使用这种技术，因为移动设备不能像桌面浏览器那样快速地处理 JavaScript。如果没有帧，事件处理函数将消耗设备上额外的额外内存，并导致网站或应用感觉无响应。清单 10-8 显示了我们如何调整清单 10-5 中的代码，将事件框架技术应用到 DeviceOrientation API。
清单 10-8。使用事件帧根据移动设备的精确方向旋转图像
// Create variables to store the data returned by the device orientation event
var alpha = 0,
beta = 0,
gamma = 0,
imageElem = document.createElement("img");
imageElem.setAttribute("src", "Listing10-5.jpg");
// Update the event handler to do nothing more than store the values from the event
function handleOrientationEvent(event) {
alpha = event.alpha;
beta = event.beta;
gamma = event.gamma;
}
// Add a new function to perform just the image rotation using the stored variables
function rotateImage() {
imageElem.style.webkitTransform = "rotateZ(" + alpha + "deg) rotateX(" + beta + "deg) rotateY(" + gamma + "deg)";
}
document.body.appendChild(imageElem);
// Connect the event to the handler function as normal
window.addEventListener("deviceorientation", handleOrientationEvent, false);
// Execute the new image rotation function once every 500 milliseconds, instead of every time
// the event fires, effectively improving application performance
window.setInterval(rotateImage, 500);
进一步利用传感器数据
使用 JavaScript 增强网站和创建基于传感器数据的 Web 应用的可能性和机会是巨大的。我在这里考虑了一些例子——只要有点创造力，我相信你可以想出更多的例子。尝试将来自不同传感器的数据(如地理位置和方向或运动和方向)结合起来，以帮助您构建增强的网站和 web 应用，从而以令人兴奋的新方式响应用户及其环境。尝试并从中获得乐趣！
网络连接故障和脱机状态
在移动设备上浏览网页的一个众所周知的问题是网络连接的掉线问题，特别是如果用户在运动中，例如在火车上或在汽车后座。当点击一个链接打开一个新页面时，用户很清楚网络已经断开，因为他们将看到一个移动设备上熟悉的屏幕。图 10-5 展示了这样的屏幕在苹果 iOS 7 上的样子。
图 10-5。
Network drops on mobile devices cause inconvenient experiences for those browsing the web
如果我们正在构建一个由 JavaScript 驱动的 web 应用，其中删除了硬页面转换以支持单页面体验，如果网络连接断开，用户将不会看到这样的屏幕，因此，作为开发人员，我们需要自己在应用中处理这个问题，例如，向用户指示网络连接已断开，或者将 HTTP 调用存储在缓冲区中，直到网络连接恢复。
检测联机和脱机状态
清单 10-9 中的代码展示了如何使用浏览器的navigator.onLine属性，在 JavaScript 代码执行的任何时候检测网络连接是否断开。
清单 10-9。在 JavaScript 代码执行期间的特定时间点检测网络连接的中断
var isOnline = navigator.onLine;
if (isOnline) {
// Run code dependent on network access, for example, execute an Ajax call to the server
} else {
alert("The network has gone offline. Please try again later.");
}
清单 10-9 中的代码对于包装任何网络连接代码都很有用，比如使用XmlHttpRequest的 Ajax 调用，或者动态创建引用外部文件资源的<script>、<img>或<link> DOM 元素。但是，您可能希望在屏幕上向用户显示网络是否已连接。我们可以利用网络断开和恢复时触发的两个 JavaScript 事件，分别命名为offline和online，而不是连续轮询navigator.onLine的值。然后，当网络状态改变时，您可以将代码挂接到这些事件上来更新页面，如清单 10-10 所示。
清单 10-10。检测 JavaScript 应用中任何一点的网络连接变化
// Define a function to execute when the network drops
function goneOffline() {
alert("No network connection");
}
// Define a function to execute when the network connection returns
function backOnline() {
alert("The network connection has been restored");
}
// Connect these functions up to the relevant JavaScript events that fire when the
// network goes offline and back online, respectively
window.addEventListener("offline", goneOffline, false);
window.addEventListener("online", backOnline, false);
清单 10-11 展示了我们如何将两种形式的网络连接断开检测结合到一个代码例程中，该例程在网络离线时存储 Ajax 调用，并在网络连接恢复时立即执行它们。
清单 10-11。当网络中断时堆叠 Ajax 调用，并在网络恢复时释放
// Define a variable to store our stack of Ajax calls in if they can't be made immediately
// because of a dropped network connection
var stack = [];
// Define the function that makes Ajax calls
function ajax(url, callback) {
// The XMLHttpRequest class enables Ajax requests to be made in the browser
var xhr = new XMLHttpRequest(),
LOADED_STATE = 4,
OK_STATUS = 200;
// If the browser has gone offline, add the function arguments (the url and callback) to the
// stack for sending later
if (!navigator.onLine) {
stack.push(arguments);
} else {
// If the browser is online, make the Ajaz call
xhr.onreadystatechange = function() {
// A readyState of 4 indicates that the server response is complete
if (xhr.readyState !== LOADED_STATE) {
return;
}
// Execute the callback function if the server responded with a HTTP 200
// status message ("OK")
if (xhr.status === OK_STATUS) {
callback(xhr.responseText);
}
};
// Trigger the Ajax HTTP GET operation
xhr.open("GET", url);
xhr.send();
}
}
// Define a function that loops through the stack of unsent Ajax calls, sending each in turn
function clearStack() {
// Loop through the items in the stack until the stack length is 0 (a falsy value)
while (stack.length) {
// Make the Ajax call, using the data from the stack. The shift() method pulls the first
// item off the array and returns it, altering the original array
ajax.apply(ajax, stack.shift());
}
}
// Ensure the clearStack function executes as soon as the network connection is restored
window.addEventListener("online", clearStack, false);
然后使用ajax()方法在代码中进行 Ajax 调用，如下所示。清单 10-11 中的代码将处理是立即进行网络调用还是等到网络连接恢复。
ajax("/my-service-url", function(data) {
alert("Received the following data: " + JSON.stringify(data));
});
您可以进一步修改这个示例，以允许您的网站或应用处理偶尔的网络中断，而不会影响用户在与您的代码交互的任何时候的体验。
用 Web 存储 API 保存数据
当您的 web 应用离线时，我们在清单 10-11 中看到了如何堆叠调用，以便一旦网络连接恢复，它们可以继续。然而，在这种情况下，用户并不知道正在发生这种情况，例如，他们发出的保存个人数据的调用没有通过服务器，而只是存储在内存中。如果他们选择关闭浏览器中的选项卡，这些内存内容将被清除，这意味着这些调用将永远不会被发送到服务器。我们需要一种方法将这个堆栈保存在内存中，即使浏览器关闭了，这样当用户将来返回应用时，只要网络连接，就可以从堆栈中进行调用。
持久变量存储过去是通过创建 cookiess 来处理的，cookie 是放在用户机器上的小文件，随每个 HTTP 请求一起发送到服务器。这是低效的——随每个请求发送的大 cookie 文件可能会导致应用的性能大大降低。今天，我们可以访问 HTML5 Web 存储 API ( http://bit.ly/webstorage_api )，特别是该规范中定义的window.sessionStorage和window.localStorage对象。前者sessionStorage，只允许在用户浏览器会话期间存储数据。通常，一旦他们关闭浏览器，任何存储的值都会被删除。另一方面，localStorage对象允许数据跨会话持久化，直到被用户或应用删除。对象上有三种方法可以从本地存储内存块中按名称获取、设置和删除项目:分别是getItem、setItem和removeItem。清单 10-12 展示了如何使用这些方法将变量数据保存在内存中，即使是在浏览器关闭之后。
清单 10-12。使用 Web 存储 API 在浏览器关闭后保存数据值
// Check to see if we have stored a value for the "favoriteBrowser" key before
var favoriteBrowser = window.localStorage.getItem("favoriteBrowser");
// If not, prompt the user to tell us their favorite web browser
if (!favoriteBrowser || favoriteBrowser === "") {
favoriteBrowser = prompt("Which is your favorite web browser?", "Google Chrome");
// Store their favorite browser in localStorage for next time they visit
window.localStorage.setItem("favoriteBrowser", favoriteBrowser);
}
// Show the user that we know what their favorite browser is, even if they told us some time ago
alert("Your favorite browser is " + favoriteBrowser);
// Ask if the user would like us to remove their favorite browser value from persistent storage
if (confirm("Would you like us to forget your favorite browser?")) {
// Remove the value from localStorage
window.localStorage.removeItem("favoriteBrowser");
}
getItem、setItem和removeItem方法可以被替换成简化的、更熟悉的语法，将localStorage对象视为 JavaScript 中的标准对象，创建、访问和删除该对象的属性以持久化它们的数据，如清单 10-13 所示，它执行与清单 10-12 完全相同的功能。还要注意如何直接访问localStorage对象，而不需要通过window对象来获取对它的引用。
清单 10-13。访问 Web 存储 API 的另一种方法
// Data within localStorage can be accessed as if they were properties on a standard object
var favoriteBrowser = localStorage["favoriteBrowser"];
if (!favoriteBrowser || favoriteBrowser === "") {
localStorage["favoriteBrowser"] = prompt("Which is your favorite web browser?", "Google Chrome");
}
alert("Your favorite browser is " + favoriteBrowser);
if (confirm("Would you like us to forget your favorite browser?")) {
// The delete keyword allows the removal of a property from localStorage
delete localStorage["favoriteBrowser"];
}
我们可以将 Web 存储 API 应用到我们在清单 10-11 中编写的代码中，以便在网络断开时堆栈 Ajax 调用，如果用户关闭浏览器，则持久保存该堆栈，并在用户重新打开浏览器并且网络连接恢复时进行这些调用，如清单 10-14 所示。
清单 10-14。当网络中断时堆叠 Ajax 调用，并在浏览器关闭后持久化它们
localStorage["stack"] = localStorage["stack"] || [];
function ajax(url, callback) {
var xhr = new XMLHttpRequest(),
LOADED_STATE = 4,
OK_STATUS = 200;
if (!navigator.onLine) {
// Data in localStorage is stored as strings, so to store complex data structures such
// as arrays or objects, we need to convert those into a JSON-formatted string first
localStorage["stack"].push(JSON.stringify(arguments));
} else {
xhr.onreadystatechange = function() {
if (xhr.readyState !== LOADED_STATE) {
return;
}
if (xhr.status === OK_STATUS) {
callback(xhr.responseText);
}
};
xhr.open("GET", url);
xhr.send();
}
}
function clearStack() {
if (navigator.onLine) {
while (localStorage["stack"].length) {
// After reading the JSON-formatted string data out of localStorage, it needs to be
// converted back into a complex data form for use with the ajax() function
ajax.apply(ajax, JSON.parse(localStorage["stack"].shift()));
}
}
}
// Check on page load if there are any previously stacked Ajax calls that could now be sent
window.addEventListener("load", clearStack, false);
window.addEventListener("online", clearStack, false);
在开始使用这个 API 在本地添加兆字节的数据之前，有必要考虑一下浏览器对以这种方式存储的数据量的限制。每个域名最多可以在本地存储 5MB 的数据。虽然这是一个可以在许多浏览器中更改的设置，但这是默认的数量，没有办法通过 JavaScript 来更改。如果您试图使用localStorage写入超过 5MB 的数据，JavaScript 将抛出一个错误，并且不允许您保存额外的数据，直到您删除先前存储的数据。如果您希望以这种方式清除本地存储的全部内容，您可以调用localStorage.clear()方法，这将释放您的应用的所有可用空间，将您恢复到 5MB 的默认数据存储量。
要深入了解 Web 存储 API，请通过 http://bit.ly/dom_storage 阅读 Mozilla 开发者网络在线上的“DOM 存储指南”。
HTML5 应用缓存
我们处理离线状态的最后一项技术是 HTML5 应用缓存。使用一种特殊格式的文件(称为缓存清单)，您可以在应用中列出要下载的特定文件，并将其存储在本地设备的缓存中，这样每次都可以从缓存中加载这些文件，而不是直接从网络中加载。这意味着，一旦您访问了一个网站或应用，即使您的网络连接离线，您也应该能够再次访问同一网站。这不仅有利于那些使用移动设备或网络连接不良的用户，桌面设备也可以体验到这种好处，这意味着一旦以这种方式缓存，网站几乎可以瞬间加载。
缓存清单文件是一个简单的文本文件，约定规定它应该有一个.appcache文件扩展名，尽管这并不是任何规范的本质或一部分。更重要的是，缓存清单文件必须使用 MIME 类型的text/cache-manifest，对于大多数 web 服务器来说，这意味着需要为特定的文件扩展名向服务器配置添加特定的规则。
必须通过使用<html>标记上的manifest属性引用 HTML 文件来引用清单文件:
<html manifest="manifest.appcache">
清单文件本身看起来像一个标准的文本文件，它的第一行必须是CACHE MANIFEST才能被正确识别。在它最简单的用法中，应该有一个文件列表，每行一个，然后将被缓存以备将来对同一页面的请求。如果清单文件中列出的任何文件不存在，或者在请求时返回 HTTP 错误状态(例如，404 或 500)，则整个清单文件将被视为无效，并且不会使用此机制缓存任何文件。下次加载页面时，浏览器会将清单文件视为从未见过，尝试再次下载所有引用的资源。
如果浏览器检测到自上次缓存文件以来清单文件已被更新，它将返回到 web 服务器下载任何已更改的引用文件—当它这样做时，它会为每个文件请求发送一个If-Modified-Since HTTP 头，这意味着只有自上一轮缓存以来被更新的文件才会在缓存中被替换。一个好的技巧是在清单文件中包含一个注释行，由行首的散列字符(#)表示，它引用文件的版本号和/或可选的更改日期。更新引用的文件时，更新文件中的版本号，以便浏览器检测到更改并开始检查更新的文件。如果清单文件没有更改，浏览器将继续提供文件的缓存版本，直到用户手动删除缓存。当请求过去以这种方式缓存的页面时，浏览器将首先加载页面的缓存版本，然后在后台下载更新的文件。只有在下次刷新页面时，才会加载更新的资产。这与许多人对浏览器行为的预期相反，如果检测到清单文件中的更改，他们会立即根据新的资源重新下载并呈现整个页面。
清单 10-15 显示了一个简单的缓存清单文件，列出了下次页面加载时应该加载和缓存的文件资产，无论是在线还是离线。请注意，您不需要列出引用清单文件本身的 HTML 页面，因为默认情况下会缓存该页面。
清单 10-15。一个简单的缓存清单文件
CACHE MANIFEST
# Version 1.0.1 - 2013-01-02
/library/styles/main.css
/library/scripts/lib/jquery.min.js
/library/scripts/main.js
/img/background.jpg
/img/logo.png
缓存清单文件可能包含三个可选部分，每个部分由标题表示:CACHE:、NETWORK:和FALLBACK:。CACHE:部分与没有列出的部分相同，也就是说，它包含应该存储在离线缓存中的列出的文件。
NETWORK:部分列出了需要用户在线才能访问的 URL，例如表单操作 URL、web 服务和其他网络基本文件。本节中列出的任何资源都将通过网络直接访问，完全绕过缓存。本节只需要部分 URL，所以如果一组 web 服务通过相同的基础 URL 公开，例如， https://api.twitter.com/1.1/ ，那么这就是需要列出的所有内容。通配符值允许使用星号(*)字符。
FALLBACK:部分列出了当网络离线时用来代替网络基本 URL 的本地缓存文件。它由文件名、URL 或模式组成，后跟在网络连接中断时使用的本地缓存文件。在最简单的情况下，对于一个静态 HTML 站点，您可以使用通配符来引用所有的.html文件，并让它们退回到一个单独的脱机 HTML 文件，向用户解释该站点当前在那个单独的页面上是脱机的，以获得更令人满意的用户体验。在更高级的情况下，您可以提供对任何服务器端脚本、图像、样式表、JavaScript 文件等的回退，以便在网络中断时为您的用户提供良好的体验。
清单 10-16 显示了一个更高级的缓存清单文件，它使用了可选的CACHE:、NETWORK:和FALLBACK:部分。
清单 10-16。包含三个部分的缓存清单文件
CACHE MANIFEST
# Version 1.0.1 - 2013-10-02
CACHE:
/library/styles/main.css
/library/scripts/lib/jquery.min.js
/library/scripts/main.js
/img/background.jpg
/img/logo.png
# Always go straight to the network for API calls from a base /api/ URL
NETWORK:
/api/
# Replace a 'network online' image with a 'network offline' image when the network is down
FALLBACK:
/img/network-status-online.png /img/network-status-offline.png
如果你想了解更多关于 HTML5 应用缓存的内容，请访问 Mozilla 开发者网站上的“使用应用缓存”一文( http://bit.ly/app_cache )。
响应式设计的 JavaScript
响应式网页设计是一种新兴的设计和构建网站和应用的技术，它允许界面适应正在浏览的设备的特性。小屏幕设备(如智能手机)将显示适当大小和比例的用户界面，大屏幕设备上的用户也是如此。CSS3 媒体查询允许根据设备的当前特征对页面元素应用不同的样式规则。
在许多情况下，使用这种技术对网站进行视觉上的改变可能会导致界面行为的改变。可能在较大设备上完全显示的导航菜单可能在较小设备上隐藏在屏幕外，使用切换按钮来触发菜单的显示；切换按钮的行为仅适用于小屏幕视图。
通过使用浏览器的window.matchMedia()方法，传递要与当前显示进行比较的媒体查询或部分查询，可以基于当前活动的 CSS3 媒体查询规则执行不同的 JavaScript 代码。这将返回一个包含一个matches属性的MediaQueryList对象，如果它所代表的媒体查询在那时是活动的，那么这个属性将被设置为true。
如果应用的媒体查询发生变化，您将需要重新检查每个MediaQueryList对象的matches属性的状态。幸运的是，在绝大多数情况下，这应该是挂钩到浏览器窗口的resize事件的简单情况，如清单 10-17 所示。
清单 10-17。基于 CSS3 媒体查询执行特定的 JavaScript
// Create MediaQueryList objects for different CSS3 Media Query rules
var landscapeMQL = window.matchMedia("(orientation: landscape)"),
smallScreenMQL = window.matchMedia("(max-width: 480px)");
function checkMediaQueries() {
// Execute specific code if the browser is now in landscape orientation
if (landscapeMQL.matches) {
alert("The browser is now in landscape orientation");
}
// Execute specific code if the browser window is 480px or narrower in width
if (smallScreenMQL.matches) {
alert("Your browser window is 480px or narrower in width");
}
}
// Execute the function on page load and when the screen is resized or its orientation changes
window.addEventListener("load", checkMediaQueries, false);
window.addEventListener("resize", checkMediaQueries, false);
通过 http://bit.ly/matchmedia 阅读 Mozilla 开发者网络上关于 matchMedia 方法的更多信息。
摘要
在本章中，我们考虑了 web，特别是 JavaScript，因为它适用于用户在移动设备、智能手机或平板设备上浏览。我们已经看到了在内存、带宽、延迟和速度方面需要考虑的限制，以及如何最好地解决这些问题。我们研究了如何直接从这类设备的板载传感器中访问数据，使我们的应用能够对位置、运动、方向等做出反应。我们还了解了网络连接中断时会发生什么，以及如何在网络恢复后立即处理网络操作，从而提供流畅的用户体验。最后，我们学习了如何基于在响应网站的浏览器中应用的 CSS3 媒体查询来执行特定的 JavaScript。
以移动为中心的开发是一个不断增长的领域，随着每年新设备和操作系统更新的发布，我们可以使用开放的标准 W3C APIs 通过 JavaScript 直接访问越来越多的设备功能。确保你定期了解最新的发展，这样你才不会在这个快速发展的技术进步的世界中落后。
在下一章中，我们将了解如何使用 HTML5 Canvas drawing API 来构建桌面和移动在线游戏，而不依赖于任何第三方插件，如 Adobe Flash。
十一、使用画布 API 构建游戏
近年来，web 浏览器最令人兴奋的新功能之一是在 HTML5 及其相关 JavaScript API 中采用了<canvas>标签。单独在 HTML 文档中，它什么也不做。然而，将它与 JavaScript 的强大功能结合起来，您的页面中就有了一个空白的绘图表面，您可以向其中添加形状、图像和文本。canvas 元素的内容由平面绘图表面上的像素数据表示，而不是由文档中的单个 DOM 元素表示，因此，如果您用另一个形状覆盖现有形状，文档中不会有原始形状曾经存在的记录。通过在一段时间内在同一个画布上反复清除和重绘，并进行细微的变化，我们可以给人一种元素内的动画和运动的印象。通过将这个动画连接到触摸屏、鼠标或键盘上的控制器，我们允许用户能够操纵屏幕上发生的事情。结合一些行为逻辑，我们可以使用<canvas>元素来构建在浏览器中运行的游戏。在这一章中，我们将先看看 Canvas JavaScript API 中的基本绘图操作，然后再深入研究如何使用它来构建游戏的细节，包括构建经典街机游戏 Frogger 的工作版本。
画布中的基本绘图操作
画布表面上的所有绘制都只通过 JavaScript 进行，默认情况下所有画布都是空白的。在绘制之前，我们需要获得对 canvas 元素的二维绘制上下文的引用，这将返回对我们希望在其上绘制的表面的引用——canvas 规范的未来发展可以通过为不同的需求创建额外的上下文来实现，例如通过 WebGL 规范( http://webgl.org )现在可以在 canvas 中实现三维图形。获取绘图上下文引用就像执行 canvas DOM 元素的getContext()方法一样简单，从那里可以执行许多方法来绘制形状和在画布上添加文本，如清单 11-1 所示。
清单 11-1。画布中的基本绘图操作
// Create a new <canvas> element
var canvas = document.createElement("canvas"),
// Get a reference to the drawing context of the canvas
context = canvas.getContext("2d");
// Set the dimensions of the canvas
canvas.width = 200;
canvas.height = 200;
// By default, a canvas is drawn empty, however if we needed to empty its contents after
// drawing to it, we could execute this function
function emptyCanvas() {
// Erase the contents of the canvas from the top-left of the canvas to the position at
// 200px x 200px from the top-left corner
context.clearRect(0, 0, 200, 200);
}
// With the drawing context established, we can now execute any of the drawing commands we
// would like on our blank canvas. For example, if we want to draw a circle in the top-left
// corner of our canvas, we could execute the following function
function drawCircle() {
// First, we tell the drawing context that we're creating a path—essentially a line
// between one point and another that could take any course between the two points
context.beginPath();
// The context's arc() method tells the path to take an arc shape. The method’s first
// two parameters indicate its starting position of the arc in pixels along the x- and
// y-axes, respecitvely. The third parameter indicates the size of the arc, in pixels,
// and the final two parameters indicate the arc's start and end angle, in radians,
// respsecitvely. To draw a circle, the start angle will always be 0, and the end angle
// will always be twice the value of PI, which indicates a full 360 degrees in radians.
context.arc(100, 100, 100, 0, 2 * Math.PI);
// By default, this line's path would be invisible, however the stroke() method ensures
// that a visible line is drawn along the path making its outline visible. We could also
// have used the fill() method to fill the circle with a fixed color.
context.stroke();
}
// Drawing a straight line works in a similar way to drawing a circle in that we must define
// our line before calling the stroke() method to actually apply the graphical "ink" to the
// canvas
function drawLine() {
// Move the drawing context location to position 50px (from the left edge of the canvas) x 40px
// (from the top edge of the canvas)
context.moveTo(50, 40);
// Mark out a staright line from the context's current position to position 150px x 160px,
// without actually drawing a line onto the canvas
context.lineTo(150, 160);
// Apply the "ink" to the canvas to fill in the marked-out line
context.stroke();
}
// Define a function to draw a red square onto the canvas using the drawing context's
// fillRect() method, setting the draw color to use first before performing the action
function drawSquare() {
// Set the fill style of the next draw operation. #FF000 is the hex value representing red.
context.fillStyle = "#FF0000";
// Draw a 100px red square starting at position 20px x 20px
context.fillRect(20, 20, 100, 100);
}
// We could even add text onto our canvas using the fillText() and strokeText() drawing
// context methods as shown in this function
function writeText() {
// First set the font style to use for the text to draw onto the canvas
context.font = "30px Arial";
// Write some text onto the canvas at position 0px x 0px
context.fillStyle = "#000";
context.fillText("Filled Text", 0, 30);
// Write some outlined text onto the canvas beneath the existing text at position 0px x 40px
context.strokeText("Outlined Text", 0, 70);
}
// Execute the defined drawing functions, adding their shapes and text to the canvas
emptyCanvas();
drawCircle();
drawLine();
drawSquare();
writeText();
// Add the new <canvas> DOM element to the end of the current HTML page once loaded
window.addEventListener("load", function() {
document.body.appendChild(canvas);
}, false);
在一个 web 页面的上下文中执行清单 11-1 中的代码会导致图 11-1 中所示的图像被添加到页面的<canvas>元素中。
图 11-1。
Basic drawing operations in Canvas
关于 画布 API 中可用的绘图方法的更详细的概述，请通过 http://bit.ly/canvas_tutorial 查看 Mozilla 开发者网络上的“Canvas 教程”。
高清画布元素
用于移动和桌面设备的屏幕技术的最新进展已经为这种设备带来了高清晰度图形的出现，有时称为视网膜图形，因为单个像素边界对于肉眼内的视网膜来说是不可区分的。默认情况下，画布元素不会为这种屏幕类型创建更高清晰度的图形，标准的基于画布的图形在这些屏幕上通常看起来像素化或模糊不清。幸运的是，有一些技术可以帮助我们创建高分辨率的画布元素。
为了确保您的画布只为显示它的设备屏幕呈现正确数量的像素，我们可以利用浏览器的window对象的devicePixelRatio属性。存储在该属性中的值表示当前屏幕支持的标准显示分辨率之上的分辨率因子，例如，1表示标准屏幕，2表示视网膜显示器。如果适合屏幕类型，我们使用这个值来放大我们的<canvas>元素的宽度和高度，像以前一样使用 CSS 来再次将其缩小到正确的大小以便显示。因此，所有绘图操作的尺寸和大小也必须适当地按该因子缩放，以便在设备上以正确的大小呈现。Paul Lewis 在 HTML5 Rocks blog 上通过 http://bit.ly/hidpi_canvas 写了一些关于如何实现这一点的完整文档，值得一读，但是如果您确信您正在绘制的图形不是需要执行的特别密集的操作，您可以简单地创建两倍于您打算显示它的大小的画布，呈现假设这个更大大小的所有内容(即，不使用比例因子)，然后简单地使用 CSS 将画布元素的宽度和高度设置回 HTML 页面中所需的显示大小。这样，通过在较小的空间中简单地渲染更多的像素，就可以在画布上看到更高分辨率的图形。如果您的最终用户没有高清屏幕，我们会渲染不显示的额外像素，这就是为什么这种技术应该只用于不太密集的图形操作，以免影响浏览器性能。
使用画布构建游戏
画布 API 的一个常见用途是构建在浏览器中运行的游戏，这曾经只是为 Adobe 的 Flash player 编写的专有代码的领域。由于该 API 在桌面和移动设备上都受到广泛支持，因此使用 画布 API 编写的游戏也可以在移动中从浏览器中玩。
许多游戏由相似的程序和结构组成，包括:
- 游戏板或世界的存在，它定义了游戏中动作的约束
- 绘制用户控制的玩家以及游戏板上出现的任何敌人或障碍物并制作动画，并跟踪每个敌人或障碍物在游戏板上的位置
- 使用诸如按键、点击、轻敲、移动和其他相关输入设备的输入机制来控制玩家在游戏板上的移动
- 保持更新的分数、高分数，并跟踪玩家剩余的生命数和/或玩家剩余多少时间来完成该关卡
- 检测一个或多个玩家或障碍物何时在游戏板上相互碰撞，以及玩家失去生命或完成关卡或游戏的处理
现在让我们更详细地看看如何使用 画布 API 对这些结构中的每一个进行编码，使它们能够协同工作，形成一个可工作的游戏。
在画布上绘制图像
大多数游戏都涉及图像在屏幕上的移动——玩家的角色很少是简单的形状，如圆形或方形，将游戏图形设计为在游戏中使用的图像可能是最容易的。这需要将图像从文件直接绘制到画布上，这可以使用画布绘制上下文的drawImage()方法来完成，向它传递一个对<img>元素的引用和画布上绘制图像的位置，如清单 11-2 所示。
清单 11-2。在画布上绘制图像
// Create a new <canvas> element to draw the image to
var canvas = document.createElement("canvas"),
// Get the drawing context of the <canvas> element
context = canvas.getContext("2d"),
// Create a new <img> element to reference the image to draw onto the <canvas>
img = document.createElement("img");
// Assign a function to execute once the assigned image has loaded—the image will not begin to
// load until its "src" attribute has been set
img.addEventListener("load", function() {
// Draw the image onto the <canvas> element at position 0px x 0px—the top-left corner of
// the element
context.drawImage(img, 0, 0);
}, false);
// Assign the "src" attribute of the <img> element to point to the location of the image we wish
// to display within the <canvas> element. The image will then load and the event handler
// assigned previously will be executed
img.src = "filename.png";
// Append the new <canvas> element to the end of the current HTML page once loaded
window.addEventListener("load", function() {
document.body.appendChild(canvas);
}, false);
使用精灵贴图图像避免多个图像文件
避免加载在网页上一起使用的多个小图像文件的常用技术是将这些图像组合成一个精灵图，一个包含每个单独图像的较大图像。这有助于通过减少浏览器和服务器需要完成的 HTTP 请求的数量来提高性能。在一个标准网页中，通过结合使用 CSS background-position属性和width和height属性，可以从较大的图像中提取单独的图像进行显示。在画布上显示图像的情况下，drawImage()方法中使用的参数的变化允许我们从一个较大的精灵贴图图像文件中提取图像的较小部分，如清单 11-3 所示。
清单 11-3。将一个单独的图像从精灵贴图绘制到画布上
var canvas = document.createElement("canvas"),
context = canvas.getContext("2d"),
img = document.createElement("img");
img.addEventListener("load", function() {
var individualImagePositionTop = 200,
individualImagePositionLeft = 150,
individualImageWidth = 300,
individualImageHeight = 40,
displayPositionTop = 100,
displayPositionLeft = 100,
displayWidth = 150,
displayHeight = 40;
// Draw the individual image located at position 200px x 150px and with dimensions 300px x
// 40px onto the <canvas> element at position 100px x 100px, rendering at half the size of
// the original, at 150px x 40px
context.drawImage(img, individualImagePositionTop, individualImagePositionLeft, individualImageWidth, individualImageHeight, displayPositionTop, displayPositionLeft, displayWidth, displayHeight);
}, false);
img.src = "sprite-map.png";
window.addEventListener("load", function() {
document.body.appendChild(canvas);
}, false);
画布中的动画
动画是任何游戏的基本方面，画布 API 要成为构建游戏的良好平台，它需要支持更新其中绘制的像素的位置和外观的能力。因为画布的内容只表示为固定空间中的像素，所以我们无法在不影响画布其余内容的情况下定位单个图像、形状或画布的其他部分并进行更新。为了创造动画的幻觉，我们因此需要足够频繁地重新渲染画布的内容，以使人眼察觉不到除了平滑动画之外的任何变化。我们绘制画布的每个组成部分，然后清除画布，并在固定时间后重新绘制，如果需要，将元素移动到新的位置。通过每秒重画几次，我们创造了动画的错觉。
清单 11-4 显示了一个简单的圆形移动穿过一个<canvas>元素的动画，它是通过每 50 毫秒重绘一次画布来创建的，每次都更新圆形的新位置。
清单 11-4。画布中的简单动画
var canvas = document.createElement("canvas"),
context = canvas.getContext("2d"),
// Define the position, size and properties of the circle to be drawn onto the canvas
leftPosition = 0,
topPosition = 100,
radius = 100,
startDegree = 0,
endDegree = 2 * Math.PI; // = 360 degrees in radians
// Define a function to be executed periodically to update the position of the circle and redraw
// it in its new position
function animate() {
// Update the position on the screen where the circle should be drawn
leftPosition++;
// Empty the contents of the canvas
context.clearRect(0, 0, canvas.width, canvas.height);
// Draw the circle onto the canvas at the new position
context.beginPath();
context.arc(leftPosition, topPosition, radius, startDegree, endDegree);
context.stroke();
}
// Execute the animate() function once every 50 milliseconds, redrawing the circle in its
// updated position each time
setInterval(animate, 50);
// Add the <canvas> element to the current page once loaded
window.addEventListener("load", function() {
document.body.appendChild(canvas);
}, false);
游戏控制
所有游戏都会对来自游戏设备的某种形式的输入做出反应——否则它们会很无聊。最常见的是，这包括控制一个主要角色，试图使用某种形式的灵巧来确保角色达到某个目标，避免途中的敌人和障碍。在台式计算机上，按下键盘上的特定键或者通过移动或点击鼠标来控制角色的位置。在移动设备上，可以通过在触摸屏上点击，或者以某种方式旋转或移动设备来控制字符。因为基于画布的游戏可以在这两种类型的设备上运行，所以您应该确保您创建的任何游戏都可以由任何类型的设备上的输入类型来控制。
清单 11-5 展示了如何在一个基于画布的游戏中捕捉特定的按键或轻击来控制玩家。
清单 11-5。捕捉输入以控制游戏中的角色
var canvas = document.createElement("canvas");
// Define a function call to move the player’s character in the <canvas>
function move(direction) {
// Insert code here to update the position of the character on the canvas
}
// When the player presses the arrow keys on the keyboard, move the player's
// character in the appropriate direction
window.addEventListener("keydown", function(event) {
// Define the key codes for the arrow keys
var LEFT_ARROW = 37,
UP_ARROW = 38,
RIGHT_ARROW = 39,
DOWN_ARROW = 40;
// Execute the move() function, passing along the correct direction based on the
// arrow key pressed. Ignore any other key presses.
if (event.keyCode === LEFT_ARROW) {
move("left");
} else if (event.keyCode === RIGHT_ARROW) {
move("right");
} else if (event.keyCode === UP_ARROW) {
move("up");
} else if (event.keyCode === DOWN_ARROW) {
move("down");
}
}, false);
// When the player taps in certain places on the <cavnas> on their touch-sensitive
// screen, move the player's character in the appropriate direction according to where the
// screen has been tapped
canvas.addEventListener("touchstart", function(event) {
// Get a reference to the position of the touch on the screen in pixels from the
// top-left position of the <canvas>
var touchLeft = event.targetTouches[0].clientX,
touchTop = event.targetTouches[0].clientY;
// Execute the move() function, passing along the correct direction based on the
// position tapped on the <canvas> element
if (touchLeft < (canvas.width / 8)) {
move("left");
} else if (touchLeft > (3 * canvas.width / 8)) {
move("right");
} else if (touchTop < (canvas.height / 8)) {
move("up");
} else if (touchTop > (3 * canvas.height / 8)) {
move("down");
}
}, false);
// Add the <canvas> element to the current HTML page once loaded
window.addEventListener("load", function() {
document.body.appendChild(canvas);
}, false);
冲突检出
到目前为止，我们已经看到了如何在<canvas>元素上绘制、动画和控制游戏的图形元素，接下来要处理的是当玩家的角色接触到障碍物或敌人时会发生什么——在游戏开发的说法中，这被称为碰撞。在许多游戏中，当玩家的角色与敌方角色相撞时，会受到一些伤害或可能失去一条生命。因为<canvas>元素只包含像素数据，所以我们无法简单地通过使用 JavaScript 扫描元素的可视内容来区分字符。我们在游戏中需要做的是保持我们的主角和所有障碍和敌人的位置，因为我们无论如何都要计算他们在动画序列中的下一个动作。我们可以获得每个元素的位置，并使用一个函数来比较它们，以确定玩家角色周围的边界是否与障碍物或敌人角色周围的边界相交。清单 11-6 中的代码显示了一个示例函数，它可以用来判断玩家和<canvas>中的另一个元素之间是否发生了冲突。
清单 11-6。简单碰撞检测
// Define a function to establish if the bounds of the player’s character intersects with those
// of an obstacle or enemy, causing a collision
function intersects(characterLeft, characterWidth, characterTop, characterHeight, obstacleLeft, obstacleWidth, obstacleTop, obstacleHeight) {
// Define Boolean variables to indicate whether a collision occurs on the y-axis and whether
// it occurs on the x-axis
var doesIntersectVertically = false,
doesIntersectHorizontally = false,
// Establish the bounds of the character and obstacle based on the supplied parameters
characterRight = characterLeft + characterWidth,
characterBottom = characterTop + characterHeight,
obstacleRight = obstacleLeft + obstacleWidth,
obstacleBottom = obstacleTop + obstacleHeight;
// A collision occurs on the y-axis if the top position of the character sits between the
// top and bottom positions of the obstacle or if the bottom position of the character sits
// between the same positions of the obstacle
if ((characterTop > obstacleTop && characterTop < obstacleBottom) ||
(characterBottom > obstacleTop && characterTop < obstacleBottom)) {
doesIntersectVertically = true;
}
// A collision occurs on the x-axis if the left position of the character sits between the
// left and right positions of the obstacle or if the right position of the character sits
// between the same positions of the obstacle
if ((characterLeft > obstacleLeft && characterLeft < obstacleRight) ||
(characterRight > obstacleLeft && characterLeft < obstacleRight)) {
doesIntersectHorizontally = true;
}
// A collision occurs if the character intersects the obstacle on both the x- and y-axes.
return doesIntersectVertically && doesIntersectHorizontally;
}
游戏循环
游戏循环是一个根据固定持续时间重复调用的函数，本质上是游戏的核心——它更新游戏板中任何角色的位置，检查冲突，并在更新的位置呈现<canvas>元素中的角色。虽然玩家的输入可以在任何时候出现，以尝试更新角色在屏幕上的位置，但是只有当下一次调用游戏循环函数时，角色才基于该输入被绘制在其新位置。
确保游戏循环在特定的时间间隔运行以保持动画以固定的帧速率流畅的一种技术是使用浏览器的setInterval()功能，如清单 11-7 所示。
清单 11-7。使用 setInterval()函数以固定的帧速率运行游戏循环
// Define a function to act as the game loop
function gameLoop() {
// Update character positions, check for collisions and draw characters in new positions
}
// Execute the gameLoop() function once every 50 milliseconds, resulting in a frame rate of 20
// frames per second (=1000/50)
setInterval(gameLoop, 50);
使用setInterval()函数运行游戏循环的问题是，如果浏览器在再次启动之前没有及时完成执行游戏循环函数的代码，积压的代码会聚集起来，导致浏览器似乎被锁定，或者导致任何动画中出现口吃——这不是好事。幸运的是，浏览器制造商已经找到了解决这个问题的方法，这样，你就不必不顾代码对浏览器的影响而要求代码运行，浏览器可以告诉你它何时可用，何时能够处理更多的命令。这是通过调用window对象上的requestAnimationFrame()方法来实现的，向其传递一个函数，并由浏览器在下一个可用的时机执行。通过结合使用这个方法和一个定时器来确保命令按照一个固定的帧速率执行，我们给了浏览器更多的控制，允许更平滑的动画，如清单 11-8 所示。由于在规范确定之前，跨浏览器的命名存在一些差异，我们需要一个简单的 polyfill 来确保跨浏览器的操作，如清单 11-8 开头所示，它展示了一个游戏循环的例子。
清单 11-8。使用 requestAnimationFrame 运行游戏循环
// Create a simple cross-browser polyfill for modern browsers' requestAnimationFrame()
// method to enable smooth, power-efficient animations. Credit to Paul Irish via
//http://bit.ly/req_anim_frame
window.requestAnimationFrame = (function(){
return window.requestAnimationFrame || window.webkitRequestAnimationFrame || window.mozRequestAnimationFrame || function (callback){
window.setTimeout(callback, 1000 / 60);
};
})();
// Store a reference to the last time the game loop began in a local variable—initialize it
// to the current time
var lastTimeGameLoopRan = (new Date()).getTime(),
// Define the refresh rate we desire for our game loop to re-render our canvas within.
// A 20 millisecond refresh rate gives a frame rate of 50 frames per second (=1000 / 20)
refreshRate = 20;
// Define a function to act as the game loop
function gameLoop() {
// Get the current time and infer from there the difference between it and the last time
// the game loop ran
var currentTime = (new Date()).getTime(),
timeDifference = currentTime - lastTimeGameLoopRan;
// Execute this function again when the next animation frame is ready for use by
// the browser - keeps the game loop looping but within the confines of the browser's
// performance and constraints, which is ultimately best for the player
window.requestAnimationFrame(gameLoop);
// the time difference between the current execution of the gameLoop() function and
// its previous execution is greater than or equal to the defined refresh rate, then
// run the typical game loop operations
if (timeDifference >=refreshRate) {
// Update character positions, check for collisions and draw characters in
// new positions
// Update the last time the game loop ran so its next execution will occur at the
// correct time
lastTimeGameLoopRan = currentTime;
}
}
// Start the first run of the game loop
gameLoop();
分层画布以获得更好的性能
对一个<canvas>元素的每个绘制操作都需要一定的时间来执行。如果你有一个有很多角色的复杂游戏，并且你开始意识到每一个绘制操作在性能方面都很重要，那么将这个数字乘以无数倍，因此应该尽可能地避免重绘游戏的静态部分。例如，对于一些具有静态背景的游戏，创建两个<canvas>元素更有意义，一个用于绘制背景，另一个用于所有定期更新的角色移动和动画。然后可以使用 CSS 将这两个元素放置在彼此之上，包含所有移动的元素放置在包含背景的元素之上，背景只需绘制一次，从不更新。
在画布上构建“青蛙过河”游戏
让我们使用 画布 API 将我们所学的知识付诸实践。我们将基于 1981 年的街机经典游戏 Frogger ( http://bit.ly/frogger_game )构建一个简单的游戏，展示如何最好地绘制角色并制作动画，处理来自游戏控制器的输入，处理游戏中两个或更多角色之间的冲突检测，以及如何调节帧速率以保持玩家的最佳性能。
如果你不熟悉，这个游戏的目的是引导一只青蛙从下到上穿过屏幕，首先带领角色穿过一条繁忙的道路，不要碰到任何交通，然后使用漂浮的木头和偶尔浮出水面的乌龟的背越过一条河，同时避免潜伏在水中的危险，最后将我们的英雄角色送到屏幕顶部的五个目标站之一，此时屏幕底部又会创建一只新的青蛙。一旦角色进入每个目标站一次，游戏就赢了。作为控制游戏的人，用户必须确保青蛙不会被车辆撞上，不会被运出屏幕，接触到水，包括当海龟潜入水下时站在它的上面，并且角色必须在规定的时间内到达其中一个目标站。如果一个事故降临到角色身上，它的五条生命中的一条将会失去，直到一条都没有了，游戏被认为结束。
青蛙过河器中的一个典型关卡如图 11-2 所示。
图 11-2。
Frogger—the arcade classic
让我们从创建基本的 HTML 页面来存放我们的游戏开始，如清单 11-9 所示。我们在<head>中使用特殊格式的<meta>标签来固定移动设备的视口宽度。我们还需要一个自定义字体，名为“Arcade Classic”，可以从 http://bit.ly/arcade_font 免费下载，以在画布中显示分数和其他文本，所以我们也将它加载到这里。然后，我们创建两个<canvas>元素，一个容纳背景，一个容纳动画前景，并定义 CSS 将两个画布层叠在一起，确保它们以实际画布尺寸的一半显示，以支持高清显示。
清单 11-9。在画布上托管青蛙游戏的 HTML 页面
<!DOCTYPE html>
<html>
<head>
<title>Frogger In Canvas</title>
<meta charset="utf-8">
<meta name="viewport" content="width=480, initial-scale=1.0">
<style>
@font-face {
font-family: "Arcade Classic";
src: url("arcadeclassic.eot");
src: url("arcadeclassic.eot?#iefix") format("embedded-opentype"),
url("arcadeclassic.woff") format("woff"),
url("arcadeclassic.ttf") format("truetype"),
url("arcadeclassic.svg#arcadeclassic") format("svg");
font-weight: normal;
font-style: normal;
}
.canvas {
position: absolute;
top: 0;
left: 0;
border: 2px solid #000;
width: 480px;
height: 640px;
}
</style>
</head>
<body>
<canvas id="background-canvas" class="canvas" width="960" height="1280"></canvas>
<canvas id="canvas" class="canvas" width="960" height="1280"></canvas>
<!-- Load in scripts here once defined -->
</body>
</html>
有了 HTML 之后，我们从 JavaScript 开始。清单 11-10 显示了我们如何开始我们的游戏代码，通过创建一个命名空间来存放我们的代码，并定义一些关键的属性和方法用于代码的其余部分，包括观察者设计模式方法，我们将使用它在整个游戏代码中的代码模块之间进行通信。
清单 11-10。定义一个命名空间和关键属性和方法，以便在我们的游戏中使用
// Define a namespace to contain the code for our game within a single global variable
var Frogger = (function() {
// Locate the main <canvas> element on the page
var canvas = document.getElementById("canvas"),
// Get a reference to the <canvas> element's 2-D drawing surface context
drawingSurface = canvas.getContext("2d"),
// Locate the background <canvas> element on the page
backgroundCanvas = document.getElementById("background-canvas"),
// Get a reference to the background <canvas> element's 2-D drawing surface context
backgroundDrawingSurface = backgroundCanvas.getContext("2d"),
// Get a reference to the <canvas> element's width and height, in pixels
drawingSurfaceWidth = canvas.width,
drawingSurfaceHeight = canvas.height;
return {
// Expose the <canvas> element, its 2-D drawing surface context, its width and
// its height for use in other code modules
canvas: canvas,
drawingSurface: drawingSurface,
drawingSurfaceWidth: drawingSurfaceWidth,
drawingSurfaceHeight: drawingSurfaceHeight,
// Expose the background <canvas> element's 2-D drawing surface context
backgroundDrawingSurface: backgroundDrawingSurface,
// Define an object containing references to directions the characters in our game can
// move in. We define it here globally for use across our whole code base
direction: {
UP: "up",
DOWN: "down",
LEFT: "left",
RIGHT: "right"
},
// Define the observer design pattern methods subscribe() and publish() to allow
// application-wide communication without the need for tightly-coupled modules. See
// Chapter 7 for more information on this design pattern.
observer: (function() {
var events = {};
return {
subscribe: function(eventName, callback) {
if (!events.hasOwnProperty(eventName)) {
events[eventName] = [];
}
events[eventName].push(callback);
},
publish: function(eventName) {
var data = Array.prototype.slice.call(arguments, 1),
index = 0,
length = 0;
if (events.hasOwnProperty(eventName)) {
length = events[eventName].length;
for (; index < length; index++) {
events[eventName][index].apply(this, data);
}
}
}
};
}()),
// Define a method to determine whether two obstacles on the game board intersect
// each other on the horizontal axis. By passing in two objects, each with a 'left'
// and 'right' property indicating the left-most and right-most position of each
// obstacle in pixels on the game board, we establish whether the two intersect
// each other - if they do, and they are both on the same row as each other on the
// game board, this can be considered a collision between these two obstacles
intersects: function(position1, position2) {
var doesIntersect = false;
if ((position1.left > position2.left && position1.left < position2.right) ||
(position1.right > position2.left && position1.left < position2.right)) {
doesIntersect = true;
}
return doesIntersect;
}
};
}());
接下来的每个代码清单都需要在清单 11-9 中的 HTML 页面的<script>标签中被依次引用，才能看到最终的结果。
现在让我们创建我们的核心游戏逻辑，包括游戏状态，游戏循环，分数处理，以及建立玩家的剩余生命和完成关卡的剩余时间，如清单 11-11 所示。
清单 11-11。青蛙过河的核心游戏逻辑
// Create a simple cross-browser polyfill for modern browsers' requestAnimationFrame()
// method to enable smooth, power-efficient animations. Credit to Paul Irish via
//http://bit.ly/req_anim_frame
window.requestAnimationFrame = (function(){
return window.requestAnimationFrame || window.webkitRequestAnimationFrame || window.mozRequestAnimationFrame || function (callback){
window.setTimeout(callback, 1000 / 60);
};
})();
// Define the game logic module which keeps track of the game state, the players's score,
// the number of lives remaining, handles collisions between the player's character and
// other obstacles and ensures the game graphics are drawn onto the <canvas> at the
// right moment. This module contains the brains behind the game play and instructs other
// code modules to do the heavy lifting through the use of the observer design pattern.
(function(Frogger) {
// Define a variable to hold the current player's score
var _score = 0,
// Define and initialize a variable to hold the high score achieved in the game
_highScore = 1000,
// Define the number of lives the player has remaining before the game is over
_lives = 5,
// Define the number of milliseconds the player has to get their character to
// the goal (60 seconds). If they take too long, they will lose a life
_timeTotal = 60000,
// Define a variable to store the current time remaining for the player to reach
// the goal
_timeRemaining = _timeTotal,
// Define the refresh rate of the graphics on the <canvas> element (one draw every
// 33 1/3 milliseconds = 30 frames per second). Attempting to redraw too frequently
// can cause the browser to slow down so choose this value carefully to maintain a
// good balance between fluid animation and smooth playability
_refreshRate = 33.333,
// Define a variable to store the number of times the player's character has
// reached the goal
_timesAtGoal = 0,
// Define a variable to indicate the number of times the player's character needs
// to reach the goal for the game to be won
_maxTimesAtGoal = 5,
// Define a Boolean variable to indicate whether the player's movement is currently
// frozen in place
_isPlayerFrozen = false,
// Define a variable to store the last time the game loop ran - this helps keep
// the animation running smoothly at the defined refresh rate
_lastTimeGameLoopRan = (new Date()).getTime();
// Define a function to be called to count down the time remaining for the player to
// reach the goal without forfeiting a life
function countDown() {
if (_timeRemaining > 0) {
// This function will be called as frequently as the _refreshRate variable
// dictates so we reduce the number of milliseconds remaining by the
// _refreshRate value for accurate timing
_timeRemaining -= _refreshRate;
// Publish the fact that the remaining time has changed, passing along the
// new time remaining as a percentage - which will help when we come to display
// the remaining time on the game board itself
Frogger.observer.publish("time-remaining-change", _timeRemaining / _timeTotal);
} else {
// If the remaining time reaches zero, we take one of the player's remaining
// lives
loseLife();
}
}
// Define a function to be called when all the player's lives have gone and the game
// is declared over
function gameOver() {
// Pause the player's movements as they are no longer in the game
freezePlayer();
// Inform other code modules in this application that the game is over
Frogger.observer.publish("game-over");
}
// Define a function to be called when the player has reached the goal
function gameWon() {
// Inform other code modules that the game has been won
Frogger.observer.publish("game-won");
}
// Define a function to be called when the player loses a life
function loseLife() {
// Decrease the number of lives the player has remaining
_lives--;
// Pause the player's movements
freezePlayer();
// Inform other code modules that the player has lost a life
Frogger.observer.publish("player-lost-life");
if (_lives === 0) {
// Declare the game to be over if the player has no lives remaining
gameOver();
} else {
// If there are lives remaining, wait 2000 milliseconds (2 seconds) before
// resetting the player's character and other obstacles to their initial
// positions on the game board
setTimeout(reset, 2000);
}
}
// Define a function to be called when the player's character is required to be frozen
// in place, such as when the game is over or when the player has lost a life
function freezePlayer() {
// Set the local variable to indicate the frozen state
_isPlayerFrozen = true;
// Inform other code modules - including that which controls the player's
// character - that the player is now be frozen
Frogger.observer.publish("player-freeze");
}
// Define a function to be called when the player's character is free to move after
// being previously frozen in place
function unfreezePlayer() {
// Set the local variable to indicate the new state
_isPlayerFrozen = false;
// Inform other code modules that the player's character is now free to move around
// the game board
Frogger.observer.publish("player-unfreeze");
}
// Define a function to increase the player's score by a specific amount and update
// the high score accordingly
function increaseScore(increaseBy) {
// Increase the score by the supplied amount (or by 0 if no value is provided)
_score += increaseBy || 0;
// Inform other code modules that the player's score has changed, passing along
// the new score
Frogger.observer.publish("score-change", _score);
// If the player's new score beats the current high score then update the high
// score to reflect the player's new score and inform other code modules of a
// change to the high score, passing along the new high score value
if (_score > _highScore) {
_highScore = _score;
Frogger.observer.publish("high-score-change", _highScore);
}
}
// Define a function to execute once the player reaches the designated goal
function playerAtGoal() {
// When the player reaches the goal, increase their score by 1000 points
increaseScore(1000);
// Increment the value indicating the total number of times the player's character
// has reached the goal
_timesAtGoal++;
// Freeze the player's character movement temporarily to acknowledge they have
// reached the goal
freezePlayer();
if (_timesAtGoal < _maxTimesAtGoal) {
// The player must enter the goal a total of 5 times, as indicated by the
// _maxTimesAtGoal value. If the player has not reached the goal this many
// times yet, then reset the player's character position and obstacles on the
// game board after a delay of 2000 milliseconds (2 seconds)
setTimeout(reset, 2000);
} else {
// If the player has reached the goal 5 times, the game has been won!
gameWon();
}
}
// Define a function to execute when the player moves their character on the game
// board, increasing their score by 20 points when they do
function playerMoved() {
increaseScore(20);
}
// Define a function to be called when the game board needs to be reset, such as when
// the player loses a life
function reset() {
// Reset the variable storing the current time remaining to its initial value
_timeRemaining = _timeTotal;
// Release the player's character if it has been frozen in place
unfreezePlayer();
// Inform other code modules to reset themselves to their initial conditions
Frogger.observer.publish("reset");
}
// The game loop executes on an interval at a rate dictated by value of the
// _refreshRate variable (once every 50 milliseconds), in which the game board is
// redrawn with the character and obstacles drawn at their relevant positions on
// the board and any collisions between the player's character and any obstacles
// are detected
function gameLoop() {
// Calculate how many milliseconds have passed since the last time the game loop
// was called
var currentTime = (new Date()).getTime(),
timeDifference = currentTime - _lastTimeGameLoopRan;
// Execute this function again when the next animation frame is ready for use by
// the browser - keeps the game loop looping
window.requestAnimationFrame(gameLoop);
// If the number of milliseconds passed exceeds the defined refresh rate, draw
// the obstacles in the updated position on the game board and check for collisions
if (timeDifference >= _refreshRate) {
// Clear the <canvas> element's drawing surface - erases everything on the
// game board so we can redraw the player's character and obstacles in their
// new positions
Frogger.drawingSurface.clearRect(0, 0, Frogger.drawingSurfaceWidth, Frogger. drawingSurfaceHeight);
if (!_isPlayerFrozen) {
// As long as the player's character is not frozen in place, ensure the
// timer is counting down, putting pressure on the player to reach the
// goal in time
countDown();
// Inform other code modules to check the player has not collided with an
// obstacle on the game board
Frogger.observer.publish("check-collisions");
}
// Now on our empty canvas we draw our game board and the obstacles upon it in
// their respective positions
Frogger.observer.publish("render-base-layer");
// After the game board and obstacles, we draw the player's character so that
// it is always on top of anything else on the <canvas> drawing surface
Frogger.observer.publish("render-character");
// Store the current time for later comparisons to keep the frame rate smooth
_lastTimeGameLoopRan = currentTime;
}
}
// Define a function to kick-start the application and run the game loop, which renders
// each frame of the game graphics and checks for collisions between the player's
// character and any obstacles on the game board
function start() {
// Inform other code modules of the initial state of the game's high score
Frogger.observer.publish("high-score-change", _highScore);
// Start the game loop running
gameLoop();
}
// Execute the start() function to kick off the game loop once the "game-load" event
// is fired. We'll trigger this event after we've configured the rest of our code
// modules for the game
Frogger.observer.subscribe("game-load", start);
// Execute the playerAtGoal() function when another code module informs us that the
// player has reached the goal
Frogger.observer.subscribe("player-at-goal", playerAtGoal);
// Execute the playerMoved() function when we have been informed that the player has
// moved their character
Frogger.observer.subscribe("player-moved", playerMoved);
// Execute the loseLife() function when we are informed by another code base that the
// player's character has collided with an obstacle on the game board
Frogger.observer.subscribe("collision", loseLife);
// Pass the global Frogger variable into the module so it can be accessed locally,
// improving performance and making its dependency clear
}(Frogger));
现在让我们创建一些可重用的基础代码，用于创建我们的主要角色的图像和动画，以及从一个大的精灵图像创建游戏板上的障碍，如图 11-3 所示。您应该能够看到每个单独的图像的边界位于较大的精灵。
图 11-3。
The sprite map containing all the images required to support our game in a single file
你可以通过 http://bit.ly/frogger_image 下载这个精灵图片，用于本章的代码清单。清单 11-12 显示了允许我们从这个精灵图像创建单独的图像和动画的代码。
清单 11-12。从精灵图像创建图像和动画的基本代码
// Define a "class" for creating images to place on the game board. All the individual
// images are stored together in a single large image file called a Sprite Map. By knowing
// the position within this sprite file of the image to display, together with its width
// and height, we can pull out the individual images for display. By only loading in a
// single image file we improve the loading performance of the game
Frogger.ImageSprite = function(startPositionLeft, startPositionTop) {
// Each instance stores its starting position on the game board so it can later be
// reset to its initial position if necessary
this.startLeft = startPositionLeft || 0;
this.startTop = startPositionTop || 0;
// Initialize an object property to later store any animations for this image
this.animations = {};
// Set this image to its initial state for display
this.reset();
};
// Define a "class" for assigning animations to an ImageSprite instance to allow any image
// on the game board to appear to animate. An animation is a sequence of images which will
// be displayed in order over a fixed time period to give the impression of movement
Frogger.Animation = function(options) {
options = options || {};
// Store the rate to move between the images in the animation sequence, in milliseconds
// - defaults to a rate of 150 milliseconds
this.rate = options.rate || 150;
// Store a Boolean value to indicate whether this animation is to loop or play once
this.loop = options.loop || false;
// Store the supplied position in pixels from the left-hand side of the spite map image
// where the first image in this animation sequence is located
this.spriteLeft = options.spriteLeft || 0;
// Store the animation sequence which indicates a multiple of the image with as an
// offset from the spriteLeft value. A sequence value of [0, 1, 2] would indicate there
// are three images in this animation sequence located at the position stored in the
// spriteLeft property, that position + the width of the sprite image, and that
// position + double the width of the sprite image, respectively. It is therefore
// expected that an animation sequence of images are stored horizontally beside each
// other in order within the sprite map image file
this.sequence = options.sequence || [];
};
// Define and initialize properties and methods to be inherited by each instance of the
// Frogger.Animation "class"
Frogger.Animation.prototype = {
// Define a value to indicate the current frame shown from the animation sequence.
// As the sequence property is an Array, this is effectively an index within that Array
frame: 0,
// Define a property to indicate whether the animation is currently playing - that is
// that the frame index of the animation sequence is being actively incremented at the
// rate supplied at initiation time
playing: false,
// Define a property to store a timer indicator to start and stop the incrementing of
// the frame index on demand
timer: null,
// Define a function to start playing the animation - essentially incrementing the
// frame index on a timer at the rate supplied upon instantiation
play: function() {
var that = this;
// If the animation is not currently playing, then reset it to its initial state
if (!this.playing) {
this.reset();
this.playing = true;
}
// Increment the current frame index of the animation on a timer at a rate given
// by the supplied value upon instantiation, storing a reference to the timer in
// the timer property so that it can be stopped at a later time
this.timer = setInterval(function() {
that.incrementFrame();
}, this.rate);
},
// Define a function to rewind the current frame index of the animation sequence back
// to the start
reset: function() {
this.frame = 0;
},
// Define a function to increment the current frame index of the animation sequence
incrementFrame: function() {
// Only increment the current frame if the animation should be playing
if (this.playing) {
// Increment the current frame index of the animation sequence
this.frame++;
// If we have reached the end of the animation sequence, stop the animation if
// it was not intended to loop, otherwise reset the current frame index of the
// animation back to the start
if (this.frame === this.sequence.length - 1) {
if (!this.loop) {
this.stop();
} else {
this.reset();
}
}
}
},
// Define a function to return the value stored in the animation sequence at the
// current frame index. This value will be used later on to correctly identify which
// individual image from the large sprite map to display within the <canvas> element
getSequenceValue: function() {
return this.sequence[this.frame];
},
// Define a function to return the number of pixels from the left-hand edge of the
// sprite map of the first frame of this animation. This is used in conjunction with
// the current value of the animation sequence and the image width to decide which
// image to display within the <canvas> element
getSpriteLeft: function() {
return this.spriteLeft;
},
// Define a function to stop the timer from incrementing the current frame index, and
// hence stop the animation from playing
stop: function() {
// Terminate the timer
clearInterval(this.timer);
// Indicate that the animation is no longer playing
this.playing = false;
}
};
// Define and initialize properties and methods to be inherited by each instance of the
// Frogger.ImageSprite "class" to enable individual images from a larger sprite map to be
// drawn onto the <canvas> element
Frogger.ImageSprite.prototype = {
// Define properties to store the current position in pixels of the image on the
// game board from the top and left-hand edges
top: 0,
left: 0,
// Define properties to store the initial position in pixels of the images on the game
// board from the top and left-hand edges so that the image can be returned to its
// initial position at a later stage if needed
startLeft: 0,
startTop: 0,
// Define a property containing a reference to a new <img> tag holding the single
// large sprite map image. Because this is an object, it will be shared across all
// instances of the Frogger.ImageSprite "class", saving on memory usage
sprite: (function() {
var img = document.createElement("img");
img.src = "spritemap.png";
return img;
}()),
// Define properties to define the default width and height, in pixels, of an
// individual image within the large sprite map image file
width: 80,
height: 80,
// Define properties denoting the location of the top and left positions, in pixels,
// of the individual image within the large sprite map image. Together with the width
// and height properties, we are able to pull out an individual image from the sprite
// map to display within the <canvas> element
spriteTop: 0,
spriteLeft: 0,
// Declare no animations by default
animations: null,
// Define a property indicating the name of the currently playing animation, if any
currentAnimation: "",
// Define a property to indicate whether the individual image represented by this
// object instance is currently hidden from display
isHidden: false,
// Define a function to reset this image back to its initial position and to reset any
// associated animation of that image
reset: function() {
// Reset the top and left position of the image on the game board back to its
// initial position defined upon instantiation
this.left = this.startLeft;
this.top = this.startTop;
// Reset any associated animations to their initial state
this.resetAnimation();
// Declare this image no longer to be hidden
this.isHidden = false;
},
// Define a function to associate one or more animation with this image - data is
// passed in as an object literal with each key representing the name of the animation
registerAnimation: function(animations) {
var key,
animation;
// Loop through the supplied object literal data indicating the animations to
// register
for (key in animations) {
animation = animations[key];
// Create instances of the Frogger.Animation "class" for each item in the
// supplied data object. Each item's data is passed to the "class" upon
// instantiation to define its animation sequence, animation rate, and other
// initial properties
this.animations[key] = new Frogger.Animation(animation);
}
},
// Define a function to reset any currently playing animation back to its initial state
resetAnimation: function() {
if (this.animations[this.currentAnimation]) {
// If an animation is currently playing, then call its reset() method to
// restore it to its initial state
this.animations[this.currentAnimation].reset();
}
// Once reset, there should be no currently playing animation
this.currentAnimation = "";
},
// Define a function to play a specific animation sequence by name. The name must
// correspond with one provided to the registerAnimation() method previously
playAnimation: function(name) {
// Set the current animation to the provided name
this.currentAnimation = name;
if (this.animations[this.currentAnimation]) {
// If an animation is found by the supplied name, then call its play() method
// to begin incrementing its current frame index using its internal timer
this.animations[this.currentAnimation].play();
}
},
// Define a function to draw the individual image onto the <canvas> element at the
// supplied left and top positions, in pixels. If an animation is currently playing,
// ensure the correct image is displayed based on that animation's current sequence
// value
renderAt: function(left, top) {
// Locate the animation that is currently playing, if any
var animation = this.animations[this.currentAnimation],
// If an animation is playing, get its current sequence value based on its
// internal frame index. If no animation is playing, assume a sequence value
// of 0\. This value will be multiplied by the width of the individual image
// within the sprite map to identify the exact image to show based on the
// animation's current frame index
sequenceValue = animation ? animation.getSequenceValue() : 0,
// If an animation is playing, get the location of the animation's initial
// frame as an offset in pixels from the left-hand edge of the sprite map image.
// We make an assumption that the top offset of the animation images is the
// same as the main image itself represented in this object instance - meaning
// that all frames of the animation should be positioned together with the main
// non-animating image on the same row of the sprite map image
animationSpriteLeft = animation ? animation.getSpriteLeft() : 0,
// Calculate the offset in pixels from the left-hand edge of the sprite map
// image where the individual image to display is to be found, based on whether
// an animation is currently playing or not. If no animation is playing, the
// offset will be the same as that stored in the spriteLeft property of this
// object instance
spriteLeft = this.spriteLeft + animationSpriteLeft + (this.width * sequenceValue);
// If the image is not currently to be considered hidden, then extract the individual
// image from the sprite map and draw it onto the <canvas> drawing surface at the
// top and left positions, in pixels, as provided to this method, when called
if (!this.isHidden) {
Frogger.drawingSurface.drawImage(this.sprite, spriteLeft, this.spriteTop, this.width, this.height, left, top, this.width, this.height);
}
},
// Define a function to set the stored left and top offset positions, in pixels,
// indicating where on the game board the image should be displayed. These values are
// then used in the renderAt() method to draw the image at this position
moveTo: function(left, top) {
this.left = left || 0;
// Since most images are moved left and right in this game, rather than up and down,
// we let the top offset value be optional
if (typeof top !== "undefined") {
this.top = top || 0;
}
},
// Define a function return the width of the individual image we are extracting from
// the large sprite map image
getWidth: function() {
return this.width;
},
// Define a function to return the left and right positions, in pixels, of the image
// which we can use later to perform collision detection with other obstacles on the
// game board
getPosition: function() {
return {
left: this.left,
// The right position is derived as the left position plus the width of the
// individual image
right: this.left + this.width
};
},
// Define a function to hide this image from the game board by effectively stopping
// the drawing of the image to the <canvas> within the renderAt() method
hide: function() {
this.isHidden = true;
}
};
现在让我们创建一个代码模块来定义游戏板的限制和参数，包括角色可以移动的范围，如清单 11-13 所示。游戏板本身本质上是一个网格，其中的障碍物固定在某个垂直网格位置，只能水平移动-玩家的角色是这个规则的一个例外，因为它能够在游戏板上上下跳跃，一次移动一个网格位置。
清单 11-13。编码游戏板参数
// Define a code module to define the parameters of the game board itself, the number of
// rows and columns within the grid, along with their relative positions in pixels, and
// the bounds within which the player's character may move
(function(Frogger) {
// Define the width and height of each square on the game board grid, in pixels. The
// game board is divided into rows with different obstacles on each, and columns within
// which the player's character can move
var _grid = {
width: 80,
height: 80
},
// Define the number of rows on the game board. The top two rows contain the score,
// the next two contain the home base the player is attempting to reach. There then
// follow five rows of water-based obstacles before reaching a 'safe' row where the
// player's character may take refuge without obstacles. There then follow five rows
// of road-based obstacles before another 'safe' row, which is where the player's
// character starts its game from. The final row holds the remaining time and number
// of lives remaining. There are 17 rows, therefore, though since we start counting
// rows at position 0, the total number of rows is said to be 16 using the grid
// square defined previously
_numRows = 16,
// Define the number of columns on the game board, from left to right, based on the
// game board grid defined previously. The total number of columns is 12 but since
// we count position 0 as a column, we represent the number as 11 instead
_numColumns = 11,
// Define the limits of movement of the player's character on the game board in
// pixels, returning the left-, right-, top- and bottom-most positions the
// character can be placed. This is to ensure the player is not able to move
// their character onto the parts of the game board that show the score, the time
// remaining, etc.
_characterBounds = {
left: 0,
right: _numColumns * _grid.width,
top: 2 * _grid.height,
bottom: (_numRows - 2) * _grid.height
},
// Define an array containing the pixel positions of each of the 17 rows as
// measured from the left-most edge of the game board - each is essentially a
// multiple of the grid width. This allows easy access to pixel positions by
// row number.
_rows = (function() {
var output = [],
index = 0,
length = _numRows;
for (; index < length; index++) {
output.push(index * _grid.width);
}
return output;
}()),
// Define an array containing the pixel positions of each of the 12 columns as
// measured from the top-most edge of the game board - each is essentially a
// multiple of the grid height. This allows easy access to pixel positions by
// column number.
_columns = (function() {
var output = [],
index = 0,
length = _numColumns;
for (; index < length; index++) {
output.push(index * _grid.height);
}
return output;
}());
// Listen for the "game-load" event, which will be fired once all our code modules
// are configured
Frogger.observer.subscribe("game-load", function() {
// Publish the "game-board-initialize" event, passing along relevant information
// about the game board for other code modules to use to ensure they draw their
// images to the correct place on the board, and allow the character to only
// move between certain limits as defined in this code module
Frogger.observer.publish("game-board-initialize", {
// Pass across the number of rows and columns the board consists of
numRows: _numRows,
numColumns: _numColumns,
// Pass across arrays representing the pixel positions of each of the rows
// and columns on the board to simplify the drawing of images onto the <canvas>
// element in the correct place
rows: _rows,
columns: _columns,
// Pass across the width and height of each grid square on the game board
grid: {
width: _grid.width,
height: _grid.height
},
// Pass across the object containing the left, right, top and bottom positions
// in pixels which the player's character is allowed to move within on the
// game board
characterBounds: _characterBounds
});
});
}(Frogger));
清单 11-14 展示了我们如何使用自定义的 Arcade Classic 字体将当前和高分以及其他文本添加到<canvas>元素中。通过将所有代码一起存储在一个模块中，该模块处理文本和游戏状态消息的呈现，例如“游戏结束”和“你赢了！”对于游戏板，如果在画布上呈现文本时出现问题，我们确切地知道应该在哪里查找。
清单 11-14。在游戏板上添加文本，包括分数和消息，如“游戏结束”
// Define a code module to add text-based visuals to the game board, e.g. the score, high
// score, and any informative text for the player about the game state, such as "Game Over"
// or "You Win!"
(function(Frogger) {
// Define the text size and font name to use for the text. You can find the Arcade
// Classic font for download for free online athttp://bit.ly/arcade_font
var _font = "67px Arcade Classic",
// Define variables to store the current game state locally in this module
_score = 0,
_highScore = 0,
_gameWon = false,
_gameOver = false,
// Define a variable to store the initialized data from the game board module
// defined previously - this will be populated later with data from that module
_gameBoard = {};
// Define a function to render the player's score and high score to the <canvas> element
function renderScore() {
// Select the font face and size
Frogger.drawingSurface.font = _font;
// Right-align text at the position we define to draw the text at
Frogger.drawingSurface.textAlign = "end";
// Write the text "1-UP", right-aligned to the 4th column position and ending half
// a row down from the top of the game board in white (hex color value #FFF)
Frogger.drawingSurface.fillStyle = "#FFF";
Frogger.drawingSurface.fillText("1-UP", _gameBoard.columns[3], _gameBoard.grid.height / 2);
// Write out the current score in red (hex color value #F00) right-aligned beneath
// the "1-UP" text previously drawn to the <canvas>
Frogger.drawingSurface.fillStyle = "#F00";
Frogger.drawingSurface.fillText(_score, _gameBoard.columns[3], _gameBoard.grid.height);
// Write the text "HI-SCORE", right-aligned to the 8th column position and ending
// half a row down from the top of the game board in white (hex color value #FFF)
Frogger.drawingSurface.fillStyle = "#FFF";
Frogger.drawingSurface.fillText("HI-SCORE", _gameBoard.columns[8], _gameBoard.grid.height / 2);
// Write out the current high score in red (hex color value #F00) right-aligned
// beneath the "HI-SCORE" text previously drawn to the <canvas>
Frogger.drawingSurface.fillStyle = "#F00";
Frogger.drawingSurface.fillText(_highScore, _gameBoard.columns[8], _gameBoard.grid.height);
}
// Define a function to render the text "GAME OVER" to the <canvas>. This will only be
// called when the game is over
function renderGameOver() {
// Use the Arcade Classic font as previously defined, and write the text centered
// around the given drawing position in white
Frogger.drawingSurface.font = _font;
Frogger.drawingSurface.textAlign = "center";
Frogger.drawingSurface.fillStyle = "#FFF";
// Write the text center aligned within the <canvas> and at the 9th row position
// from the top of the game board
Frogger.drawingSurface.fillText("GAME OVER", Frogger.drawingSurfaceWidth / 2, _gameBoard.rows[9]);
}
// Define a function to render the text "YOU WIN!" to the <canvas> which will be called
// when the player has won the game by reaching the home base position five times
function renderGameWon() {
// Use the Arcade Classic font as previously defined, and write the text centered
// around the given drawing position in yellow (hex value #FF0)
Frogger.drawingSurface.font = _font;
Frogger.drawingSurface.textAlign = "center";
Frogger.drawingSurface.fillStyle = "#FF0";
// Write the text center aligned within the <canvas> and at the 9th row position
// from the top of the game board
Frogger.drawingSurface.fillText("YOU WIN!", Frogger.drawingSurfaceWidth / 2, _gameBoard.rows[9]);
}
// Define a function to render the "TIME" label in the bottom-right corner of the
// game board
function renderTimeLabel() {
// Use the Arcade Classic font as previously defined, and write the text centered
// around the given drawing position in yellow (hex value #FF0)
Frogger.drawingSurface.font = _font;
Frogger.drawingSurface.textAlign = "end";
Frogger.drawingSurface.fillStyle = "#FF0";
// Write the text right aligned within the <canvas> and in the bottom right corner
// of the game board
Frogger.drawingSurface.fillText("TIME", Frogger.drawingSurfaceWidth, Frogger. drawingSurfaceHeight);
}
// Define a function to render the text-based visuals to the game board as appropriate
// depending on the current game state - we'll connect this up later to be called
// once on every cycle of the game loop
function render() {
renderScore();
renderTimeLabel();
// Only render the "GAME OVER" text if the game is actually over
if (_gameOver) {
renderGameOver();
}
// Only render the "YOU WIN!" text if the players has won the game
if (_gameWon) {
renderGameWon();
}
}
// When the game logic publishes a message declaring that the player has won the game,
// set the local variable to indicate this also so that the "YOU WIN!" text will be
// drawn onto the <canvas> during any following execution of the game loop
Frogger.observer.subscribe("game-won", function() {
_gameWon = true;
});
// When the game logic module publishes a message indicating that the game has been
// lost, set the local variable to reflect this fact so that the "GAME OVER" text gets
// written to the <canvas> element on the next cycle around the game loop
Frogger.observer.subscribe("game-over", function() {
_gameOver = true;
});
// Reset the local variables indicating the game state if the game logic has forced
// a game state reset to occur
Frogger.observer.subscribe("reset", function() {
_gameOver = false;
_gameWon = false;
});
// Update the local score variable when the player's score changes throughout the
// course of the game. The updated score will then be written onto the <canvas> on
// the next cycle of the game loop
Frogger.observer.subscribe("score-change", function(newScore) {
_score = newScore;
});
// Update the local high score variable when the game's high score changes throughout
// the course of the game. The updated high score will then be drawn to the <canvas>
// on the next cycle of the game loop
Frogger.observer.subscribe("high-score-change", function(newHighScore) {
_highScore = newHighScore;
});
// Subscribe to the "game-board-initialize" event fired by the previous code module,
// storing the game board properties and settings in a local variable
Frogger.observer.subscribe("game-board-initialize", function(gameBoard) {
_gameBoard = gameBoard;
// Start listening to the "render-base-layer" event, fired from within the game
// loop, and execute the render() function when it occurs, drawing the text onto
// the game board in the appropriate position for each cycle of the game loop
Frogger.observer.subscribe("render-base-layer", render);
});
}(Frogger));
该是我们把背景图像添加到背景画布上的时候了，这就是我们在清单 11-15 中要做的，以及渲染玩家剩余的生命数和玩家角色到达目标的剩余时间。因为背景是静态的，我们只会在游戏开始时绘制一次，之后就不需要再触摸或修改了。我们将用于游戏板的图像如图 11-4 所示，可以通过 http://bit.ly/frogger_gameboard 下载与本章的代码清单一起使用。
清单 11-15。画出游戏背景，剩余生命数，剩余时间
// Define a code module to draw the game board background image to the background <canvas>
// element. We will draw the image once only since it is static and will not change - all
// graphical elements that could change are drawn to the main <canvas> element instead.
(function(Frogger) {
// To draw an image file onto the <canvas> we need to create a new <img> element to
// contain the image first
var _background = document.createElement("img");
// Once the image has loaded, draw the image onto the background <canvas> element's
// drawing surface, starting at the top-left corner and covering the full width and
// height of the drawing surface
_background.addEventListener("load", function() {
Frogger.backgroundDrawingSurface.drawImage(_background, 0, 0, Frogger.drawingSurfaceWidth, Frogger.drawingSurfaceHeight);
}, false);
// Setting the "src" attribute of the <img> causes the file to load immediately, which
// is why it was essential to configure our "load" event handler first. We load the
// file named "gameboard.gif" which contains the background of the game board. This
// will only be drawn once since we are not within the game loop at this point. By
// splitting the background out into a separate element, we avoid needing to redraw
// the background each time the game loop executes since it is static.
_background.src = "gameboard.gif";
}(Frogger));
// Define a code module to show the number of lives the player has remaining, and how much
// time remains before automatically losing a life, within the <canvas> element
(function(Frogger) {
// Define an array, to be populated later, which will represent the number of lives the
// player has remaining
var _lives = [],
// Define a variable indicating the time remaining on the countdown before the
// player automatically loses a life, represented as a percentage, starting at
// 100% and counting down to 0
_timeRemainingAsPercentage = 100,
// Define a variable for storing the game board properties and settings
_gameBoard;
// Define a subclass of Frogger.ImageSprite to represent the individual image found
// at position 720px from the left and 80px from the top of the sprite map image which
// is 40px wide by 40px tall and depicts a small frog to be used to denote a remaining
// life
function Life(left, top) {
// The left and top parameters indicate the starting position of this instance of
// the Life "class". We pass those parameters directly onto the parent
// Frogger.ImageSprite() constructor function
Frogger.ImageSprite.call(this, left, top);
}
// Inherit properties and methods from the Frogger.ImageSprite "class"
Life.prototype = new Frogger.ImageSprite();
Life.prototype.constructor = Life;
// Set the dimensions and location of the remaining life image from within the larger
// sprite map image file
Life.prototype.spriteLeft = 720;
Life.prototype.spriteTop = 80;
Life.prototype.width = 40;
Life.prototype.height = 40;
// Define a function to be executed when the game board has initialized, passing along
// the properties and settings from the game board code module
function initialize(gameBoard) {
// Define a variable representing the position from the top of the game board
// to display the remaining lives
var lifePositionTop;
// Store the game board properties and settings in a local variable within this
// code module
_gameBoard = gameBoard;
// Set the lifePositionTop variable to the appropriate position in the bottom-left
// corner of the game board
lifePositionTop = (_gameBoard.numRows - 1) * _gameBoard.grid.height;
// Define five lives for the player by populating the _lives array with five
// instances of the Life "class", each one initialized with its starting position
// from left to right along the bottom-left corner of the game board
_lives = [
// Each life is displayed at the same position from the top of the game board
// and each spaced horizontally according to the width of the individual
// image so they sit right beside each other
new Life(0, lifePositionTop),
new Life(1 * Life.prototype.width, lifePositionTop),
new Life(2 * Life.prototype.width, lifePositionTop),
new Life(3 * Life.prototype.width, lifePositionTop),
new Life(4 * Life.prototype.width, lifePositionTop)
];
// Listen for the "render-base-layer" event fired from within the game loop and
// execute the render() function, defined further down, when it is called
Frogger.observer.subscribe("render-base-layer", render);
}
// Define a function to render the number of lives remaining on the game board
function renderLives() {
var index = 0,
length = _lives.length,
life;
// Loop through the number of remaining lives stored in the _lives array, and
// call the renderAt() method of each of the Life "class" instances contained
// within, drawing the life on the game board at the appropriate position
for (; index < length; index++) {
life = _lives[index];
life.renderAt(life.left, life.top);
}
}
// Define a function to render the time remaining as a green rectangular bar along the
// bottom edge of the game board
function renderTimeRemaining() {
// Define the width of the rectangle. When full, this will be the width of 10
// columns on the game board. As the time remaining decreases, the width will
// decrease accordingly
var rectangleWidth = _timeRemainingAsPercentage * _gameBoard.rows[10],
// Define the height of the rectangle, which will always be half of one grid
// square on the game board
rectangleHeight = _gameBoard.grid.height / 2,
// Define the left-hand edge, in pixels, where the rectangle should be drawn
// from on the <canvas>. Since the countdown should appear to be decreasing
// from the left to the right, this will be the inverse of the time remaining
// percentage, multiplied by the full width of the rectangle
rectangleLeft = (1 - _timeRemainingAsPercentage) * _gameBoard.rows[10],
// Define the top edge, in pixels, where the rectangle should be drawn from
// on the <canvas> element. This will be the bottom edge of the game board so
// we need to subtract the desired height of the rectangle from the height
// of the game board itself
rectangleTop = Frogger.drawingSurfaceHeight - rectangleHeight;
// Set the drawing context to draw in green (hex color #0F0)
Frogger.drawingSurface.fillStyle = "#0F0";
// Draw the rectangle on the game board at the given positions
Frogger.drawingSurface.fillRect(rectangleLeft, rectangleTop, rectangleWidth, rectangleHeight);
}
// Define a function to draw the remaining lives and time remaining on the game board,
// executed when the "render-base-layer" event is fired from within the game loop
function render() {
renderLives();
renderTimeRemaining();
}
// When the game logic module informs us that the player has lost a life, we remove
// the last entry from the _lives array, which removes the right-most life image from
// the bottom-left corner of the canvas, indicating the correct number of lives
// remaining
Frogger.observer.subscribe("player-lost-life", function() {
_lives.pop();
});
// When the game logic module informs us that the time remaining for the player to
// reach the goal has changed, we store the new value returned as a percentage
Frogger.observer.subscribe("time-remaining-change", function(newTimeRemainingPercentage) {
_timeRemainingAsPercentage = newTimeRemainingPercentage;
});
// When the game board initializes its properties and settings, execute the
// initialize() function
Frogger.observer.subscribe("game-board-initialize", initialize);
}(Frogger));
图 11-4。
The game board background image, containing all the static elements in one image file
背景可见，并且我们的基本代码已经就绪，可以从精灵贴图中提取各个图像，现在是时候为我们的游戏板定义障碍了，包括车辆、木头、乌龟和玩家试图达到的目标，以及为每个目标显示的图像和动画。清单 11-16 显示了这一点。
清单 11-16。为游戏板上的障碍和目标创建图像和动画
// Define a namespace to store the individual obstacles and images to place on the game
// board as "classes" representing the individual images from the sprite map for each
Frogger.Image = (function(Frogger) {
// Define a race car obstacle whose starting position on the x-axis can be set when
// instantiated
function RaceCar(left) {
Frogger.ImageSprite.call(this, left);
}
// The race car is defined as the image found in the sprite map at position 0px x 80px
// respectively from the left and top edges of the sprite map image file
RaceCar.prototype = new Frogger.ImageSprite();
RaceCar.prototype.constructor = RaceCar;
RaceCar.prototype.spriteLeft = 0;
RaceCar.prototype.spriteTop = 80;
// Define a bulldozer obstacle
function Bulldozer(left) {
Frogger.ImageSprite.call(this, left);
}
// The bulldozer is the image found at position 80px x 80px within the sprite map
Bulldozer.prototype = new Frogger.ImageSprite();
Bulldozer.prototype.constructor = Bulldozer;
Bulldozer.prototype.spriteLeft = 80;
Bulldozer.prototype.spriteTop = 80;
// Define a turbo race car obstacle
function TurboRaceCar(left) {
Frogger.ImageSprite.call(this, left);
}
// The turbo race car is the image found at position 160px x 80px within the sprite map
TurboRaceCar.prototype = new Frogger.ImageSprite();
TurboRaceCar.prototype.constructor = TurboRaceCar;
TurboRaceCar.prototype.spriteLeft = 160;
TurboRaceCar.prototype.spriteTop = 80;
// Define a road car obstacle
function RoadCar(left) {
Frogger.ImageSprite.call(this, left);
}
// The road car is the image found at position 240px x 80px within the sprite map
RoadCar.prototype = new Frogger.ImageSprite();
RoadCar.prototype.constructor = RoadCar;
RoadCar.prototype.spriteLeft = 240;
RoadCar.prototype.spriteTop = 80;
// Define a truck obstacle
function Truck(left) {
Frogger.ImageSprite.call(this, left);
}
// The truck is the image found at position 320px x 80px within the sprite map, with a
// width of 122px as opposed to the standard 80px width of the other individual images
Truck.prototype = new Frogger.ImageSprite();
Truck.prototype.constructor = Truck;
Truck.prototype.spriteLeft = 320;
Truck.prototype.spriteTop = 80;
Truck.prototype.width = 122;
// Define a short log obstacle
function ShortLog(left) {
Frogger.ImageSprite.call(this, left);
}
// The short log is the image found at position 0px x 160px within the sprite map, with
// a width of 190px
ShortLog.prototype = new Frogger.ImageSprite();
ShortLog.prototype.constructor = ShortLog;
ShortLog.prototype.spriteLeft = 0;
ShortLog.prototype.spriteTop = 160;
ShortLog.prototype.width = 190;
// Define a medium log obstacle
function MediumLog(left) {
Frogger.ImageSprite.call(this, left);
}
// The medium log is the image found at position 0px x 240px within the sprite map,
// with a width of 254px
MediumLog.prototype = new Frogger.ImageSprite();
MediumLog.prototype.constructor = MediumLog;
MediumLog.prototype.spriteLeft = 0;
MediumLog.prototype.spriteTop = 240;
MediumLog.prototype.width = 254;
// Define a long log obstacle
function LongLog(left) {
Frogger.ImageSprite.call(this, left);
}
// The long log is the image found at position 240px x 160px within the sprite map,
// with a width of 392px
LongLog.prototype = new Frogger.ImageSprite();
LongLog.prototype.constructor = LongLog;
LongLog.prototype.spriteLeft = 240;
LongLog.prototype.spriteTop = 160;
LongLog.prototype.width = 392;
// Define a turtle obstacle. There are two types of turtle obstacle on the game board,
// one representing a group of two turtles and one representing a group of three
// turtles. Both types of turtle obstacle have some shared behavior which is defined
// in this "class" which acts as a base for both obstacles to inherit from.
function Turtle(left) {
Frogger.ImageSprite.call(this, left);
}
Turtle.prototype = new Frogger.ImageSprite();
Turtle.prototype.constructor = Turtle;
// The turtles will animate and appear to dip underwater on occasion. We need to
// know when the turtle is underwater so that if the player's character is positioned
// above the turtle at that point, they will lose a life. This will be handled by the
// collision detection code later, but for now we just need to create a method to
// tell us when the turtle in underwater
Turtle.prototype.isUnderwater = function() {
var isUnderwater = false,
// Get a reference to the current animation of the turtle diving underwater
// and resurfacing
animation = this.animations[this.currentAnimation];
// The turtle is deemed to be underwater when it is showing the furthestmost image
// from the sprite map in the animation sequence. This is represented by the
// largest number in the animation frame sequence which we can get using the
// Math.max() method in JavaScript. If the current animation sequence value matches
// this furthestmost image in the sprite map, the turtle is underwater.
if (animation.getSequenceValue() === Math.max.apply(Math, animation.sequence)) {
isUnderwater = true;
}
return isUnderwater;
};
// Define an obstacle representing a group of two turtles together
function TwoTurtles(left) {
Turtle.call(this, left);
}
// Inherit from the Turtle base "class" defined previously
TwoTurtles.prototype = new Turtle();
TwoTurtles.prototype.constructor = TwoTurtles;
// The group of two turtles is the image found at position 320px x 240px within the
// sprite map, with a width of 130px
TwoTurtles.prototype.spriteLeft = 320;
TwoTurtles.prototype.spriteTop = 240;
TwoTurtles.prototype.width = 130;
// Override the reset() method to define and auto-play the animation of the turtle
// diving and surfacing
TwoTurtles.prototype.reset = function() {
Turtle.prototype.reset.call(this);
// Register the dive and surface animation which plays each frame in the sequence
// at a frame rate of 200 milliseconds, and loops once it reaches the end of the
// sequence. The numbers in the sequence represent the multiples of offset of the
// width of the individual image to grab the animating image from - essentially
// switching between a number of side-by-side images from the sprite map file to
// give the illusion of movement
this.registerAnimation({
"diveAndSurface": {
sequence: [0, 1, 2, 3, 3, 2, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
loop: true,
rate: 200
}
});
// Play the animation straight away
this.playAnimation("diveAndSurface");
};
// Define an obstacle representing a group of three turtles together
function ThreeTurtles(left) {
Turtle.call(this, left);
}
// Inherit from the Turtle base "class" defined previously
ThreeTurtles.prototype = new Turtle();
ThreeTurtles.prototype.constructor = ThreeTurtles;
// The group of three turtles is the image found at position 0px x 320px within the
// sprite map, with a width of 200px
ThreeTurtles.prototype.spriteLeft = 0;
ThreeTurtles.prototype.spriteTop = 320;
ThreeTurtles.prototype.width = 200;
// Register the dive and surface animation as before, but animating over a greater
// number of frames and at a slower animation rate than with the group of two turtles
ThreeTurtles.prototype.reset = function() {
Turtle.prototype.reset.call(this);
this.registerAnimation({
"diveAndSurface": {
sequence: [0, 1, 2, 3, 3, 3, 2, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
loop: true,
rate: 300
}
});
this.playAnimation("diveAndSurface");
};
// Define a "class" representing the frog image displayed when the player's character
// reaches the goal
function GoalFrog(left) {
Frogger.ImageSprite.call(this, left);
}
// The goal frog is the image found at position 640px x 80px within the sprite map
GoalFrog.prototype = new Frogger.ImageSprite();
GoalFrog.prototype.constructor = GoalFrog;
GoalFrog.prototype.spriteLeft = 640;
GoalFrog.prototype.spriteTop = 80;
// Override the moveTo() method so that this image cannot be moved from its place
// on the game board once it has been placed down
GoalFrog.prototype.moveTo = function() {};
// Define a "class" representing the goal the player will be aiming to meet with at
// the far end of the game board from their start position
function Goal(left) {
Frogger.ImageSprite.call(this, left);
}
// Since the goal is drawn onto the game board as part of the background <canvas>
// we do not need to draw it again here, so we specify the image position as being
// a transparent block from the sprite map image so effectively nothing is actually
// drawn to the canvas. We can still take advantage of the other features of the
// ImageSprite "class", however, to simplify collision checking later on, which
// will tell us when the player's character has reached a goal
Goal.prototype = new Frogger.ImageSprite();
Goal.prototype.constructor = Goal;
Goal.prototype.spriteLeft = 800;
Goal.prototype.spriteTop = 320;
// Override the moveTo() method so that the goal cannot be moved from its place
// on the game board once it has been placed down
Goal.prototype.moveTo = function() {};
// Add a custom property to this "class" to denote whether the goal instance has been
// met by the player's character
Goal.prototype.isMet = false;
// Expose the "classes" defined in this module to the wider code base within the
// Frogger.Image namespace
return {
RaceCar: RaceCar,
Bulldozer: Bulldozer,
RoadCar: RoadCar,
TurboRaceCar: TurboRaceCar,
Truck: Truck,
ShortLog: ShortLog,
MediumLog: MediumLog,
LongLog: LongLog,
TwoTurtles: TwoTurtles,
ThreeTurtles: ThreeTurtles,
GoalFrog: GoalFrog,
Goal: Goal
};
}(Frogger));
定义完障碍后，就该定义代码、图像和动画来表现玩家的角色及其在游戏板上的蛙泳动作了，如清单 11-17 所示。
清单 11-17。玩家的角色
// Define a code module to represent the player's character on the game board and to
// handle its movement and behavior according to the current game state
Frogger.Character = (function(Frogger) {
// Define a variable to store the image representing the player's character
var _character,
// Define a variable to store the game board properties and settings
_gameBoard = {},
// Define a variable to denote the starting row of the player's character on the
// game board
_startRow = 14,
// Define a variable to denote the starting columns of the player's character on
// the game board - essentially centered
_startColumn = 6,
// Define a variable to store the current row the player's character has reached
_currentRow = _startRow,
// Define a Boolean variable to indicate whether the player's character is
// currently frozen in place, as happens temporarily when the player loses a life
// or reaches the goal
_isFrozen = false;
// Define a "class" to represent the player's frog character, inheriting from the
// Frogger.ImageSprite "class". The left and top values passed in on instantiation
// reflect the starting position in pixels of the player's character from the top-left
// hand corner of the game board
function Character(left, top) {
Frogger.ImageSprite.call(this, left, top);
// Register five animations to play when the player loses a life or when the
// character is moved in any of four different directions - up, down, left or right
this.registerAnimation({
// When the player loses a life, switch between the three images found starting
// at 640px from the left of the sprite map image at a rate of 350 milliseconds,
// stopping on the last image
"lose-life": {
spriteLeft: 640,
sequence: [0, 1, 2],
rate: 350
},
// When the player's character moves up a row on the game board, switch between
// the two images found starting at the left-hand edge of the sprite map
"move-up": {
spriteLeft: 0,
sequence: [1, 0]
},
// When the player's character moves right on the game board, switch between
// the two images found starting at 160px from left-hand edge of the sprite map
"move-right": {
spriteLeft: 160,
sequence: [1, 0]
},
// When the player's character moves down on the game board, switch between
// the two images found starting at 320px from left-hand edge of the sprite map
"move-down": {
spriteLeft: 320,
sequence: [1, 0]
},
// When the player's character moves left on the game board, switch between
// the two images found starting at 480px from left-hand edge of the sprite map
"move-left": {
spriteLeft: 480,
sequence: [1, 0]
}
});
}
// Inherit from the Frogger.ImageSprite "class"
Character.prototype = new Frogger.ImageSprite();
Character.prototype.constructor = Character;
// Define the individual images for the player's character sprite as being found at
// position 0px x 0px within the sprite map image file
Character.prototype.spriteLeft = 0;
Character.prototype.spriteTop = 0;
// Define a method to move the character up one row on the game board
Character.prototype.moveUp = function() {
// Move the top position of the character up by the height of one grid square
// on the game board
this.top -= _gameBoard.grid.height;
// Ensure the character does not move outside of the bounds restricting its
// movement around the game board - we don't want it appearing on top of the
// score at the top of the screen
if (this.top < _gameBoard.characterBounds.top) {
this.top = _gameBoard.characterBounds.top;
}
// Play the animation named "move-up", making it look like the character is moving
this.playAnimation("move-up");
// Keep track of the current row the character sits upon
_currentRow--;
};
// Define a method to move the character down one row on the game board
Character.prototype.moveDown = function() {
// Move the top position of the character down by the height of one grid square
// on the game board
this.top += _gameBoard.grid.height;
// Ensure the character does not move outside of the bounds restricting its
// movement around the game board - we don't want it appearing on top of the
// countdown timer at the base of the screen
if (this.top > _gameBoard.characterBounds.bottom) {
this.top = _gameBoard.characterBounds.bottom;
}
// Play the animation named "move-down", making it look like the character is moving
this.playAnimation("move-down");
// Keep track of the current row the character sits upon
_currentRow++;
};
// Define a method to move the character one column to the left on the game board
Character.prototype.moveLeft = function() {
// Move the position of the character on the game board left by the width of one
// grid square on the game board
this.left -= _gameBoard.grid.width;
// Ensure the character does not move outside of the bounds restricting its
// movement around the game board - we don't want it disappearing off the side
if (this.left < _gameBoard.characterBounds.left) {
this.left = _gameBoard.characterBounds.left;
}
// Play the animation named "move-left", making it look like the character is moving
this.playAnimation("move-left");
};
// Define a method to move the character one column to the right on the game board
Character.prototype.moveRight = function() {
// Move the position of the character on the game board right by the width of one
// grid square on the game board
this.left += _gameBoard.grid.width;
// Ensure the character does not move outside of the bounds restricting its
// movement around the game board - we don't want it disappearing off the side
if (this.left > _gameBoard.characterBounds.right) {
this.left = _gameBoard.characterBounds.right;
}
// Play the animation named "move-right", making it look like the character is moving
this.playAnimation("move-right");
};
// Define a function which returns the current position of the player's character in
// pixels from the top of the game board
function getTop() {
// Look up the top position in pixels from the game board properties by the current
// row the character is sitting upon
return _gameBoard.rows[_currentRow];
}
// Define a function which hides the player's character from display
function hide() {
// Call the hide() method on the instance of the Character "class" that will
// represent the player's character
_character.hide();
}
// Define a function which moves the player's character in one of four possible
// directions - up, down, left, or right
function move(characterDirection) {
// Only move the player's character if it is not deemed to be frozen in place
if (!_isFrozen) {
// Call the appropriate method on the Character instance based on the
// direction the character is to move in
if (characterDirection === Frogger.direction.LEFT) {
_character.moveLeft();
} else if (characterDirection === Frogger.direction.RIGHT) {
_character.moveRight();
} else if (characterDirection === Frogger.direction.UP) {
_character.moveUp();
} else if (characterDirection === Frogger.direction.DOWN) {
_character.moveDown();
}
// Publish an event to the rest of the code modules, indicating that the
// player's position has been moved by the player
Frogger.observer.publish("player-moved");
}
}
// Define a function to render the player's character on screen
function render() {
// Call the Character instance's renderAt() method, passing along its current
// left and top position
_character.renderAt(_character.left, _character.top);
}
// Define a function, to be executed when the player loses a life, which plays the
// appropriate animation
function loseLife() {
_character.playAnimation("lose-life");
}
// Define a function to move the player's character to the given position in pixels
// from the left-hand edge of the game board - this will be used when the character
// is sitting on a moving object to keep the character aligned with that object
function setPosition(left) {
// Ensure the character does not move outside of its defined bounds on the game
// board
if (left > _gameBoard.characterBounds.right) {
left = _gameBoard.characterBounds.right;
} else if (left < _gameBoard.characterBounds.left) {
left = _gameBoard.characterBounds.left;
}
// Move the character's position from the left-hand edge of the game board to match
// the given position
_character.moveTo(left);
}
// Define a function to reset the player's character's position on the game board
function reset() {
_character.reset();
// Reset the local variable indicating the current row the character sits upon
_currentRow = _startRow;
}
// Define a function to return the current position of the character on the game board
function getPosition() {
return _character.getPosition();
}
// Define a function to set the local _isFrozen variable to true, indicating that the
// player's character's position on the game board should be frozen in place
function freeze() {
_isFrozen = true;
}
// Define a function to set the local _isFrozen variable to false, indicating that the
// player's character is free to move around the game board
function unfreeze() {
_isFrozen = false;
}
// Define a function to be executed when the game board has initialized, passing along
// the properties and settings from the game board code module
function initialize(gameBoard) {
_gameBoard = gameBoard;
// Initialize an instance of the Character "class" to represent the player's
// character, setting its start position on the game board
_character = new Character(_gameBoard.columns[_startColumn], _gameBoard.rows[_startRow]);
// Ensure the local render() function is executed when the "render-character"
// event is fired from within the game loop to draw the player's character on
// the screen
Frogger.observer.subscribe("render-character", render);
}
// When the game logic module informs us that the player has lost a life, execute the
// loseLife() function to play the appropriate animation
Frogger.observer.subscribe("player-lost-life", loseLife);
// When the game logic informs us the player's position needs to be reset, execute the
// reset() function
Frogger.observer.subscribe("reset", reset);
// When the player has reached the goal, hide the player from the screen temporarily
Frogger.observer.subscribe("player-at-goal", hide);
// When the game logic tells us the player's character must stay in place on the
// game board, we set the appropriate local variable to reflect this
Frogger.observer.subscribe("player-freeze", freeze);
// When the game logic tells us the player's character is free to move around the
// game board again, we set the appropriate local variable to reflect this
Frogger.observer.subscribe("player-unfreeze", unfreeze);
// When the game board module initializes its properties and settings, execute the
// initialize() function
Frogger.observer.subscribe("game-board-initialize", initialize);
// When the player presses the arrow keys on the keyboard, move the player's
// character in the appropriate direction on the game board
window.addEventListener("keydown", function(event) {
// Define the key codes for the arrow keys
var LEFT_ARROW = 37,
UP_ARROW = 38,
RIGHT_ARROW = 39,
DOWN_ARROW = 40;
// Execute the move() function, passing along the correct direction based on the
// arrow key pressed. Ignore any other key presses
if (event.keyCode === LEFT_ARROW) {
move(Frogger.direction.LEFT);
} else if (event.keyCode === RIGHT_ARROW) {
move(Frogger.direction.RIGHT);
} else if (event.keyCode === UP_ARROW) {
move(Frogger.direction.UP);
} else if (event.keyCode === DOWN_ARROW) {
move(Frogger.direction.DOWN);
}
}, false);
// When the player taps in certain places on the game board on their touch-sensitive
// screen, move the player's character in the appropriate direction on the game board
// according to where the screen has been tapped. This is useful since users with
// touch screens are typically on mobile devices that do not have access to
// physical keyboards to press the arrow keys to move the character.
Frogger.canvas.addEventListener("touchstart", function(event) {
// Get a reference to the position of the touch on the screen in pixels from the
// top-left position of the touched element, in this case the game board
var touchLeft = event.targetTouches[0].clientX,
touchTop = event.targetTouches[0].clientY;
// Execute the move() function, passing along the correct direction based on the
// position tapped on the game board
if (touchLeft < (Frogger.drawingSurfaceWidth / 8)) {
move(Frogger.direction.LEFT);
} else if (touchLeft > (3 * Frogger.drawingSurfaceWidth / 8)) {
move(Frogger.direction.RIGHT);
} else if (touchTop < (Frogger.drawingSurfaceHeight / 8)) {
move(Frogger.direction.UP);
} else if (touchTop > (3 * Frogger.drawingSurfaceHeight / 8)) {
move(Frogger.direction.DOWN);
}
}, false);
// Expose the local getTop(), getPosition() and setPosition() methods so they are
// available to other code modules
return {
getTop: getTop,
getPosition: getPosition,
setPosition: setPosition
};
}(Frogger));
看一下图 11-2 中的游戏棋盘，可以发现所有相似的障碍物都一起包含在游戏棋盘的同一行上，所有相似的车辆都在一起，所有的乌龟都在一起，所有的原木都在一起，所有的目标都在一起。因此，我们可以定义游戏棋盘上一个“行”的行为，如清单 11-18 所示，它将包含对该 raw 中障碍物对象的引用，以及该行中所有障碍物将遵循的运动速度和方向。
清单 11-18。为可以以相同速度向某个方向移动的障碍物创建一个“行”
// Define a code module to define the types of obstacle rows that exist on the game board,
// representing a road-type row which will house vehicles, a water row containing log
// obstacles, a water row containing turtle obstacles, and a goal row containing the
// locations the player's character aims to reach to win the game
Frogger.Row = (function() {
// Define a base row "class" containing the shared code required for each different
// type of specialist row on the game board
function Row(options) {
options = options || {};
// Define the direction of obstacles moving on this row, defaults to moving left
this.direction = options.direction || Frogger.direction.LEFT;
// Define the set of obstacles to place on this row and move
this.obstacles = options.obstacles || [];
// Define the top position, in pixels, of where this row sits on the game board
this.top = options.top || 0;
// Define the speed with which obstacles on this row move in the given direction
// as a factor of the render rate set in game loop
this.speed = options.speed || 1;
}
Row.prototype = {
// Define a method to render each of the obstacles in the correct place on the
// current row
render: function() {
var index = 0,
length = this.obstacles.length,
left,
obstaclesItem;
// Loop through each of the obstacles within this row
for (; index < length; index++) {
obstaclesItem = this.obstacles[index];
// Update the left position, in pixels, of this obstacle based on its
// current position along with the direction and speed of movement
left = obstaclesItem.getPosition().left + ((this.direction === Frogger.direction. RIGHT ? 1 : -1) * this.speed);
// Adjust the left position such that if the obstacle falls off one edge of
// the game board, it then appears to return from the other edge
if (left < -obstaclesItem.getWidth()) {
left = Frogger.drawingSurfaceWidth;
} else if (left >=Frogger.drawingSurfaceWidth) {
left = -obstaclesItem.getWidth();
}
// Move the obstacle and draw it on the game board in the updated position
obstaclesItem.moveTo(left);
obstaclesItem.renderAt(left, this.top);
}
},
// Define a method to return the top position, in pixels, of this row
getTop: function() {
return this.top;
},
// Define a method to detect whether the player's character is currently colliding
// with an obstacle on this row
isCollision: function(characterPosition) {
var index = 0,
length = this.obstacles.length,
obstaclesItem,
isCollision = false;
// Loop through each of the obstacles on this row
for (; index < length; index++) {
obstaclesItem = this.obstacles[index];
// If the player's character touches the current obstacle, a collision
// has taken place and we return this fact to the calling code
if (Frogger.intersects(obstaclesItem.getPosition(), characterPosition)) {
isCollision = true;
}
}
return isCollision;
},
// Define a method to reset the obstacles on this row to their default state and
// position on the game board
reset: function() {
var index = 0,
length = this.obstacles.length;
// Loop through each of the obstacles within this row, and call their reset()
// methods in turn
for (; index < length; index++) {
this.obstacles[index].reset();
}
}
};
// Define a new "class" representing a road-type row, containing vehicle obstacles which
// inherits from our base Row "class"
function Road(options) {
Row.call(this, options);
}
Road.prototype = new Row();
Road.prototype.constructor = Road;
// Define a new "class" representing a row containing logs floating on water which
// inherits from our base Row "class"
function Log(options) {
Row.call(this, options);
}
Log.prototype = new Row();
Log.prototype.constructor = Log;
// Override the isCollision() method, reversing its behavior. If the player's character
// touches a log it is safe, however it should be considered a collision if it touches
// the water beneath rather than the obstacle itself
Log.prototype.isCollision = function(characterPosition) {
// Return the opposite Boolean state returned by a normal call to the isCollision()
// method
return !Row.prototype.isCollision.call(this, characterPosition);
};
// Override the render() method so that when the player's character lands on a log,
// it gets transported along the water with the log
Log.prototype.render = function() {
// If the player's character is on this row, update its position based on the
// direction and speed of motion of the log the player has landed on
if (Frogger.Character.getTop() === this.getTop()) {
Frogger.Character.setPosition(Frogger.Character.getPosition().left + ((this.direction === Frogger.direction.RIGHT ? 1 : -1) * this.speed));
}
// Call the inherited render() method to draw the log in its new position
Row.prototype.render.call(this);
};
// Define a new "class" representing a row containing turtles swimming in the water
// which inherits from our Log "class" as it shares similarities
function Turtle(options) {
Log.call(this, options);
}
Turtle.prototype = new Log();
Turtle.prototype.constructor = Turtle;
// Override the isCollision() method such that it behaves like the same method on
// the Log "class" apart from when the turtle obstacle has dipped underwater, in which
// case there will always be a collision if the player's character is on this row
Turtle.prototype.isCollision = function(characterPosition) {
var isCollision = Log.prototype.isCollision.call(this, characterPosition);
return this.obstacles[0].isUnderwater() || isCollision;
};
// Define a new "class" representing the goal row the player's character is aiming for
// in order to win the game, which inherits from our base Row "class"
function Goal(options) {
// The goals placed within this row never move so we always force the speed
// property to be 0
options.speed = 0;
Row.call(this, options);
}
Goal.prototype = new Row();
Goal.prototype.constructor = Goal;
// Override the isCollision() method to detect if the player's character has reached
// one of the available goals stored in this row
Goal.prototype.isCollision = function(characterPosition) {
var index = 0,
length = this.obstacles.length,
obstaclesItem,
isCollision = true;
// Loop through the goals in this row to find out if the player has reached one
// of them
for (; index < length; index++) {
obstaclesItem = this.obstacles[index];
// If this goal has not been reached before and the player's character is
// positioned above the goal, fire the "player-at-goal" event so the game logic
// module registers that the goal has been reached
if (!obstaclesItem.isMet && Frogger.intersects(obstaclesItem.getPosition(), characterPosition)) {
this.obstacles[index].isMet = true;
Frogger.observer.publish("player-at-goal");
isCollision = false;
// Add the image of the goal-reached frog to the row within the goal
// reached so the user can see that they have reached this goal before
this.obstacles.push(new Frogger.Image.GoalFrog(obstaclesItem.getPosition().left));
}
}
return isCollision;
};
// Return the "classes" defined in this code module for use in the rest of our code
return {
Road: Road,
Log: Log,
Turtle: Turtle,
Goal: Goal
};
}(Frogger));
定义了基本的“行”和障碍类型后，是时候创建行和障碍的实际实例，并把它们放在游戏板上，如清单 11-19 所示。
清单 11-19。定义行和障碍，并将它们放在游戏板上
// Define a code module to add rows containing obstacles to the game board for the player
// to avoid or make contact with in order to progress from the bottom to the top of the
// game board in order to win the game by reaching each of the five goals without losing
// all their lives or the allocated time running out
(function(Frogger) {
// Define variables to store the populated rows on the game board, and the properties
// and settings of the game board itself
var _rows = [],
_gameBoard = {};
// Define a function to be called when the game board has initialized onto which we
// place our rows and obstacles
function initialize(gameBoard) {
_gameBoard = gameBoard;
// Add elevent rows of obstacles to the game board
_rows = [
// Add a goal row to the 3rd row on the game board (the rows start from index
// 0), containing five goals positioned in the respective places according to
// the designation on the game board background image
new Frogger.Row.Goal({
top: _gameBoard.rows[2],
obstacles: [new Frogger.Image.Goal(33, 111), new Frogger.Image.Goal(237, 315), new Frogger.Image.Goal(441, 519), new Frogger.Image.Goal(645, 723), new Frogger.Image. Goal(849, 927)]
}),
// Add a row of medium-length logs to the 4th row on the game board, moving
// right at a rate of 5 pixels per each time the game loop is called to
// render this row within the <canvas>
new Frogger.Row.Log({
top: _gameBoard.rows[3],
direction: Frogger.direction.RIGHT,
speed: 5,
// Add three medium-sized log obstacles to the game board, spaced out evenly
obstacles: [new Frogger.Image.MediumLog(_gameBoard.columns[1]), new Frogger.Image. MediumLog(_gameBoard.columns[6]), new Frogger.Image.MediumLog(_gameBoard. columns[10])]
}),
// Add a row of turtles, grouped in twos, on the 5th row of the game board,
// moving left (the default direction) at a rate of 6 pixels on each turn of the
// game loop
new Frogger.Row.Turtle({
top: _gameBoard.rows[4],
speed: 6,
// Add four obstacles spaced out across the width of the game board
obstacles: [new Frogger.Image.TwoTurtles(_gameBoard.columns[0]), new Frogger.Image. TwoTurtles(_gameBoard.columns[3]), new Frogger.Image.TwoTurtles(_gameBoard. columns[6]), new Frogger.Image.TwoTurtles(_gameBoard.columns[9])]
}),
// Add a row of long-length logs to the 6th row on the game board, moving right
// at a rate of 7 pixels on each turn of the game loop
new Frogger.Row.Log({
top: _gameBoard.rows[5],
direction: Frogger.direction.RIGHT,
speed: 7,
// Add two long-length log obstacles to this row
obstacles: [new Frogger.Image.LongLog(_gameBoard.columns[1]), new Frogger.Image. LongLog(_gameBoard.columns[10])]
}),
// Add a row of short-length logs to the 7th row of the game board, moving right
// at a rate of 3 pixels each time the game loop is called
new Frogger.Row.Log({
top: _gameBoard.rows[6],
direction: Frogger.direction.RIGHT,
speed: 3,
// Add three short-length logs to this row
obstacles: [new Frogger.Image.ShortLog(_gameBoard.columns[1]), new Frogger.Image. ShortLog(_gameBoard.columns[6]), new Frogger.Image.ShortLog(_gameBoard.columns[10])]
}),
// Add a row of turtles, grouped in threes, on the 8th row of the game board,
// moving left at a rate of 5 pixels each time the game loop is called
new Frogger.Row.Turtle({
top: _gameBoard.rows[7],
speed: 5,
obstacles: [new Frogger.Image.ThreeTurtles(_gameBoard.columns[0]), new Frogger. Image.ThreeTurtles(_gameBoard.columns[3]), new Frogger.Image.ThreeTurtles (_gameBoard.columns[7]), new Frogger.Image.ThreeTurtles(_gameBoard.columns[10])]
}),
// Add a set of truck-style vehicle obstacles to the 10th row of the game
// board (the 9th row is considered a "safe" row that contains no obstacles)
new Frogger.Row.Road({
top: _gameBoard.rows[9],
speed: 3,
obstacles: [new Frogger.Image.Truck(_gameBoard.columns[1]), new Frogger.Image. Truck(_gameBoard.columns[7])]
}),
// Add a set of turbo race car obstacles to the 11th row of the game board,
// moving right at a fast rate
new Frogger.Row.Road({
top: _gameBoard.rows[10],
direction: Frogger.direction.RIGHT,
speed: 12,
obstacles: [new Frogger.Image.TurboRaceCar(_gameBoard.columns[1]), new Frogger. Image.TurboRaceCar(_gameBoard.columns[7])]
}),
// Add a set of simple road car obstacles to the 12th row of the game board
new Frogger.Row.Road({
top: _gameBoard.rows[11],
speed: 4,
obstacles: [new Frogger.Image.RoadCar(_gameBoard.columns[1]), new Frogger.Image. RoadCar(_gameBoard.columns[7])]
}),
// Add a set of bulldozer-style obstacles to the 13th row of the game board
new Frogger.Row.Road({
top: _gameBoard.rows[12],
direction: Frogger.direction.RIGHT,
speed: 3,
obstacles: [new Frogger.Image.Bulldozer(_gameBoard.columns[1]), new Frogger.Image. Bulldozer(_gameBoard.columns[7])]
}),
// Add a set of race car obstacles to the 14th row of the game board, which is
// one row above where the player's character's starting position is
new Frogger.Row.Road({
top: _gameBoard.rows[13],
speed: 4,
obstacles: [new Frogger.Image.RaceCar(_gameBoard.columns[2]), new Frogger.Image. RaceCar(_gameBoard.columns[6])]
})
];
// With the rows and obstacles initialized, connect the local render() function to
// the "render-base-layer" event fired from within the game loop to draw those
// obstacles onto the game board
Frogger.observer.subscribe("render-base-layer", render);
}
// Define a function to render each of the defined rows of obstacles onto the game board
function render() {
var row,
index = 0,
length = _rows.length;
// Loop through each row calling its render() method, which in turn calls the
// render() method of each of the obstacles stored within it
for (; index < length; index++) {
row = _rows[index];
row.render();
}
}
// Define a function to detect whether a collision has occured between the player's
// character and the obstacles within each row
function isCollision() {
var collided = false,
row,
index = 0,
length = _rows.length;
// Loop through each row calling its isCollision() method, which determines
// whether the obstacles on that row come into contact with the player's
// character on the game board
for (; index < length; index++) {
row = _rows[index];
if (Frogger.Character.getTop() === row.getTop()) {
collided = row.isCollision(Frogger.Character.getPosition());
if (collided) {
break;
}
}
}
// If a collision has occured, trigger the "collision" event which the game logic
// module uses to cause the player to lose a life
if (collided) {
Frogger.observer.publish("collision");
}
return collided;
}
// Define a function to reset each of the rows to reset to their initial state
function reset() {
var row;
// Loop through each row calling its reset() method, which in turn calls the
// reset() method of each of the obstacles within that row
for (var index = 0, length = _rows.length; index < length; index++) {
row = _rows[index];
row.reset();
}
}
// When the game logic wishes the game board to reset, call the local reset() function
Frogger.observer.subscribe("reset", reset);
// When the game loop wishes to check for collisions, call the local isCollision()
// function, which will fire a "collision" event if a collision occurs
Frogger.observer.subscribe("check-collisions", isCollision);
// When the game board has initialized its properties and settings, call the local
// initialize() function to place the rows and obstacles onto the game board
Frogger.observer.subscribe("game-board-initialize", initialize);
}(Frogger));
我们游戏的所有部分都已经就绪，我们可以简单地通过触发game-load事件来启动游戏，这将启动游戏循环运行，将所有内容绘制到屏幕上，并检查玩家角色和障碍物之间的碰撞，如清单 11-20 所示。使用键盘上的箭头键，或点击触摸屏，在游戏板内向上、向下、向左或向右移动玩家角色，以达到屏幕顶部的目标并赢得游戏。
清单 11-20。开始游戏
// Now the code modules have been registered, kick off the game logic and start the game
Frogger.observer.publish("game-load");
我已经上传了这个游戏的完整代码，以及支持它所需要的字体和图片到我的 GitHub 账户，供你在这里查看: https://github.com/denodell/frogger 。你可以通过网址 http://denodell.github.io/frogger 直接从 GitHub 运行游戏。
我希望通过遵循创建这个游戏的代码，你将有灵感和知识来使用这里收集的一些相同的技术来创建自己的游戏，包括精灵、游戏循环和碰撞检测。要进一步了解 画布 API 游戏开发的广泛领域，我建议您查看以下在线资源:
- 《用画布和 SVG 构建 HTML5 游戏的完整指南》,作者 David Rousset，于 SitePoint，via
http://bit.ly/complete_games - 【HTML5 游戏开发】via
http://bit.ly/html5_game_dev - 【画布演示】via
http://www.canvasdemos.com
摘要
在本章中，我们已经介绍了通过 JavaScript 在 HTML5 <canvas>元素上绘制形状、文本和图像的基础知识。我们已经看到了一系列的技术和步骤，它们构成了游戏开发中的大部分代码，我们也看到了如何使用这些技术来构建一个真正的、可运行的游戏。
在下一章中，我们将看到另一个本地 JavaScript API，我们可以用它来构建一个视频聊天客户端，将两个远程用户连接在一起，所有这些都在浏览器中完成。
