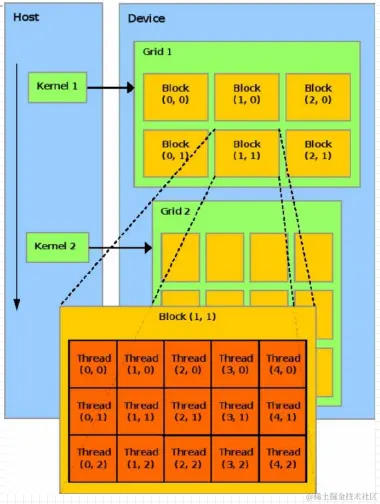

线程模型结构

grid：网格
block：线程块
线程块是逻辑的划分，不是物理上的划分
<<<grid_size,block_size>>>
最大的线程块大小：1024

一维线程模型

每个线程的唯一标识由这两个<<>>确定；grid_size, block_size保存在

内建变量（build-in variable），目前考虑的是一维的情况:

（1）gridDim.x：该变量的数值等于执行配置中变量grid_size的值；

（2）blockDim.x：该变量的数值等于执行配置中变量block_size的值。

线程索引保存成内建变量（ build-in variable）：

（1）blockIdx.x：该变量指定一个线程在一个网格中的线程块索引值，范围为0~ gridDim.x-1；

（2）threadIdx.x：该变量指定一个线程在一个线程块中的线程索引值，范围为0~ blockDim.x-1。

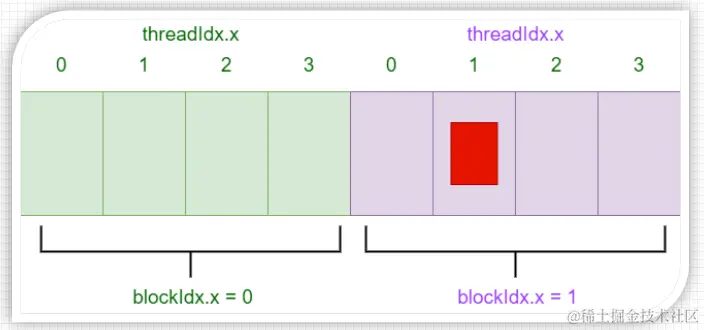

kernel_fun<<<2, 4>>>() ;

Idx = threadIdx.x + blockIdx.x * blockDim.x

二维线程模型

dim3 grid_size(2, 2);

dim3 block_size(4, 4);

int blockId = blockIdx.x + blockId.y * gridDim.x;

int threadId = threadIdx.y *blockDim.x + threadIdx.x;

int id = blockId * (blockDim.x * blockDim.y) + threadId;

三维线程模型

dim3 grid_size(2, 2, 2);

dim3 block_size(4, 4, 2);

int blockId = blockIdx.x + blockIdx.y * gridDim.x+ gridDim.x * gridDim.y * blockIdx.z;

int threadId = (threadIdx.z * (blockDim.x * blockDim.y))+ (threadIdx.y * blockDim.x) +threadIdx.x;

int id = blockId * (blockDim.x * blockDim.y * blockDim.z) + threadId

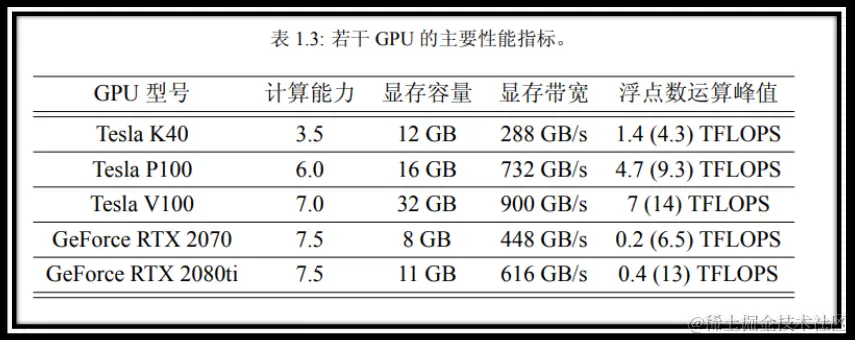

GPU架构和计算能力

# GPU的属性

计算能力(compute capability)
全局内存(Amount of global memory)
常量内存(Amount of constant memory)
最大的网格大小(Maximum grid size)
最大的线程块大小(Maximum block size)
SM的数量(Number of SMs)
每一个block的最大的共享内存(Maximum amount of shared memory per block)
每一个SM有的最大的共享内存(Maximum amount of shared memory per SM)
每一个线程块的最大的寄存器数量(Maximum number of registers per block)
每一个sm中的最大的寄存器数量(Maximum number of registers per SM)
每一个block能够拥有的最大的线程数(Maximum number of threads per block)
每一个sm能够拥有的最大的线程数(Maximum number of threads per SM)

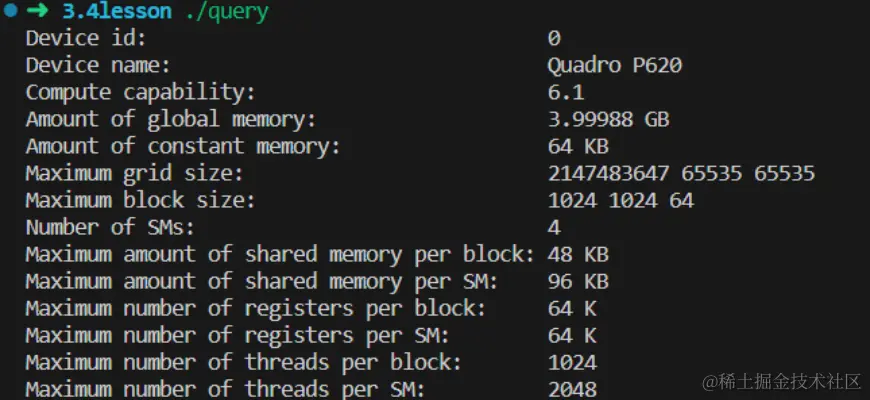

int main(void)
{
    int device_id = 0;
    ErrorCheck(cudaSetDevice(device_id), __FILE__, __LINE__);

    cudaDeviceProp prop;
    ErrorCheck(cudaGetDeviceProperties(&prop, device_id), __FILE__, __LINE__);

    printf("Device id:                                 %d\n",
        device_id);
    printf("Device name:                               %s\n",
        prop.name);
    printf("Compute capability:                        %d.%d\n",
        prop.major, prop.minor);
    printf("Amount of global memory:                   %g GB\n",
        prop.totalGlobalMem / (1024.0 * 1024 * 1024));
    printf("Amount of constant memory:                 %g KB\n",
        prop.totalConstMem  / 1024.0);
    printf("Maximum grid size:                         %d %d %d\n",
        prop.maxGridSize[0],
        prop.maxGridSize[1], prop.maxGridSize[2]);
    printf("Maximum block size:                        %d %d %d\n",
        prop.maxThreadsDim[0], prop.maxThreadsDim[1],
        prop.maxThreadsDim[2]);
    printf("Number of SMs:                             %d\n",
        prop.multiProcessorCount);
    printf("Maximum amount of shared memory per block: %g KB\n",
        prop.sharedMemPerBlock / 1024.0);
    printf("Maximum amount of shared memory per SM:    %g KB\n",
        prop.sharedMemPerMultiprocessor / 1024.0);
    printf("Maximum number of registers per block:     %d K\n",
        prop.regsPerBlock / 1024);
    printf("Maximum number of registers per SM:        %d K\n",
        prop.regsPerMultiprocessor / 1024);
    printf("Maximum number of threads per block:       %d\n",
        prop.maxThreadsPerBlock);
    printf("Maximum number of threads per SM:          %d\n",
        prop.maxThreadsPerMultiProcessor);

    return 0;
}

组织线程模型


#include <stdio.h>
#include "../tools/common.cuh"

__global__ void addMatrix(int *A, int *B, int *C, const int nx, const int ny)
{
    int ix = threadIdx.x + blockIdx.x * blockDim.x;
    int iy = threadIdx.y + blockIdx.y * blockDim.y;;
    unsigned int idx = iy * nx + ix;
    if (ix < nx && iy < ny)
    {
        C[idx] = A[idx] + B[idx];
    }
}

int main(void)
{
    // 1、设置GPU设备
    setGPU();

    // 2、分配主机内存和设备内存，并初始化
    int nx = 16;
    int ny = 8;
    int nxy = nx * ny;
    size_t stBytesCount = nxy * sizeof(int);

     // （1）分配主机内存，并初始化
    int *ipHost_A, *ipHost_B, *ipHost_C;
    ipHost_A = (int *)malloc(stBytesCount);
    ipHost_B = (int *)malloc(stBytesCount);
    ipHost_C = (int *)malloc(stBytesCount);
    if (ipHost_A != NULL && ipHost_B != NULL && ipHost_C != NULL)
    {
        for (int i = 0; i < nxy; i++)
            {
                ipHost_A[i] = i;
                ipHost_B[i] = i + 1;
            }
        memset(ipHost_C, 0, stBytesCount);
    }
    else
    {
        printf("Fail to allocate host memory!\n");
        exit(-1);
    }


    // （2）分配设备内存，并初始化
    int *ipDevice_A, *ipDevice_B, *ipDevice_C;
    ErrorCheck(cudaMalloc((int**)&ipDevice_A, stBytesCount), __FILE__, __LINE__);
    ErrorCheck(cudaMalloc((int**)&ipDevice_B, stBytesCount), __FILE__, __LINE__);
    ErrorCheck(cudaMalloc((int**)&ipDevice_C, stBytesCount), __FILE__, __LINE__);
    if (ipDevice_A != NULL && ipDevice_B != NULL && ipDevice_C != NULL)
    {
        ErrorCheck(cudaMemcpy(ipDevice_A, ipHost_A, stBytesCount, cudaMemcpyHostToDevice), __FILE__, __LINE__);
        ErrorCheck(cudaMemcpy(ipDevice_B, ipHost_B, stBytesCount, cudaMemcpyHostToDevice), __FILE__, __LINE__);
        ErrorCheck(cudaMemcpy(ipDevice_C, ipHost_C, stBytesCount, cudaMemcpyHostToDevice), __FILE__, __LINE__);
    }
    else
    {
        printf("Fail to allocate memory\n");
        free(ipHost_A);
        free(ipHost_B);
        free(ipHost_C);
        exit(1);
    }

    // calculate on GPU
    dim3 block(4, 4);
    dim3 grid((nx + block.x -1) / block.x, (ny + block.y - 1) / block.y);
    printf("Thread config:grid:<%d, %d>, block:<%d, %d>\n", grid.x, grid.y, block.x, block.y);

    addMatrix<<<grid, block>>>(ipDevice_A, ipDevice_B, ipDevice_C, nx, ny);  // 调用内核函数

    ErrorCheck(cudaMemcpy(ipHost_C, ipDevice_C, stBytesCount, cudaMemcpyDeviceToHost), __FILE__, __LINE__);
    for (int i = 0; i < 10; i++)
    {
        printf("id=%d, matrix_A=%d, matrix_B=%d, result=%d\n", i + 1,ipHost_A[i], ipHost_B[i], ipHost_C[i]);
    }

    free(ipHost_A);
    free(ipHost_B);
    free(ipHost_C);

    ErrorCheck(cudaFree(ipDevice_A), __FILE__, __LINE__);
    ErrorCheck(cudaFree(ipDevice_B), __FILE__, __LINE__);
    ErrorCheck(cudaFree(ipDevice_C), __FILE__, __LINE__);

    ErrorCheck(cudaDeviceReset(), __FILE__, __LINE__);
    return 0;
}
