前言

上一节只是搭建了本地IDEA的SDK环境，结合服务器上的环境跑通了，但是具体的细节还是很多不理解，因此尝试动手封装api,开始一步一步研究。

这一节主要是实现SDK的重要API，包括cli端创建channle，cli端加入channle，查询channle，创建order，创建peer，peer加入到channel，安装合约，实例化合约，调用合约，升级合约，查询合约等

项目搭建

创建`springboot`工程，引入相关依赖

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>

    <!--sdk-->
    <dependency>
        <groupId>org.hyperledger.fabric-sdk-java</groupId>
        <artifactId>fabric-sdk-java</artifactId>
        <version>1.4.6</version>
    </dependency>
    <!--日志-->
    <dependency>
        <groupId>org.slf4j</groupId>
        <artifactId>slf4j-api</artifactId>
        <version>1.6.1</version>
    </dependency>

    <dependency>
        <groupId>org.slf4j</groupId>
        <artifactId>slf4j-log4j12</artifactId>
        <version>1.6.1</version>
    </dependency>
    <!--commons-->
    <dependency>
        <groupId>org.apache.commons</groupId>
        <artifactId>commons-lang3</artifactId>
        <version>3.8</version>
    </dependency>
</dependencies>

配置文件`log4j.properties`

log4j.rootLogger=info, ServerDailyRollingFile, stdout
log4j.appender.ServerDailyRollingFile=org.apache.log4j.DailyRollingFileAppender
log4j.appender.ServerDailyRollingFile.DatePattern='.'yyyy-MM-dd
log4j.appender.ServerDailyRollingFile.File=logs/notify-subscription.log
log4j.appender.ServerDailyRollingFile.layout=org.apache.log4j.PatternLayout
log4j.appender.ServerDailyRollingFile.layout.ConversionPattern=%d - %m%n
log4j.appender.ServerDailyRollingFile.Append=true
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%d{yyyy-MM-dd HH:mm:ss} %p [%c] %m%n

配置文件`application.properties`

#peer1私钥的路径:peerOrganization-org1-users-Admin-msp-keystore
keyFolderPath=D:\Golang\fabric\code\sdkdemo\src\main\resources\crypto-config\peerOrganizations\
                \org1.example.com\users\Admin@org1.example.com\msp\keystore
#peer1私钥的值:就是上面路径的值 xxx_sk
keyFileName=9238e39aa136e1c6f24750b9643b07a736f97712f97ba4e59f42d371aa11ce47_sk

#peer2私钥的路径:peerOrganization-org2-users-Admin-msp-keystore
keyFolderPath2=D:\Golang\fabric\code\sdkdemo\src\main\resources\crypto-config\peerOrganizations\
                \org2.example.com\users\Admin@org2.example.com\msp\keystore
#peer2私钥的值:就是上面路径的值 xxx_sk
keyFileName2=a3373f32c8b6e884726f3faac3705026ceec67a83f2cd053edfc67c8671c9794_sk

#peer1证书的路径:peerOrganization-org1-users-Admin-msp-admincerts
#1.4.0以后的版本该目录下没文件，可以拷贝同目录下的signcerts文件夹下的文件
certFolderPath=D:\Golang\fabric\code\sdkdemo\src\main\resources\crypto-config\peerOrganizations\
                \org1.example.com\users\Admin@org1.example.com\msp\admincerts
#peer1证书的值:就是上面路径的值 xxx_pem
certFileName=Admin@org1.example.com-cert.pem

#peer2证书的路径:peerOrganization-org2-users-Admin-msp-admincerts
#1.4.0以后的版本该目录下没文件，可以拷贝同目录下的signcerts文件夹下的文件
certFolderPath2=D:\Golang\fabric\code\sdkdemo\src\main\resources\crypto-config\peerOrganizations\
                \org2.example.com\users\Admin@org2.example.com\msp\admincerts
#peer2证书的值:就是上面路径的值 xxx_pem
certFileName2=Admin@org2.example.com-cert.pem

#order的tls的证书路径:orderOrganization-tlsca-xxx.pem
tlsOrderFilePath=D:\Golang\fabric\code\sdkdemo\src\main\resources\crypto-config\ordererOrganizations\
                 \example.com\tlsca\tlsca.example.com-cert.pem

#命令创建channel时的tx文件路径
txfilePath =D:\Golang\fabric\code\sdkdemo\src\main\resources\test.tx

#peer的org1的tls的证书路径:peerOrganization-org1-peers-peer0-msp-tlscacerts-com-xxx.pem
tlsPeerFilePath=D:\Golang\fabric\code\sdkdemo\src\main\resources\crypto-config\peerOrganizations\
                \org1.example.com\peers\peer0.org1.example.com\msp\tlscacerts\tlsca.org1.example.com-cert.pem
#peer的org2的tls的证书路径:peerOrganization-org1-peers-peer0-msp-tlscacerts-com-xxx.pem
tlsPeerFilePathAddition=D:\Golang\fabric\code\sdkdemo\src\main\resources\crypto-config\peerOrganizations\
                        \org2.example.com\tlsca\tlsca.org2.example.com-cert.pem
#order节点信息
orderName=orderer.example.com
orderGrpc=grpcs://orderer.example.com:7050

#peer节点信息
peer0Name=peer0.org1.example.com
peer0Grpc=grpcs://peer0.org1.example.com:7051
peer1Name=peer1.org1.example.com
peer1Grpc=grpcs://peer1.org1.example.com:8051

peer0Name2=peer0.org2.example.com
peer0Grpc2=grpcs://peer0.org2.example.com:9051
peer1Name2=peer1.org2.example.com
peer1Grpc2=grpcs://peer1.org2.example.com:10051

#合约相关信息
chainCodeName=basicInfo
chainCodeLocation=D:\Golang\fabric\code\chaincode
endorsementPolicy=D:\Golang\fabric\code\chaincode\src\basicInfo\chaincodeendorsementpolicy.yaml
chainCodeVersion=1.0
##合约升级
newVersion=2.0
chainCodePath=basicInfo

#channel
channelName=test

拷贝相关证书文件

启动网络之后，将/opt/gopath/src/github.com/hyperledger/fabric/scripts/fabric-samples/first-network目录下的crypto-config文件拷贝到工程的resources目录下
注意：其中在1.4.6版本peerOrganization-org1(2)-users-Admin-msp-admincerts目录下的文件没有，但是可以拷贝同个目录下的signcerts的文件

生成tx文件

#cd /opt/gopath/src/github.com/hyperledger/fabric/scripts/fabric-samples/first-network
#../bin/configtxgen -profile TwoOrgsChannel -outputCreateChannelTx channel-artifacts/test.tx -channelID test

将生成的test.tx文件拷贝到idea工程的resources目录下

域名映射

编辑C:\Windows\System32\drivers\etc\host
添加下面内容

192.168.xx.xx    peer0.org1.example.com peer1.org1.example.com peer0.org2.example.com peer1.org2.example.com orderer.example.com

启动网络方式

#更改世界状态数据库是couchdb启动
#访问方式：ip:5984/_utils
#首次启动
cd /opt/gopath/src/github.com/hyperledger/fabric/scripts/fabric-samples/first-network
./byfn.sh up -s couchdb
#后续启动，启动2个org，4个peer，1个cli，4个couchdb,1个kafka
docker-compose -f docker-compose-cli.yaml -f docker-compose-couch.yaml -f docker-compose-kafka.yaml start

SDK封装

`Utils`工具类

作用：该工具类用于读取证书和私钥信息到java对象中

属性：包含一个静态内部类和一个静态方法

静态内部类：CAEnrollment，实现了Enrollment接口，覆写getKey()和getCert()方法

静态方法：getEnrollment，根据证书目录和私钥目录读取到enrollment里面。

/**
 * @description 用户工具类用于读取证书和私钥信息到java对象中
 */
public class UserUtils {

   private static class CAEnrollment implements Enrollment{
        private PrivateKey key;
        private String ecert;
        public CAEnrollment(PrivateKey key,String ecert) {
            this.key = key;
            this.ecert = ecert;
        }
        @Override
        public PrivateKey getKey() {
            return key;
        }

        @Override
        public String getCert() {
            return ecert;
        }
    }

    /**
     * @description 根据证书目录和私钥目录读取到enrollment里面。
     * @param keyFolderPath 私钥的目录
     * @param keyFileName   私钥的文件名
     * @param certFolderPath 证书的目录
     * @param certFileName   证书的文件名
     * @return enrollment 带有用户信息的对象
     * @throws IOException
     * @throws NoSuchAlgorithmException
     * @throws CryptoException
     * @throws InvalidKeySpecException
     */
    public static Enrollment getEnrollment(String keyFolderPath, String keyFileName, String certFolderPath, String certFileName)
            throws Exception {
        PrivateKey key = null;
        String certificate = null;
        InputStream isKey = null;
        BufferedReader brKey = null;

        try {

            isKey = new FileInputStream(keyFolderPath + File.separator + keyFileName);
            brKey = new BufferedReader(new InputStreamReader(isKey));
            StringBuilder keyBuilder = new StringBuilder();

            for (String line = brKey.readLine(); line != null; line = brKey.readLine()) {
                if (line.indexOf("PRIVATE") == -1) {
                    keyBuilder.append(line);
                }
            }

            certificate = new String(Files.readAllBytes(Paths.get(certFolderPath, certFileName)));

            byte[] encoded = DatatypeConverter.parseBase64Binary(keyBuilder.toString());
            PKCS8EncodedKeySpec keySpec = new PKCS8EncodedKeySpec(encoded);
            KeyFactory kf = KeyFactory.getInstance("ECDSA");
            key = kf.generatePrivate(keySpec);
        } finally {
            isKey.close();
            brKey.close();
        }
       return new CAEnrollment(key, certificate);
    }
}

`UserContext`类

实现sdk中User的接口，并重写全部方法，为了安全，还需一个静态加密方法Security.addProvider()

@Data
@AllArgsConstructor
@NoArgsConstructor
/**
 * @description 用户对象
 */
public class UserContext implements User, Serializable{
    private String name;

    private Set<String> roles;

    private String account;

    private String affiliation;

    private Enrollment enrollment;

    private String mspId;

    static{
        Security.addProvider(new BouncyCastleProvider());
    }
}

`Path`类

该类主要是定义各种证书及其路径

/**
 * 各种证书及其路径的类
 */
@Data
@AllArgsConstructor
@NoArgsConstructor
@Component
public class Path {
    /**
     * peer私钥的路径
     * peerOrganization-org1(2)-users-Admin-msp-keystore
     */
    @Value("${keyFolderPath}")
    public String keyFolderPath;
    @Value("${keyFolderPath2}")
    public String keyFolderPath2;
    /**
     * peer私钥的值
     * 就是上面路径的值 xxx_sk
     */
    @Value("${keyFileName}")
    public String keyFileName;
    @Value("${keyFileName2}")
    public String keyFileName2;
    /**
     * peer证书的路径
     * peerOrganization-org1(2)-users-Admin-msp-admincerts
     */
    @Value("${certFolderPath}")
    public String certFolderPath;
    @Value("${certFolderPath2}")
    public String certFolderPath2;
    /**
     * peer证书的值
     * 就是上面路径的值 xxx_pem
     */
    @Value("${certFileName}")
    public String certFileName;
    @Value("${certFileName2}")
    public String certFileName2;

    /**
     * order的tls的证书路径
     * orderOrganization-tlsca-xxx.pem
     */
    @Value("${tlsOrderFilePath}")
    public String tlsOrderFilePath;

    /**
     * 命令创建channel时的tx文件路径
     */
    @Value("${txfilePath}")
    public String txfilePath;

    /**
     * peer的tls的证书路径
     * peerOrganization-org1-peers-peer0-msp-tlscacerts-com-xxx.pem
     */
    @Value("${tlsPeerFilePath}")
    public String tlsPeerFilePath;
    @Value("${tlsPeerFilePathAddition}")
    public String tlsPeerFilePathAddition;

    /**
     * order节点信息
     */
    @Value("${orderName}")
    public String orderName;
    @Value("${orderGrpc}")
    public String orderGrpc;

    /**
     * peer节点信息
     */
    @Value("${peer0Name}")
    public String peer0Name;
    @Value("${peer0Grpc}")
    public String peer0Grpc;
    @Value("${peer1Name}")
    public String peer1Name;
    @Value("${peer1Grpc}")
    public String peer1Grpc;

    @Value("${peer0Name2}")
    public String peer0Name2;
    @Value("${peer0Grpc2}")
    public String peer0Grpc2;
    @Value("${peer1Name2}")
    public String peer1Name2;
    @Value("${peer1Grpc2}")
    public String peer1Grpc2;

    /**
     * 合约相关
     */
    @Value("${chainCodeLocation}")
    public String chainCodeLocation;
    @Value("${endorsementPolicy}")
    public String endorsementPolicy;
    @Value("${chainCodeName}")
    public String chainCodeName;
    @Value("${chainCodeVersion}")
    public String chainCodeVersion;
    @Value("${newVersion}")
    public String newVersion;
    @Value("${chainCodePath}")
    public String chainCodePath;

    /**
     * channel相关
     */
    @Value("${channelName}")
    public String channelName;

}

`FabricClient`类

该类包括多个方法，包括cli端创建channle，cli端加入channle，查询channle，创建order，创建peer，peer加入到channel，安装合约，实例化合约，调用合约，升级合约，查询合约等方法

 private static final Logger log = LoggerFactory.getLogger(FabricClient.class);

    //创建客户端，类似cli
    private final HFClient hfClient;
    @Autowired
    private Path path;

    public FabricClient(UserContext userContext) throws Exception {
        //创建一个新的客户端实例
        hfClient=HFClient.createNewInstance();
        //设置加密算法
        CryptoSuite cryptoSuite=CryptoSuite.Factory.getCryptoSuite();
        //设置凭证工具
        hfClient.setCryptoSuite(cryptoSuite);
        //设置客户端用户
        hfClient.setUserContext(userContext);
    }

创建通道

入参：通道名字，order节点，channel配置文件路径（也就是xxx.tx文件路径）
出参：Channel

 /**
     * @description 创建channel
     * @param channelName channel的名字
     * @param order order的信息
     * @param txPath 创建channel所需的tx文件
     * @return Channel
     * @throws Exception 异常
     */
    public Channel createChannel(String channelName, Orderer order,String txPath) throws Exception{
        //通道配置文件的包装器
        ChannelConfiguration cf=new ChannelConfiguration(new File(txPath));
        //获取通道配置文件的签名,需要传入通道配置文件的包装器和用户
        byte[] cfs = hfClient.getChannelConfigurationSignature(cf, hfClient.getUserContext());
        //若只输入通道名称，则在当前客户端下加入一个已经配置好了的通道,若有指定orderer节点和设置配置文件及签名，则是创建一个新的通道
        return hfClient.newChannel(channelName,order,cf,cfs);
    }

已有通道加入客户端

入参：通道名字
出参：Channel

/**
* @description 已有的通道加入cli
* @param channelName 通道名字
* @return channel
* @throws Exception 异常
*/
public Channel newChannel(String channelName) throws Exception{
    //若只输入通道名称，则在当前客户端下加入一个已经配置好了的通道
    return hfClient.newChannel(channelName);
}

获取通道

入参：通道名字
出参：Channel

/**
     * @description 获取channel
     * @param channelName 通道名字
     * @return channel
     * @throws Exception 异常
     */
public Channel getChannel(String channelName) throws Exception{
    //通过通道名称查询通道
    return hfClient.getChannel(channelName);
}

创建`order`

入参：orderer的名称，grpc(保证节点相互之间通信），tls路径（保证grpc调用生效）
出参：Orderer

/**
 *
 * @param name order名字
 * @param grpcs grpcs
 * @param tlsOrderPath tls路径
 * @return Orderer
 *@throws Exception 异常
*/
public Orderer newOrder(String name,String grpcUrl,String tlsOrderPath) throws Exception{
    Properties properties=new Properties();
    properties.setProperty("pemFile",tlsOrderPath);
    //创建一个orderer节点
    return hfClient.newOrderer(name, grpcUrl, properties);
}

获取order

/**
     * 获取order节点
     * @param channel
     */
public void getOrderers(Channel channel){
    Collection<Orderer> orderers = channel.getOrderers();
    for (Orderer orderer : orderers) {
        log.info("channel里order的信息"+orderer);
    }
}

创建`peer`

和创建order的方法类似
入参：peer的名称，grpc(保证节点相互之间通信），tls路径（保证grpc调用生效）
出参：peer

  /**
     * @description 获取peer节点
     * @param name peer
     * @param grpcUrl  grpcs
     * @param tlsPeerPath tls路径
     * @return  Peer
     * @throws Exception 异常
     */
public Peer newPeer(String name, String grpcUrl, String tlsPeerPath) throws Exception {
    Properties properties = new Properties();
    properties.setProperty("pemFile",tlsPeerPath);
    //创建一个peer节点
    return hfClient.newPeer(name,grpcUrl,properties);
}

获取peer节点

/**
     * 获取peer节点
     * @param channel
     */
    public void getPeers(Channel channel){
        log.info("channel里peer的信息"+channel.getPeers());
    }

`peer`加入到`Channel`

/**
     * @description peer节点，加入到channel里
     * @param channelName 通道名字
     * @param peer peer节点
     * @throws Exception 异常
     */
    public void joinPeer(String channelName,Peer peer) throws Exception{
        //获取channel
        Channel channel = getChannel(channelName);
        //peer加入channel
        channel.joinPeer(peer);
    }

至此就可以结合下面的ChannelController类测试通道创建

安装合约

/**
     * @description 安装合约
     * @param lang 合约开发语言
     * @param chainCodeName 合约名称
     * @param chainCodeVersion 合约版本
     * @param chainCodeLocation 合约的目录路径
     * @param chainCodePath 合约的文件夹
     * @param peers 安装的peers 节点
     * @throws Exception 异常
     */
public void installChainCode(TransactionRequest.Type lang, String chainCodeName, String chainCodeVersion,String chainCodeLocation,String chainCodePath, List<Peer> peers) throws Exception {
    //创建安装提案
    InstallProposalRequest installProposalRequest = hfClient.newInstallProposalRequest();
    ChaincodeID.Builder builder = ChaincodeID.newBuilder().setName(chainCodeName).setVersion(chainCodeVersion);
    installProposalRequest.setChaincodeLanguage(lang);
    installProposalRequest.setChaincodeID(builder.build());
    installProposalRequest.setChaincodeSourceLocation(new File(chainCodeLocation));
    installProposalRequest.setChaincodePath(chainCodePath);
    //向节点发送安装智能合约提案
    Collection<ProposalResponse> responses =  hfClient.sendInstallProposal(installProposalRequest,peers);
    //遍历提案结果
    for(ProposalResponse response:responses){
        if(response.getStatus().getStatus()==200){
            log.info("{} installed success",response.getPeer().getName());
        }else{
            log.error("{} installed fail",response.getMessage());
        }
    }
}

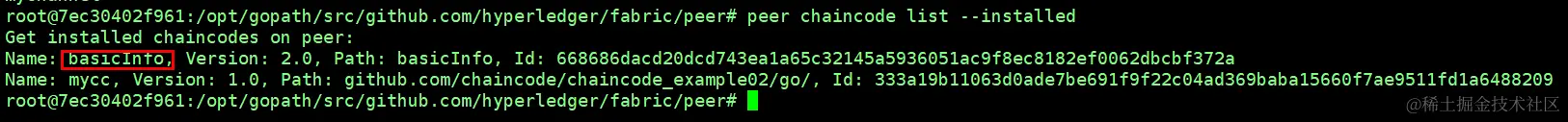

至此就可以结合下面的InstallChainCodeController类测试合约安装

实例化合约

/**
     * @description 合约的实例化
     * @param channelName 通道名字
     * @param lang  编码语音
     * @param chaincodeName 链码名字
     * @param chaincodeVersion 链码版本
     * @param order orderer
     * @param peer peer
     * @param funcName 合约实例化执行的函数
     * @param args  合约实例化执行的参数
     * @throws Exception 异常
     */
public void initChainCode(String channelName, TransactionRequest.Type lang, String chaincodeName, String chaincodeVersion, Orderer order, List<Peer> peers, String funcName, String args[]) throws Exception {
    //加入channel
    Channel channel = newChannel(channelName);
    for(Peer p : peers) {
        channel.addPeer(p);
    }
    channel.addOrderer(order);
    //初始化通道，启动通道
    channel.initialize();
    //创建实例化提案
    InstantiateProposalRequest instantiateProposalRequest = hfClient.newInstantiationProposalRequest();
    instantiateProposalRequest.setArgs(args);
    instantiateProposalRequest.setFcn(funcName);
    instantiateProposalRequest.setChaincodeLanguage(lang);
    //指定背书策略
    ChaincodeEndorsementPolicy chaincodeEndorsementPolicy = new ChaincodeEndorsementPolicy();

    chaincodeEndorsementPolicy.fromYamlFile(new File("src\main\resources\endorPolicy\chaincodeendorsementpolicy.yaml"));
    //chaincodeEndorsementPolicy.fromYamlFile(new File(path.endorsementPolicy));
    instantiateProposalRequest.setChaincodeEndorsementPolicy(chaincodeEndorsementPolicy);
    ChaincodeID.Builder builder = ChaincodeID.newBuilder().setName(chaincodeName).setVersion(chaincodeVersion);
    instantiateProposalRequest.setChaincodeID(builder.build());
    //实例化智能合约，若有指定节点，该提案会被发送到指定的节点
    Collection<ProposalResponse> responses =  channel.sendInstantiationProposal(instantiateProposalRequest);
    //遍历提案结果
    for(ProposalResponse response:responses){
        if(response.getStatus().getStatus()==200){
            log.info("{} init sucess",response.getPeer().getName());
        }else{
            log.error("{} init fail",response.getMessage());
        }
    }
    //用当前客户端的用户将提案结果发送到当前通道的一个orderer节点，可以指定用户和orderer节点，由orderer节点排序和生成新的区块
    channel.sendTransaction(responses);
}

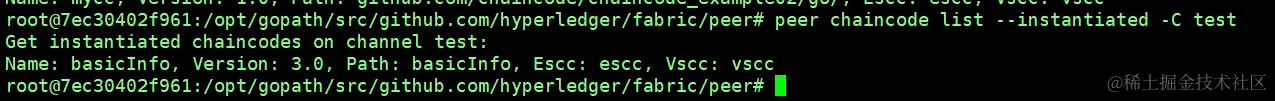

至此就可以结合下面的InitChainCodeController类测试合约实例化

调用合约

/**
     * @description 合约的调用
     * @param channelName 通道名字
     * @param lang 编码语音
     * @param chaincodeName 链码名字
     * @param order orderer
     * @param peers peer
     * @param funcName 合约调用执行的函数名称
     * @param args 合约调用执行的参数
     * @throws Exception 异常
     */
public void invoke(String channelName, TransactionRequest.Type lang, String chaincodeName, Orderer order, List<Peer> peers, String funcName, String args[]) throws Exception {
    //加入channel
    Channel channel = newChannel(channelName);
    channel.addOrderer(order);
    for(Peer p : peers) {
        channel.addPeer(p);
    }
    channel.initialize();
    //创建交易提案
    TransactionProposalRequest transactionProposalRequest = hfClient.newTransactionProposalRequest();
    transactionProposalRequest.setChaincodeLanguage(lang);
    transactionProposalRequest.setArgs(args);
    transactionProposalRequest.setFcn(funcName);
    ChaincodeID.Builder builder = ChaincodeID.newBuilder().setName(chaincodeName);
    transactionProposalRequest.setChaincodeID(builder.build());
    //发送交易提案，若有指定节点，该提案会被发送到指定的节点
    Collection<ProposalResponse> responses = channel.sendTransactionProposal(transactionProposalRequest,peers);
    ////遍历交易提案结果
    for(ProposalResponse response:responses){
        if(response.getStatus().getStatus()==200){
            log.info("{} invoke proposal {} sucess",response.getPeer().getName(),funcName);
        }else{
            String[] logArgs = {response.getMessage(),funcName,response.getPeer().getName()};
            log.error("{} invoke proposal {} fail on {}",logArgs);
        }
    }
    //用当前客户端的用户将提案结果发送到当前通道的一个orderer节点，可以指定用户和orderer节点，由orderer节点排序和生成新的区块
    channel.sendTransaction(responses);
}

至此就可以结合下面的InvokeChainCodeController类测试合约升级

升级合约

 /**
     * @description 合约的升级
     * @param channelName 通道名字
     * @param lang  编码语音
     * @param chaincodeName 链码名字
     * @param chaincodeVersion 链码版本
     * @param order orderer
     * @param peer peer
     * @param funcName 合约实例化执行的函数
     * @param args  合约实例化执行的参数
     * @throws Exception 异常
     */
public void invoke(String channelName, TransactionRequest.Type lang, String chaincodeName, Orderer order, List<Peer> peers, String funcName, String args[]) throws Exception {
        //加入channel
        Channel channel = newChannel(channelName);
        channel.addOrderer(order);
        for(Peer p : peers) {
            channel.addPeer(p);
        }
        channel.initialize();
        //创建交易提案
        TransactionProposalRequest transactionProposalRequest = hfClient.newTransactionProposalRequest();
        transactionProposalRequest.setChaincodeLanguage(lang);
        transactionProposalRequest.setArgs(args);
        transactionProposalRequest.setFcn(funcName);
        ChaincodeID.Builder builder = ChaincodeID.newBuilder().setName(chaincodeName);
        transactionProposalRequest.setChaincodeID(builder.build());
        //发送交易提案，若有指定节点，该提案会被发送到指定的节点
        Collection<ProposalResponse> responses = channel.sendTransactionProposal(transactionProposalRequest,peers);
        ////遍历交易提案结果
        for(ProposalResponse response:responses){
            if(response.getStatus().getStatus()==200){
                log.info("{} invoke proposal {} sucess",response.getPeer().getName(),funcName);
            }else{
                String[] logArgs = {response.getMessage(),funcName,response.getPeer().getName()};
                log.error("{} invoke proposal {} fail on {}",logArgs);
            }
        }
        //用当前客户端的用户将提案结果发送到当前通道的一个orderer节点，可以指定用户和orderer节点，由orderer节点排序和生成新的区块
        channel.sendTransaction(responses);
    }

至此就可以结合下面的UpdateChainCodeController类测试合约升级

查询合约

/**
     * @description 合约的查询
     * @param peers peer
     * @param channelName 通道名字
     * @param lang 编码语音
     * @param chaincodeName 链码名字
     * @param funcName 合约调用执行的函数名称
     * @param args 合约调用执行的参数
     * @throws Exception 异常
     */
    public Map<Object, String> queryChainCode(List<Peer> peers, String channelName, TransactionRequest.Type lang, String chaincodeName, String funcName, String args[]) throws Exception {
        Channel channel = getChannel(channelName);
        for(Peer p : peers) {
            channel.addPeer(p);
        }
        channel.initialize();
        HashMap<Object, String> map = new HashMap();
        QueryByChaincodeRequest queryByChaincodeRequest = hfClient.newQueryProposalRequest();
        ChaincodeID.Builder builder = ChaincodeID.newBuilder().setName(chaincodeName);
        queryByChaincodeRequest.setChaincodeID(builder.build());
        queryByChaincodeRequest.setArgs(args);
        queryByChaincodeRequest.setFcn(funcName);
        queryByChaincodeRequest.setChaincodeLanguage(lang);
        Collection<ProposalResponse> responses = channel.queryByChaincode(queryByChaincodeRequest);
        for (ProposalResponse response : responses) {
            if (response.getStatus().getStatus() == 200) {
                log.info("data is {}", response.getProposalResponse().getResponse().getPayload());
                map.put(response.getStatus().getStatus(),new String(response.getProposalResponse().getResponse().getPayload().toByteArray()));
            } else {
                log.error("data get error {}", response.getMessage());
                map.put(response.getStatus().getStatus(),response.getMessage());
            }
            return map;
        }
        map.put("code","404");
        return map;
    }

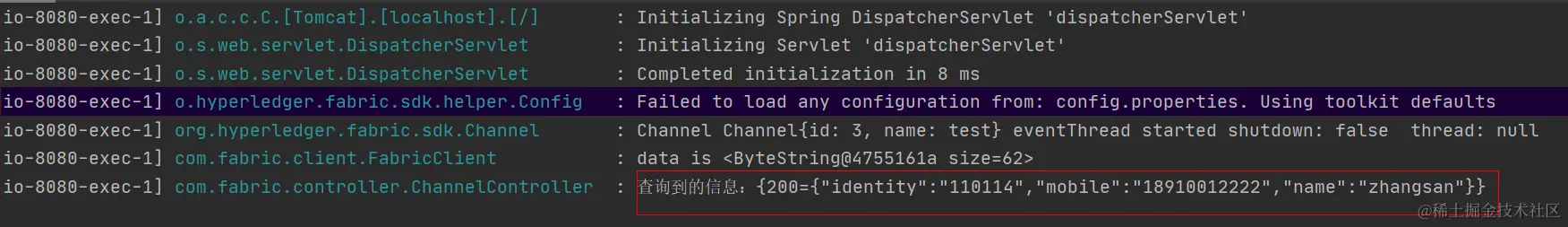

至此就可以结合下面的QueryChainCodeController类测试合约升级

`Controller`类测试

`ChannelController`类测试

该类主要是对上面FabricClient类的通道创建方法进行测试
等价于以下命令

#docker exec -it cli bash
#ORDERER_CA=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem
#peer channel create -o orderer.example.com:7050 -c test -f ./channel-artifacts/mychannel.tx --tls --cafile $ORDERER_CA
#peer channel join -b test.block

代码编写

@Controller
@RequestMapping("/sdk")
public class ChannelController {
    private static final Logger log = LoggerFactory.getLogger(ChannelController.class);
    @Autowired
    private Path path;
    @RequestMapping("/createChannel")
    @ResponseBody
    public String createChannel() throws Exception {
        UserContext userContext=new UserContext();
        userContext.setName("admin");
        userContext.setAffiliation("Org1");
        userContext.setMspId("Org1MSP");
        userContext.setAccount("hongcb");
        //使用工具类生成enrollment
        Enrollment enrollment = UserUtils.getEnrollment(path.keyFolderPath,path.keyFileName,path.certFolderPath,path.certFileName);
        userContext.setEnrollment(enrollment);
        FabricClient fabricClient=new FabricClient(userContext);
        //创建channel
            //1、创建order
        Orderer order = fabricClient.newOrder(path.orderName, path.orderGrpc, path.tlsOrderFilePath);
        log.info("order信息："+order);
            //2、创建peer
        Peer peer = fabricClient.newPeer(path.peer0Name, path.peer0Grpc, path.tlsPeerFilePath);
        Peer peer1 = fabricClient.newPeer(path.peer1Name, path.peer1Grpc, path.tlsPeerFilePath);
        log.info("peer0Org1信息："+peer);
        log.info("peer1org1信息："+peer1);
            //3、创建channel
        Channel channel = fabricClient.createChannel(path.channelName, order, path.txfilePath);
        log.info("channel的名字=="+channel.getName());
            //获取orders信息
        fabricClient.getOrderers(channel);
            //4、peer加入通道
        fabricClient.joinPeer(path.channelName,peer);
        fabricClient.joinPeer(path.channelName,peer1);
        log.info("peer节点开始加入通道");
            //获取peers信息
        fabricClient.getPeers(channel);
        boolean initialized = channel.isInitialized();
        log.info("是否初始化："+initialized);
        return channel.toString();
    }

    @RequestMapping("/createChannel2")
    @ResponseBody
    public String createChannel2(String name) throws Exception {

        UserContext userContext=new UserContext();
        userContext.setName("admin");
        userContext.setAffiliation("Org2");
        userContext.setMspId("Org2MSP");
        userContext.setAccount("hongcb");
        //使用工具类生成enrollment
        Enrollment enrollment = UserUtils.getEnrollment(path.keyFolderPath2,path.keyFileName2,path.certFolderPath2,path.certFileName2);
        userContext.setEnrollment(enrollment);
        FabricClient fabricClient=new FabricClient(userContext);
        //1、得到order
        Orderer order = fabricClient.newOrder(path.orderName, path.orderGrpc, path.tlsOrderFilePath);
        log.info("order信息："+order);
        //获取已有channel
        Channel channel = fabricClient.newChannel(path.channelName);
        channel.addOrderer(order);
        //2、得到peer
        Peer peer3 = fabricClient.newPeer(path.peer0Name2, path.peer0Grpc2, path.tlsPeerFilePathAddition);
        Peer peer4 = fabricClient.newPeer(path.peer1Name2, path.peer1Grpc2, path.tlsPeerFilePathAddition);
        log.info("peer0Org2信息："+peer3);
        log.info("peer1org2信息："+peer4);
        //3、peer加入通道
        fabricClient.joinPeer(path.channelName,peer3);
        fabricClient.joinPeer(path.channelName,peer4);
        log.info("peer节点开始加入通道");
        //获取peers信息
        fabricClient.getPeers(channel);
//        log.info("加入之后，channel里的peer节点信息=="+channel.getPeers());
        return channel.toString();
    }

}

控制台输出

浏览器输入http://localhost:8080/sdk/createChannel，控制台如下打印：

order信息：Orderer{id: 1, channelName: , name:orderer.example.com, url: grpcs://orderer.example.com:7050}

peer0Org1信息：Peer{ id: 2, name: peer0.org1.example.com, channelName: null, url: grpcs://peer0.org1.example.com:7051}
peer1org1信息：Peer{ id: 3, name: peer1.org1.example.com, channelName: null, url: grpcs://peer1.org1.example.com:8051}

channel的名字==test

channel里order的信息Orderer{id: 1, channelName: test, name:orderer.example.com, url: grpcs://orderer.example.com:7050}

Channel{id: 5, name: test} joining Peer{ id: 2, name: peer0.org1.example.com, channelName: null, url: grpcs://peer0.org1.example.com:7051}
Peer Peer{ id: 2, name: peer0.org1.example.com, channelName: test, url: grpcs://peer0.org1.example.com:7051} joined into channel Channel{id: 5, name: test}
Channel{id: 5, name: test} joining Peer{ id: 3, name: peer1.org1.example.com, channelName: null, url: grpcs://peer1.org1.example.com:8051}
Peer Peer{ id: 3, name: peer1.org1.example.com, channelName: test, url: grpcs://peer1.org1.example.com:8051} joined into channel Channel{id: 5, name: test}

peer节点开始加入通道

channel里peer的信息[Peer{ id: 2, name: peer0.org1.example.com, channelName: test, url: grpcs://peer0.org1.example.com:7051}, Peer{ id: 3, name: peer1.org1.example.com, channelName: test, url: grpcs://peer1.org1.example.com:8051}]

是否初始化：false

浏览器输入http://localhost:8080/sdk/createChannel2，控制台打印和上面类似：

进入cli容器，查看当前的channel,可以看到test通道了

docker exec -it cli /bin/bash
peer channel list

`InstallChainCodeController`类测试

该类主要是对上面FabricClient类的合约安装方法进行测试
等价于命令
peer chaincode install -n mycc -p 链码位置

代码编写

@Controller
@RequestMapping("/sdk")
public class InstallChainCodeController {
    private static final Logger log = LoggerFactory.getLogger(ChannelController.class);
    @Autowired
    private Path path;
    @RequestMapping("/chainCodeInstall")
    @ResponseBody
    public String chainCodeInstall() throws Exception {
        UserContext userContext=new UserContext();
        userContext.setName("admin");
        userContext.setAffiliation("Org1");
        userContext.setMspId("Org1MSP");
        userContext.setAccount("hongcb");
        //使用工具类生成enrollment
        Enrollment enrollment = UserUtils.getEnrollment(path.keyFolderPath,path.keyFileName,path.certFolderPath,path.certFileName);
        userContext.setEnrollment(enrollment);
        FabricClient fabricClient=new FabricClient(userContext);
        //获取peer集合
        Peer peer0 = fabricClient.newPeer(path.peer0Name, path.peer0Grpc, path.tlsPeerFilePath);
        Peer peer1 = fabricClient.newPeer(path.peer1Name, path.peer1Grpc, path.tlsPeerFilePath);
        List<Peer> peers = new ArrayList<>();
        peers.add(peer0);
        peers.add(peer1);
        //在peer中安装合约
        fabricClient.installChainCode(TransactionRequest.Type.GO_LANG,path.chainCodeName,
                                        path.chainCodeVersion,path.chainCodeLocation,
                                        path.chainCodePath,peers);
        return "install ok 1";

    }

    @RequestMapping("/chainCodeInstall2")
    @ResponseBody
    public String chainCodeInstall2() throws Exception {
        UserContext userContext=new UserContext();
        userContext.setName("admin");
        userContext.setAffiliation("Org2");
        userContext.setMspId("Org2MSP");
        userContext.setAccount("hongcb");
        //使用工具类生成enrollment
        Enrollment enrollment = UserUtils.getEnrollment(path.keyFolderPath2,path.keyFileName2,path.certFolderPath2,path.certFileName2);
        userContext.setEnrollment(enrollment);
        FabricClient fabricClient=new FabricClient(userContext);
        //获取peer
        Peer peer0 = fabricClient.newPeer(path.peer0Name2, path.peer0Grpc2, path.tlsPeerFilePathAddition);
        Peer peer1 = fabricClient.newPeer(path.peer1Name2, path.peer1Grpc2, path.tlsPeerFilePathAddition);
        List<Peer> peers = new ArrayList<>();
        peers.add(peer0);
        peers.add(peer1);
        //在peer中安装合约
        fabricClient.installChainCode(TransactionRequest.Type.GO_LANG,path.chainCodeName,
                path.newVersion,path.chainCodeLocation,
                path.chainCodePath,peers);
        return "install ok 2";
    }
}

控制台输出

浏览器输入http://localhost:8080/sdk/chainCodeInstall，控制台如下打印：

Installing 'basicInfo::basicInfo::2.0' language Go chaincode from directory: 'D:\Golang\fabric\code\chaincode\src\basicInfo' with source location: 'src\basicInfo'. chaincodePath:'basicInfo'
peer0.org1.example.com 安装 成功
peer1.org1.example.com 安装 成功

进入cli容器，查看当前的chaincode的安装方法

docker exec -it cli /bin/bash
peer chaincode list --installed

`InitChainCodeController`类测试

该类主要是对上面FabricClient类的合约实例化方法进行测试
等价于命令
peer chaincode instantiate -o orderer.example.com:7050 --tls --cafile $ORDERER_CA -C mychannel -n test -v 1.0 -c '{"Args":[]}' -P "OR ('Org1MSP.peer')"

代码编写

@Controller
@RequestMapping("/sdk")
public class InitChainCodeController {
    private static final Logger log = LoggerFactory.getLogger(ChannelController.class);
    @Autowired
    private Path path;
    @RequestMapping("/init")
    @ResponseBody
    public String initChainCode() throws Exception {
        UserContext userContext=new UserContext();
        userContext.setName("admin");
        userContext.setAffiliation("Org1");
        userContext.setMspId("Org1MSP");
        userContext.setAccount("hongcb");
        //使用工具类生成enrollment
        Enrollment enrollment = UserUtils.getEnrollment(path.keyFolderPath,path.keyFileName,path.certFolderPath,path.certFileName);
        userContext.setEnrollment(enrollment);
        FabricClient fabricClient=new FabricClient(userContext);
        Peer peer0 = fabricClient.newPeer(path.peer0Name, path.peer0Grpc, path.tlsPeerFilePath);
        Peer peer1 = fabricClient.newPeer(path.peer1Name, path.peer1Grpc, path.tlsPeerFilePath);
        List<Peer> peers = new ArrayList<>();
        peers.add(peer0);
        peers.add(peer1);
        Orderer order = fabricClient.newOrder(path.orderName, path.orderGrpc, path.tlsOrderFilePath);
        String initArgs[] = {""};
        fabricClient.initChainCode(path.channelName, TransactionRequest.Type.GO_LANG,
                path.chainCodeName,path.chainCodeVersion,order,peers,"init",initArgs);
        return "init";
    }
}

控制台输出

浏览器输入http://localhost:8080/sdk/init，控制台如下打印：

Channel Channel{id: 3, name: test} eventThread started shutdown: false  thread: null
peer0.org1.example.com init sucess
peer1.org1.example.com init sucess

进入cli容器，查看当前chaincode的实例化情况

docker exec -it cli /bin/bash
peer chaincode list --instantiated -C test

`InvokeChainCodeController`类测试

该类主要是对上面FabricClient类的合约调用方法进行测试
调用之前需要先同时安装链码在peer0和peer1，上一步安装合约测试已经将合约在peer0中了，因此只需要更改一下路径在执行一下安装合约方法即可。再执行调用合约的方法

代码编写

@Controller
@RequestMapping("/sdk")
public class InvokeChainCodeController {
    private static final Logger log = LoggerFactory.getLogger(ChannelController.class);
    @Autowired
    private Path path;
    @RequestMapping("/invoke")
    @ResponseBody
    public String chainCodeInvoke() throws Exception {

        UserContext userContext = new UserContext();
        userContext.setAffiliation("Org1");
        userContext.setMspId("Org1MSP");
        userContext.setAccount("hongcb");
        userContext.setName("admin");
        Enrollment enrollment =  UserUtils.getEnrollment(path.keyFolderPath,path.keyFileName,path.certFolderPath,path.certFileName);
        userContext.setEnrollment(enrollment);
        FabricClient fabricClient = new FabricClient(userContext);
        Peer peer0 = fabricClient.newPeer(path.peer0Name,path.peer0Grpc,path.tlsPeerFilePath);
        Peer peer1 = fabricClient.newPeer(path.peer1Name,path.peer1Grpc,path.tlsPeerFilePath);
        List<Peer> peers = new ArrayList<>();
        peers.add(peer0);
        peers.add(peer1);
        Orderer order = fabricClient.newOrder(path.orderName, path.orderGrpc, path.tlsOrderFilePath);
        String[] initArgs = {"110114","{"name":"zhangsan","identity":"110114","mobile":"18910012222"}"};
        fabricClient.invoke(path.channelName, TransactionRequest.Type.GO_LANG,path.chainCodeName,order,peers,"save",initArgs);
        return "invoke ok";
    }
}

控制台输出

浏览器输入http://localhost:8080/sdk/chainCodeInstall2，控制台如下打印：

Installing 'basicInfo::basicInfo::3.0' language Go chaincode from directory: 'D:\Golang\fabric\code\chaincode\src\basicInfo' with source location: 'src\basicInfo'. chaincodePath:'basicInfo'
peer0.org2.example.com installed sucess
peer1.org2.example.com installed sucess

输入http://localhost:8080/sdk/createChannel2，控制台如下打印

order信息：Orderer{id: 1, channelName: , name:orderer.example.com, url: grpcs://orderer.example.com:7050}
peer信息：Peer{ id: 4, name: peer0.org2.example.com, channelName: null, url: grpcs://peer0.org2.example.com:9051}
 =================
Channel{id: 2, name: test} joining Peer{ id: 4, name: peer0.org2.example.com, channelName: null, url: grpcs://peer0.org2.example.com:9051}.
 =================
Peer Peer{ id: 4, name: peer0.org2.example.com, channelName: test, url: grpcs://peer0.org2.example.com:9051} joined into channel Channel{id: 2, name: test}
=================
channel信息,peer加入后Channel{id: 2, name: test}

在输入http://localhost:8080/sdk/invoke，控制台如下打印

peer0.org1.example.com invoke proposal save sucess
peer0.org2.example.com invoke proposal save sucess

进入cli容器，查看当前chaincode的调用情况

docker exec -it cli /bin/bash
peer chaincode query -C test -n basicInfo -c '{"Args":["query","110114"]}'

未调用前:无数据

调用后:有数据

`UpdateChainCodeController`类测试

该类主要是对上面FabricClient类的合约升级方法进行测试

代码编写

@Controller
@RequestMapping("/sdk")
public class UpdateChainCodeController {
    private static final Logger log = LoggerFactory.getLogger(ChannelController.class);
    @Autowired
    private Path path;
    @RequestMapping("/update")
    @ResponseBody
    public String updateChainCode() throws Exception {
        UserContext userContext=new UserContext();
        userContext.setName("admin");
        userContext.setAffiliation("Org1");
        userContext.setMspId("Org1MSP");
        userContext.setAccount("hongcb");
        //使用工具类生成enrollment
        Enrollment enrollment = UserUtils.getEnrollment(path.keyFolderPath,path.keyFileName,path.certFolderPath,path.certFileName);
        userContext.setEnrollment(enrollment);
        FabricClient fabricClient=new FabricClient(userContext);
        Peer peer = fabricClient.getPeer(path.peer0Name, path.peer0Grpc, path.tlsPeerFilePath);
        Orderer order = fabricClient.getOrder(path.orderName, path.orderGrpc, path.tlsOrderFilePath);
        String initArgs[] = {""};
        fabricClient.upgradeChainCode(path.channelName, TransactionRequest.Type.GO_LANG,path.chainCodeName,path.newVersion,order,peer,"init",initArgs);
        return "update";
    }
}

控制台输出

测试前需要先修改版本为3.0，再运行安装合约的方法，再运行升级合约的方法

浏览器输入`http://localhost:8080/sdk/update，控制台如下打印：

Channel Channel{id: 3, name: test} eventThread started shutdown: false  thread: null
peer0.org1.example.com upgrade sucess

进入cli容器，查看当前chaincode的实例化情况

docker exec -it cli /bin/bash
peer chaincode list --instantiated -C test

未运行升级方法之前，版本为2.0

运行升级方法之后，版本为3.0

`QueryChainCodeController`类测试

该类主要是对上面FabricClient类的合约查询方法进行测试
可以使用peer0节点也可以使用peer1节点查询
（查询合约无需orderer，上传才需要）

代码编写

@Controller
@RequestMapping("/sdk")
public class QueryChainCodeController {
    private static final Logger log = LoggerFactory.getLogger(ChannelController.class);
    @Autowired
    private Path path;
    @RequestMapping("/query")
    @ResponseBody
    public String queryChainCode(String name) throws Exception {

        UserContext userContext = new UserContext();
        userContext.setAffiliation("Org2");
        userContext.setMspId("Org2MSP");
        userContext.setAccount("hongcb");
        userContext.setName("admin");
        Enrollment enrollment =  UserUtils.getEnrollment(path.keyFolderPath2,path.keyFileName2,path.certFolderPath2,path.certFileName2);
        userContext.setEnrollment(enrollment);
        FabricClient fabricClient = new FabricClient(userContext);
        Peer peer0 = fabricClient.getPeer(path.peer0Name,path.peer0Grpc,path.tlsPeerFilePath);
        Peer peer1 = fabricClient.getPeer(path.peer0Name2,path.peer0Grpc2,path.tlsPeerFilePathAddition);
        List<Peer> peers = new ArrayList<>();
        peers.add(peer0);
        peers.add(peer1);
        String[] initArgs = {"110114"};
        Map<Object, String> map = fabricClient.queryChainCode(peers, path.channelName, TransactionRequest.Type.GO_LANG, path.chainCodeName, "query", initArgs);
        log.info("查询到的信息："+map);
        return "query ok";
    }
}

控制台输出

浏览器输入http://localhost:8080/sdk/query，控制台如下打印：

区块链笔记(5)-sdk的封装

前言

项目搭建

创建springboot工程，引入相关依赖

配置文件log4j.properties

配置文件application.properties

拷贝相关证书文件

生成tx文件

域名映射

SDK封装

Utils工具类

UserContext类

Path类

FabricClient类

创建通道

已有通道加入客户端

获取通道

创建order

获取order

创建peer

获取peer节点

peer加入到Channel

安装合约

实例化合约

调用合约

升级合约

查询合约

Controller类测试

ChannelController类测试

代码编写

控制台输出

InstallChainCodeController类测试

代码编写

控制台输出

InitChainCodeController类测试

代码编写

控制台输出

InvokeChainCodeController类测试

代码编写

控制台输出

UpdateChainCodeController类测试

代码编写

控制台输出

QueryChainCodeController类测试

代码编写

控制台输出

创建`springboot`工程，引入相关依赖

配置文件`log4j.properties`

配置文件`application.properties`

`Utils`工具类

`UserContext`类

`Path`类

`FabricClient`类

创建`order`

创建`peer`

`peer`加入到`Channel`

`Controller`类测试

`ChannelController`类测试

`InstallChainCodeController`类测试

`InitChainCodeController`类测试

`InvokeChainCodeController`类测试

`UpdateChainCodeController`类测试

`QueryChainCodeController`类测试
