静态令牌认证配置案例

静态令牌认证的基础配置

令牌信息保存于文本文件中
- 文件格式为CSV，每行定义一个用户，由“令牌、用户名、用户ID和所属的用户组”四个字段组成，用户组为可选字段
- 格式：token,user,uid,"group1,group2,group3"
由kube-apiserver在启动时通过--token-auth-file选项加载
加载完成后的文件变动，仅能通过重启程序进行重载，因此，相关的令牌会长期有效
客户端在HTTP请求中，通过“Authorization Bearer TOKEN”标头附带令牌令牌以完成认证

配置操作

step1 生成token，命令：

root@k8s-node01:~# echo "$(openssl rand -hex 3).$(openssl rand -hex 8)"
8a6fb6.630f42379543bcb1
root@k8s-node01:~# echo "$(openssl rand -hex 3).$(openssl rand -hex 8)"
e9854c.32327c5e30b5a2dc
root@k8s-node01:~# echo "$(openssl rand -hex 3).$(openssl rand -hex 8)"
8eab44.4625713808f677d8

step2 生成static token文件 /etc/kubernetes/authfiles/tokens.csv

8a6fb6.630f42379543bcb1,tom,1001,"kubeusers,kubeadmin"
e9854c.32327c5e30b5a2dc,tom,1002,"kubeusers"
8eab44.4625713808f677d8,tom,1003,"kubeadmin"

step3 配置kube-apiserver加载该静态令牌文件以启用相应的认证功能备份原始文件

cp /etc/kubernetes/manifests/kube-apiserver.yaml /root/

将宿主机的/etc/kubernetes/authfiles/tokens.csv 挂载到容器中去

cp /etc/kubernetes/manifests/kube-apiserver.yam /tmp/

apiVersion: v1
kind: Pod
metadata:
  annotations:
    kubeadm.kubernetes.io/kube-apiserver.advertise-address.endpoint: 192.168.0.44:6443
  creationTimestamp: null
  labels:
    component: kube-apiserver
    tier: control-plane
  name: kube-apiserver
  namespace: kube-system
spec:
  containers:
  - command:
    - kube-apiserver
    - --advertise-address=192.168.0.44
    - --allow-privileged=true
    - --authorization-mode=Node,RBAC
    - --client-ca-file=/etc/kubernetes/pki/ca.crt
    - --token-auth-file=/etc/kubernetes/authfiles/tokens.csv
    - --enable-admission-plugins=NodeRestriction
    - --enable-bootstrap-token-auth=true
    - --etcd-cafile=/etc/kubernetes/pki/etcd/ca.crt
    - --etcd-certfile=/etc/kubernetes/pki/apiserver-etcd-client.crt
    - --etcd-keyfile=/etc/kubernetes/pki/apiserver-etcd-client.key
    - --etcd-servers=https://127.0.0.1:2379
    - --kubelet-client-certificate=/etc/kubernetes/pki/apiserver-kubelet-client.crt
    - --kubelet-client-key=/etc/kubernetes/pki/apiserver-kubelet-client.key
    - --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
    - --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.crt
    - --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client.key
    - --requestheader-allowed-names=front-proxy-client
    - --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.crt
    - --requestheader-extra-headers-prefix=X-Remote-Extra-
    - --requestheader-group-headers=X-Remote-Group
    - --requestheader-username-headers=X-Remote-User
    - --secure-port=6443
    - --service-account-issuer=https://kubernetes.default.svc.cluster.local
    - --service-account-key-file=/etc/kubernetes/pki/sa.pub
    - --service-account-signing-key-file=/etc/kubernetes/pki/sa.key
    - --service-cluster-ip-range=10.96.0.0/12
    - --tls-cert-file=/etc/kubernetes/pki/apiserver.crt
    - --tls-private-key-file=/etc/kubernetes/pki/apiserver.key
    image: registry.aliyuncs.com/google_containers/kube-apiserver:v1.28.0
    imagePullPolicy: IfNotPresent
    livenessProbe:
      failureThreshold: 8
      httpGet:
        host: 192.168.0.44
        path: /livez
        port: 6443
        scheme: HTTPS
      initialDelaySeconds: 10
      periodSeconds: 10
      timeoutSeconds: 15
    name: kube-apiserver
    readinessProbe:
      failureThreshold: 3
      httpGet:
        host: 192.168.0.44
        path: /readyz
        port: 6443
        scheme: HTTPS
      periodSeconds: 1
      timeoutSeconds: 15
    resources:
      requests:
        cpu: 250m
    startupProbe:
      failureThreshold: 24
      httpGet:
        host: 192.168.0.44
        path: /livez
        port: 6443
        scheme: HTTPS
      initialDelaySeconds: 10
      periodSeconds: 10
      timeoutSeconds: 15
    volumeMounts:
    - mountPath: /etc/ssl/certs
      name: ca-certs
      readOnly: true
    - mountPath: /etc/ca-certificates
      name: etc-ca-certificates
      readOnly: true
    - mountPath: /etc/kubernetes/pki
      name: k8s-certs
      readOnly: true
    - mountPath: /usr/local/share/ca-certificates
      name: usr-local-share-ca-certificates
      readOnly: true
    - mountPath: /usr/share/ca-certificates
      name: usr-share-ca-certificates
      readOnly: true
    - mountPath: /etc/kubernetes/authfiles
      name: authfiles
      readOnly: true
  hostNetwork: true
  priority: 2000001000
  priorityClassName: system-node-critical
  securityContext:
    seccompProfile:
      type: RuntimeDefault
  volumes:
  - hostPath:
      path: /etc/ssl/certs
      type: DirectoryOrCreate
    name: ca-certs
  - hostPath:
      path: /etc/ca-certificates
      type: DirectoryOrCreate
    name: etc-ca-certificates
  - hostPath:
      path: /etc/kubernetes/pki
      type: DirectoryOrCreate
    name: k8s-certs
  - hostPath:
      path: /usr/local/share/ca-certificates
      type: DirectoryOrCreate
    name: usr-local-share-ca-certificates
  - hostPath:
      path: /usr/share/ca-certificates
      type: DirectoryOrCreate
    name: usr-share-ca-certificates
  - hostPath:
      path: /etc/kubernetes/authfiles
      type: DirectoryOrCreate
    name: authfiles
status: {}

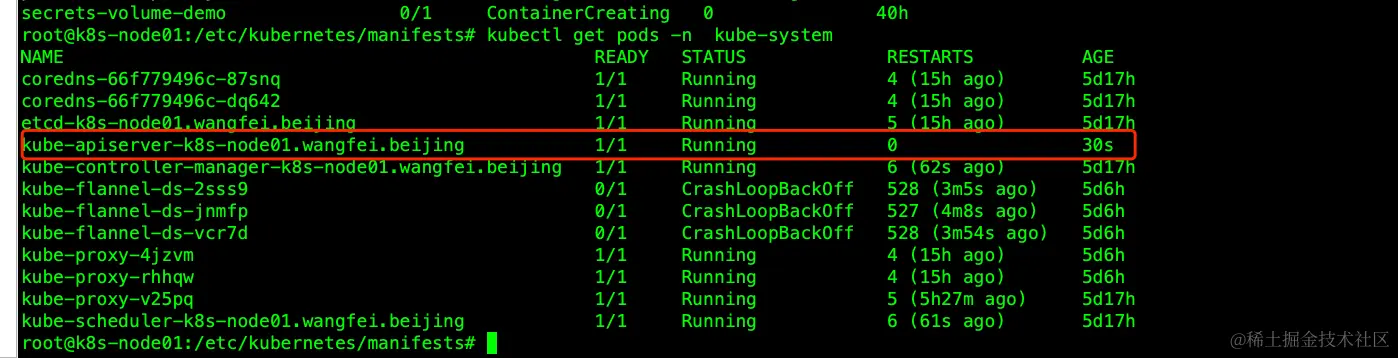

kube-apiserver 重新创建了

step4 测试，命令：

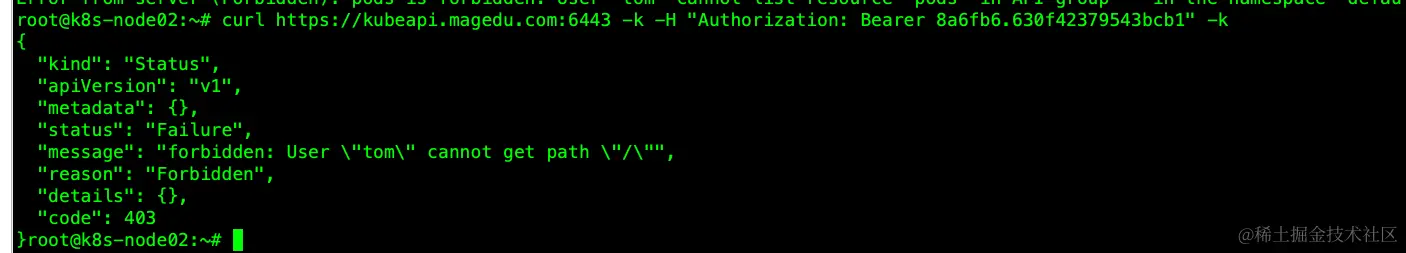

curl https://kubeapi.magedu.com:6443 -k -H "Authorization: Bearer 8a6fb6.630f42379543bcb1" -k

https://API_SERVER:6443/api/v1/namespaces/default/pods/

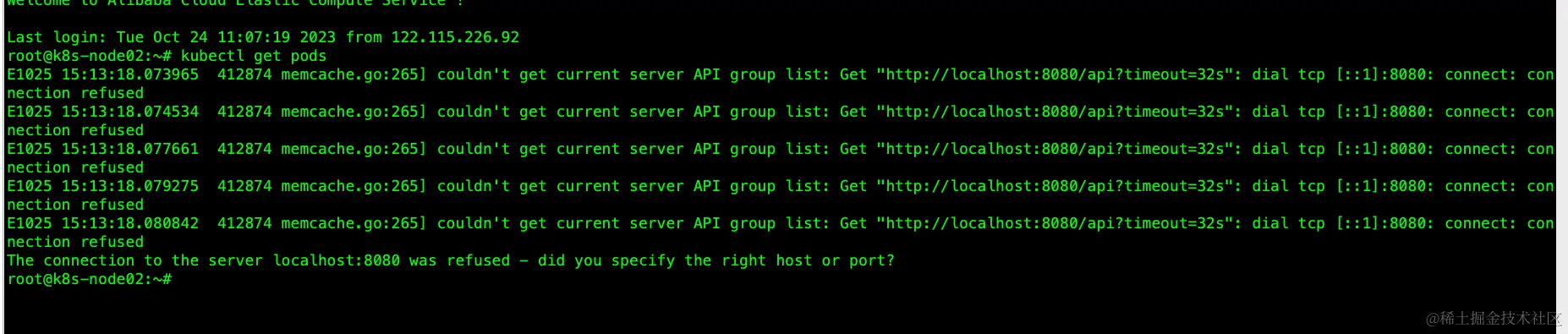

工作节点无法访问apiserver

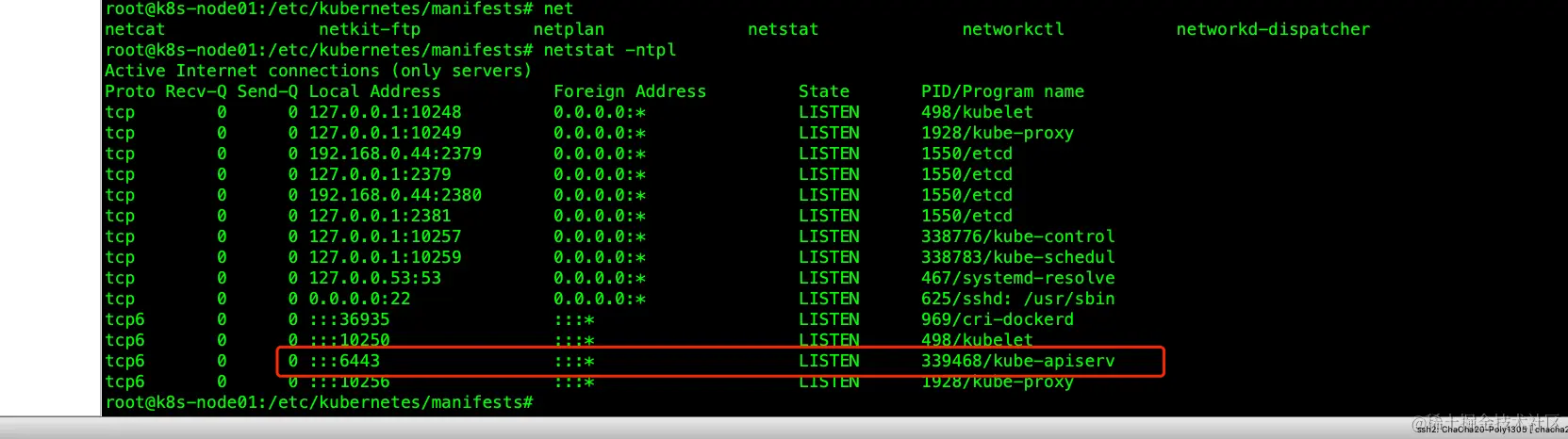

apiserver的端口是6443 域名是kubeapi.magedu.com

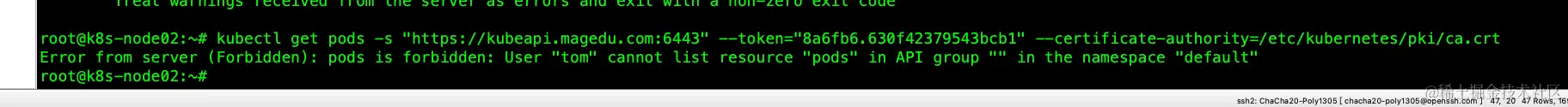

kubectl get pods -s "https://kubeapi.magedu.com:6443" --token="8a6fb6.630f42379543bcb1" --certificate-authority=/etc/kubernetes/pki/ca.crt

tls通信的证书签发 --certificate-authority=/etc/kubernetes/pki/ca.crt apiserver地址 -s "kubeapi.magedu.com:6443" 生成的token --token="8a6fb6.630f42379543bcb1"

请求方法二

curl https://kubeapi.magedu.com:6443 -k -H "Authorization: Bearer 8a6fb6.630f42379543bcb1" -k
