数据挖掘工具-weka代码解析之决策树

ITIRONMAN
198 阅读4分钟

1、weka来源

        WEKA的全名是怀卡托智能分析环境（Waikato Environment for Knowledge Analysis），同时weka也是新西兰的一种鸟名，而WEKA的主要开发者来自新西兰。WEKA作为一个公开的数据挖掘工作平台，集合了大量能承担数据挖掘任务的机器学习算法，包括对数据进行预处理，分类，回归、聚类、关联规则以及在新的交互式界面上的可视化。

2、weka决策树测试代码

        WEKA决策树算法很经典，但是实现过程也非常复杂，本期将以决策树为中心展开讲解weka中决策树算法的一些实现，便于理解决策树算法在现实应用中的代码实现。

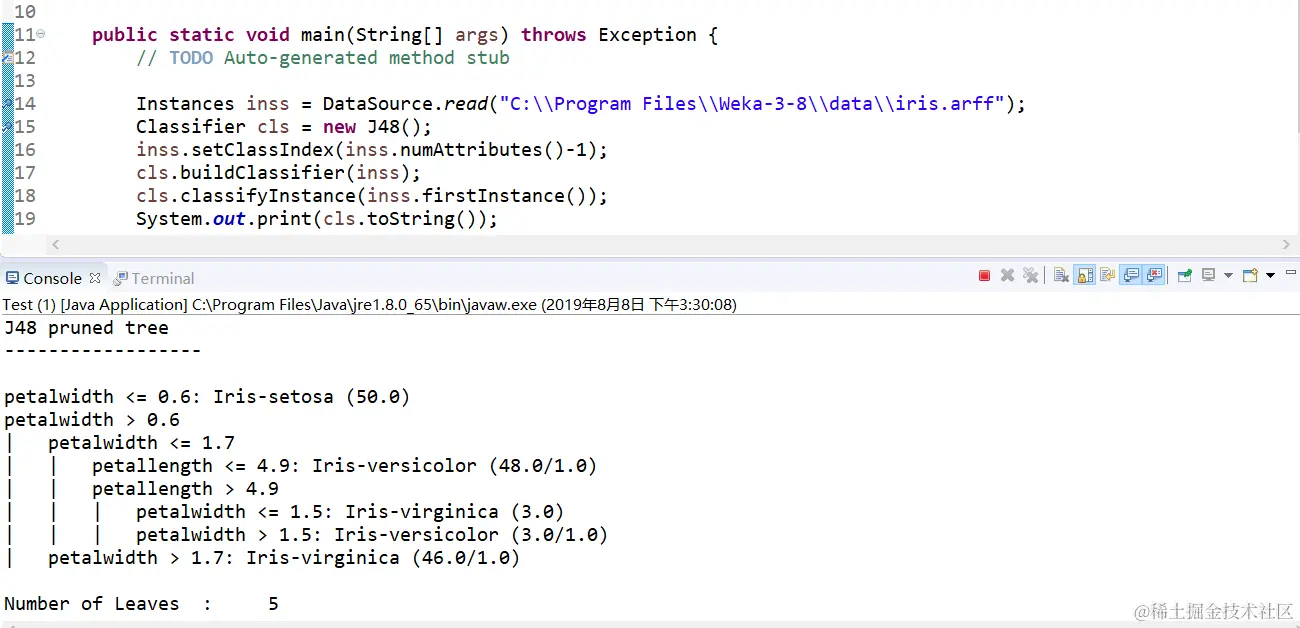

首先，先写上如下的测试代码：

public class Test {

	public static void main(String[] args) throws Exception {
		// TODO Auto-generated method stub

		Instances inss = DataSource.read("C:\\Program Files\\Weka-3-8\\data\\iris.arff");
		Classifier cls = new J48();
		inss.setClassIndex(inss.numAttributes()-1);
		cls.buildClassifier(inss);
		cls.classifyInstance(inss.firstInstance());
		System.out.print(cls.toString());

	}

}

接着，可以直接先看下输出的结果：

J48 pruned tree
------------------

petalwidth <= 0.6: Iris-setosa (50.0)
petalwidth > 0.6
|   petalwidth <= 1.7
|   |   petallength <= 4.9: Iris-versicolor (48.0/1.0)
|   |   petallength > 4.9
|   |   |   petalwidth <= 1.5: Iris-virginica (3.0)
|   |   |   petalwidth > 1.5: Iris-versicolor (3.0/1.0)
|   petalwidth > 1.7: Iris-virginica (46.0/1.0)

Number of Leaves  : 	5

Size of the tree : 	9

然后，开启上帝视角（debug模式）：

  1.  创建决策树类，J48，这个直接new就可以，比较简单，不详述

  2. 创建Instances数据集，weka默认将数据以Instances的格式存取，这个格式记录了数据所有详细的信息，可以看的后面在生成决策树的时候，基本都是通过传递Instances集合来进行计算和分类的，最终下面的result就是形成的数据集，这个过程其实就是读取字节流，然后拼接为Instances的过程，细节较为复杂，可以略过

        public static Instances read(String location) throws Exception {
      DataSource source;
      Instances result;

      source = new DataSource(location);
      result = source.getDataSet();

      return result;
    }

    3.最重要也是最关键的一步就是cls.buildClassifier(inss)，这一步是开始构建决策树，下面详细讲解

3、构建决策树

        开始上帝视角后，可以跟着代码走，下面先将一些简单的流程：

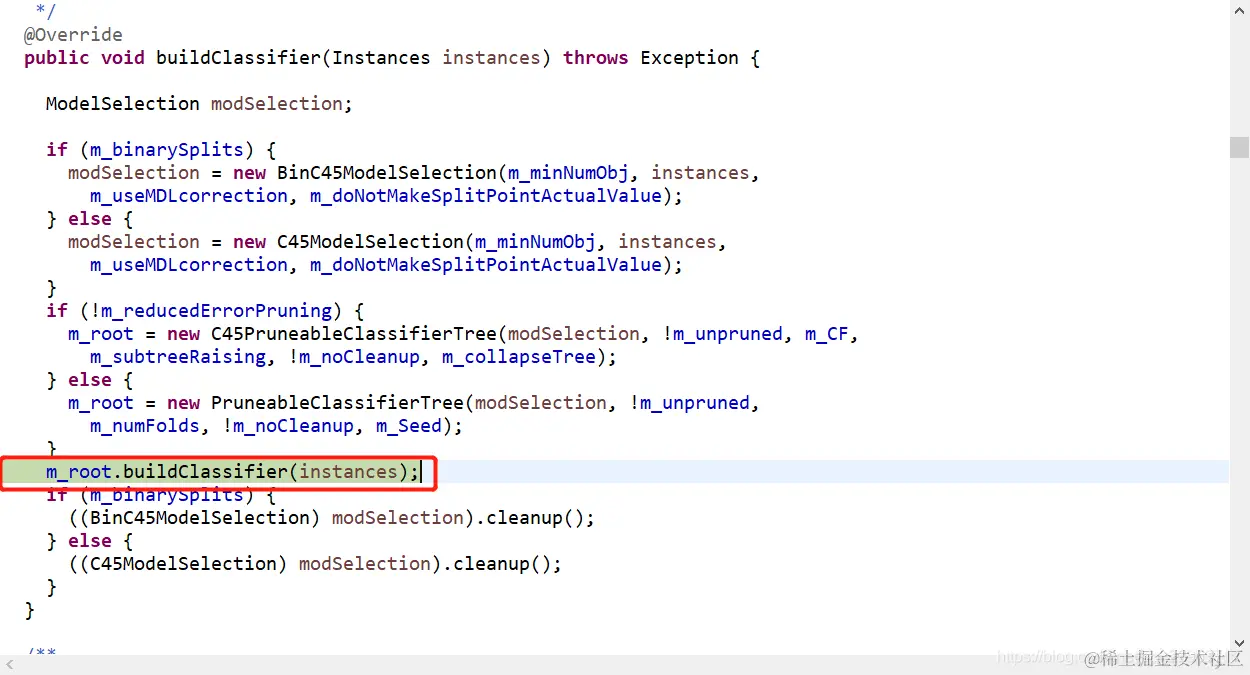

  • 进来代码后，首先是J48下一个重写的buildClassifier方法：

      @Override
  public void buildClassifier(Instances instances) throws Exception {

    ModelSelection modSelection;

    if (m_binarySplits) {
      modSelection = new BinC45ModelSelection(m_minNumObj, instances,
        m_useMDLcorrection, m_doNotMakeSplitPointActualValue);
    } else {
      modSelection = new C45ModelSelection(m_minNumObj, instances,
        m_useMDLcorrection, m_doNotMakeSplitPointActualValue);
    }
    if (!m_reducedErrorPruning) {
      m_root = new C45PruneableClassifierTree(modSelection, !m_unpruned, m_CF,
        m_subtreeRaising, !m_noCleanup, m_collapseTree);
    } else {
      m_root = new PruneableClassifierTree(modSelection, !m_unpruned,
        m_numFolds, !m_noCleanup, m_Seed);
    }
    m_root.buildClassifier(instances);

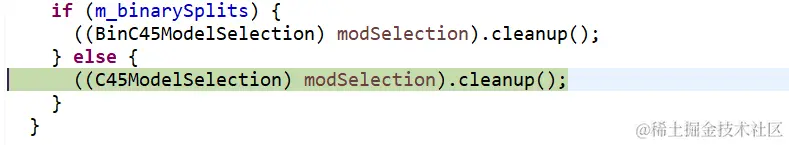

    if (m_binarySplits) {
      ((BinC45ModelSelection) modSelection).cleanup();
    } else {
      ((C45ModelSelection) modSelection).cleanup();
    }
  }

    m_binarySplits=false，走入下面代码：

  • modSelection = new C45ModelSelection(m_minNumObj, instances, m_useMDLcorrection, m_doNotMakeSplitPointActualValue);

这部分只是赋予了一些基础数值，这部分是分割点，其实就是树节点：
  public C45ModelSelection(int minNoObj, Instances allData,
    boolean useMDLcorrection, boolean doNotMakeSplitPointActualValue) {
    m_minNoObj = minNoObj;
    m_allData = allData;
    m_useMDLcorrection = useMDLcorrection;
    m_doNotMakeSplitPointActualValue = doNotMakeSplitPointActualValue;
  }
然后，创建了一个树的类，这部分是树生长的部分了，先生成了一个根：
    if (!m_reducedErrorPruning) {
      m_root = new C45PruneableClassifierTree(modSelection, !m_unpruned, m_CF,
        m_subtreeRaising, !m_noCleanup, m_collapseTree);
    }

    最关键的代码是下面，树开始构建：

  public void buildClassifier(Instances data) throws Exception {

    // can classifier tree handle the data?
    getCapabilities().testWithFail(data);

    // remove instances with missing class
    data = new Instances(data);
    data.deleteWithMissingClass();

   buildTree(data, m_subtreeRaising || !m_cleanup);
   if (m_collapseTheTree) {
     collapse();
   }
   if (m_pruneTheTree) {
     prune();
   }
   if (m_cleanup) {
     cleanup(new Instances(data, 0));
   }
  }

 下面的代码是最常用也就是最关键的代码，后面多数代码都在不断重复这个过程，其实就是从m_root开始逐步形成自己的孩子节点，这个过程有两个很主要的点，一个是选什么特征作为分割属性，另一个是选该属性的什么值作为该节点左右分支的分割数值点：

  public void buildTree(Instances data, boolean keepData) throws Exception {

    Instances[] localInstances;

    if (keepData) {
      m_train = data;
    }
    m_test = null;
    m_isLeaf = false;
    m_isEmpty = false;
    m_sons = null;
    m_localModel = m_toSelectModel.selectModel(data);
    if (m_localModel.numSubsets() > 1) {
      localInstances = m_localModel.split(data);
      data = null;
      m_sons = new ClassifierTree[m_localModel.numSubsets()];
      for (int i = 0; i < m_sons.length; i++) {
        m_sons[i] = getNewTree(localInstances[i]);
        localInstances[i] = null;
      }
    } else {
      m_isLeaf = true;
      if (Utils.eq(data.sumOfWeights(), 0)) {
        m_isEmpty = true;
      }
      data = null;
    }
  }

用于选择哪个属性来作为分割点的：
m_localModel = m_toSelectModel.selectModel(data);

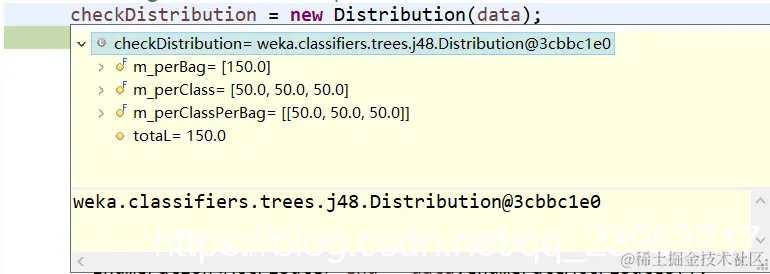

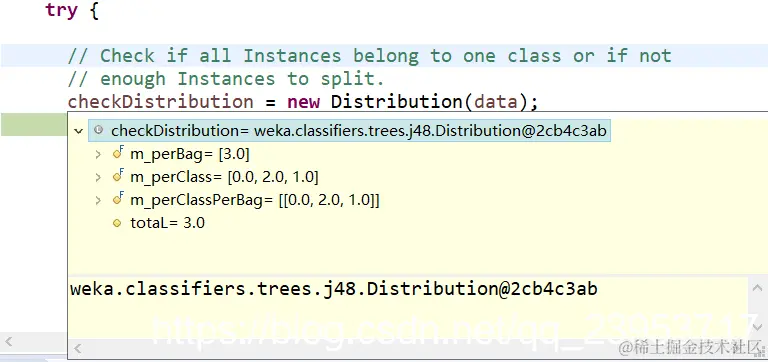

用于生成该数据集的分布：
checkDistribution = new Distribution(data);
用于生成叶子节点：
noSplitModel = new NoSplit(checkDistribution);
判断下当前分类下究竟有多少个样本，如果样本数很少就直接划分成叶子节点，要是很多，则往后跳转，继续划分：
if (Utils.sm(checkDistribution.total(), 2 * m_minNoObj) || Utils.eq(checkDistribution.total(),
          checkDistribution.perClass(checkDistribution.maxClass()))) {
        return noSplitModel;
      }


很明显，[50,50,50]，三个类别分别为50且都大于4，不能直接当叶子，继续往下划分：
      currentModel = new C45Split[data.numAttributes()];
      sumOfWeights = data.sumOfWeights();
样本如下（部分）：
@RELATION iris

@ATTRIBUTE sepallength	REAL
@ATTRIBUTE sepalwidth 	REAL
@ATTRIBUTE petallength 	REAL
@ATTRIBUTE petalwidth	REAL
@ATTRIBUTE class 	{Iris-setosa,Iris-versicolor,Iris-virginica}

@DATA
5.1,3.5,1.4,0.2,Iris-setosa
4.9,3.0,1.4,0.2,Iris-setosa
4.7,3.2,1.3,0.2,Iris-setosa
4.6,3.1,1.5,0.2,Iris-setosa
5.0,3.6,1.4,0.2,Iris-setosa
5.4,3.9,1.7,0.4,Iris-setosa
...
...
...
于是，当前这个节点要继续buildClassifer，并且传入整个data数据：
      currentModel[i] = new C45Split(i, m_minNoObj, sumOfWeights,m_useMDLcorrection);
      currentModel[i].buildClassifier(data);
下面开始生成新节点：
  @Override
  public void buildClassifier(Instances trainInstances) throws Exception {

    // Initialize the remaining instance variables.
    m_numSubsets = 0;
    m_splitPoint = Double.MAX_VALUE;
    m_infoGain = 0;
    m_gainRatio = 0;

    // Different treatment for enumerated and numeric
    // attributes.
    if (trainInstances.attribute(m_attIndex).isNominal()) {
      m_complexityIndex = trainInstances.attribute(m_attIndex).numValues();
      m_index = m_complexityIndex;
      handleEnumeratedAttribute(trainInstances);
    } else {
      m_complexityIndex = 2;
      m_index = 0;
 需要对该节点进行排序，便于后期寻找分割点划分左右分支
      trainInstances.sort(trainInstances.attribute(m_attIndex));
      handleNumericAttribute(trainInstances);
    }
  }

每个属性都会计算信息增益：
      // For each attribute.
      for (i = 0; i < data.numAttributes(); i++) {

        // Apart from class attribute.
        if (i != (data).classIndex()) {

          // Get models for current attribute.
          currentModel[i] = new C45Split(i, m_minNoObj, sumOfWeights,
            m_useMDLcorrection);
          currentModel[i].buildClassifier(data);

          // Check if useful split for current attribute
          // exists and check for enumerated attributes with
          // a lot of values.
          if (currentModel[i].checkModel()) {
            if (m_allData != null) {
              if ((data.attribute(i).isNumeric())
                || (multiVal || Utils.sm(data.attribute(i).numValues(),
                  (0.3 * m_allData.numInstances())))) {
                averageInfoGain = averageInfoGain + currentModel[i].infoGain();
                validModels++;
              }
            } else {
              averageInfoGain = averageInfoGain + currentModel[i].infoGain();
              validModels++;
            }
          }
        } else {
          currentModel[i] = null;
        }
      }
然后选出最好的属性作为节点：
      for (i = 0; i < data.numAttributes(); i++) {
        if ((i != (data).classIndex()) && (currentModel[i].checkModel())) {
          // Use 1E-3 here to get a closer approximation to the original
          // implementation.
          if ((currentModel[i].infoGain() >= (averageInfoGain - 1E-3))
            && Utils.gr(currentModel[i].gainRatio(), minResult)) {
            bestModel = currentModel[i];
            minResult = currentModel[i].gainRatio();
          }
        }
      }
节点选完以后，还要选出，该节点继续往下生长，左右分支以哪个数值分开最好：
  public final void setSplitPoint(Instances allInstances) {

    double newSplitPoint = -Double.MAX_VALUE;
    double tempValue;
    Instance instance;

    if ((allInstances.attribute(m_attIndex).isNumeric()) && (m_numSubsets > 1)) {
      Enumeration<Instance> enu = allInstances.enumerateInstances();
      while (enu.hasMoreElements()) {
        instance = enu.nextElement();
        if (!instance.isMissing(m_attIndex)) {
          tempValue = instance.value(m_attIndex);
          if (Utils.gr(tempValue, newSplitPoint)
            && Utils.smOrEq(tempValue, m_splitPoint)) {
            newSplitPoint = tempValue;
          }
        }
      }
      m_splitPoint = newSplitPoint;
    }
  }
属性选完了，下面开始用该属性把数据集分成两部分：
  localInstances = m_localModel.split(data);
继续往下，开始生成孩子节点：
  m_sons = new ClassifierTree[m_localModel.numSubsets()];
左右分支用循环：
  for (int i = 0; i < m_sons.length; i++) {
        m_sons[i] = getNewTree(localInstances[i]);
        localInstances[i] = null;
      }

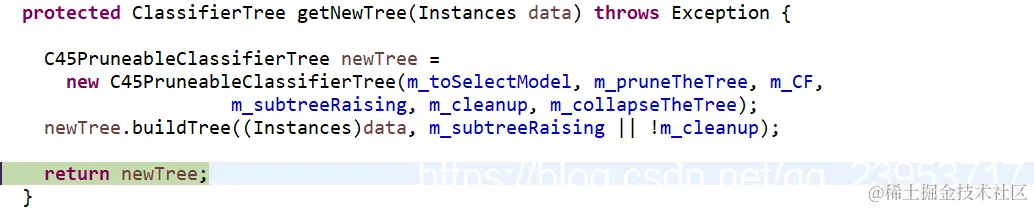

生成循环中一个分支：
  protected ClassifierTree getNewTree(Instances data) throws Exception {

    C45PruneableClassifierTree newTree =
      new C45PruneableClassifierTree(m_toSelectModel, m_pruneTheTree, m_CF,
				     m_subtreeRaising, m_cleanup, m_collapseTheTree);
    newTree.buildTree((Instances)data, m_subtreeRaising || !m_cleanup);

    return newTree;
  }
下面，你又熟悉了，开始调用前面讲的这段代码：
  public void buildTree(Instances data, boolean keepData) throws Exception {

    Instances[] localInstances;

    if (keepData) {
      m_train = data;
    }
    m_test = null;
    m_isLeaf = false;
    m_isEmpty = false;
    m_sons = null;
    m_localModel = m_toSelectModel.selectModel(data);
    if (m_localModel.numSubsets() > 1) {
      localInstances = m_localModel.split(data);
      data = null;
      m_sons = new ClassifierTree[m_localModel.numSubsets()];
      for (int i = 0; i < m_sons.length; i++) {
        m_sons[i] = getNewTree(localInstances[i]);
        localInstances[i] = null;
      }
    } else {
      m_isLeaf = true;
      if (Utils.eq(data.sumOfWeights(), 0)) {
        m_isEmpty = true;
      }
      data = null;
    }
  }
有意思的是，这一次循环正好生成了叶子：
: Iris-setosa (50.0)

Number of Leaves  : 	1

Size of the tree : 	1
接着，数据集变成对下面的样本进行分割：

@data
6.3,3.3,4.7,1.6,Iris-versicolor
6,3.4,4.5,1.6,Iris-versicolor
4.9,2.5,4.5,1.7,Iris-virginica
然后继续跟着代码走：
