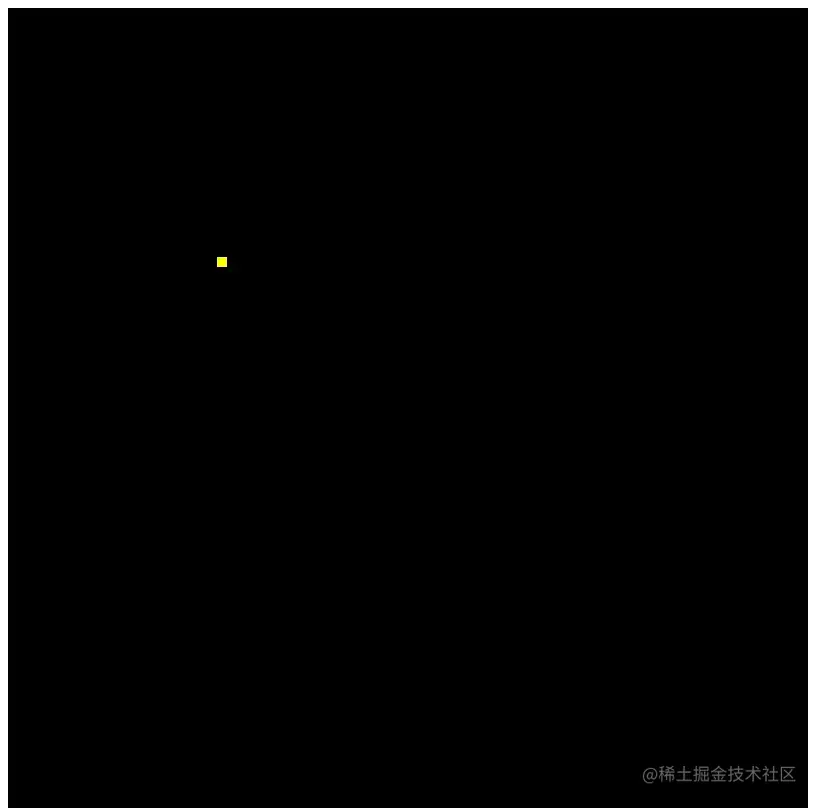

webgl学习三--点击绘制点（canvas与webgl坐标转换）``` ``` ![图片.png](https://u

<html>
    <head>
        <title>
            点击绘制点（canvas与webgl的坐标变换）
        </title>
        <script type="text/javascript" src="./lib/webgl-debug.js"></script>
        <script type="text/javascript" src="./lib/webgl-utils.js"></script>
        <script type="text/javascript" src="./lib/cuon-utils.js"></script>
    </head>
    <body>
        <canvas id='canvas' width="800" height="800"></canvas>
        <script type="text/javascript">

            //定义变量存储位置
            //attribute：存储顶点位置，经常变的，无精度限定
            //uniform:存储不变的值，有精度限定
            var VShader="attribute vec4 a_position;\n"+
            "void main(){\n"+
            "gl_Position=a_position;"+
            "gl_PointSize=10.0;\n"+
            "}"


            var FShader="precision mediump float;\n"+
            "uniform vec4 u_color;\n"+
            "void main(){\n"+
            "gl_FragColor=u_color;\n"+

            "}"

            //
            var canvas=document.getElementById("canvas");
            var gl=getWebGLContext(canvas);
            if(!gl){
                console.log("获取webgl上下文失败")
            }



            if(!initShaders(gl,VShader,FShader)){
                console.log("初始化着色器失败")
            }

                      //获取着色器中的变量的地址
            var a_position=gl.getAttribLocation(gl.program,'a_position')
            if(a_position<0){
                console.log("获取a_position变量地址失败")
            }

            //不同象限下颜色不同
            var u_color=gl.getUniformLocation(gl.program,'u_color')

            if(u_color<0){
                console.log("获取f_color变量地址失败")
            }
            gl.clearColor(0,0,0,1)
            gl.clear(gl.COLOR_BUFFER_BIT)

            //注册canvas的点击事件
            canvas.onmousedown=function(ev){

                //获取浏览器下坐标
                var x=ev.x;
                var y=ev.y;
                //获取canvas坐标
                var rect=ev.target.getBoundingClientRect();
                //获取canvas下坐标
                 var x_canvas=(x-rect.left)
                 var y_canvas=(y-rect.top)
                 console.log(x_canvas,y_canvas)
                 var x_gl=(x_canvas-canvas.width/2)/(canvas.width/2);
                 var y_gl=-(y_canvas-canvas.height/2)/(canvas.height/2)
                 console.log(x_gl,y_gl)

                var color=[255,0,0,1];
                if(x_gl>0&&y_gl>0){
                    color=[255,255,255,1]
                }else if(x_gl<=0&&y_gl>0){
                    color=[255,255,0,1]
                }else if(x_gl<=0&&y_gl<=0){
                    color=[255,0,0,1]
                }else{
                    color=[0,0,255,1]
                }
                //传给颜色值

                //有四个分量的矢量，float类型
                gl.uniform4fv(u_color,color)
                    //将顶点位置赋给a_position变量,传4个float类型的值则为4f，或者3f...
                gl.vertexAttrib4f(a_position,x_gl,y_gl,0,1)
                gl.clearColor(0,0,0,1)
                gl.clear(gl.COLOR_BUFFER_BIT)
                gl.drawArrays(gl.POINTS,0,1)

            }






        </script>
    </body>

</html>
