AI实战1：实时人脸检测
1. 背景
AI在视觉领域最常用的就是人脸检测、人脸识别、活体检测、人体与行为分析、图像识别、图像增强等，而且目前都是比较成熟的技术，不论商业化的Paas平台还是开源的模型，都几乎一抓一大把。一般的，AI开发过程有以下几步：
- 特征分析
- 数据采集
- 数据标注
- 模型训练
- 模型推理
推理可以在云端也可以在客户端，端云各有各的场景，比如一般把人脸检测放到客户端，把人脸识别放到云端。本系列我们主要介绍视觉方向模型推理的工程实践。
2. 项目介绍
我们基于谷歌开源项目mediapipe提供的的模型，在客户端部署运行进行推理，mediapipe提供了一下能力：
- 人脸检测(Face Detection)
- 三维人脸网络模型(Face Mesh)
- 虹膜检测(Iris)
- 手势(Hands)
- 姿态(Pose)
- 全身姿态(Holistic)
- 头发分隔(Hair Segmentation)
- 对象检测(Object Detection)
- 物体追踪(Box Tracking)
- 即时移动检测(Instant Motion Tracking)
- Objectron
- KNIFT
- ...
mediapipe提供了bazel build -c opt --config=android_arm64 mediapipe/examples/android/src/java/com/google/mediapipe/apps/handtrackinggpu:handtrackinggpu编译出来即可运行。我们这里移动端开发框架我们基于开源项目github.com/terryky/and… NDK运行和测量TensorFlow Lite GPU Delegate的性能。整体基于NativeActivity框架在进行摄像头采集后画面渲染和性能数据渲染。本文我们跑通实时人脸识别模型。移动端开发框架我们基于开源项目github.com/terryky/and… NDK运行和测量TensorFlow Lite GPU Delegate的性能。整体基于NativeActivity框架在进行摄像头采集后画面渲染和性能数据渲染。本文我们跑通实时人脸识别模型。
3. 了解NativeActivity
NativeActivity是为单独使用C|C++开发app提供的基类。纯C++开发Android应用，最后还是需要一个Java层的壳子，在Android提供的开发框架中，已经使用java开发好了一个中间类，我们使用C++开发的Native库之所以能运行，就是因为被这个中间类使用JNI的方式调用了，这个中间类就是NativeActivity。这个NativeActivity类的核心功能，就是在特定事件发生时，调用我们使用C++开发的Native库里的回调函数。比如在我们熟悉的生命周期函数NativeActivity.onStart中，调用C++开发的Native库的onStartNative函数：
protected void onStart() {
super.onStart();
onStartNative(mNativeHandle);
}
Native层Android为我们提供了两个接口：
- native_activity.h
- android_native_app_glue.h
android_native_app_glue.h封装了native_activity.h，我们直接实现void android_main(struct android_app* state)方法即可。
NativeActivity更多具体信息可以参考Android官方文档：GameActivity | Android 开发者 | Android Developers 。
4. 运行模型
我们选择的模型：storage.googleapis.com/mediapipe-a…
- 加载模型；
- 摄像头预览纹理转换为RGBA
- 将图像数据feed到模型引擎进行推理
- 解析渲染结果
4.1 加载模型
首先我们要将模型文件读取到内存，我们的模型文件放置在Android工程的asset路径下，将文件加载到内存std::vector<uint8_t> m_tflite_model_buf;：
bool
asset_read_file (AAssetManager *assetMgr, char *fname, std::vector<uint8_t>&buf)
{
AAsset* assetDescriptor = AAssetManager_open(assetMgr, fname, AASSET_MODE_BUFFER);
if (assetDescriptor == NULL)
{
return false;
}
size_t fileLength = AAsset_getLength(assetDescriptor);
buf.resize(fileLength);
int64_t readSize = AAsset_read(assetDescriptor, buf.data(), buf.size());
AAsset_close(assetDescriptor);
return (readSize == buf.size());
}
asset_read_file (m_app->activity->assetManager,
(char *)BLAZEFACE_MODEL_PATH, m_tflite_model_buf);
tflite提供了FlatBufferModel::BuildFromBuffer加载模型，返回tflite::FlatBufferModel类型的指针：
std::unique_ptr<tflite::FlatBufferModel> model = FlatBufferModel::BuildFromBuffer(model_buf, model_size)
加载完模型，通过模型创建推理引擎解释器tflite::Interpreter,tflite提供了InterpreterBuilder工具来构建tflite::Interpreter：
class InterpreterBuilder {
public:
InterpreterBuilder(const FlatBufferModel& model,
const OpResolver& op_resolver);
需要传入模型model及OpResolver，OpResolver是个抽象接口，返回给定操作码或自定义操作名的tflite注册器。这是将flatbuffer模型中引用的操作被映射到可执行函数指针(TfLiteRegistrations)的机制。InterpreterBuilder重载了括号操作符：
TfLiteStatus operator()(std::unique_ptr<Interpreter>* interpreter);
TfLiteStatus operator()(std::unique_ptr<Interpreter>* interpreter,
int num_threads);
构建完InterpreterBuilder后创建tflite::Interpreter:
std::unique_ptr<tflite::FlatBufferModel> model;
std::unique_ptr<tflite::Interpreter> interpreter;
tflite::ops::builtin::BuiltinOpResolver resolver;
InterpreterBuilder(*model, resolver)(&interpreter)
InterpreterBuilder重载的括号操作符有两个，第二个有个线程数量的参数，我们也可以通过tflite::Interpreter的SetNumThreads手动设置：
int num_threads = std::thread::hardware_concurrency();
char *env_tflite_num_threads = getenv ("FORCE_TFLITE_NUM_THREADS");
if (env_tflite_num_threads)
{
num_threads = atoi (env_tflite_num_threads);
DBG_LOGI ("@@@@@@ FORCE_TFLITE_NUM_THREADS=%d\n", num_threads);
}
DBG_LOG ("@@@@@@ TFLITE_NUM_THREADS=%d\n", num_threads);
interpreter->SetNumThreads(num_threads);
接下来分配tensor空间：
// Update allocations for all tensors. This will redim dependent tensors
// using the input tensor dimensionality as given. This is relatively
// expensive. This *must be* called after the interpreter has been created
// and before running inference (and accessing tensor buffers), and *must be*
// called again if (and only if) an input tensor is resized. Returns status of
// success or failure.
TfLiteStatus AllocateTensors();
接下来解析引擎获取模型配置（主要是输入输出张量）：
int
tflite_get_tensor_by_name (std::unique_ptr<tflite::Interpreter> interpreter, int io, const char *name, tflite_tensor_t *ptensor)
{
memset (ptensor, 0, sizeof (*ptensor));
int tensor_idx;
int io_idx = -1;
int num_tensor = (io == 0) ? interpreter->inputs ().size() :
interpreter->outputs().size();
for (int i = 0; i < num_tensor; i ++)
{
tensor_idx = (io == 0) ? interpreter->inputs ()[i] :
interpreter->outputs()[i];
const char *tensor_name = interpreter->tensor(tensor_idx)->name;
if (strcmp (tensor_name, name) == 0)
{
io_idx = i;
break;
}
}
if (io_idx < 0)
{
DBG_LOGE ("can't find tensor: "%s"\n", name);
return -1;
}
void *ptr = NULL;
TfLiteTensor *tensor = interpreter->tensor(tensor_idx);
switch (tensor->type)
{
case kTfLiteUInt8:
ptr = (io == 0) ? interpreter->typed_input_tensor <uint8_t>(io_idx) :
interpreter->typed_output_tensor<uint8_t>(io_idx);
break;
case kTfLiteFloat32:
ptr = (io == 0) ? interpreter->typed_input_tensor <float>(io_idx) :
interpreter->typed_output_tensor<float>(io_idx);
break;
case kTfLiteInt64:
ptr = (io == 0) ? interpreter->typed_input_tensor <int64_t>(io_idx) :
interpreter->typed_output_tensor<int64_t>(io_idx);
break;
default:
DBG_LOGE ("ERR: %s(%d)\n", __FILE__, __LINE__);
return -1;
}
ptensor->idx = tensor_idx;
ptensor->io = io;
ptensor->io_idx = io_idx;
ptensor->type = tensor->type;
ptensor->ptr = ptr;
ptensor->quant_scale = tensor->params.scale;
ptensor->quant_zerop = tensor->params.zero_point;
for (int i = 0; (i < 4) && (i < tensor->dims->size); i ++)
{
ptensor->dims[i] = tensor->dims->data[i];
}
return 0;
}
static tflite_tensor_t s_detect_tensor_input;
static tflite_tensor_t s_detect_tensor_scores;
static tflite_tensor_t s_detect_tensor_bboxes;
tflite_get_tensor_by_name (&s_detect_interpreter, 0, "input", &s_detect_tensor_input);
tflite_get_tensor_by_name (&s_detect_interpreter, 1, "regressors", &s_detect_tensor_bboxes);
tflite_get_tensor_by_name (&s_detect_interpreter, 1, "classificators", &s_detect_tensor_scores);
根据模型配置可以读取支持输入图片宽高：
int det_input_w = s_detect_tensor_input.dims[2];
int det_input_h = s_detect_tensor_input.dims[1];
4.2 摄像头预览纹理转换为RGBA
将摄像头读取的纹理数据转换成RGBA模型才能识别，我们将纹理转换为内存数据：
unsigned char *buf_ui8 = NULL;
static unsigned char *pui8 = NULL;
if (pui8 == NULL)
pui8 = (unsigned char *)malloc(w * h * 4);
buf_ui8 = pui8;
draw_2d_texture_ex (srctex, 0, win_h - h, w, h, RENDER2D_FLIP_V);
glPixelStorei (GL_PACK_ALIGNMENT, 4);
glReadPixels (0, 0, w, h, GL_RGBA, GL_UNSIGNED_BYTE, buf_ui8);
需要想将摄像头读取的纹理绘制到帧缓存区，再通过OpenGL函数glReadPixels将纹理读取到内存缓存。
注意：glReadPixels是耗时操作
4.3 将图像数据feed到模型引擎进行推理
先通过上面获取的引起输入张量s_detect_tensor_input获取引起分配的输入缓存：
void *
get_blazeface_input_buf (int *w, int *h)
{
*w = s_detect_tensor_input.dims[2];
*h = s_detect_tensor_input.dims[1];
return s_detect_tensor_input.ptr;
}
将上面获取的图片内容转换成float，赋给输入张量：
float mean = 128.0f;
float std = 128.0f;
for (y = 0; y < h; y ++)
{
for (x = 0; x < w; x ++)
{
int r = *buf_ui8 ++;
int g = *buf_ui8 ++;
int b = *buf_ui8 ++;
buf_ui8 ++; /* skip alpha */
*buf_fp32 ++ = (float)(r - mean) / std;
*buf_fp32 ++ = (float)(g - mean) / std;
*buf_fp32 ++ = (float)(b - mean) / std;
}
}
4.4 解析渲染结果
接下来调用解释器的Invoke()方法执行推理：
if (interpreter->Invoke() != kTfLiteOk)
{
DBG_LOGE ("ERR: %s(%d)\n", __FILE__, __LINE__);
return -1;
}
接下来解析检测结果：
static int
decode_bounds (std::list<face_t> &face_list, float score_thresh, int input_img_w, int input_img_h)
{
face_t face_item;
float *scores_ptr = (float *)s_detect_tensor_scores.ptr;
int i = 0;
for (auto itr = s_anchors.begin(); itr != s_anchors.end(); i ++, itr ++)
{
fvec2 anchor = *itr;
float score0 = scores_ptr[i];
float score = 1.0f / (1.0f + exp(-score0));
if (score > score_thresh)
{
float *p = get_bbox_ptr (i);
/* boundary box */
float sx = p[0];
float sy = p[1];
float w = p[2];
float h = p[3];
float cx = sx + anchor.x;
float cy = sy + anchor.y;
cx /= (float)input_img_w;
cy /= (float)input_img_h;
w /= (float)input_img_w;
h /= (float)input_img_h;
fvec2 topleft, btmright;
topleft.x = cx - w * 0.5f;
topleft.y = cy - h * 0.5f;
btmright.x = cx + w * 0.5f;
btmright.y = cy + h * 0.5f;
face_item.score = score;
face_item.topleft = topleft;
face_item.btmright = btmright;
/* landmark positions (6 keys) */
for (int j = 0; j < kFaceKeyNum; j ++)
{
float lx = p[4 + (2 * j) + 0];
float ly = p[4 + (2 * j) + 1];
lx += anchor.x;
ly += anchor.y;
lx /= (float)input_img_w;
ly /= (float)input_img_h;
face_item.keys[j].x = lx;
face_item.keys[j].y = ly;
}
face_list.push_back (face_item);
}
}
return 0;
}
face_t封装了识别结果中的得分、左上、右下坐标：
typedef struct _face_t
{
float score;
fvec2 topleft;
fvec2 btmright;
fvec2 keys[kFaceKeyNum];
} face_t;

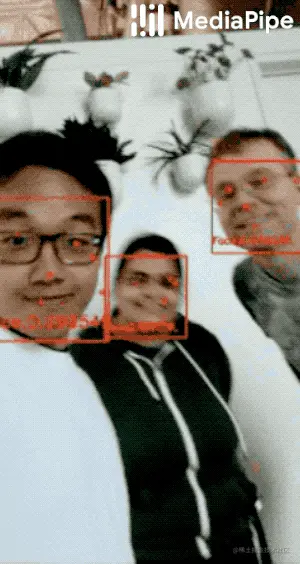

通过坐标我们可以在识别到的“人脸”上绘制一个框：
5. 总结
本文介绍了常见的AI开发步骤，以及常用的AI视觉应用。通过人脸检测功能，了解了tensorflow lite加载模型、输入数据、执行推理、获取结果等常用接口。
