废话开篇：简单的绘制了一下计时器的数字展示效果，这里再封装一些效果，在变化的同时让其看上去更饱满些
绘制数字： # 代码绘制计时器数字
一、先看效果

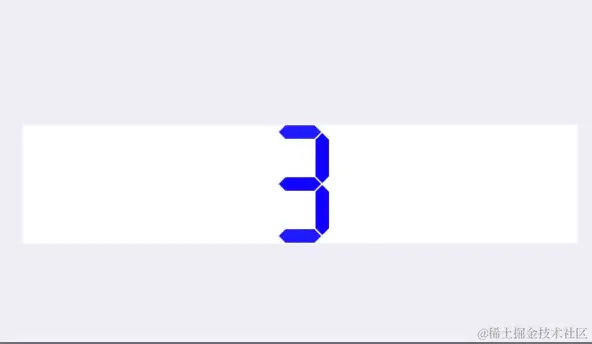

1、动画效果

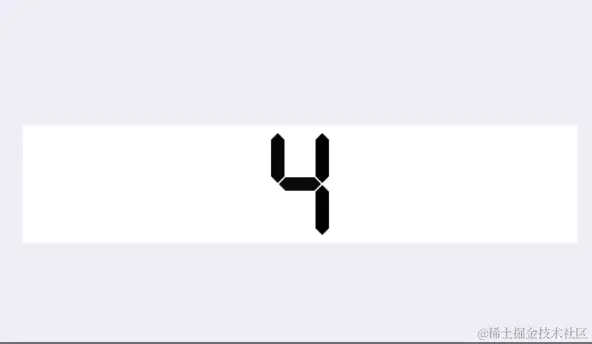

2、淡出效果

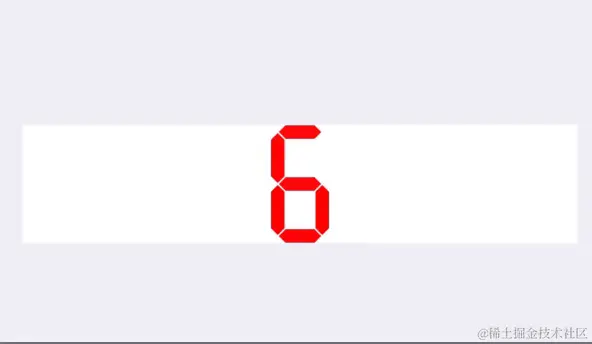

3、无效果
除了一些效果外，还封装了数字的对齐方式

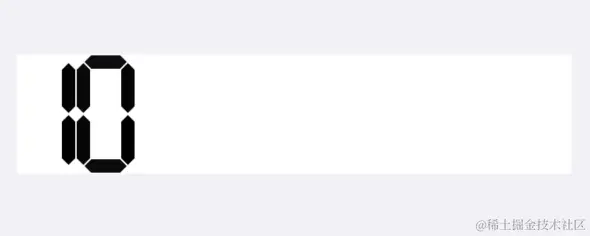

1、左对齐

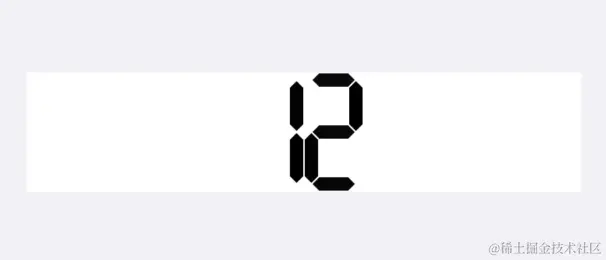

2、中间

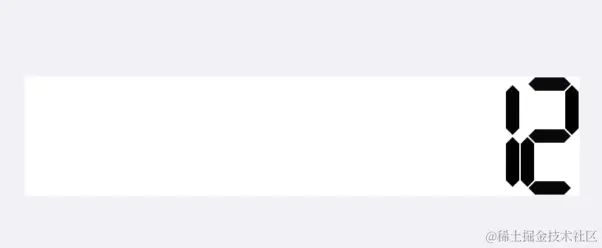

3、右对齐
二、代码
1、ReadSecondsView 类，完善数字变化效果
ReadSecondsView.h
#import <UIKit/UIKit.h>
#import "NumberView.h"
@interface ReadSecondsView : UIView
@property(nonatomic,assign) NSInteger currentNum;
- (instancetype)initWithFrame:(CGRect)frame numberColor:(UIColor *)numberColor numberChangeAnimation:(NumberChangeAnimation)numberChangeAnimation;
@end
ReadSecondsView.m
#import "ReadSecondsView.h"
#import "NumberSectionView.h"
@interface ReadSecondsView()
//展示的view视图与数字应对dic
@property(nonatomic,strong) NSDictionary * mapNumShowDic;
//数字颜色
@property (nonatomic,strong) UIColor * numberColor;
//动画
@property (nonatomic,assign) NumberChangeAnimation numberChangeAnimation;
@end
@implementation ReadSecondsView
- (instancetype)initWithFrame:(CGRect)frame numberColor:(UIColor *)numberColor numberChangeAnimation:(NumberChangeAnimation)numberChangeAnimation
{
if (self = [super initWithFrame:frame]) {
self.numberChangeAnimation = numberChangeAnimation;
self.numberColor = numberColor;
[self createNumberSection];
}
return self;
}
#pragma mark - 配置数字展示项（判断数字对应的展示哪些节段）
- (NSDictionary *)mapNumShowDic
{
if(_mapNumShowDic == nil){
_mapNumShowDic = @{
@(0):@[@(0),@(2),@(3),@(4),@(5),@(6)],
@(1):@[@(5),@(6)],
@(2):@[@(0),@(1),@(2),@(4),@(5)],
@(3):@[@(0),@(1),@(2),@(5),@(6)],
@(4):@[@(1),@(3),@(5),@(6)],
@(5):@[@(0),@(1),@(2),@(3),@(6)],
@(6):@[@(0),@(1),@(2),@(3),@(4),@(6)],
@(7):@[@(0),@(5),@(6)],
@(8):@[@(0),@(1),@(2),@(3),@(4),@(5),@(6)],
@(9):@[@(0),@(1),@(2),@(3),@(5),@(6)],
};
}
return _mapNumShowDic;
}
#pragma mark - 设置当前数字
- (void)setCurrentNum:(NSInteger)currentNum
{
_currentNum = currentNum % 10;
//变换数字
[self changeNumberUI];
}
//变换数字（设置不通的变换方式）
- (void)changeNumberUI
{
NSArray * showNumSectionArr = self.mapNumShowDic[@(_currentNum)];
for (UIView * subView in [self subviews]) {
if([subView isKindOfClass:[NumberSectionView class]]){
NumberSectionView * numberSectionViewSubView = (NumberSectionView *)subView;
switch (self.numberChangeAnimation) {
case NumberChangeAnimationNone:
{
//默认
numberSectionViewSubView.hidden = ![showNumSectionArr containsObject:@(numberSectionViewSubView.index)];
}
break;
case NumberChangeAnimationTurn: {
//翻页
if (![showNumSectionArr containsObject:@(numberSectionViewSubView.index)]) {
if (numberSectionViewSubView.isValuable) {
[UIView animateWithDuration:0.5 animations:^{
numberSectionViewSubView.layer.transform = CATransform3DRotate(numberSectionViewSubView.layer.transform, M_PI_2, 1, 0, 0);
} completion:^(BOOL finished) {
numberSectionViewSubView.isValuable = NO;
}];
}
} else {
if (!numberSectionViewSubView.isValuable) {
[UIView animateWithDuration:0.5 animations:^{
numberSectionViewSubView.layer.transform = CATransform3DRotate(numberSectionViewSubView.layer.transform, - M_PI_2, 1, 0, 0);
} completion:^(BOOL finished) {
numberSectionViewSubView.isValuable = YES;
}];
}
}
}
break;
case NumberChangeAnimationFade: {
//淡出
[UIView animateWithDuration:0.3 animations:^{
numberSectionViewSubView.alpha = [showNumSectionArr containsObject:@(numberSectionViewSubView.index)] ? 1 : 0;
} completion:^(BOOL finished) {
if (finished) {
numberSectionViewSubView.hidden = ![showNumSectionArr containsObject:@(numberSectionViewSubView.index)];
}
}];
}
break;
default:
break;
}
}
}
}
#pragma mark - 创建数字节段
- (void)createNumberSection{
//创建7个节段
for (int i = 0; i < 7; i ++) {
NumberSectionView * numberSectionView = [[NumberSectionView alloc] initWithFrame:CGRectMake(0, self.frame.size.height / 2.0, self.frame.size.width, self.frame.size.height) withIndex:i numberColor:self.numberColor];
numberSectionView.layer.anchorPoint = CGPointMake(0.5, 1);
[self addSubview:numberSectionView];
}
}
@end
ReadSecondsView 类的只能展示一个数字（0-9），需要一组 ReadSecondsView 来展示各个位的数字
2、NumberView 来展示一串数字
NumberView.h
//数字对其位置
typedef NS_ENUM(NSInteger,NumberAlignmentType) {
NumberAlignmentLeft,
NumberAlignmentCenter,
NumberAlignmentRight
};
//动画
typedef NS_ENUM(NSInteger,NumberChangeAnimation) {
NumberChangeAnimationNone,//无动画
NumberChangeAnimationTurn,//翻页
NumberChangeAnimationFade //淡出
};
@interface NumberView : UIView
//当前数字
@property (nonatomic,assign) NSInteger currentNum;
//数字对齐方式
@property (nonatomic,assign) NumberAlignmentType numberAlignmentType;
//最大位数
@property (nonatomic,assign) NSInteger maxDigits;
//动画
@property (nonatomic,assign) NumberChangeAnimation numberChangeAnimation;
- (instancetype)initWithFrame:(CGRect)frame maxDigits:(NSInteger)maxDigits numberAlignmentType:(NumberAlignmentType)numberAlignmentType numberColor:(UIColor *)numberColor numberChangeAnimation:(NumberChangeAnimation)numberChangeAnimation;
@end
NumberView.m
#import "NumberView.h"
#import "ReadSecondsView.h"
@interface NumberView()
//单独数字的size
@property(nonatomic,assign) CGSize separateNumnerViewSize;
//单独数字的y
@property(nonatomic,assign) float separateNumnerViewY;
//定时器
@property(nonatomic,strong) NSTimer * timer;
//保存全部数字view
@property(nonatomic,strong) NSMutableArray * readSecondsViewArr;
//主体view
@property(nonatomic,strong) UIView * contentView;
//数字颜色
@property (nonatomic,strong) UIColor * numberColor;
@end
@implementation NumberView
- (instancetype)initWithFrame:(CGRect)frame maxDigits:(NSInteger)maxDigits numberAlignmentType:(NumberAlignmentType)numberAlignmentType numberColor:(UIColor *)numberColor numberChangeAnimation:(NumberChangeAnimation)numberChangeAnimation
{
if (self = [super initWithFrame:frame]) {
self.backgroundColor = [UIColor whiteColor];
self.numberColor = numberColor;
self.numberChangeAnimation = numberChangeAnimation;
[self initDefaultDataWithMaxDigits:maxDigits numberAlignmentType:numberAlignmentType];
[self createContentView];
[self startTimer];
}
return self;
}
//设置默认数据
- (void)initDefaultDataWithMaxDigits:(NSInteger)maxDigits numberAlignmentType:(NumberAlignmentType)numberAlignmentType
{
//对齐方式
self.numberAlignmentType = numberAlignmentType;
//最大位数
self.maxDigits = maxDigits;
//计算单独数字的size
float width = self.frame.size.width / self.maxDigits;
float height = width * 2;
if(height > self.frame.size.height){
height = self.frame.size.height;
width = height / 2.0;
}
self.separateNumnerViewSize = CGSizeMake(width, height);
//计算单独数字的y
self.separateNumnerViewY = (self.frame.size.height - height) / 2.0;
}
//设置默认第一位
- (void)createContentView
{
float x = 0;
switch (self.numberAlignmentType) {
case NumberAlignmentLeft:
{
x = 0;
}
break;
case NumberAlignmentCenter:
{
x = (self.frame.size.width) / 2.0;
}
break;
case NumberAlignmentRight:
{
x = (self.frame.size.width);
}
break;
default:
break;
}
self.contentView = [[UIView alloc] initWithFrame:CGRectMake(x, 0, 0, self.frame.size.height)];
[self addSubview:self.contentView];
}
- (NSMutableArray *)readSecondsViewArr
{
if (!_readSecondsViewArr) {
_readSecondsViewArr = @[].mutableCopy;
}
return _readSecondsViewArr;
}
#pragma mark - 设置当前数字
- (void)setCurrentNum:(NSInteger)currentNum
{
_currentNum = currentNum;
[self parsingCurrentNum];
}
#pragma mark - 解析数字
- (void)parsingCurrentNum
{
NSInteger tempCurrent = _currentNum;
NSMutableArray * saveAllPositionNumArr = @[].mutableCopy;
while (tempCurrent > 0) {
[saveAllPositionNumArr addObject:@(tempCurrent % 10)];
tempCurrent /= 10;
}
saveAllPositionNumArr = (NSMutableArray *)[[saveAllPositionNumArr reverseObjectEnumerator] allObjects];
[self setNumUIWithAllPositionNums:saveAllPositionNumArr];
}
#pragma mark - 创建并赋值数字
- (void)setNumUIWithAllPositionNums:(NSArray *)saveAllPositionNumArr
{
for (int i = 0; i < saveAllPositionNumArr.count; i++) {
NSInteger number = [saveAllPositionNumArr[i] integerValue];
if(self.readSecondsViewArr.count == 0 || i > self.readSecondsViewArr.count - 1){
ReadSecondsView * readSecondsView = [[ReadSecondsView alloc] initWithFrame:CGRectMake(self.separateNumnerViewSize.width * i, self.separateNumnerViewY, self.separateNumnerViewSize.width, self.separateNumnerViewSize.height) numberColor:self.numberColor numberChangeAnimation:self.numberChangeAnimation];
readSecondsView.currentNum = number;
[self.readSecondsViewArr addObject:readSecondsView];
[self.contentView addSubview:readSecondsView];
} else {
ReadSecondsView * readSecondsView = self.readSecondsViewArr[i];
readSecondsView.currentNum = number;
}
}
//根据对齐方式设置contentView的frame
CGRect contentfFrame;
float contentWidth = saveAllPositionNumArr.count * self.separateNumnerViewSize.width;
switch (self.numberAlignmentType) {
case NumberAlignmentLeft:
{
contentfFrame = CGRectMake(0, 0, contentWidth, self.separateNumnerViewSize.height);
}
break;
case NumberAlignmentCenter:
{
contentfFrame = CGRectMake((self.frame.size.width - contentWidth) / 2.0, 0, contentWidth, self.separateNumnerViewSize.height);
}
break;
case NumberAlignmentRight:
{
contentfFrame = CGRectMake(self.frame.size.width - contentWidth, 0, contentWidth, self.separateNumnerViewSize.height);
}
break;
default:
break;
}
self.contentView.frame = contentfFrame;
}
#pragma mark - 开启定时器
- (void)startTimer
{
__weak typeof(self) weakSelf = self;
if ( @available(iOS 10.0, *)) {
weakSelf.timer = [NSTimer scheduledTimerWithTimeInterval:1 repeats:YES block:^(NSTimer * _Nonnull timer) {
weakSelf.currentNum ++;
}];
[weakSelf.timer fire];
}
}
- (void)dealloc
{
[self.timer invalidate];
self.timer = nil;
}
3、创建与使用
NumberView * numberView = [[NumberView alloc] initWithFrame:CGRectMake(20, 0, self.view.frame.size.width - 40, 60) maxDigits:10 numberAlignmentType:(NumberAlignmentRight) numberColor:[UIColor redColor] numberChangeAnimation:(NumberChangeAnimationNone)];
numberView.center = self.view.center;
[self.view addSubview:numberView];
三、总结与思考
到这里在原来的基础上就添加了一些数字变换的效果，代码拙劣，大神勿笑。[抱拳][抱拳][抱拳]
