废话开篇：简单用代码绘制一下计时器数字，代码很简单。

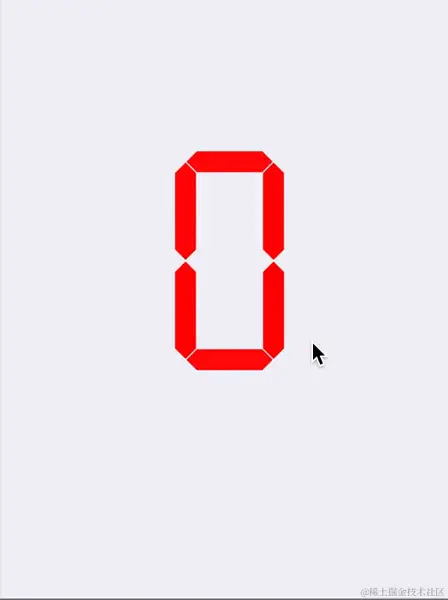

一、实现效果
二、实现逻辑
绘制数字 8，可涵盖全部的数字的展示情况。将里面的节段全部单一绘制，根据不同的数字进行隐藏相应的节段
其他数字再展示情况，比如 6 隐藏了 8 右侧上面的第一个“竖节段”
三、代码

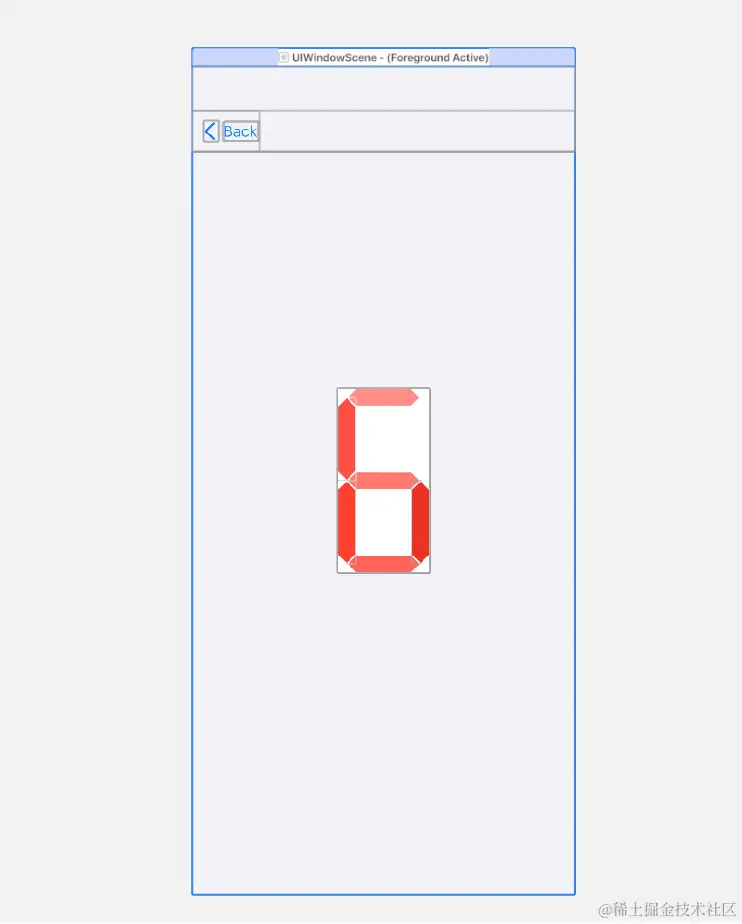

正面展示

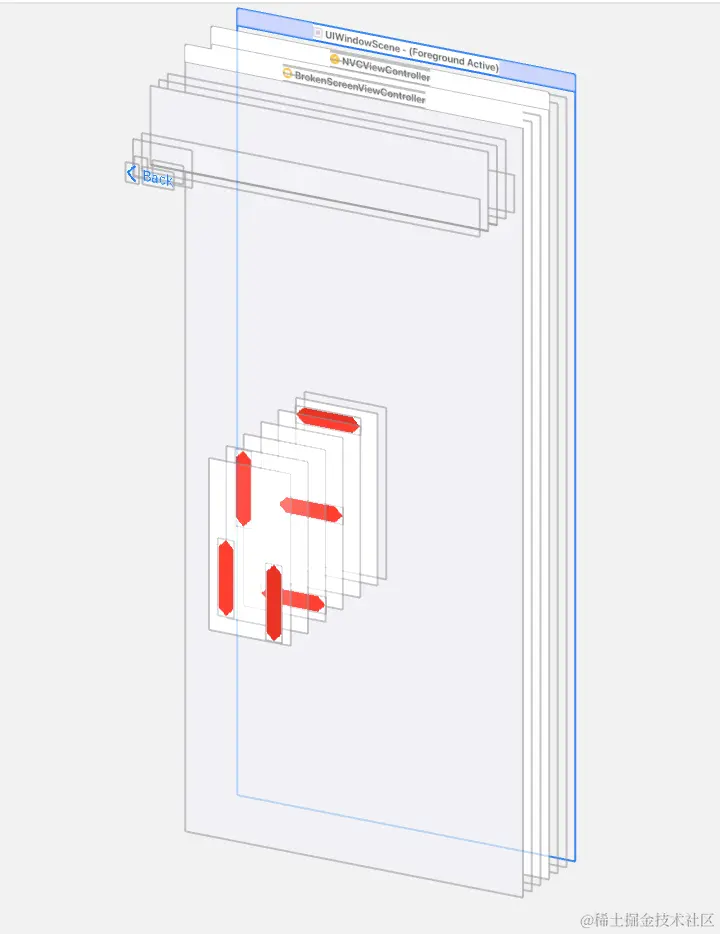

侧面展示
1、ReadSecondsView 类管理全部的节段视图
#import "ReadSecondsView.h"
#import "NumberSectionView.h"
@interface ReadSecondsView()
//展示的view视图与数字应对dic
@property(nonatomic,strong) NSDictionary * mapNumShowDic;
@property(nonatomic,assign) NSInteger currentNum;
@end
@implementation ReadSecondsView
- (instancetype)initWithFrame:(CGRect)frame
{
if (self = [super initWithFrame:frame]) {
[self createNumberSection];
[self startTimer];
}
return self;
}
#pragma mark - 配置数字展示项
- (NSDictionary *)mapNumShowDic
{
if(_mapNumShowDic == nil){
_mapNumShowDic = @{
@(0):@[@(0),@(2),@(3),@(4),@(5),@(6)],
@(1):@[@(5),@(6)],
@(2):@[@(0),@(1),@(2),@(4),@(5)],
@(3):@[@(0),@(1),@(2),@(5),@(6)],
@(4):@[@(1),@(3),@(5),@(6)],
@(5):@[@(0),@(1),@(2),@(3),@(6)],
@(6):@[@(0),@(1),@(2),@(3),@(4),@(6)],
@(7):@[@(0),@(5),@(6)],
@(8):@[@(0),@(1),@(2),@(3),@(4),@(5),@(6)],
@(9):@[@(0),@(1),@(2),@(3),@(5),@(6)],
};
}
return _mapNumShowDic;
}
#pragma mark - 设置当前数字
- (void)setCurrentNum:(NSInteger)currentNum
{
_currentNum = currentNum;
NSArray * showNumSectionArr = self.mapNumShowDic[@(currentNum)];
for (UIView * subView in [self subviews]) {
if([subView isKindOfClass:[NumberSectionView class]]){
NumberSectionView * numberSectionViewSubView = (NumberSectionView *)subView;
numberSectionViewSubView.hidden = ![showNumSectionArr containsObject:@(numberSectionViewSubView.index)];
}
}
}
#pragma mark - 开启定时器
- (void)startTimer
{
__weak typeof(self) weakSelf = self;
__block NSInteger currentNum = weakSelf.currentNum;
if ( @available(iOS 10.0, *)) {
NSTimer * timer = [NSTimer scheduledTimerWithTimeInterval:1 repeats:YES block:^(NSTimer * _Nonnull timer) {
weakSelf.currentNum = (currentNum ++) % 10;
}];
[timer fire];
}
}
#pragma mark - 创建数字节段
- (void)createNumberSection{
//创建7个节段
for (int i = 0; i < 7; i ++) {
NumberSectionView * numberSectionView = [[NumberSectionView alloc] initWithFrame:self.bounds withIndex:i];
[self addSubview:numberSectionView];
}
}
@end
2、NumberSectionView 类绘制不同位置的节段
#import "NumberSectionView.h"
#import "ChamferingNumberSectionView.h"
@interface NumberSectionView()
//节段位置
@property(nonatomic,assign) NSInteger index;
//节段宽度
@property(nonatomic,assign) float sectionWidth;
@end
@implementation NumberSectionView
- (instancetype)initWithFrame:(CGRect)frame withIndex:(NSInteger)index
{
if (self = [super initWithFrame:frame]) {
self.backgroundColor = [[UIColor whiteColor] colorWithAlphaComponent:0.01];
self.index = index;
[self initNumberSectionData];
[self drawNumberSection];
}
return self;
}
#pragma mark - 初始化节段数据
- (void)initNumberSectionData{
self.sectionWidth = 20;
}
#pragma mark - 绘制节段
- (void)drawNumberSection
{
CGRect numberSectionFrame = CGRectZero;
float maxWidth = self.frame.size.width;
float maxHeight = self.frame.size.height;
//横节段参数
float crossX = (self.sectionWidth / 2.0);
float crossWidth = (maxWidth - 2 * crossX);
//竖节段参数
float verticalX = 0;
float verticalWidth = **self**.sectionWidth;
float verticalHeight = (maxHeight - **self**.sectionWidth) / 2.0;
switch (self.index) {
case 0:
{
//上横
float x = crossX;
float y = 0;
float width = crossWidth;
float height = self.sectionWidth;
numberSectionFrame = CGRectMake(x, y, width, height);
}
break;
case 1:
{
//中横
float x = crossX;
float y = verticalHeight;
float width = crossWidth;
float height = self.sectionWidth;
numberSectionFrame = CGRectMake(x, y, width, height);
}
break;
case 2:
{
//下横
float x = crossX;
float y = verticalHeight * 2;
float width = crossWidth;
float height = self.sectionWidth;
numberSectionFrame = CGRectMake(x, y, width, height);
}
break;
case 3:
{
//左竖一
float x = verticalX;
float** y = self.sectionWidth / 2.0;
float width = verticalWidth;
float height = verticalHeight;
numberSectionFrame = CGRectMake(x, y, width, height);
}
break;
case 4:
{
//左竖二
float x = verticalX;
float y = self.sectionWidth / 2.0 + verticalHeight;
float width = verticalWidth;
float height = verticalHeight;
numberSectionFrame = CGRectMake(x, y, width, height);
}
break;
case 5:
{
//右竖一
float x = maxWidth - self.sectionWidth;
float y = self.sectionWidth / 2.0;
float width = verticalWidth;
float height = verticalHeight;
numberSectionFrame = CGRectMake(x, y, width, height);
}
break;
case 6:
{
//右竖二
float x = maxWidth - self.sectionWidth;
float y = self.sectionWidth / 2.0 + verticalHeight;
float width = verticalWidth;
float height = verticalHeight;
numberSectionFrame = CGRectMake(x, y, width, height);
}
break;
default:
break;
}
ChamferingPosition chamferingPosition = (self.index != 0 && self.index != 1 && self.index != 2) ? ChamferingPositionDownUp : ChamferingPositionLeftRight;
ChamferingNumberSectionView * numSectionView = [[ChamferingNumberSectionView alloc] initWithFrame:numberSectionFrame chamferingPosition:(chamferingPosition)];
[self addSubview:numSectionView];
}
@end
3、ChamferingNumberSectionView 类绘制带尖角的节段
//剪切位置
typedef NS_ENUM(NSInteger,ChamferingPosition) {
ChamferingPositionDownUp,//上下
ChamferingPositionLeftRight//左右
};
#import "ChamferingNumberSectionView.h"
@interface ChamferingNumberSectionView()
//剪切位置
@property(nonatomic,assign) ChamferingPosition chamferingPosition;
@end
@implementation ChamferingNumberSectionView
- (instancetype)initWithFrame:(CGRect)frame chamferingPosition:(ChamferingPosition)chamferingPosition{
if (self = [super initWithFrame:frame]) {
self.backgroundColor = [UIColor clearColor];
self.chamferingPosition = chamferingPosition;
}
return self;
}
- (void)drawRect:(CGRect)rect
{
UIColor *color = [UIColor redColor];
[color set];
UIBezierPath *path = [UIBezierPath bezierPath];
float width = rect.size.width;
float height = rect.size.height;
switch (self.chamferingPosition) {
case ChamferingPositionDownUp:
{
[path moveToPoint:CGPointMake(width / 2.0, 0)];
[path addLineToPoint:CGPointMake(width, width / 2.0)];
[path addLineToPoint:CGPointMake(width,height - width / 2.0)];
[path addLineToPoint:CGPointMake(width / 2.0,height)];
[path addLineToPoint:CGPointMake(0,height - width / 2.0)];
[path addLineToPoint:CGPointMake(0,width / 2.0)];
[path addLineToPoint:CGPointMake(width / 2.0, 0)];
[path fill];
//分隔线
color = [UIColor whiteColor];
[color set];
path.lineWidth = 1.0;
[path stroke];
}
break;
case ChamferingPositionLeftRight:{
[path moveToPoint:CGPointMake(0, height / 2.0)];
[path addLineToPoint:CGPointMake(height / 2.0, 0)];
[path addLineToPoint:CGPointMake(width - height / 2.0,0)];
[path addLineToPoint:CGPointMake(width,height / 2.0)];
[path addLineToPoint:CGPointMake(width - height / 2.0,height)];
[path addLineToPoint:CGPointMake(height / 2.0,height)];
[path addLineToPoint:CGPointMake(0, height / 2.0)];
[path fill];
//分隔线
color = [UIColor whiteColor];
[color set];
path.lineWidth = 1.0;
[path stroke];
}
break;
default:
break;
}
}
@end
总结与思考
简单的计时器数字就完成了，这里每一个节段都是被绘制到一整个父视图大小的view上，之所以这样做是考虑可以封装其他的数字动态切换方式，对于不同的数字变换只关心当前自身的节段如何变换即可，比如：旋转、反转等动画。代码拙劣，大神勿笑[抱拳][抱拳][抱拳]
