源码调用链
System Server启动时会在内部启动很多系统服务，其中就包括AMS，我们直接看源码吧：
/frameworks/base/services/java/com/android/server/SystemServer.java
public static void main(String[] args) {
new SystemServer().run();
}
private void run() {
……
startBootstrapServices();
……
}
private void startBootstrapServices() {
……
mActivityManagerService.setSystemProcess();//844行
……
}
/frameworks/base/services/core/java/com/android/server/am/ActivityManagerService.java
public void setSystemProcess() {
……
ServiceManager.addService(Context.ACTIVITY_SERVICE, **this**, ……);//这个this就是AMS
……
}
/frameworks/base/core/java/android/os/ServiceManager.java
public static void addService(String name, IBinder service) {
addService(name, service, false, IServiceManager.DUMP_FLAG_PRIORITY_DEFAULT);
}
public static void addService(String name, IBinder service, boolean allowIsolated) {
addService(name, service, allowIsolated, IServiceManager.DUMP_FLAG_PRIORITY_DEFAULT);
}
public static void addService(String name, IBinder service, boolean allowIsolated,int dumpPriority) {
try {
getIServiceManager().addService(name, service, allowIsolated, dumpPriority);
} catch (RemoteException e) {
Log.e(TAG, "error in addService", e);
}
}
private static IServiceManager getIServiceManager() {
if (sServiceManager != null) {
return sServiceManager;
}
// Find the service manager
sServiceManager = ServiceManagerNative.asInterface(Binder.allowBlocking(BinderInternal.getContextObject()));
return sServiceManager;
}
/frameworks/base/core/java/com/android/internal/os/BinderInternal.java
public static final native IBinder getContextObject();
/frameworks/base/core/jni/android_util_Binder.cpp
static jobject android_os_BinderInternal_getContextObject(JNIEnv* env, jobject clazz)
{
sp<IBinder> b = ProcessState::self()->getContextObject(NULL);
return javaObjectForIBinder(env, b);
}
/frameworks/native/libs/binder/ProcessState.cpp
//单例模式创建ProcessState实例
sp<ProcessState> ProcessState::self()
{
Mutex::Autolock _l(gProcessMutex);
if (gProcess != nullptr) {
return gProcess;
}
gProcess = new ProcessState(kDefaultDriver);
return gProcess;
}
ProcessState::ProcessState(const char *driver)
: mDriverName(String8(driver))
, mDriverFD(open_driver(driver))
……
{
……
mVMStart = mmap(nullptr, BINDER_VM_SIZE, PROT_READ, MAP_PRIVATE | MAP_NORESERVE, mDriverFD, 0);
……
}
//1.打开binder设备，与内核中的binder驱动交互
//2.通过ioctl命令设置binder驱动最大的线程数
#define DEFAULT_MAX_BINDER_THREADS 15
static int open_driver(const char *driver)
{
int fd = open(driver, O_RDWR | O_CLOEXEC);
……
size_t maxThreads = DEFAULT_MAX_BINDER_THREADS;
result = ioctl(fd, BINDER_SET_MAX_THREADS, &maxThreads);
……
return fd;
}
sp<IBinder> ProcessState::getContextObject(const sp<IBinder>&)
{
return getStrongProxyForHandle(0);
}
//得出BinderInternal.getContextObject()返回BpBinder对象
//接着继续分析 javaObjectForIBinder(env, b)
sp<IBinder> ProcessState::getStrongProxyForHandle(int32_t handle)
{
……
if (b == nullptr || !e->refs->attemptIncWeak(this)) {
……
b = BpBinder::create(handle);
……
}
……
}
/frameworks/base/core/jni/android_util_Binder.cpp
//创建BinderProxy对象，其中mObject记录了BpBinder对象
jobject javaObjectForIBinder(JNIEnv* env, const sp<IBinder>& val)
{
……
BinderProxyNativeData* nativeData = new BinderProxyNativeData();
nativeData->mOrgue = new DeathRecipientList;
nativeData->mObject = val;
jobject object = env->CallStaticObjectMethod(gBinderProxyOffsets.mClass,
gBinderProxyOffsets.mGetInstance, (jlong) nativeData, (jlong) val.get());
……
}
回到ServiceManager
/frameworks/base/core/java/android/os/ServiceManager.java
sServiceManager = ServiceManagerNative.asInterface(Binder.allowBlocking(BinderInternal.getContextObject()));
/frameworks/base/core/java/android/os/ServiceManagerNative.java
static public IServiceManager asInterface(IBinder obj)
{
if (obj == null) {return null;}
IServiceManager in = (IServiceManager)obj.queryLocalInterface(descriptor);
if (in != null) {return in;}
return new ServiceManagerProxy(obj);
}
得出 sServiceManager 是ServiceManagerProxy对象，其中有addService方法
class ServiceManagerProxy implements IServiceManager {
public ServiceManagerProxy(IBinder remote) {
mRemote = remote;
}
public void addService(String name, IBinder service, boolean allowIsolated, int dumpPriority)throws RemoteException {
Parcel data = Parcel.obtain();
Parcel reply = Parcel.obtain();
data.writeInterfaceToken(IServiceManager.descriptor);
data.writeString(name);
//这里service是AMS
data.writeStrongBinder(service);
data.writeInt(allowIsolated ? 1 : 0);
data.writeInt(dumpPriority);
//mRemote是BinderProxy对象
mRemote.transact(ADD_SERVICE_TRANSACTION, data, reply, 0);
reply.recycle();
data.recycle();
}
}
data.writeStrongBinder(service);
/frameworks/base/core/java/android/os/Parcel.java
writeStrongBinder()
/frameworks/base/core/jni/android_os_Parcel.cpp
android_os_Parcel_writeStrongBinder()
/frameworks/base/core/jni/android_util_Binder.cpp
parcel->writeStrongBinder(ibinderForJavaObject(env, object));
/frameworks/native/libs/binder/Parcel.cpp
status_t Parcel::writeStrongBinder(const sp<IBinder>& val)
{
return flatten_binder(ProcessState::self(), val, this);
}
status_t flatten_binder(……)
{
flat_binder_object obj;
……
obj.type = BINDER_TYPE_BINDER;
obj.binder = reinterpret_cast<uintptr_t>(local->getWeakRefs());
obj.cookie = reinterpret_cast<uintptr_t>(local);
……
return finish_flatten_binder(binder, obj, out);
}
inline static status_t finish_flatten_binder(……)
{
return out->writeObject(flat, false);
}
AMS的信息保存在了flat_binder_object对象中，然后将flat_binder_object写入out
摘自网络：www.jianshu.com/p/9d1c8a0f3…
Parcel 是用来封装进程间通信数据的, Java 层中的每一个 Parcel 对象在 C++层中都有一个对应的 Parcel 对象, 后者的地址就保存在前者的成员变量 mObject 中. 当将进程间通信的数据封装在一个 Java 层的 Parcel 对象时, 这个 Java 层中的 Parcel 对象就会通过其成员变量 mObject 找到与它对应的运行在 C++ 层中的 Parcel 对象.并且将这些进程间通信数据封装到 C++ 层中的 Parcel 对象里面去.
/frameworks/base/core/java/android/os/BinderProxy.java
public boolean transact(int code, Parcel data, Parcel reply, int flags) throws RemoteException {
……
return transactNative(code, data, reply, flags);
……
}
public native boolean transactNative(int code, Parcel data, Parcel reply, int flags) throws RemoteException;
/frameworks/base/core/jni/android_util_Binder.cpp
static jboolean android_os_BinderProxy_transact( ){
……
IBinder* target = getBPNativeData(env, obj)->mObject.get();
……
status_t err = target->transact(code, *data, reply, flags);
……
}
对应上面javaObjectForIBinder方法，得知target是BpBinder对象
/frameworks/native/libs/binder/BpBinder.cpp
status_t BpBinder::transact(……)
{
// Once a binder has died, it will never come back to life.
if (mAlive) {
status_t status = IPCThreadState::self()->transact(
mHandle, code, data, reply, flags);
if (status == DEAD_OBJECT) mAlive = 0;
return status;
}
return DEAD_OBJECT;
}
/frameworks/native/libs/binder/IPCThreadState.cpp
status_t IPCThreadState::transact(……)
{
……
err = writeTransactionData(BC_TRANSACTION, flags, handle, code, data, nullptr);
……
err = waitForResponse(reply);
}
//将数据写入mOut
status_t IPCThreadState::writeTransactionData(……)
{
binder_transaction_data tr;
mOut.writeInt32(cmd);
mOut.write(&tr, sizeof(tr));
return NO_ERROR;
}
status_t IPCThreadState::waitForResponse(Parcel *reply, status_t *acquireResult)
{
while (1) {
//循环等待结果
if ((err=talkWithDriver()) < NO_ERROR) break;
}
}
status_t IPCThreadState::talkWithDriver(bool doReceive)
{
……
do {
#if defined(__ANDROID__)
if (ioctl(mProcess->mDriverFD, BINDER_WRITE_READ, &bwr) >= 0)
err = NO_ERROR;
else
err = -errno;
} while (err == -EINTR);
……
}
ioctl进入内核层
/drivers/staging/android/binder.c
static long binder_ioctl(struct file *filp, unsigned int cmd, unsigned long arg)
{
……
case BINDER_WRITE_READ: {
ret = binder_thread_write(……)
}
……
}
int binder_thread_write(……)
{
……
case BC_TRANSACTION: {
binder_transaction(proc, thread, &tr, cmd == BC_REPLY);
break;
}
……
}
static void binder_transaction(……)
{
……
copy_from_user(……)
copy_from_user(……)
……
wake_up_interruptible(……)
}

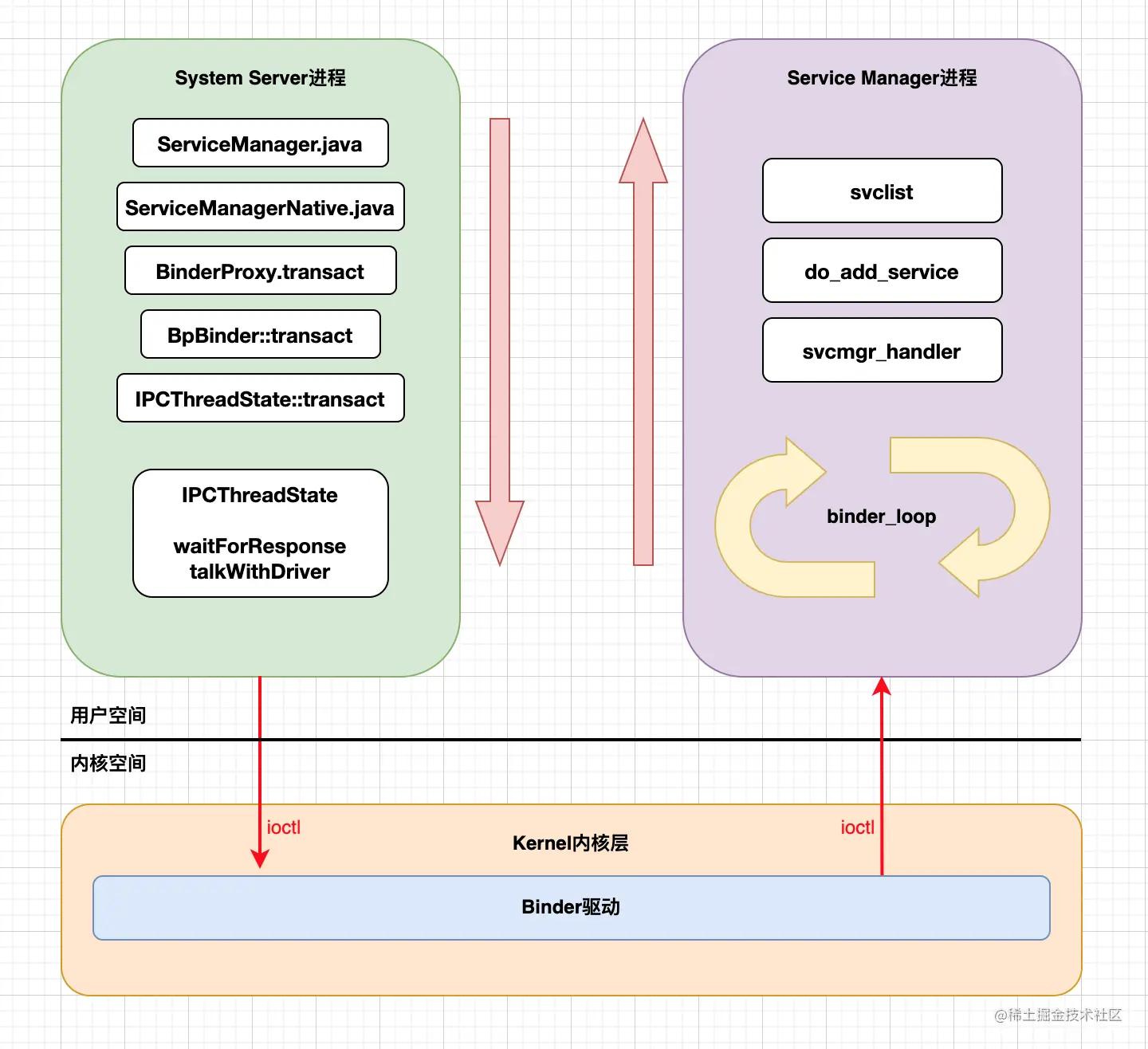

唤醒SM
/frameworks/native/cmds/servicemanager/service_manager.c
调用svcmgr_handler()
调用do_add_service方法添加服务
保存服务到svclist中
结尾：
失眠必读系列未完待续，有任何错误，虚心讨教，欢迎指正...
