特征匹配
一、特征匹配与描述
在本小节中，我们将会了解到如何匹配不同图像间的特征，以及OpenCV中的蛮力匹配器和FLANN匹配器
1. 蛮力匹配器的基本概念
蛮力匹配器很简单。 它采用第一组中一个特征的描述符，并使用一些距离计算与第二组中的所有其他特征匹配。 并返回最接近的那个。
对于 BF 匹配器，首先我们必须使用 cv.BFMatcher() 创建 BFMatcher 对象。 它需要两个可选参数。
- 第一个是 normType。 它指定要使用的距离测量。 默认情况下，它是 cv.NORM_L2。 它 用于 SIFT、SURF 等（cv.NORM_L1同样适用）。 对于基于二进制字符串的描述符，如 ORB、BRIEF、BRISK 等，应使用 cv.NORM_HAMMING，它使用汉明距离作为度量。 如果 ORB 使用 WTA_K == 3 或 4，则应使用 cv.NORM_HAMMING2。
- 第二个参数是布尔变量 crossCheck，默认为 false。 如果为真，则 Matcher 仅返回值为 (i,j) 的匹配项，使得集合 A 中的第 i 个描述符具有集合 B 中的第 j 个描述符作为最佳匹配，反之亦然。 也就是说，两组中的两个特征应该相互匹配(也就是最佳匹配事一对一对应的，A中i对应B中的最佳匹配是j，那么B中j的最佳匹配也一定要为A中i才返回)。 它提供了一致的结果，是 D.Lowe 在 SIFT 论文中提出的比率测试的一个很好的替代方案。
创建后，两个重要的方法是 ：
- BFMatcher.match() ：返回最佳匹配
- BFMatcher.knnMatch()：返回 k 最佳匹配，其中 k 由用户指定。 当我们需要对此进行额外操作时，它可能很有用。
就像我们使用 cv.drawKeypoints() 来绘制关键点一样，

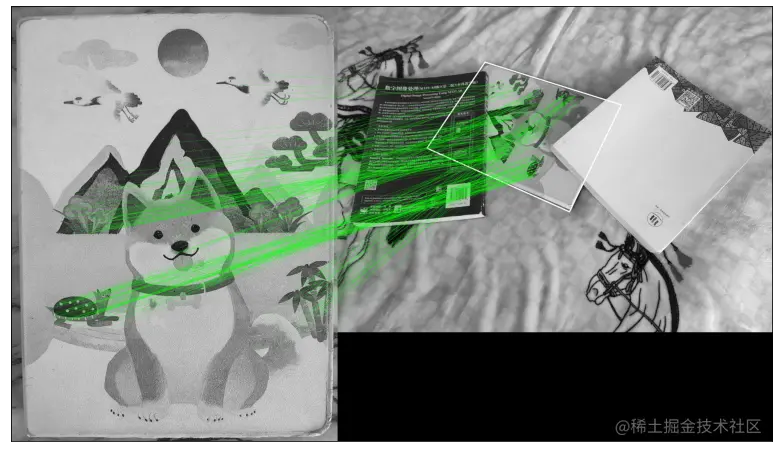

- cv.drawMatches() 帮助我们绘制匹配。 它水平堆叠两张图像，并从第一张图像到第二张图像绘制线条，显示最佳匹配。

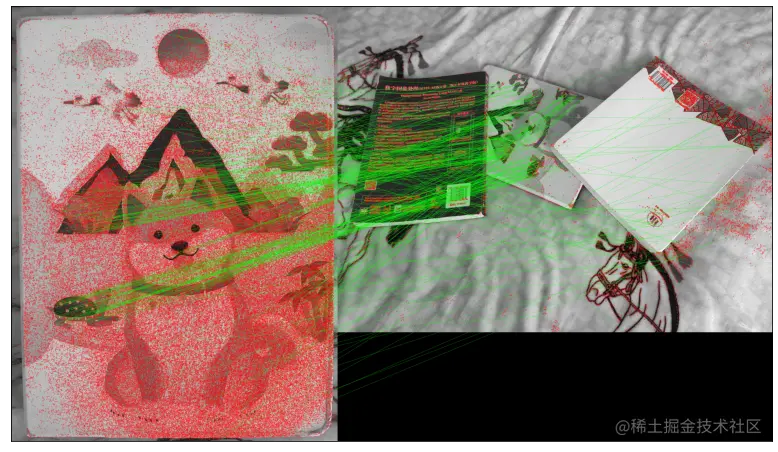

- cv.drawMatchesKnn 绘制所有 k 个最佳匹配。 如果 k=2，它将为每个关键点绘制两条匹配线。 因此，如果我们想选择性地绘制它，我们必须传递一个遮罩mask。用法如下：
- cv.drawMatches( img1, keypoints1, img2, keypoints2, matches1to2, outImg[, matchColor[, singlePointColor[, matchesMask[, flags]]]] ) -> outImg
- cv.drawMatches( img1, keypoints1, img2, keypoints2, matches1to2, outImg, matchesThickness[, matchColor[, singlePointColor[, matchesMask[, flags]]]] ) -> outImg
- cv.drawMatchesKnn( img1, keypoints1, img2, keypoints2, matches1to2, outImg[, matchColor[, singlePointColor[, matchesMask[, flags]]]] ) -> out
让我们看一个 SIFT 和 ORB 的示例（两者都使用不同的距离测量）。
import cv2 as cv
import numpy as np
import matplotlib
import matplotlib.pyplot as plt
%matplotlib inline
def cv_show(name, img):
cv.imshow(name, img)
cv.waitKey(0)
cv.destroyAllWindows()
def compare(imgs):
# for i in range(len(imgs)):
# imgs[i][:,-3:-1,:] = [255,255,255]
res = np.hstack(imgs)
cv_show('Compare', res)
A. 使用ORB描述符的蛮力匹配
在这里，我们将看到一个关于如何在两张图像之间匹配特征的简单示例。 在这种情况下，我有一个 queryImage 和一个 trainImage。 我们将尝试使用特征匹配在 trainImage 中找到 queryImage。 （图像是 /samples/data/box.png 和 /samples/data/box_in_scene.png）
我们使用 ORB 描述符来匹配特征。 因此，让我们从加载图像、查找描述符等开始。
img = cv.imread('ipad.png',0)
others = cv.imread('others.png',0)
# 修改图像大小
img = cv.resize(img, (0,0), fx = 0.2, fy = 0.2)
others = cv.resize(others, (0,0), fx = 0.2, fy = 0.2)
# 初始化ORB检测器
orb = cv.ORB_create()
# 使用ORB检测关键点和描述符
kp1, des1 = orb.detectAndCompute(img,None)
kp2, des2 = orb.detectAndCompute(others,None)
接下来我们创建一个带有距离测量 cv.NORM_HAMMING 的 BFMatcher 对象（因为我们使用的是 ORB）并打开 crossCheck 以获得更好的结果。 然后我们使用 Matcher.match() 方法来获得两个图像中的最佳匹配。 我们按照距离的升序对它们进行排序，以便最佳匹配（距离低）排在前面。 然后我们只绘制前 10 个最佳匹配（只是为了可见性。您可以随意增加）
# 创建蛮力匹配器对象
bf = cv.BFMatcher(cv.NORM_HAMMING, crossCheck=True)
# 对描述符进行匹配
matches = bf.match(des1,des2)
# 根据海明距离对匹配结果集进行排序
matches = sorted(matches, key = lambda x:x.distance)

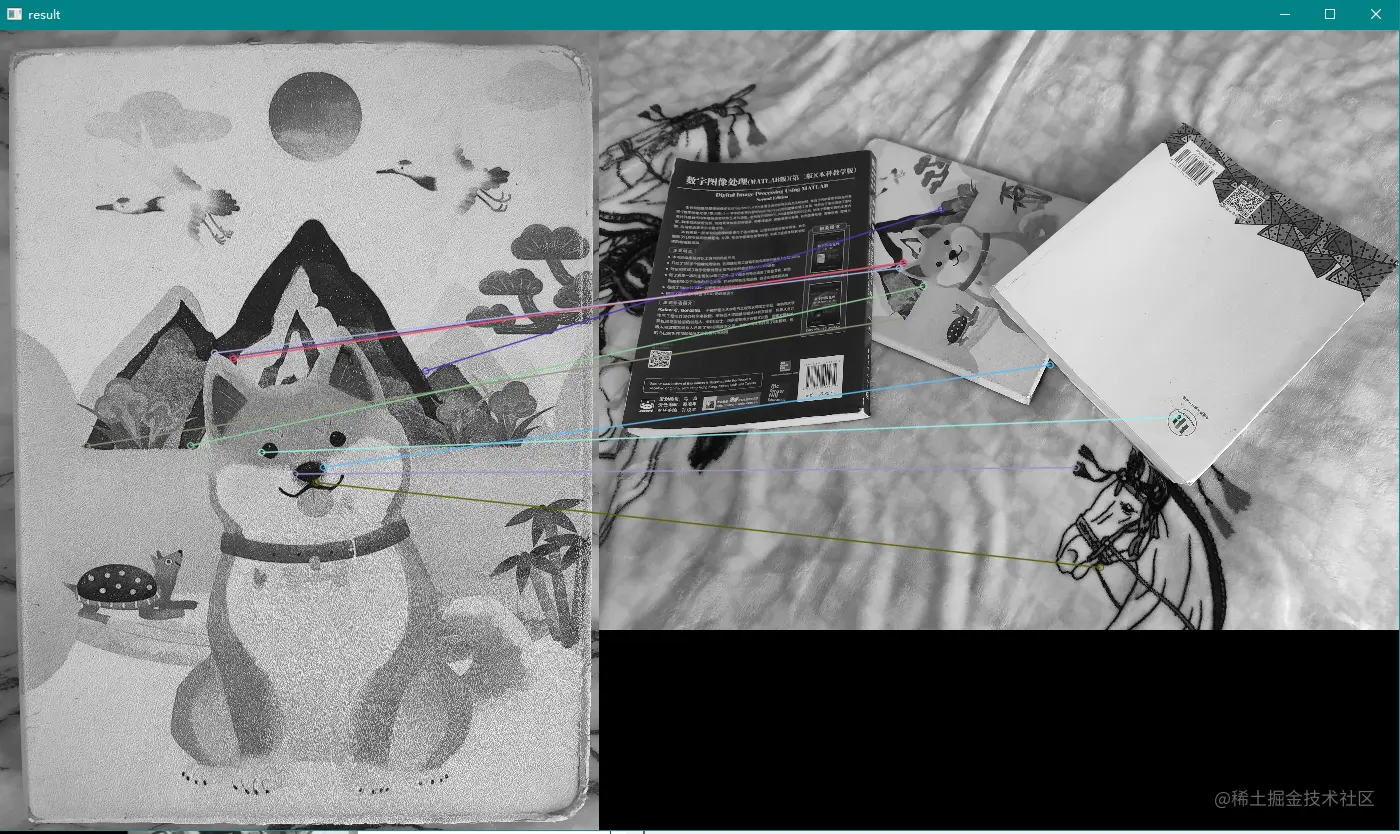

# 将匹配长度较高的前10对特征点绘出
res = cv.drawMatches(img,kp1,others,kp2,matches[:10],None,flags=cv.DrawMatchesFlags_NOT_DRAW_SINGLE_POINTS)
cv_show('result', res)
匹配器对象是什么？
matches = bf.match(des1,des2) 行的结果是 DMatch 对象的列表。 此 DMatch 对象具有以下属性：
- DMatch.distance - 描述符之间的距离。 越低越好。
- DMatch.trainIdx - 样本图像描述符中的描述符索引
- DMatch.queryIdx - 测试图像描述符中描述符的索引
- DMatch.imgIdx - 训练图像的索引。
B.使用SIFT描述符以及Ratio测试的蛮力匹配
这一次，我们将使用 BFMatcher.knnMatch() 来获得 k 个最佳匹配。 在这个例子中，我们将取 k=2，以便我们可以应用 D.Lowe 在他的论文中解释的比率测试。
img1 = cv.imread('ipad.png',cv.IMREAD_GRAYSCALE) # queryImage
img2 = cv.imread('others.png',cv.IMREAD_GRAYSCALE) # trainImage
img1 = cv.resize(img1, (0,0), fx = 0.2, fy = 0.2)
img2 = cv.resize(img2, (0,0), fx = 0.2, fy = 0.2)
# Initiate SIFT detector
sift = cv.SIFT_create()
# find the keypoints and descriptors with SIFT
kp1, des1 = sift.detectAndCompute(img1,None)
kp2, des2 = sift.detectAndCompute(img2,None)
# BFMatcher with default params
bf = cv.BFMatcher()
matches = bf.knnMatch(des1,des2,k=2)
# Apply ratio test
good = []
for m,n in matches:
if m.distance < 0.75*n.distance:
good.append([m])

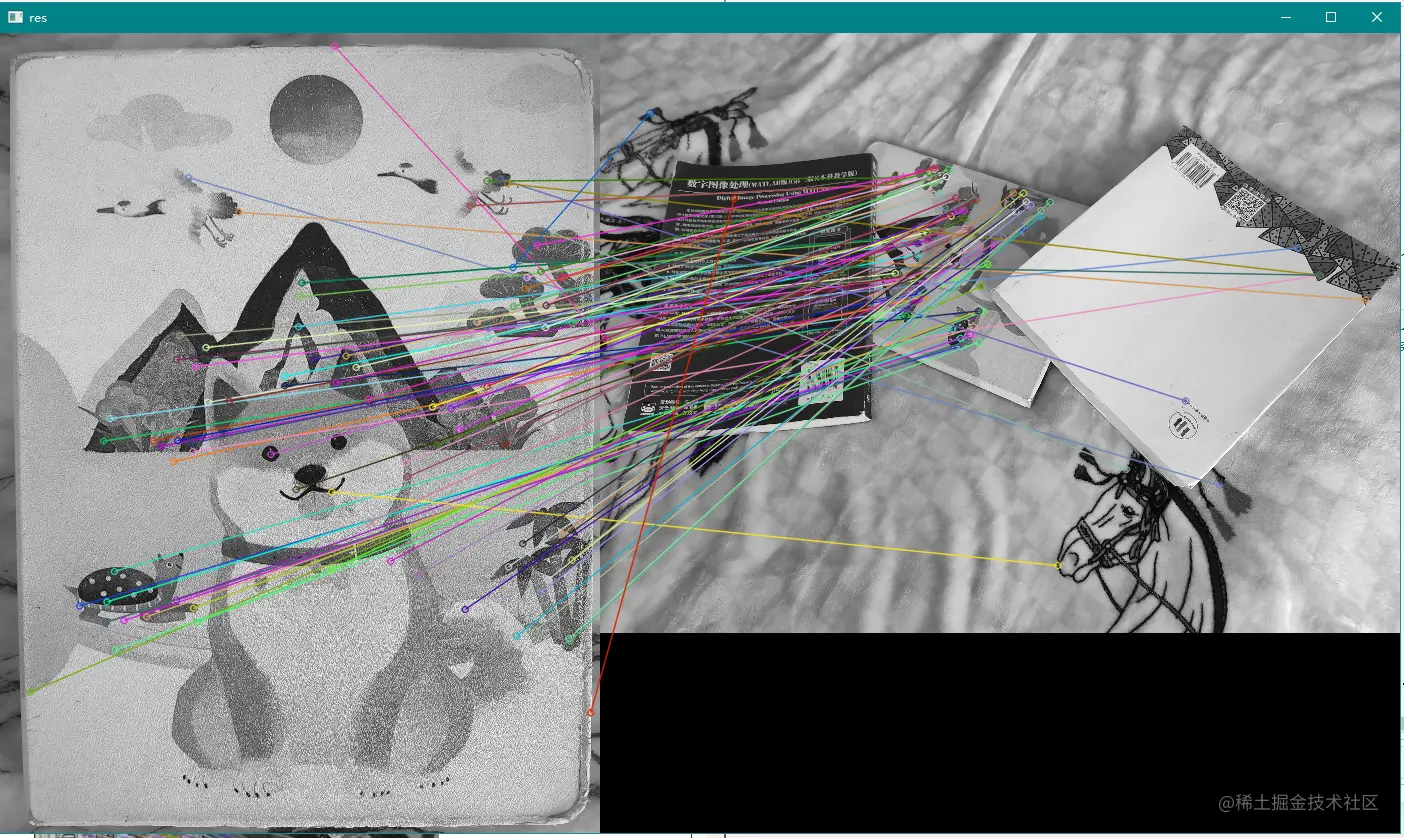

# cv.drawMatchesKnn expects list of lists as matches.
img3 = cv.drawMatchesKnn(img1,kp1,img2,kp2,good,None,flags=cv.DrawMatchesFlags_NOT_DRAW_SINGLE_POINTS)
cv_show('res', img3)
补充：match和knnmatch的返回差别
# match返回值
bf = cv.BFMatcher_create()
matches = bf.match(des1, des2)
for matche in matches[:4]:
print(matche)
<DMatch 0000029466B12830>
<DMatch 0000029466B120D0>
<DMatch 0000029466B12770>
<DMatch 0000029466B123D0>
可以看出，match返回的都是单个Dmatch数据，那么这个这个DMatch数据结构究竟是什么呢？ 它包含三个非常重要的数据分别是queryIdx，trainIdx，distance 先说一下这三个分别是什么在演示其用途：
- queryIdx：测试图像的特征点描述符的下标（第几个特征点描述符），同时也是描述符对应特征点的下标。
- trainIdx：样本图像的特征点描述符下标,同时也是描述符对应特征点的下标。
- distance：代表这对匹配的特征点描述符的欧式距离，数值越小也就说明俩个特征点越相近。
bf = cv.BFMatcher_create()
matches = bf.match(des1, des2)
for matche in matches[:4]:
print(matche)
print(matche.queryIdx)
print(matche.trainIdx)
print(matche.distance)
<DMatch 0000029455804710>
0
1417
295.50634765625
<DMatch 0000029466B122B0>
1
1550
273.9197082519531
<DMatch 0000029465E90C30>
2
1874
215.26495361328125
<DMatch 0000029465E90950>
3
2061
143.17471313476562
每个特征点本身也具有以下属性：
- .pt:关键点坐标，
- .angle：表示关键点方向，
- .response表示响应强度，
- .size:表示该点的直径大小。
# Knnmatch返回值，k = 2 表明对一个关键点绘制两条匹配线(两个对应点)
matches = bf.knnMatch(des1, des2, k=2)
# matchesMask = [[0, 0] for i in range(len(matches))]
for i, matche in enumerate(matches):
print(matche)
(<DMatch 0000029466B122D0>, <DMatch 0000029466B124D0>)
(<DMatch 0000029466B12030>, <DMatch 0000029466B124B0>)
(<DMatch 0000029466B12190>, <DMatch 0000029466B12130>)
(<DMatch 0000029466B126F0>, <DMatch 0000029466B12310>)
(<DMatch 0000029466B125B0>, <DMatch 0000029466B12750>)
(<DMatch 0000029466B12270>, <DMatch 0000029466B12430>)
(<DMatch 0000029466B12650>, <DMatch 0000029466B12510>)
(<DMatch 0000029466B12050>, <DMatch 0000029466B12110>)
(<DMatch 0000029466B12150>, <DMatch 0000029466B122F0>)
(<DMatch 0000029466B127B0>, <DMatch 0000029466B121D0>)
(<DMatch 0000029466B126B0>, <DMatch 0000029466B126D0>)
(<DMatch 0000029466B12850>, <DMatch 0000029466B121B0>)
(<DMatch 0000029466B12490>, <DMatch 0000029466B12610>)
(<DMatch 0000029466B12890>, <DMatch 0000029466B12590>)
(<DMatch 0000029466B128F0>, <DMatch 0000029466B12910>)
(<DMatch 0000029466B12930>, <DMatch 0000029466B12950>)
(<DMatch 0000029466B12970>, <DMatch 0000029466B12990>)
(<DMatch 0000029466B129D0>, <DMatch 0000029466B129F0>)
(<DMatch 0000029466B12A10>, <DMatch 0000029466B12A30>)
(<DMatch 0000029466B12A50>, <DMatch 0000029466B12A70>)
(<DMatch 0000029466B12A90>, <DMatch 0000029466B12AB0>)
(<DMatch 0000029466B12AD0>, <DMatch 0000029466B12AF0>)
(<DMatch 0000029466B12B10>, <DMatch 0000029466B12B30>)
(<DMatch 0000029466B12B50>, <DMatch 0000029466B12B70>)
(<DMatch 0000029466B12B90>, <DMatch 0000029466B12BB0>)
(<DMatch 0000029466B12BD0>, <DMatch 0000029466B12BF0>)
(<DMatch 0000029466B12C10>, <DMatch 0000029466B12C30>)
(<DMatch 0000029466B12C50>, <DMatch 0000029466B12C70>)
(<DMatch 0000029466B12C90>, <DMatch 0000029466B12CB0>)
(<DMatch 0000029466B12CD0>, <DMatch 0000029466B12CF0>)
(<DMatch 0000029466B12D10>, <DMatch 0000029466B12D30>)
(<DMatch 0000029466B12D50>, <DMatch 0000029466B12D70>)
(<DMatch 0000029466B12D90>, <DMatch 0000029466B12DB0>)
(<DMatch 0000029466B12DD0>, <DMatch 0000029466B12DF0>)
(<DMatch 0000029466B12E10>, <DMatch 0000029466B12E30>)
(<DMatch 0000029466B12E50>, <DMatch 0000029466B12E70>)
(<DMatch 0000029466B12E90>, <DMatch 0000029466B12EB0>)
(<DMatch 0000029466B12ED0>, <DMatch 0000029466B12EF0>)
(<DMatch 0000029466B12F10>, <DMatch 0000029466B12F30>)
(<DMatch 0000029466B12F50>, <DMatch 0000029466B12F70>)
(<DMatch 0000029466B12F90>, <DMatch 0000029466B12FB0>)
(<DMatch 0000029466B12FD0>, <DMatch 000002945582FE10>)
(<DMatch 0000029465E90950>, <DMatch 0000029465E90ED0>)
(<DMatch 0000029465E90F70>, <DMatch 0000029465E90D10>)
(<DMatch 0000029465E90E10>, <DMatch 0000029465E906D0>)
(<DMatch 0000029465E90EF0>, <DMatch 0000029465E909B0>)
(<DMatch 0000029465E90C50>, <DMatch 0000029465E90990>)
(<DMatch 0000029465E90DB0>, <DMatch 0000029465E90EB0>)
(<DMatch 0000029465E90C10>, <DMatch 0000029465E90BB0>)
(<DMatch 0000029465E90610>, <DMatch 0000029466B10C50>)
(<DMatch 0000029466B10F50>, <DMatch 0000029466B10710>)
(<DMatch 0000029466B109B0>, <DMatch 0000029466B10FB0>)
(<DMatch 0000029466B10890>, <DMatch 0000029466B10FD0>)
(<DMatch 0000029466B10F30>, <DMatch 0000029466B10BB0>)
(<DMatch 0000029466B10470>, <DMatch 0000029466B10F90>)
(<DMatch 0000029466B102B0>, <DMatch 0000029466B10E10>)
(<DMatch 0000029466B10830>, <DMatch 0000029466B10E70>)
(<DMatch 0000029466B10E90>, <DMatch 0000029466B108D0>)
(<DMatch 0000029466B10CF0>, <DMatch 0000029466B106B0>)
(<DMatch 0000029466B10DB0>, <DMatch 0000029466B105D0>)
(<DMatch 0000029466B10150>, <DMatch 0000029466B10670>)
(<DMatch 0000029466B10510>, <DMatch 0000029466B10EB0>)
(<DMatch 0000029466B10C30>, <DMatch 0000029466B10D30>)
(<DMatch 0000029466B10CB0>, <DMatch 0000029466B10DF0>)
(<DMatch 0000029466B10EF0>, <DMatch 0000029466B10D90>)
(<DMatch 0000029466B10810>, <DMatch 0000029466B10C10>)
(<DMatch 0000029466B105F0>, <DMatch 0000029466B10AD0>)
(<DMatch 0000029466B104D0>, <DMatch 0000029466B10DD0>)
(<DMatch 0000029466B10970>, <DMatch 0000029466B1D7B0>)
(<DMatch 0000029466B1D3B0>, <DMatch 0000029466B1DA10>)
(<DMatch 0000029466B1D770>, <DMatch 0000029466B1D150>)
(<DMatch 0000029466B1D050>, <DMatch 0000029466B1D9D0>)
(<DMatch 0000029466B1D6B0>, <DMatch 0000029466B1DC70>)
(<DMatch 0000029466B1D970>, <DMatch 0000029466B1D850>)
(<DMatch 0000029466B1D070>, <DMatch 0000029466B1DB30>)
(<DMatch 0000029466B1D990>, <DMatch 0000029466B1DAD0>)
(<DMatch 0000029466B1DD90>, <DMatch 0000029466B1D6F0>)
(<DMatch 0000029466B1DAF0>, <DMatch 0000029466B1DA30>)
(<DMatch 0000029466B1D670>, <DMatch 0000029466B1D0B0>)
(<DMatch 0000029466B1D630>, <DMatch 0000029466B1D750>)
(<DMatch 0000029466B1D450>, <DMatch 0000029466B1DF70>)
(<DMatch 0000029466B1DD10>, <DMatch 0000029466B1DD50>)
(<DMatch 0000029466B1DB70>, <DMatch 0000029466B1DDB0>)
(<DMatch 0000029466B1DEB0>, <DMatch 0000029466B1DF30>)
(<DMatch 0000029466B1D390>, <DMatch 0000029466B1DC50>)
(<DMatch 0000029466B1DCF0>, <DMatch 0000029466B1DDD0>)
(<DMatch 0000029466B1DE90>, <DMatch 0000029466B1DF50>)
(<DMatch 0000029466B1DC30>, <DMatch 0000029466B1D430>)
(<DMatch 0000029466B1D410>, <DMatch 0000029466B1D470>)
(<DMatch 0000029466B1DD30>, <DMatch 0000029466B1DE50>)
(<DMatch 0000029466B1DF90>, <DMatch 0000029466B1D9F0>)
(<DMatch 0000029466B1D510>, <DMatch 0000029466B1DFB0>)
(<DMatch 0000029466B1D030>, <DMatch 0000029466B1D650>)
(<DMatch 0000029466B1D5D0>, <DMatch 0000029466B1DC10>)
(<DMatch 0000029466B1DFD0>, <DMatch 0000029466B1DC90>)
(<DMatch 0000029466B1DDF0>, <DMatch 0000029466B1D3F0>)
(<DMatch 0000029466B1D8F0>, <DMatch 0000029466B1D950>)
(<DMatch 0000029466B1D6D0>, <DMatch 0000029466B1DD70>)
(<DMatch 0000029466B1D710>, <DMatch 0000029466B1DF10>)
(<DMatch 0000029466B1DBF0>, <DMatch 0000029466B1D610>)
(<DMatch 0000029466B1DA50>, <DMatch 0000029466B1D7D0>)
(<DMatch 0000029466B1DBD0>, <DMatch 0000029466B1D890>)
(<DMatch 0000029466B1D130>, <DMatch 0000029466B1D570>)
(<DMatch 0000029466B1D2B0>, <DMatch 0000029466B1D3D0>)
(<DMatch 0000029466B1D0F0>, <DMatch 0000029466B1D330>)
(<DMatch 0000029466B1D2F0>, <DMatch 0000029466B1DB50>)
(<DMatch 0000029466B1D9B0>, <DMatch 0000029466B1DA90>)
(<DMatch 0000029466B1D830>, <DMatch 0000029466B1D810>)
(<DMatch 0000029466B1DA70>, <DMatch 0000029466B1DB90>)
(<DMatch 0000029466B1D790>, <DMatch 0000029466B1D590>)
(<DMatch 0000029466B1D870>, <DMatch 0000029466B1D1D0>)
(<DMatch 0000029466B1D550>, <DMatch 0000029466B1D910>)
(<DMatch 0000029466B1DAB0>, <DMatch 0000029466B1D1B0>)
(<DMatch 0000029466B1D490>, <DMatch 0000029466B1D7F0>)
(<DMatch 0000029466B1D5B0>, <DMatch 0000029466B1DCD0>)
(<DMatch 0000029466B1D5F0>, <DMatch 0000029466B1D230>)
(<DMatch 0000029466B1D4B0>, <DMatch 0000029466B1DE70>)
(<DMatch 0000029466B1DE30>, <DMatch 0000029466B1D350>)
(<DMatch 0000029466B1D090>, <DMatch 0000029466B1D250>)
(<DMatch 0000029466B1D270>, <DMatch 0000029466B1D8D0>)
(<DMatch 0000029466B1D290>, <DMatch 0000029466B1DED0>)
(<DMatch 0000029466B1D530>, <DMatch 0000029466B1D190>)
(<DMatch 0000029465E45E70>, <DMatch 0000029403B2F530>)
(<DMatch 0000029403B2F510>, <DMatch 0000029403B2F030>)
(<DMatch 0000029403B2F050>, <DMatch 0000029403B2F070>)
(<DMatch 0000029403B2F090>, <DMatch 0000029403B2F0B0>)
(<DMatch 0000029403B2F0D0>, <DMatch 0000029403B2F0F0>)
(<DMatch 0000029403B2F110>, <DMatch 0000029403B2F130>)
(<DMatch 0000029403B2F150>, <DMatch 0000029403B2F170>)
(<DMatch 0000029403B2F190>, <DMatch 0000029403B2F1B0>)
(<DMatch 0000029403B2F1D0>, <DMatch 0000029403B2F1F0>)
(<DMatch 0000029403B2F210>, <DMatch 0000029403B2F230>)
(<DMatch 0000029403B2F250>, <DMatch 0000029403B2F270>)
(<DMatch 0000029403B2F290>, <DMatch 0000029403B2F2B0>)
(<DMatch 0000029403B2F2D0>, <DMatch 0000029403B2F2F0>)
(<DMatch 0000029403B2F310>, <DMatch 0000029403B2F330>)
(<DMatch 0000029403B2F350>, <DMatch 0000029403B2F370>)
(<DMatch 0000029403B2F390>, <DMatch 0000029403B2F3B0>)
(<DMatch 0000029403B2F3D0>, <DMatch 0000029403B2F3F0>)
(<DMatch 0000029403B2F410>, <DMatch 0000029403B2F430>)
(<DMatch 0000029403B2F450>, <DMatch 0000029403B2F470>)
(<DMatch 0000029403B2F490>, <DMatch 0000029403B2F4B0>)
(<DMatch 0000029403B2F4D0>, <DMatch 0000029403B2F4F0>)
(<DMatch 0000029403B6D510>, <DMatch 0000029403B6D530>)
(<DMatch 0000029403B6D550>, <DMatch 0000029403B6D570>)
(<DMatch 0000029403B6D590>, <DMatch 0000029403B6D5B0>)
(<DMatch 0000029403B6D5D0>, <DMatch 0000029403B6D5F0>)
(<DMatch 0000029403B6D610>, <DMatch 0000029403B6D630>)
(<DMatch 0000029403B6D650>, <DMatch 0000029403B6D670>)
(<DMatch 0000029403B6D690>, <DMatch 0000029403B6D6B0>)
(<DMatch 0000029403B6D6D0>, <DMatch 0000029403B6D6F0>)
(<DMatch 0000029403B6D710>, <DMatch 0000029403B6D730>)
(<DMatch 0000029403B6D750>, <DMatch 0000029403B6D770>)
(<DMatch 0000029403B6D790>, <DMatch 0000029403B6D7B0>)
(<DMatch 0000029403B6D7D0>, <DMatch 0000029403B6D7F0>)
(<DMatch 0000029403B6D810>, <DMatch 0000029403B6D830>)
(<DMatch 0000029403B6D850>, <DMatch 0000029403B6D870>)
(<DMatch 0000029403B6D890>, <DMatch 0000029403B6D8B0>)
(<DMatch 0000029403B6D8D0>, <DMatch 0000029403B6D8F0>)
(<DMatch 0000029403B6D930>, <DMatch 0000029403B6D950>)
(<DMatch 0000029403B6D970>, <DMatch 0000029403B6D990>)
(<DMatch 0000029403B6D9B0>, <DMatch 0000029403B6D9D0>)
(<DMatch 0000029403B6D9F0>, <DMatch 0000029403B6DA10>)
(<DMatch 0000029403B6DA30>, <DMatch 0000029403B6DA50>)
(<DMatch 0000029403B6DA70>, <DMatch 0000029403B6DA90>)
(<DMatch 0000029403B6DAB0>, <DMatch 0000029403B6DAD0>)
(<DMatch 0000029403B6DAF0>, <DMatch 0000029403B6DB10>)
(<DMatch 0000029403B6DB30>, <DMatch 0000029403B6DB50>)
(<DMatch 0000029403B6DB70>, <DMatch 0000029403B6DB90>)
(<DMatch 0000029403B6DBB0>, <DMatch 0000029403B6DBD0>)
(<DMatch 0000029403B6DBF0>, <DMatch 0000029403B6DC10>)
(<DMatch 0000029403B6DC30>, <DMatch 0000029403B6DC50>)
(<DMatch 0000029403B6DC70>, <DMatch 0000029403B6DC90>)
(<DMatch 0000029403B6DCB0>, <DMatch 0000029403B6DCD0>)
(<DMatch 0000029403B6DCF0>, <DMatch 0000029403B6DD10>)
(<DMatch 0000029403B6DD30>, <DMatch 0000029403B6DD50>)
(<DMatch 0000029403B6DD70>, <DMatch 0000029403B6DD90>)
(<DMatch 0000029403B6DDB0>, <DMatch 0000029403B6DDD0>)
(<DMatch 0000029403B6DDF0>, <DMatch 0000029403B6DE10>)
(<DMatch 0000029403B6DE30>, <DMatch 0000029403B6DE50>)
(<DMatch 0000029403B6DE70>, <DMatch 0000029403B6DE90>)
(<DMatch 0000029403B6DEB0>, <DMatch 0000029403B6DED0>)
(<DMatch 0000029403B6DEF0>, <DMatch 0000029403B6DF30>)
(<DMatch 0000029403B6DF50>, <DMatch 0000029403B6DF70>)
(<DMatch 0000029403B6DF90>, <DMatch 0000029403B6DFB0>)
(<DMatch 0000029403B6DFD0>, <DMatch 0000029466B27030>)
(<DMatch 0000029466B27050>, <DMatch 0000029466B27070>)
(<DMatch 0000029466B27090>, <DMatch 0000029466B270B0>)
(<DMatch 0000029466B270D0>, <DMatch 0000029466B270F0>)
(<DMatch 0000029466B27110>, <DMatch 0000029466B27130>)
(<DMatch 0000029466B27150>, <DMatch 0000029466B27170>)
(<DMatch 0000029466B27190>, <DMatch 0000029466B271B0>)
(<DMatch 0000029466B271D0>, <DMatch 0000029466B271F0>)
(<DMatch 0000029466B27210>, <DMatch 0000029466B27230>)
(<DMatch 0000029466B27250>, <DMatch 0000029466B27270>)
(<DMatch 0000029466B27290>, <DMatch 0000029466B272B0>)
(<DMatch 0000029466B272D0>, <DMatch 0000029466B272F0>)
(<DMatch 0000029466B27310>, <DMatch 0000029466B27330>)
(<DMatch 0000029466B27370>, <DMatch 0000029466B27390>)
(<DMatch 0000029466B273B0>, <DMatch 0000029466B273D0>)
(<DMatch 0000029466B273F0>, <DMatch 0000029466B27410>)
(<DMatch 0000029466B27430>, <DMatch 0000029466B27450>)
(<DMatch 0000029466B27470>, <DMatch 0000029466B27490>)
(<DMatch 0000029466B274B0>, <DMatch 0000029466B274D0>)
(<DMatch 0000029466B274F0>, <DMatch 0000029466B27510>)
(<DMatch 0000029466B27530>, <DMatch 0000029466B27550>)
(<DMatch 0000029466B27570>, <DMatch 0000029466B27590>)
(<DMatch 0000029466B275B0>, <DMatch 0000029466B275D0>)
(<DMatch 0000029466B275F0>, <DMatch 0000029466B27610>)
(<DMatch 0000029466B27630>, <DMatch 0000029466B27650>)
(<DMatch 0000029466B27670>, <DMatch 0000029466B27690>)
(<DMatch 0000029466B276B0>, <DMatch 0000029466B276D0>)
(<DMatch 0000029466B276F0>, <DMatch 0000029466B27710>)
(<DMatch 0000029466B27730>, <DMatch 0000029466B27770>)
(<DMatch 0000029466B27790>, <DMatch 0000029466B277B0>)
(<DMatch 0000029466B277D0>, <DMatch 0000029466B277F0>)
(<DMatch 0000029466B27810>, <DMatch 0000029466B27830>)
(<DMatch 0000029466B27850>, <DMatch 0000029466B27870>)
(<DMatch 0000029466B27890>, <DMatch 0000029466B278B0>)
(<DMatch 0000029466B278D0>, <DMatch 0000029466B278F0>)
(<DMatch 0000029466B27930>, <DMatch 0000029466B27970>)
(<DMatch 0000029466B27990>, <DMatch 0000029466B279B0>)
(<DMatch 0000029466B279F0>, <DMatch 0000029466B27A10>)
(<DMatch 0000029466B27A30>, <DMatch 0000029466B27A50>)
(<DMatch 0000029466B27A70>, <DMatch 0000029466B27AB0>)
(<DMatch 0000029466B27AD0>, <DMatch 0000029466B27AF0>)
(<DMatch 0000029466B27B10>, <DMatch 0000029466B27B30>)
(<DMatch 0000029466B27B50>, <DMatch 0000029466B27B70>)
(<DMatch 0000029466B27B90>, <DMatch 0000029466B27BB0>)
(<DMatch 0000029466B27BD0>, <DMatch 0000029466B27BF0>)
(<DMatch 0000029466B27C10>, <DMatch 0000029466B27C30>)
(<DMatch 0000029466B27C50>, <DMatch 0000029466B27C70>)
(<DMatch 0000029466B27C90>, <DMatch 0000029466B27CB0>)
(<DMatch 0000029466B27CD0>, <DMatch 0000029466B27CF0>)
(<DMatch 0000029466B27D10>, <DMatch 0000029466B27D30>)
(<DMatch 0000029466B27D50>, <DMatch 0000029466B27D70>)
(<DMatch 0000029466B27D90>, <DMatch 0000029466B27DB0>)
(<DMatch 0000029466B27DD0>, <DMatch 0000029466B27DF0>)
(<DMatch 0000029466B27E10>, <DMatch 0000029466B27E30>)
(<DMatch 0000029466B27E50>, <DMatch 0000029466B27E70>)
(<DMatch 0000029466B27E90>, <DMatch 0000029466B27EB0>)
(<DMatch 0000029466B27ED0>, <DMatch 0000029466B27EF0>)
(<DMatch 0000029466B27F10>, <DMatch 0000029466B27F30>)
(<DMatch 0000029466B27F50>, <DMatch 0000029466B27F70>)
(<DMatch 0000029466B27F90>, <DMatch 0000029466B27FB0>)
(<DMatch 0000029466B27FD0>, <DMatch 0000029466B2A030>)
(<DMatch 0000029466B2A050>, <DMatch 0000029466B2A070>)
(<DMatch 0000029466B2A090>, <DMatch 0000029466B2A0B0>)
(<DMatch 0000029466B2A0D0>, <DMatch 0000029466B2A0F0>)
(<DMatch 0000029466B2A110>, <DMatch 0000029466B2A130>)
(<DMatch 0000029466B2A150>, <DMatch 0000029466B2A170>)
(<DMatch 0000029466B2A1B0>, <DMatch 0000029466B2A1D0>)
(<DMatch 0000029466B2A1F0>, <DMatch 0000029466B2A210>)
(<DMatch 0000029466B2A230>, <DMatch 0000029466B2A250>)
(<DMatch 0000029466B2A270>, <DMatch 0000029466B2A2B0>)
(<DMatch 0000029466B2A2D0>, <DMatch 0000029466B2A2F0>)
(<DMatch 0000029466B2A310>, <DMatch 0000029466B2A330>)
(<DMatch 0000029466B2A350>, <DMatch 0000029466B2A370>)
(<DMatch 0000029466B2A390>, <DMatch 0000029466B2A3B0>)
(<DMatch 0000029466B2A3F0>, <DMatch 0000029466B2A410>)
(<DMatch 0000029466B2A430>, <DMatch 0000029466B2A470>)
(<DMatch 0000029466B2A4B0>, <DMatch 0000029466B2A4D0>)
(<DMatch 0000029466B2A4F0>, <DMatch 0000029466B2A510>)
(<DMatch 0000029466B2A530>, <DMatch 0000029466B2A550>)
(<DMatch 0000029466B2A570>, <DMatch 0000029466B2A590>)
(<DMatch 0000029466B2A5B0>, <DMatch 0000029466B2A5D0>)
(<DMatch 0000029466B2A5F0>, <DMatch 0000029466B2A630>)
(<DMatch 0000029466B2A650>, <DMatch 0000029466B2A670>)
(<DMatch 0000029466B2A6B0>, <DMatch 0000029466B2A6D0>)
(<DMatch 0000029466B2A6F0>, <DMatch 0000029466B2A710>)
(<DMatch 0000029466B2A730>, <DMatch 0000029466B2A750>)
(<DMatch 0000029466B2A770>, <DMatch 0000029466B2A790>)
(<DMatch 0000029466B2A7B0>, <DMatch 0000029466B2A7D0>)
(<DMatch 0000029466B2A7F0>, <DMatch 0000029466B2A810>)
(<DMatch 0000029466B2A830>, <DMatch 0000029466B2A850>)
(<DMatch 0000029466B2A870>, <DMatch 0000029466B2A890>)
(<DMatch 0000029466B2A8B0>, <DMatch 0000029466B2A8D0>)
(<DMatch 0000029466B2A8F0>, <DMatch 0000029466B2A910>)
(<DMatch 0000029466B2A930>, <DMatch 0000029466B2A950>)
(<DMatch 0000029466B2A970>, <DMatch 0000029466B2A990>)
(<DMatch 0000029466B2A9B0>, <DMatch 0000029466B2A9D0>)
(<DMatch 0000029466B2A9F0>, <DMatch 0000029466B2AA10>)
(<DMatch 0000029466B2AA30>, <DMatch 0000029466B2AA70>)
(<DMatch 0000029466B2AA90>, <DMatch 0000029466B2AAB0>)
(<DMatch 0000029466B2AAD0>, <DMatch 0000029466B2AAF0>)
(<DMatch 0000029466B2AB10>, <DMatch 0000029466B2AB30>)
(<DMatch 0000029466B2AB70>, <DMatch 0000029466B2AB90>)
(<DMatch 0000029466B2ABB0>, <DMatch 0000029466B2ABD0>)
(<DMatch 0000029466B2ABF0>, <DMatch 0000029466B2AC10>)
(<DMatch 0000029466B2AC30>, <DMatch 0000029466B2AC50>)
(<DMatch 0000029466B2AC70>, <DMatch 0000029466B2AC90>)
(<DMatch 0000029466B2ACB0>, <DMatch 0000029466B2ACD0>)
(<DMatch 0000029466B2ACF0>, <DMatch 0000029466B2AD30>)
(<DMatch 0000029466B2AD50>, <DMatch 0000029466B2AD70>)
(<DMatch 0000029466B2AD90>, <DMatch 0000029466B2ADB0>)
(<DMatch 0000029466B2ADD0>, <DMatch 0000029466B2ADF0>)
(<DMatch 0000029466B2AE10>, <DMatch 0000029466B2AE30>)
(<DMatch 0000029466B2AE50>, <DMatch 0000029466B2AE70>)
(<DMatch 0000029466B2AE90>, <DMatch 0000029466B2AEB0>)
(<DMatch 0000029466B2AED0>, <DMatch 0000029466B2AEF0>)
(<DMatch 0000029466B2AF10>, <DMatch 0000029466B2AF30>)
(<DMatch 0000029466B2AF50>, <DMatch 0000029466B2AF70>)
(<DMatch 0000029466B2AF90>, <DMatch 0000029466B2AFB0>)
(<DMatch 0000029466B2AFD0>, <DMatch 0000029466B2D030>)
(<DMatch 0000029466B2D050>, <DMatch 0000029466B2D070>)
(<DMatch 0000029466B2D090>, <DMatch 0000029466B2D0B0>)
(<DMatch 0000029466B2D0D0>, <DMatch 0000029466B2D0F0>)
(<DMatch 0000029466B2D110>, <DMatch 0000029466B2D130>)
(<DMatch 0000029466B2D150>, <DMatch 0000029466B2D170>)
(<DMatch 0000029466B2D190>, <DMatch 0000029466B2D1B0>)
(<DMatch 0000029466B2D1D0>, <DMatch 0000029466B2D1F0>)
(<DMatch 0000029466B2D210>, <DMatch 0000029466B2D230>)
(<DMatch 0000029466B2D250>, <DMatch 0000029466B2D270>)
(<DMatch 0000029466B2D290>, <DMatch 0000029466B2D2B0>)
(<DMatch 0000029466B2D2D0>, <DMatch 0000029466B2D2F0>)
(<DMatch 0000029466B2D310>, <DMatch 0000029466B2D330>)
(<DMatch 0000029466B2D350>, <DMatch 0000029466B2D370>)
(<DMatch 0000029466B2D390>, <DMatch 0000029466B2D3B0>)
(<DMatch 0000029466B2D3D0>, <DMatch 0000029466B2D3F0>)
(<DMatch 0000029466B2D410>, <DMatch 0000029466B2D430>)
(<DMatch 0000029466B2D450>, <DMatch 0000029466B2D470>)
(<DMatch 0000029466B2D490>, <DMatch 0000029466B2D4B0>)
(<DMatch 0000029466B2D4D0>, <DMatch 0000029466B2D4F0>)
(<DMatch 0000029466B2D510>, <DMatch 0000029466B2D530>)
(<DMatch 0000029466B2D550>, <DMatch 0000029466B2D570>)
(<DMatch 0000029466B2D590>, <DMatch 0000029466B2D5B0>)
(<DMatch 0000029466B2D5D0>, <DMatch 0000029466B2D5F0>)
(<DMatch 0000029466B2D610>, <DMatch 0000029466B2D630>)
(<DMatch 0000029466B2D650>, <DMatch 0000029466B2D670>)
(<DMatch 0000029466B2D690>, <DMatch 0000029466B2D6B0>)
(<DMatch 0000029466B2D6D0>, <DMatch 0000029466B2D6F0>)
(<DMatch 0000029466B2D710>, <DMatch 0000029466B2D730>)
(<DMatch 0000029466B2D750>, <DMatch 0000029466B2D770>)
(<DMatch 0000029466B2D790>, <DMatch 0000029466B2D7B0>)
(<DMatch 0000029466B2D7D0>, <DMatch 0000029466B2D7F0>)
(<DMatch 0000029466B2D810>, <DMatch 0000029466B2D830>)
(<DMatch 0000029466B2D850>, <DMatch 0000029466B2D870>)
(<DMatch 0000029466B2D890>, <DMatch 0000029466B2D8B0>)
(<DMatch 0000029466B2D8D0>, <DMatch 0000029466B2D8F0>)
(<DMatch 0000029466B2D910>, <DMatch 0000029466B2D930>)
(<DMatch 0000029466B2D950>, <DMatch 0000029466B2D970>)
(<DMatch 0000029466B2D990>, <DMatch 0000029466B2D9B0>)
(<DMatch 0000029466B2D9D0>, <DMatch 0000029466B2D9F0>)
(<DMatch 0000029466B2DA10>, <DMatch 0000029466B2DA30>)
(<DMatch 0000029466B2DA50>, <DMatch 0000029466B2DA70>)
(<DMatch 0000029466B2DA90>, <DMatch 0000029466B2DAB0>)
(<DMatch 0000029466B2DAD0>, <DMatch 0000029466B2DAF0>)
(<DMatch 0000029466B2DB10>, <DMatch 0000029466B2DB30>)
(<DMatch 0000029466B2DB50>, <DMatch 0000029466B2DB70>)
(<DMatch 0000029466B2DB90>, <DMatch 0000029466B2DBB0>)
(<DMatch 0000029466B2DBD0>, <DMatch 0000029466B2DBF0>)
(<DMatch 0000029466B2DC10>, <DMatch 0000029466B2DC30>)
(<DMatch 0000029466B2DC50>, <DMatch 0000029466B2DC70>)
(<DMatch 0000029466B2DC90>, <DMatch 0000029466B2DCB0>)
(<DMatch 0000029466B2DCD0>, <DMatch 0000029466B2DCF0>)
(<DMatch 0000029466B2DD10>, <DMatch 0000029466B2DD30>)
(<DMatch 0000029466B2DD50>, <DMatch 0000029466B2DD70>)
(<DMatch 0000029466B2DDB0>, <DMatch 0000029466B2DDD0>)
(<DMatch 0000029466B2DDF0>, <DMatch 0000029466B2DE10>)
(<DMatch 0000029466B2DE30>, <DMatch 0000029466B2DE50>)
(<DMatch 0000029466B2DE70>, <DMatch 0000029466B2DE90>)
(<DMatch 0000029466B2DEB0>, <DMatch 0000029466B2DED0>)
(<DMatch 0000029466B2DEF0>, <DMatch 0000029466B2DF10>)
(<DMatch 0000029466B2DF30>, <DMatch 0000029466B2DF50>)
(<DMatch 0000029466B2DF70>, <DMatch 0000029466B2DF90>)
(<DMatch 0000029466B2DFB0>, <DMatch 0000029466B2DFD0>)
(<DMatch 0000029466B2E030>, <DMatch 0000029466B2E050>)
(<DMatch 0000029466B2E070>, <DMatch 0000029466B2E090>)
(<DMatch 0000029466B2E0B0>, <DMatch 0000029466B2E0D0>)
(<DMatch 0000029466B2E0F0>, <DMatch 0000029466B2E110>)
(<DMatch 0000029466B2E130>, <DMatch 0000029466B2E150>)
(<DMatch 0000029466B2E170>, <DMatch 0000029466B2E190>)
(<DMatch 0000029466B2E1B0>, <DMatch 0000029466B2E1D0>)
(<DMatch 0000029466B2E1F0>, <DMatch 0000029466B2E210>)
(<DMatch 0000029466B2E230>, <DMatch 0000029466B2E250>)
(<DMatch 0000029466B2E270>, <DMatch 0000029466B2E290>)
(<DMatch 0000029466B2E2B0>, <DMatch 0000029466B2E2D0>)
(<DMatch 0000029466B2E2F0>, <DMatch 0000029466B2E310>)
(<DMatch 0000029466B2E330>, <DMatch 0000029466B2E350>)
(<DMatch 0000029466B2E370>, <DMatch 0000029466B2E390>)
(<DMatch 0000029466B2E3B0>, <DMatch 0000029466B2E3D0>)
(<DMatch 0000029466B2E3F0>, <DMatch 0000029466B2E430>)
(<DMatch 0000029466B2E450>, <DMatch 0000029466B2E470>)
(<DMatch 0000029466B2E490>, <DMatch 0000029466B2E4B0>)
(<DMatch 0000029466B2E4D0>, <DMatch 0000029466B2E4F0>)
(<DMatch 0000029466B2E510>, <DMatch 0000029466B2E530>)
(<DMatch 0000029466B2E550>, <DMatch 0000029466B2E570>)
(<DMatch 0000029466B2E590>, <DMatch 0000029466B2E5B0>)
(<DMatch 0000029466B2E5D0>, <DMatch 0000029466B2E5F0>)
(<DMatch 0000029466B2E610>, <DMatch 0000029466B2E630>)
(<DMatch 0000029466B2E650>, <DMatch 0000029466B2E670>)
(<DMatch 0000029466B2E690>, <DMatch 0000029466B2E6B0>)
(<DMatch 0000029466B2E6D0>, <DMatch 0000029466B2E6F0>)
(<DMatch 0000029466B2E710>, <DMatch 0000029466B2E730>)
(<DMatch 0000029466B2E750>, <DMatch 0000029466B2E770>)
(<DMatch 0000029466B2E790>, <DMatch 0000029466B2E7B0>)
(<DMatch 0000029466B2E7D0>, <DMatch 0000029466B2E7F0>)
(<DMatch 0000029466B2E810>, <DMatch 0000029466B2E830>)
(<DMatch 0000029466B2E850>, <DMatch 0000029466B2E870>)
(<DMatch 0000029466B2E890>, <DMatch 0000029466B2E8B0>)
(<DMatch 0000029466B2E8D0>, <DMatch 0000029466B2E8F0>)
(<DMatch 0000029466B2E910>, <DMatch 0000029466B2E930>)
(<DMatch 0000029466B2E950>, <DMatch 0000029466B2E970>)
(<DMatch 0000029466B2E990>, <DMatch 0000029466B2E9B0>)
(<DMatch 0000029466B2E9D0>, <DMatch 0000029466B2E9F0>)
(<DMatch 0000029466B2EA10>, <DMatch 0000029466B2EA30>)
(<DMatch 0000029466B2EA50>, <DMatch 0000029466B2EA70>)
(<DMatch 0000029466B2EA90>, <DMatch 0000029466B2EAB0>)
(<DMatch 0000029466B2EAD0>, <DMatch 0000029466B2EAF0>)
(<DMatch 0000029466B2EB10>, <DMatch 0000029466B2EB30>)
(<DMatch 0000029466B2EB50>, <DMatch 0000029466B2EB70>)
(<DMatch 0000029466B2EB90>, <DMatch 0000029466B2EBB0>)
(<DMatch 0000029466B2EBD0>, <DMatch 0000029466B2EBF0>)
(<DMatch 0000029466B2EC10>, <DMatch 0000029466B2EC30>)
(<DMatch 0000029466B2EC50>, <DMatch 0000029466B2EC70>)
(<DMatch 0000029466B2EC90>, <DMatch 0000029466B2ECB0>)
(<DMatch 0000029466B2ECD0>, <DMatch 0000029466B2ECF0>)
(<DMatch 0000029466B2ED10>, <DMatch 0000029466B2ED30>)
(<DMatch 0000029466B2ED50>, <DMatch 0000029466B2ED70>)
(<DMatch 0000029466B2ED90>, <DMatch 0000029466B2EDB0>)
(<DMatch 0000029466B2EDD0>, <DMatch 0000029466B2EDF0>)
(<DMatch 0000029466B2EE10>, <DMatch 0000029466B2EE30>)
(<DMatch 0000029466B2EE50>, <DMatch 0000029466B2EE70>)
(<DMatch 0000029466B2EE90>, <DMatch 0000029466B2EEB0>)
(<DMatch 0000029466B2EED0>, <DMatch 0000029466B2EEF0>)
(<DMatch 0000029466B2EF10>, <DMatch 0000029466B2EF30>)
(<DMatch 0000029466B2EF50>, <DMatch 0000029466B2EF70>)
(<DMatch 0000029466B2EF90>, <DMatch 0000029466B2EFB0>)
(<DMatch 0000029466B2EFD0>, <DMatch 0000029466B2F030>)
(<DMatch 0000029466B2F050>, <DMatch 0000029466B2F070>)
(<DMatch 0000029466B2F090>, <DMatch 0000029466B2F0B0>)
(<DMatch 0000029466B2F0D0>, <DMatch 0000029466B2F0F0>)
(<DMatch 0000029466B2F110>, <DMatch 0000029466B2F130>)
(<DMatch 0000029466B2F150>, <DMatch 0000029466B2F170>)
(<DMatch 0000029466B2F190>, <DMatch 0000029466B2F1B0>)
(<DMatch 0000029466B2F1D0>, <DMatch 0000029466B2F1F0>)
(<DMatch 0000029466B2F210>, <DMatch 0000029466B2F230>)
(<DMatch 0000029466B2F250>, <DMatch 0000029466B2F270>)
(<DMatch 0000029466B2F290>, <DMatch 0000029466B2F2B0>)
(<DMatch 0000029466B2F2D0>, <DMatch 0000029466B2F2F0>)
(<DMatch 0000029466B2F310>, <DMatch 0000029466B2F330>)
(<DMatch 0000029466B2F350>, <DMatch 0000029466B2F370>)
(<DMatch 0000029466B2F390>, <DMatch 0000029466B2F3B0>)
(<DMatch 0000029466B2F3D0>, <DMatch 0000029466B2F3F0>)
(<DMatch 0000029466B2F410>, <DMatch 0000029466B2F430>)
(<DMatch 0000029466B2F450>, <DMatch 0000029466B2F470>)
(<DMatch 0000029466B2F490>, <DMatch 0000029466B2F4B0>)
(<DMatch 0000029466B2F4D0>, <DMatch 0000029466B2F4F0>)
(<DMatch 0000029466B2F510>, <DMatch 0000029466B2F530>)
(<DMatch 0000029466B2F550>, <DMatch 0000029466B2F570>)
(<DMatch 0000029466B2F5B0>, <DMatch 0000029466B2F5D0>)
(<DMatch 0000029466B2F5F0>, <DMatch 0000029466B2F610>)
(<DMatch 0000029466B2F630>, <DMatch 0000029466B2F650>)
(<DMatch 0000029466B2F670>, <DMatch 0000029466B2F690>)
(<DMatch 0000029466B2F6B0>, <DMatch 0000029466B2F6D0>)
(<DMatch 0000029466B2F6F0>, <DMatch 0000029466B2F710>)
(<DMatch 0000029466B2F730>, <DMatch 0000029466B2F750>)
(<DMatch 0000029466B2F770>, <DMatch 0000029466B2F790>)
(<DMatch 0000029466B2F7B0>, <DMatch 0000029466B2F7D0>)
(<DMatch 0000029466B2F7F0>, <DMatch 0000029466B2F810>)
(<DMatch 0000029466B2F830>, <DMatch 0000029466B2F850>)
(<DMatch 0000029466B2F870>, <DMatch 0000029466B2F890>)
(<DMatch 0000029466B2F8B0>, <DMatch 0000029466B2F8D0>)
(<DMatch 0000029466B2F8F0>, <DMatch 0000029466B2F910>)
(<DMatch 0000029466B2F930>, <DMatch 0000029466B2F950>)
(<DMatch 0000029466B2F970>, <DMatch 0000029466B2F990>)
(<DMatch 0000029466B2F9B0>, <DMatch 0000029466B2F9D0>)
(<DMatch 0000029466B2F9F0>, <DMatch 0000029466B2FA10>)
(<DMatch 0000029466B2FA30>, <DMatch 0000029466B2FA50>)
(<DMatch 0000029466B2FA70>, <DMatch 0000029466B2FA90>)
(<DMatch 0000029466B2FAB0>, <DMatch 0000029466B2FAD0>)
(<DMatch 0000029466B2FAF0>, <DMatch 0000029466B2FB10>)
(<DMatch 0000029466B2FB30>, <DMatch 0000029466B2FB50>)
(<DMatch 0000029466B2FB70>, <DMatch 0000029466B2FB90>)
(<DMatch 0000029466B2FBB0>, <DMatch 0000029466B2FBD0>)
(<DMatch 0000029466B2FBF0>, <DMatch 0000029466B2FC10>)
(<DMatch 0000029466B2FC30>, <DMatch 0000029466B2FC50>)
(<DMatch 0000029466B2FC70>, <DMatch 0000029466B2FC90>)
(<DMatch 0000029466B2FCB0>, <DMatch 0000029466B2FCD0>)
(<DMatch 0000029466B2FCF0>, <DMatch 0000029466B2FD10>)
(<DMatch 0000029466B2FD30>, <DMatch 0000029466B2FD50>)
(<DMatch 0000029466B2FD70>, <DMatch 0000029466B2FDB0>)
(<DMatch 0000029466B2FDF0>, <DMatch 0000029466B2FE10>)
(<DMatch 0000029466B2FE30>, <DMatch 0000029466B2FE50>)
(<DMatch 0000029466B2FE70>, <DMatch 0000029466B2FE90>)
(<DMatch 0000029466B2FEB0>, <DMatch 0000029466B2FED0>)
(<DMatch 0000029466B2FEF0>, <DMatch 0000029466B2FF10>)
(<DMatch 0000029466B2FF30>, <DMatch 0000029466B2FF50>)
(<DMatch 0000029466B2FF70>, <DMatch 0000029466B2FF90>)
(<DMatch 0000029466B2FFB0>, <DMatch 0000029466B2FFD0>)
(<DMatch 0000029403B03030>, <DMatch 0000029403B03050>)
(<DMatch 0000029403B03070>, <DMatch 0000029403B03090>)
(<DMatch 0000029403B030B0>, <DMatch 0000029403B030D0>)
(<DMatch 0000029403B030F0>, <DMatch 0000029403B03110>)
(<DMatch 0000029403B03130>, <DMatch 0000029403B03150>)
(<DMatch 0000029403B03170>, <DMatch 0000029403B03190>)
(<DMatch 0000029403B031B0>, <DMatch 0000029403B031D0>)
(<DMatch 0000029403B031F0>, <DMatch 0000029403B03210>)
(<DMatch 0000029403B03230>, <DMatch 0000029403B03250>)
(<DMatch 0000029403B03270>, <DMatch 0000029403B03290>)
(<DMatch 0000029403B032B0>, <DMatch 0000029403B032D0>)
(<DMatch 0000029403B032F0>, <DMatch 0000029403B03310>)
(<DMatch 0000029403B03330>, <DMatch 0000029403B03350>)
(<DMatch 0000029403B03370>, <DMatch 0000029403B03390>)
(<DMatch 0000029403B033B0>, <DMatch 0000029403B033D0>)
(<DMatch 0000029403B033F0>, <DMatch 0000029403B03410>)
(<DMatch 0000029403B03430>, <DMatch 0000029403B03450>)
(<DMatch 0000029403B03470>, <DMatch 0000029403B03490>)
(<DMatch 0000029403B034B0>, <DMatch 0000029403B034D0>)
(<DMatch 0000029403B034F0>, <DMatch 0000029403B03510>)
(<DMatch 0000029403B03530>, <DMatch 0000029403B03550>)
(<DMatch 0000029403B03570>, <DMatch 0000029403B03590>)
(<DMatch 0000029403B035B0>, <DMatch 0000029403B035F0>)
(<DMatch 0000029403B03610>, <DMatch 0000029403B03630>)
(<DMatch 0000029403B03650>, <DMatch 0000029403B03670>)
(<DMatch 0000029403B03690>, <DMatch 0000029403B036B0>)
(<DMatch 0000029403B036D0>, <DMatch 0000029403B036F0>)
(<DMatch 0000029403B03710>, <DMatch 0000029403B03730>)
(<DMatch 0000029403B03750>, <DMatch 0000029403B03770>)
(<DMatch 0000029403B03790>, <DMatch 0000029403B037B0>)
(<DMatch 0000029403B037D0>, <DMatch 0000029403B037F0>)
(<DMatch 0000029403B03810>, <DMatch 0000029403B03830>)
(<DMatch 0000029403B03870>, <DMatch 0000029403B03890>)
(<DMatch 0000029403B038B0>, <DMatch 0000029403B038D0>)
(<DMatch 0000029403B038F0>, <DMatch 0000029403B03910>)
(<DMatch 0000029403B03930>, <DMatch 0000029403B03950>)
(<DMatch 0000029403B03970>, <DMatch 0000029403B03990>)
(<DMatch 0000029403B039B0>, <DMatch 0000029403B039F0>)
(<DMatch 0000029403B03A10>, <DMatch 0000029403B03A30>)
(<DMatch 0000029403B03A50>, <DMatch 0000029403B03A70>)
(<DMatch 0000029403B03A90>, <DMatch 0000029403B03AB0>)
(<DMatch 0000029403B03AF0>, <DMatch 0000029403B03B30>)
(<DMatch 0000029403B03B50>, <DMatch 0000029403B03B70>)
(<DMatch 0000029403B03B90>, <DMatch 0000029403B03BB0>)
(<DMatch 0000029403B03BD0>, <DMatch 0000029403B03BF0>)
(<DMatch 0000029403B03C10>, <DMatch 0000029403B03C30>)
(<DMatch 0000029403B03C50>, <DMatch 0000029403B03C70>)
(<DMatch 0000029403B03C90>, <DMatch 0000029403B03CB0>)
(<DMatch 0000029403B03CD0>, <DMatch 0000029403B03CF0>)
(<DMatch 0000029403B03D10>, <DMatch 0000029403B03D30>)
(<DMatch 0000029403B03D50>, <DMatch 0000029403B03D70>)
(<DMatch 0000029403B03D90>, <DMatch 0000029403B03DB0>)
(<DMatch 0000029403B03DD0>, <DMatch 0000029403B03DF0>)
(<DMatch 0000029403B03E10>, <DMatch 0000029403B03E30>)
(<DMatch 0000029403B03E50>, <DMatch 0000029403B03E70>)
(<DMatch 0000029403B03E90>, <DMatch 0000029403B03EB0>)
(<DMatch 0000029403B03ED0>, <DMatch 0000029403B03EF0>)
(<DMatch 0000029403B03F10>, <DMatch 0000029403B03F30>)
(<DMatch 0000029403B03F50>, <DMatch 0000029403B03F70>)
(<DMatch 0000029403B03F90>, <DMatch 0000029403B03FB0>)
(<DMatch 0000029403B03FD0>, <DMatch 0000029403B07030>)
(<DMatch 0000029403B07050>, <DMatch 0000029403B07070>)
(<DMatch 0000029403B07090>, <DMatch 0000029403B070B0>)
(<DMatch 0000029403B070D0>, <DMatch 0000029403B070F0>)
(<DMatch 0000029403B07110>, <DMatch 0000029403B07130>)
(<DMatch 0000029403B07150>, <DMatch 0000029403B07170>)
(<DMatch 0000029403B07190>, <DMatch 0000029403B071B0>)
(<DMatch 0000029403B071D0>, <DMatch 0000029403B071F0>)
(<DMatch 0000029403B07210>, <DMatch 0000029403B07230>)
(<DMatch 0000029403B07250>, <DMatch 0000029403B07270>)
(<DMatch 0000029403B072B0>, <DMatch 0000029403B072D0>)
(<DMatch 0000029403B072F0>, <DMatch 0000029403B07310>)
(<DMatch 0000029403B07330>, <DMatch 0000029403B07350>)
(<DMatch 0000029403B07370>, <DMatch 0000029403B07390>)
(<DMatch 0000029403B073B0>, <DMatch 0000029403B073D0>)
(<DMatch 0000029403B073F0>, <DMatch 0000029403B07410>)
(<DMatch 0000029403B07430>, <DMatch 0000029403B07450>)
(<DMatch 0000029403B07470>, <DMatch 0000029403B07490>)
(<DMatch 0000029403B074B0>, <DMatch 0000029403B074D0>)
(<DMatch 0000029403B074F0>, <DMatch 0000029403B07510>)
(<DMatch 0000029403B07530>, <DMatch 0000029403B07550>)
(<DMatch 0000029403B07570>, <DMatch 0000029403B07590>)
(<DMatch 0000029403B075B0>, <DMatch 0000029403B075D0>)
(<DMatch 0000029403B075F0>, <DMatch 0000029403B07610>)
(<DMatch 0000029403B07630>, <DMatch 0000029403B07650>)
(<DMatch 0000029403B07670>, <DMatch 0000029403B07690>)
(<DMatch 0000029403B076B0>, <DMatch 0000029403B076D0>)
(<DMatch 0000029403B076F0>, <DMatch 0000029403B07710>)
(<DMatch 0000029403B07730>, <DMatch 0000029403B07750>)
(<DMatch 0000029403B07770>, <DMatch 0000029403B07790>)
(<DMatch 0000029403B077B0>, <DMatch 0000029403B077D0>)
(<DMatch 0000029403B077F0>, <DMatch 0000029403B07810>)
(<DMatch 0000029403B07830>, <DMatch 0000029403B07850>)
(<DMatch 0000029403B07870>, <DMatch 0000029403B07890>)
(<DMatch 0000029403B078B0>, <DMatch 0000029403B078F0>)
(<DMatch 0000029403B07910>, <DMatch 0000029403B07930>)
(<DMatch 0000029403B07970>, <DMatch 0000029403B07990>)
(<DMatch 0000029403B079B0>, <DMatch 0000029403B079D0>)
(<DMatch 0000029403B079F0>, <DMatch 0000029403B07A10>)
(<DMatch 0000029403B07A30>, <DMatch 0000029403B07A50>)
(<DMatch 0000029403B07A70>, <DMatch 0000029403B07A90>)
(<DMatch 0000029403B07AB0>, <DMatch 0000029403B07AD0>)
(<DMatch 0000029403B07AF0>, <DMatch 0000029403B07B10>)
(<DMatch 0000029403B07B30>, <DMatch 0000029403B07B70>)
(<DMatch 0000029403B07B90>, <DMatch 0000029403B07BB0>)
(<DMatch 0000029403B07BD0>, <DMatch 0000029403B07BF0>)
(<DMatch 0000029403B07C10>, <DMatch 0000029403B07C30>)
(<DMatch 0000029403B07C70>, <DMatch 0000029403B07C90>)
(<DMatch 0000029403B07CB0>, <DMatch 0000029403B07CD0>)
(<DMatch 0000029403B07CF0>, <DMatch 0000029403B07D10>)
(<DMatch 0000029403B07D30>, <DMatch 0000029403B07D50>)
(<DMatch 0000029403B07D70>, <DMatch 0000029403B07D90>)
(<DMatch 0000029403B07DB0>, <DMatch 0000029403B07DD0>)
(<DMatch 0000029403B07DF0>, <DMatch 0000029403B07E10>)
(<DMatch 0000029403B07E30>, <DMatch 0000029403B07E50>)
(<DMatch 0000029403B07E70>, <DMatch 0000029403B07E90>)
(<DMatch 0000029403B07EB0>, <DMatch 0000029403B07ED0>)
(<DMatch 0000029403B07EF0>, <DMatch 0000029403B07F10>)
(<DMatch 0000029403B07F30>, <DMatch 0000029403B07F50>)
(<DMatch 0000029403B07F70>, <DMatch 0000029403B07F90>)
(<DMatch 0000029403B07FB0>, <DMatch 0000029403B07FD0>)
(<DMatch 0000029403B09030>, <DMatch 0000029403B09050>)
(<DMatch 0000029403B09070>, <DMatch 0000029403B09090>)
(<DMatch 0000029403B090B0>, <DMatch 0000029403B090D0>)
(<DMatch 0000029403B090F0>, <DMatch 0000029403B09110>)
(<DMatch 0000029403B09130>, <DMatch 0000029403B09150>)
(<DMatch 0000029403B09170>, <DMatch 0000029403B091B0>)
(<DMatch 0000029403B091D0>, <DMatch 0000029403B091F0>)
(<DMatch 0000029403B09210>, <DMatch 0000029403B09230>)
(<DMatch 0000029403B09250>, <DMatch 0000029403B09270>)
(<DMatch 0000029403B09290>, <DMatch 0000029403B092B0>)
(<DMatch 0000029403B092D0>, <DMatch 0000029403B092F0>)
(<DMatch 0000029403B09310>, <DMatch 0000029403B09330>)
(<DMatch 0000029403B09350>, <DMatch 0000029403B09370>)
(<DMatch 0000029403B09390>, <DMatch 0000029403B093B0>)
(<DMatch 0000029403B093D0>, <DMatch 0000029403B093F0>)
(<DMatch 0000029403B09410>, <DMatch 0000029403B09430>)
(<DMatch 0000029403B09450>, <DMatch 0000029403B09470>)
(<DMatch 0000029403B09490>, <DMatch 0000029403B094B0>)
(<DMatch 0000029403B094D0>, <DMatch 0000029403B094F0>)
(<DMatch 0000029403B09510>, <DMatch 0000029403B09530>)
(<DMatch 0000029403B09550>, <DMatch 0000029403B09570>)
(<DMatch 0000029403B09590>, <DMatch 0000029403B095B0>)
(<DMatch 0000029403B095D0>, <DMatch 0000029403B095F0>)
(<DMatch 0000029403B09630>, <DMatch 0000029403B09650>)
(<DMatch 0000029403B09670>, <DMatch 0000029403B09690>)
(<DMatch 0000029403B096B0>, <DMatch 0000029403B096D0>)
(<DMatch 0000029403B096F0>, <DMatch 0000029403B09710>)
(<DMatch 0000029403B09730>, <DMatch 0000029403B09750>)
(<DMatch 0000029403B09770>, <DMatch 0000029403B09790>)
(<DMatch 0000029403B097B0>, <DMatch 0000029403B097D0>)
(<DMatch 0000029403B097F0>, <DMatch 0000029403B09810>)
(<DMatch 0000029403B09830>, <DMatch 0000029403B09850>)
(<DMatch 0000029403B09870>, <DMatch 0000029403B09890>)
(<DMatch 0000029403B098B0>, <DMatch 0000029403B098D0>)
(<DMatch 0000029403B098F0>, <DMatch 0000029403B09910>)
(<DMatch 0000029403B09930>, <DMatch 0000029403B09950>)
(<DMatch 0000029403B09970>, <DMatch 0000029403B09990>)
(<DMatch 0000029403B099B0>, <DMatch 0000029403B099D0>)
(<DMatch 0000029403B099F0>, <DMatch 0000029403B09A10>)
(<DMatch 0000029403B09A30>, <DMatch 0000029403B09A50>)
(<DMatch 0000029403B09A70>, <DMatch 0000029403B09A90>)
(<DMatch 0000029403B09AB0>, <DMatch 0000029403B1F4D0>)
(<DMatch 0000029403B1F4F0>, <DMatch 0000029403B1F510>)
(<DMatch 0000029403B1F530>, <DMatch 0000029403B1F550>)
(<DMatch 0000029403B1F570>, <DMatch 0000029403B1F5B0>)
(<DMatch 0000029403B1F5D0>, <DMatch 0000029403B1F5F0>)
(<DMatch 0000029403B1F610>, <DMatch 0000029403B1F630>)
(<DMatch 0000029403B1F650>, <DMatch 0000029403B1F670>)
(<DMatch 0000029403B1F690>, <DMatch 0000029403B1F6B0>)
(<DMatch 0000029403B1F6D0>, <DMatch 0000029403B1F6F0>)
(<DMatch 0000029403B1F710>, <DMatch 0000029403B1F730>)
(<DMatch 0000029403B1F750>, <DMatch 0000029403B1F770>)
(<DMatch 0000029403B1F790>, <DMatch 0000029403B1F7B0>)
(<DMatch 0000029403B1F7D0>, <DMatch 0000029403B1F7F0>)
(<DMatch 0000029403B1F810>, <DMatch 0000029403B1F830>)
(<DMatch 0000029403B1F850>, <DMatch 0000029403B1F870>)
(<DMatch 0000029403B1F890>, <DMatch 0000029403B1F8B0>)
(<DMatch 0000029403B1F8D0>, <DMatch 0000029403B1F8F0>)
(<DMatch 0000029403B1F910>, <DMatch 0000029403B1F930>)
(<DMatch 0000029403B1F950>, <DMatch 0000029403B1F970>)
(<DMatch 0000029403B1F990>, <DMatch 0000029403B1F9B0>)
(<DMatch 0000029403B1F9D0>, <DMatch 0000029403B1F9F0>)
(<DMatch 0000029403B1FA10>, <DMatch 0000029403B1FA30>)
(<DMatch 0000029403B67030>, <DMatch 0000029403B67050>)
(<DMatch 0000029403B67070>, <DMatch 0000029403B67090>)
(<DMatch 0000029403B670B0>, <DMatch 0000029403B670D0>)
(<DMatch 0000029403B670F0>, <DMatch 0000029403B67110>)
(<DMatch 0000029403B67130>, <DMatch 0000029403B67150>)
(<DMatch 0000029403B67170>, <DMatch 0000029403B67190>)
(<DMatch 0000029403AF4910>, <DMatch 0000029403AF4930>)
(<DMatch 0000029403AF4950>, <DMatch 0000029403AF4970>)
(<DMatch 0000029403AF4990>, <DMatch 0000029403AF49B0>)
(<DMatch 0000029403AF49D0>, <DMatch 0000029403AF49F0>)
(<DMatch 0000029403AF4A10>, <DMatch 0000029403AF4A30>)
(<DMatch 0000029403AF4A50>, <DMatch 0000029403AF4A70>)
(<DMatch 0000029403AF4A90>, <DMatch 0000029403AF4AB0>)
(<DMatch 0000029403AF4AD0>, <DMatch 0000029403AF4AF0>)
(<DMatch 0000029403AF4B10>, <DMatch 0000029403AF4B30>)
(<DMatch 0000029403AF4B50>, <DMatch 0000029403AF4B70>)
(<DMatch 0000029403AF4B90>, <DMatch 0000029403AF4BB0>)
(<DMatch 0000029403AF4BD0>, <DMatch 0000029403AF4BF0>)
(<DMatch 0000029403AF4C10>, <DMatch 0000029403AF4C30>)
(<DMatch 0000029403AF4C50>, <DMatch 0000029403AF4C70>)
(<DMatch 0000029403AF4C90>, <DMatch 0000029403AF4CB0>)
(<DMatch 0000029403AF4CD0>, <DMatch 0000029403AF4CF0>)
(<DMatch 0000029403AF4D10>, <DMatch 0000029403AF4D30>)
(<DMatch 0000029403AF4D50>, <DMatch 0000029403AF4D70>)
(<DMatch 0000029403AF4D90>, <DMatch 0000029403AF4DB0>)
(<DMatch 0000029403AF4DD0>, <DMatch 0000029403AF4DF0>)
(<DMatch 0000029403AF4E10>, <DMatch 0000029403AF4E30>)
(<DMatch 0000029403AF4E50>, <DMatch 0000029403AF4E70>)
(<DMatch 0000029403AF4E90>, <DMatch 0000029403AF4EB0>)
(<DMatch 0000029403AF4ED0>, <DMatch 0000029403AF4EF0>)
(<DMatch 0000029403AF4F10>, <DMatch 0000029403AF4F30>)
(<DMatch 0000029403AF4F50>, <DMatch 0000029403AF4F70>)
(<DMatch 0000029403AF4F90>, <DMatch 0000029403AF4FB0>)
(<DMatch 0000029403AF4FD0>, <DMatch 0000029403B55030>)
(<DMatch 0000029403B55050>, <DMatch 0000029403B55070>)
(<DMatch 0000029403B55090>, <DMatch 0000029403B550B0>)
(<DMatch 0000029403B550D0>, <DMatch 0000029403B550F0>)
(<DMatch 0000029403B55110>, <DMatch 0000029403B55130>)
(<DMatch 0000029403B55150>, <DMatch 0000029403B55170>)
(<DMatch 0000029403B55190>, <DMatch 0000029403B551B0>)
(<DMatch 0000029403B551D0>, <DMatch 0000029403B551F0>)
(<DMatch 0000029403B55210>, <DMatch 0000029403B55230>)
(<DMatch 0000029403B55250>, <DMatch 0000029403B55270>)
(<DMatch 0000029403B55290>, <DMatch 0000029403B552B0>)
(<DMatch 0000029403B552D0>, <DMatch 0000029403B552F0>)
(<DMatch 0000029403B55310>, <DMatch 0000029403B55330>)
(<DMatch 0000029403B55350>, <DMatch 0000029403B55370>)
(<DMatch 0000029403B55390>, <DMatch 0000029403B553B0>)
(<DMatch 0000029403B553D0>, <DMatch 0000029403B553F0>)
(<DMatch 0000029403B55410>, <DMatch 0000029403B55430>)
(<DMatch 0000029403B55450>, <DMatch 0000029403B55470>)
(<DMatch 0000029403B55490>, <DMatch 0000029403B554B0>)
(<DMatch 0000029403B554D0>, <DMatch 0000029403B554F0>)
(<DMatch 0000029403B55510>, <DMatch 0000029403B55530>)
(<DMatch 0000029403B55550>, <DMatch 0000029403B55570>)
(<DMatch 0000029403B55590>, <DMatch 0000029403B555B0>)
(<DMatch 0000029403B555D0>, <DMatch 0000029403B555F0>)
(<DMatch 0000029403B55610>, <DMatch 0000029403B55630>)
(<DMatch 0000029403B55650>, <DMatch 0000029403B55670>)
(<DMatch 0000029403B55690>, <DMatch 0000029403B556B0>)
(<DMatch 0000029403B556D0>, <DMatch 0000029403B556F0>)
(<DMatch 0000029403B55710>, <DMatch 0000029403B55730>)
(<DMatch 0000029403B55750>, <DMatch 0000029403B55770>)
(<DMatch 0000029403B55790>, <DMatch 0000029403B557B0>)
(<DMatch 0000029403B557D0>, <DMatch 0000029403B557F0>)
(<DMatch 0000029403B55810>, <DMatch 0000029403B55830>)
(<DMatch 0000029403B55850>, <DMatch 0000029403B55870>)
(<DMatch 0000029403B55890>, <DMatch 0000029403B558B0>)
(<DMatch 0000029403B558D0>, <DMatch 0000029403B558F0>)
(<DMatch 0000029403B55910>, <DMatch 0000029403B55930>)
(<DMatch 0000029403B55950>, <DMatch 0000029403B55970>)
(<DMatch 0000029403B55990>, <DMatch 0000029403B559B0>)
(<DMatch 0000029403B559D0>, <DMatch 0000029403B559F0>)
(<DMatch 0000029403B55A10>, <DMatch 0000029403B55A30>)
(<DMatch 0000029403B55A50>, <DMatch 0000029403B55A70>)
(<DMatch 0000029403B55A90>, <DMatch 0000029403B55AB0>)
(<DMatch 0000029403B55AD0>, <DMatch 0000029403B55AF0>)
(<DMatch 0000029403B55B10>, <DMatch 0000029403B55B30>)
(<DMatch 0000029403B55B50>, <DMatch 0000029403B55B70>)
(<DMatch 0000029403B55B90>, <DMatch 0000029403B55BB0>)
(<DMatch 0000029403B55BD0>, <DMatch 0000029403B55BF0>)
(<DMatch 0000029403B55C10>, <DMatch 0000029403B55C30>)
(<DMatch 0000029403B55C50>, <DMatch 0000029403B55C70>)
(<DMatch 0000029403B55C90>, <DMatch 0000029403B55CB0>)
(<DMatch 0000029403B55CD0>, <DMatch 0000029403B55CF0>)
(<DMatch 0000029403B55D10>, <DMatch 0000029403B55D30>)
(<DMatch 0000029403B55D50>, <DMatch 0000029403B55D70>)
(<DMatch 0000029403B55D90>, <DMatch 0000029403B55DB0>)
(<DMatch 0000029403B55DD0>, <DMatch 0000029403B55DF0>)
(<DMatch 0000029403B55E10>, <DMatch 0000029403B55E30>)
(<DMatch 0000029403B55E50>, <DMatch 0000029403B55E70>)
(<DMatch 0000029403B55E90>, <DMatch 0000029403B55EB0>)
(<DMatch 0000029403B55ED0>, <DMatch 0000029403B55EF0>)
(<DMatch 0000029403B55F10>, <DMatch 0000029403B55F30>)
(<DMatch 0000029403B55F50>, <DMatch 0000029403B55F70>)
(<DMatch 0000029403B55F90>, <DMatch 0000029403B55FB0>)
(<DMatch 0000029403B55FD0>, <DMatch 0000029403B50030>)
(<DMatch 0000029403B50050>, <DMatch 0000029403B50070>)
(<DMatch 0000029403B50090>, <DMatch 0000029403B500B0>)
(<DMatch 0000029403B500D0>, <DMatch 0000029403B500F0>)
(<DMatch 0000029403B50110>, <DMatch 0000029403B50130>)
(<DMatch 0000029403B50150>, <DMatch 0000029403B50170>)
(<DMatch 0000029403B50190>, <DMatch 0000029403B501B0>)
(<DMatch 0000029403B501D0>, <DMatch 0000029403B501F0>)
(<DMatch 0000029403B50210>, <DMatch 0000029403B50230>)
(<DMatch 0000029403B50250>, <DMatch 0000029403B50270>)
(<DMatch 0000029403B50290>, <DMatch 0000029403B502B0>)
(<DMatch 0000029403B502D0>, <DMatch 0000029403B502F0>)
(<DMatch 0000029403B50310>, <DMatch 0000029403B50330>)
(<DMatch 0000029403B50350>, <DMatch 0000029403B50370>)
(<DMatch 0000029403B50390>, <DMatch 0000029403B503B0>)
(<DMatch 0000029403B503D0>, <DMatch 0000029403B503F0>)
(<DMatch 0000029403B50410>, <DMatch 0000029403B50430>)
(<DMatch 0000029403B50450>, <DMatch 0000029403B50470>)
(<DMatch 0000029403B50490>, <DMatch 0000029403B504B0>)
(<DMatch 0000029403B504D0>, <DMatch 0000029403B504F0>)
(<DMatch 0000029403B50510>, <DMatch 0000029403B50530>)
(<DMatch 0000029403B50550>, <DMatch 0000029403B50570>)
(<DMatch 0000029403B50590>, <DMatch 0000029403B505B0>)
(<DMatch 0000029403B505D0>, <DMatch 0000029403B505F0>)
(<DMatch 0000029403B50610>, <DMatch 0000029403B50630>)
(<DMatch 0000029403B50650>, <DMatch 0000029403B50670>)
(<DMatch 0000029403B50690>, <DMatch 0000029403B506B0>)
(<DMatch 0000029403B506D0>, <DMatch 0000029403B506F0>)
(<DMatch 0000029403B50710>, <DMatch 0000029403B50730>)
(<DMatch 0000029403B50750>, <DMatch 0000029403B50770>)
(<DMatch 0000029403B50790>, <DMatch 0000029403B507B0>)
(<DMatch 0000029403B507D0>, <DMatch 0000029403B507F0>)
(<DMatch 0000029403B50810>, <DMatch 0000029403B50830>)
(<DMatch 0000029403B50850>, <DMatch 0000029403B50870>)
(<DMatch 0000029403B50890>, <DMatch 0000029403B508B0>)
(<DMatch 0000029403B508D0>, <DMatch 0000029403B508F0>)
(<DMatch 0000029403B50910>, <DMatch 0000029403B50930>)
(<DMatch 0000029403B50950>, <DMatch 0000029403B50970>)
(<DMatch 0000029403B50990>, <DMatch 0000029403B509B0>)
(<DMatch 0000029403B509D0>, <DMatch 0000029403B509F0>)
(<DMatch 0000029403B50A10>, <DMatch 0000029403B50A30>)
(<DMatch 0000029403B50A50>, <DMatch 0000029403B50A70>)
(<DMatch 0000029403B50A90>, <DMatch 0000029403B50AB0>)
(<DMatch 0000029403B50AD0>, <DMatch 0000029403B50AF0>)
(<DMatch 0000029403B50B10>, <DMatch 0000029403B50B30>)
(<DMatch 0000029403B50B50>, <DMatch 0000029403B50B70>)
(<DMatch 0000029403B50B90>, <DMatch 0000029403B50BB0>)
(<DMatch 0000029403B50BD0>, <DMatch 0000029403B50BF0>)
(<DMatch 0000029403B50C10>, <DMatch 0000029403B50C30>)
(<DMatch 0000029403B50C50>, <DMatch 0000029403B50C70>)
(<DMatch 0000029403B50C90>, <DMatch 0000029403B50CB0>)
(<DMatch 0000029403B50CD0>, <DMatch 0000029403B50CF0>)
(<DMatch 0000029403B50D10>, <DMatch 0000029403B50D30>)
(<DMatch 0000029403B50D50>, <DMatch 0000029403B50D70>)
(<DMatch 0000029403B50D90>, <DMatch 0000029403B50DB0>)
(<DMatch 0000029403B50DD0>, <DMatch 0000029403B50DF0>)
(<DMatch 0000029403B50E10>, <DMatch 0000029403B50E30>)
(<DMatch 0000029403B50E50>, <DMatch 0000029403B50E70>)
(<DMatch 0000029403B50E90>, <DMatch 0000029403B50EB0>)
(<DMatch 0000029403B50ED0>, <DMatch 0000029403B50EF0>)
(<DMatch 0000029403B50F10>, <DMatch 0000029403B50F30>)
(<DMatch 0000029403B50F50>, <DMatch 0000029403B50F70>)
(<DMatch 0000029403B50F90>, <DMatch 0000029403B50FB0>)
(<DMatch 0000029403B50FD0>, <DMatch 0000029403B65030>)
(<DMatch 0000029403B65050>, <DMatch 0000029403B65070>)
(<DMatch 0000029403B65090>, <DMatch 0000029403B650B0>)
(<DMatch 0000029403B650D0>, <DMatch 0000029403B650F0>)
(<DMatch 0000029403B65110>, <DMatch 0000029403B65130>)
(<DMatch 0000029403B65150>, <DMatch 0000029403B65170>)
(<DMatch 0000029403B65190>, <DMatch 0000029403B651B0>)
(<DMatch 0000029403B651D0>, <DMatch 0000029403B651F0>)
(<DMatch 0000029403B65210>, <DMatch 0000029403B65230>)
(<DMatch 0000029403B65250>, <DMatch 0000029403B65270>)
(<DMatch 0000029403B65290>, <DMatch 0000029403B652B0>)
(<DMatch 0000029403B652D0>, <DMatch 0000029403B652F0>)
(<DMatch 0000029403B65310>, <DMatch 0000029403B65330>)
(<DMatch 0000029403B65350>, <DMatch 0000029403B65370>)
(<DMatch 0000029403B65390>, <DMatch 0000029403B653B0>)
(<DMatch 0000029403B653D0>, <DMatch 0000029403B653F0>)
(<DMatch 0000029403B65410>, <DMatch 0000029403B65430>)
(<DMatch 0000029403B65450>, <DMatch 0000029403B65470>)
(<DMatch 0000029403B65490>, <DMatch 0000029403B654B0>)
(<DMatch 0000029403B654D0>, <DMatch 0000029403B654F0>)
(<DMatch 0000029403B65510>, <DMatch 0000029403B65530>)
(<DMatch 0000029403B65550>, <DMatch 0000029403B65570>)
(<DMatch 0000029403B65590>, <DMatch 0000029403B655B0>)
(<DMatch 0000029403B655D0>, <DMatch 0000029403B655F0>)
(<DMatch 0000029403B65610>, <DMatch 0000029403B65630>)
(<DMatch 0000029403B65650>, <DMatch 0000029403B65670>)
(<DMatch 0000029403B65690>, <DMatch 0000029403B656B0>)
(<DMatch 0000029403B656D0>, <DMatch 0000029403B656F0>)
(<DMatch 0000029403B65710>, <DMatch 0000029403B65730>)
(<DMatch 0000029403B65750>, <DMatch 0000029403B65770>)
(<DMatch 0000029403B65790>, <DMatch 0000029403B657B0>)
(<DMatch 0000029403B657D0>, <DMatch 0000029403B657F0>)
(<DMatch 0000029403B65810>, <DMatch 0000029403B65830>)
(<DMatch 0000029403B65850>, <DMatch 0000029403B65870>)
(<DMatch 0000029403B65890>, <DMatch 0000029403B658B0>)
(<DMatch 0000029403B658D0>, <DMatch 0000029403B658F0>)
(<DMatch 0000029403B65910>, <DMatch 0000029403B65930>)
(<DMatch 0000029403B65950>, <DMatch 0000029403B65970>)
(<DMatch 0000029403B65990>, <DMatch 0000029403B659B0>)
(<DMatch 0000029403B659D0>, <DMatch 0000029403B659F0>)
(<DMatch 0000029403B65A10>, <DMatch 0000029403B65A30>)
(<DMatch 0000029403B65A50>, <DMatch 0000029403B65A70>)
(<DMatch 0000029403B65A90>, <DMatch 0000029403B65AB0>)
(<DMatch 0000029403B65AD0>, <DMatch 0000029403B65AF0>)
(<DMatch 0000029403B65B10>, <DMatch 0000029403B65B30>)
(<DMatch 0000029403B65B50>, <DMatch 0000029403B65B70>)
(<DMatch 0000029403B65B90>, <DMatch 0000029403B65BB0>)
(<DMatch 0000029403B65BD0>, <DMatch 0000029403B65BF0>)
(<DMatch 0000029403B65C10>, <DMatch 0000029403B65C30>)
(<DMatch 0000029403B65C50>, <DMatch 0000029403B65C70>)
(<DMatch 0000029403B65C90>, <DMatch 0000029403B65CB0>)
(<DMatch 0000029403B65CD0>, <DMatch 0000029403B65CF0>)
(<DMatch 0000029403B65D10>, <DMatch 0000029403B65D30>)
(<DMatch 0000029403B65D50>, <DMatch 0000029403B65D70>)
(<DMatch 0000029403B65D90>, <DMatch 0000029403B65DB0>)
(<DMatch 0000029403B65DD0>, <DMatch 0000029403B65DF0>)
(<DMatch 0000029403B65E10>, <DMatch 0000029403B65E30>)
(<DMatch 0000029403B65E50>, <DMatch 0000029403B65E70>)
(<DMatch 0000029403B65E90>, <DMatch 0000029403B65EB0>)
(<DMatch 0000029403B65ED0>, <DMatch 0000029403B65EF0>)
(<DMatch 0000029403B65F10>, <DMatch 0000029403B65F30>)
(<DMatch 0000029403B65F50>, <DMatch 0000029403B65F70>)
(<DMatch 0000029403B65F90>, <DMatch 0000029403B65FB0>)
(<DMatch 0000029403B65FD0>, <DMatch 0000029403B61030>)
(<DMatch 0000029403B61050>, <DMatch 0000029403B61070>)
(<DMatch 0000029403B61090>, <DMatch 0000029403B610B0>)
(<DMatch 0000029403B610D0>, <DMatch 0000029403B610F0>)
(<DMatch 0000029403B61110>, <DMatch 0000029403B61130>)
(<DMatch 0000029403B61150>, <DMatch 0000029403B61170>)
(<DMatch 0000029403B61190>, <DMatch 0000029403B611B0>)
(<DMatch 0000029403B611D0>, <DMatch 0000029403B611F0>)
(<DMatch 0000029403B61210>, <DMatch 0000029403B61230>)
(<DMatch 0000029403B61250>, <DMatch 0000029403B61270>)
(<DMatch 0000029403B61290>, <DMatch 0000029403B612B0>)
(<DMatch 0000029403B612D0>, <DMatch 0000029403B612F0>)
(<DMatch 0000029403B61310>, <DMatch 0000029403B61330>)
(<DMatch 0000029403B61350>, <DMatch 0000029403B61370>)
(<DMatch 0000029403B61390>, <DMatch 0000029403B613B0>)
(<DMatch 0000029403B613D0>, <DMatch 0000029403B613F0>)
(<DMatch 0000029403B61410>, <DMatch 0000029403B61430>)
(<DMatch 0000029403B61450>, <DMatch 0000029403B61470>)
(<DMatch 0000029403B61490>, <DMatch 0000029403B614B0>)
(<DMatch 0000029403B614D0>, <DMatch 0000029403B614F0>)
(<DMatch 0000029403B61510>, <DMatch 0000029403B61530>)
(<DMatch 0000029403B61550>, <DMatch 0000029403B61570>)
(<DMatch 0000029403B61590>, <DMatch 0000029403B615B0>)
(<DMatch 0000029403B615D0>, <DMatch 0000029403B615F0>)
(<DMatch 0000029403B61610>, <DMatch 0000029403B61630>)
(<DMatch 0000029403B61650>, <DMatch 0000029403B61670>)
(<DMatch 0000029403B61690>, <DMatch 0000029403B616B0>)
(<DMatch 0000029403B616D0>, <DMatch 0000029403B616F0>)
(<DMatch 0000029403B61710>, <DMatch 0000029403B61730>)
(<DMatch 0000029403B61750>, <DMatch 0000029403B61770>)
(<DMatch 0000029403B61790>, <DMatch 0000029403B617B0>)
(<DMatch 0000029403B617D0>, <DMatch 0000029403B617F0>)
(<DMatch 0000029403B61810>, <DMatch 0000029403B61830>)
(<DMatch 0000029403B61850>, <DMatch 0000029403B61870>)
(<DMatch 0000029403B61890>, <DMatch 0000029403B618B0>)
(<DMatch 0000029403B618D0>, <DMatch 0000029403B618F0>)
(<DMatch 0000029403B61910>, <DMatch 0000029403B61930>)
(<DMatch 0000029403B61950>, <DMatch 0000029403B61970>)
(<DMatch 0000029403B61990>, <DMatch 0000029403B619B0>)
(<DMatch 0000029403B619D0>, <DMatch 0000029403B619F0>)
(<DMatch 0000029403B61A10>, <DMatch 0000029403B61A30>)
(<DMatch 0000029403B61A50>, <DMatch 0000029403B61A70>)
(<DMatch 0000029403B61A90>, <DMatch 0000029403B61AB0>)
(<DMatch 0000029403B61AD0>, <DMatch 0000029403B61AF0>)
(<DMatch 0000029403B61B10>, <DMatch 0000029403B61B30>)
(<DMatch 0000029403B61B50>, <DMatch 0000029403B61B70>)
(<DMatch 0000029403B61B90>, <DMatch 0000029403B61BB0>)
(<DMatch 0000029403B61BD0>, <DMatch 0000029403B61BF0>)
(<DMatch 0000029403B61C10>, <DMatch 0000029403B61C30>)
(<DMatch 0000029403B61C50>, <DMatch 0000029403B61C70>)
(<DMatch 0000029403B61C90>, <DMatch 0000029403B61CB0>)
(<DMatch 0000029403B61CD0>, <DMatch 0000029403B61CF0>)
(<DMatch 0000029403B61D10>, <DMatch 0000029403B61D30>)
(<DMatch 0000029403B61D50>, <DMatch 0000029403B61D70>)
(<DMatch 0000029403B61D90>, <DMatch 0000029403B61DB0>)
(<DMatch 0000029403B61DD0>, <DMatch 0000029403B61DF0>)
(<DMatch 0000029403B61E10>, <DMatch 0000029403B61E30>)
(<DMatch 0000029403B61E50>, <DMatch 0000029403B61E70>)
(<DMatch 0000029403B61E90>, <DMatch 0000029403B61EB0>)
(<DMatch 0000029403B61ED0>, <DMatch 0000029403B61EF0>)
(<DMatch 0000029403B61F10>, <DMatch 0000029403B61F30>)
(<DMatch 0000029403B61F50>, <DMatch 0000029403B61F70>)
(<DMatch 0000029403B61F90>, <DMatch 0000029403B61FB0>)
(<DMatch 0000029403B61FD0>, <DMatch 0000029403B5D030>)
(<DMatch 0000029403B5D050>, <DMatch 0000029403B5D070>)
(<DMatch 0000029403B5D090>, <DMatch 0000029403B5D0B0>)
(<DMatch 0000029403B5D0D0>, <DMatch 0000029403B5D0F0>)
(<DMatch 0000029403B5D110>, <DMatch 0000029403B5D130>)
(<DMatch 0000029403B5D150>, <DMatch 0000029403B5D170>)
(<DMatch 0000029403B5D190>, <DMatch 0000029403B5D1B0>)
(<DMatch 0000029403B5D1D0>, <DMatch 0000029403B5D1F0>)
(<DMatch 0000029403B5D210>, <DMatch 0000029403B5D230>)
(<DMatch 0000029403B5D250>, <DMatch 0000029403B5D270>)
(<DMatch 0000029403B5D290>, <DMatch 0000029403B5D2B0>)
(<DMatch 0000029403B5D2D0>, <DMatch 0000029403B5D2F0>)
(<DMatch 0000029403B5D310>, <DMatch 0000029403B5D330>)
(<DMatch 0000029403B5D350>, <DMatch 0000029403B5D370>)
(<DMatch 0000029403B5D390>, <DMatch 0000029403B5D3B0>)
(<DMatch 0000029403B5D3D0>, <DMatch 0000029403B5D3F0>)
(<DMatch 0000029403B5D410>, <DMatch 0000029403B5D430>)
(<DMatch 0000029403B5D450>, <DMatch 0000029403B5D470>)
(<DMatch 0000029403B5D490>, <DMatch 0000029403B5D4B0>)
(<DMatch 0000029403B5D4D0>, <DMatch 0000029403B5D4F0>)
(<DMatch 0000029403B5D510>, <DMatch 0000029403B5D530>)
(<DMatch 0000029403B5D550>, <DMatch 0000029403B5D570>)
(<DMatch 0000029403B5D590>, <DMatch 0000029403B5D5B0>)
(<DMatch 0000029403B5D5D0>, <DMatch 0000029403B5D5F0>)
(<DMatch 0000029403B5D610>, <DMatch 0000029403B5D630>)
(<DMatch 0000029403B5D650>, <DMatch 0000029403B5D670>)
(<DMatch 0000029403B5D690>, <DMatch 0000029403B5D6B0>)
(<DMatch 0000029403B5D6D0>, <DMatch 0000029403B5D6F0>)
(<DMatch 0000029403B5D710>, <DMatch 0000029403B5D730>)
(<DMatch 0000029403B5D750>, <DMatch 0000029403B5D770>)
(<DMatch 0000029403B5D790>, <DMatch 0000029403B5D7B0>)
(<DMatch 0000029403B5D7D0>, <DMatch 0000029403B5D7F0>)
(<DMatch 0000029403B5D810>, <DMatch 0000029403B5D830>)
(<DMatch 0000029403B5D850>, <DMatch 0000029403B5D870>)
(<DMatch 0000029403B5D890>, <DMatch 0000029403B5D8B0>)
(<DMatch 0000029403B5D8D0>, <DMatch 0000029403B5D8F0>)
(<DMatch 0000029403B5D910>, <DMatch 0000029403B5D930>)
(<DMatch 0000029403B5D950>, <DMatch 0000029403B5D970>)
(<DMatch 0000029403B5D990>, <DMatch 0000029403B5D9B0>)
(<DMatch 0000029403B5D9D0>, <DMatch 0000029403B5D9F0>)
(<DMatch 0000029403B5DA10>, <DMatch 0000029403B5DA30>)
(<DMatch 0000029403B5DA50>, <DMatch 0000029403B5DA70>)
(<DMatch 0000029403B5DA90>, <DMatch 0000029403B5DAB0>)
(<DMatch 0000029403B5DAD0>, <DMatch 0000029403B5DAF0>)
(<DMatch 0000029403B5DB10>, <DMatch 0000029403B5DB30>)
(<DMatch 0000029403B5DB50>, <DMatch 0000029403B5DB70>)
(<DMatch 0000029403B5DB90>, <DMatch 0000029403B5DBB0>)
(<DMatch 0000029403B5DBD0>, <DMatch 0000029403B5DBF0>)
(<DMatch 0000029403B5DC10>, <DMatch 0000029403B5DC30>)
(<DMatch 0000029403B5DC50>, <DMatch 0000029403B5DC70>)
(<DMatch 0000029403B5DC90>, <DMatch 0000029403B5DCB0>)
(<DMatch 0000029403B5DCD0>, <DMatch 0000029403B5DCF0>)
(<DMatch 0000029403B5DD10>, <DMatch 0000029403B5DD30>)
(<DMatch 0000029403B5DD50>, <DMatch 0000029403B5DD70>)
(<DMatch 0000029403B5DD90>, <DMatch 0000029403B5DDB0>)
(<DMatch 0000029403B5DDD0>, <DMatch 0000029403B5DDF0>)
(<DMatch 0000029403B5DE10>, <DMatch 0000029403B5DE30>)
(<DMatch 0000029403B5DE50>, <DMatch 0000029403B5DE70>)
(<DMatch 0000029403B5DE90>, <DMatch 0000029403B5DEB0>)
(<DMatch 0000029403B5DED0>, <DMatch 0000029403B5DEF0>)
(<DMatch 0000029403B5DF10>, <DMatch 0000029403B5DF30>)
(<DMatch 0000029403B5DF50>, <DMatch 0000029403B5DF70>)
(<DMatch 0000029403B5DF90>, <DMatch 0000029403B5DFB0>)
(<DMatch 0000029403B5DFD0>, <DMatch 0000029403B57030>)
(<DMatch 0000029403B57050>, <DMatch 0000029403B57070>)
(<DMatch 0000029403B57090>, <DMatch 0000029403B570B0>)
(<DMatch 0000029403B570D0>, <DMatch 0000029403B570F0>)
(<DMatch 0000029403B57110>, <DMatch 0000029403B57130>)
(<DMatch 0000029403B57150>, <DMatch 0000029403B57170>)
(<DMatch 0000029403B57190>, <DMatch 0000029403B571B0>)
(<DMatch 0000029403B571D0>, <DMatch 0000029403B571F0>)
(<DMatch 0000029403B57210>, <DMatch 0000029403B57230>)
(<DMatch 0000029403B57250>, <DMatch 0000029403B57270>)
(<DMatch 0000029403B57290>, <DMatch 0000029403B572B0>)
(<DMatch 0000029403B572D0>, <DMatch 0000029403B572F0>)
(<DMatch 0000029403B57310>, <DMatch 0000029403B57330>)
(<DMatch 0000029403B57350>, <DMatch 0000029403B57370>)
(<DMatch 0000029403B57390>, <DMatch 0000029403B573B0>)
(<DMatch 0000029403B573D0>, <DMatch 0000029403B573F0>)
(<DMatch 0000029403B57410>, <DMatch 0000029403B57430>)
(<DMatch 0000029403B57450>, <DMatch 0000029403B57470>)
(<DMatch 0000029403B57490>, <DMatch 0000029403B574B0>)
(<DMatch 0000029403B574D0>, <DMatch 0000029403B574F0>)
(<DMatch 0000029403B57510>, <DMatch 0000029403B57530>)
(<DMatch 0000029403B57550>, <DMatch 0000029403B57570>)
(<DMatch 0000029403B57590>, <DMatch 0000029403B575B0>)
(<DMatch 0000029403B575D0>, <DMatch 0000029403B575F0>)
(<DMatch 0000029403B57610>, <DMatch 0000029403B57630>)
(<DMatch 0000029403B57650>, <DMatch 0000029403B57670>)
(<DMatch 0000029403B57690>, <DMatch 0000029403B576B0>)
(<DMatch 0000029403B576D0>, <DMatch 0000029403B576F0>)
(<DMatch 0000029403B57710>, <DMatch 0000029403B57730>)
(<DMatch 0000029403B57750>, <DMatch 0000029403B57770>)
(<DMatch 0000029403B57790>, <DMatch 0000029403B577B0>)
(<DMatch 0000029403B577D0>, <DMatch 0000029403B577F0>)
(<DMatch 0000029403B57810>, <DMatch 0000029403B57830>)
(<DMatch 0000029403B57850>, <DMatch 0000029403B57870>)
(<DMatch 0000029403B57890>, <DMatch 0000029403B578B0>)
(<DMatch 0000029403B578D0>, <DMatch 0000029403B578F0>)
(<DMatch 0000029403B57910>, <DMatch 0000029403B57930>)
(<DMatch 0000029403B57950>, <DMatch 0000029403B57970>)
(<DMatch 0000029403B57990>, <DMatch 0000029403B579B0>)
(<DMatch 0000029403B579D0>, <DMatch 0000029403B579F0>)
(<DMatch 0000029403B57A10>, <DMatch 0000029403B57A30>)
(<DMatch 0000029403B57A50>, <DMatch 0000029403B57A70>)
(<DMatch 0000029403B57A90>, <DMatch 0000029403B57AB0>)
(<DMatch 0000029403B57AD0>, <DMatch 0000029403B57AF0>)
(<DMatch 0000029403B57B10>, <DMatch 0000029403B57B30>)
(<DMatch 0000029403B57B50>, <DMatch 0000029403B57B70>)
(<DMatch 0000029403B57B90>, <DMatch 0000029403B57BB0>)
(<DMatch 0000029403B57BD0>, <DMatch 0000029403B57BF0>)
(<DMatch 0000029403B57C10>, <DMatch 0000029403B57C30>)
(<DMatch 0000029403B57C50>, <DMatch 0000029403B57C70>)
(<DMatch 0000029403B57C90>, <DMatch 0000029403B57CB0>)
(<DMatch 0000029403B57CD0>, <DMatch 0000029403B57CF0>)
(<DMatch 0000029403B57D10>, <DMatch 0000029403B57D30>)
(<DMatch 0000029403B57D50>, <DMatch 0000029403B57D70>)
(<DMatch 0000029403B57D90>, <DMatch 0000029403B57DB0>)
(<DMatch 0000029403B57DD0>, <DMatch 0000029403B57DF0>)
(<DMatch 0000029403B57E10>, <DMatch 0000029403B57E30>)
(<DMatch 0000029403B57E50>, <DMatch 0000029403B57E70>)
(<DMatch 0000029403B57E90>, <DMatch 0000029403B57EB0>)
(<DMatch 0000029403B57ED0>, <DMatch 0000029403B57EF0>)
(<DMatch 0000029403B57F10>, <DMatch 0000029403B57F30>)
(<DMatch 0000029403B57F50>, <DMatch 0000029403B57F70>)
(<DMatch 0000029403B57F90>, <DMatch 0000029403B57FB0>)
(<DMatch 0000029403B57FD0>, <DMatch 0000029403B59030>)
(<DMatch 0000029403B59050>, <DMatch 0000029403B59070>)
(<DMatch 0000029403B59090>, <DMatch 0000029403B590B0>)
(<DMatch 0000029403B590D0>, <DMatch 0000029403B590F0>)
(<DMatch 0000029403B59110>, <DMatch 0000029403B59130>)
(<DMatch 0000029403B59150>, <DMatch 0000029403B59170>)
(<DMatch 0000029403B59190>, <DMatch 0000029403B591B0>)
(<DMatch 0000029403B591D0>, <DMatch 0000029403B591F0>)
(<DMatch 0000029403B59210>, <DMatch 0000029403B59230>)
(<DMatch 0000029403B59250>, <DMatch 0000029403B59270>)
(<DMatch 0000029403B59290>, <DMatch 0000029403B592B0>)
(<DMatch 0000029403B592D0>, <DMatch 0000029403B592F0>)
(<DMatch 0000029403B59310>, <DMatch 0000029403B59330>)
(<DMatch 0000029403B59350>, <DMatch 0000029403B59370>)
(<DMatch 0000029403B59390>, <DMatch 0000029403B593B0>)
(<DMatch 0000029403B593D0>, <DMatch 0000029403B593F0>)
(<DMatch 0000029403B59410>, <DMatch 0000029403B59430>)
(<DMatch 0000029403B59450>, <DMatch 0000029403B59470>)
(<DMatch 0000029403B59490>, <DMatch 0000029403B594B0>)
(<DMatch 0000029403B594D0>, <DMatch 0000029403B594F0>)
(<DMatch 0000029403B59510>, <DMatch 0000029403B59530>)
(<DMatch 0000029403B59550>, <DMatch 0000029403B59570>)
(<DMatch 0000029403B59590>, <DMatch 0000029403B595B0>)
(<DMatch 0000029403B595D0>, <DMatch 0000029403B595F0>)
(<DMatch 0000029403B59610>, <DMatch 0000029403B59630>)
(<DMatch 0000029403B59650>, <DMatch 0000029403B59670>)
(<DMatch 0000029403B59690>, <DMatch 0000029403B596B0>)
(<DMatch 0000029403B596D0>, <DMatch 0000029403B596F0>)
(<DMatch 0000029403B59710>, <DMatch 0000029403B59730>)
(<DMatch 0000029403B59750>, <DMatch 0000029403B59770>)
(<DMatch 0000029403B59790>, <DMatch 0000029403B597B0>)
(<DMatch 0000029403B597D0>, <DMatch 0000029403B597F0>)
(<DMatch 0000029403B59810>, <DMatch 0000029403B59830>)
(<DMatch 0000029403B59850>, <DMatch 0000029403B59870>)
(<DMatch 0000029403B59890>, <DMatch 0000029403B598B0>)
(<DMatch 0000029403B598D0>, <DMatch 0000029403B598F0>)
(<DMatch 0000029403B59910>, <DMatch 0000029403B59930>)
(<DMatch 0000029403B59950>, <DMatch 0000029403B59970>)
(<DMatch 0000029403B59990>, <DMatch 0000029403B599B0>)
(<DMatch 0000029403B599D0>, <DMatch 0000029403B599F0>)
(<DMatch 0000029403B59A10>, <DMatch 0000029403B59A30>)
(<DMatch 0000029403B59A50>, <DMatch 0000029403B59A70>)
(<DMatch 0000029403B59A90>, <DMatch 0000029403B59AB0>)
(<DMatch 0000029403B59AD0>, <DMatch 0000029403B59AF0>)
(<DMatch 0000029403B59B10>, <DMatch 0000029403B59B30>)
(<DMatch 0000029403B59B50>, <DMatch 0000029403B59B70>)
(<DMatch 0000029403B59B90>, <DMatch 0000029403B59BB0>)
(<DMatch 0000029403B59BD0>, <DMatch 0000029403B59BF0>)
(<DMatch 0000029403B59C10>, <DMatch 0000029403B59C30>)
(<DMatch 0000029403B59C50>, <DMatch 0000029403B59C70>)
(<DMatch 0000029403B59C90>, <DMatch 0000029403B59CB0>)
(<DMatch 0000029403B59CD0>, <DMatch 0000029403B59CF0>)
(<DMatch 0000029403B59D10>, <DMatch 0000029403B59D30>)
(<DMatch 0000029403B59D50>, <DMatch 0000029403B59D70>)
(<DMatch 0000029403B59D90>, <DMatch 0000029403B59DB0>)
(<DMatch 0000029403B59DD0>, <DMatch 0000029403B59DF0>)
(<DMatch 0000029403B59E10>, <DMatch 0000029403B59E30>)
(<DMatch 0000029403B59E50>, <DMatch 0000029403B59E70>)
(<DMatch 0000029403B59E90>, <DMatch 0000029403B59EB0>)
(<DMatch 0000029403B59ED0>, <DMatch 0000029403B59EF0>)
(<DMatch 0000029403B59F10>, <DMatch 0000029403B59F30>)
(<DMatch 0000029403B59F50>, <DMatch 0000029403B59F70>)
(<DMatch 0000029403B59F90>, <DMatch 0000029403B59FB0>)
(<DMatch 0000029403B59FD0>, <DMatch 0000029403B00030>)
(<DMatch 0000029403B00050>, <DMatch 0000029403B00070>)
(<DMatch 0000029403B00090>, <DMatch 0000029403B000B0>)
(<DMatch 0000029403B000D0>, <DMatch 0000029403B000F0>)
(<DMatch 0000029403B00110>, <DMatch 0000029403B00130>)
(<DMatch 0000029403B00150>, <DMatch 0000029403B00170>)
(<DMatch 0000029403B00190>, <DMatch 0000029403B001B0>)
(<DMatch 0000029403B001D0>, <DMatch 0000029403B001F0>)
(<DMatch 0000029403B00210>, <DMatch 0000029403B00230>)
(<DMatch 0000029403B00250>, <DMatch 0000029403B00270>)
(<DMatch 0000029403B00290>, <DMatch 0000029403B002B0>)
(<DMatch 0000029403B002D0>, <DMatch 0000029403B002F0>)
(<DMatch 0000029403B00310>, <DMatch 0000029403B00330>)
(<DMatch 0000029403B00350>, <DMatch 0000029403B00370>)
(<DMatch 0000029403B00390>, <DMatch 0000029403B003B0>)
(<DMatch 0000029403B003D0>, <DMatch 0000029403B003F0>)
(<DMatch 0000029403B00410>, <DMatch 0000029403B00430>)
(<DMatch 0000029403B00450>, <DMatch 0000029403B00470>)
(<DMatch 0000029403B00490>, <DMatch 0000029403B004B0>)
(<DMatch 0000029403B004D0>, <DMatch 0000029403B004F0>)
(<DMatch 0000029403B00510>, <DMatch 0000029403B00530>)
(<DMatch 0000029403B00550>, <DMatch 0000029403B00570>)
(<DMatch 0000029403B00590>, <DMatch 0000029403B005B0>)
(<DMatch 0000029403B005D0>, <DMatch 0000029403B005F0>)
(<DMatch 0000029403B00610>, <DMatch 0000029403B00630>)
(<DMatch 0000029403B00650>, <DMatch 0000029403B00670>)
(<DMatch 0000029403B00690>, <DMatch 0000029403B006B0>)
(<DMatch 0000029403B006D0>, <DMatch 0000029403B006F0>)
(<DMatch 0000029403B00710>, <DMatch 0000029403B00730>)
(<DMatch 0000029403B00750>, <DMatch 0000029403B00770>)
(<DMatch 0000029403B00790>, <DMatch 0000029403B007B0>)
(<DMatch 0000029403B007D0>, <DMatch 0000029403B007F0>)
(<DMatch 0000029403B00810>, <DMatch 0000029403B00830>)
(<DMatch 0000029403B00850>, <DMatch 0000029403B00870>)
(<DMatch 0000029403B00890>, <DMatch 0000029403B008B0>)
(<DMatch 0000029403B008D0>, <DMatch 0000029403B008F0>)
(<DMatch 0000029403B00910>, <DMatch 0000029403B00930>)
(<DMatch 0000029403B00950>, <DMatch 0000029403B00970>)
(<DMatch 0000029403B00990>, <DMatch 0000029403B009B0>)
(<DMatch 0000029403B009D0>, <DMatch 0000029403B009F0>)
(<DMatch 0000029403B00A10>, <DMatch 0000029403B00A30>)
(<DMatch 0000029403B00A50>, <DMatch 0000029403B00A70>)
(<DMatch 0000029403B00A90>, <DMatch 0000029403B00AB0>)
(<DMatch 0000029403B00AD0>, <DMatch 0000029403B00AF0>)
(<DMatch 0000029403B00B10>, <DMatch 0000029403B00B30>)
(<DMatch 0000029403B00B50>, <DMatch 0000029403B00B70>)
(<DMatch 0000029403B00B90>, <DMatch 0000029403B00BB0>)
(<DMatch 0000029403B00BD0>, <DMatch 0000029403B00BF0>)
(<DMatch 0000029403B00C10>, <DMatch 0000029403B00C30>)
(<DMatch 0000029403B00C50>, <DMatch 0000029403B00C70>)
(<DMatch 0000029403B00C90>, <DMatch 0000029403B00CB0>)
(<DMatch 0000029403B00CD0>, <DMatch 0000029403B00CF0>)
(<DMatch 0000029403B00D10>, <DMatch 0000029403B00D30>)
(<DMatch 0000029403B00D50>, <DMatch 0000029403B00D70>)
(<DMatch 0000029403B00D90>, <DMatch 0000029403B00DB0>)
(<DMatch 0000029403B00DD0>, <DMatch 0000029403B00DF0>)
(<DMatch 0000029403B00E10>, <DMatch 0000029403B00E30>)
(<DMatch 0000029403B00E50>, <DMatch 0000029403B00E70>)
(<DMatch 0000029403B00E90>, <DMatch 0000029403B00EB0>)
(<DMatch 0000029403B00ED0>, <DMatch 0000029403B00EF0>)
(<DMatch 0000029403B00F10>, <DMatch 0000029403B00F30>)
(<DMatch 0000029403B00F50>, <DMatch 0000029403B00F70>)
(<DMatch 0000029403B00F90>, <DMatch 0000029403B00FB0>)
(<DMatch 0000029403B00FD0>, <DMatch 0000029403B08030>)
(<DMatch 0000029403B08050>, <DMatch 0000029403B08070>)
(<DMatch 0000029403B08090>, <DMatch 0000029403B080B0>)
(<DMatch 0000029403B080D0>, <DMatch 0000029403B080F0>)
(<DMatch 0000029403B08110>, <DMatch 0000029403B08130>)
(<DMatch 0000029403B08150>, <DMatch 0000029403B08170>)
(<DMatch 0000029403B08190>, <DMatch 0000029403B081B0>)
(<DMatch 0000029403B081D0>, <DMatch 0000029403B081F0>)
(<DMatch 0000029403B08210>, <DMatch 0000029403B08230>)
(<DMatch 0000029403B08250>, <DMatch 0000029403B08270>)
(<DMatch 0000029403B08290>, <DMatch 0000029403B082B0>)
(<DMatch 0000029403B082D0>, <DMatch 0000029403B082F0>)
(<DMatch 0000029403B08310>, <DMatch 0000029403B08330>)
(<DMatch 0000029403B08350>, <DMatch 0000029403B08370>)
(<DMatch 0000029403B08390>, <DMatch 0000029403B083B0>)
(<DMatch 0000029403B083D0>, <DMatch 0000029403B083F0>)
(<DMatch 0000029403B08410>, <DMatch 0000029403B08430>)
(<DMatch 0000029403B08450>, <DMatch 0000029403B08470>)
(<DMatch 0000029403B08490>, <DMatch 0000029403B084B0>)
(<DMatch 0000029403B084D0>, <DMatch 0000029403B084F0>)
(<DMatch 0000029403B08510>, <DMatch 0000029403B08530>)
(<DMatch 0000029403B08550>, <DMatch 0000029403B08570>)
(<DMatch 0000029403B08590>, <DMatch 0000029403B085B0>)
(<DMatch 0000029403B085D0>, <DMatch 0000029403B085F0>)
(<DMatch 0000029403B08610>, <DMatch 0000029403B08630>)
(<DMatch 0000029403B08650>, <DMatch 0000029403B08670>)
(<DMatch 0000029403B08690>, <DMatch 0000029403B086B0>)
(<DMatch 0000029403B086D0>, <DMatch 0000029403B086F0>)
(<DMatch 0000029403B08710>, <DMatch 0000029403B08730>)
(<DMatch 0000029403B08750>, <DMatch 0000029403B08770>)
(<DMatch 0000029403B08790>, <DMatch 0000029403B087B0>)
(<DMatch 0000029403B087D0>, <DMatch 0000029403B087F0>)
(<DMatch 0000029403B08810>, <DMatch 0000029403B08830>)
(<DMatch 0000029403B08850>, <DMatch 0000029403B08870>)
(<DMatch 0000029403B08890>, <DMatch 0000029403B088B0>)
(<DMatch 0000029403B088D0>, <DMatch 0000029403B088F0>)
(<DMatch 0000029403B08910>, <DMatch 0000029403B08930>)
(<DMatch 0000029403B08950>, <DMatch 0000029403B08970>)
(<DMatch 0000029403B08990>, <DMatch 0000029403B089B0>)
(<DMatch 0000029403B089D0>, <DMatch 0000029403B089F0>)
(<DMatch 0000029403B08A10>, <DMatch 0000029403B08A30>)
(<DMatch 0000029403B08A50>, <DMatch 0000029403B08A70>)
(<DMatch 0000029403B08A90>, <DMatch 0000029403B08AB0>)
(<DMatch 0000029403B08AD0>, <DMatch 0000029403B08AF0>)
(<DMatch 0000029403B08B10>, <DMatch 0000029403B08B30>)
(<DMatch 0000029403B08B50>, <DMatch 0000029403B08B70>)
(<DMatch 0000029403B08B90>, <DMatch 0000029403B08BB0>)
(<DMatch 0000029403B08BD0>, <DMatch 0000029403B08BF0>)
(<DMatch 0000029403B08C10>, <DMatch 0000029403B08C30>)
(<DMatch 0000029403B08C50>, <DMatch 0000029403B08C70>)
(<DMatch 0000029403B08C90>, <DMatch 0000029403B08CB0>)
(<DMatch 0000029403B08CD0>, <DMatch 0000029403B08CF0>)
(<DMatch 0000029403B08D10>, <DMatch 0000029403B08D30>)
(<DMatch 0000029403B08D50>, <DMatch 0000029403B08D70>)
(<DMatch 0000029403B08D90>, <DMatch 0000029403B08DB0>)
(<DMatch 0000029403B08DD0>, <DMatch 0000029403B08DF0>)
(<DMatch 0000029403B08E10>, <DMatch 0000029403B08E30>)
(<DMatch 0000029403B08E50>, <DMatch 0000029403B08E70>)
(<DMatch 0000029403B08E90>, <DMatch 0000029403B08EB0>)
(<DMatch 0000029403B08ED0>, <DMatch 0000029403B08EF0>)
(<DMatch 0000029403B08F10>, <DMatch 0000029403B08F30>)
(<DMatch 0000029403B08F50>, <DMatch 0000029403B08F70>)
(<DMatch 0000029403B08F90>, <DMatch 0000029403B08FB0>)
(<DMatch 0000029403B08FD0>, <DMatch 0000029403B0A030>)
(<DMatch 0000029403B0A050>, <DMatch 0000029403B0A070>)
(<DMatch 0000029403B0A090>, <DMatch 0000029403B0A0B0>)
(<DMatch 0000029403B0A0D0>, <DMatch 0000029403B0A0F0>)
(<DMatch 0000029403B0A110>, <DMatch 0000029403B0A130>)
(<DMatch 0000029403B0A150>, <DMatch 0000029403B0A170>)
(<DMatch 0000029403B0A190>, <DMatch 0000029403B0A1B0>)
(<DMatch 0000029403B0A1D0>, <DMatch 0000029403B0A1F0>)
(<DMatch 0000029403B0A210>, <DMatch 0000029403B0A230>)
(<DMatch 0000029403B0A250>, <DMatch 0000029403B0A270>)
(<DMatch 0000029403B0A290>, <DMatch 0000029403B0A2B0>)
(<DMatch 0000029403B0A2D0>, <DMatch 0000029403B0A2F0>)
(<DMatch 0000029403B0A310>, <DMatch 0000029403B0A330>)
(<DMatch 0000029403B0A350>, <DMatch 0000029403B0A370>)
(<DMatch 0000029403B0A390>, <DMatch 0000029403B0A3B0>)
(<DMatch 0000029403B0A3D0>, <DMatch 0000029403B0A3F0>)
(<DMatch 0000029403B0A410>, <DMatch 0000029403B0A430>)
(<DMatch 0000029403B0A450>, <DMatch 0000029403B0A470>)
(<DMatch 0000029403B0A490>, <DMatch 0000029403B0A4B0>)
(<DMatch 0000029403B0A4D0>, <DMatch 0000029403B0A4F0>)
(<DMatch 0000029403B0A510>, <DMatch 0000029403B0A530>)
(<DMatch 0000029403B0A550>, <DMatch 0000029403B0A570>)
(<DMatch 0000029403B0A590>, <DMatch 0000029403B0A5B0>)
(<DMatch 0000029403B0A5D0>, <DMatch 0000029403B0A5F0>)
(<DMatch 0000029403B0A610>, <DMatch 0000029403B0A630>)
(<DMatch 0000029403B0A650>, <DMatch 0000029403B0A670>)
(<DMatch 0000029403B0A690>, <DMatch 0000029403B0A6B0>)
(<DMatch 0000029403B0A6D0>, <DMatch 0000029403B0A6F0>)
(<DMatch 0000029403B0A710>, <DMatch 0000029403B0A730>)
(<DMatch 0000029403B0A750>, <DMatch 0000029403B0A770>)
(<DMatch 0000029403B0A790>, <DMatch 0000029403B0A7B0>)
(<DMatch 0000029403B0A7D0>, <DMatch 0000029403B0A7F0>)
(<DMatch 0000029403B0A810>, <DMatch 0000029403B0A830>)
(<DMatch 0000029403B0A850>, <DMatch 0000029403B0A870>)
(<DMatch 0000029403B0A890>, <DMatch 0000029403B0A8B0>)
(<DMatch 0000029403B0A8D0>, <DMatch 0000029403B0A8F0>)
(<DMatch 0000029403B0A910>, <DMatch 0000029403B0A930>)
(<DMatch 0000029403B0A950>, <DMatch 0000029403B0A970>)
(<DMatch 0000029403B0A990>, <DMatch 0000029403B0A9B0>)
(<DMatch 0000029403B0A9D0>, <DMatch 0000029403B0A9F0>)
(<DMatch 0000029403B0AA10>, <DMatch 0000029403B0AA30>)
(<DMatch 0000029403B0AA50>, <DMatch 0000029403B0AA70>)
(<DMatch 0000029403B0AA90>, <DMatch 0000029403B0AAB0>)
可以看出，Knnmatch与match的返回值类型一样，只不过一组返回的俩个DMatch类型，这两个DMatch数据类型是两个与原图像特征点最接近的两个特征点（match返回的是最匹配的）只有这两个特征点的欧式距离小于一定值的时候才会认为匹配成功。例如：原图像特征点与两个绿色苹果相匹配，那么就会认为这个特征点是绿苹果，但若与原图像最接近的匹配分别是一个绿苹果和一个红苹果，那么就会认为匹配是失败的，即没有相匹配的特征点。
2. 基于 FLANN 的匹配器
FLANN 代表 Fast Library for Approximate Nearest Neighbors。 它包含一组针对大型数据集中的快速最近邻搜索和高维特征优化的算法。 对于大型数据集，它比 BFMatcher 工作得更快。 我们将看到基于 FLANN 的匹配器的第二个示例。 对于基于 FLANN 的匹配器，我们需要传递两个字典，指定要使用的算法、相关参数等。第一个是IndexParams。 对于各种算法，要传递的信息在 FLANN 文档中进行了解释。 总而言之，对于 SIFT、SURF 等算法，您可以通过以下方法：
FLANN_INDEX_KDTREE = 1
index_params = dict(algorithm = FLANN_INDEX_KDTREE, trees = 5)
使用 ORB 时，您可以传递以下内容。 根据文档建议使用注释值(不一定适用于所有情况)。 其他值工作正常：
FLANN_INDEX_LSH = 6
index_params= dict(algorithm = FLANN_INDEX_LSH,
table_number = 6, # 12
key_size = 12, # 20
multi_probe_level = 1) #2
第二个字典是 SearchParams。 它指定应该递归遍历索引中的树的次数。 值越高，精度越高，但也需要更多时间。 如果要更改值，请通过 search_params = dict(checks=100)。 有了这些信息，我们就可以开始了。
img1 = cv.imread('ipad.png',cv.IMREAD_GRAYSCALE) # queryImage
img2 = cv.imread('others.png',cv.IMREAD_GRAYSCALE) # trainImage
# Initiate SIFT detector
sift = cv.SIFT_create()
# find the keypoints and descriptors with SIFT
kp1, des1 = sift.detectAndCompute(img1,None)
kp2, des2 = sift.detectAndCompute(img2,None)
# FLANN parameters
FLANN_INDEX_KDTREE = 1
index_params = dict(algorithm = FLANN_INDEX_KDTREE, trees = 5)
search_params = dict(checks=50) # or pass empty dictionary
flann = cv.FlannBasedMatcher(index_params,search_params)
matches = flann.knnMatch(des1,des2,k=2)
# Need to draw only good matches, so create a mask
matchesMask = [[0,0] for i in range(len(matches))]
# ratio test as per Lowe's paper
for i,(m,n) in enumerate(matches):
if m.distance < 0.7*n.distance:
matchesMask[i]=[1,0]
draw_params = dict(matchColor = (0,255,0),
singlePointColor = (255,0,0),
matchesMask = matchesMask,
flags = cv.DrawMatchesFlags_DEFAULT)
img3 = cv.drawMatchesKnn(img1,kp1,img2,kp2,matches,None,**draw_params)
fig = plt.figure(figsize = (20,8))
plt.imshow(img3,)
plt.xticks([]),plt.yticks([])
plt.show()
二、特征匹配 & 单应性查找对象
本小节中，我们将结合 calib3d 模块中的特征匹配和 findHomography用以在复杂图像中查找已知对象。
1. 概念
那么我们在上一小节上做了什么？我们使用了一个 queryImage，在其中找到了一些特征点，我们使用了另一个 trainImage，也找到了该图像中的特征，并在其中找到了最佳匹配。简而言之，我们在另一个杂乱的图像中找到了对象某些部分的位置。这些信息足以准确地在 trainImage 上找到对象。为此，我们可以使用来自 calib3d 模块的函数，即 cv.findHomography()。如果我们从两个图像中传递一组点，它将找到该对象的透视变换。然后我们可以使用 cv.perspectiveTransform() 来查找对象。至少需要四个正确的点才能找到转换。我们已经看到，匹配时可能会出现一些可能影响结果的错误。为了解决这个问题，算法使用 RANSAC 或 LEAST_MEDIAN（可以由标志决定）。因此，提供正确估计的良好匹配称为内点，其余的称为异常点。 cv.findHomography() 返回一个指定内点和异常点的掩码。
各函数用法如下：
- cv.findHomography：
- cv.findHomography( srcPoints, dstPoints[, method[, ransacReprojThreshold[, mask[, maxIters[, confidence]]]]] ) -> retval, mask
- cv.findHomography( srcPoints, dstPoints, params[, mask] ) -> retval, mask
- cv.perspectiveTransform( src, m[, dst] ) -> dst
- cv.findHomography() ：
- cv.findHomography( srcPoints, dstPoints[, method[, ransacReprojThreshold[, mask[, maxIters[, confidence]]]]] ) -> retval, mask
- cv.findHomography( srcPoints, dstPoints, params[, mask] ) -> retval, mask
2. 运用
MIN_MATCH_COUNT = 10
img1 = cv.imread('ipad.png',0) # queryImage
img2 = cv.imread('others.png',0) # trainImage
# Initiate SIFT detector
sift = cv.SIFT_create()
# find the keypoints and descriptors with SIFT
kp1, des1 = sift.detectAndCompute(img1,None)
kp2, des2 = sift.detectAndCompute(img2,None)
FLANN_INDEX_KDTREE = 1
index_params = dict(algorithm = FLANN_INDEX_KDTREE, trees = 5)
search_params = dict(checks = 50)
flann = cv.FlannBasedMatcher(index_params, search_params)
matches = flann.knnMatch(des1,des2,k=2)
# store all the good matches as per Lowe's ratio test.
good = []
for m,n in matches:
if m.distance < 0.7*n.distance:
good.append(m)
现在我们设置一个条件，即至少有 10 个匹配项（由 MIN_MATCH_COUNT 定义）在那里找到对象。 否则，只需显示一条消息，说明没有足够的匹配项。 如果找到足够的匹配项，我们将提取两个图像中匹配关键点的位置。 它们被传递以找到透视变换。 一旦我们得到这个 3x3 的变换矩阵，我们就用它把 queryImage 的角点变换到 trainImage 中的对应点。 然后我们画出来。
if len(good)>MIN_MATCH_COUNT:
# 分离样本图像和查询图像中的匹配点坐标
src_pts = np.float32([ kp1[m.queryIdx].pt for m in good ]).reshape(-1,1,2)
dst_pts = np.float32([ kp2[m.trainIdx].pt for m in good ]).reshape(-1,1,2)
# 获取掩码以及变换矩阵
M, mask = cv.findHomography(src_pts, dst_pts, cv.RANSAC,5.0)
matchesMask = mask.ravel().tolist()
h,w = img1.shape
# 获取样本图像的角点坐标
pts = np.float32([ [0,0],[0,h-1],[w-1,h-1],[w-1,0] ]).reshape(-1,1,2)
# 对个角点坐标进行透视变换映射到查询图像中
dst = cv.perspectiveTransform(pts,M)
img2 = cv.polylines(img2,[np.int32(dst)],True,255,10, cv.LINE_AA)
else:
print( "Not enough matches are found - {}/{}".format(len(good), MIN_MATCH_COUNT) )
matchesMask = None
最后，我们绘制我们的内点（如果成功找到对象）或匹配关键点（如果失败）。
draw_params = dict(matchColor = (0,255,0), # draw matches in green color
singlePointColor = None,
matchesMask = matchesMask, # draw only inliers
flags = 2)
img3 = cv.drawMatches(img1,kp1,img2,kp2,good,None,**draw_params)
fig = plt.figure(figsize = (20,8))
plt.imshow(img3,)
plt.xticks([]),plt.yticks([])
plt.show()
可以看出： 在杂乱的图像中，对象以白色边框标出
