iOS底层探索-cache

在 类的原理 中我们查看 objc_class 看到了 cache 成员，这次我们就来看看其中的结构

1、cache结构

1.1、cache_t

struct cache_t {
private:
    explicit_atomic<uintptr_t> _bucketsAndMaybeMask;    //存bucket_t首地址 ,8字节
    union {
        struct {
            //_maybeMask (bucket_t长度 - 1)
            explicit_atomic<mask_t>    _maybeMask;      //bucket_t长度 - 1 ,4字节
#if __LP64__  //long point
            uint16_t                   _flags;          //2字节
#endif
            uint16_t                   _occupied;       //占用长度 ,2字节
        };
        explicit_atomic<preopt_cache_t *> _originalPreoptCache; //8字节
    };

    ......

    //有SEL、IMP重点关注 insert 方法
    void insert(SEL sel, IMP imp, id receiver);
    void copyCacheNolock(objc_imp_cache_entry *buffer, int len);
    void destroy();
    void eraseNolock(const char *func);

    static void init();
    static void collectNolock(bool collectALot);
    static size_t bytesForCapacity(uint32_t cap);

    ......
}

• _bucketsAndMaybeMask : bucket_t首地址
• _maybeMask : bucket_t容器容量
• _occupied : bucket_t存储方法的数量

1.2、insert方法 : cache -- 缓存方法(核心)

• 通过该方法将方法进行缓存
• fastpath：大概率执行，slowpath：小概率执行

void cache_t::insert(SEL sel, IMP imp, id receiver)
{
    runtimeLock.assertLocked();

    // Never cache before +initialize is done
    if (slowpath(!cls()->isInitialized())) {
        return;
    }

    if (isConstantOptimizedCache()) {
        _objc_fatal("cache_t::insert() called with a preoptimized cache for %s",
                    cls()->nameForLogging());
    }

#if DEBUG_TASK_THREADS
    return _collecting_in_critical();
#else
#if CONFIG_USE_CACHE_LOCK
    mutex_locker_t lock(cacheUpdateLock);
#endif

    ASSERT(sel != 0 && cls()->isInitialized());

    //此处开始重点关注
    // Use the cache as-is if until we exceed our expected fill ratio.
    mask_t newOccupied = occupied() + 1;
    unsigned oldCapacity = capacity(), capacity = oldCapacity;

    //在arm64架构下开辟一个长度为2的桶子,在x86_64架构下开辟一个长度为4的桶子
    if (slowpath(isConstantEmptyCache())) {
        // Cache is read-only. Replace it.
        //根据架构初始化得到要初始化的桶子大小,arm64下为2,x86_64下为4
        if (!capacity) capacity = INIT_CACHE_SIZE;
        //重新开辟 bucket_t 大小
        reallocate(oldCapacity, capacity, /* freeOld */false);
    }
    //扩容条件,在arm64架构若缓存的大小小于等于桶子长度的7/8、在x86_64架构若缓存的大小小于等于桶子长度的3/4,则什么都不做
    else if (fastpath(newOccupied + CACHE_END_MARKER <= cache_fill_ratio(capacity))) {
        // Cache is less than 3/4 or 7/8 full. Use it as-is.
    }
#if CACHE_ALLOW_FULL_UTILIZATION
    else if (capacity <= FULL_UTILIZATION_CACHE_SIZE && newOccupied + CACHE_END_MARKER <= capacity) {
        // Allow 100% cache utilization for small buckets. Use it as-is.
    }
#endif
    else {
        //进行扩容
        capacity = capacity ? capacity * 2 : INIT_CACHE_SIZE;
        if (capacity > MAX_CACHE_SIZE) {
            capacity = MAX_CACHE_SIZE;
        }
        reallocate(oldCapacity, capacity, true);
    }

    //后续对 bucket_t 生成的 b 进行了一系列do while操作,因此重点关注
    bucket_t *b = buckets();
    mask_t m = capacity - 1;
    //cache_hash() 传入bucket_t长度 - 1,返回的值也不会超过 bucket_t长度 - 1
    mask_t begin = cache_hash(sel, m);
    //插入位置 i 值通过 sel、capacity(bucket_t容积)计算得来(m 的类型 mask_t 为 uint32_t 的别名)
    mask_t i = begin;

    // Scan for the first unused slot and insert there.
    // There is guaranteed to be an empty slot.
    do {
        //若没有缓存方法则缓存
        if (fastpath(b[i].sel() == 0)) {
            incrementOccupied();

            //bucket_t 的 set 方法(保存SEL与IMP,保存位置为 i)
            b[i].set<Atomic, Encoded>(b, sel, imp, cls());
            return;
        }
        //若已缓存方法则跳过
        if (b[i].sel() == sel) {
            // The entry was added to the cache by some other thread
            // before we grabbed the cacheUpdateLock.
            return;
        }
        //如果存在 hash冲突,那么就将内容存到下一个下标中
    } while (fastpath((i = cache_next(i, m)) != begin));

    bad_cache(receiver, (SEL)sel);

#endif // !DEBUG_TASK_THREADS
}

• 在上边源码中，我们主要对几个重要内容进行解释

1.2.1、INIT_CACHE_SIZE

• 获取 bucket_t 初始容量

/* Initial cache bucket count. INIT_CACHE_SIZE must be a power of two. */
enum {
#if CACHE_END_MARKER || (__arm64__ && !__LP64__)
    // When we have a cache end marker it fills a bucket slot, so having a
    // initial cache size of 2 buckets would not be efficient when one of the
    // slots is always filled with the end marker. So start with a cache size
    // 4 buckets.
    INIT_CACHE_SIZE_LOG2 = 2,
#else
    // Allow an initial bucket size of 2 buckets, since a large number of
    // classes, especially metaclasses, have very few imps, and we support
    // the ability to fill 100% of the cache before resizing.
    INIT_CACHE_SIZE_LOG2 = 1,
#endif
    INIT_CACHE_SIZE      = (1 << INIT_CACHE_SIZE_LOG2),
    MAX_CACHE_SIZE_LOG2  = 16,
    MAX_CACHE_SIZE       = (1 << MAX_CACHE_SIZE_LOG2),
    FULL_UTILIZATION_CACHE_SIZE_LOG2 = 3,
    FULL_UTILIZATION_CACHE_SIZE = (1 << FULL_UTILIZATION_CACHE_SIZE_LOG2),
};

可以看出，INIT_CACHE_SIZE 的大小受 CACHE_END_MARKER 影响，而 CACHE_END_MARKER 是由架构类型决定的

#if __arm__  ||  __x86_64__  ||  __i386__

// objc_msgSend has few registers available.
// Cache scan increments and wraps at special end-marking bucket.
#define CACHE_END_MARKER 1

// Historical fill ratio of 75% (since the new objc runtime was introduced).
static inline mask_t cache_fill_ratio(mask_t capacity) {
    return capacity * 3 / 4;
}

#elif __arm64__ && !__LP64__

// objc_msgSend has lots of registers available.
// Cache scan decrements. No end marker needed.
#define CACHE_END_MARKER 0

// Historical fill ratio of 75% (since the new objc runtime was introduced).
static inline mask_t cache_fill_ratio(mask_t capacity) {
    return capacity * 3 / 4;
}

#elif __arm64__ && __LP64__

// objc_msgSend has lots of registers available.
// Cache scan decrements. No end marker needed.
#define CACHE_END_MARKER 0

// Allow 87.5% fill ratio in the fast path for all cache sizes.
// Increasing the cache fill ratio reduces the fragmentation and wasted space
// in imp-caches at the cost of potentially increasing the average lookup of
// a selector in imp-caches by increasing collision chains. Another potential
// change is that cache table resizes / resets happen at different moments.
static inline mask_t cache_fill_ratio(mask_t capacity) {
    return capacity * 7 / 8;
}

从中可知，在 arm(不同于arm64架构，为32位架构)、x86_64、i386 架构下 CACHE_END_MARKER 值为 1，arm64 架构下值为 0 ，因此 INIT_CACHE_SIZE 在arm64架构下值为 1 左移1位得到 2，在x86_64等架构下值为 1 左移2位得到 4(这段代码也透露了扩容规则)

1.2.2、reallocate :

• 再开辟 bucket_t容量，源码中如果进行了扩容会传入 true，释放原有桶子内容

void cache_t::reallocate(mask_t oldCapacity, mask_t newCapacity, bool freeOld)
{
    bucket_t *oldBuckets = buckets();
    bucket_t *newBuckets = allocateBuckets(newCapacity);

    // Cache's old contents are not propagated.
    // This is thought to save cache memory at the cost of extra cache fills.
    // fixme re-measure this

    ASSERT(newCapacity > 0);
    ASSERT((uintptr_t)(mask_t)(newCapacity-1) == newCapacity-1);

    setBucketsAndMask(newBuckets, newCapacity - 1);
    //扩容后释放原有的桶子
    if (freeOld) {
        collect_free(oldBuckets, oldCapacity);
    }
}

1.2.3、cache_hash()

• 获取插入位置

static inline mask_t cache_hash(SEL sel, mask_t mask)
{
    //将方法转换为一个值(数值较大)
    uintptr_t value = (uintptr_t)sel;
#if CONFIG_USE_PREOPT_CACHES
    value ^= value >> 7;
#endif
    //value 和 mask 取与,因为value值很大,结果不会超过 mask
    return (mask_t)(value & mask);
}

1.2.4、cache_next()

• 用于解决哈希冲突时获取新的插入索引值

#if CACHE_END_MARKER
static inline mask_t cache_next(mask_t i, mask_t mask) {
    return (i+1) & mask;
}
#elif __arm64__
static inline mask_t cache_next(mask_t i, mask_t mask) {
    return i ? i-1 : mask;
}

1.2.5、bucket_t

• 存放 imp指针 与 sel方法名 的容器

struct bucket_t {
private:
    // IMP-first is better for arm64e ptrauth and no worse for arm64.
    // SEL-first is better for armv7* and i386 and x86_64.
#if __arm64__
    //bucket_t 中存放了 imp指针 和 sel方法名
    explicit_atomic<uintptr_t> _imp;
    explicit_atomic<SEL> _sel;
#else
    explicit_atomic<SEL> _sel;
    explicit_atomic<uintptr_t> _imp;
#endif

    // Compute the ptrauth signing modifier from &_imp, newSel, and cls.
    uintptr_t modifierForSEL(bucket_t *base, SEL newSel, Class cls) const {
        return (uintptr_t)base ^ (uintptr_t)newSel ^ (uintptr_t)cls;
    }

    // Sign newImp, with &_imp, newSel, and cls as modifiers.
    uintptr_t encodeImp(UNUSED_WITHOUT_PTRAUTH bucket_t *base, IMP newImp, UNUSED_WITHOUT_PTRAUTH SEL newSel, Class cls) const {
        if (!newImp) return 0;
#if CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_PTRAUTH
        return (uintptr_t)
            ptrauth_auth_and_resign(newImp,
                                    ptrauth_key_function_pointer, 0,
                                    ptrauth_key_process_dependent_code,
                                    modifierForSEL(base, newSel, cls));
#elif CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_ISA_XOR
        return (uintptr_t)newImp ^ (uintptr_t)cls;
#elif CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_NONE
        return (uintptr_t)newImp;
#else
#error Unknown method cache IMP encoding.
#endif
    }

public:
    static inline size_t offsetOfSel() { return offsetof(bucket_t, _sel); }
    //SEL方法名
    inline SEL sel() const { return _sel.load(memory_order_relaxed); }

#if CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_ISA_XOR
#define MAYBE_UNUSED_ISA
#else
#define MAYBE_UNUSED_ISA __attribute__((unused))
#endif
    inline IMP rawImp(MAYBE_UNUSED_ISA objc_class *cls) const {
        uintptr_t imp = _imp.load(memory_order_relaxed);
        if (!imp) return nil;
#if CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_PTRAUTH
#elif CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_ISA_XOR
        imp ^= (uintptr_t)cls;
#elif CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_NONE
#else
#error Unknown method cache IMP encoding.
#endif
        return (IMP)imp;
    }
    //IMP指针 传入bucket_t 和 class类
    inline IMP* imp(UNUSED_WITHOUT_PTRAUTH bucket_t *base, Class cls) const {
        uintptr_t imp = _imp.load(memory_order_relaxed);
        if (!imp) return nil;
#if CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_PTRAUTH
        SEL sel = _sel.load(memory_order_relaxed);
        return (IMP)
            ptrauth_auth_and_resign((const void *)imp,
                                    ptrauth_key_process_dependent_code,
                                    modifierForSEL(base, sel, cls),
                                    ptrauth_key_function_pointer, 0);
#elif CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_ISA_XOR
        return (IMP)(imp ^ (uintptr_t)cls);
#elif CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_NONE
        return (IMP)imp;
#else
#error Unknown method cache IMP encoding.
#endif
    }

    template <Atomicity, IMPEncoding>
    void set(bucket_t *base, SEL newSel, IMP newImp, Class cls);
};

• bucket_t 的.set方法 : 保存SEL与IMP

  //保存方法
  #if __arm64__
  ......
  #else
  //模板创建,传入Atomicity原子性、IMPEncoding编码
  template<Atomicity atomicity, IMPEncoding impEncoding>
  void bucket_t::set(bucket_t *base, SEL newSel, IMP newImp, Class cls)
  {
      ASSERT(_sel.load(memory_order_relaxed) == 0 ||
             _sel.load(memory_order_relaxed) == newSel);

      // objc_msgSend uses sel and imp with no locks.
      // It is safe for objc_msgSend to see new imp but NULL sel
      // (It will get a cache miss but not dispatch to the wrong place.)
      // It is unsafe for objc_msgSend to see old imp and new sel.
      // Therefore we write new imp, wait a lot, then write new sel.

      //通过 encodeImp() 方法 将 sel 重新签名
      uintptr_t newIMP = (impEncoding == Encoded
                          ? encodeImp(base, newImp, newSel, cls)
                          : (uintptr_t)newImp);

      if (atomicity == Atomic) {

          //.store 从内存中写数据
          _imp.store(newIMP, memory_order_relaxed);

          //.load 从内存中读数据
          if (_sel.load(memory_order_relaxed) != newSel) {
  #ifdef __arm__
              mega_barrier();
              _sel.store(newSel, memory_order_relaxed);
  #elif __x86_64__ || __i386__
              _sel.store(newSel, memory_order_release);
  #else
  #error Don't know how to do bucket_t::set on this architecture.
  #endif
          }
      } else {
          _imp.store(newIMP, memory_order_relaxed);
          _sel.store(newSel, memory_order_relaxed);
      }
  }

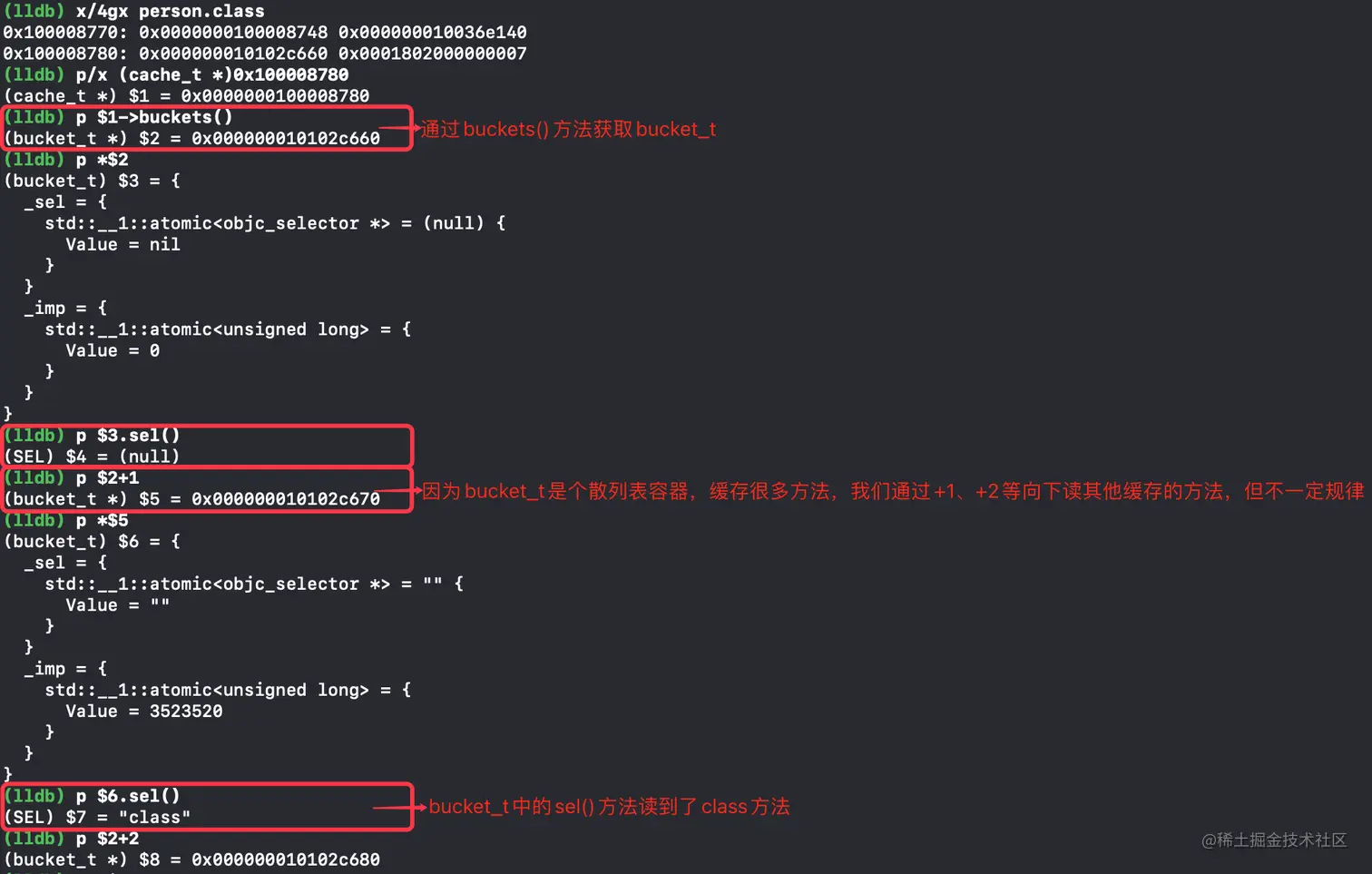

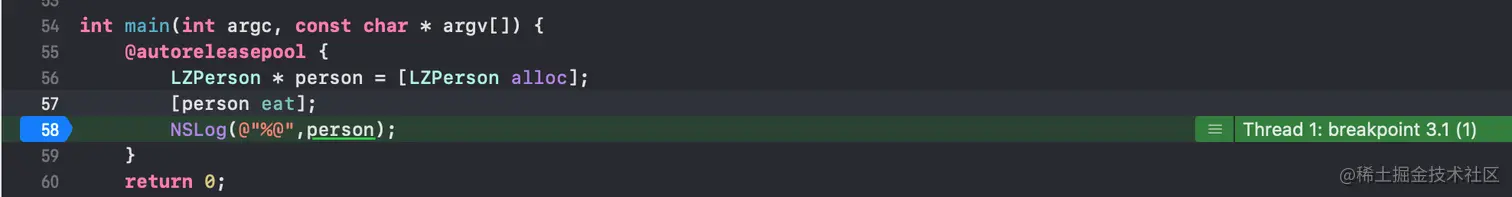

• 读 bucket_t 中缓存的方法(通过+1、+2向下读其他缓存方法的 sel 与 imp指针)

总结

1. INIT_CACHE_SIZE : 根据架构有不同的默认初始 bucket_t容量值，计算是否要扩容与扩容后大小
2. reallocate() : 初始化/扩容重创建 bucket_t，根据传入参数 释放旧的bucket_t
3. cache_hash() : 计算插入位置的索引
4. bucket_t 通过 set 方法存储方法(如果通过runtime进行了方法交换，会存sel与交换后的imp指针)
5. 源码中 capacity 与 occupied 的区别

   capacity ：容量，容纳能力
   occupied ：实际占用的容量 例如，一个10L的瓶子，装了5L水，那么capacity = 10，occupied = 5.

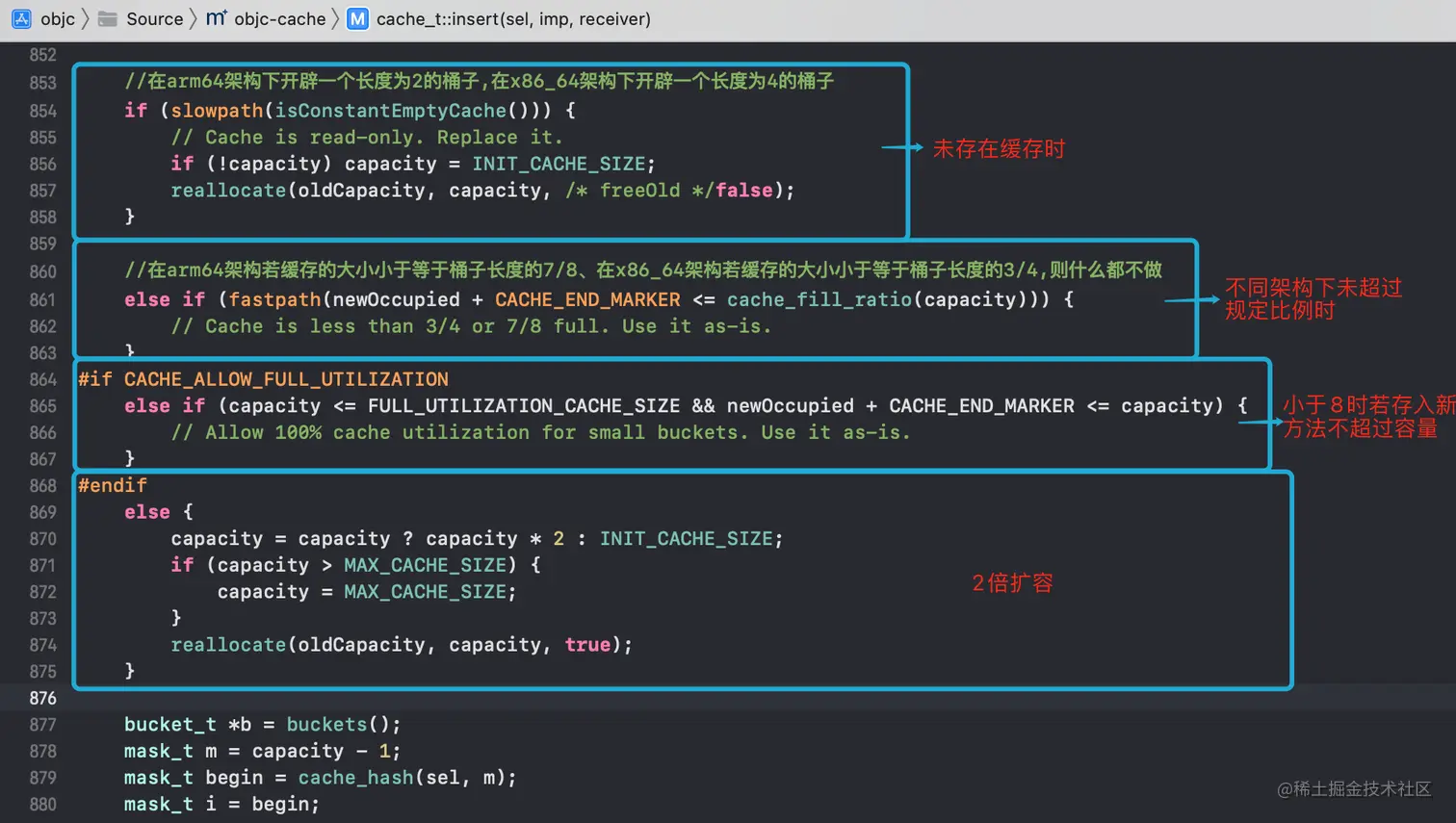

2、cache扩容

1. 根据 1.2.1 中的源码可知，先判断 arm64架构 下占用空间大于分配的空间的7/8，x86_64等架构 下占用空间大于等于分配空间的3/4
2. 再判断容量，若 小于8时，查看存入当前 sel 后是否超过 当前容量，如果超过就扩容，若 大于8时 直接扩容
3. 重新创建 buckets_t，更新cache的_bucketsAndMaybeMask和_maybeMask，并释放旧的 buckets_t

总结

• bucket_t 是一个散列表，通过 sel& capacity - 1 哈希算法定位存储位置

• 为什么要释放旧的 buckets_t :

  • 由于哈希表的特性 -- 地址映射，当每次总表扩容时所有元素的映射都会失效，因为总容量变了，下标哈希结果也会改变

• bucket_t 中读已经调用的方法可能读不到，是因为 方法先被执行缓存了，但后续系统调用了其他 responseToSelector: 、class、retain 或者 dealloc 等方法，触发了扩容，导致先前缓存的bucket_t被释放，缓存的方法会一同消失
