Android 硬件加速流程和源码分析(五)
5. 绘制
当ConvasContext调用 prepareTree() 同步完成DisplayList后,就到了最后一步,绘制

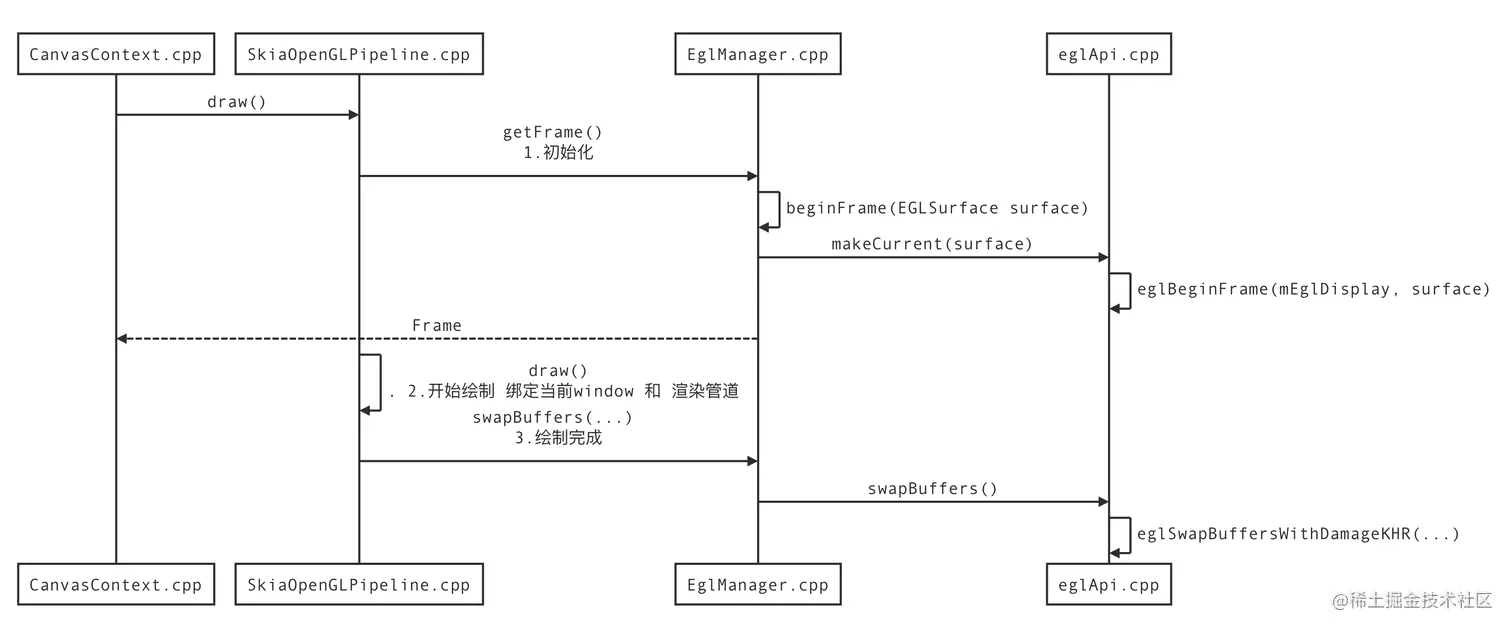

5.1. ConvasContext::draw()绘制流程
CanvasContext::draw()
CanvasContext::draw()
void CanvasContext::draw() {
440 SkRect dirty;
//停止脏区累加,获得最终需要更新的区域
441 mDamageAccumulator.finish(&dirty);
442 ...
449 mCurrentFrameInfo->markIssueDrawCommandsStart();
450 // 1.获取Frame,绑定Android层的调用mEglManager.beginFrame(mEglSurface);
451 Frame frame = mRenderPipeline->getFrame();
452 //计算需要更新的屏幕脏区
453 SkRect windowDirty = computeDirtyRect(frame, &dirty);
454 //2.调用GPU绘制
// 这个frame是和EGL绑定了的
455 bool drew = mRenderPipeline->draw(frame, windowDirty, dirty, mLightGeometry, &mLayerUpdateQueue, mContentDrawBounds, mOpaque, mWideColorGamut, mLightInfo,
457 mRenderNodes, &(profiler())); //注: 常见情况下 mRenderNodes 只有一个rootRenderNode 根节点
458
459 int64_t frameCompleteNr = mFrameCompleteCallbacks.size() ? getFrameNumber() : -1;
460
461 waitOnFences();
462
463 bool requireSwap = false;
//3.调用swapBuffers将已经绘制的图形缓冲区提交给SurfaceFlinger合成和显示
464 bool didSwap =
465 mRenderPipeline->swapBuffers(frame, drew, windowDirty, mCurrentFrameInfo, &requireSwap);
527 .....
541}
首先脏区累加器停止累加计算出最终需要更新的区域dirty,然后设置当前需要渲染的EGLSurface. 设置好渲染目的地EGLSurface后调用渲染管道的draw()方法进行绘制, 绘制完成后调用swapBuffers将已经绘制的图形缓冲区提交到BufferQueue供图形消费者使用.
1.设置EGL上下文
SkiaOpenGLPipeline::getFrame() ,开始绘制,绑定EGL和当前窗口
Frame SkiaOpenGLPipeline::getFrame() {
59 return mEglManager.beginFrame(mEglSurface); //mEglSurface 窗口初始化时已经获取 ,是用来存储图像的内存区域
60}
EglManager ::beginFrame(EGLSurface surface) 开始绘制,绑定EGL和当前窗口,mEglSurface类型是EGLSurface 在ThreadedRenderer初始化的过程中已经创建. EGLSurface创建后EGL会将EGLSurface连接到BufferQueue的生产方接口.
05 Frame EglManager::beginFrame(EGLSurface surface) {
407 makeCurrent(surface);
408 Frame frame;
409 frame.mSurface = surface; //给绘制的帧设置surface 这个surface 也是EGL的currentSurface
...
413 eglBeginFrame(mEglDisplay, surface);
414 return frame;
415}
eglBeginFrame(EGLDisplay dpy, EGLSurface surface)
8 class Frame {
29 public:
30 Frame(int32_t width, int32_t height, int32_t bufferAge)
31 : mWidth(width), mHeight(height), mBufferAge(bufferAge) {}
32
33 int32_t width() const { return mWidth; }
34 int32_t height() const { return mHeight; }
35
36 // See: https://www.khronos.org/registry/egl/extensions/EXT/EGL_EXT_buffer_age.txt
37 // for what this means
38 int32_t bufferAge() const { return mBufferAge; }
39
40 private:
41 Frame() {}
42 friend class EglManager;
43
44 int32_t mWidth;
45 int32_t mHeight;
46 int32_t mBufferAge;
47 //EGL 处理渲染绘制的目的地
48 EGLSurface mSurface;
49
50 // Maps from 0,0 in top-left to 0,0 in bottom-left
51 // If out is not an int32_t[4] you're going to have a bad time
52 void map(const SkRect& in, int32_t* out) const;
53};
54
55} /* namespace renderthread */
56} /* namespace uirenderer */
57} /* namespace android */
58
Frame表示一个绘制帧的信息,包含了帧的尺寸信息和age, Frame 中的EGLSurface 提供给渲染管道绘制的目的地.
2.在第一步设置了渲染的EGLSurface后,知道了渲染的目的地了,让后调用渲染管道的draw()
3.结束绘制 通过swapBuffers将绘制好的数据提交给surfaceFlinger合成
SkiaOpenGLPipeline::swapBuffers
108 bool SkiaOpenGLPipeline::swapBuffers(const Frame& frame, bool drew, const SkRect& screenDirty, FrameInfo* currentFrameInfo, bool* requireSwap) {
110 GL_CHECKPOINT(LOW);
111
112 // Even if we decided to cancel the frame, from the perspective of jank
113 // metrics the frame was swapped at this point
114 currentFrameInfo->markSwapBuffers();
115
116 *requireSwap = drew || mEglManager.damageRequiresSwap();
117
118 if (*requireSwap && (CC_UNLIKELY(!mEglManager.swapBuffers(frame, screenDirty)))) {
119 return false;
120 }
121
122 return *requireSwap;
123}
EglManager::swapBuffers(const Frame& frame, const SkRect& screenDirty)
434 bool EglManager::swapBuffers(const Frame& frame, const SkRect& screenDirty) {
...
440 EGLint rects[4];
441 frame.map(screenDirty, rects);
// -> eglSwapBuffersWithDamageKHR
442 eglSwapBuffersWithDamageKHR(mEglDisplay, frame.mSurface, rects, screenDirty.isEmpty() ? 0 : 1);
...
457 // Impossible to hit this, but the compiler doesn't know that
458 return false;
459}
1366 EGLBoolean eglSwapBuffersWithDamageKHR(EGLDisplay dpy, EGLSurface draw,
1367 EGLint *rects, EGLint n_rects)
1368{
...
1423 if (s->cnx->egl.eglSwapBuffersWithDamageKHR) {
1424 return s->cnx->egl.eglSwapBuffersWithDamageKHR(dp->disp.dpy, s->surface,
1425 rects, n_rects);
1426 } else {
1427 return s->cnx->egl.eglSwapBuffers(dp->disp.dpy, s->surface);
1428 }
1429}
eglSwapBuffers(EGLDisplay dpy, EGLSurface draw)
1921 EGLBoolean eglSwapBuffers(EGLDisplay dpy, EGLSurface draw)
1922{
1923 if (egl_display_t::is_valid(dpy) == EGL_FALSE)
1924 return setError(EGL_BAD_DISPLAY, EGL_FALSE);
1925
1926 egl_surface_t* d = static_cast<egl_surface_t*>(draw);
1927 if (!d->isValid())
1928 return setError(EGL_BAD_SURFACE, EGL_FALSE);
1929 if (d->dpy != dpy)
1930 return setError(EGL_BAD_DISPLAY, EGL_FALSE);
1931
1932 // post the surface
1933 d->swapBuffers();
1934
1935 // if it's bound to a context, update the buffer
1936 if (d->ctx != EGL_NO_CONTEXT) {
1937 d->bindDrawSurface((ogles_context_t*)d->ctx);
1938 // if this surface is also the read surface of the context
1939 // it is bound to, make sure to update the read buffer as well.
1940 // The EGL spec is a little unclear about this.
1941 egl_context_t* c = egl_context_t::context(d->ctx);
1942 if (c->read == draw) {
1943 d->bindReadSurface((ogles_context_t*)d->ctx);
1944 }
1945 }
1946
1947 return EGL_TRUE;
1948}
绘制完成后调用 eglSwapBuffers() 来提交当前帧.

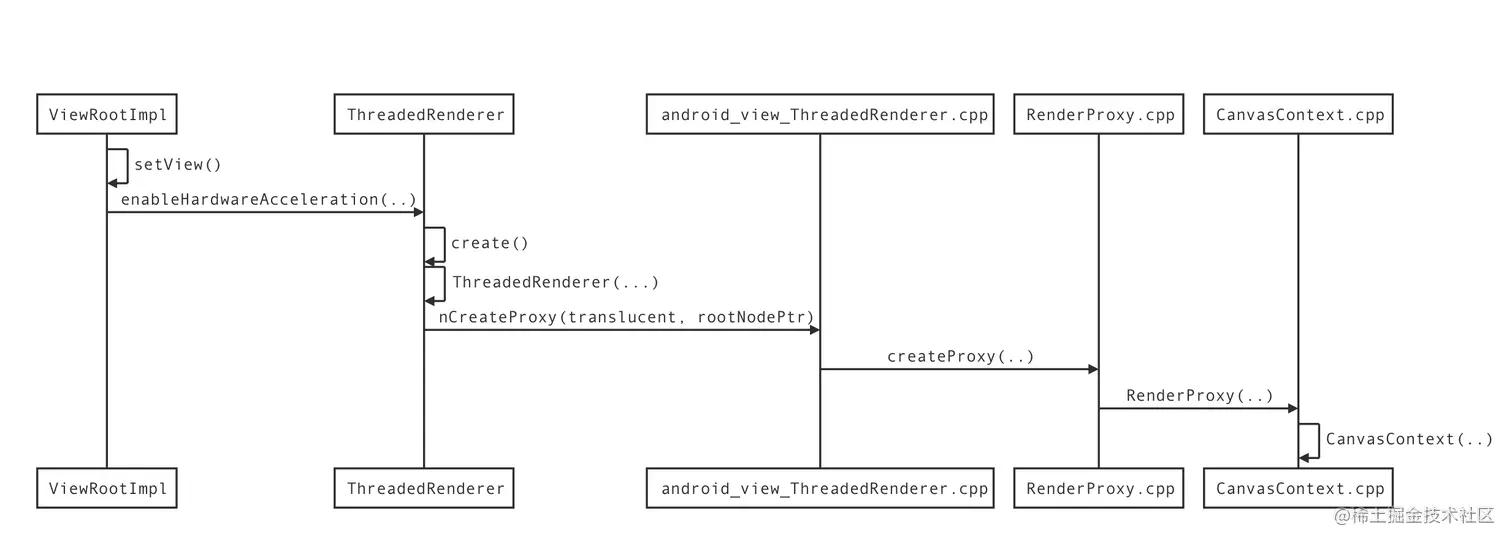

5.2 渲染管道pipeline的创建
RenderProxy 中的 DrawFrameTask 中的 CanvasContext 中的 mRenderPipeline 是怎么来得???
ThreadedRenderer#create(...)
public static ThreadedRenderer create(Context context,boolean translucent,String name){
ThreadedRenderer renderer=null;
if(isAvailable()){
//一个window 对应一个 ThreadedRenderer
renderer=new ThreadedRenderer(context,translucent,name);
}
return renderer;
}
ThreadedRenderer(Context context,boolean translucent,String name){
...
//创建渲染代理 一个window 对应一个渲染代理 ,通用JNI调用native层方法
mNativeProxy=nCreateProxy(translucent,rootNodePtr);
...
}
android_view_ThreadedRenderer_createProxy
662static jlong android_view_ThreadedRenderer_createProxy(JNIEnv* env, jobject clazz,jboolean translucent, jlong rootRenderNodePtr) {
664 RootRenderNode* rootRenderNode = reinterpret_cast<RootRenderNode*>(rootRenderNodePtr);
665 ContextFactoryImpl factory(rootRenderNode);
//创建一个native层渲染代理 一个window 对应一个渲染代理
666 return (jlong) new RenderProxy(translucent, rootRenderNode, &factory);
667}
RenderProxy.cpp 构造函数初始化列表 : mRenderThread(xxx) 对mRenderThread成员变量进行初始化
39 RenderProxy::RenderProxy(bool translucent, RenderNode* rootRenderNode,
40 IContextFactory* contextFactory)
41 : mRenderThread(RenderThread::getInstance()), mContext(nullptr) {
42 mContext = mRenderThread.queue().runSync([&]() -> CanvasContext* {
// 一个window 对应一个渲染代理 , 一个RenderProxy 对应一个CanvasContext
43 return CanvasContext::create(mRenderThread, translucent, rootRenderNode, contextFactory);
44 });
45 mDrawFrameTask.setContext(&mRenderThread, mContext, rootRenderNode);
46}
CanvasContext::create(...)
68CanvasContext* CanvasContext::create(RenderThread& thread, bool translucent,
69 RenderNode* rootRenderNode, IContextFactory* contextFactory) {
//获取具体的硬件加速类型,由手机系统版本和设置决定,根据不同的type构建不同的硬件加速的渲染管道
70 auto renderType = Properties::getRenderPipelineType();
71
72 switch (renderType) {
//open GL 在这里 std::make_unique<OpenGLPipeline>(thread)); Android 8默认是他
73 case RenderPipelineType::OpenGL:
74 return new CanvasContext(thread, translucent, rootRenderNode, contextFactory,
75 std::make_unique<OpenGLPipeline>(thread));
76 //Android 9 默认是他了
case RenderPipelineType::SkiaGL:
77 return new CanvasContext(thread, translucent, rootRenderNode, contextFactory,
78 std::make_unique<skiapipeline::SkiaOpenGLPipeline>(thread));//传入RenderThread 调用SkiaOpenGLPipeline构造函数和初始化列表
79 case RenderPipelineType::SkiaVulkan:
80 return new CanvasContext(thread, translucent, rootRenderNode, contextFactory,
81 std::make_unique<skiapipeline::SkiaVulkanPipeline>(thread));
82 default:
83 LOG_ALWAYS_FATAL("canvas context type %d not supported", (int32_t)renderType);
84 break;
85 }
86 return nullptr;
87}
SkiaOpenGLPipeline 构造方法
43 SkiaOpenGLPipeline::SkiaOpenGLPipeline(RenderThread& thread)
44 : SkiaPipeline(thread), mEglManager(thread.eglManager()) {} //渲染管道绑定渲染线程和EGL
然后给DrawFrameTask.cpp 设置CanvasContext
40 void DrawFrameTask::setContext(RenderThread* thread, CanvasContext* context,
41 RenderNode* targetNode) {
42 mRenderThread = thread;
43 mContext = context;
44 mTargetNode = targetNode;
45}
Android源码中渲染管道或者说渲染图形库API接口是随着Android版本在变化的. 下面看下不同版本获取当前硬件加速管道pipelineType的源码.
Android 8.0默认是 RenderPipelineType::OpenGL对应 OpenGLPipeline, Android 9.0默认是 RenderPipelineType::SkiaGL 对应SkiaOpenGLPipeline
Properties::getRenderPipelineType() Android 8
10 RenderPipelineType Properties::getRenderPipelineType() {
211 if (RenderPipelineType::NotInitialized != sRenderPipelineType) {
212 return sRenderPipelineType;
213 }
214 char prop[PROPERTY_VALUE_MAX];
215 property_get(PROPERTY_RENDERER, prop, "opengl"); //Android 8 默认硬件加速库是OpenGL
216 if (!strcmp(prop, "skiagl") ) {
217 ALOGD("Skia GL Pipeline");
218 sRenderPipelineType = RenderPipelineType::SkiaGL;
219 } else if (!strcmp(prop, "skiavk") ) {
220 ALOGD("Skia Vulkan Pipeline");
221 sRenderPipelineType = RenderPipelineType::SkiaVulkan;
222 } else { //"opengl"
223 ALOGD("HWUI GL Pipeline");
224 sRenderPipelineType = RenderPipelineType::OpenGL;
225 }
226 return sRenderPipelineType;
227}
Properties::getRenderPipelineType() Android 9
188RenderPipelineType Properties::getRenderPipelineType() {
189 if (sRenderPipelineType != RenderPipelineType::NotInitialized) {
190 return sRenderPipelineType;
191 }
192 char prop[PROPERTY_VALUE_MAX];
193 property_get(PROPERTY_RENDERER, prop, "skiagl");//Android 9 默认硬件加速库是SkiaGL
194 if (!strcmp(prop, "skiagl")) {
195 ALOGD("Skia GL Pipeline");
196 sRenderPipelineType = RenderPipelineType::SkiaGL;
197 } else if (!strcmp(prop, "skiavk")) {
198 ALOGD("Skia Vulkan Pipeline");
199 sRenderPipelineType = RenderPipelineType::SkiaVulkan;
200 } else { //"opengl"
201 ALOGD("HWUI GL Pipeline");
202 sRenderPipelineType = RenderPipelineType::OpenGL;
203 }
204 return sRenderPipelineType;
205}
Properties::getRenderPipelineType() Android 10
RenderPipelineType Properties::getRenderPipelineType() {
sRenderPipelineType = peekRenderPipelineType();
return sRenderPipelineType;
}
//可以看出Android 10 的硬件加速已经没有OpenGL了
RenderPipelineType Properties::peekRenderPipelineType() {
// If sRenderPipelineType has been locked, just return the locked type immediately.
if (sRenderPipelineType != RenderPipelineType::NotInitialized) {
return sRenderPipelineType;
}
bool useVulkan = use_vulkan().value_or(false);
std::string rendererProperty = base::GetProperty(PROPERTY_RENDERER, useVulkan ? "skiavk" : "skiagl");
if (rendererProperty == "skiavk") {
return RenderPipelineType::SkiaVulkan;
}
return RenderPipelineType::SkiaGL;
}
RenderPipelineType Properties::getRenderPipelineType() {
sRenderPipelineType = peekRenderPipelineType();
return sRenderPipelineType;
}
源码可以看出硬件加速的逐渐有OpenGL变为了SkiaGL. Skia是Android默认内置的2D绘图API, Skia官方的介绍是
Skia is an open source 2D graphics library which provides common APIs that work across a variety of hardware and software platforms. It serves as the graphics engine for Google Chrome and Chrome OS, Android, Flutter, and many other products.
Android中Skia硬件加速时的渲染管道是SkiaOpenGLPipeline或者 SkiaVulkanPipeline,所以在Android中Skia对硬件加速的实现还是会基于OpenGL或者Vulkan.
Vulkan
Vulkan是一个跨平台的2D和3D绘图应用程序接口（API），最早由科纳斯组织（[Khronos Group](baike.baidu.com/item/Khrono… Group/87000)） [1] 在2015年游戏开发者大会（GDC）上发表。
科纳斯最先把VulkanAPI称为“下一代OpenGL行动”（next generation OpenGL initiative）或“glNext”， [2] 但在正式宣布Vulkan之后这些名字就没有再使用了。就像OpenGL，Vulkan针对实时3D程序（如电子游戏）设计，Vulkan并计划提供高性能和低CPU管理负担（overhead），这也是Direct3D12和AMD的Mantle的目标。Vulkan兼容Mantle的一个分支，并使用了Mantle的一些组件。
Vulkan旨在提供更低的CPU开销与更直接的GPU控制，其理念大致与Direct3D 12和Mantle类似。 [2-3]

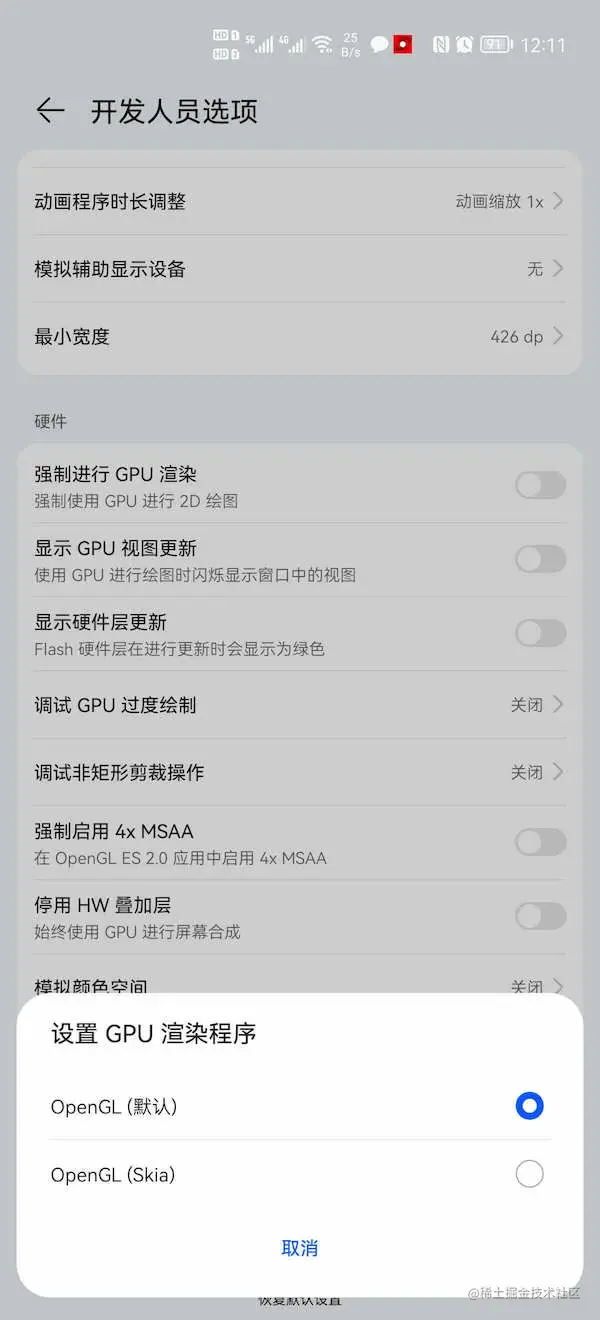

上面图片是华为鸿蒙( Android 10)的设置页,可以看到还是可选GPU渲染程序为OpenGL,不知道这里是否是华为的源码和Android原生的差异.

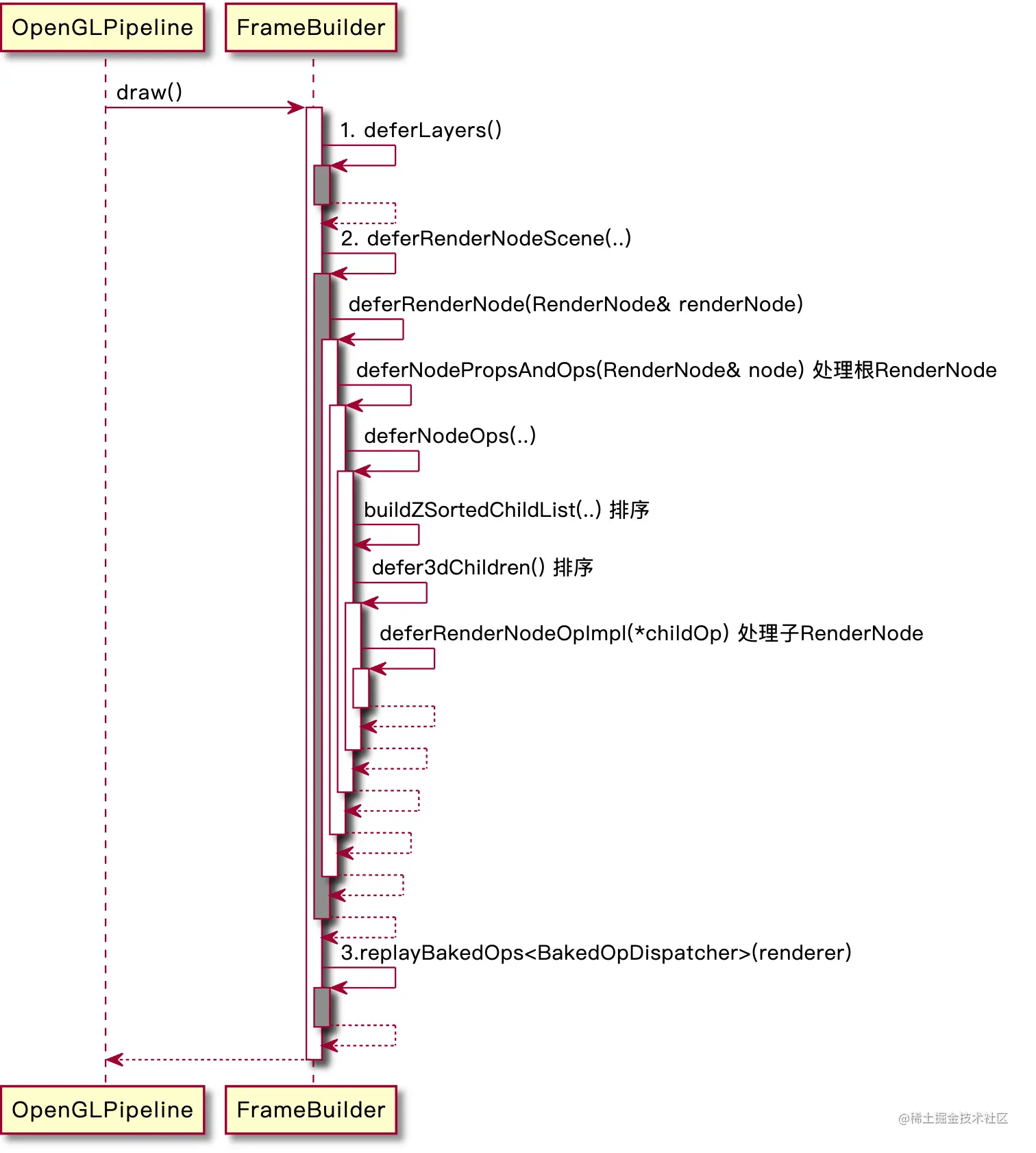

5.3 OpenGL加速绘制
OpenGLPipeline
9class OpenGLPipeline : public IRenderPipeline {
OpenGLPipeline::draw
bool OpenGLPipeline::draw(const Frame& frame, const SkRect& screenDirty, const SkRect& dirty,
58 const FrameBuilder::LightGeometry& lightGeometry,
59 LayerUpdateQueue* layerUpdateQueue, const Rect& contentDrawBounds,
60 bool opaque, bool wideColorGamut,
61 const BakedOpRenderer::LightInfo& lightInfo,
62 const std::vector<sp<RenderNode>>& renderNodes,//注: 通常集合mRenderNodes 只有一个rootRenderNode 根节点
63 FrameInfoVisualizer* profiler) {
64 mEglManager.damageFrame(frame, dirty);
65
66 bool drew = false;
67
68 auto& caches = Caches::getInstance();
69 FrameBuilder frameBuilder(dirty, frame.width(), frame.height(), lightGeometry, caches);
70 //1.layerUpdateQueue是当前窗口的TextureView 和设置了作为硬件加速渲染layer的View
71 frameBuilder.deferLayers(*layerUpdateQueue);
72 layerUpdateQueue->clear();
73 //2. renderNodes 是 根RenderNode ,size为1
74 frameBuilder.deferRenderNodeScene(renderNodes, contentDrawBounds);
75
// 3. 经过第12步的defer操作 ,FrameBuilder中每一层的layerBuilder的集合 vector<BatchBase*> mBatche 已经包含了处理和merge好了的 BatchBase
76 BakedOpRenderer renderer(caches, mRenderThread.renderState(), opaque, wideColorGamut,
77 lightInfo);
//真正的绘制动作
78 frameBuilder.replayBakedOps<BakedOpDispatcher>(renderer);
...
95
96 return drew;
97}
98
绘制帧
OpenGLPipeline调用draw(), 先创建一个FrameBuilder,绘制相关的工作都是由都是由FrameBuilder完成.
FrameBuilder的工作大概分为3步
-
1.deferLayers
处理需要单独作为一个layer(对应一个fbo ,Frame Buffer Object) 渲染的TextureView 和 做动画的View
-
2.deferRenderNodeScene
处理渲染管道绑定的Surface对应的root RenderNode, 遍历每个RenderNode,
-
3.replayBakedOps
对合并后的绘制调用GL渲染命令渲染
5.3.1 FrameBuilder 构建帧流程
FrameBuilder构建一帧整个流程如下:
渲染管道渲染时 Framebuilder构建帧的动作, 一帧可能是由多个layer合成的(比如有textureView时或者View设置动画时),Framebuilder的成员变量LsaVector<LayerBuilder*> mLayerBuilders对应需要处理的每一层.
//内存管理器 用于多个对象需要重复申请
220 // contains single-frame objects, such as BakedOpStates, LayerBuilders, Batches
221 LinearAllocator mAllocator;
222 LinearStdAllocator<void*> mStdAllocator;
223
224 // List of every deferred layer's render state. Replayed in reverse order to render a frame.
//某一帧中的所有层layer的状态 ,倒序播放渲染一帧
225 LsaVector<LayerBuilder*> mLayerBuilders;
226
227 /*
228 * Stack of indices within mLayerBuilders representing currently active layers. If drawing
229 * layerA within a layerB, will contain, in order:
230 * - 0 (representing FBO 0, always present)
231 * - layerB's index
232 * - layerA's index
233 *
234 * Note that this doesn't vector doesn't always map onto all values of mLayerBuilders. When a
235 * layer is finished deferring, it will still be represented in mLayerBuilders, but it's index
236 * won't be in mLayerStack. This is because it can be replayed, but can't have any more drawing
237 * ops added to it.
238 */
//当前处理的层的index
239 LsaVector<size_t> mLayerStack;
240
//当前绘制的状态
241 CanvasState mCanvasState;
242
243 Caches& mCaches;
244
245 float mLightRadius;
246
247 const bool mDrawFbo0;
248};
249
一帧Frame是有多层Layer组成的,一个layer对应一个LayerBuilder,FrameBuidler的mLayerBuilders表示了所有层. 根RenderNode在FrameBuilder初始化时创建的LayerBuilder fbo0, 每个TextureView和设置了layer的View 都会在FrameBuilder中对应一个相关的 LayerBuilder.
构造函数
FrameBuilder::FrameBuilder(..)
35 FrameBuilder::FrameBuilder(const SkRect& clip, uint32_t viewportWidth, uint32_t viewportHeight,
36 const LightGeometry& lightGeometry, Caches& caches)
37 : mStdAllocator(mAllocator)
38 , mLayerBuilders(mStdAllocator)
39 , mLayerStack(mStdAllocator)
40 , mCanvasState(*this)
41 , mCaches(caches)
42 , mLightRadius(lightGeometry.radius)
43 , mDrawFbo0(true) {
44 // Prepare to defer Fbo0
//LayerBuilder: 用于处理绘制某一层的操作和状态
45 auto fbo0 = mAllocator.create<LayerBuilder>(viewportWidth, viewportHeight, Rect(clip));
//mLayerBuilders 保存了某一帧中的所有需要绘制的层, 每个textureView单独在一层
46 mLayerBuilders.push_back(fbo0);
47 mLayerStack.push_back(0);
48 mCanvasState.initializeSaveStack(viewportWidth, viewportHeight, clip.fLeft, clip.fTop,
49 clip.fRight, clip.fBottom, lightGeometry.center);
50}
FrameBuilder创建时会创建fbo0 的LayerBuider, 这个是root RenderNode所在的layer.
FrameBuilder中 CanvasState 用于管理快照Snapshot栈,Snapshot用于描述当前绘制的Surface的状态.
172 /// Dimensions of the drawing surface
173 int mWidth, mHeight;
175 /// Number of saved states 可用于恢复到上一个快照
176 int mSaveCount;
178 /// Base state 第一个快照
179 Snapshot mFirstSnapshot;
181 /// Host providing callbacks
182 CanvasStateClient& mCanvas;
184 /// Current state 当前快照,
185 Snapshot* mSnapshot;
//复用的快照
187 // Pool of allocated snapshots to re-use
188 // NOTE: The dtors have already been invoked!
189 Snapshot* mSnapshotPool = nullptr;
190 int mSnapshotPoolCount = 0;
191
192};
//入栈快照SnapShot相关
//创建一个快照
72 Snapshot* CanvasState::allocSnapshot(Snapshot* previous, int savecount) {
73 void* memory;
74 if (mSnapshotPool) {
75 memory = mSnapshotPool;
76 mSnapshotPool = mSnapshotPool->previous;
77 mSnapshotPoolCount--;
78 } else {
79 memory = malloc(sizeof(Snapshot));
80 }
81 return new (memory) Snapshot(previous, savecount);
82}
// 入栈
114int CanvasState::saveSnapshot(int flags) {
115 mSnapshot = allocSnapshot(mSnapshot, flags);
116 return mSaveCount++;
117}
118 //入栈一个快照
119 int CanvasState::save(int flags) {
120 return saveSnapshot(flags);
121}
122
123/**
124 * Guaranteed to restore without side-effects.
125 */
126void CanvasState::restoreSnapshot() {
127 Snapshot* toRemove = mSnapshot;
128 Snapshot* toRestore = mSnapshot->previous;
129
130 mSaveCount--;
131 mSnapshot = toRestore;
132
133 // subclass handles restore implementation
134 mCanvas.onSnapshotRestored(*toRemove, *toRestore);
135
136 freeSnapshot(toRemove);
137}
138 //恢复到第一个快照
139 void CanvasState::restore() {
140 if (mSaveCount > 1) {
141 restoreSnapshot();
142 }
143}
144 //恢复到指定快照 相当于出栈
145 void CanvasState::restoreToCount(int saveCount) {
146 if (saveCount < 1) saveCount = 1;
147
148 while (mSaveCount > saveCount) {
149 restoreSnapshot();
150 }
151}
64/**
65 * A snapshot holds information about the current state of the rendering
66 * surface. A snapshot is usually created whenever the user calls save()
67 * and discarded when the user calls restore(). Once a snapshot is created,
68 * it can hold information for deferred rendering.
69 *
70 * Each snapshot has a link to a previous snapshot, indicating the previous
71 * state of the renderer.
72 */
73class Snapshot {
187 /**
188 * Dirty flags.
189 */
190 int flags;
191
192 /**
193 * Previous snapshot.
194 */
195 Snapshot* previous;
196
197 /**
198 * A pointer to the currently active layer.
199 *
200 * This snapshot does not own the layer, this pointer must not be freed.
201 */
202 Layer* layer;
203
204 /**
205 * Target FBO used for rendering. Set to 0 when rendering directly
206 * into the framebuffer.
207 */
208 GLuint fbo;//（Frame Buffer Object）帧缓冲区对象
209
...
Snapshot快照保存了当前渲染的Surface的状态信息, save()时创建,restore()丢弃. 是单向链表,保存了前一个快照previous, 使CanvasState可以通过previous回到上一个快照. 这里参考java层的canvas调用 canvas.save()和 canvas.restore()就很好理解了.
5.3.2 离屏渲染层预处理 FrameBuilder::deferLayers(..)
deferLayers(..)处理的是需要单独作为一个Frame Buffer Object 进行离屏渲染的view,比如TextureView和设置了硬件加速layer做动画的View. 从对应的RenderNode中获取到一个OffscreenBuffer,OffscreenBuffer描述了离屏渲染的Layer的宽高，纹理，渲染状态等信息。RenderNode的OffscreenBuffer在canvasContext::createOrUpdateLayer(..) 时添加到RenderNode中
FrameBuilder::deferLayers(const LayerUpdateQueue& layers)
72void FrameBuilder::deferLayers(const LayerUpdateQueue& layers) {
73 // Render all layers to be updated, in order. Defer in reverse order, so that they'll be
74 // updated in the order they're passed in (mLayerBuilders are issued to Renderer in reverse)
//倒序渲染每一层
75 for (int i = layers.entries().size() - 1; i >= 0; i--) {
76 RenderNode* layerNode = layers.entries()[i].renderNode.get();
77 // only schedule repaint if node still on layer - possible it may have been
78 // removed during a dropped frame, but layers may still remain scheduled so
79 // as not to lose info on what portion is damaged
80 OffscreenBuffer* layer = layerNode->getLayer();
81 if (CC_LIKELY(layer)) {
...
84 //获取需要更新的脏区信息
85 Rect layerDamage = layers.entries()[i].damage;
86 // TODO: ensure layer damage can't be larger than layer
87 layerDamage.doIntersect(0, 0, layer->viewportWidth, layer->viewportHeight);
88 layerNode->computeOrdering();
89
90 // map current light center into RenderNode's coordinate space
91 Vector3 lightCenter = mCanvasState.currentSnapshot()->getRelativeLightCenter();
92 layer->inverseTransformInWindow.mapPoint3d(lightCenter);
93 // 1. 保存离屏渲染
94 saveForLayer(layerNode->getWidth(), layerNode->getHeight(), 0, 0, layerDamage,
95 lightCenter, nullptr, layerNode);
96
97 if (layerNode->getDisplayList()) {
//2.处理layerNode
98 deferNodeOps(*layerNode);
99 }
// 3. 恢复快照
100 restoreForLayer();
101 }
102 }
103}
从 LayerUpdateQueue 队列中倒序取出需要离屏渲染的RenderNode.依次调用 saveForLayer,deferNodeOps,restoreForLayer(). save -> deferxx -> restore和我们在自定义控件调用onDraw()时类似。
-
1.
saveForLayer调用mCanvasState.save会根据宽高,位置Rect,灯光中心lightCente等创建一个快照更新到CanvasState. saveForLayer()向FrameBuilder的mLayerBuilders添加一个LayerBuilder来处理需要离屏渲染的RenderNode的渲染.FrameBuilder::saveForLayer(..)
787 void FrameBuilder::saveForLayer(uint32_t layerWidth, uint32_t layerHeight, float contentTranslateX, 788 float contentTranslateY, const Rect& repaintRect, 789 const Vector3& lightCenter, const BeginLayerOp* beginLayerOp, 790 RenderNode* renderNode) { //save创建了一个快照 snapShot 791 mCanvasState.save(SaveFlags::MatrixClip); //先设置FrameBuidler的画布状态 792 mCanvasState.writableSnapshot()->initializeViewport(layerWidth, layerHeight); 793 mCanvasState.writableSnapshot()->roundRectClipState = nullptr; 794 mCanvasState.writableSnapshot()->setRelativeLightCenter(lightCenter); 795 mCanvasState.writableSnapshot()->transform->loadTranslate(contentTranslateX, contentTranslateY, 796 0); 797 mCanvasState.writableSnapshot()->setClip(repaintRect.left, repaintRect.top, repaintRect.right, 798 repaintRect.bottom); 799 800 // create a new layer repaint, and push its index on the stack 801 mLayerStack.push_back(mLayerBuilders.size()); //内存中新分配一个LayerBuider (Frame buff object) 802 auto newFbo = mAllocator.create<LayerBuilder>(layerWidth, layerHeight, repaintRect,beginLayerOp, renderNode); //然后向frameBuilder的 mLayerBuilders 添加textureView的层的 LayerBuilder 804 mLayerBuilders.push_back(newFbo); 805} -
2.然后根据快照状态调用deferNodeOps完成layerNode的处理.
deferNodeOps(*layerNode) 会调用到FrameBuilder::deferNodeOps(const RenderNode& renderNode), deferNodeOps是很重要的一步，在后续
FrameBuilder::deferRenderNodeScene()详细分析。 -
3.restoreForLayer(),出栈当前SnapShot,恢复canvasState到上一个状态.
807 void FrameBuilder::restoreForLayer() {
808 // restore canvas, and pop finished layer off of the stack
809 mCanvasState.restore();
810 mLayerStack.pop_back();
811}
5.3.3 根节点预处理 FrameBuilder::deferRenderNodeScene(..)
在处理了离屏渲染的View的RenderNode后，接下来FrameBuider会对硬件加速渲染的视图的根布局的 root RenderNode进行处理(不考虑其他overlay层)。 deferRenderNodeScene 过程中会对DispalyList中可以合并的绘制进行合并.
FrameBuilder::deferRenderNodeScene(..)
//处理Android window 根视图对应的 RenderNode
129 void FrameBuilder::deferRenderNodeScene(const std::vector<sp<RenderNode> >& nodes, const Rect& contentDrawBounds) {
131 ...
deferRenderNode(*nodes[0]);
...
200}
105 void FrameBuilder::deferRenderNode(RenderNode& renderNode) {
106 renderNode.computeOrdering();
107 //这个renderNode 对应页面根视图decorView
108 mCanvasState.save(SaveFlags::MatrixClip);
109 deferNodePropsAndOps(renderNode);
110 mCanvasState.restore();
111}
还是mCanvasState.save -> do something -> mCanvasState.restore()
对于root RenderNode的处理在:deferNodePropsAndOps(RenderNode& node)
FrameBuilder::deferNodePropsAndOps(RenderNode& node)
205 //处理属性和op
206 void FrameBuilder::deferNodePropsAndOps(RenderNode& node) {
207 const RenderProperties& properties = node.properties();
208 const Outline& outline = properties.getOutline();
...
...
//是否当前设置的矩形区域不可以渲染
274 bool quickRejected = mCanvasState.currentSnapshot()->getRenderTargetClip().isEmpty() ||
275 (properties.getClipToBounds() &&
276 mCanvasState.quickRejectConservative(0, 0, width, height));
277 if (!quickRejected) {
278 // not rejected, so defer render as either Layer, or direct (possibly wrapped in saveLayer)
//textureView 等硬件加速层的处理
279 if (node.getLayer()) {
280 // HW layer
281 LayerOp* drawLayerOp = mAllocator.create_trivial<LayerOp>(node);
282 BakedOpState* bakedOpState = tryBakeOpState(*drawLayerOp);
283 if (bakedOpState) {
284 // Node's layer already deferred, schedule it to render into parent layer
285 currentLayer().deferUnmergeableOp(mAllocator, bakedOpState, OpBatchType::Bitmap);
286 }
287 } else if (CC_UNLIKELY(!saveLayerBounds.isEmpty())) {
288 // draw DisplayList contents within temporary, since persisted layer could not be used.
289 // (temp layers are clipped to viewport, since they don't persist offscreen content)
290 SkPaint saveLayerPaint;
291 saveLayerPaint.setAlpha(properties.getAlpha());
///!!!!!!!!!!
//还是调用 saveForLayer 创建一个LayerBuilder
292 deferBeginLayerOp(*mAllocator.create_trivial<BeginLayerOp>(
293 saveLayerBounds, Matrix4::identity(),
294 nullptr, // no record-time clip - need only respect defer-time one
295 &saveLayerPaint));
296 deferNodeOps(node);
297 deferEndLayerOp(*mAllocator.create_trivial<EndLayerOp>());
298 } else {
//常规View的处理
299 deferNodeOps(node);
300 }
301 }
302}
303
FrameBuilder::deferNodeOps(const RenderNode& renderNode)
490/**
491 * Used to define a list of lambdas referencing private FrameBuilder::onXX::defer() methods.
492 *
493 * This allows opIds embedded in the RecordedOps to be used for dispatching to these lambdas.
494 * E.g. a BitmapOp op then would be dispatched to FrameBuilder::onBitmapOp(const BitmapOp&)
495 */ 定义了一个宏,实际是根据RecordedOp的类型调用相应方法
496#define OP_RECEIVER(Type) \
497 [](FrameBuilder& frameBuilder, const RecordedOp& op) { \
498 frameBuilder.defer##Type(static_cast<const Type&>(op)); \
499 },
500 void FrameBuilder::deferNodeOps(const RenderNode& renderNode) {
// 1. 创建 FrameBuilder 对应 RecordedOp 的deferxx方法的LUT(查询表) 方法的指针数组
//定义一个函数指针
501 typedef void (*OpDispatcher)(FrameBuilder & frameBuilder, const RecordedOp& op);
//???? BUILD_DEFERRABLE_OP_LUT 在干啥???
// receivers[]是一个类型为*OpDispatcher的数组, 装了一堆frameBuilder.deferxxx方法的地址
502 static OpDispatcher receivers[] = BUILD_DEFERRABLE_OP_LUT(OP_RECEIVER);
503
// 2.拿到 RenderNode的绘制过程 displayList
504 // can't be null, since DL=null node rejection happens before deferNodePropsAndOps
505 const DisplayList& displayList = *(renderNode.getDisplayList());
506 for (auto& chunk : displayList.getChunks()) {
507 FatVector<ZRenderNodeOpPair, 16> zTranslatedNodes;
//把chunk按照z的大小排序到zTranslatedNodes
508 buildZSortedChildList(&zTranslatedNodes, displayList, chunk);
509
510 defer3dChildren(chunk.reorderClip, ChildrenSelectMode::Negative, zTranslatedNodes);
511 for (size_t opIndex = chunk.beginOpIndex; opIndex < chunk.endOpIndex; opIndex++) { //或者displayList中记录的每一个绘制动作
512 const RecordedOp* op = displayList.getOps()[opIndex];
//然后依次调用这些RecordedOp对应的 frameBuilder.defer##Type 方法
513 receivers[op->opId](*this, *op);
514
515 if (CC_UNLIKELY(!renderNode.mProjectedNodes.empty() &&
516 displayList.projectionReceiveIndex >= 0 &&
517 static_cast<int>(opIndex) == displayList.projectionReceiveIndex)) {
518 deferProjectedChildren(renderNode);
519 }
520 }
521 defer3dChildren(chunk.reorderClip, ChildrenSelectMode::Positive, zTranslatedNodes);
522 }
523}
//上面这一段逻辑是在干啥?
-
定义一个函数指针 *OpDispatcher
typedef void (*OpDispatcher)(FrameBuilder & frameBuilder, const RecordedOp& op);需要的参数类型是 FrameBuilder和 RecordedOp 绘制类型
-
给一个函数指针数组 赋值
static OpDispatcher receivers[] = BUILD_DEFERRABLE_OP_LUT(OP_RECEIVER);,所以可以知道BUILD_DEFERRABLE_OP_LUT(OP_RECEIVER)是一个数组BUILD_DEFERRABLE_OP_LUT(OP_RECEIVER) 等价于
// OP_RECEIVER 展开 可以看出是一个lambda ,根据 RecordedOp的类型调用FrameBuilder的对应方法 BUILD_DEFERRABLE_OP_LUT([](FrameBuilder& frameBuilder, const RecordedOp& op) { frameBuilder.defer##Type(static_cast<const Type&>(op)); }, )
这里定义了不同的op的类型可以的操作
114 #define NULLPTR_OP_FN(Type) nullptr,
//构建一个可以 defer的RecordedOp绘制操作 的查询表 Lookup Table
116#define BUILD_DEFERRABLE_OP_LUT(OP_FN) \ // OP_FN 是一个函数指针
117 { MAP_OPS_BASED_ON_TYPE(OP_FN, NULLPTR_OP_FN, OP_FN, OP_FN) }
//注意上面的OP_FU实际上是一个lambda函数
//然后调用 宏 `MAP_OPS_BASED_ON_TYPE` 实际上是 分别创建了一个函数对象,传入的参数为 各种RecordedOp
6# define MAP_OPS_BASED_ON_TYPE(PRE_RENDER_OP_FN, RENDER_ONLY_OP_FN, UNMERGEABLE_OP_FN, \
77 MERGEABLE_OP_FN) \
78 PRE_RENDER_OP_FN(RenderNodeOp)//这里实际上传建一个一个函数 加入LUT,参数为 RenderNodeOp \
79 PRE_RENDER_OP_FN(CirclePropsOp) \
80 PRE_RENDER_OP_FN(RoundRectPropsOp) \
81 PRE_RENDER_OP_FN(BeginLayerOp) \
82 PRE_RENDER_OP_FN(EndLayerOp) \
83 PRE_RENDER_OP_FN(BeginUnclippedLayerOp) \
84 PRE_RENDER_OP_FN(EndUnclippedLayerOp) \
85 PRE_RENDER_OP_FN(VectorDrawableOp) \
86 \
87 RENDER_ONLY_OP_FN(ShadowOp) \
88 RENDER_ONLY_OP_FN(LayerOp) \
89 RENDER_ONLY_OP_FN(CopyToLayerOp) \
90 RENDER_ONLY_OP_FN(CopyFromLayerOp) \
91 \
92 UNMERGEABLE_OP_FN(ArcOp) \
93 UNMERGEABLE_OP_FN(BitmapMeshOp) \
94 UNMERGEABLE_OP_FN(BitmapRectOp) \
95 UNMERGEABLE_OP_FN(ColorOp) \
96 UNMERGEABLE_OP_FN(FunctorOp) \
97 UNMERGEABLE_OP_FN(LinesOp) \
98 UNMERGEABLE_OP_FN(OvalOp) \
99 UNMERGEABLE_OP_FN(PathOp) \
100 UNMERGEABLE_OP_FN(PointsOp) \
101 UNMERGEABLE_OP_FN(RectOp) \
102 UNMERGEABLE_OP_FN(RoundRectOp) \
103 UNMERGEABLE_OP_FN(SimpleRectsOp) \
104 UNMERGEABLE_OP_FN(TextOnPathOp) \
105 UNMERGEABLE_OP_FN(TextureLayerOp) \
106 \
107 MERGEABLE_OP_FN(BitmapOp) \
108 MERGEABLE_OP_FN(PatchOp) \
receivers[op->opId](*this, *op);根据调用这些RecordedOp对应的opId(也就是op的类型) 调用 frameBuilder.defer##Type方法
op-> opId 就是 RecoredOp的真实类型 ,比如 drawLine对应的LinesOp
272struct LinesOp : RecordedOp {
273 LinesOp(BASE_PARAMS, const float* points, const int floatCount)
//注意 SUPER(LinesOp) 就是 设置了opId为 LinesOp
274 : SUPER(LinesOp), points(points), floatCount(floatCount) {}
275 const float* points;
276 const int floatCount;
277};
5 protected:
//RecordedOp 第一个参数就是opId
176 RecordedOp(unsigned int opId, BASE_PARAMS)
177 : opId(opId)
178 , unmappedBounds(unmappedBounds)
179 , localMatrix(localMatrix)
180 , localClip(localClip)
181 , paint(paint) {}
182};
FrameBuilder::buildZSortedChildList(...)对child在z方向排序
static void buildZSortedChildList(V* zTranslatedNodes, const DisplayList& displayList,
308 const DisplayList::Chunk& chunk) {
309 if (chunk.beginChildIndex == chunk.endChildIndex) return;
310
311 for (size_t i = chunk.beginChildIndex; i < chunk.endChildIndex; i++) {
//获取当前View对应的RenderNode的所有子view的RenderNode
312 RenderNodeOp* childOp = displayList.getChildren()[i];
313 RenderNode* child = childOp->renderNode;
//获取child RenderNode的 Z方向坐标
314 float childZ = child->properties().getZ();
316 if (!MathUtils::isZero(childZ) && chunk.reorderChildren) {
//把所有子RendNode怼到zTranslatedNodes容器
317 zTranslatedNodes->push_back(ZRenderNodeOpPair(childZ, childOp));
318 childOp->skipInOrderDraw = true;
319 } else if (!child->properties().getProjectBackwards()) {
320 // regular, in order drawing DisplayList
321 childOp->skipInOrderDraw = false;
322 }
323 }
324
325 // Z sort any 3d children (stable-ness makes z compare fall back to standard drawing order) //Z方向排序
326 std::stable_sort(zTranslatedNodes->begin(), zTranslatedNodes->end());
327}
void FrameBuilder::defer3dChildren(const ClipBase* reorderClip, ChildrenSelectMode mode,
339 const V& zTranslatedNodes) {
...
...
382 const RenderNodeOp* childOp = zTranslatedNodes[drawIndex].value;
383 deferRenderNodeOpImpl(*childOp); //递归处理子View
...
385 }
386}
deferRenderNodeOpImpl(*childOp); //递归处理子View
25void FrameBuilder::deferRenderNodeOpImpl(const RenderNodeOp& op) {
...
535 deferNodePropsAndOps(*op.renderNode);
...
538}
回到 FrameBuilder::deferNodeOps(const RenderNode& renderNode)中的 receivers[op->opId](*this, *op) 调用到的 BrameBuilder::defer##Type( ) 比如下面这些
//画圆弧
579 void FrameBuilder::deferArcOp(const ArcOp& op) {
580 // Pass true below since arcs have a tendency to draw outside their expected bounds within
581 // their path textures. Passing true makes it more likely that we'll scissor, instead of
582 // corrupting the frame by drawing outside of clip bounds.
583 deferStrokeableOp(op, tessBatchId(op), BakedOpState::StrokeBehavior::StyleDefined, true);
584}
585
//划线
658 void FrameBuilder::deferLinesOp(const LinesOp& op) {
659 batchid_t batch = op.paint->isAntiAlias() ? OpBatchType::AlphaVertices : OpBatchType::Vertices;
660 deferStrokeableOp(op, batch, BakedOpState::StrokeBehavior::Forced);
661}
//画bitmap
591void FrameBuilder::deferBitmapOp(const BitmapOp& op) {
...
611}
//画path
667void FrameBuilder::deferPatchOp(const PatchOp& op) {
...
682}
550 BakedOpState* FrameBuilder::deferStrokeableOp(const RecordedOp& op, batchid_t batchId,
551 BakedOpState::StrokeBehavior strokeBehavior,
552 bool expandForPathTexture) {
553 // Note: here we account for stroke when baking the op
554 BakedOpState* bakedState = BakedOpState::tryStrokeableOpConstruct(
555 mAllocator, *mCanvasState.writableSnapshot(), op, strokeBehavior, expandForPathTexture);
556 if (!bakedState) return nullptr; // quick rejected
557
558 if (op.opId == RecordedOpId::RectOp && op.paint->getStyle() != SkPaint::kStroke_Style) {
559 bakedState->setupOpacity(op.paint);
560 }
561 //把 RecordedOp 转为了一个 BakedOpState
562 currentLayer().deferUnmergeableOp(mAllocator, bakedState, batchId);
563 return bakedState;
564}
565
以上代码
最终都会调用到 LayerBuilder.cpp
284void LayerBuilder::deferUnmergeableOp(LinearAllocator& allocator, BakedOpState* op,
285 batchid_t batchId) {
286 onDeferOp(allocator, op);
287 OpBatch* targetBatch = mBatchLookup[batchId];
288
289 size_t insertBatchIndex = mBatches.size();
290 if (targetBatch) {
291 locateInsertIndex(batchId, op->computedState.clippedBounds, (BatchBase**)(&targetBatch),
292 &insertBatchIndex);
293 }
294
295 if (targetBatch) {
296 targetBatch->batchOp(op);
297 } else {
298 // new non-merging batch
299 targetBatch = allocator.create<OpBatch>(batchId, op);
300 mBatchLookup[batchId] = targetBatch;
301 mBatches.insert(mBatches.begin() + insertBatchIndex, targetBatch);
302 }
303}
304
305void LayerBuilder::deferMergeableOp(LinearAllocator& allocator, BakedOpState* op, batchid_t batchId,
306 mergeid_t mergeId) {
307 onDeferOp(allocator, op);
308 MergingOpBatch* targetBatch = nullptr;
309
310 // Try to merge with any existing batch with same mergeId
311 auto getResult = mMergingBatchLookup[batchId].find(mergeId);
312 if (getResult != mMergingBatchLookup[batchId].end()) {
313 targetBatch = getResult->second;
314 if (!targetBatch->canMergeWith(op)) {
315 targetBatch = nullptr;
316 }
317 }
318
319 size_t insertBatchIndex = mBatches.size();
320 locateInsertIndex(batchId, op->computedState.clippedBounds, (BatchBase**)(&targetBatch),
321 &insertBatchIndex);
322
323 if (targetBatch) {
324 targetBatch->mergeOp(op);
325 } else {
326 // new merging batch
327 targetBatch = allocator.create<MergingOpBatch>(batchId, op);
328 mMergingBatchLookup[batchId].insert(std::make_pair(mergeId, targetBatch));
329
330 mBatches.insert(mBatches.begin() + insertBatchIndex, targetBatch);
331 }
332}
RecordedOp 再次封装转为了一个 BakedOpState ,然后添加到了 LayerBuidler的 mBatche.
到这一步, RenderNode中的displayList (包含view自己的绘制过程 和 child View的 绘制过程) 都在
FrameBuidler的 FrameBuilder::deferLayers(const LayerUpdateQueue& layers)
和 FrameBuilder::deferRenderNodeScene(vector<sp<RenderNode> >& nodes, Rect& contentDrawBounds) 方法中 进行属性处理,z方向排序 然后调用
BrameBuilder::defer##Type 再调用到 LayerBuider的 deferUnmergeableOp 和 deferMergeableOp
方法向LayerBuidler的std::vector<BatchBase*> mBatche;添加了一个 类型为 BatchBase 的子类的targetBatch 批处理操作 .
deferMergeableOp 会对可以合并的绘制动作进行合并
BatchBase
58 protected:
59 batchid_t mBatchId;
60 Rect mBounds;
61 std::vector<BakedOpState*> mOps;
62 bool mMerging;
63};
class BakedOpState {
102 public:
127 // Set opaqueOverClippedBounds. If this method isn't called, the op is assumed translucent.
128 void setupOpacity(const SkPaint* paint);
129
130 // computed state:
131 ResolvedRenderState computedState;
132
133 // simple state (straight pointer/value storage):
134 const float alpha;
135 const RoundRectClipState* roundRectClipState;
136 const RecordedOp* op; //RecorderOp还在,只是再封装了下
137}
5.3.4 调用GL渲染
在 frameBuilder 完成buidlerLayer 和 buiderRenderNode 后调用 replayBakedOps
FrameBuilder::replayBakedOps()
80 /**
81 * replayBakedOps() is templated based on what class will receive ops being replayed.
82 *
83 * It constructs a lookup array of lambdas, which allows a recorded BakeOpState to use
84 * state->op->opId to lookup a receiver that will be called when the op is replayed.
85 */
86 template <typename StaticDispatcher, typename Renderer>
87 void replayBakedOps(Renderer& renderer) {
88 std::vector<OffscreenBuffer*> temporaryLayers;
89 finishDefer();
90/**
91 * Defines a LUT of lambdas which allow a recorded BakedOpState to use state->op->opId to
92 * dispatch the op via a method on a static dispatcher when the op is replayed.
93 *
94 * For example a BitmapOp would resolve, via the lambda lookup, to calling:
95 *
96 * StaticDispatcher::onBitmapOp(Renderer& renderer, const BitmapOp& op, const BakedOpState& state);
97 */
98#define X(Type) \
99 [](void* renderer, const BakedOpState& state) { \
100 StaticDispatcher::on##Type(*(static_cast<Renderer*>(renderer)), \
101 static_cast<const Type&>(*(state.op)), state); \
102 },
//这里的先搞了一个宏X, 实际上就是搞了一个 StaticDispatcher::on##Type 方法的集合
103 static BakedOpReceiver unmergedReceivers[] = BUILD_RENDERABLE_OP_LUT(X);
//这里是不可以merge的op用的 ,主要是决定 那些类型的op可以调用对应的 StaticDispatcher::on##Type 方法
//用完了 取消定义
104#undef X
105
106/**
107 * Defines a LUT of lambdas which allow merged arrays of BakedOpState* to be passed to a
108 * static dispatcher when the group of merged ops is replayed.
109 */
110#define X(Type) \
111 [](void* renderer, const MergedBakedOpList& opList) { \
112 StaticDispatcher::onMerged##Type##s(*(static_cast<Renderer*>(renderer)), opList); \
113 },
114 static MergedOpReceiver mergedReceivers[] = BUILD_MERGEABLE_OP_LUT(X);
115#undef X
//上面的动作 又搞了一个mergedReceivers[], 实际上又是一堆lambda表达式,可以看做是一个回调集合,是通过recordOp的类型决定哪些需要调用 StaticDispatcher::onMerged##Type##s 方法
116
117 // Relay through layers in reverse order, since layers
118 // later in the list will be drawn by earlier ones
119 for (int i = mLayerBuilders.size() - 1; i >= 1; i--) {
120 GL_CHECKPOINT(MODERATE);
121 LayerBuilder& layer = *(mLayerBuilders[i]);
122 if (layer.renderNode) {
123 // cached HW layer - can't skip layer if empty
124 renderer.startRepaintLayer(layer.offscreenBuffer, layer.repaintRect);
125 GL_CHECKPOINT(MODERATE);
126 layer.replayBakedOpsImpl((void*)&renderer, unmergedReceivers, mergedReceivers);
127 GL_CHECKPOINT(MODERATE);
128 renderer.endLayer();
129 } else if (!layer.empty()) {
130 // save layer - skip entire layer if empty (in which case, LayerOp has null layer).
131 layer.offscreenBuffer = renderer.startTemporaryLayer(layer.width, layer.height);
132 temporaryLayers.push_back(layer.offscreenBuffer);
133 GL_CHECKPOINT(MODERATE);
134 layer.replayBakedOpsImpl((void*)&renderer, unmergedReceivers, mergedReceivers);
135 GL_CHECKPOINT(MODERATE);
136 renderer.endLayer();
137 }
138 }
139
140 GL_CHECKPOINT(MODERATE);
141 if (CC_LIKELY(mDrawFbo0)) {
142 const LayerBuilder& fbo0 = *(mLayerBuilders[0]);
143 renderer.startFrame(fbo0.width, fbo0.height, fbo0.repaintRect);
144 GL_CHECKPOINT(MODERATE);
//调用LayerBuilder的replay..
145 fbo0.replayBakedOpsImpl((void*)&renderer, unmergedReceivers, mergedReceivers);
146 GL_CHECKPOINT(MODERATE);
147 renderer.endFrame(fbo0.repaintRect);
148 }
149
150 for (auto& temporaryLayer : temporaryLayers) {
151 renderer.recycleTemporaryLayer(temporaryLayer);
152 }
153 }
BUILD_MERGEABLE_OP_LUT(X) 宏 , BUILD_MERGEABLE_OP_LUT 是一个可以merge的op的列表, X 是方法调用
主要是在模板方法中调用 StaticDispatcher 类型的onXXX 回调 和 Renderer 的绘制相关的方法, Renderer的真实类型是 BakedOpRenderer
Fbo0.replayBacedOpsImlp(..) 调用到
334void LayerBuilder::replayBakedOpsImpl(void* arg, BakedOpReceiver* unmergedReceivers,
335 MergedOpReceiver* mergedReceivers) const {
....
343 for (const BatchBase* batch : mBatches) {
344 size_t size = batch->getOps().size();
345 if (size > 1 && batch->isMerging()) {
346 int opId = batch->getOps()[0]->op->opId;
347 const MergingOpBatch* mergingBatch = static_cast<const MergingOpBatch*>(batch);
348 MergedBakedOpList data = {batch->getOps().data(), size,
349 mergingBatch->getClipSideFlags(),
350 mergingBatch->getClipRect()};
//调用的是 StaticDispatcher::onMerged##Type##s(*(static_cast<Renderer*>(renderer)), opList);
351 mergedReceivers[opId](arg, data);
352 } else {
353 for (const BakedOpState* op : batch->getOps()) {
//第一个op是BakedOpState 第二个op是recordOp 这里调用到 frameBuilder.h 头文件中定义的宏中的模板方法 ,也就是 StaticDispatcher::on##Type() 方法
354 unmergedReceivers[op->op->opId](arg, *op);
355 }
356 }
357 }
358
359}
StaticDispatcher 是模板方法的参数,真实类型是 BakedOpDispatcher
代码太多了 .... 略
反正 都要调用
//包含发起OpenGL渲染的所有数据
Glop glop;
343 GlopBuilder(renderer.renderState(), renderer.caches(), &glop)
344 .setRoundRectClipState(state.roundRectClipState)
345 .setMeshVertexBuffer(vertexBuffer)
346 .setFillPaint(paint, state.alpha, shadowInterp)
347 .setTransform(state.computedState.transform, transformFlags)
348 .setModelViewOffsetRect(translateX, translateY, vertexBuffer.getBounds())
349 .build();
//这里的state 是 BakedOpState ,内部有一个 RecordedOp
350 renderer.renderGlop(state, glop);
renderer.renderGlop(state, glop) 中 renderer 的类型是 BakedOpRenderer
GlopBuilder 将 BakedOpState 和 相 关 的 信 息 传化成了一个 Glop
BakedOpRenderer::renderGlop(const BakedOpState& state, const Glop& glop)
78 void renderGlop(const BakedOpState& state, const Glop& glop) {
79 renderGlop(&state.computedState.clippedBounds,state.computedState.getClipIfNeeded(), glop);
80 }
81
82
83 void renderGlop(const Rect* dirtyBounds, const ClipBase* clip, const Glop& glop) {
84 mGlopReceiver(*this, dirtyBounds, clip, glop);
85 }
mGlopReceiver 又是一个函数指针,在BakedOpRenderer.h中定义
typedef void (*GlopReceiver)(BakedOpRenderer&, const Rect*, const ClipBase*, const Glop&);
在 初始化时 赋值为 DefaultGlopReceiver
static void DefaultGlopReceiver(BakedOpRenderer& renderer, const Rect* dirtyBounds,
105 const ClipBase* clip, const Glop& glop) {
106 renderer.renderGlopImpl(dirtyBounds, clip, glop);
107 }
接着走
BakedOpRenderer ::renderGlopImpl(const Rect* dirtyBounds, const ClipBase* clip, const Glop& glop)
void BakedOpRenderer::renderGlopImpl(const Rect* dirtyBounds, const ClipBase* clip,
345 const Glop& glop) {
346 prepareRender(dirtyBounds, clip);
3 ...
354 mRenderState.render(glop, mRenderTarget.orthoMatrix, overrideDisableBlending);
355 if (!mRenderTarget.frameBufferId) mHasDrawn = true;
356}
现在已经是 CanvasContext-> OpenGLPipeline -> FrameBuilder -> LayerBuilder -> BakedOpDispatcher -> BakedOpRenderer -> RenderState
graph LR
CanvasContext --> OpenGLPipeline
OpenGLPipeline --> FrameBuilder
FrameBuilder --> LayerBuilder
LayerBuilder --> BakedOpDispatche
BakedOpDispatche --> RenderState
最终调用到
RenderState::render(const Glop& glop, const Matrix4& orthoMatrix, bool overrideDisableBlending)
241///////////////////////////////////////////////////////////////////////////////
242// Render
243///////////////////////////////////////////////////////////////////////////////
244
245 void RenderState::render(const Glop& glop, const Matrix4& orthoMatrix,
246 bool overrideDisableBlending) {
...
407
408 // ------------------------------------
409 // ---------- Actual drawing ----------
410 // ------------------------------------
411 if (indices.bufferObject == meshState().getQuadListIBO()) {
412 // Since the indexed quad list is of limited length, we loop over
413 // the glDrawXXX method while updating the vertex pointer
414 GLsizei elementsCount = mesh.elementCount;
415 const GLbyte* vertexData = static_cast<const GLbyte*>(vertices.position);
416 while (elementsCount > 0) {
417 GLsizei drawCount = std::min(elementsCount, (GLsizei)kMaxNumberOfQuads * 6);
418 GLsizei vertexCount = (drawCount / 6) * 4;
419 meshState().bindPositionVertexPointer(vertexData, vertices.stride);
420 if (vertices.attribFlags & VertexAttribFlags::TextureCoord) {
421 meshState().bindTexCoordsVertexPointer(vertexData + kMeshTextureOffset,
422 vertices.stride);
423 }
424
425 if (mCaches->extensions().getMajorGlVersion() >= 3) {
426 glDrawRangeElements(mesh.primitiveMode, 0, vertexCount - 1, drawCount,
427 GL_UNSIGNED_SHORT, nullptr);
428 } else {
429 glDrawElements(mesh.primitiveMode, drawCount, GL_UNSIGNED_SHORT, nullptr);
430 }
431 elementsCount -= drawCount;
432 vertexData += vertexCount * vertices.stride;
433 }
434 } else if (indices.bufferObject || indices.indices) {
435 if (mCaches->extensions().getMajorGlVersion() >= 3) {
436 // use glDrawRangeElements to reduce CPU overhead (otherwise the driver has to determine
437 // the min/max index values)
// //渲染
438 glDrawRangeElements(mesh.primitiveMode, 0, mesh.vertexCount - 1, mesh.elementCount,
439 GL_UNSIGNED_SHORT, indices.indices);
440 } else {
//渲染
441 glDrawElements(mesh.primitiveMode, mesh.elementCount, GL_UNSIGNED_SHORT,
442 indices.indices);
443 }
444 } else {
//渲染
445 glDrawArrays(mesh.primitiveMode, 0, mesh.elementCount);
446 }
447
...
461}
最终在 RenderState::render(..) 方法中调用GL渲染命令渲染 glDrawElements glDrawRangeElements glDrawArrays ,这几个方法都定义在gl2.h
Glop 中 GLuint bufferObject 是由 LayerBuilder 中的 OffscreenBuffer 传入,RenderState::bindFramebuffer() 会完成GL和Framebuffer 的绑定
145 void RenderState::bindFramebuffer(GLuint fbo) {
146 if (mFramebuffer != fbo) {
147 mFramebuffer = fbo;
148 glBindFramebuffer(GL_FRAMEBUFFER, mFramebuffer);
149 }
150}
openGl 实际渲染的对象是Gluint fbo ,创建 EGL上下文时 关联 EGLSurface 和 Andorid层的surface实际也是关联这个fbo
到此为止 通过OpenGL 渲染的工作完成
5.4 Skia加速绘制
SkiaOpenGLPipeline::draw(...) 不贴源码整理分析了
