cedricpinson.github.io/osgjs-websi…
osgjs/examples/pbr at master · cedricpinson/osgjs (github.com)

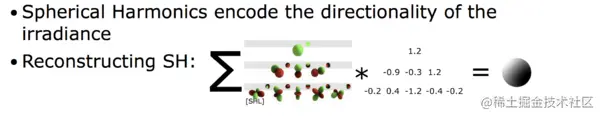

- 球谐函数 9个参数
顶点着色器
#version 100
#ifdef GL_FRAGMENT_PRECISION_HIGH
precision highp float;
#else
precision mediump float;
#endif
attribute vec3 Vertex;
attribute vec3 Normal;
attribute vec2 TexCoord0;
attribute vec4 Tangent;
attribute vec4 Color;
uniform mat4 uModelViewMatrix;
uniform mat4 uProjectionMatrix;
uniform mat3 uModelViewNormalMatrix;
varying vec3 vViewVertex;
varying vec3 vViewNormal;
varying vec4 vViewTangent;
varying vec2 vTexCoord0;
varying vec4 vVertexColor;
void main(void) {
vViewVertex = vec3(uModelViewMatrix * vec4(Vertex, 1.0));
vViewNormal = uModelViewNormalMatrix * Normal; //视口空间下的法向量 估计是逆矩阵转置
vViewTangent = vec4(uModelViewNormalMatrix * Tangent.xyz, Tangent.w); //视口空间下的切线空间
vTexCoord0 = TexCoord0;
vVertexColor = Color; //顶点颜色
gl_Position = uProjectionMatrix * uModelViewMatrix * vec4(Vertex, 1.0); //投影空间的坐标
}
片元着色器
void main(void) {
vec3 normal = normalize(vViewNormal); //视口空间下的法线
vec3 eye = normalize(vViewVertex); //视口空间下的坐标
vec4 tangent = vViewTangent; //切线空间
vec2 uv = vTexCoord0.xy; //uv
environmentTransform = getEnvironmentTransfrom( uEnvironmentTransform ); //获取uv 3x3矩阵
const vec3 dielectricColor = vec3(0.04); //F0吧 最小值 防止specualr没有
float minRoughness = 1.e-4; //最小粗糙度
vec4 albedoSource = texture2D( albedoMap, uv ); //漫反射贴图
albedoSource.a *= uBaseColorFactor.a; //uniform
vec3 albedo = sRGBToLinear( albedoSource.rgb, DefaultGamma ) * uBaseColorFactor.rgb; //空间
#ifdef VERTEX_COLOR
vec3 vertexColorLinear = sRGBToLinear( vVertexColor.rgb, DefaultGamma ); //srgb空间
// Check non zero non completely transparent
if(vertexColorLinear.rgb ! = vec3(0.0) && vVertexColor.a ! = 0.0) {
albedo *= vertexColorLinear; //相乘
albedoSource.a *= vVertexColor.a; //相乘
}
#endif
#ifdef NORMAL
vec3 normalTexel = texture2D( normalMap, uv ).rgb; //normal
if ( length(normalTexel) > 0.0001 ) {
vec3 realNormal = textureNormal( normalTexel );
normal = computeNormalFromTangentSpaceNormalMap( tangent, normal, realNormal );
}
#endif
//主要是得到roughness
#ifdef SPECULAR_GLOSSINESS
float roughness = texture2D( metallicRoughnessMap, uv ).a * uGlossinessFactor;
roughness = 1.0 - roughness; //因为是Roughness贴图相反的 所以减1即可
#else
float roughness = texture2D( metallicRoughnessMap, uv ).g * uRoughnessFactor;
#endif
roughness = max( minRoughness, roughness ); //最小的roughness
float ao = 1.0;
#ifdef NORMAL
if ( uNormalAA == 1 ) {
roughness = adjustRoughness( roughness, normalTexel); //法线与roughness的关系
}
#endif
#ifdef AO //AO
ao = texture2D( aoMap, uv ).r;
#endif
vec3 specular; // specular
#ifdef SPECULAR
specular = sRGBToLinear( texture2D( specularMap, uv ), DefaultGamma ).rgb * uSpecularFactor;
#else
#ifdef SPECULAR_GLOSSINESS //一样
specular = sRGBToLinear( texture2D( metallicRoughnessMap, uv ), DefaultGamma ).rgb * uSpecularFactor;
#else
float metallic = texture2D( metallicRoughnessMap, uv ).b * uMetallicFactor;
specular = mix( dielectricColor, albedo, metallic); //在合理
albedo = albedo * (1.0 - metallic);
#endif
#endif
vec3 resultIBL = computeIBL_UE4( normal, -eye, albedo, roughness, specular, ao );
//自发光是直接相加的
#ifdef EMISSIVE
vec3 emissiveChannel = sRGBToLinear( texture2D( emissiveMap, uv ), DefaultGamma ).rgb * uEmissiveFactor;
resultIBL = resultIBL + emissiveChannel;
#endif
//
vec4 result = vec4( resultIBL, albedoSource.a );
gl_FragColor = linearTosRGB(result, DefaultGamma );//srgb
}
- 间接光的diffuse+specular
vec3 computeIBL_UE4( const in vec3 normal, const in vec3 view, const in vec3 albedo, const in float roughness, const in vec3 specular, const in float ao) {
vec3 color = vec3(0.0);
if ( albedo ! = color ) {
// skip if no diffuse
//ao是乘在ibl里面的diffuse上的
color += uBrightness * albedo * ao * evaluateDiffuseSphericalHarmonics(normal, view );
}
//直接相加
color += approximateSpecularIBL(specular, roughness, normal, view);
return color;
}
- 间接光diffuse
vec3 evaluateDiffuseSphericalHarmonics( const in vec3 N, const in vec3 V ) {
return sphericalHarmonics( uEnvironmentSphericalHarmonics, environmentTransform * N );
}
// expect shCoefs uniform
// https://github.com/cedricpinson/envtools/blob/master/Cubemap.cpp#L523
vec3 sphericalHarmonics( const vec3 sph[9], const in vec3 normal ) {
float x = normal.x;
float y = normal.y;
float z = normal.z;
vec3 result = (
sph[0] +
sph[1] * y +
sph[2] * z +
sph[3] * x +
sph[4] * y * x +
sph[5] * y * z +
sph[6] * (3.0 * z * z - 1.0) +
sph[7] * (z * x) +
sph[8] * (x*x - y*y)
);
return max(result, vec3(0.0));
}
- 间接光specular
vec3 approximateSpecularIBL( const in vec3 specularColor, float rLinear, const in vec3 N, const in vec3 V ) {
float roughnessLinear = max( rLinear, 0.0);
float NoV = dot( N, V );
vec3 R = normalize( (2.0 * NoV ) * N - V);
// From Sebastien Lagarde Moving Frostbite to PBR page 69
// so roughness = linRoughness * linRoughness
vec3 dominantR = getSpecularDominantDir( N, R, roughnessLinear*roughnessLinear ); //获取到经过处理的R
vec3 dir = environmentTransform * dominantR;
vec3 prefilteredColor = prefilterEnvMap( roughnessLinear, dir ); //这里面比较复杂
// marmoset tricks
prefilteredColor *= occlusionHorizon( dominantR, vViewNormal );
#ifdef MOBILE
return uBrightness * prefilteredColor * integrateBRDFApprox( specularColor, roughnessLinear, NoV );
#else
vec2 envBRDF = integrateBRDF( roughnessLinear, NoV );
return uBrightness * prefilteredColor * ( specularColor * envBRDF.x + envBRDF.y );
#endif
}
#version 100
#ifdef GL_FRAGMENT_PRECISION_HIGH
precision highp float;
#else
precision mediump float;
#endif
#define CUBEMAP_LOD
#define LUV
#define NO_TANGENT
#define PI 3.1415926535897932384626433832795
#define PI_2 (2.0*3.1415926535897932384626433832795)
#define INV_PI 1.0/PI
#define INV_LOG2 1.4426950408889634073599246810019
uniform mat4 uEnvironmentTransform;
#ifdef CUBEMAP_LOD
uniform samplerCube uEnvironmentCube;
#extension GL_EXT_shader_texture_lod : enable
#endif
#ifdef PANORAMA
uniform sampler2D uEnvironment;
#endif
uniform vec2 uEnvironmentSize;
uniform vec2 uEnvironmentLodRange;
uniform float uLod;
uniform float uBrightness;
uniform sampler2D uIntegrateBRDF; // ue4
uniform vec3 uEnvironmentSphericalHarmonics[9]; //烘焙GI的LightProbe采用了3阶球谐函数（9个参数）
varying vec3 vViewVertex;
varying vec3 vViewNormal;
varying vec2 vTexCoord0;
varying vec4 vViewTangent;
varying vec4 vVertexColor;
mat3 environmentTransform;
uniform sampler2D albedoMap;
uniform sampler2D metallicRoughnessMap;
uniform sampler2D normalMap;
uniform sampler2D specularMap;
uniform sampler2D aoMap;
uniform sampler2D emissiveMap;
uniform vec4 uBaseColorFactor;
uniform vec3 uEmissiveFactor;
uniform vec3 uSpecularFactor;
uniform float uGlossinessFactor;
uniform float uMetallicFactor;
uniform float uRoughnessFactor;
uniform int uNormalAA;
uniform int uSpecularPeak;
uniform int uOcclusionHorizon;
#ifdef DEBUG
#define PI 3.1415926535897932384626433832795
vec3 shCoefs[9];
void createCoef() {
// vec3( 1.0/(2.0*sqrt(PI) ) ), // vec3( -( sqrt(3.0/PI)*0.5 * y ) ), // vec3( ( sqrt(3.0/PI)*0.5 * z ) ), // vec3( -( sqrt(3.0/PI)*0.5 * x ) ), // vec3( ( sqrt(15.0/PI)*0.5 * x * y ) ), // vec3( -( sqrt(15.0/PI)*0.5 * y * z ) ), // vec3( ( sqrt(5.0/PI)* 0.25 * ( 3.0*z*z - 1.0) ) ), // vec3( -( sqrt(15.0/PI)* 0.5 * x *z ) ), // vec3( ( sqrt(15.0/PI) * 0.25 * (x*x - y*y )) ), shCoefs[0] = vec3( 1.0/(2.0*sqrt(PI) ) );
shCoefs[1] = vec3( -( sqrt(3.0/PI)*0.5 ) );
shCoefs[2] = -shCoefs[1];
shCoefs[3] = shCoefs[1];
shCoefs[4] = vec3( sqrt(15.0/PI)*0.5 );
shCoefs[5] = -shCoefs[4];
shCoefs[6] = vec3( sqrt(5.0/PI)* 0.25 );
shCoefs[7] = shCoefs[5];
shCoefs[8] = vec3( sqrt(15.0/PI) * 0.25 );
}
vec3 sphericalHarmonics( const in vec3 normal ) {
float x = normal.x;
float y = normal.y;
float z = normal.z;
createCoef();
vec3 result = (
shCoefs[0] * uSph[0] +
shCoefs[1] * uSph[1] * y +
shCoefs[2] * uSph[2] * z +
shCoefs[3] * uSph[3] * x +
shCoefs[4] * uSph[4] * y * x +
shCoefs[5] * uSph[5] * y * z +
shCoefs[6] * uSph[6] * (3.0 * z * z - 1.0) +
shCoefs[7] * uSph[7] * (z * x) +
shCoefs[8] * uSph[8] * (x*x - y*y)
);
}
#else
// expect shCoefs uniform
// https://github.com/cedricpinson/envtools/blob/master/Cubemap.cpp#L523
vec3 sphericalHarmonics( const vec3 sph[9], const in vec3 normal ) {
float x = normal.x;
float y = normal.y;
float z = normal.z;
vec3 result = (
sph[0] +
sph[1] * y +
sph[2] * z +
sph[3] * x +
sph[4] * y * x +
sph[5] * y * z +
sph[6] * (3.0 * z * z - 1.0) +
sph[7] * (z * x) +
sph[8] * (x*x - y*y)
);
return max(result, vec3(0.0));
}
#endif
#define DefaultGamma 2.4
float linearrgb_to_srgb1(const in float c, const in float gamma) {
float v = 0.0;
if(c < 0.0031308) {
if ( c > 0.0)
v = c * 12.92;
}
else {
v = 1.055 * pow(c, 1.0/ gamma) - 0.055;
}
return v;
}
// coding style should be camel case except for acronyme like SRGB or HDR
vec4 linearTosRGB(const in vec4 col_from, const in float gamma) {
vec4 col_to;
col_to.r = linearrgb_to_srgb1(col_from.r, gamma);
col_to.g = linearrgb_to_srgb1(col_from.g, gamma);
col_to.b = linearrgb_to_srgb1(col_from.b, gamma);
col_to.a = col_from.a;
return col_to;
}
vec3 linearTosRGB(const in vec3 col_from, const in float gamma) {
vec3 col_to;
col_to.r = linearrgb_to_srgb1(col_from.r, gamma);
col_to.g = linearrgb_to_srgb1(col_from.g, gamma);
col_to.b = linearrgb_to_srgb1(col_from.b, gamma);
return col_to;
}
float sRGBToLinear(const in float c, const in float gamma) {
float v = 0.0;
if ( c < 0.04045 ) {
if ( c >= 0.0 )
v = c * ( 1.0 / 12.92 );
}
else {
v = pow( ( c + 0.055 ) * ( 1.0 / 1.055 ), gamma );
}
return v;
}
vec4 sRGBToLinear(const in vec4 col_from, const in float gamma) {
vec4 col_to;
col_to.r = sRGBToLinear(col_from.r, gamma);
col_to.g = sRGBToLinear(col_from.g, gamma);
col_to.b = sRGBToLinear(col_from.b, gamma);
col_to.a = col_from.a;
return col_to;
}
vec3 sRGBToLinear(const in vec3 col_from, const in float gamma) {
vec3 col_to;
col_to.r = sRGBToLinear(col_from.r, gamma);
col_to.g = sRGBToLinear(col_from.g, gamma);
col_to.b = sRGBToLinear(col_from.b, gamma);
return col_to;
}
vec3 RGBEToRGB( const in vec4 rgba ) {
float f = pow(2.0, rgba.w * 255.0 - (128.0 + 8.0));
return rgba.rgb * (255.0 * f);
}
//http://graphicrants.blogspot.fr/2009/04/rgbm-color-encoding.html
vec3 RGBMToRGB( const in vec4 rgba ) {
const float maxRange = 8.0;
return rgba.rgb * maxRange * rgba.a;
}
const mat3 LUVInverse = mat3( 6.0013, -2.700, -1.7995, -1.332, 3.1029, -5.7720, 0.3007, -1.088, 5.6268 );
vec3 LUVToRGB( const in vec4 vLogLuv ) {
float Le = vLogLuv.z * 255.0 + vLogLuv.w;
vec3 Xp_Y_XYZp;
Xp_Y_XYZp.y = exp2((Le - 127.0) / 2.0);
Xp_Y_XYZp.z = Xp_Y_XYZp.y / vLogLuv.y;
Xp_Y_XYZp.x = vLogLuv.x * Xp_Y_XYZp.z;
vec3 vRGB = LUVInverse * Xp_Y_XYZp;
return max(vRGB, 0.0);
}
// From Sebastien Lagarde Moving Frostbite to PBR page 69
// We have a better approximation of the off specular peak
// but due to the other approximations we found this one performs better.
// N is the normal direction
// R is the mirror vector
// This approximation works fine for G smith correlated and uncorrelated
vec3 getSpecularDominantDir(const in vec3 N, const in vec3 R, const in float realRoughness) {
vec3 dominant;
if ( uSpecularPeak == 1 ) {
float smoothness = 1.0 - realRoughness;
float lerpFactor = smoothness * (sqrt(smoothness) + realRoughness);
// The result is not normalized as we fetch in a cubemap
dominant = mix(N, R, lerpFactor);
}
else {
dominant = R;
}
return dominant;
}
float occlusionHorizon( const in vec3 R, const in vec3 normal) {
if ( uOcclusionHorizon == 0)
return 1.0;
// http://marmosetco.tumblr.com/post/81245981087
// marmoset uses 1.3, we force it to 1.0
float factor = clamp( 1.0 + dot(R, normal), 0.0, 1.0 );
return factor * factor;
}
#ifdef CUBEMAP_LOD
vec3 textureCubeRGBE(const in samplerCube tex, const in vec3 uv) {
vec4 rgbe = textureCube(tex, uv );
return RGBEToRGB( rgbe );
}
vec3 scaleDirection(const in float scale, const in vec3 dirIn) {
vec3 dir = dirIn;
float M = max(max(abs(dir.x), abs(dir.y)), abs(dir.z));
if (abs(dir.x) ! = M) dir.x *= scale;
if (abs(dir.y) ! = M) dir.y *= scale;
if (abs(dir.z) ! = M) dir.z *= scale;
return dir;
}
vec3 textureCubemapLod(const in samplerCube tex, const in vec3 dir, const in float lod ) {
#ifdef CUBEMAP_LOD
vec4 rgba = textureCubeLodEXT( tex, dir, lod );
#else
vec4 rgba = textureCube( tex, dir );
#endif
#ifdef FLOAT
return rgba.rgb;
#endif
#ifdef RGBE
return RGBEToRGB( rgba );
#endif
#ifdef RGBM
return RGBMToRGB( rgba );
#endif
#ifdef LUV
return LUVToRGB( rgba );
#endif
}
vec3 textureCubemap(const in samplerCube tex, const in vec3 dir ) {
vec4 rgba = textureCube( tex, dir );
#ifdef FLOAT
return rgba.rgb;
#endif
#ifdef RGBE
return RGBEToRGB( rgba );
#endif
#ifdef RGBM
return RGBMToRGB( rgba );
#endif
#ifdef LUV
return LUVToRGB( rgba );
#else
return rgba.rgb;
#endif
}
vec3 cubemapSeamlessFixDirection(const in vec3 direction, const in float scale ) {
vec3 dir = direction;
// http://seblagarde.wordpress.com/2012/06/10/amd-cubemapgen-for-physically-based-rendering/
float M = max(max(abs(dir.x), abs(dir.y)), abs(dir.z));
if (abs(dir.x) ! = M) dir.x *= scale;
if (abs(dir.y) ! = M) dir.y *= scale;
if (abs(dir.z) ! = M) dir.z *= scale;
return dir;
}
vec3 textureCubeLodEXTFixed(const in samplerCube tex, const in vec3 direction, const in float lodInput ) {
float lod = min( uEnvironmentLodRange[0], lodInput );
// http://seblagarde.wordpress.com/2012/06/10/amd-cubemapgen-for-physically-based-rendering/
float scale = 1.0 - exp2(lod) / uEnvironmentSize[0];
vec3 dir = cubemapSeamlessFixDirection( direction, scale);
return textureCubemapLod( tex, dir, lod ).rgb;
}
// seamless cubemap for background ( no lod )
vec3 textureCubeFixed(const in samplerCube tex, const in vec3 direction ) {
// http://seblagarde.wordpress.com/2012/06/10/amd-cubemapgen-for-physically-based-rendering/
float scale = 1.0 - 1.0 / uEnvironmentSize[0];
vec3 dir = cubemapSeamlessFixDirection( direction, scale);
return textureCubemap( tex, dir );
}
#endif
#ifdef PANORAMA
#define PI 3.1415926535897932384626433832795
#define PI_2 (2.0*3.1415926535897932384626433832795)
#define INV_PI 1.0/PI
#define INV_LOG2 1.4426950408889634073599246810019
vec2 computeUVForMipmap( const in float level, const in vec2 uv, const in float size, const in float maxLOD ) {
// width for level
float widthForLevel = exp2( maxLOD-level);
// the height locally for the level in pixel
// to opimitize a bit we scale down the v by two in the inputs uv
float heightForLevel = widthForLevel * 0.5;
#if 0
float texelSize = 1.0 / size;
float resizeX = (widthForLevel - 2.0) * texelSize;
float resizeY = (heightForLevel - 2.0) * texelSize;
float uvSpaceLocalX = texelSize + uv.x * resizeX;
float uvSpaceLocalY = texelSize + uv.y * resizeY;
uvSpaceLocalY += (size - widthForLevel ) / size;
return vec2( uvSpaceLocalX, uvSpaceLocalY);
#else
// compact version
float texelSize = 1.0/size;
vec2 uvSpaceLocal = vec2(1.0) + uv * vec2(widthForLevel - 2.0, heightForLevel - 2.0);
uvSpaceLocal.y += size - widthForLevel;
return uvSpaceLocal * texelSize;
#endif
}
//for y up
vec2 normalToPanoramaUVY( const in vec3 dir ) {
float n = length(dir.xz);
// to avoid bleeding the max(-1.0, dir.x / n) is needed
vec2 pos = vec2( (n>0.0000001) ? max(-1.0, dir.x / n) : 0.0, dir.y);
// fix edge bleeding
if ( pos.x > 0.0 ) pos.x = min( 0.999999, pos.x );
pos = acos(pos)*INV_PI;
pos.x = (dir.z > 0.0) ? pos.x*0.5 : 1.0-(pos.x*0.5);
// shift u to center the panorama to -z
pos.x = mod(pos.x-0.25+1.0, 1.0 );
pos.y = 1.0-pos.y;
return pos;
}
// for z up
vec2 normalToPanoramaUVZ( const in vec3 dir ) {
float n = length(dir.xy);
// to avoid bleeding the max(-1.0, dir.x / n) is needed
vec2 pos = vec2( (n>0.0000001) ? max(-1.0, dir.x / n) : 0.0, dir.z);
// fix edge bleeding
if ( pos.x > 0.0 ) pos.x = min( 0.999999, pos.x );
pos = acos(pos)*INV_PI;
// to avoid bleeding the limit must be set to 0.4999999 instead of 0.5
pos.x = (dir.y > 0.0) ? pos.x*0.5 : 1.0-(pos.x*0.5);
// shift u to center the panorama to -y
pos.x = mod(pos.x-0.25+1.0, 1.0 );
pos.y = 1.0-pos.y;
return pos;
}
#define normalToPanoramaUV normalToPanoramaUVY
vec3 texturePanorama(const in sampler2D tex, const in vec2 uv) {
vec4 rgba = texture2D(tex, uv );
#ifdef FLOAT
return rgba.rgb;
#endif
#ifdef RGBE
return RGBEToRGB( rgba );
#endif
#ifdef RGBM
return RGBMToRGB( rgba );
#endif
#ifdef LUV
return LUVToRGB( rgba );
#else
return rgba.rgb;
#endif
}
vec3 texturePanoramaLod(const in sampler2D tex, const in vec2 size, const in vec3 direction, const in float lodInput, const in float maxLOD ) {
float lod = min( maxLOD, lodInput );
vec2 uvBase = normalToPanoramaUV( direction );
// // we scale down v here because it avoid to do twice in sub functions
// uvBase.y *= 0.5;
float lod0 = floor(lod);
vec2 uv0 = computeUVForMipmap(lod0, uvBase, size.x, maxLOD );
vec3 texel0 = texturePanorama( tex, uv0.xy);
float lod1 = ceil(lod);
vec2 uv1 = computeUVForMipmap(lod1, uvBase, size.x, maxLOD );
vec3 texel1 = texturePanorama( tex, uv1.xy);
return mix(texel0, texel1, fract( lod ) );
}
vec3 getTexelPanorama( const in vec3 dir, const in float lod ) {
vec2 uvBase = normalToPanoramaUV( dir );
vec3 texel = texturePanoramaLod( uEnvironment, uEnvironmentSize, dir, lod, uEnvironmentLodRange[0] );
return texel;
}
vec3 getReferenceTexelEnvironment( const in vec3 dirLocal, const in float lod ) {
vec3 direction = environmentTransform * dirLocal;
return getTexelPanorama( direction, lod );
}
#endif
// require:
// uniform int uEnvironmentMaxLod
// samplerCube uEnvironmentCube
// uniform sampler2D uIntegrateBRDF;
//
// frostbite, lagarde paper p67
// http://www.frostbite.com/wp-content/uploads/2014/11/course_notes_moving_frostbite_to_pbr.pdf
float linRoughnessToMipmap( float roughnessLinear ) {
//return roughnessLinear;
return sqrt(roughnessLinear);
}
vec3 prefilterEnvMap( float roughnessLinear, const in vec3 R ) {
#ifdef CUBEMAP_LOD
float lod = linRoughnessToMipmap(roughnessLinear) * uEnvironmentLodRange[1]; //( uEnvironmentMaxLod - 1.0 );
return textureCubeLodEXTFixed( uEnvironmentCube, R, lod );
#else
float lod = linRoughnessToMipmap(roughnessLinear) * uEnvironmentLodRange[1];
vec2 uvBase = normalToPanoramaUV( R );
vec3 texel = texturePanoramaLod( uEnvironment, uEnvironmentSize, R, lod, uEnvironmentLodRange[0] );
return texel;
#endif
}
vec2 integrateBRDF( float r, float NoV ) {
vec4 rgba = texture2D( uIntegrateBRDF, vec2(NoV, r ) );
const float div = 1.0/65535.0;
float b = (rgba[3] * 65280.0 + rgba[2] * 255.0);
float a = (rgba[1] * 65280.0 + rgba[0] * 255.0);
return vec2( a, b ) * div;
}
// https://www.unrealengine.com/blog/physically-based-shading-on-mobile
vec3 integrateBRDFApprox( const in vec3 specular, float roughness, float NoV ) {
const vec4 c0 = vec4( -1, -0.0275, -0.572, 0.022 );
const vec4 c1 = vec4( 1, 0.0425, 1.04, -0.04 );
vec4 r = roughness * c0 + c1;
float a004 = min( r.x * r.x, exp2( -9.28 * NoV ) ) * r.x + r.y;
vec2 AB = vec2( -1.04, 1.04 ) * a004 + r.zw;
return specular * AB.x + AB.y;
}
mat3 getEnvironmentTransfrom( mat4 transform ) {
vec3 x = vec3(transform[0][0], transform[1][0], transform[2][0]);
vec3 y = vec3(transform[0][1], transform[1][1], transform[2][1]);
vec3 z = vec3(transform[0][2], transform[1][2], transform[2][2]);
mat3 m = mat3(x, y, z);
return m;
}
vec3 computeNormalFromTangentSpaceNormalMap(const in vec4 tangent, const in vec3 normal, const in vec3 texnormal) {
vec3 tang = vec3(0.0, 1.0, 0.0);
if (length(tangent.xyz) ! = 0.0) {
tang = normalize(tangent.xyz);
}
vec3 B = tangent.w * cross(normal, tang);
vec3 outnormal = texnormal.x*tang + texnormal.y*B + texnormal.z*normal;
return normalize(outnormal);
}
vec3 textureNormal(const in vec3 rgb) {
vec3 n = normalize((rgb-vec3(0.5)));
return n;
}
float adjustRoughness( const in float roughness, const in vec3 normal ) {
// Based on The Order : 1886 SIGGRAPH course notes implementation (page 21 notes)
float normalLen = length(normal*2.0-1.0);
if ( normalLen < 1.0) {
float normalLen2 = normalLen * normalLen;
float kappa = ( 3.0 * normalLen - normalLen2 * normalLen )/( 1.0 - normalLen2 );
// http://www.frostbite.com/2014/11/moving-frostbite-to-pbr/
// page 91 : they use 0.5/kappa instead
return min(1.0, sqrt( roughness * roughness + 1.0/kappa ));
}
return roughness;
}
