WebGL Viewport

渲染管线的角度

• 处于图元装配的视口变换的管线上(裁剪->背面剔除->透视除法->视口变换)
• 一般而言,Viewport一般跟窗口同大
• 常见代码如下

function framebufferSizeCallback(width, height) {
    canvas.width = width;
    canvas.height = height;
    gl.viewport(0, 0, width, height);
    requestAnimationFrame(render);
}
window.onresize = () => {
    framebufferSizeCallback(window.innerWidth, window.innerHeight); //很简单
};

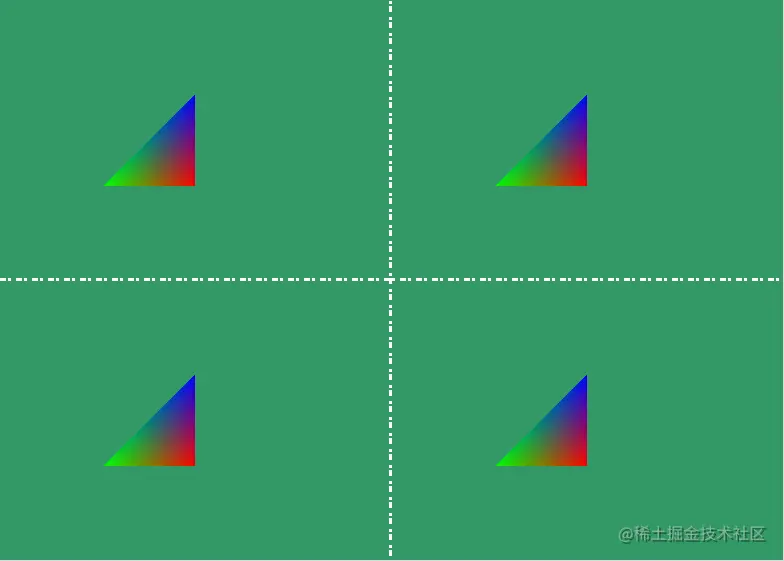

• 当然也可以设置多窗口模式

//边界
glLineWidth(3.0f);          //设置直线宽度

glLineStipple(1, 0x3F07);   //设置虚线的模式
glEnable(GL_LINE_STIPPLE);  //启用虚线

glViewport(0,0,WIDTH,HEIGHT);
glPushMatrix();
    glTranslatef(0.0f,0.0f,-4.0f);
    glBegin(GL_LINES);
        glColor3f(1.0f,1.0f,1.0f);
        glVertex3f(-WIDTH/2,0.0f,0.0f);
        glVertex3f(WIDTH/2,0.0f,0.0f);
        glVertex3f(0.0f,-HEIGHT/2,0.0f);
        glVertex3f(0.0f,HEIGHT/2,0.0f);
    glEnd();
glPopMatrix();


//视口1
glViewport(0,0,WIDTH/2,HEIGHT/2);
glPushMatrix();
    glTranslatef(0.0f,-0.5f,-3.0f);
    glBegin(GL_TRIANGLES);
        glColor3f(1.0f,0.0f,0.0f);
        glVertex3f(0.0f,0.0f,0.0f);
        glColor3f(0.0f,0.0f,1.0f);
        glVertex3f(0.0f,1.0f,0.0f);
        glColor3f(0.0f,1.0f,0.0f);
        glVertex3f(-1.0f,0.0f,0.0f);
    glEnd();
glPopMatrix();


//视口2
glViewport(WIDTH/2,0,WIDTH/2,HEIGHT/2);
glPushMatrix();
    glTranslatef(0.0f,-0.5f,-3.0f);
    glBegin(GL_TRIANGLES);
        glColor3f(1.0f,0.0f,0.0f);
        glVertex3f(0.0f,0.0f,0.0f);
        glColor3f(0.0f,0.0f,1.0f);
        glVertex3f(0.0f,1.0f,0.0f);
        glColor3f(0.0f,1.0f,0.0f);
        glVertex3f(-1.0f,0.0f,0.0f);
    glEnd();
glPopMatrix();


//视口3
glViewport(WIDTH/2,HEIGHT/2,WIDTH/2,HEIGHT/2);
glPushMatrix();
    glTranslatef(0.0f,-0.5f,-3.0f);
    glBegin(GL_TRIANGLES);
        glColor3f(1.0f,0.0f,0.0f);
        glVertex3f(0.0f,0.0f,0.0f);
        glColor3f(0.0f,0.0f,1.0f);
        glVertex3f(0.0f,1.0f,0.0f);
        glColor3f(0.0f,1.0f,0.0f);
        glVertex3f(-1.0f,0.0f,0.0f);
    glEnd();
glPopMatrix();


//视口4
glViewport(0,HEIGHT/2,WIDTH/2,HEIGHT/2);
glPushMatrix();
    glTranslatef(0.0f,-0.5f,-3.0f);
    glBegin(GL_TRIANGLES);
        glColor3f(1.0f,0.0f,0.0f);
        glVertex3f(0.0f,0.0f,0.0f);
        glColor3f(0.0f,0.0f,1.0f);
        glVertex3f(0.0f,1.0f,0.0f);
        glColor3f(0.0f,1.0f,0.0f);
        glVertex3f(-1.0f,0.0f,0.0f);
    glEnd();
glPopMatrix();
