WebGL2 draw_instanced

webglsamples.org/WebGL2Sampl…

• webgl1 drawcall

gl.drawArrays(gl.TRIANGLES, 0, n);  //n 一般是 数组/3
gl.drawElements(gl.TRIANGLES, n, gl.UNSIGNED_BYTE, 0); //n 一般是indices.length

• webgl2 drawcall

drawArraysInstanced(gl.TRIANGLES, 0, 3, 2)

#version 300 es
#define POSITION_LOCATION 0
#define COLOR_LOCATION 1

precision highp float;
precision highp int;

layout(location = POSITION_LOCATION) in vec2 pos;
layout(location = COLOR_LOCATION) in vec4 color;
flat out vec4 v_color;

void main()
{
    v_color = color;
    gl_Position = vec4(pos + vec2(float(gl_InstanceID) - 0.5, 0.0), 0.0, 1.0); //gl_InstanceID
}

#version 300 es
precision highp float;
precision highp int;

flat in vec4 v_color;
out vec4 color;

void main()
{
    color = v_color;
}

// -- Init Vertex Array
var vertexArray = gl.createVertexArray();
gl.bindVertexArray(vertexArray);
// -- Init Buffers
var vertexPosLocation = 0;  // set with GLSL layout qualifier
var vertices = new Float32Array([
    -0.3, -0.5,
     0.3, -0.5,
     0.0,  0.5
]);
var vertexPosBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER, vertexPosBuffer);
gl.bufferData(gl.ARRAY_BUFFER, vertices, gl.STATIC_DRAW);
gl.enableVertexAttribArray(vertexPosLocation);
gl.vertexAttribPointer(vertexPosLocation, 2, gl.FLOAT, false, 0, 0);

var vertexColorLocation = 1;  // set with GLSL layout qualifier
var colors = new Float32Array([
    1.0, 0.5, 0.0,
    0.0, 0.5, 1.0
]);
var vertexColorBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER, vertexColorBuffer);
gl.bufferData(gl.ARRAY_BUFFER, colors, gl.STATIC_DRAW);
gl.enableVertexAttribArray(vertexColorLocation);
gl.vertexAttribPointer(vertexColorLocation, 3, gl.FLOAT, false, 0, 0);
gl.vertexAttribDivisor(vertexColorLocation, 1); // attribute used once per instance

gl.bindVertexArray(null);
gl.clearColor(0.0, 0.0, 0.0, 1.0);
gl.clear(gl.COLOR_BUFFER_BIT);
gl.bindVertexArray(vertexArray);

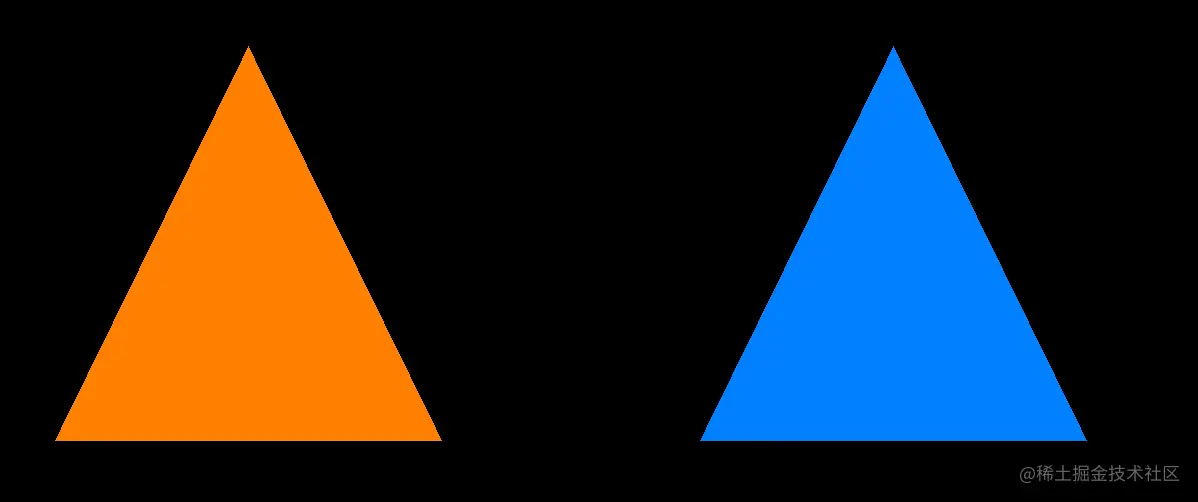

gl.drawArraysInstanced(gl.TRIANGLES, 0, 3, 2); //3个顶点数据

webglsamples.org/WebGL2Sampl…

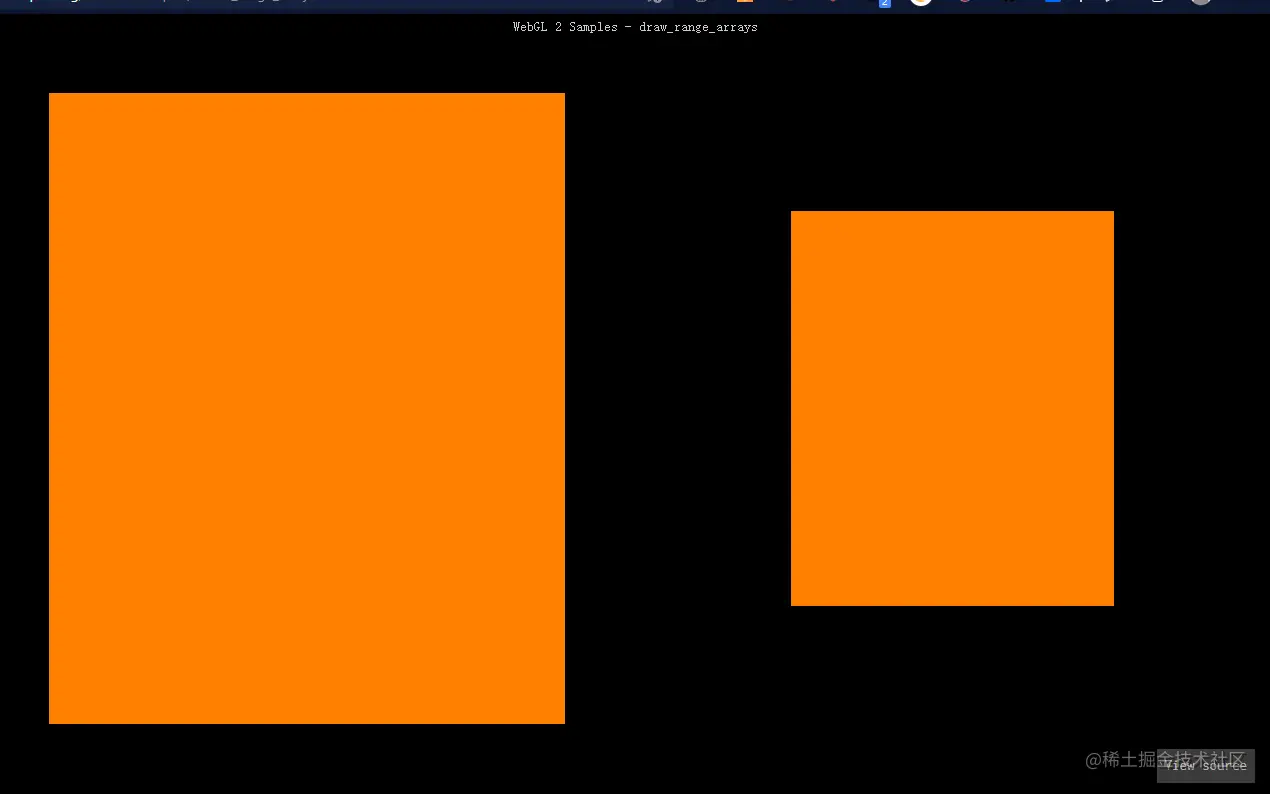

• 不同的viewport的drawcall

gl.viewport(0, 0, canvas.width / 2, canvas.height);
gl.drawArraysInstanced(gl.TRIANGLES, 0, vertexCount / 2, 1);
gl.viewport(canvas.width / 2, 0, canvas.width / 2, canvas.height);
gl.drawArraysInstanced(gl.TRIANGLES, 6, vertexCount / 2, 1);
