WebGL1.0 扩展 ANGLE_instanced_arrays DrawCall

www.jiazhengblog.com/blog/2017/0…

precision highp float;
attribute vec3 aPos;
attribute vec3 aOffset;
attribute vec3 aColor;
varying vec3 vColor;
void main(void){
    gl_Position = vec4(aPos + aOffset, 1);
    vColor = aColor;
}

precision highp float;
varying vec3 vColor;
void main(void) {
    gl_FragColor = vec4(vColor, 1.0);
}

• 创建一份顶点数据

// vertex representing the triangle
var vertex = [
    -.1, -.1,  0,
    .1,  -.1,  0,
    .1,   .1,  0,
    -.1, -.1,  0,
    .1,   .1,  0,
    -.1,   .1,  0
];
var vertexBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER, vertexBuffer);
gl.bufferData(gl.ARRAY_BUFFER, new Float32Array(vertex), gl.STATIC_DRAW);
var aVertexPosition = gl.getAttribLocation(glProgram, 'aPos');
// point the attribute to the currently bound vertex buffer.
gl.vertexAttribPointer(aVertexPosition, 3, gl.FLOAT, false, 0, 0);
gl.enableVertexAttribArray(aVertexPosition);

• 创建十份uniform数据

// 创建颜色和位移的buffer
var colorsArray = [];
var offsetsArray = [];
for (var i = 0; i < 10; i++) {
    colorsArray.push(Math.random(), Math.random(), Math.random());
    offsetsArray.push((i - 5) / 5 + 0.1, 0, 0);
}

• 扩展

ext = gl.getExtension("ANGLE_instanced_arrays");

• 十份uniform偏移的数据+vertexAttribDivisorANGLE设置
• ext.vertexAttribDivisorANGLE(aOffsetLocation, 1);

var colors = new Float32Array(colorsArray);
var offsets = new Float32Array(offsetsArray);
var aOffsetLocation = gl.getAttribLocation(glProgram, 'aOffset');
var offsetBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER, offsetBuffer);
gl.bufferData(gl.ARRAY_BUFFER, offsets, gl.STATIC_DRAW);
gl.enableVertexAttribArray(aOffsetLocation);
gl.vertexAttribPointer(aOffsetLocation, 3, gl.FLOAT, false, 12, 0);
ext.vertexAttribDivisorANGLE(aOffsetLocation, 1);

• 十份uniform颜色的数据+vertexAttribDivisorANGLE设置
• ext.vertexAttribDivisorANGLE(aColorLocation, 1);

var colorBuffer = gl.createBuffer();
var aColorLocation = gl.getAttribLocation(glProgram, 'aColor');
gl.bindBuffer(gl.ARRAY_BUFFER, colorBuffer);
gl.bufferData(gl.ARRAY_BUFFER, colors, gl.STATIC_DRAW);
gl.enableVertexAttribArray(aColorLocation);
gl.vertexAttribPointer(aColorLocation, 4, gl.FLOAT, false, 12, 0);
ext.vertexAttribDivisorANGLE(aColorLocation, 1); //

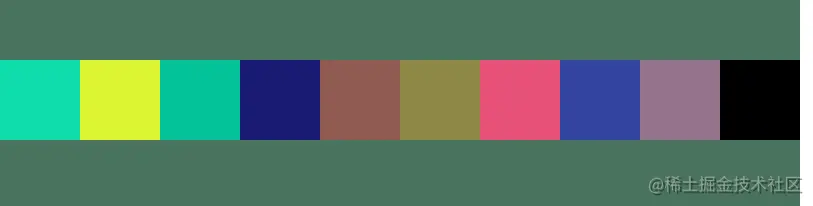

• drawcall

var instanceCount = 10;
ext.drawArraysInstancedANGLE(gl.TRIANGLES, 0, 6, instanceCount);

---

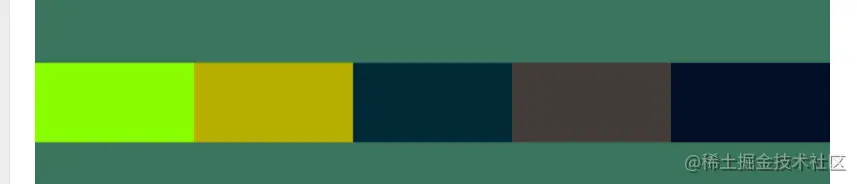

• 进行更改

ext.vertexAttribDivisorANGLE(aColorLocation, 2);

---

• 如果你的绘制使用了索引，那么请用 drawElementsInstancedANGLE 方法
