WebGL 数据生成贴图

• 参考1 ThreeJS DataTexture
• 参考2 WebGL DataTexture

原理

• 创建每一个像素

ThreeJS版

• 不透明的贴图

var width = 32; //纹理宽度
var height = 32; //纹理高度
var size = width * height; //像素大小
var data = new Uint8Array(size * 3); //size*3：像素在缓冲区占用空间
for (let i = 0; i < size * 3; i += 3) {
  // 随机设置RGB分量的值
  data[i] = 255 * Math.random()
  data[i + 1] = 255 * Math.random()
  data[i + 2] = 255 * Math.random()
}
// 创建数据文理对象   RGB格式：THREE.RGBFormat
var texture = new THREE.DataTexture(data, width, height, THREE.RGBFormat);
texture.needsUpdate = true; //纹理更新

• 透明的贴图

var width = 32; //纹理宽度
var height = 32; //纹理高度
var size = width * height; //像素大小
var data = new Uint8Array(size * 4); //size*4：像素在缓冲区占用空间
for (let i = 0; i < size * 4; i += 4) {
  // 随机设置RGB分量的值
  data[i] = 255 * Math.random()
  data[i + 1] = 255 * Math.random()
  data[i + 2] = 255 * Math.random()
  // 设置透明度分量A
  data[i + 3] = 255 * 0.5
}
// 创建数据文理对象   RGBA格式：THREE.RGBAFormat
var texture = new THREE.DataTexture(data, width, height, THREE.RGBAFormat);
texture.needsUpdate = true; //纹理更新

• canvas生成贴图

const canvas = document.createElement( 'canvas' );
canvas.width = 128;
canvas.height = 128;

const context = canvas.getContext( '2d' );
const gradient = context.createRadialGradient( canvas.width / 2, canvas.height / 2, 0, canvas.width / 2, canvas.height / 2, canvas.width / 2 );
gradient.addColorStop( 0.1, 'rgba(210,210,210,1)' );
gradient.addColorStop( 1, 'rgba(255,255,255,1)' );

context.fillStyle = gradient;
context.fillRect( 0, 0, canvas.width, canvas.height );
const shadowTexture = new THREE.CanvasTexture( canvas );
const shadowMaterial = new THREE.MeshBasicMaterial( { map: shadowTexture } );

WebGL版

// Create a texture.
var texture = gl.createTexture();
gl.bindTexture(gl.TEXTURE_2D, texture);

// fill texture with 3x2 pixels
const level = 0;
const internalFormat = gl.LUMINANCE;
const width = 3;
const height = 2;
const border = 0;
const format = gl.LUMINANCE;
const type = gl.UNSIGNED_BYTE;
const data = new Uint8Array([
128,  64, 128,
  0, 192,   0,
]);
const alignment = 1;
gl.pixelStorei(gl.UNPACK_ALIGNMENT, alignment);
gl.texImage2D(gl.TEXTURE_2D, level, internalFormat, width, height, border,format, type, data);

// set the filtering so we don't need mips and it's not filtered
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.NEAREST);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MAG_FILTER, gl.NEAREST);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_S, gl.CLAMP_TO_EDGE);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_T, gl.CLAMP_TO_EDGE);

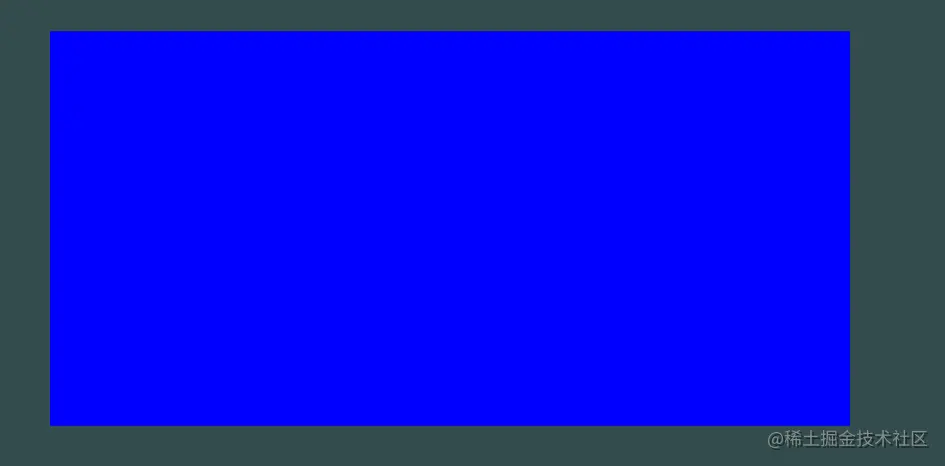

• 单个像素生成的贴图

const width = 1;
const height = 1;
const pixel = new Uint8Array([0, 0, 255]);
gl.texImage2D(gl.TEXTURE_2D, 0, gl.RGB, width, height, 0, gl.RGB, gl.UNSIGNED_BYTE, pixel);
