  • hdr顶点着色器
export var vs_hdr =
`#version 300 es
layout (location = 0) in vec3 aPos;
layout (location = 1) in vec2 aTexCoords;

![image.png](https://p1-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/36c118ec5e714a699a5a8c4a92a336be~tplv-k3u1fbpfcp-watermark.image)
out vec2 TexCoords;

void main()
{
    TexCoords = aTexCoords;
    gl_Position = vec4(aPos, 1.0);
}`
  • hdr片元着色器
export var fs_hdr =
`#version 300 es
precision mediump float;

out vec4 FragColor;

in vec2 TexCoords;

uniform sampler2D hdrBuffer;
uniform bool hdr;
uniform float exposure;

void main()
{
    const float gamma = 2.2;
    vec3 hdrColor = texture(hdrBuffer, TexCoords).rgb;
    if(hdr)
    {
        // reinhard
        // vec3 result = hdrColor / (hdrColor + vec3(1.0));
        // exposure
        vec3 result = vec3(1.0) - exp(-hdrColor * exposure);
        // also gamma correct while we're at it
        result = pow(result, vec3(1.0 / gamma));
        FragColor = vec4(result, 1.0);
    }
    else
    {
        vec3 result = pow(hdrColor, vec3(1.0 / gamma));
        FragColor = vec4(result, 1.0);
    }
}`
  • 顶点着色器
export var vs_lighting =
`#version 300 es
layout (location = 0) in vec3 aPos;
layout (location = 1) in vec3 aNormal;
layout (location = 2) in vec2 aTexCoords;

out vec3 FragPos;
out vec3 Normal;
out vec2 TexCoords;


uniform mat4 projection;
uniform mat4 view;
uniform mat4 model;

uniform bool inverse_normals;

void main()
{
    FragPos = vec3(model * vec4(aPos, 1.0));
    TexCoords = aTexCoords;

    vec3 n = inverse_normals ? -aNormal : aNormal;

    mat3 normalMatrix = transpose(inverse(mat3(model)));
    Normal = normalize(normalMatrix * n);

    gl_Position = projection * view * model * vec4(aPos, 1.0);
}`
  • 片元着色器
export var fs_lighting =
`#version 300 es
precision mediump float;

out vec4 FragColor;

in vec3 FragPos;
in vec3 Normal;
in vec2 TexCoords;


// struct Light {
//     vec3 Position;
//     vec3 Color;
// };

uniform vec3 lightPositions[4];
uniform vec3 lightColors[4];

//uniform Light lights[16];
uniform sampler2D diffuseTexture;
uniform vec3 viewPos;

void main()
{
    vec3 color = texture(diffuseTexture, TexCoords).rgb;
    vec3 normal = normalize(Normal);
    // ambient
    vec3 ambient = 0.0 * color;
    // lighting
    vec3 lighting = vec3(0.0);
    for(int i = 0; i < 4; i++)
    {
        // diffuse
        vec3 lightDir = normalize(lightPositions[i] - FragPos);
        float diff = max(dot(lightDir, normal), 0.0);
        vec3 diffuse = lightColors[i] * diff * color;
        vec3 result = diffuse;
        // attenuation (use quadratic as we have gamma correction)
        float distance = length(FragPos - lightPositions[i]);
        result *= 1.0 / (distance * distance);
        lighting += result;

    }
    FragColor = vec4(ambient + lighting, 1.0);
}`
  • VAO
const sizeFloat = 4;
let hdr = true;
let deltaTime = 0.0;
let lastFrame = 0.0;
let cubeVAO = null;
function renderCube() {
    if (!cubeVAO) {
        let vertices = new Float32Array([
            -1.0, -1.0, -1.0, 0.0, 0.0, -1.0, 0.0, 0.0,
            1.0, 1.0, -1.0, 0.0, 0.0, -1.0, 1.0, 1.0,
            1.0, -1.0, -1.0, 0.0, 0.0, -1.0, 1.0, 0.0,
            1.0, 1.0, -1.0, 0.0, 0.0, -1.0, 1.0, 1.0,
            -1.0, -1.0, -1.0, 0.0, 0.0, -1.0, 0.0, 0.0,
            -1.0, 1.0, -1.0, 0.0, 0.0, -1.0, 0.0, 1.0,
            -1.0, -1.0, 1.0, 0.0, 0.0, 1.0, 0.0, 0.0,
            1.0, -1.0, 1.0, 0.0, 0.0, 1.0, 1.0, 0.0,
            1.0, 1.0, 1.0, 0.0, 0.0, 1.0, 1.0, 1.0,
            1.0, 1.0, 1.0, 0.0, 0.0, 1.0, 1.0, 1.0,
            -1.0, 1.0, 1.0, 0.0, 0.0, 1.0, 0.0, 1.0,
            -1.0, -1.0, 1.0, 0.0, 0.0, 1.0, 0.0, 0.0,
            -1.0, 1.0, 1.0, -1.0, 0.0, 0.0, 1.0, 0.0,
            -1.0, 1.0, -1.0, -1.0, 0.0, 0.0, 1.0, 1.0,
            -1.0, -1.0, -1.0, -1.0, 0.0, 0.0, 0.0, 1.0,
            -1.0, -1.0, -1.0, -1.0, 0.0, 0.0, 0.0, 1.0,
            -1.0, -1.0, 1.0, -1.0, 0.0, 0.0, 0.0, 0.0,
            -1.0, 1.0, 1.0, -1.0, 0.0, 0.0, 1.0, 0.0,
            1.0, 1.0, 1.0, 1.0, 0.0, 0.0, 1.0, 0.0,
            1.0, -1.0, -1.0, 1.0, 0.0, 0.0, 0.0, 1.0,
            1.0, 1.0, -1.0, 1.0, 0.0, 0.0, 1.0, 1.0,
            1.0, -1.0, -1.0, 1.0, 0.0, 0.0, 0.0, 1.0,
            1.0, 1.0, 1.0, 1.0, 0.0, 0.0, 1.0, 0.0,
            1.0, -1.0, 1.0, 1.0, 0.0, 0.0, 0.0, 0.0,
            -1.0, -1.0, -1.0, 0.0, -1.0, 0.0, 0.0, 1.0,
            1.0, -1.0, -1.0, 0.0, -1.0, 0.0, 1.0, 1.0,
            1.0, -1.0, 1.0, 0.0, -1.0, 0.0, 1.0, 0.0,
            1.0, -1.0, 1.0, 0.0, -1.0, 0.0, 1.0, 0.0,
            -1.0, -1.0, 1.0, 0.0, -1.0, 0.0, 0.0, 0.0,
            -1.0, -1.0, -1.0, 0.0, -1.0, 0.0, 0.0, 1.0,
            -1.0, 1.0, -1.0, 0.0, 1.0, 0.0, 0.0, 1.0,
            1.0, 1.0, 1.0, 0.0, 1.0, 0.0, 1.0, 0.0,
            1.0, 1.0, -1.0, 0.0, 1.0, 0.0, 1.0, 1.0,
            1.0, 1.0, 1.0, 0.0, 1.0, 0.0, 1.0, 0.0,
            -1.0, 1.0, -1.0, 0.0, 1.0, 0.0, 0.0, 1.0,
            -1.0, 1.0, 1.0, 0.0, 1.0, 0.0, 0.0, 0.0
        ]);
        cubeVAO = gl.createVertexArray();
        let cubeVBO = gl.createBuffer();
        gl.bindBuffer(gl.ARRAY_BUFFER, cubeVBO);
        gl.bufferData(gl.ARRAY_BUFFER, vertices, gl.STATIC_DRAW);
        gl.bindVertexArray(cubeVAO);
        gl.enableVertexAttribArray(0);
        gl.vertexAttribPointer(0, 3, gl.FLOAT, false, 8 * sizeFloat, 0);
        gl.enableVertexAttribArray(1);
        gl.vertexAttribPointer(1, 3, gl.FLOAT, false, 8 * sizeFloat, (3 * sizeFloat));
        gl.enableVertexAttribArray(2);
        gl.vertexAttribPointer(2, 2, gl.FLOAT, false, 8 * sizeFloat, (6 * sizeFloat));
        gl.bindBuffer(gl.ARRAY_BUFFER, null);
        gl.bindVertexArray(null);
    }
    gl.bindVertexArray(cubeVAO);
    gl.drawArrays(gl.TRIANGLES, 0, 36);
    gl.bindVertexArray(null);
}
  • VAO
let quadVBO = null;

function renderQuad() {
    let quadVBO = null;
    if (!quadVAO) {
        let quadVertices = new Float32Array([
            -1.0, 1.0, 0.0, 0.0, 1.0,
            -1.0, -1.0, 0.0, 0.0, 0.0,
            1.0, 1.0, 0.0, 1.0, 1.0,
            1.0, -1.0, 0.0, 1.0, 0.0,
        ]);
        quadVAO = gl.createVertexArray();
        quadVBO = gl.createBuffer();
        gl.bindVertexArray(quadVAO);
        gl.bindBuffer(gl.ARRAY_BUFFER, quadVBO);
        gl.bufferData(gl.ARRAY_BUFFER, quadVertices, gl.STATIC_DRAW);
        gl.enableVertexAttribArray(0);
        gl.vertexAttribPointer(0, 3, gl.FLOAT, false, 5 * sizeFloat, 0);
        gl.enableVertexAttribArray(1);
        gl.vertexAttribPointer(1, 2, gl.FLOAT, false, 5 * sizeFloat, (3 * sizeFloat));
    }
    gl.bindVertexArray(quadVAO);
    gl.drawArrays(gl.TRIANGLE_STRIP, 0, 4);
    gl.bindVertexArray(null);
}
  • createFramebuffer createTexture bindTexture texImage2D
  • createRenderbuffer bindRenderbuffer renderbufferStorage bindFramebuffer renderbufferStorage framebufferTexture2D framebufferRenderbuffer

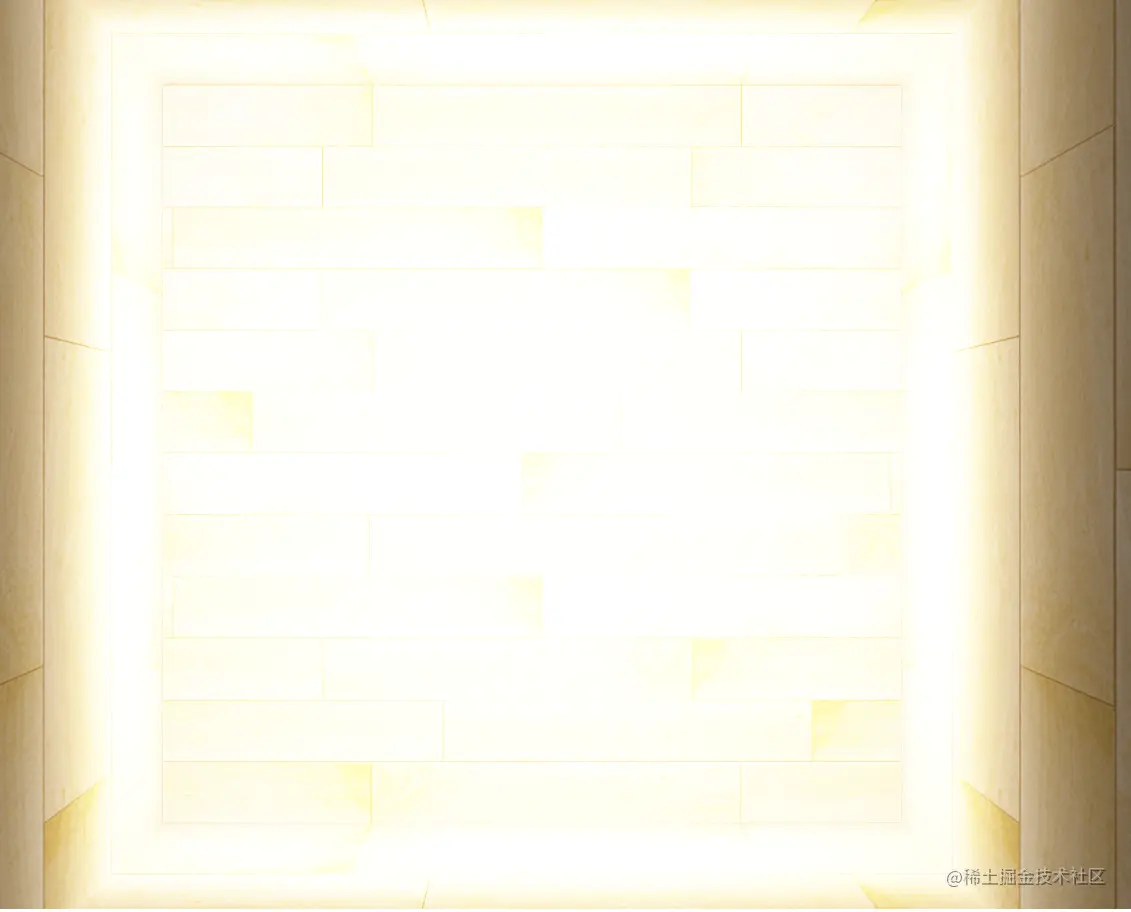

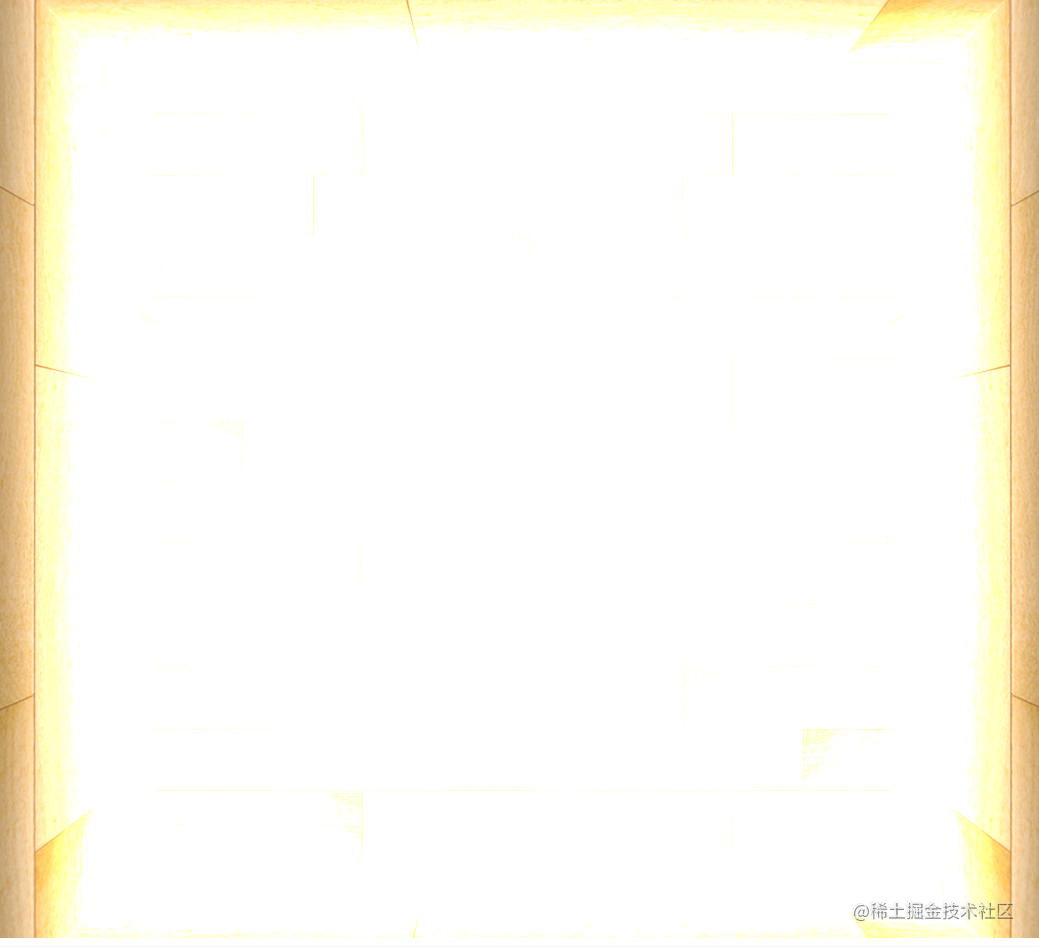

  • image.png
let exposure = 1.0;

let main = function () {
    gl.enable(gl.DEPTH_TEST);
    shader = new Shader(gl, vs_lighting, fs_lighting);
    hdrShader = new Shader(gl, vs_hdr, fs_hdr);
    woodTexture = loadTexture("../../textures/wood.png", 4, false);
    hdrFBO = gl.createFramebuffer();
    colorBuffer = gl.createTexture();
    gl.bindTexture(gl.TEXTURE_2D, colorBuffer);
    gl.texImage2D(gl.TEXTURE_2D, 0, gl.RGBA16F, canvas.width, canvas.height, 0, gl.RGBA, gl.FLOAT, null);
    gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.LINEAR);
    gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MAG_FILTER, gl.LINEAR);
    let rboDepth;
    rboDepth = gl.createRenderbuffer();
    gl.bindRenderbuffer(gl.RENDERBUFFER, rboDepth);
    gl.renderbufferStorage(gl.RENDERBUFFER, gl.DEPTH_COMPONENT16, canvas.width, canvas.height);
    gl.bindFramebuffer(gl.FRAMEBUFFER, hdrFBO);
    gl.framebufferTexture2D(gl.FRAMEBUFFER, gl.COLOR_ATTACHMENT0, gl.TEXTURE_2D, colorBuffer, 0);
    gl.framebufferRenderbuffer(gl.FRAMEBUFFER, gl.DEPTH_ATTACHMENT, gl.RENDERBUFFER, rboDepth);
    let check = gl.checkFramebufferStatus(gl.FRAMEBUFFER);
    if (check != gl.FRAMEBUFFER_COMPLETE)
        console.log("Framebuffer not complete");
    gl.bindFramebuffer(gl.FRAMEBUFFER, null);
    shader.use(gl);
    shader.setInt(gl, "diffuseTexture", 0);
    hdrShader.use(gl);
    hdrShader.setInt(gl, "hdrBuffer", 0);
    animate();
}();
function loadTexture(url, nrComponents, gammaCorrection) {
    const textureID = gl.createTexture();
    gl.bindTexture(gl.TEXTURE_2D, textureID);
    const level = 0;
    const srcType = gl.UNSIGNED_BYTE;
    const pixel = new Uint8Array([0, 0, 255, 255]);
    gl.texImage2D(gl.TEXTURE_2D, level, gl.RGBA, 1, 1, 0, gl.RGBA, srcType, pixel);
    const image = new Image();
    image.onload = function () {
        let internalFormat;
        let dataFormat;
        if (nrComponents == 1) {
            internalFormat = dataFormat = gl.RED;
        }
        else if (nrComponents == 3) {
            internalFormat = gammaCorrection ? gl.SRGB : gl.RGB;
            dataFormat = gl.RGB;
        }
        else if (nrComponents == 4) {
            internalFormat = gammaCorrection ? gl.SRGB8_ALPHA8 : gl.RGBA;
            dataFormat = gl.RGBA;
        }
        gl.bindTexture(gl.TEXTURE_2D, textureID);
        gl.texImage2D(gl.TEXTURE_2D, 0, internalFormat, image.naturalWidth, image.naturalHeight, 0, dataFormat, gl.UNSIGNED_BYTE, image);
        gl.generateMipmap(gl.TEXTURE_2D);
        gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_S, gl.REPEAT);
        gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_T, gl.REPEAT);
        gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.LINEAR_MIPMAP_LINEAR);
        gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MAG_FILTER, gl.LINEAR);
    };
    image.src = url;
    return textureID;
}

lightPositions = new Float32Array([
    0.0, 0.0, 49.5,
    -1.4, -1.9, 9.0,
    0.0, -1.8, 4.0,
    0.8, -1.7, 6.0
]);
lightColors = new Float32Array([
    200.0, 200.0, 200.0,
    0.1, 0.0, 0.0,
    0.0, 0.0, 0.2,
    0.0, 0.1, 0.0
]);
function render() {
    let currentFrame = performance.now();
    deltaTime = currentFrame - lastFrame;
    lastFrame = currentFrame;
    processInput();
    gl.clearColor(0.4, 0.1, 0.1, 1.0);
    gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT);
    gl.bindFramebuffer(gl.FRAMEBUFFER, hdrFBO);
    gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT);
    mat4.perspective(projection, (camera.Zoom) * Math.PI / 180, canvas.width / canvas.height, 0.1, 100.0);
    view = camera.GetViewMatrix();
    shader.use(gl);
    gl.uniformMatrix4fv(gl.getUniformLocation(shader.programId, "projection"), false, projection);
    gl.uniformMatrix4fv(gl.getUniformLocation(shader.programId, "view"), false, view);
    gl.activeTexture(gl.TEXTURE0);
    gl.bindTexture(gl.TEXTURE_2D, woodTexture);
    gl.uniform3fv(gl.getUniformLocation(shader.programId, "lightPositions"), lightPositions);
    gl.uniform3fv(gl.getUniformLocation(shader.programId, "lightColors"), lightColors);
    gl.uniform3fv(gl.getUniformLocation(shader.programId, "viewPos"), camera.Position);
    let model = mat4.create();
    mat4.translate(model, model, vec3.fromValues(0.0, 0.0, 25.0));
    mat4.scale(model, model, vec3.fromValues(2.5, 2.5, 27.5));
    gl.uniformMatrix4fv(gl.getUniformLocation(shader.programId, "model"), false, model);
    shader.setBoolean(gl, "inverse_normals", true);
    renderCube();
    gl.bindFramebuffer(gl.FRAMEBUFFER, null);
    gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT);
    hdrShader.use(gl);
    gl.activeTexture(gl.TEXTURE0);
    gl.bindTexture(gl.TEXTURE_2D, colorBuffer);
    hdrShader.setBoolean(gl, "hdr", hdr);
    hdrShader.setFloat(gl, "exposure", exposure);
    renderQuad();
}
