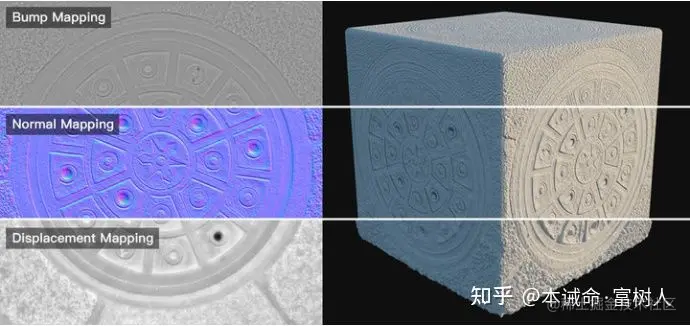

Bump Map

• 修改每像素着色方程来实现，关键思想是访问纹理来修改表面的法线，而不是改变光照方程中的颜色分量

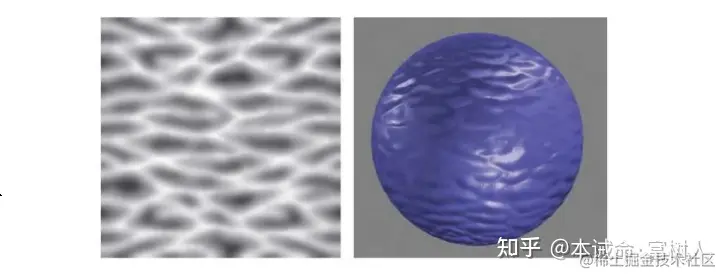

• 白色表示高高度区域，黑色是低高度的区域

• 只包含高度信息而不包含角度信息

#ifdef USE_BUMPMAP
    uniform sampler2D bumpMap;
    uniform float bumpScale;
    vec2 dHdxy_fwd() {
        vec2 dSTdx = dFdx( vUv );
        vec2 dSTdy = dFdy( vUv );
        float Hll = bumpScale * texture2D( bumpMap, vUv ).x;
        float dBx = bumpScale * texture2D( bumpMap, vUv + dSTdx ).x - Hll;
        float dBy = bumpScale * texture2D( bumpMap, vUv + dSTdy ).x - Hll;
        return vec2( dBx, dBy );
    }
    vec3 perturbNormalArb( vec3 surf_pos, vec3 surf_norm, vec2 dHdxy ) {
        vec3 vSigmaX = vec3( dFdx( surf_pos.x ), dFdx( surf_pos.y ), dFdx( surf_pos.z ) );
        vec3 vSigmaY = vec3( dFdy( surf_pos.x ), dFdy( surf_pos.y ), dFdy( surf_pos.z ) );
        vec3 vN = surf_norm;
        vec3 R1 = cross( vSigmaY, vN );
        vec3 R2 = cross( vN, vSigmaX );
        float fDet = dot( vSigmaX, R1 );
        fDet *= ( float( gl_FrontFacing ) * 2.0 - 1.0 );
        vec3 vGrad = sign( fDet ) * ( dHdxy.x * R1 + dHdxy.y * R2 );
        return normalize( abs( fDet ) * surf_norm - vGrad );
    }
#endif

vec3 geometryNormal = normal;
    #ifdef OBJECTSPACE_NORMALMAP
        normal = texture2D( normalMap, vUv ).xyz * 2.0 - 1.0;
        #ifdef FLIP_SIDED
            normal = - normal;
        #endif
        #ifdef DOUBLE_SIDED
            normal = normal * ( float( gl_FrontFacing ) * 2.0 - 1.0 );
        #endif
        normal = normalize( normalMatrix * normal );
        #elif defined( TANGENTSPACE_NORMALMAP )
        vec3 mapN = texture2D( normalMap, vUv ).xyz * 2.0 - 1.0;
        mapN.xy *= normalScale;
        #ifdef USE_TANGENT
            normal = normalize( vTBN * mapN );
        #else
            normal = perturbNormal2Arb( -vViewPosition, normal, mapN );
        #endif
        #elif defined( USE_BUMPMAP )
        normal = perturbNormalArb( -vViewPosition, normal, dHdxy_fwd() );
    #endif
