shadowMap 简单回顾2

纳铭
223 阅读2分钟

参考的文章


attribute vec4 a_position;
attribute vec2 a_texcoord;
attribute vec3 a_normal;

uniform vec3 u_lightWorldPosition;
uniform vec3 u_viewWorldPosition;

uniform mat4 u_projection;
uniform mat4 u_view;
uniform mat4 u_world;
uniform mat4 u_textureMatrix;

varying vec2 v_texcoord;
varying vec4 v_projectedTexcoord;
varying vec3 v_normal;

varying vec3 v_surfaceToLight;
varying vec3 v_surfaceToView;

void main() {
  // Multiply the position by the matrix.
  vec4 worldPosition = u_world * a_position;

  gl_Position = u_projection * u_view * worldPosition;

  // Pass the texture coord to the fragment shader.
  v_texcoord = a_texcoord;

  v_projectedTexcoord = u_textureMatrix * worldPosition;

  // orient the normals and pass to the fragment shader
  v_normal = mat3(u_world) * a_normal;

  // compute the world position of the surface
  vec3 surfaceWorldPosition = (u_world * a_position).xyz;

  // compute the vector of the surface to the light
  // and pass it to the fragment shader
  v_surfaceToLight = u_lightWorldPosition - surfaceWorldPosition;

  // compute the vector of the surface to the view/camera
  // and pass it to the fragment shader
  v_surfaceToView = u_viewWorldPosition - surfaceWorldPosition;
}

precision mediump float;

// Passed in from the vertex shader.
varying vec2 v_texcoord;
varying vec4 v_projectedTexcoord;
varying vec3 v_normal;
varying vec3 v_surfaceToLight;
varying vec3 v_surfaceToView;

uniform vec4 u_colorMult;
uniform sampler2D u_texture;
uniform sampler2D u_projectedTexture;
uniform float u_bias;
uniform float u_shininess;
uniform vec3 u_lightDirection;
uniform float u_innerLimit;          // in dot space
uniform float u_outerLimit;          // in dot space

void main() {
  // because v_normal is a varying it's interpolated
  // so it will not be a unit vector. Normalizing it
  // will make it a unit vector again
  vec3 normal = normalize(v_normal);

  vec3 surfaceToLightDirection = normalize(v_surfaceToLight);
  vec3 surfaceToViewDirection = normalize(v_surfaceToView);
  vec3 halfVector = normalize(surfaceToLightDirection + surfaceToViewDirection);

  float dotFromDirection = dot(surfaceToLightDirection,
                               -u_lightDirection);
  float limitRange = u_innerLimit - u_outerLimit;
  float inLight = clamp((dotFromDirection - u_outerLimit) / limitRange, 0.0, 1.0);
  float light = inLight * dot(normal, surfaceToLightDirection);
  float specular = inLight * pow(dot(normal, halfVector), u_shininess);

  vec3 projectedTexcoord = v_projectedTexcoord.xyz / v_projectedTexcoord.w;
  float currentDepth = projectedTexcoord.z + u_bias;

  bool inRange =
      projectedTexcoord.x >= 0.0 &&
      projectedTexcoord.x <= 1.0 &&
      projectedTexcoord.y >= 0.0 &&
      projectedTexcoord.y <= 1.0;

  // the 'r' channel has the depth values
  float projectedDepth = texture2D(u_projectedTexture, projectedTexcoord.xy).r;
  float shadowLight = (inRange && projectedDepth <= currentDepth) ? 0.0 : 1.0;

  vec4 texColor = texture2D(u_texture, v_texcoord) * u_colorMult;
  gl_FragColor = vec4(
      texColor.rgb * light * shadowLight +
      specular * shadowLight,
      texColor.a);
}

attribute vec4 a_position;

uniform mat4 u_projection;
uniform mat4 u_view;
uniform mat4 u_world;

void main() {
  // Multiply the position by the matrices.
  gl_Position = u_projection * u_view * u_world * a_position;
}

precision mediump float;

uniform vec4 u_color;
void main() {
  gl_FragColor = u_color;
}

声明gl

const canvas = document.querySelector('#canvas');
const gl = canvas.getContext('webgl');
if (!gl) {
  return;
}

创建网格

 const sphereBufferInfo = primitives.createSphereBufferInfo(
     gl,
     1,  // radius
     32, // subdivisions around
     24, // subdivisions down
 );
 const planeBufferInfo = primitives.createPlaneBufferInfo(
     gl,
     20,  // width
     20,  // height
     1,   // subdivisions across
     1,   // subdivisions down
 );
 const cubeBufferInfo = primitives.createCubeBufferInfo(
     gl,
     2,  // size
 );
 const cubeLinesBufferInfo = webglUtils.createBufferInfoFromArrays(gl, {
   position: [
     -1, -1, -1,
      1, -1, -1,
     -1,  1, -1,
      1,  1, -1,
     -1, -1,  1,
      1, -1,  1,
     -1,  1,  1,
      1,  1,  1,
   ],
   indices: [
     0, 1,
     1, 3,
     3, 2,
     2, 0,

     4, 5,
     5, 7,
     7, 6,
     6, 4,

     0, 4,
     1, 5,
     3, 7,
     2, 6,
   ],
 });

创建贴图


  // make a 8x8 checkerboard texture
  const checkerboardTexture = gl.createTexture();
  gl.bindTexture(gl.TEXTURE_2D, checkerboardTexture);
  gl.texImage2D(
      gl.TEXTURE_2D,
      0,                // mip level
      gl.LUMINANCE,     // internal format
      8,                // width
      8,                // height
      0,                // border
      gl.LUMINANCE,     // format
      gl.UNSIGNED_BYTE, // type
      new Uint8Array([  // data
        0xFF, 0xCC, 0xFF, 0xCC, 0xFF, 0xCC, 0xFF, 0xCC,
        0xCC, 0xFF, 0xCC, 0xFF, 0xCC, 0xFF, 0xCC, 0xFF,
        0xFF, 0xCC, 0xFF, 0xCC, 0xFF, 0xCC, 0xFF, 0xCC,
        0xCC, 0xFF, 0xCC, 0xFF, 0xCC, 0xFF, 0xCC, 0xFF,
        0xFF, 0xCC, 0xFF, 0xCC, 0xFF, 0xCC, 0xFF, 0xCC,
        0xCC, 0xFF, 0xCC, 0xFF, 0xCC, 0xFF, 0xCC, 0xFF,
        0xFF, 0xCC, 0xFF, 0xCC, 0xFF, 0xCC, 0xFF, 0xCC,
        0xCC, 0xFF, 0xCC, 0xFF, 0xCC, 0xFF, 0xCC, 0xFF,
      ]));
  gl.generateMipmap(gl.TEXTURE_2D);
  gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MAG_FILTER, gl.NEAREST);

  const depthTexture = gl.createTexture();
  const depthTextureSize = 512;
  gl.bindTexture(gl.TEXTURE_2D, depthTexture);
  gl.texImage2D(
      gl.TEXTURE_2D,      // target
      0,                  // mip level
      gl.DEPTH_COMPONENT, // internal format
      depthTextureSize,   // width
      depthTextureSize,   // height
      0,                  // border
      gl.DEPTH_COMPONENT, // format
      gl.UNSIGNED_INT,    // type
      null);              // data
  gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MAG_FILTER, gl.NEAREST);
  gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.NEAREST);
  gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_S, gl.CLAMP_TO_EDGE);
  gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_T, gl.CLAMP_TO_EDGE);

fbo texture

  const depthTexture = gl.createTexture();
  const depthTextureSize = 512;
  gl.bindTexture(gl.TEXTURE_2D, depthTexture);
  gl.texImage2D(
      gl.TEXTURE_2D,      // target
      0,                  // mip level
      gl.DEPTH_COMPONENT, // internal format
      depthTextureSize,   // width
      depthTextureSize,   // height
      0,                  // border
      gl.DEPTH_COMPONENT, // format
      gl.UNSIGNED_INT,    // type
      null);              // data
  gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MAG_FILTER, gl.NEAREST);
  gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.NEAREST);
  gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_S, gl.CLAMP_TO_EDGE);
  gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_T, gl.CLAMP_TO_EDGE);

  const depthFramebuffer = gl.createFramebuffer();
  gl.bindFramebuffer(gl.FRAMEBUFFER, depthFramebuffer);
  gl.framebufferTexture2D(
      gl.FRAMEBUFFER,       // target
      gl.DEPTH_ATTACHMENT,  // attachment point
      gl.TEXTURE_2D,        // texture target
      depthTexture,         // texture
      0);                   // mip level

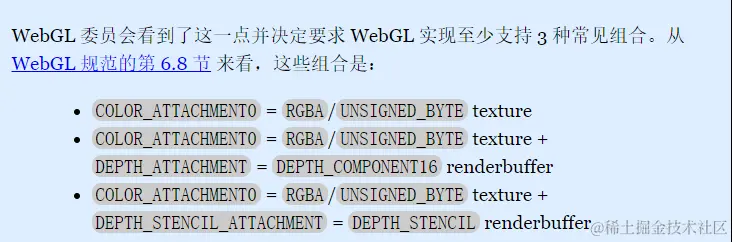

  // create a color texture of the same size as the depth texture
  // see article why this is needed_
  const unusedTexture = gl.createTexture();
  gl.bindTexture(gl.TEXTURE_2D, unusedTexture);
  gl.texImage2D(
      gl.TEXTURE_2D,
      0,
      gl.RGBA,
      depthTextureSize,
      depthTextureSize,
      0,
      gl.RGBA,
      gl.UNSIGNED_BYTE,
      null,
  );
  gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MAG_FILTER, gl.NEAREST);
  gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.NEAREST);
  gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_S, gl.CLAMP_TO_EDGE);
  gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_T, gl.CLAMP_TO_EDGE);

  // attach it to the framebuffer
  gl.framebufferTexture2D(
      gl.FRAMEBUFFER,        // target
      gl.COLOR_ATTACHMENT0,  // attachment point
      gl.TEXTURE_2D,         // texture target
      unusedTexture,         // texture
      0);                    // mip level
