1. RecyclerView缓存机制

2. RecyclerView测量,布局,绘制流程,Recycler,Adapter

onMeasure
-->

onLayout
	--> dispatchLayout
		-->
		case mState.mLayoutStep == State.STEP_START:
                  dispatchLayoutStep1();//D1
                  dispatchLayoutStep2();//D2
                  dispatchLayoutStep3();//D3
                case D1,D2在onMeasure中已经执行过,但是此时RecyclerView的宽高发生变化:
                  dispatchLayoutStep2();
                  dispatchLayoutStep3();
                default:
                  dispatchLayoutStep3();

-->
onDraw
  1. dispatchLayoutStep1
  • 记录ViewHolder状态及子View信息
  • 如有必要/mState.mRunPredictiveAnimations是true,则执行'预布局'
    mState.mStructureChanged = false;
// temporarily disable flag because we are asking for previous layout
mLayout.onLayoutChildren(mRecycler, mState);
  1. dispatchLayoutStep2
  • 使用LayoutManager对子View真正进行布局
  • 如有必要,dispatchLayoutStep2会执行多次
mState.mInPreLayout = false;
mLayout.onLayoutChildren(mRecycler, mState);
  1. dispatchLayoutStep3
  • 将之前保存的ViewHolder和其对应的Item动画信息进行绑定/存储
  • 执行Item动画.
  • 真正执行动画逻辑的是RecyclerView.ItemAnimator
  • 将布局,动画交给LayoutManager,ItemAnimator,可以由用户自定义,实现不同的布局方式及布局动画.
  1. onDraw:单纯绘制分隔线
@Override
public void onDraw(Canvas c) {
    super.onDraw(c);
    final int count = mItemDecorations.size();
    //绘制分隔线
    for (int i = 0; i < count; i++) {
        mItemDecorations.get(i).onDraw(c, this, mState);
    }
}
  1. Recycler
public final class Recycler {
  static final int DEFAULT_CACHE_SIZE = 2;
  private int mRequestedCacheMax = DEFAULT_CACHE_SIZE;//就是2
  int mViewCacheMax = DEFAULT_CACHE_SIZE;//就是2

  //一级缓存: mAttachedScrap + mChangedScrap
  final ArrayList<ViewHolder> mAttachedScrap = new ArrayList<>();
  ArrayList<ViewHolder> mChangedScrap = null;

  //二级缓存: mCachedViews
  final ArrayList<ViewHolder> mCachedViews = new ArrayList<ViewHolder>();

  //三级缓存
  private ViewCacheExtension mViewCacheExtension;

  //四级缓存
  RecycledViewPool mRecyclerPool;

  ****
}
  • 缓存存储的是ViewHolder实例
  • 一级缓存: mChangedScrap + mAttachedScrap
    • mChangedScrap
      • 仅参与预布局
    • mAttachedScrap
      • 存放还会被复用的ViewHolder
  • 二级缓存: mCachedViews
    • 最多存放2个ViewHolder
  • 三级缓存: mViewCacheExtension,需要开发者自行实现ViewCacheExtension
  • 四级缓存: mRecyclerPool
    • 可以将RecycledViewPool当做1个SparseArray. key是要存储的ViewHolder的viewType, value是ArrayList.
    • 每个ArrayList最多存放5个ViewHolder实例,已满则不再存放
    public static class RecycledViewPool {
    private static final int DEFAULT_MAX_SCRAP = 5;
    static class ScrapData {
      //真正存放ViewHolder实例的位置
      final ArrayList<ViewHolder> mScrapHeap = new ArrayList<>();
      int mMaxScrap = DEFAULT_MAX_SCRAP;//5
      long mCreateRunningAverageNs = 0;
      long mBindRunningAverageNs = 0;
    }
    //每个存储的ViewHolder实例都被放在 ScrapData 中的 mScrapHeap 中.
    SparseArray<ScrapData> mScrap = new SparseArray<>();

    //向RecycledViewPool中存储ViewHolder实例
    public void putRecycledView(ViewHolder scrap) {
        final int viewType = scrap.getItemViewType();
        final ArrayList<ViewHolder> scrapHeap = getScrapDataForType(viewType).mScrapHeap;
        //最多存放5个ViewHolder实例,已满则不再存放
        if (mScrap.get(viewType).mMaxScrap <= scrapHeap.size()) {
            return;
        }
        //之前已经存放了,报异常
        if (DEBUG && scrapHeap.contains(scrap)) {
            throw new IllegalArgumentException("this scrap item already exists");
        }
        //将ViewHolder实例添加到scrapHeap中
        scrap.resetInternal();
        scrapHeap.add(scrap);
    }
    //通过ViewHolder的viewType,获取存储过的/新创建的ScrapData实例
    private ScrapData getScrapDataForType(int viewType) {
        ScrapData scrapData = mScrap.get(viewType);
        if (scrapData == null) {
            scrapData = new ScrapData();
            mScrap.put(viewType, scrapData);
        }
        return scrapData;
    }
}
  • 通过Recycler获取ViewHolder实例
    public View getViewForPosition(int position) {
    return getViewForPosition(position, false);
}
View getViewForPosition(int position, boolean dryRun) {
    return tryGetViewHolderForPositionByDeadline(position, dryRun, FOREVER_NS).itemView;
}
ViewHolder tryGetViewHolderForPositionByDeadline(int position,
        boolean dryRun, long deadlineNs) {
    if (position < 0 || position >= mState.getItemCount()) {
        //这儿就是RecyclerView内部的BUG抛出异常的位置
        throw new IndexOutOfBoundsException("Invalid item position " + position
                + "(" + position + "). Item count:" + mState.getItemCount()
                + exceptionLabel());
    }
    boolean fromScrapOrHiddenOrCache = false;
    ViewHolder holder = null;
    // 0) 如果处于'预布局',则从mChangedScrap中获取ViewHolder实例
    if (mState.isPreLayout()) {
        holder = getChangedScrapViewForPosition(position);
        fromScrapOrHiddenOrCache = holder != null;
    }
    // 1) 通过position,从mAttachedScrap,已移出屏幕的视图(隐藏列表项),及mCachedViews中获取ViewHolder实例
    if (holder == null) {
        holder = getScrapOrHiddenOrCachedHolderForPosition(position, dryRun);
        ***
    }
    if (holder == null) {
        ***
        final int type = mAdapter.getItemViewType(offsetPosition);
        // 2) Find from scrap/cache via stable ids, if exists
        if (mAdapter.hasStableIds()) {
            //通过id,从mAttachedScrap及mCachedViews中获取ViewHolder实例
            holder = getScrapOrCachedViewForId(mAdapter.getItemId(offsetPosition),
                    type, dryRun);
            ***
        }
        if (holder == null && mViewCacheExtension != null) {
            //从自定义缓存中尝试获取ViewHolder实例
            // We are NOT sending the offsetPosition because LayoutManager does not
            // know it.
            ***
        }
        if (holder == null) { // fallback to pool
            //通过RecycledViewPool在缓存池中获取ViewHolder实例
            holder = getRecycledViewPool().getRecycledView(type);
            ***
        }
        if (holder == null) {
            ***
            //所有缓存都没有命中,只能通过Adapter创建ViewHolder实例
            holder = mAdapter.createViewHolder(RecyclerView.this, type);
            ***
        }
    }
    ***
    boolean bound = false;
    ***
    //只有invalid的viewHolder才能绑定视图数据
    //未绑定 || 需要更新 || 已失效
    if (!holder.isBound() || holder.needsUpdate() || holder.isInvalid()) {
        ***
        //对于需要绑定数据的ViewHolder执行tryBindViewHolderByDeadline.
        final int offsetPosition = mAdapterHelper.findPositionOffset(position);
        bound = tryBindViewHolderByDeadline(holder, offsetPosition, position, deadlineNs);
    }
    ***
    return holder;
}
private boolean tryBindViewHolderByDeadline(@NonNull ViewHolder holder, int offsetPosition,
        int position, long deadlineNs) {
    ***
    mAdapter.bindViewHolder(holder, offsetPosition);
    ***
    return true;
}

public abstract static class Adapter<VH extends ViewHolder> {
    public final void bindViewHolder(@NonNull VH holder, int position) {
        ***
        //熟悉的味道,会调用我们自定义Adapter的:
        //onBindViewHolder(@NonNull VH holder,int position,@NonNull List<Object> payloads)
        onBindViewHolder(holder, position, holder.getUnmodifiedPayloads());
        holder.clearPayload();
        ***
    }
}
    • RecyClerView通过Recycler获取下一个待绘制列表项.
    • Recycler有4层缓存用于缓存ViewHolder实例.
      • 优先级依次为: mChangedScrap --> mAttachedScrap --> mCachedViews --> mViewCacheExtension --> mRecyclerPool
      • mCachedViews用于缓存指定位置的ViewHolder,默认最多存储2个,已满情况,按照先进先出原则将第一个ViewHolder实例存入mRecyclerPool.
      • RecycledViewPool 对ViewHolder按viewType分类存储,同类ViewHolder被存放在最大长度为5的ArrayList中.
      • 若4层缓存都未命中,则通过Adapter实例创建ViewHolder实例,并执行数据绑定.
    • Recycler获取到ViewHolder实例,要不要执行数据绑定?
      • 通过mChangedScrap,mAttachedScrap,mCachedViews中获取的ViewHolder实例不需要
      • 通过mRecyclerPool 及 Adapter 获取的ViewHolder实例需要执行数据绑定
  1. ViewHolder的回收
  • ViewHolder回收的场景很多,以最常见的滑动为例.滑动涉及事件处理,看onTouchEvent的MOVE事件.
    @Override
public boolean onTouchEvent(MotionEvent e) {
  ***
  switch (action) {
    ***
    case MotionEvent.ACTION_MOVE:
        scrollByInternal(canScrollHorizontally ? dx : 0,canScrollVertically ? dy : 0,vtev)
  }
}
boolean scrollByInternal(int x, int y, MotionEvent ev) {
  ***
  if (mAdapter != null) {
    scrollStep(x, y, mScrollStepConsumed);
    ***
  }
}
void scrollStep(int dx, int dy, @Nullable int[] consumed) {
  if (dx != 0) {
      consumedX = mLayout.scrollHorizontallyBy(dx, mRecycler, mState);
  }
  if (dy != 0) {
      consumedY = mLayout.scrollVerticallyBy(dy, mRecycler, mState);
  }
}

androidx/recyclerview/widget/LinearLayoutManager.java
@Override
public int scrollVerticallyBy(int dy, RecyclerView.Recycler recycler,
        RecyclerView.State state) {
  ***
  return scrollBy(dy, recycler, state);
}
int scrollBy(int dy, RecyclerView.Recycler recycler, RecyclerView.State state) {
    ***
    updateLayoutState(layoutDirection, absDy, true, state);
    final int consumed = mLayoutState.mScrollingOffset + fill(recycler, mLayoutState, state, false);
    ***
}

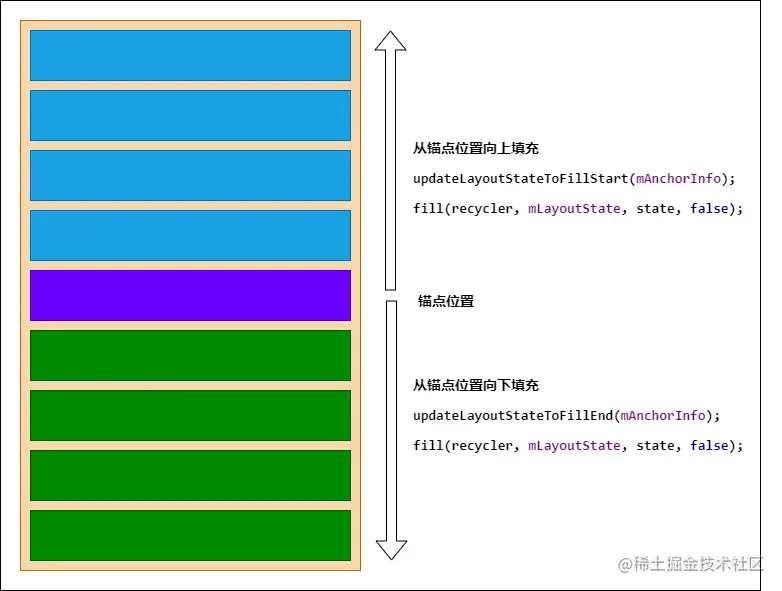

int fill(RecyclerView.Recycler recycler, LayoutState layoutState,
    RecyclerView.State state, boolean stopOnFocusable) {
    ***
    while ((layoutState.mInfinite || remainingSpace > 0) && layoutState.hasMore(state)) {
        //通过Recycler获取ViewHolder实例
        layoutChunk(recycler, state, layoutState, layoutChunkResult);
        ***
        //通过Recycler回收ViewHolder
        recycleByLayoutState(recycler, layoutState);
    }
}
void layoutChunk(RecyclerView.Recycler recycler, RecyclerView.State state,
    LayoutState layoutState, LayoutChunkResult result) {
    //通过Recycler获取ViewHolder,并进一步获取到View
    View view = layoutState.next(recycler);
    ***
    //将获取到的Item的View摆放到正确的位置
    layoutDecoratedWithMargins(view, left, top, right, bottom);
}
View next(RecyclerView.Recycler recycler) {
    ***
    //通过Recycler获取ViewHolder,并进一步获取到View
    final View view = recycler.getViewForPosition(mCurrentPosition);
    mCurrentPosition += mItemDirection;
    return view;
}
public void layoutDecoratedWithMargins(@NonNull View child, int left, int top, int right,
        int bottom) {
    //将获取到的Item的View摆放到正确的位置
    child.layout(***);
}
//通过Recycler回收ViewHolde实例

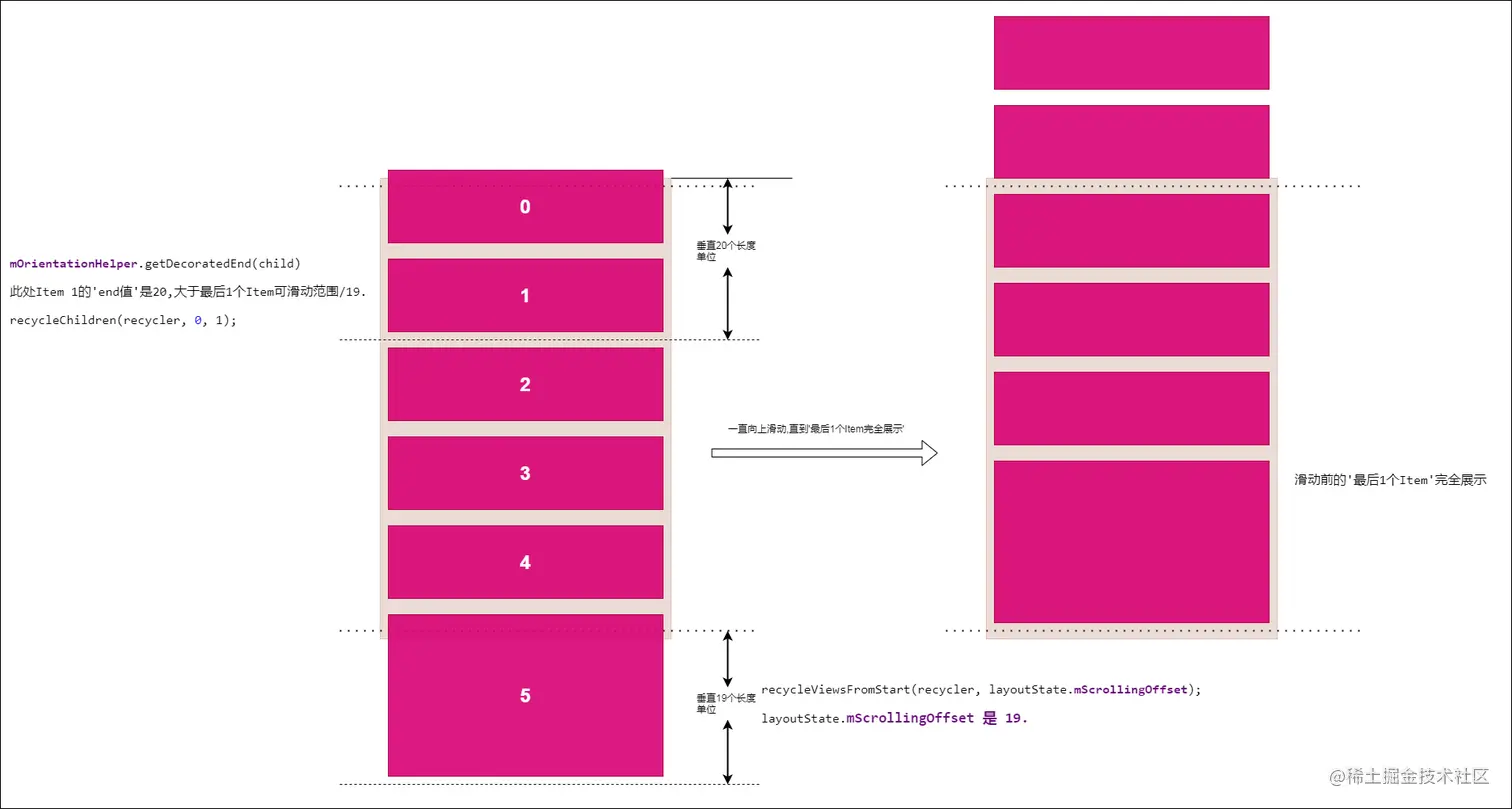

private void recycleByLayoutState(RecyclerView.Recycler recycler, LayoutState layoutState) {
    ***
    recycleViewsFromStart(recycler, layoutState.mScrollingOffset);
    ***
}
private void recycleViewsFromStart(RecyclerView.Recycler recycler, int dt) {
    ***
    final int limit = dt;
    final int childCount = getChildCount();
    for (int i = 0; i < childCount; i++) {
      View child = getChildAt(i);
      if (mOrientationHelper.getDecoratedEnd(child) > limit
        || mOrientationHelper.getTransformedEndWithDecoration(child) > limit) {
        //回收指定index以上的所有ViewHolder
        recycleChildren(recycler, 0, i);
        return;
      }
    }
}
private void recycleChildren(RecyclerView.Recycler recycler, int startIndex, int endIndex) {
    ***
    if (endIndex > startIndex) {
        for (int i = endIndex - 1; i >= startIndex; i--) {
            removeAndRecycleViewAt(i, recycler);
        }
    } else {
        ***
    }
}
public void removeAndRecycleViewAt(int index, @NonNull Recycler recycler) {
    final View view = getChildAt(index);
    //将对应的View从RecyclerView中移除
    removeViewAt(index);
    //Recycler进行回收
    recycler.recycleView(view);
}
public void recycleView(@NonNull View view) {
    //通过View获取到ViewHolder实例
    ViewHolder holder = getChildViewHolderInt(view);
    ***
    //Recycler真正回收ViewHolder实例的逻辑
    recycleViewHolderInternal(holder);
}
void recycleViewHolderInternal(ViewHolder holder) {
    if (forceRecycle || holder.isRecyclable()) {
        //这里的判断条件决定了复用mCachedViews中的ViewHolder时不需要重新绑定数据
        //重新执行数据绑定的条件: !holder.isBound() || holder.needsUpdate() || holder.isInvalid()
        //!holder.isBound()对于mCachedViews 中的ViewHolder来说必然为false，
        //只有当调用ViewHolder.resetInternal()重置ViewHolder后，才会将其设置为未绑定状态.
        //而只有存入回收池时才会重置ViewHolder
        if (mViewCacheMax > 0
                        && !holder.hasAnyOfTheFlags(ViewHolder.FLAG_INVALID
                        | ViewHolder.FLAG_REMOVED
                        | ViewHolder.FLAG_UPDATE
                        | ViewHolder.FLAG_ADAPTER_POSITION_UNKNOWN)) {
            // 如果mCachedViews已经存满了2个,则执行 recycleCachedViewAt(0)
            int cachedViewSize = mCachedViews.size();
            if (cachedViewSize >= mViewCacheMax && cachedViewSize > 0) {
                //将cachedViewSize中最早加入的ViewHolder实例先存入mRecyclerPool中
                //再将其从mCachedViews中移除
                recycleCachedViewAt(0);
                cachedViewSize--;
            }
            int targetCacheIndex = cachedViewSize;
            if (ALLOW_THREAD_GAP_WORK
                    && cachedViewSize > 0
                    && !mPrefetchRegistry.lastPrefetchIncludedPosition(holder.mPosition)) {
                // when adding the view, skip past most recently prefetched views
                int cacheIndex = cachedViewSize - 1;
                while (cacheIndex >= 0) {
                    int cachedPos = mCachedViews.get(cacheIndex).mPosition;
                    if (!mPrefetchRegistry.lastPrefetchIncludedPosition(cachedPos)) {
                        break;
                    }
                    cacheIndex--;
                }
                targetCacheIndex = cacheIndex + 1;
            }
            mCachedViews.add(targetCacheIndex, holder);
            cached = true;
        }
        if (!cached) {
            addViewHolderToRecycledViewPool(holder, true);
            recycled = true;
        }
    } else {
        ***
    }
    // even if the holder is not removed, we still call this method so that it is removed
    // from view holder lists.
    mViewInfoStore.removeViewHolder(holder);
    if (!cached && !recycled && transientStatePreventsRecycling) {
        holder.mOwnerRecyclerView = null;
    }
}
void recycleCachedViewAt(int cachedViewIndex) {
    ***
    //获取mCachedViews中最先存放的ViewHolder实例
    ViewHolder viewHolder = mCachedViews.get(cachedViewIndex);
    ***
    //将该ViewHolder实例放入mRecyclerPool中
    addViewHolderToRecycledViewPool(viewHolder, true);
    //将该ViewHolder实例从mCachedViews中移除
    mCachedViews.remove(cachedViewIndex);
}
void addViewHolderToRecycledViewPool(@NonNull ViewHolder holder, boolean dispatchRecycled) {
    clearNestedRecyclerViewIfNotNested(holder);
    ***
    getRecycledViewPool().putRecycledView(holder);
}
public void putRecycledView(ViewHolder scrap) {
    final int viewType = scrap.getItemViewType();
    final ArrayList<ViewHolder> scrapHeap = getScrapDataForType(viewType).mScrapHeap;
    //最多存储5个同类型的ViewHolder实例
    if (mScrap.get(viewType).mMaxScrap <= scrapHeap.size()) {
        return;
    }
    ***
    scrap.resetInternal();
    //将ViewHolder实例加入scrapHeap
    scrapHeap.add(scrap);
}
  • 从上述代码可知,在使用LayoutManager执行视图填充/ViewHolder获取过程中,也伴随着ViewHolder的回收.回收指定position范围内的ViewHolder实例
    • 通过索引值找到Item对应的View,将其从RecyclerView中移除
    • 将对应的ViewHolder实例通过Recycler进行回收
      • 优先尝试将ViewHolder实例存入mCachedViews,可能伴随老的ViewHolder实例被移出并存入mRecyclerPool
      • 尝试存入 mCachedViews 失败,则直接将ViewHolder实例存入mRecyclerPool
  1. LayoutManager
  • 抽丝剥茧RecyclerView - LayoutManager
  • 这么用GridLayoutManager，你可能还真没尝试过
  • Orient-Ui 上面文章对应的代码
  • LayoutManager主要作用
    • 通过Recycler,回收和复用ViewHolder
    • 关于滑动的处理,涉及滑动过程中调用 ==> fill ==> ViewHolder的获取及回收
    • 测量及布局子View.
  • 重点解释:
    • 测量及布局子View
    • Recycler中 mAttachedScrap 的数据何时存储
    • fill中什么时候会涉及ViewHolder的回收
  • 测量
    androidx/recyclerview/widget/RecyclerView.java
public class RecyclerView extends ViewGroup implements ScrollingView, NestedScrollingChild2 {
  LayoutManager mLayout;

  public void onMeasure(@NonNull Recycler recycler, @NonNull State state, int widthSpec,
          int heightSpec) {
      mRecyclerView.defaultOnMeasure(widthSpec, heightSpec);
  }
  void defaultOnMeasure(int widthSpec, int heightSpec) {
    final int width = LayoutManager.chooseSize(widthSpec,
            getPaddingLeft() + getPaddingRight(),
            ViewCompat.getMinimumWidth(this));
    final int height = LayoutManager.chooseSize(heightSpec,
            getPaddingTop() + getPaddingBottom(),
            ViewCompat.getMinimumHeight(this));
    //单纯设置RecyclerView自身宽高
    setMeasuredDimension(width, height);
  }
  //计算宽高
  void setMeasureSpecs(int wSpec, int hSpec) {
    mWidth = MeasureSpec.getSize(wSpec);
    mWidthMode = MeasureSpec.getMode(wSpec);
    if (mWidthMode == MeasureSpec.UNSPECIFIED && !ALLOW_SIZE_IN_UNSPECIFIED_SPEC) {
        mWidth = 0;
    }
    mHeight = MeasureSpec.getSize(hSpec);
    mHeightMode = MeasureSpec.getMode(hSpec);
    if (mHeightMode == MeasureSpec.UNSPECIFIED && !ALLOW_SIZE_IN_UNSPECIFIED_SPEC) {
        mHeight = 0;
    }
  }
  @Override
  protected void onMeasure(int widthSpec, int heightSpec) {
      ***
      if (mLayout.isAutoMeasureEnabled()) {
          //LayoutManage的isAutoMeasureEnabled默认返回值是true
          final int widthMode = MeasureSpec.getMode(widthSpec);
          final int heightMode = MeasureSpec.getMode(heightSpec);
          ***
          //默认实现就是单纯设置RecyclerView自身宽高
          mLayout.onMeasure(mRecycler, mState, widthSpec, heightSpec);
          //当RecyclerView的宽高都是MATCH_PARENT或精确数值,return
          final boolean measureSpecModeIsExactly =
                  widthMode == MeasureSpec.EXACTLY && heightMode == MeasureSpec.EXACTLY;
          if (measureSpecModeIsExactly || mAdapter == null) {
              return;
          }
          //mLayoutStep默认值就是State.STEP_START,会走dispatchLayoutStep1.
          //会走dispatchLayoutStep1 可能会执行'预布局'
          if (mState.mLayoutStep == State.STEP_START) {
              dispatchLayoutStep1();
          }
          //1:计算宽高
          mLayout.setMeasureSpecs(widthSpec, heightSpec);
          mState.mIsMeasuring = true;
          //2:真正执行布局子View
          //会调用 mLayout.onLayoutChildren(mRecycler, mState);
          dispatchLayoutStep2();
          //3:获取尺寸最大的子View,将其范围/Rect作为参数得到RecyclerView的尺寸,设置为RecyclerView的宽高
          mLayout.setMeasuredDimensionFromChildren(widthSpec, heightSpec);
          //若需要二次测量,则再执行一次 1->2->3
          //shouldMeasureTwice 默认返回false.
          //LinearLayoutManager重写了该方法,通常情况也会返回false
          /*
          LinearLayoutManager:
          @Override
          boolean shouldMeasureTwice() {
              return getHeightMode() != View.MeasureSpec.EXACTLY
                      && getWidthMode() != View.MeasureSpec.EXACTLY
                      && hasFlexibleChildInBothOrientations();
          }
          //lp.width < 0 && lp.height < 0 ,不知道什么情况会小于0
          boolean hasFlexibleChildInBothOrientations() {
              final int childCount = getChildCount();
              for (int i = 0; i < childCount; i++) {
                  final View child = getChildAt(i);
                  final ViewGroup.LayoutParams lp = child.getLayoutParams();
                  if (lp.width < 0 && lp.height < 0) {
                      return true;
                  }
              }
              return false;
          }
          */
          if (mLayout.shouldMeasureTwice()) {
              //4:需要二次测量,则再执行一次 1->2->3
              mLayout.setMeasureSpecs(
                      MeasureSpec.makeMeasureSpec(getMeasuredWidth(), MeasureSpec.EXACTLY),
                      MeasureSpec.makeMeasureSpec(getMeasuredHeight(), MeasureSpec.EXACTLY));
              mState.mIsMeasuring = true;
              dispatchLayoutStep2();
              mLayout.setMeasuredDimensionFromChildren(widthSpec, heightSpec);
          }
      } else {
          ***
      }
  }
}
    • 测量总结:
      • isAutoMeasureEnabled方法,LayoutManager及3个实现类都返回true.
      • LayoutManager.onMeasure默认实现就是单纯设置RecyclerView自身尺寸. 且3个实现类未重写.
      • 上述代码中的1,2,3,4(再次1-2-3)暂且命名为'自动测量逻辑'.只有LayoutManager实例的isAutoMeasureEnabled返回true,且RecyclerView的宽高至少1个不是MeasureSpec.EXACTLY,'自动测量逻辑'才被执行.
      • 不要禁用自动测量机制,官方说如果不使用自动测量,需要重写LayoutManage,并在其onMeasure中包含自动测量逻辑.所以自定义LayoutManager不要重写isAutoMeasureEnabled.
      • dispatchLayoutStep2真正执行了子View的布局.
  • 布局
    private void dispatchLayoutStep2() {
  ***
  mState.mInPreLayout = false;
  mLayout.onLayoutChildren(mRecycler, mState);
  ***
}

androidx/recyclerview/widget/LinearLayoutManager.java
public void onLayoutChildren(RecyclerView.Recycler recycler, RecyclerView.State state) {
  //1:初始化LayoutState实例
  ensureLayoutState();
  mLayoutState.mRecycle = false;
  //2:获取持有焦点的子View
  final View focused = getFocusedChild();
  //3:将界面中已存在的子View从RecyclerView中移除,并保存对应的ViewHolder实例到Recycler中
  //Recycler中 mChangedScrap, mAttachedScrap 中存储的ViewHolder实例就是在这儿村上的
  detachAndScrapAttachedViews(recycler);
  if (mAnchorInfo.mLayoutFromEnd){
    ***
  }else{
    //4:根据锚点位置,分2次更新mLayoutState属性,分别从锚点处向结束方向 及 从锚点处向开始方向 填充子View.
    //根据锚点位置,更新mLayoutState的可用空间等属性,并设置:mScrollingOffset = LayoutState.SCROLLING_OFFSET_NaN
    //mScrollingOffset = LayoutState.SCROLLING_OFFSET_NaN非常重要,保证了在fill中不执行ViewHolder的回收
    updateLayoutStateToFillEnd(mAnchorInfo);
    ***
    //从锚点位置,向结束方向填充子View
    fill(recycler, mLayoutState, state, false);
    ***
    updateLayoutStateToFillStart(mAnchorInfo);
    ***
    //从锚点位置,向开始方向填充子View
    fill(recycler, mLayoutState, state, false);
    ***
    if (mLayoutState.mAvailable > 0) {
        //如果还有剩余空间,则再次填充子View
        updateLayoutStateToFillEnd(lastElement, endOffset);
        ***
        fill(recycler, mLayoutState, state, false);
        ***
    }
  }
  ***
  //5:设置参数值
  //不是预布局,则记录RecyclerView的宽/高: mLastTotalSpace = getTotalSpace();
  //是预布局,则重置锚点信息
  if (!state.isPreLayout()) {
    mOrientationHelper.onLayoutComplete();
  } else {
    mAnchorInfo.reset();
  }
  ***
}

之前的疑问点1:
updateLayoutStateToFillEnd(mAnchorInfo) 及 updateLayoutStateToFillStart(mAnchorInfo) 中设置的
mLayoutState.mScrollingOffset = LayoutState.SCROLLING_OFFSET_NaN 决定了 fill 中不会执行ViewHolder的回收, 原因如下:
int fill(RecyclerView.Recycler recycler, LayoutState layoutState,
        RecyclerView.State state, boolean stopOnFocusable) {
  while ((layoutState.mInfinite || remainingSpace > 0) && layoutState.hasMore(state)) {
    layoutChunk(recycler, state, layoutState, layoutChunkResult);
    //这里会对mScrollingOffset进行校验, mScrollingOffset != LayoutState.SCROLLING_OFFSET_NaN 才会执行ViewHolder实例的回收
    if (layoutState.mScrollingOffset != LayoutState.SCROLLING_OFFSET_NaN) {
      ***
      //这里执行ViewHolder实例的回收
      recycleByLayoutState(recycler, layoutState);
    }
  }
}
而之前提到的因为滑动执行的fill,会触发ViewHolder实例的回收,原因如下:
onTouchEvent -> scrollByInternal -> scrollStep -> scrollVerticallyBy -> scrollBy
scrollBy:
int scrollBy(int dy, RecyclerView.Recycler recycler, RecyclerView.State state) {
    ***
    //这儿会对mLayoutState计算并设置属性,其中 mScrollingOffset是计算得到的值,不是 LayoutState.SCROLLING_OFFSET_NaN
    updateLayoutState(layoutDirection, absDy, true, state);
    //fill方法中,对mScrollingOffset进行校验会通过,触发ViewHolder实例的回收
    final int consumed = mLayoutState.mScrollingOffset
            + fill(recycler, mLayoutState, state, false);
    ***
    return scrolled;
}
private void updateLayoutState(int layoutDirection, int requiredSpace,
        boolean canUseExistingSpace, RecyclerView.State state) {
  //mScrollingOffset是计算得到的值,不是 LayoutState.SCROLLING_OFFSET_NaN
  mLayoutState.mScrollingOffset = scrollingOffset;
}

之前的疑问点2:
Recycler中 ArrayList<ViewHolder> mAttachedScrap 和 ArrayList<ViewHolder> mChangedScrap 是何时存入的.
源码可见,是scrapView方法存入的:
void scrapView(View view) {
    final ViewHolder holder = getChildViewHolderInt(view);
    if (holder.hasAnyOfTheFlags(ViewHolder.FLAG_REMOVED | ViewHolder.FLAG_INVALID)
            || !holder.isUpdated() || canReuseUpdatedViewHolder(holder)) {
        //非预布局情况,存入mAttachedScrap
        mAttachedScrap.add(holder);
    } else {
        //预布局情况,存入mChangedScrap
        mChangedScrap.add(holder);
    }
}
scrapView调用栈:
1.tryGetViewHolderForPositionByDeadline -> getScrapOrHiddenOrCachedHolderForPosition -> scrapView
  View view = mChildHelper.findHiddenNonRemovedView(position);
  scrapView(view);
2.detachAndScrapAttachedViews -> scrapOrRecycleView -> scrapView
  recycler.scrapView(view);
通过调用栈可知:
- 在通过Recycler获取ViewHolder实例,若是从'已隐藏但未移除的Views'中获取到ViewHolder实例,则将此ViewHolder实例存入.
- 在执行layout/布局过程中,会将当前页面中的子View对应的ViewHolder实例存入.
- 处理预布局,都存入mAttachedScrap.
    • onLayoutChildren分5步:
      • 创建LayoutState实例
      • 获取焦点子View
      • 将界面中已存在的子View从RecyclerView中移除,并将其对应的ViewHolder实例存入Recycler中
        • 预布局则存入 mChangedScrap , 否则存入 mAttachedScrap
      • 根据锚点位置,分2次更新 LayoutState实例 属性,分别从锚点处向结束方向 及 从锚点处向开始方向 填充子View.
        • 更新 LayoutState实例 属性这一步非常重要,其中 mScrollingOffset = LayoutState.SCROLLING_OFFSET_NaN 保证了后面执行fill不会执行ViewHolder实例的回收.
      • 设置参数值
    • 之前疑问点解释
      • ViewHolder实例在滑动触发的fill中会回收,在layout触发的fill中不会回收
      • Recycler中的mChangedScrap和mAttachedScrap:
        • 在通过Recycler获取ViewHolder实例,若是从'已隐藏但未移除的Views'中获取到ViewHolder实例,则将此ViewHolder实例存入.
        • 在执行layout/布局过程中,会将当前页面中的子View对应的ViewHolder实例存入.
        • 处理预布局,都存入mAttachedScrap.
    • onLayoutChildren图示:
  • 自定义LayoutManager没有看懂,先过,收集LayoutManager待看文章
  1. LayoutManager

2. DiffUtil

零散的点

1. java.lang.IndexOutOfBoundsException

java.lang.IndexOutOfBoundsException: Inconsistency detected. Invalid view holder adapter positionViewHolder{f82aa71 position=11 id=-1, oldPos=6, pLpos:6 scrap [attachedScrap] tmpDetached not recyclable(1) no parent}
     at android.support.v7.widget.RecyclerView$Recycler.validateViewHolderForOffsetPosition(RecyclerView.java:5297)
     at android.support.v7.widget.RecyclerView$Recycler.tryGetViewHolderForPositionByDeadline(RecyclerView.java:5479)
     at android.support.v7.widget.RecyclerView$Recycler.getViewForPosition(RecyclerView.java:5440)
     at android.support.v7.widget.RecyclerView$Recycler.getViewForPosition(RecyclerView.java:5436)
     at android.support.v7.widget.LinearLayoutManager$LayoutState.next(LinearLayoutManager.java:2224)
     at android.support.v7.widget.LinearLayoutManager.layoutChunk(LinearLayoutManager.java:1551)
     at android.support.v7.widget.LinearLayoutManager.fill(LinearLayoutManager.java:1511)
     at android.support.v7.widget.LinearLayoutManager.onLayoutChildren(LinearLayoutManager.java:595)
     at android.support.v7.widget.RecyclerView.dispatchLayoutStep1(RecyclerView.java:3534)
     at android.support.v7.widget.RecyclerView.dispatchLayout(RecyclerView.java:3310)
  1. 原因
  2. 综合解决方案
    • 重写LinearLayoutManager
      @Override
public void onLayoutChildren(RecyclerView.Recycler recycler, RecyclerView.State state) {
    try {
        super.onLayoutChildren(recycler, state);
    } catch (IndexOutOfBoundsException e) {
        e.printStackTrace();
    }
}
mRecyclerView.setLayoutManager(new CustomLayoutManager(this, LinearLayoutManager.VERTICAL, false));
    • 不要直接设置Adapter实例中的'data list',要使用新的List
      private List<Item> mItems;
public CustomAdapter(List<Item> items){
    this.mItems = new ArrayList<>();
    try{
        this.mItems.addAll(items);
    }catch(Exception e){
        ***
    }
}
    • 对'data list'进行更新,尽量避免调用notifyDataSetChanged,应该使用notifyItem~进行替代. notifyDataSetChanged没有动画效果,且更新数据的性能低
      /**
 * 'data lsit'
 */
private List<Item> mItems;

/**
 * refresh 'data lsit'
 *
 * @param items
 */
public void refreshList(List<Item> items) {
    int preSize = this.mItems.size();
    this.mItems.clear();
    notifyItemRangeRemoved(0, preSize);
    this.mItems.addAll(items);
    notifyItemRangeInserted(0, this.mItems.size());
}

/**
 * load more
 *
 * @param moreItems
 */
public void loadMore(List<Item> moreItems) {
    int curIndex = this.mItems.size();
    this.mItems.addAll(moreItems);
    notifyItemRangeInserted(curIndex, this.mItems.size());
}

/**
 * refresh an Item
 *
 * @param item
 */
public void refreshItem(Item item) {
    if (this.mItems.contains(item)) {
        int index = this.mItems.indexOf(item);
        notifyItemChanged(index);
    }
}

/**
 * add an Item
 *
 * @param item
 */
public void add(Item item) {
    this.mItems.add(item);
    notifyItemInserted(this.mItems.size() - 1);
}

/**
 * delete an Item
 *
 * @param item
 */
public void delete(Item item) {
    if (this.mItems.contains(item)) {
        int index = this.mItems.indexOf(item);
        this.mItems.remove(item);
        notifyItemRemoved(index);
    }
}
    • 在RecyclerView滑动的时候不要更新'data-list',或更新'data-list'时候不要滑动,这种方案没有试 2. RecyclerView刷新指定Item中的指定View,真正的局部刷新


源码中指出实现Item局部刷新的方法:

androidx/recyclerview/widget/RecyclerView.java
public abstract static class Adapter<VH extends ViewHolder> {
  /**
   * 1:调用notifyItemChanged时候,传入payload,不为null即可
   * Client can optionally pass a payload for partial change.
   * 2:最终会调用到我们重写的 Adapter中的 onBindViewHolder(@NonNull VH holder, int position, @NonNull List<Object> payloads)
   * These payloads will be merged and may be passed to adapter's {@link #onBindViewHolder(ViewHolder, int, List)} if the
   * item is already represented by a ViewHolder and it will be rebound to the same
   * ViewHolder.
   */
  public final void notifyItemChanged(int position, @Nullable Object payload) {
      mObservable.notifyItemRangeChanged(position, 1, payload);
  }

  /**
   * 局部刷新对比整体刷新:
   * Partial bind vs full bind:
   * <p>
   * payloads是从 notifyItemChanged 或 notifyItemRangeChanged 传入的.
   * The payloads parameter is a merge list from {@link #notifyItemChanged(int, Object)} or
   * {@link #notifyItemRangeChanged(int, int, Object)}.
   * payloads不为空,Adapter应该通过解析payloads数据执行局部刷新,如果payloads是空,则执行整体刷新.
   * If the payloads list is not empty,
   * the ViewHolder is currently bound to old data and Adapter may run an efficient partial
   * update using the payload info.  If the payload is empty,  Adapter must run a full bind.
   * Adapter should not assume that the payload passed in notify methods will be received by
   * onBindViewHolder().  For example when the view is not attached to the screen, the
   * payload in notifyItemChange() will be simply dropped.
   *
   * @param payloads A non-null list of merged payloads. Can be empty list if requires full
   *                 update.
   */
  public void onBindViewHolder(@NonNull VH holder, int position,
          @NonNull List<Object> payloads) {
        //源码默认情况下直接执行了onBindViewHolder. 所以我们在自定义Adapter中要重写onBindViewHolder(@NonNull VH holder, int position, @NonNull List<Object> payloads)
        //根据payloads是否为空,payloads具体数据执行不同的逻辑
      onBindViewHolder(holder, position);
  }
}

实际代码实现Item局部刷新的方法:

1:自定义Adapter重写onBindViewHolder(@NonNull VH holder, int position,@NonNull List<Object> payloads)
@Override
public void onBindViewHolder(@NonNull RecyclerView.ViewHolder holder, int position, @NonNull List<Object> payloads) {
    //如果payloads是空,则执行Item整体刷新
    if(payloads == null || payloads.isEmpty()){
        //Item整体刷新
        onBindViewHolder(holder,position);
        return;
    }
    //如果payloads非空,则根据payloads具体的值,执行不同的Item局部刷新逻辑
    final int pos = getRealPosition(holder);
    if (viewHolder instanceof **ViewHolder) {
        **ViewHolder holder = (**ViewHolder) holder;
        String refreshType = (String)payloads.get(0);
        switch(refreshType){
        case "refresh1":
          holder.refresh1(pos);
          break;
        case "refresh2":
          holder.refresh2(pos);
          break;
        default:
          holder.refreshX(pos);
          break;
        }
    }
}
@Override
public void onBindViewHolder(@NonNull RecyclerView.ViewHolder holder, final int position) {
    final int pos = getRealPosition(holder);
    if (viewHolder instanceof (**ViewHolder) {
        **ViewHolder holder = (**ViewHolder) holder;
        //Item整体刷新
        holder.setData(pos);
    }
}
public int getRealPosition(RecyclerView.ViewHolder holder) {
    return holder.getLayoutPosition();
}
2:调用 notifyItemChanged 和 notifyItemRangeChanged 时候传入对应参数
rvAdapter.notifyItemChanged(10,"refresh1");
rvAdapter.notifyItemRangeChanged(10,5,"refresh2");

3. 如何为Item项设置点击监听器,不产生N个冗余的OnClickListener实例

4. 类型

avatar
文章
阅读
粉丝
