前言
本文档主要用于学习自定义View的相关使用和源码解析。
1. LayoutInflater解析
在学习如何实现自定义View之前，我们需要了解控件是布局如何实现，View加载到布局中以及布局视图本身的加载，这是了解自定义View第一步。
那么关于视图加载的一大利器，我们最不陌生的就是LayoutInflater，下面就将介绍LayoutInflater。
1.1 声明定义视图加载器LayoutInflater
LayoutInflater layoutInflater = LayoutInflater.from(this);
以下语句是from方法源码中声明定义LayoutIInflater的方法,同样可以用来声明定义LayoutInflater.
LayoutInflater LayoutInflater =
(LayoutInflater) context.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
Context.LAYOUT_INFLATER_SERVICE是Context的一种服务之一,用于检索当前上下文的视图加载器.
/**
* Use with {@link #getSystemService(String)} to retrieve a
* {@link android.view.LayoutInflater} for inflating layout resources in this
* context.
*
* @see #getSystemService(String)
* @see android.view.LayoutInflater
*/
public static final String LAYOUT_INFLATER_SERVICE = "layout_inflater";
1.2 LayoutIInflater加载布局文件
View view = layoutInflater.inflate(R.layout.XXX);
在源码中,inflate方法被重载了多次,但是其他几类均会调用以下Inflate方法.
public View inflate(XmlPullParser parser, @Nullable ViewGroup root, boolean attachToRoot);
1.2.1 XmlPullParser
第一个参数XmlPullParser是要解析的xml布局文件
-
XML结构
主要是由 头部声明 + 诸多元素(Element)组成
元素可分为标签(tag , 分为头标签与尾标签)+内容/子元素
<?xml version="XXX" encoding="utf-8"?> <tag1> content1 </tag1> <tag2> <tag2.1> content2.1 </tag2.1> <tag2.2> content2.2 </tag2.2> <tag2.3> content2.3 </tag2.3> </tag2> -
XML解析
一个元素(包括子元素)就是一个事件,遇到头标签开始解析事件
XMLPullPareser中有着以下几个事件标识
START DOCUMENT 文档开始解析 START_TAG 一个元素标签的开始事件,这时解析该元素的属性值 TEXT 解析该元素的内容事件,这时解析该元素的内容值 END_TAG 一个元素标签的结束事件 END_DOCUMENT 文档解析结束函数 用法 next 解析下一个标签 nextTag 下一个标签 getEventType 获得事件类型 nextText 获得节点内具体内容 getName 获取节点名 -
Merge标签
1.2.2 root和attachToRoot
后两个参数,root为根容器组件, attachToRoot表示是否添加到root中.
1.3 源码解析
1.3.1 inflate源码
public View inflate(XmlPullParser parser, @Nullable ViewGroup root, boolean attachToRoot) {
synchronized (mConstructorArgs) {
Trace.traceBegin(Trace.TRACE_TAG_VIEW, "inflate");
final Context inflaterContext = mContext;
final AttributeSet attrs = Xml.asAttributeSet(parser);
//Context
Context lastContext = (Context) mConstructorArgs[0];
mConstructorArgs[0] = inflaterContext;
//保存根容器组件
View result = root;
try {
// Look for the root node.
//这一部分就是找寻第一个标签
int type;
while ((type = parser.next()) != XmlPullParser.START_TAG &&
type != XmlPullParser.END_DOCUMENT) {
// Empty
}
//如果找到文档解析结束也没找到一个头标签,那么就直接抛出异常
if (type != XmlPullParser.START_TAG) {
throw new InflateException(parser.getPositionDescription()
+ ": No start tag found!");
}
//找到标签,获取第一个标签的名字
final String name = parser.getName();
if (DEBUG) {
System.out.println("**************************");
System.out.println("Creating root view: "
+ name);
System.out.println("**************************");
}
//是merge标签,则调用rInflate函数,将所有的merge标签下的元素加入到父根容器组件之下
if (TAG_MERGE.equals(name)) {
if (root == null || !attachToRoot) {
throw new InflateException("<merge /> can be used only with a valid "
+ "ViewGroup root and attachToRoot=true");
}
rInflate(parser, root, inflaterContext, attrs, false);
} else {
// Temp is the root view that was found in the xml
//如若不是merge标签,则根据标签解析布局中"name"标签并返回一个相应的View变量
final View temp = createViewFromTag(root, name, inflaterContext, attrs);
ViewGroup.LayoutParams params = null;//ViewGroup的布局参数
//如果给定父布局,那么调用root的generateLayoutParams()并传入xml的解析属性, 生成布局参数
if (root != null) {
if (DEBUG) {
System.out.println("Creating params from root: " +
root);
}
// Create layout params that match root, if supplied
params = root.generateLayoutParams(attrs);
if (!attachToRoot) {
//并且attachToRoot为false意味着不添加到根容器组件,那么直接为View添加布局参数
// Set the layout params for temp if we are not
// attaching. (If we are, we use addView, below)
temp.setLayoutParams(params);
}
}
if (DEBUG) {
System.out.println("-----> start inflating children");
}
//开始加载temp下所有子View
// Inflate all children under temp against its context.
rInflateChildren(parser, temp, attrs, true);
if (DEBUG) {
System.out.println("-----> done inflating children");
}
// We are supposed to attach all the views we found (int temp)
// to root. Do that now.
//根容器组件不为空,则直接调用根容器组件的addView()
if (root != null && attachToRoot) {
root.addView(temp, params);
}
// Decide whether to return the root that was passed in or the
// top view found in xml.
//不加载到根容器组件,则返回的结果为原先根据tag生成的View
if (root == null || !attachToRoot) {
result = temp;
}
}
} catch (XmlPullParserException e) {
final InflateException ie = new InflateException(e.getMessage(), e);
ie.setStackTrace(EMPTY_STACK_TRACE);
throw ie;
} catch (Exception e) {
final InflateException ie = new InflateException(parser.getPositionDescription()
+ ": " + e.getMessage(), e);
ie.setStackTrace(EMPTY_STACK_TRACE);
throw ie;
} finally {
// Don't retain static reference on context.
mConstructorArgs[0] = lastContext;
mConstructorArgs[1] = null;
Trace.traceEnd(Trace.TRACE_TAG_VIEW);
}
return result;
}
}
流程如下:
- 先判断是否是merge标签,如果是,则直接函数
rInflate将所有子View加载到root中 - 如若不是merge标签,则根据parser得到的"name"标签创建一个View变量(
createViewFromTag) - 调用
rInflateChildren将生成的View作为根容器,把新生成的View的子View加载到新生成的View中 - 如果给定root,那么
attachToRoot默认为true,讲新创建的View变量加载到root中 attachToRoot为false或者无root,则返回的结果为原先根据tag生成的View变量
inflate方法主要涉及到的比较重要的标识TAG_MERGE与函数rInflate与函数createViewFromTag.
createVIewFromTag: 每一个我们所学习的控件(xml文件中的每个标签)都是一个View,该函数又有一个createView函数返回一个View实例.
Merge标签
一般Merge标签是同include标签一起使用.
如下是一个标题栏的布局"title"文件
<?xml version="1.0" encoding="utf-8"?>
<merge>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:background="@color/colorAccent"
android:orientation="horizontal">
<ImageButton
android:id="@+id/title_back"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_margin="5dp"
android:background="@drawable/turn_left"
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toTopOf="parent" />
<ImageButton
android:id="@+id/title_go"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_margin="5dp"
android:background="@drawable/turn_right"
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintTop_toTopOf="parent" />
<TextView
android:id="@+id/title_text"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_margin="5dp"
android:text="Title Text"
android:textAllCaps="false"
android:textSize="24sp"
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintEnd_toStartOf="@+id/title_go"
app:layout_constraintStart_toEndOf="@+id/title_back"
app:layout_constraintTop_toTopOf="parent" />
</androidx.constraintlayout.widget.ConstraintLayout>
</merge>
在activity_main中引入include标签如下
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<include layout="@layout/title"/>
<Button
android:id="@+id/diy_dialog_btn"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="DIY dialog"
android:textAllCaps="false"
android:textSize="20sp"
android:layout_marginTop="10dp"
android:background="@drawable/button_click"/>
</LinearLayout>
Merge标签能够减少层级,优化布局使用,通常与include标签配合使用.
根据源码分析,也就知道优化布局的原因,直接将所有的merge标签下的元素加入到父根容器组件之下,不用自己产生View再进行诸多比较等.
1.3.2 rInflate源码
void rInflate(XmlPullParser parser, View parent, Context context,
AttributeSet attrs, boolean finishInflate) throws XmlPullParserException, IOException {
//获得parser的深度,为后续DFS做准备
final int depth = parser.getDepth();
int type;
boolean pendingRequestFocus = false;
//对每一个元素进行解析,最外层深度为0(如最初的头尾标签均是0)
while (((type = parser.next()) != XmlPullParser.END_TAG ||
parser.getDepth() > depth) && type != XmlPullParser.END_DOCUMENT) {
if (type != XmlPullParser.START_TAG) {
continue;
}
final String name = parser.getName();
if (TAG_REQUEST_FOCUS.equals(name)) {
//首先判断解析属性中foucusable为true的元素,获取View的焦点
pendingRequestFocus = true;
consumeChildElements(parser);
} else if (TAG_TAG.equals(name)) {
//解析View的tag
parseViewTag(parser, parent, attrs);
} else if (TAG_INCLUDE.equals(name)) {
if (parser.getDepth() == 0) {//同时include标签不可以是根元素
throw new InflateException("<include /> cannot be the root element");
}
parseInclude(parser, context, parent, attrs);
} else if (TAG_MERGE.equals(name)) {//如果存在merge,必须是根元素,而merge标签在最初已经进行了处理
throw new InflateException("<merge /> must be the root element");
} else {
final View view = createViewFromTag(parent, name, context, attrs);//根据Tag产生View
final ViewGroup viewGroup = (ViewGroup) parent;
final ViewGroup.LayoutParams params = viewGroup.generateLayoutParams(attrs);
//递归调用,解析view当中的子view
rInflateChildren(parser, view, attrs, true);
//解析后的view加入到父View中去
viewGroup.addView(view, params);
}
}
if (pendingRequestFocus) {
parent.restoreDefaultFocus();
}
if (finishInflate) {
parent.onFinishInflate();
}
}
//rInfalteChildren内部也是递归调用rInflate,然后把子View加载到view中,即父容器组件就是view本身
final void rInflateChildren(XmlPullParser parser, View parent, AttributeSet attrs,
boolean finishInflate) throws XmlPullParserException, IOException {
rInflate(parser, parent, parent.getContext(), attrs, finishInflate);
}
对于XmlPullParser的高度:
- 最外层高度为0
- 遇到本层END_TAG之前遇到START_TAG则高度+1
- 遇到本层END_TAG之后,说明从深层跳到该层,高度-1
/**
* <pre>
* <!-- outside --> 0
* <root> 1
* sometext 1
* <foobar> 2
* </foobar> 2
* </root> 1
* <!-- outside --> 0
* </pre>
*/
源码对于getDepth()的注解例子如上.
流程如下:
- 对每一个元素进行解析
- 如若有需要聚焦属性的元素,那么获取View的焦点
- 如若不是,排除
include&&merge标签 - 2、3排除后则正常解析View的tag
- 然后使用
createViewFromTag来产生View,并调用rInflate函数进行子View加载到View中 - 最后结束递归,调用 终止加载
parent.onFinishInflate();
1.3.3 createViewFromTag源码
以上流程将布局所有的View加载完成,而负责一个控件View生成的函数是createViewFromTag.
View createViewFromTag(View parent, String name, Context context, AttributeSet attrs,
boolean ignoreThemeAttr) {
if (name.equals("view")) {
name = attrs.getAttributeValue(null, "class");
}
//如果标签与主题相关，则需要将context与themeResId包裹成ContextThemeWrapper。
// Apply a theme wrapper, if allowed and one is specified.
if (!ignoreThemeAttr) {
final TypedArray ta = context.obtainStyledAttributes(attrs, ATTRS_THEME);
final int themeResId = ta.getResourceId(0, 0);
if (themeResId != 0) {
context = new ContextThemeWrapper(context, themeResId);
}
ta.recycle();
}
//BlinkLayout,闪烁布局,被包含的View,会有闪烁效果,如QQ消息
if (name.equals(TAG_1995)) {
// Let's party like it's 1995!
return new BlinkLayout(context, attrs);
}
//以上部分与生成view不直接关联
//用户可以设置LayoutInflater的Factory来进行View的解析，但是默认情况下Factory均为空
try {
View view;
if (mFactory2 != null) {
view = mFactory2.onCreateView(parent, name, context, attrs);
} else if (mFactory != null) {
view = mFactory.onCreateView(name, context, attrs);
} else {
view = null;
}
if (view == null && mPrivateFactory != null) {
view = mPrivateFactory.onCreateView(parent, name, context, attrs);
}
if (view == null) {
final Object lastContext = mConstructorArgs[0];
mConstructorArgs[0] = context;
try {
//使用自定义View是需要在xml指定全路径的,而自定义View的包路径中一定带有着"."，com.XXXX.XXXX.XXXX
//即可判断内置View还是自定义View
if (-1 == name.indexOf('.')) {
//内置View控件
view = onCreateView(parent, name, attrs);
} else {
//自定义View控件
view = createView(name, null, attrs);
}
} finally {
mConstructorArgs[0] = lastContext;
}
}
return view;
} catch (InflateException e) {
throw e;
} catch (ClassNotFoundException e) {
final InflateException ie = new InflateException(attrs.getPositionDescription()
+ ": Error inflating class " + name, e);
ie.setStackTrace(EMPTY_STACK_TRACE);
throw ie;
} catch (Exception e) {
final InflateException ie = new InflateException(attrs.getPositionDescription()
+ ": Error inflating class " + name, e);
ie.setStackTrace(EMPTY_STACK_TRACE);
throw ie;
}
}
单个View的解析过程如下:
- 判断是否是"view"标签,是的话获取其"class"
- 标签的属性是否是Theme Wrapper有关的,是的话,需要将此时的上下文与相应的主题打包成
ContextThemeWrapper - LayoutInflator有着多种工厂可以在初始化的时候进行设置,但是默认状态时没有设置的.
- 不设置则开始判断是内置View还是自定义View,如果是内置View则调用
onCreateView; 自定义View则调用createView. - 最后返回View
view标签
<view
class="LinearLayout"
android:layout_width="wrap_content"
android:layout_height="wrap_content"/>
view标签需要指定class,用以表明是哪一种控件.
BlinkLayout
闪烁布局,与其他布局一样使用.
<blink
android:layout_width="wrap_content"
android:layout_height="wrap_content">
<Button
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="闪烁的按钮"/>
</blink>
1.3.4 createView源码
onCreateView和createView的区别主要在内置View会加上"android.view."前缀
protected View onCreateView(String name, AttributeSet attrs)
throws ClassNotFoundException {
return createView(name, "android.view.", attrs);
}
onCreateView的实质还是调用了createView方法,因此来看下createView源码
public final View createView(String name, String prefix, AttributeSet attrs)
throws ClassNotFoundException, InflateException {
//从cache中获得构造函数
Constructor<? extends View> constructor = sConstructorMap.get(name);
if (constructor != null && !verifyClassLoader(constructor)) {
constructor = null;
sConstructorMap.remove(name);
}
Class<? extends View> clazz = null;
try {
Trace.traceBegin(Trace.TRACE_TAG_VIEW, name);
if (constructor == null) {//没有缓存,补全路径找寻构造函数
// Class not found in the cache, see if it's real, and try to add it
clazz = mContext.getClassLoader().loadClass(
prefix != null ? (prefix + name) : name).asSubclass(View.class);
if (mFilter != null && clazz != null) {
boolean allowed = mFilter.onLoadClass(clazz);
if (!allowed) {
failNotAllowed(name, prefix, attrs);
}
}
constructor = clazz.getConstructor(mConstructorSignature);
constructor.setAccessible(true);
sConstructorMap.put(name, constructor);//放到缓存中去
} else {
// If we have a filter, apply it to cached constructor
if (mFilter != null) {
// Have we seen this name before?
Boolean allowedState = mFilterMap.get(name);
if (allowedState == null) {
// New class -- remember whether it is allowed
clazz = mContext.getClassLoader().loadClass(
prefix != null ? (prefix + name) : name).asSubclass(View.class);
boolean allowed = clazz != null && mFilter.onLoadClass(clazz);
mFilterMap.put(name, allowed);
if (!allowed) {
failNotAllowed(name, prefix, attrs);
}
} else if (allowedState.equals(Boolean.FALSE)) {
failNotAllowed(name, prefix, attrs);
}
}
}
Object lastContext = mConstructorArgs[0];
if (mConstructorArgs[0] == null) {
// Fill in the context if not already within inflation.
mConstructorArgs[0] = mContext;
}
Object[] args = mConstructorArgs;
args[1] = attrs;
//根据构造函数,构建View实例
final View view = constructor.newInstance(args);
if (view instanceof ViewStub) {
// Use the same context when inflating ViewStub later.
final ViewStub viewStub = (ViewStub) view;
viewStub.setLayoutInflater(cloneInContext((Context) args[0]));
}
mConstructorArgs[0] = lastContext;
return view;
} catch (NoSuchMethodException e) {
final InflateException ie = new InflateException(attrs.getPositionDescription()
+ ": Error inflating class " + (prefix != null ? (prefix + name) : name), e);
ie.setStackTrace(EMPTY_STACK_TRACE);
throw ie;
} catch (ClassCastException e) {
// If loaded class is not a View subclass
final InflateException ie = new InflateException(attrs.getPositionDescription()
+ ": Class is not a View " + (prefix != null ? (prefix + name) : name), e);
ie.setStackTrace(EMPTY_STACK_TRACE);
throw ie;
} catch (ClassNotFoundException e) {
// If loadClass fails, we should propagate the exception.
throw e;
} catch (Exception e) {
final InflateException ie = new InflateException(
attrs.getPositionDescription() + ": Error inflating class "
+ (clazz == null ? "<unknown>" : clazz.getName()), e);
ie.setStackTrace(EMPTY_STACK_TRACE);
throw ie;
} finally {
Trace.traceEnd(Trace.TRACE_TAG_VIEW);
}
}
2. 自定义View初体验
2.1 View类简介
- 直观上：视图上的各种控件包括布局都是一种View
- 代码上：View类是Android所有组件控件间接或者直接的父类

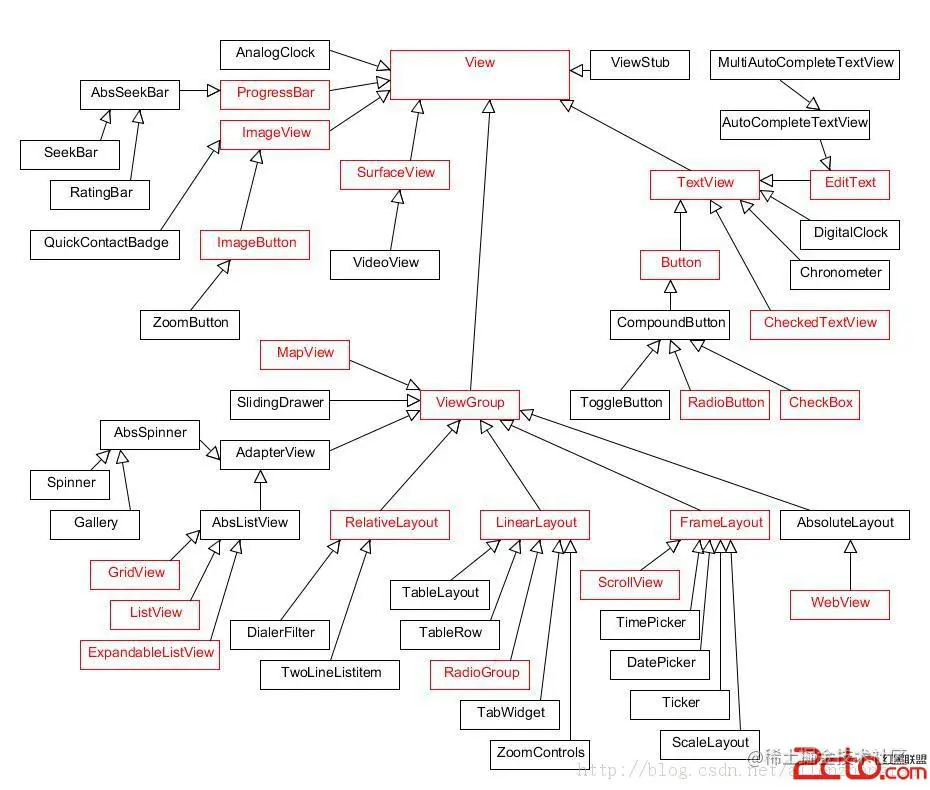

下图为View的继承关系图,红色控件为常用控件
自定义View，顾名思义，就是写自己所需要的控件。下面开始View第一步。
2.2 自定义View构造函数
观看控件的源码，控件都是或直接或间接的继承了View类进行操作。因此第一步继承View类，并继承四种构造函数如下。
public class MyTestView extends View {
public static String TAG = "View";
//第一类，MyTestView在代码中创建
public MyTestView(Context context) {
super(context);
}
//第二类，MyTestView在.xml的布局文件中创建
//自定义属性从AttributeSet传入
public MyTestView(Context context, @Nullable AttributeSet attrs) {
super(context, attrs);
}
//第三类，MyTestView有自定义style属性时调用
public MyTestView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
}
//第四类，MyTestView设置自定义style resource文件时调用
public MyTestView(Context context, @Nullable AttributeSet attrs, int defStyleAttr, int defStyleRes) {
super(context, attrs, defStyleAttr, defStyleRes);
}
}
2.3 绘制自定义View
绘制自定义View主要用到以下函数
public class MyTestView extends View {
......
@Override
//用于被内部调用测量视图大小
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
}
@Override
//用于被内部调用安排视图位置
protected void onLayout(boolean changed, int left, int top, int right, int bottom) {
super.onLayout(changed, left, top, right, bottom);
}
@Override
//用于被内部调用绘制视图样式
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
}
}
2.3.1 测量View
View系统的绘制流程会从ViewRoot（源码位置是ViewRootImpl.java）的performTraversals()方法中开始调用performMeasure()，进而调用View的measure()方法。
然后onMeasure方法在源码中被measure方法调用,用来测量自定义View的大小，并且在measure方法注解中提及，想要自定义View必须要重写onMeasure方法。
同时，onMeasure方法的参数widthMeasureSpec、heightMeasureSpec也有着重要意义，这两个参数是从MeasureSpec得到。
2.3.1.1 MeasureSpec
MeasureSpec封装了父类给子类的布局要求，widthMeasureSpec、heightMeasureSpec即对宽度、高度的要求。
MeasureSpec实质上是一个32位int值，由测量模式SpecMode和测量模式下的大小值SpecSize组成，高两位是测量模式，有三种模式，低30位是测量模式下的大小值。
UNSPECIFIED
父类不指定尺寸也不限制尺寸，随便继承的子类如何定义尺寸。
EXACTLY
父类指定子类具体尺寸
AT_MOST
父类指定子类的最大尺寸
定义如下：
public static class MeasureSpec {
private static final int MODE_SHIFT = 30;
private static final int MODE_MASK = 0x3 << MODE_SHIFT;
/** @hide */
@IntDef({UNSPECIFIED, EXACTLY, AT_MOST})
@Retention(RetentionPolicy.SOURCE)
public @interface MeasureSpecMode {}
public static final int UNSPECIFIED = 0 << MODE_SHIFT;
public static final int EXACTLY = 1 << MODE_SHIFT;
public static final int AT_MOST = 2 << MODE_SHIFT;
......
}
2.3.1.2 DecorView
正常情况下，我们直接按照MeasureSpec来进行指定即可。对于一般View，确实好像没有问题，但是仔细思考一下，那么XML中指定属性match_parent、wrap_content从哪儿得到的？LinearLayout是个ViewGroup，ViewGroup继承于View，当Activity启动时，最开始的根视图是谁呢，这个根视图又是如何获得宽高的呢？
这时候就要引入LayoutParams和DecorView的概念。
首先LayoutParams比较简单，就是布局所需要的宽高设置。
ViewGroup.java
public static class LayoutParams {
......
@SuppressWarnings({"UnusedDeclaration"})
@Deprecated
public static final int FILL_PARENT = -1;
public static final int MATCH_PARENT = -1;
public static final int WRAP_CONTENT = -2;
......
}
因此对于一般View，它的宽高是由父容器的MeasureSpec 和自身 LayoutParams一起决定的。关于XML中标签指定宽高的问题已经解决了。
那么进入第二个问题，根视图是谁的呢？它是如何获取宽高呢？
最顶层也就是最外层的根视图我们称之为DecorView.

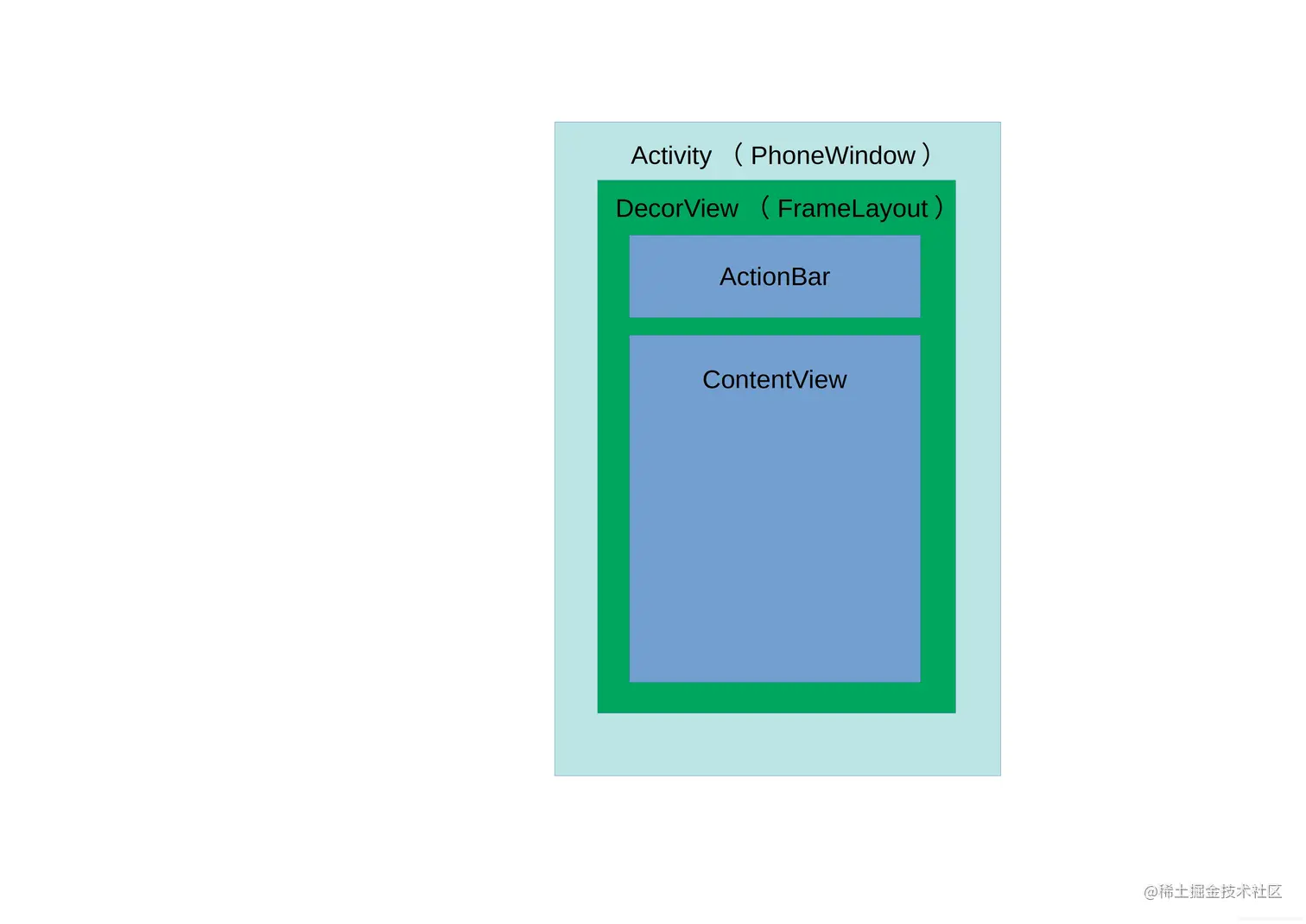

如下图，Activity是一个PhoneWindow实例，其布局形式即为DecorView，DecorView是一个FrameLayout布局，有标题栏(ActionBar)和内容视图(ContentView， 也就是每个活动我们所调用的函数SetContentView)
那么现在来看，DecorView又是如何获得宽高的呢？
在ViewRootImpl的measureHierarchy中有着如下一段代码，就是DecorView的MeasureSpec的赋值。
childWidthMeasureSpec = getRootMeasureSpec(baseSize, lp.width);
childHeightMeasureSpec = getRootMeasureSpec(desiredWindowHeight, lp.height);
performMeasure(childWidthMeasureSpec, childHeightMeasureSpec);
再来看下getRootMeasureSpec的实现：
private static int getRootMeasureSpec(int windowSize, int rootDimension) {
int measureSpec;
switch (rootDimension) {
case ViewGroup.LayoutParams.MATCH_PARENT:
// Window can't resize. Force root view to be windowSize.
measureSpec = MeasureSpec.makeMeasureSpec(windowSize, MeasureSpec.EXACTLY);
break;
case ViewGroup.LayoutParams.WRAP_CONTENT:
// Window can resize. Set max size for root view.
measureSpec = MeasureSpec.makeMeasureSpec(windowSize, MeasureSpec.AT_MOST);
break;
default:
// Window wants to be an exact size. Force root view to be that size.
measureSpec = MeasureSpec.makeMeasureSpec(rootDimension, MeasureSpec.EXACTLY);
break;
}
return measureSpec;
}
可以看出，三种模式，且都和windowSize有关，即可以理解为根视图/最外层视图的宽高是由窗口尺寸和自身LayoutParams决定的。
我们可以得出结论：
- 对于一般视图View，它的宽高是由父容器的
MeasureSpec和自身LayoutParams一起决定的。 - 对于根视图DecorView，它的宽高是由窗口尺寸和自身
LayoutParams一起决定的。
2.3.1.3 onMeasure
根据getDefaultSize函数来给定高度或者宽度的大小,然后使用setMeasuredDimension函数来指定自定义View的(尺寸)高度、宽度
getSuggestedMinimumWidth用来获取内容或者背景尺寸二者中的较大值。
public final void measure(int widthMeasureSpec, int heightMeasureSpec) {
boolean optical = isLayoutModeOptical(this);
if (optical != isLayoutModeOptical(mParent)) {
//父类子类不同种View 则调整宽高
Insets insets = getOpticalInsets();
int oWidth = insets.left + insets.right;
int oHeight = insets.top + insets.bottom;
widthMeasureSpec = MeasureSpec.adjust(widthMeasureSpec, optical ? -oWidth : oWidth);
heightMeasureSpec = MeasureSpec.adjust(heightMeasureSpec, optical ? -oHeight : oHeight);
}
// Suppress sign extension for the low bytes
long key = (long) widthMeasureSpec << 32 | (long) heightMeasureSpec & 0xffffffffL;
if (mMeasureCache == null) mMeasureCache = new LongSparseLongArray(2);
final boolean forceLayout = (mPrivateFlags & PFLAG_FORCE_LAYOUT) == PFLAG_FORCE_LAYOUT;
// Optimize layout by avoiding an extra EXACTLY pass when the view is
// already measured as the correct size. In API 23 and below, this
// extra pass is required to make LinearLayout re-distribute weight.
//宽高是否发生了变化
final boolean specChanged = widthMeasureSpec != mOldWidthMeasureSpec
|| heightMeasureSpec != mOldHeightMeasureSpec;
//是否是EXACT模式
final boolean isSpecExactly = MeasureSpec.getMode(widthMeasureSpec) == MeasureSpec.EXACTLY
&& MeasureSpec.getMode(heightMeasureSpec) == MeasureSpec.EXACTLY;
//匹配
final boolean matchesSpecSize = getMeasuredWidth() == MeasureSpec.getSize(widthMeasureSpec)
&& getMeasuredHeight() == MeasureSpec.getSize(heightMeasureSpec);
final boolean needsLayout = specChanged
&& (sAlwaysRemeasureExactly || !isSpecExactly || !matchesSpecSize);
if (forceLayout || needsLayout) {
// first clears the measured dimension flag
mPrivateFlags &= ~PFLAG_MEASURED_DIMENSION_SET;
resolveRtlPropertiesIfNeeded();
int cacheIndex = forceLayout ? -1 : mMeasureCache.indexOfKey(key);
if (cacheIndex < 0 || sIgnoreMeasureCache) {
// measure ourselves, this should set the measured dimension flag back
onMeasure(widthMeasureSpec, heightMeasureSpec);
mPrivateFlags3 &= ~PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
} else {
long value = mMeasureCache.valueAt(cacheIndex);
// Casting a long to int drops the high 32 bits, no mask needed
setMeasuredDimensionRaw((int) (value >> 32), (int) value);
mPrivateFlags3 |= PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
}
// flag not set, setMeasuredDimension() was not invoked, we raise
// an exception to warn the developer
if ((mPrivateFlags & PFLAG_MEASURED_DIMENSION_SET) != PFLAG_MEASURED_DIMENSION_SET) {
throw new IllegalStateException("View with id " + getId() + ": "
+ getClass().getName() + "#onMeasure() did not set the"
+ " measured dimension by calling"
+ " setMeasuredDimension()");
}
mPrivateFlags |= PFLAG_LAYOUT_REQUIRED;
}
mOldWidthMeasureSpec = widthMeasureSpec;
mOldHeightMeasureSpec = heightMeasureSpec;
mMeasureCache.put(key, ((long) mMeasuredWidth) << 32 |
(long) mMeasuredHeight & 0xffffffffL); // suppress sign extension
}
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
setMeasuredDimension(getDefaultSize(getSuggestedMinimumWidth(), widthMeasureSpec),
getDefaultSize(getSuggestedMinimumHeight(), heightMeasureSpec));
}
protected final void setMeasuredDimension(int measuredWidth, int measuredHeight) {
boolean optical = isLayoutModeOptical(this);
//如果当前View与父类View不是同种View
if (optical != isLayoutModeOptical(mParent)) {
//不同就要调整测量值大小
Insets insets = getOpticalInsets();
int opticalWidth = insets.left + insets.right;
int opticalHeight = insets.top + insets.bottom;
measuredWidth += optical ? opticalWidth : -opticalWidth;
measuredHeight += optical ? opticalHeight : -opticalHeight;
}
setMeasuredDimensionRaw(measuredWidth, measuredHeight);
}
//直接赋值
private void setMeasuredDimensionRaw(int measuredWidth, int measuredHeight) {
mMeasuredWidth = measuredWidth;
mMeasuredHeight = measuredHeight;
//打上标识，已经测量该View的大小
mPrivateFlags |= PFLAG_MEASURED_DIMENSION_SET;
}
//获取默认大小
//根据三种模式调整再次调整大小
public static int getDefaultSize(int size, int measureSpec) {
int result = size;
int specMode = MeasureSpec.getMode(measureSpec);
int specSize = MeasureSpec.getSize(measureSpec);
//三种模式
switch (specMode) {
case MeasureSpec.UNSPECIFIED: //子类自身决定
result = size;
break;
case MeasureSpec.AT_MOST: //父类决定的两种
case MeasureSpec.EXACTLY:
result = specSize;
break;
}
return result;
}
//获取内容或者背景尺寸二者中的较大值
protected int getSuggestedMinimumWidth() {
return (mBackground == null) ? mMinWidth : max(mMinWidth, mBackground.getMinimumWidth());
}
上述过程就是一个单一View的测量过程，当然对于ViewGroup来说其包含多个子View，因此在ViewGroup的源码中有measureChildren来测量子View的尺寸。
protected void measureChildren(int widthMeasureSpec, int heightMeasureSpec) {
final int size = mChildrenCount;
final View[] children = mChildren;
for (int i = 0; i < size; ++i) {
//子View的测量过程
final View child = children[i];
if ((child.mViewFlags & VISIBILITY_MASK) != GONE) {
measureChild(child, widthMeasureSpec, heightMeasureSpec);
}
}
}
protected void measureChild(View child, int parentWidthMeasureSpec,
int parentHeightMeasureSpec) {
final LayoutParams lp = child.getLayoutParams();
//getChildMeasureSpec方法，大致过程也是设置size和mode
//其中与LayoutParams.MATCH_PARENT以及 LayoutParams.WRAP_CONTENT进行匹配判断
final int childWidthMeasureSpec = getChildMeasureSpec(parentWidthMeasureSpec,
mPaddingLeft + mPaddingRight, lp.width);
final int childHeightMeasureSpec = getChildMeasureSpec(parentHeightMeasureSpec,
mPaddingTop + mPaddingBottom, lp.height);
child.measure(childWidthMeasureSpec, childHeightMeasureSpec);
}
2.3.2 布局View
测量好View的大小之后，performTraversals继续会调用performLayout方法，进而调用View的layout方法，然后onLayout方法在源码中被layout方法调用,用来在视图中给View布局。因此，该步骤主要是给予View在布局中的位置。
public void layout(int l, int t, int r, int b) {
if ((mPrivateFlags3 & PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT) != 0) {
onMeasure(mOldWidthMeasureSpec, mOldHeightMeasureSpec);
mPrivateFlags3 &= ~PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
}
//记录四个坐标，左上、右下
int oldL = mLeft;
int oldT = mTop;
int oldB = mBottom;
int oldR = mRight;
//判断当前视图大小是否发生了变化,发生变化需要对当前视图重新绘制
boolean changed = isLayoutModeOptical(mParent) ?
setOpticalFrame(l, t, r, b) : setFrame(l, t, r, b);
if (changed || (mPrivateFlags & PFLAG_LAYOUT_REQUIRED) == PFLAG_LAYOUT_REQUIRED) {
//如果发生了变化，确定View在布局中的位置
onLayout(changed, l, t, r, b);
......
}
......
}
setOptionalFrame和setFrame函数的主要目的就是给View确定位置并判断位置是否变化，setOptionalFrame内核也是调用setFrame函数,因此直接分析setFrame源码。
protected boolean setFrame(int left, int top, int right, int bottom) {
boolean changed = false;
if (DBG) {
Log.d(VIEW_LOG_TAG, this + " View.setFrame(" + left + "," + top + ","
+ right + "," + bottom + ")");
}
//判断位置是否变化,变化则需要重新绘制
if (mLeft != left || mRight != right || mTop != top || mBottom != bottom) {
changed = true;
// Remember our drawn bit
int drawn = mPrivateFlags & PFLAG_DRAWN;
int oldWidth = mRight - mLeft;
int oldHeight = mBottom - mTop;
int newWidth = right - left;
int newHeight = bottom - top;
boolean sizeChanged = (newWidth != oldWidth) || (newHeight != oldHeight);
// Invalidate our old position
invalidate(sizeChanged);
//存储新的位置并设置
mLeft = left;
mTop = top;
mRight = right;
mBottom = bottom;
mRenderNode.setLeftTopRightBottom(mLeft, mTop, mRight, mBottom);
......
}
return changed;
}
对于我们来说，我们仅需在代码中重写onLayout()函数，如下。
@Override
protected void onLayout(boolean changed, int left, int top, int right, int bottom) {
super.onLayout(changed, left, top, right, bottom);
}
接着，我们追溯到View的onLayout源码，发现......
protected void onLayout(boolean changed, int left, int top, int right, int bottom) {
}
???小朋友你是否有很多问号，突然想了想，好像确实应该为空，因为自定义View的位置本该就由其父布局决定，即父布局（一般继承ViewGroup）决定其子View布局（一般继承View类）。那就到ViewGroup里一探究竟吧。
@Override
public final void layout(int l, int t, int r, int b) {
if (!mSuppressLayout && (mTransition == null || !mTransition.isChangingLayout())) {
if (mTransition != null) {
mTransition.layoutChange(this);
}
super.layout(l, t, r, b);
} else {
// record the fact that we noop'd it; request layout when transition finishes
mLayoutCalledWhileSuppressed = true;
}
}
@Override
protected abstract void onLayout(boolean changed,
int l, int t, int r, int b);
然而貌似问号越来越多，ViewGroup的layout最关键的部分还是调用其父类View的layout函数（是的，ViewGroup的父类也是View）来确定自身位置。而ViewGroup的onLayout函数却是一个抽象方法？？
仔细考虑一下，ViewGroup的onLayout()函数是抽象方法是正确的，因为每个ViewGroup都有着自己的独特布局，如LinearLayout、RelativeLayout等等对于子View的布局规则是不同的，所以写成抽象方法后方便后来继承者自定义自己的布局规则。
接下来看看LinearLayout的onLayout实现
LinearLayout有两种布局形式，以其中一种作为例子分析。

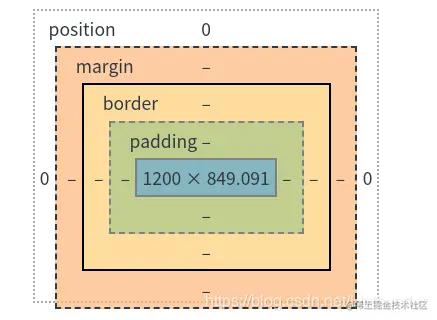

为了好理解布局中一些属性（如margin、padding等），从浏览器中抠出一张图仅供参考。
@Override
protected void onLayout(boolean changed, int l, int t, int r, int b) {
if (mOrientation == VERTICAL) {
layoutVertical(l, t, r, b);//纵向线性布局
} else {
layoutHorizontal(l, t, r, b);//横向线性布局
}
}
/**
* Position the children during a layout pass if the orientation of this
* LinearLayout is set to {@link #VERTICAL}.
*
* @see #getOrientation()
* @see #setOrientation(int)
* @see #onLayout(boolean, int, int, int, int)
* @param left
* @param top
* @param right
* @param bottom
*/
void layoutVertical(int left, int top, int right, int bottom) {
final int paddingLeft = mPaddingLeft;//左内填充
int childTop;//上位置
int childLeft;//左位置
// Where right end of child should go
final int width = right - left;//宽度
int childRight = width - mPaddingRight;//去掉内填充的右位置
// Space available for child
int childSpace = width - paddingLeft - mPaddingRight;//内容部分要用宽度去除内填充的长度
//获得子View数量 getVirtualChildCount()调用的就是getChildCount()
final int count = getVirtualChildCount();
//对齐方式，通过改变子ViewTop值
final int majorGravity = mGravity & Gravity.VERTICAL_GRAVITY_MASK;
final int minorGravity = mGravity & Gravity.RELATIVE_HORIZONTAL_GRAVITY_MASK;
switch (majorGravity) {
case Gravity.BOTTOM:
// mTotalLength contains the padding already
childTop = mPaddingTop + bottom - top - mTotalLength;
break;
// mTotalLength contains the padding already
case Gravity.CENTER_VERTICAL:
childTop = mPaddingTop + (bottom - top - mTotalLength) / 2;
break;
case Gravity.TOP:
default:
childTop = mPaddingTop;
break;
}
//循环遍历子View
for (int i = 0; i < count; i++) {
final View child = getVirtualChildAt(i);
if (child == null) {
childTop += measureNullChild(i);//子View的Top是基于上一个的,nullChild的值为0
} else if (child.getVisibility() != GONE) {//这就解释了为什么GONE状态不会占用布局内容
final int childWidth = child.getMeasuredWidth();
final int childHeight = child.getMeasuredHeight();
final LinearLayout.LayoutParams lp =
(LinearLayout.LayoutParams) child.getLayoutParams();
int gravity = lp.gravity;
if (gravity < 0) {
gravity = minorGravity;
}
final int layoutDirection = getLayoutDirection();
final int absoluteGravity = Gravity.getAbsoluteGravity(gravity, layoutDirection);
switch (absoluteGravity & Gravity.HORIZONTAL_GRAVITY_MASK) {
case Gravity.CENTER_HORIZONTAL:
childLeft = paddingLeft + ((childSpace - childWidth) / 2)
+ lp.leftMargin - lp.rightMargin;
break;
case Gravity.RIGHT:
childLeft = childRight - childWidth - lp.rightMargin;
break;
case Gravity.LEFT:
default:
childLeft = paddingLeft + lp.leftMargin;
break;
}
if (hasDividerBeforeChildAt(i)) {
childTop += mDividerHeight;
}
childTop += lp.topMargin;
//确定子View位置,并判断是否变化
setChildFrame(child, childLeft, childTop + getLocationOffset(child),
childWidth, childHeight);
childTop += childHeight + lp.bottomMargin + getNextLocationOffset(child);//下一个子View的Top位置
i += getChildrenSkipCount(child, i);
}
}
}
最后做一个小小的实践。 布局文件如下：
<?xml version="1.0" encoding="utf-8"?>
<com.example.myviewlearning.TestLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent">
<ImageView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:src="@mipmap/ic_launcher"/>
</com.example.myviewlearning.TestLayout>
TestLayout.java如下：
public class TestLayout extends ViewGroup {
public TestLayout(Context context) {
super(context);
}
public TestLayout(Context context, AttributeSet attrs) {
super(context, attrs);
}
public TestLayout(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
}
public TestLayout(Context context, AttributeSet attrs, int defStyleAttr, int defStyleRes) {
super(context, attrs, defStyleAttr, defStyleRes);
}
//上述四类和继承View的自定义View相同
//注意一个顺序，在Measure测量以前，getMeasureWidth和getMeasureHeight两个函数返回值为0
//这里只给了一个子View
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
int childCount = getChildCount();
//循环遍历子View
for(int i = 0; i < childCount; i++) {
View childView = getChildAt(i);
measureChild(childView, widthMeasureSpec, heightMeasureSpec);//测量子View
}
}
@Override
protected void onLayout(boolean changed, int l, int t, int r, int b) {
if (getChildCount() > 0) {
View childView = getChildAt(0);
childView.layout(0, 0, childView.getMeasuredWidth() + 100, childView.getMeasuredHeight() + 100);//给子View安排位置
Log.d("View Size", "Width: "+ Integer.toString(childView.getWidth()) + " height:" + Integer.toString(childView.getHeight()));
Log.d("View MeasuredSize", "MeasureWidth: "+ Integer.toString(childView.getMeasuredWidth()) + " height:" + Integer.toString(childView.getMeasuredHeight()));
}
}
}
当onLayout运行结束后,我们可以通过getWidth、getHeight方法来获取子View的高和宽。
注意：
childView.layout(0, 0, childView.getMeasuredWidth(), childView.getMeasuredHeight());//给子View安排位置
一般来说childView.getWidth()与 childView.getMeasuredWidth()会相同，原因是上述给子View布局的这句代码。
getWidth() = childView.getMeasuredWidth() - 0(就是 right - left);
但是实际上两者意义是不同的。
childView.getWidth()主要是用来表示当前childView在该布局中的宽度，只有在layout过程过后才有值。
childView.getMeasuredWidth()主要是用来测量视图本身的大小，在measure之后即可获取到值。
2.3.3 绘制View
测量好View（measure），给View布局好位置（layout），ViewRoot中会继续执行调用performDraw。
private void performDraw() {
......
try {
boolean canUseAsync = draw(fullRedrawNeeded);
......
}
......
}
performDraw调用自身的draw方法，在drawSoftware中创建出一个Canvas对象进行一些基本绘制（如背景颜色）并且真正的调用View类中的draw方法，传入创建的Canvas对象。
ViewRootImpl.java
private boolean draw(boolean fullRedrawNeeded) {
.......
if (!drawSoftware(surface, mAttachInfo, xOffset, yOffset,
scalingRequired, dirty, surfaceInsets)) {
return false;
}
}
}
......
}
private boolean drawSoftware(Surface surface, AttachInfo attachInfo, int xoff, int yoff,
boolean scalingRequired, Rect dirty, Rect surfaceInsets) {
// Draw with software renderer.
final Canvas canvas;
......
try {
if (DEBUG_ORIENTATION || DEBUG_DRAW) {
Log.v(mTag, "Surface " + surface + " drawing to bitmap w="
+ canvas.getWidth() + ", h=" + canvas.getHeight());
//canvas.drawARGB(255, 255, 0, 0);
}
if (!canvas.isOpaque() || yoff != 0 || xoff != 0) {
canvas.drawColor(0, PorterDuff.Mode.CLEAR);
}
......
try {
canvas.translate(-xoff, -yoff);
if (mTranslator != null) {
mTranslator.translateCanvas(canvas);
}
canvas.setScreenDensity(scalingRequired ? mNoncompatDensity : 0);
attachInfo.mSetIgnoreDirtyState = false;
mView.draw(canvas);
drawAccessibilityFocusedDrawableIfNeeded(canvas);
} finally {
if (!attachInfo.mSetIgnoreDirtyState) {
// Only clear the flag if it was not set during the mView.draw() call
attachInfo.mIgnoreDirtyState = false;
}
}
} finally {
......
}
return true;
}
然后调用View的draw()方法来执行具体的开始绘制（draw）View，最后onDraw方法被View类中的draw方法调用进行内容绘制，内容绘制也是最关键的一步。
绘制过程主要分六步骤，其中第二、第五步骤相对使用较少。
View.java
public void draw(Canvas canvas) {
final int privateFlags = mPrivateFlags;
final boolean dirtyOpaque = (privateFlags & PFLAG_DIRTY_MASK) == PFLAG_DIRTY_OPAQUE &&
(mAttachInfo == null || !mAttachInfo.mIgnoreDirtyState);
mPrivateFlags = (privateFlags & ~PFLAG_DIRTY_MASK) | PFLAG_DRAWN;
/*
* Draw traversal performs several drawing steps which must be executed
* in the appropriate order:
* 1. 绘制背景
* 2. 保存当前canvas，非必须
* 3. 绘制View的内容
* 4. 绘制子View
* 5. 绘制边缘、阴影等效果，非必须
* 6. 绘制装饰，如滚动条等
*/
// Step 1, draw the background, if needed
int saveCount;
if (!dirtyOpaque) {
drawBackground(canvas);
}
// skip step 2 & 5 if possible (common case)
final int viewFlags = mViewFlags;
boolean horizontalEdges = (viewFlags & FADING_EDGE_HORIZONTAL) != 0;
boolean verticalEdges = (viewFlags & FADING_EDGE_VERTICAL) != 0;
if (!verticalEdges && !horizontalEdges) {
// Step 3, draw the content
if (!dirtyOpaque) onDraw(canvas);
// Step 4, draw the children
dispatchDraw(canvas);
// Step 6, draw decorations (foreground, scrollbars)
onDrawForeground(canvas);
.......
// we're done...
return;
}
......
}
private void drawBackground(Canvas canvas) {
final Drawable background = mBackground;
if (background == null) {
return;
}
setBackgroundBounds();
......
}
void setBackgroundBounds() {
if (mBackgroundSizeChanged && mBackground != null) {
mBackground.setBounds(0, 0, mRight - mLeft, mBottom - mTop);
mBackgroundSizeChanged = false;
rebuildOutline();
}
}
从代码中看出，第一步，背景的绘制实际上调用了一个Drawable对象mBackground进行背景绘制，然后根据layout过程确定的视图位置（mLeft mRight mTop mBottom）来设置背景的绘制区域，之后再调用onDraw方法来完成背景的绘制工作。
而这个mBackground对象其实就是在XML中通过android:background属性设置的图片或颜色。当然也可以在代码中通过setBackgroundColor()、setBackgroundResource()等方法进行赋值。
跳过第二步，来到第三步骤，调用onDraw方法对View内容进行绘制，但是有了onLayout经验，这里onDraw方法同样需要被重写。
第四步，进行子View绘制处理，当然对于View来说，dispatchDraw是空方法，因为没有子View，但是对于ViewGroup来说，dispatchDraw还是比较复杂的。
跳过第五步，来到最后一步，对视图的滚动条进行装饰，从这里其实就可以看出，其实所有的控件都是有着自己的滚动条的，只不过被隐藏了起来。
最后同样来个小实践。 布局文件如下：
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:orientation="vertical"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:id="@+id/main_layout"
tools:context=".MainActivity">
<com.example.myviewlearning.MyTestView
android:layout_height="match_parent"
android:layout_width="match_parent"
android:background="#000000"/>
</LinearLayout>
onDraw()重写如下：
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
final int paddingLeft = getPaddingLeft();
final int paddingRight = getPaddingRight();
final int paddingTop = getPaddingTop();
final int paddingBottom = getPaddingBottom();
int width = getWidth() - paddingLeft - paddingRight;
int height = getHeight() - paddingTop - paddingBottom;
int radius = Math.min(width, height)/2;
//画圆
canvas.drawCircle(paddingLeft + width/2, paddingTop + height/2, radius, mPaint);
//设置text和textColor
mPaint.setTextSize(88);
String text = "Hi, my view";
mPaint.setColor(Color.WHITE);
canvas.drawText(text,width/3, height/2, mPaint);
}
2.3.4 绘制自定义View总结
到此为止，我们就明白了，要想能够自定义一个View，少不了这三个步骤。
测量------>布局------>绘制测量------>布局------>绘制
