Echarts官网

echarts.apache.org/zh/index.ht…

1.单页面中使用

1. 先引入Echarts.js文件

2. 或者引用线上地址

    <script src="https://cdn.staticfile.org/echarts/4.3.0/echarts.min.js" ></script>

3. 设置一个容器（必须有宽度和高度）

     <div id="box" style="width:600px;height:600px;"></div>

4. 获取盒子元素操作

    let box = echarts.init(document.getElementById("box"))

5. 在Echarts官网上进行引入所需的数据

    option = {
        title: {
         text: '堆叠区域图'
        },
        tooltip: {
            trigger: 'axis',
            axisPointer: {
             type: 'cross',
             label: {
                    backgroundColor: '#6a7985'
                }
        }
    },
    legend: {
        data: ['邮件营销', '联盟广告', '视频广告', '直接访问', '搜索引擎']
    },
    toolbox: {
        feature: {
            saveAsImage: {}
        }
    },
    grid: {
        left: '4%',
        right: '4%',
        bottom: '3%',
        containLabel: true
    },
    xAxis: [
        {
            type: 'category',
            boundaryGap: false,
            data: ['周一', '周二', '周三', '周四', '周五', '周六', '周日']
        }
    ],
    yAxis: [
        {
            type: 'value'
        }
    ],
    series: [
        {
            name: '邮件营销',
            type: 'line',
            stack: '总量',
            areaStyle: {},
            data: [120, 132, 101, 134, 90, 230, 210]
        },
        {
            name: '联盟广告',
            type: 'line',
            stack: '总量',
            areaStyle: {},
            data: [220, 182, 191, 234, 290, 330, 310]
        },
        {
            name: '视频广告',
            type: 'line',
            stack: '总量',
            areaStyle: {},
            data: [150, 232, 201, 154, 190, 330, 410]
        },
        {
            name: '直接访问',
            type: 'line',
            stack: '总量',
            areaStyle: {},
            data: [320, 332, 301, 334, 390, 330, 320]
        },
        {
            name: '搜索引擎',
            type: 'line',
            stack: '总量',
            label: {
                normal: {
                    show: true,
                    position: 'top'
                }
            },
            areaStyle: {},
            data: [820, 932, 901, 934, 1290, 1330, 1320]
        }
    ]
    };

6. 给元素绑定数据

     ech.setOption(option)

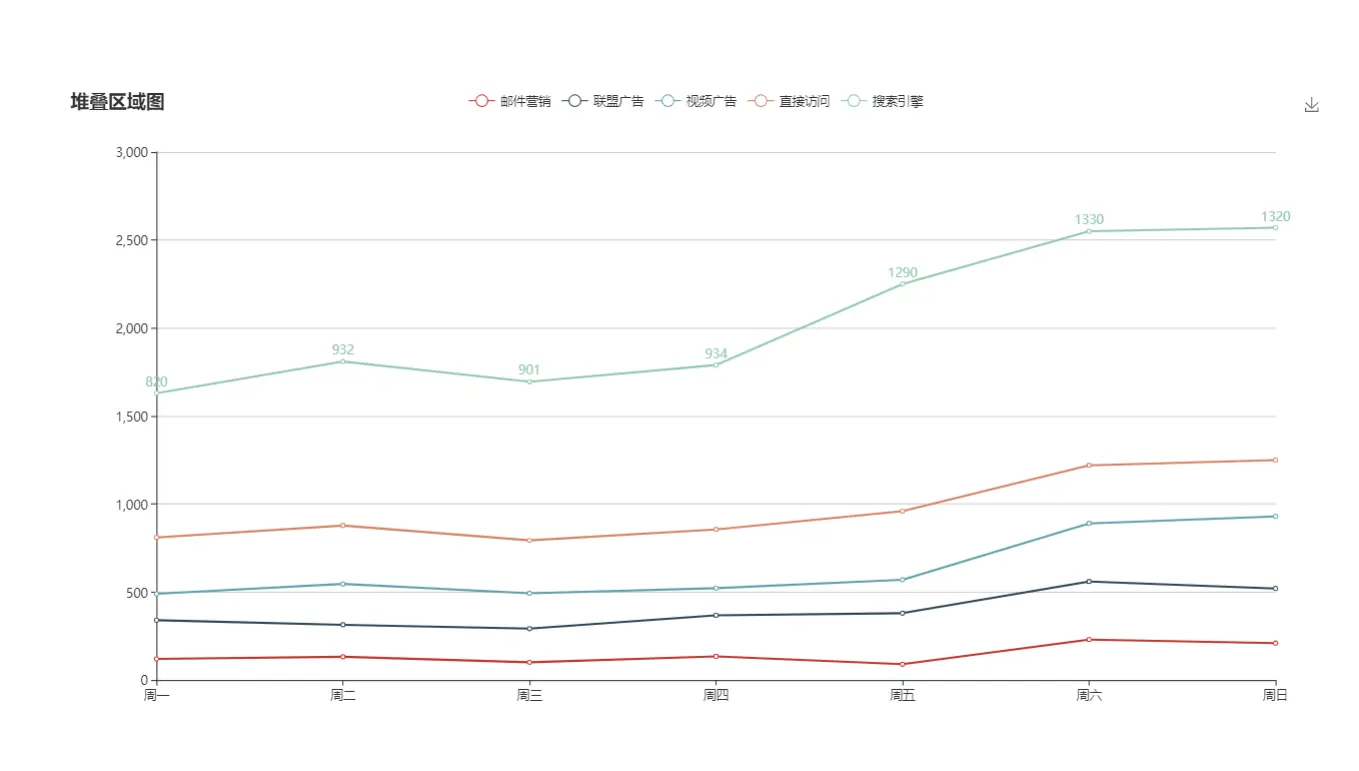

7. 图表效果

2.vue项目中使用

1.安装依赖

• vue2.0框架

npm install echarts

• vue3.0框架

npm add echarts

2.引入相关文件

· 全局引入

在 min.js 中引入 import echarts from 'echarts Vue.prototype.$echarts = echarts

· 按需引入

在单个组件中引用

// echarts 按需引入
let echarts2 = require('echarts/lib/echarts')

// 引入折线图等组件
require('echarts/lib/chart/line')
require('echarts/lib/chart/bar')
require('echarts/lib/chart/radar')

// 引入提示框和title组件，图例
require('echarts/lib/component/tooltip')
require('echarts/lib/component/title')
require('echarts/lib/component/legend')

Vue.prototype.$echarts2 = echarts2

3.代码示例

<template>
  <div class="app">
    <div id="box" class="bos"></div>
  </div>
</template>
<script>
export default {
  name: "app",
  components: {},
  mounted() {
    this.initChart();
  },
  data() {
    return {};
  },
  methods: {
    initChart() {
      let bos = this.$echarts.init(document.getElementById("box"));

      // 绘制图表
      bos.setOption(this.setOption1("我是柱状图"));
    },
    setOption1(title) {
      let option = {
        title: { text: title },
        tooltip: {},
        xAxis: {
          data: ["衬衫", "羊毛衫", "雪纺衫", "裤子", "高跟鞋", "袜子"]
        },
        yAxis: {},
        series: [
          {
            name: "销量",
            type: "bar",
            data: [5, 20, 36, 10, 10, 20]
          }
        ]
      };
      return option;
    }
  }
};
</script>
<style scoped>
  .bos {
    width: 500px;
    height: 300px;
    margin: 0 auto;
  }
</style>
