Action Message Format: A compact binary format that is used to serialize ActionScript object graphs.
有两个版本:AMF0和AMF3.AMF3用作Flash Playe 9的ActionScript 3.0的默认序列化格式，而AMF0则用作旧版的ActionScript 1.0和2.0的序列化格式。 在网络传输数据方面，AMF3比AMF0更有效率。AMF3能将int和uint对象作为整数（integer）传输，并且能序列化ActionScript 3.0才支持的数据类型, 比如ByteArray，XML和Iexternalizable。
如果第二个message和第一个message的message stream ID 相同，并且第二个message的长度也大于了chunk size，那么该如何拆包？当时查了很多资料，都没有介绍。后来看了一些源码，如 SRS，FFMPEG中的实现，发现第二个message可以拆成Type_1类型一个chunk， message剩余的部分拆成Type_3类型的chunk。FFMPEG中就是这么做的。
srs-librtmp分块结构封装:
class SrsChunkStream
{
public:
// Represents the basic header fmt,
// which used to identify the variant message header type.
char fmt;
// Represents the basic header cid,
// which is the chunk stream id.
int cid;
// Cached message header
SrsMessageHeader header;
// Whether the chunk message header has extended timestamp.
bool extended_timestamp;
// The partially read message.
SrsCommonMessage* msg;
// Decoded msg count, to identify whether the chunk stream is fresh.
int64_t msg_count;
public:
SrsChunkStream(int _cid);
virtual ~SrsChunkStream();
};
struct Context
{
// The original RTMP url.
std::string url;
// Parse from url.
std::string tcUrl;
std::string host;
std::string vhost;
std::string app;
std::string stream;
std::string param;
// Parse ip:port from host.
std::string ip;
int port;
// The URL schema, about vhost/app/stream?param
srs_url_schema schema;
// The server information, response by connect app.
SrsServerInfo si;
// The extra request object for connect to server, NULL to ignore.
SrsRequest* req;
// the message received cache,
// for example, when got aggregate message,
// the context will parse to videos/audios,
// and return one by one.
std::vector<SrsCommonMessage*> msgs;
SrsRtmpClient* rtmp;
SimpleSocketStream* skt;
int stream_id;
// the remux raw codec.
SrsRawH264Stream avc_raw;
SrsRawAacStream aac_raw;
// about SPS, @see: 7.3.2.1.1, ISO_IEC_14496-10-AVC-2012.pdf, page 62
std::string h264_sps;
std::string h264_pps;
// whether the sps and pps sent,
// @see https://github.com/ossrs/srs/issues/203
bool h264_sps_pps_sent;
// only send the ssp and pps when both changed.
// @see https://github.com/ossrs/srs/issues/204
bool h264_sps_changed;
bool h264_pps_changed;
// the aac sequence header.
std::string aac_specific_config;
// user set timeout, in ms.
int64_t stimeout;
int64_t rtimeout;
// The RTMP handler level buffer, can used to format packet.
char buffer[1024];
Context() : port(0) {
rtmp = NULL;
skt = NULL;
req = NULL;
stream_id = 0;
h264_sps_pps_sent = false;
h264_sps_changed = false;
h264_pps_changed = false;
rtimeout = stimeout = SRS_UTIME_NO_TIMEOUT;
schema = srs_url_schema_normal;
}
virtual ~Context() {
srs_freep(req);
srs_freep(rtmp);
srs_freep(skt);
std::vector<SrsCommonMessage*>::iterator it;
for (it = msgs.begin(); it != msgs.end(); ++it) {
SrsCommonMessage* msg = *it;
srs_freep(msg);
}
msgs.clear();
}
};
里面又涉及到了四个重要结构:
SrsServerInfo:The server information, response by connect app.
SrsRequest:The extra request object for connect to server, NULL to ignore.
struct SrsServerInfo
{
std::string ip;
std::string sig;
int pid;
int cid;
int major;
int minor;
int revision;
int build;
SrsServerInfo();
};
SrsRequest结构:
class SrsRequest
{
public:
// The client ip.
std::string ip;
public:
// The tcUrl: rtmp://request_vhost:port/app/stream
// support pass vhost in query string, such as:
// rtmp://ip:port/app?vhost=request_vhost/stream
// rtmp://ip:port/app...vhost...request_vhost/stream
std::string tcUrl;
std::string pageUrl;
std::string swfUrl;
double objectEncoding;
// The data discovery from request.
public:
// Discovery from tcUrl and play/publish.
std::string schema;
// The vhost in tcUrl.
std::string vhost;
// The host in tcUrl.
std::string host;
// The port in tcUrl.
int port;
// The app in tcUrl, without param.
std::string app;
// The param in tcUrl(app).
std::string param;
// The stream in play/publish
std::string stream;
// For play live stream,
// used to specified the stop when exceed the duration.
// @see https://github.com/ossrs/srs/issues/45
// in srs_utime_t.
srs_utime_t duration;
// The token in the connect request,
// used for edge traverse to origin authentication,
// @see https://github.com/ossrs/srs/issues/104
SrsAmf0Object* args;
public:
SrsRequest();
virtual ~SrsRequest();
public:
// Deep copy the request, forsource to use it to support reload,
// For when initialize the source, the request is valid,
// When reload it, the request maybe invalid, so need to copy it.
virtual SrsRequest* copy();
// update the auth info of request,
// To keep the current request ptr is ok,
// For many components use the ptr of request.
virtual void update_auth(SrsRequest* req);
// Get the stream identify, vhost/app/stream.
virtual std::string get_stream_url();
// To strip url, user must strip when update the url.
virtual void strip();
public:
// Transform it as HTTP request.
virtual SrsRequest* as_http();
};

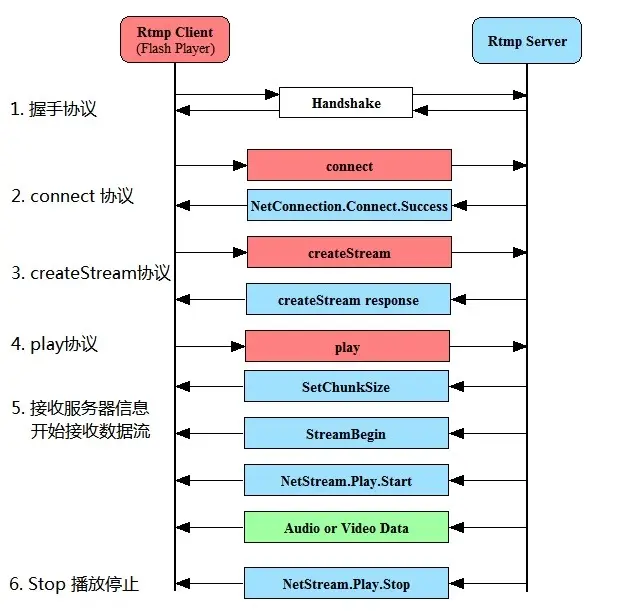

SrsRtmpClient:
// implements the client role protocol.
class SrsRtmpClient
{
private:
SrsHandshakeBytes* hs_bytes;//跟我们之前封装的握手接口类似
protected:
SrsProtocol* protocol;//rtmp协议封装,就是封装了我们的connect, createStream,publish等接口
ISrsProtocolReadWriter* io;//就是SimpleSocketStream
public:
SrsRtmpClient(ISrsProtocolReadWriter* skt);
virtual ~SrsRtmpClient();
// Protocol methods proxy
public:
virtual void set_recv_timeout(srs_utime_t tm);
virtual void set_send_timeout(srs_utime_t tm);
virtual int64_t get_recv_bytes();
virtual int64_t get_send_bytes();
virtual srs_error_t recv_message(SrsCommonMessage** pmsg);
virtual srs_error_t decode_message(SrsCommonMessage* msg, SrsPacket** ppacket);
virtual srs_error_t send_and_free_message(SrsSharedPtrMessage* msg, int stream_id);
virtual srs_error_t send_and_free_messages(SrsSharedPtrMessage** msgs, int nb_msgs, int stream_id);
virtual srs_error_t send_and_free_packet(SrsPacket* packet, int stream_id);
public:
// handshake with server, try complex, then simple handshake.
virtual srs_error_t handshake();
// only use simple handshake
virtual srs_error_t simple_handshake();
// only use complex handshake
virtual srs_error_t complex_handshake();
// Connect to RTMP tcUrl and app, get the server info.
//
// @param app, The app to connect at, for example, live.
// @param tcUrl, The tcUrl to connect at, for example, rtmp://ossrs.net/live.
// @param req, the optional req object, use the swfUrl/pageUrl if specified. NULL to ignore.
// @param dsu, Whether debug SRS upnode. For edge, set to true to send its info to upnode.
// @param si, The server information, retrieve from response of connect app request. NULL to ignore.
virtual srs_error_t connect_app(std::string app, std::string tcUrl, SrsRequest* r, bool dsu, SrsServerInfo* si);

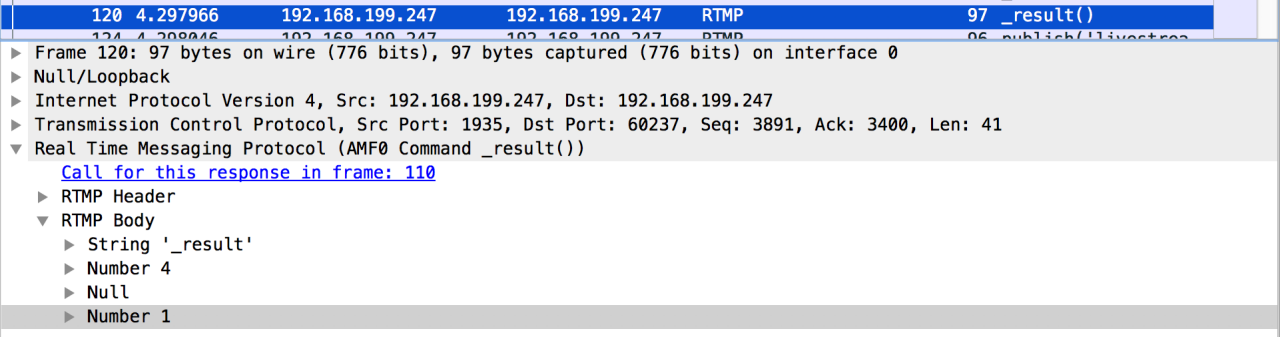

// Create a stream, then play/publish data over this stream.

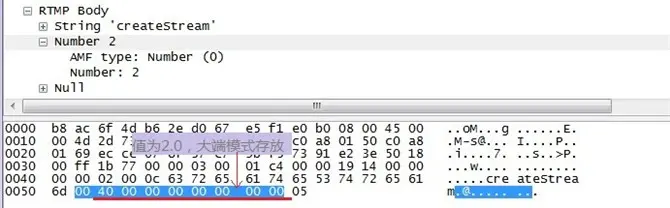

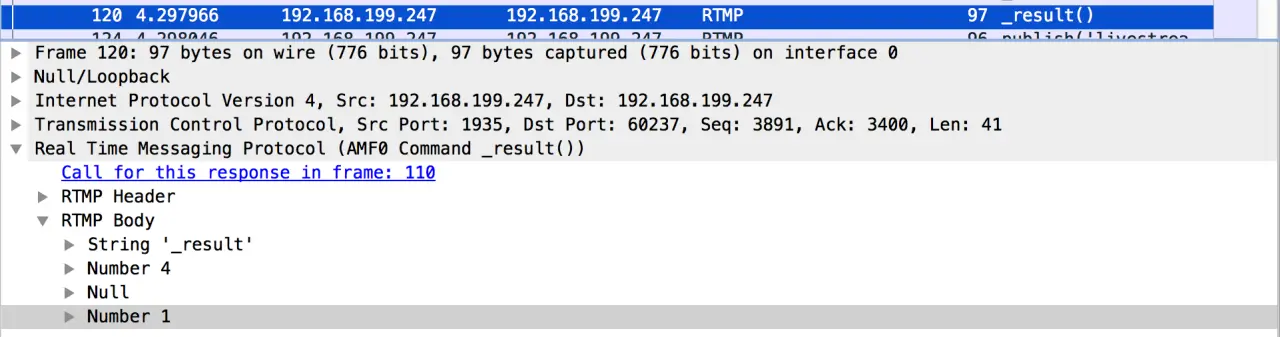

virtual srs_error_t create_stream(int& stream_id);

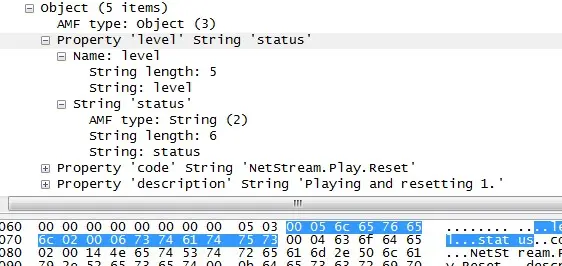

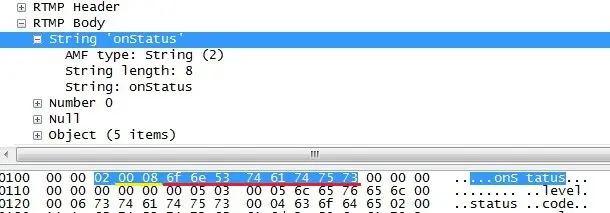

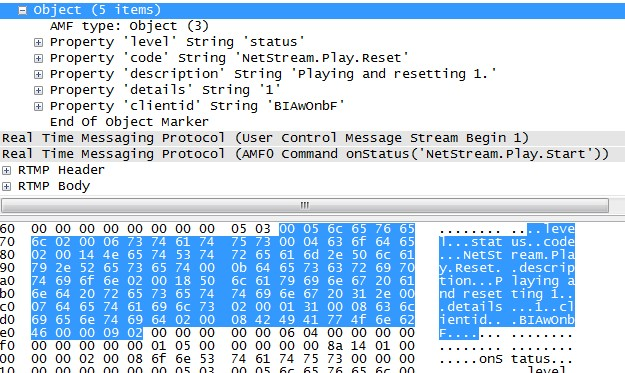

// start play stream.
virtual srs_error_t play(std::string stream, int stream_id, int chunk_size);
// start publish stream. use flash publish workflow:
// connect-app => create-stream => flash-publish
virtual srs_error_t publish(std::string stream, int stream_id, int chunk_size);
// start publish stream. use FMLE publish workflow:
// connect-app => FMLE publish
virtual srs_error_t fmle_publish(std::string stream, int& stream_id);
public:
template<class T>
srs_error_t expect_message(SrsCommonMessage** pmsg, T** ppacket)
{
return protocol->expect_message<T>(pmsg, ppacket);
}
};
// The protocol provides the rtmp-message-protocol services,
// To recv RTMP message from RTMP chunk stream,
// and to send out RTMP message over RTMP chunk stream.
class SrsProtocol
{
private:
class AckWindowSize
{
public:
uint32_t window;
// number of received bytes.
int64_t nb_recv_bytes;
// previous responsed sequence number.
uint32_t sequence_number;
AckWindowSize();
};
// For peer in/out
private:
// The underlayer socket object, send/recv bytes.
ISrsProtocolReadWriter* skt;
// The requests sent out, used to build the response.
// key: transactionId
// value: the request command name
std::map<double, std::string> requests;
// For peer in
private:
// The chunk stream to decode RTMP messages.
std::map<int, SrsChunkStream*> chunk_streams;
// Cache some frequently used chunk header.
// cs_cache, the chunk stream cache.
SrsChunkStream** cs_cache;
// The bytes buffer cache, recv from skt, provide services for stream.
SrsFastStream* in_buffer;
// The input chunk size, default to 128, set by peer packet.
int32_t in_chunk_size;
// The input ack window, to response acknowledge to peer,
// For example, to respose the encoder, for server got lots of packets.
AckWindowSize in_ack_size;
// The output ack window, to require peer to response the ack.
AckWindowSize out_ack_size;
// The buffer length set by peer.
int32_t in_buffer_length;
// Whether print the protocol level debug info.
// Generally we print the debug info when got or send first A/V packet.
bool show_debug_info;
// Whether auto response when recv messages.
bool auto_response_when_recv;
// When not auto response message, manual flush the messages in queue.
std::vector<SrsPacket*> manual_response_queue;
// For peer out
private:
iovec* out_iovs;
int nb_out_iovs;
char* out_c0c3_caches;
// Whether warned user to increase the c0c3 header cache.
bool warned_c0c3_cache_dry;
// The output chunk size, default to 128, set by config.
int32_t out_chunk_size;
public:
SrsProtocol(ISrsProtocolReadWriter* io);
virtual ~SrsProtocol();
public:
// Set the auto response message when recv for protocol stack.
virtual void set_auto_response(bool v);
virtual srs_error_t manual_response_flush();
public:
public:
virtual void set_recv_timeout(srs_utime_t tm);
virtual srs_utime_t get_recv_timeout();
virtual void set_send_timeout(srs_utime_t tm);
virtual srs_utime_t get_send_timeout();
// Get recv/send bytes.
virtual int64_t get_recv_bytes();
virtual int64_t get_send_bytes();
public:
virtual srs_error_t set_in_window_ack_size(int ack_size);
public:
virtual srs_error_t recv_message(SrsCommonMessage** pmsg);
virtual srs_error_t decode_message(SrsCommonMessage* msg, SrsPacket** ppacket);
virtual srs_error_t send_and_free_message(SrsSharedPtrMessage* msg, int stream_id);
virtual srs_error_t send_and_free_messages(SrsSharedPtrMessage** msgs, int nb_msgs, int stream_id);
virtual srs_error_t send_and_free_packet(SrsPacket* packet, int stream_id);
private:
virtual srs_error_t do_send_messages(SrsSharedPtrMessage** msgs, int nb_msgs);
virtual srs_error_t do_iovs_send(iovec* iovs, int size);
virtual srs_error_t do_send_and_free_packet(SrsPacket* packet, int stream_id);
virtual srs_error_t do_decode_message(SrsMessageHeader& header, SrsBuffer* stream, SrsPacket** ppacket);
virtual srs_error_t recv_interlaced_message(SrsCommonMessage** pmsg);
virtual srs_error_t read_basic_header(char& fmt, int& cid);
virtual srs_error_t read_message_header(SrsChunkStream* chunk, char fmt);
virtual srs_error_t read_message_payload(SrsChunkStream* chunk, SrsCommonMessage** pmsg);
virtual srs_error_t on_recv_message(SrsCommonMessage* msg);
virtual srs_error_t on_send_packet(SrsMessageHeader* mh, SrsPacket* packet);
private:
virtual srs_error_t response_acknowledgement_message();
virtual srs_error_t response_ping_message(int32_t timestamp);
private:
virtual void print_debug_info();
};

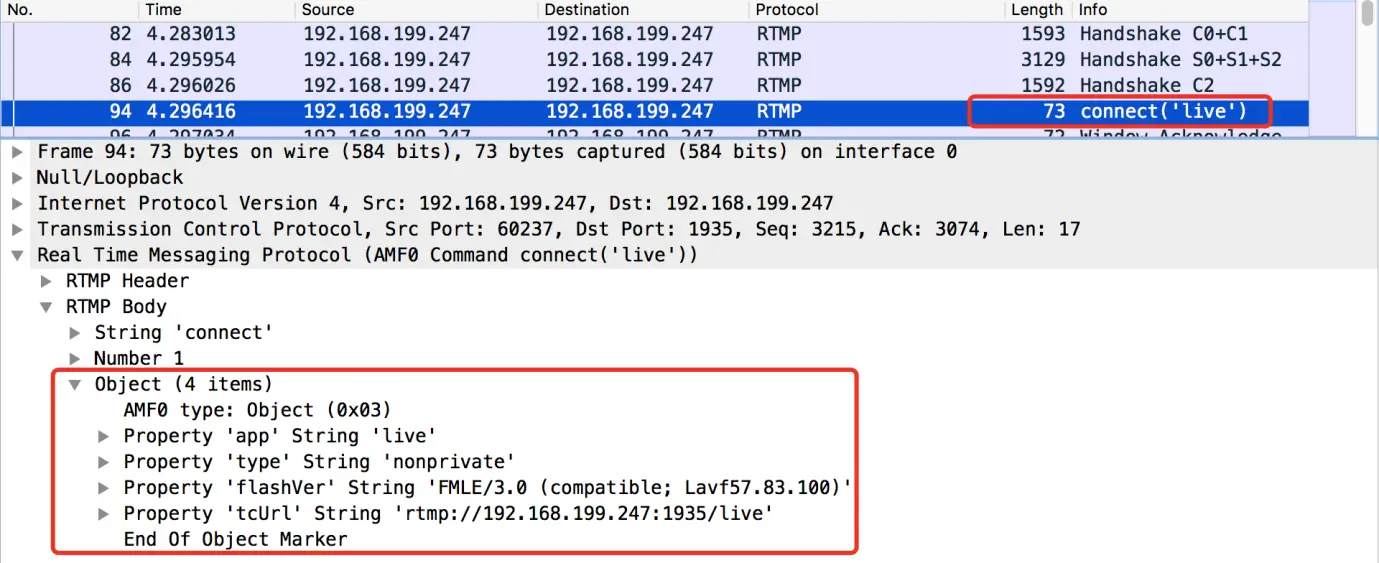

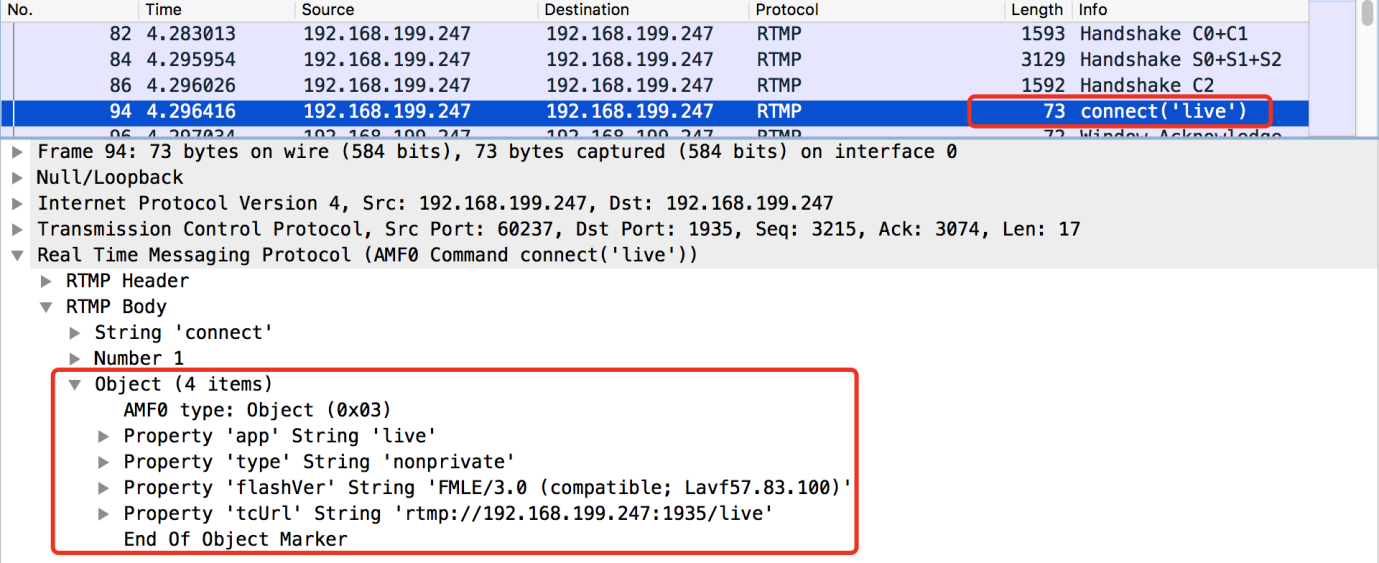

class SrsConnectAppPacket : public SrsPacket
{
public:
// Name of the command. Set to "connect".
std::string command_name;
// Always set to 1.
double transaction_id;
SrsAmf0Object* command_object;
SrsAmf0Object* args;
public:
SrsConnectAppPacket();
virtual ~SrsConnectAppPacket();
// Decode functionsfor concrete packet to override.
public:
virtual srs_error_t decode(SrsBuffer* stream);
// Encode functionsfor concrete packet to override.
public:
virtual int get_prefer_cid();
virtual int get_message_type();
protected:
virtual int get_size();
virtual srs_error_t encode_packet(SrsBuffer* stream);
};
srs_error_t SrsProtocol::do_send_messages(SrsSharedPtrMessage** msgs, int nb_msgs)
{
srs_error_t err = srs_success;
#ifdef SRS_PERF_COMPLEX_SEND
int iov_index = 0;
iovec* iovs = out_iovs + iov_index;
int c0c3_cache_index = 0;
char* c0c3_cache = out_c0c3_caches + c0c3_cache_index;
// try to send use the c0c3 header cache,
// if cache is consumed, try another loop.
for (int i = 0; i < nb_msgs; i++) {
SrsSharedPtrMessage* msg = msgs[i];
if (!msg) {
continue;
}
// ignore empty message.
if (!msg->payload || msg->size <= 0) {
continue;
}
// p set to current write position,
char* p = msg->payload;
char* pend = msg->payload + msg->size;
// always write the header event payload is empty.
while (p < pend) {
// always has header
int nb_cache = SRS_CONSTS_C0C3_HEADERS_MAX - c0c3_cache_index;
int nbh = msg->chunk_header(c0c3_cache, nb_cache, p == msg->payload);
srs_assert(nbh > 0);
// header iov
iovs[0].iov_base = c0c3_cache;
iovs[0].iov_len = nbh;
// payload iov
int payload_size = srs_min(out_chunk_size, (int)(pend - p));
iovs[1].iov_base = p;
iovs[1].iov_len = payload_size;
// consume sendout bytes.
p += payload_size;
if (iov_index >= nb_out_iovs - 2) {
int ov = nb_out_iovs;
nb_out_iovs = 2 * nb_out_iovs;
int realloc_size = sizeof(iovec) * nb_out_iovs;
out_iovs = (iovec*)realloc(out_iovs, realloc_size);
srs_warn("resize iovs %d => %d, max_msgs=%d", ov, nb_out_iovs, SRS_PERF_MW_MSGS);
}
// to next pair of iovs
iov_index += 2;
iovs = out_iovs + iov_index;
// to next c0c3 header cache
c0c3_cache_index += nbh;
c0c3_cache = out_c0c3_caches + c0c3_cache_index;
// the cache header should never be realloc again,
// for the ptr is set to iovs, so we just warn user to set larger
// and use another loop to send again.
int c0c3_left = SRS_CONSTS_C0C3_HEADERS_MAX - c0c3_cache_index;
if (c0c3_left < SRS_CONSTS_RTMP_MAX_FMT0_HEADER_SIZE) {
// only warn once for a connection.
if (!warned_c0c3_cache_dry) {
srs_warn("c0c3 cache header too small, recoment to %d", SRS_CONSTS_C0C3_HEADERS_MAX + SRS_CONSTS_RTMP_MAX_FMT0_HEADER_SIZE);
warned_c0c3_cache_dry = true;
}
// when c0c3 cache dry,
// sendout all messages and reset the cache, then send again.
if ((err = do_iovs_send(out_iovs, iov_index)) != srs_success) {
return srs_error_wrap(err, "send iovs");
}
// reset caches, while these cache ensure
// atleast we can sendout a chunk.
iov_index = 0;
iovs = out_iovs + iov_index;
c0c3_cache_index = 0;
c0c3_cache = out_c0c3_caches + c0c3_cache_index;
}
}
}
// maybe the iovs already sendout when c0c3 cache dry,
// so just ignore when no iovs to send.
if (iov_index <= 0) {
return err;
}
return do_iovs_send(out_iovs, iov_index);
#else
// try to send use the c0c3 header cache,
// if cache is consumed, try another loop.
for (int i = 0; i < nb_msgs; i++) {
SrsSharedPtrMessage* msg = msgs[i];
if (!msg) {
continue;
}
// ignore empty message.
if (!msg->payload || msg->size <= 0) {
continue;
}
// p set to current write position,
char* p = msg->payload;
char* pend = msg->payload + msg->size;
// always write the header event payload is empty.
while (p < pend) {
// for simple send, send each chunk one by one
iovec* iovs = out_iovs;
char* c0c3_cache = out_c0c3_caches;
int nb_cache = SRS_CONSTS_C0C3_HEADERS_MAX;
// always has header
int nbh = msg->chunk_header(c0c3_cache, nb_cache, p == msg->payload);
srs_assert(nbh > 0);
// header iov
iovs[0].iov_base = c0c3_cache;
iovs[0].iov_len = nbh;
// payload iov
int payload_size = srs_min(out_chunk_size, pend - p);
iovs[1].iov_base = p;
iovs[1].iov_len = payload_size;
// consume sendout bytes.
p += payload_size;
if ((er = skt->writev(iovs, 2, NULL)) != srs_success) {
return srs_error_wrap(err, "writev");
}
}
}
return err;
#endif
}
