SpringBoot后台权限管理系统(四)—部署

集成Swagger2

SpringBoot 后台权限框架搭建(一)—后台框架搭建
SpringBoot后台权限管理系统(二)—前端工程搭建
SpringBoot后台权限管理系统(三)—权限模块
SpringBoot后台权限管理系统(四)—部署

集成jar包

<!-- swagger2 -->
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger2</artifactId>
    <version>2.9.2</version>
</dependency>
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger-ui</artifactId>
    <version>2.9.2</version>
</dependency>
<!--// swagger2 -->
复制代码

文件配置

  • 启动类
package com.site.mountain;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
public class Swagger2 {
    //swagger2的配置文件,这里可以配置swagger2的一些基本的内容,比如扫描的包等等
    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())//调用apiInfo方法,创建一个ApiInfo实例,里面是展示在文档页面信息内容
                .select()
                //控制暴露出去的路径下的实例
                //如果某个接口不想暴露,可以使用以下注解
                //@ApiIgnore 这样,该接口就不会暴露在 swagger2 的页面下
                .apis(RequestHandlerSelectors.basePackage("com.site.mountain.controller"))
                .paths(PathSelectors.any())
                .build();
    }

    //构建 api文档的详细信息函数,注意这里的注解引用的是哪个
    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                //页面标题
                .title("Spring Boot 测试使用 Swagger2 构建RESTful API")
                //创建人
                .contact(new Contact("MarryFeng", "http://www.baidu.com", ""))
                //版本号
                .version("1.0")
                //描述
                .description("API 描述")
                .build();
    }

}

复制代码
  • shiro配置文件过滤
map.put("/swagger-ui.html", "anon");
map.put("/swagger-resources", "anon");
map.put("/swagger-resources/configuration/security", "anon");
map.put("/swagger-resources/configuration/ui", "anon");
map.put("/v2/api-docs", "anon");
map.put("/webjars/springfox-swagger-ui/**", "anon");
复制代码

使用方式

  • 在类上:@Api(value = "sysuser", description = "系统用户类")

    @Api(value = "sysuser", description = "系统用户类")
    @Controller
    @RequestMapping("/sysuser")
    public class SysUserController {...}
    复制代码
  • 在方法上:

    @ApiOperation(value = "adduser",httpMethod="POST",notes = "用户添加",response = JSONObject.class)

    @ApiOperation(value = "adduser",httpMethod="POST",notes = "用户添加",response = JSONObject.class)
    @RequestMapping(value = "adduser", method = RequestMethod.POST)
    public void addUser(){....}
    复制代码
  • 在参数上: @ApiParam(value = "前端传递过来的用户对象",required = true)

    @ApiOperation(value="edit", notes="用户编辑", httpMethod = "POST",response = JSONObject.class)
    @RequestMapping(value = "edit",method = RequestMethod.POST)
    public void update(@RequestBody @ApiParam(value = "前端传递过来的用户对象",required = true) SysUser sysUser){...}
    复制代码
  • 详细用法请参考swagger2的api

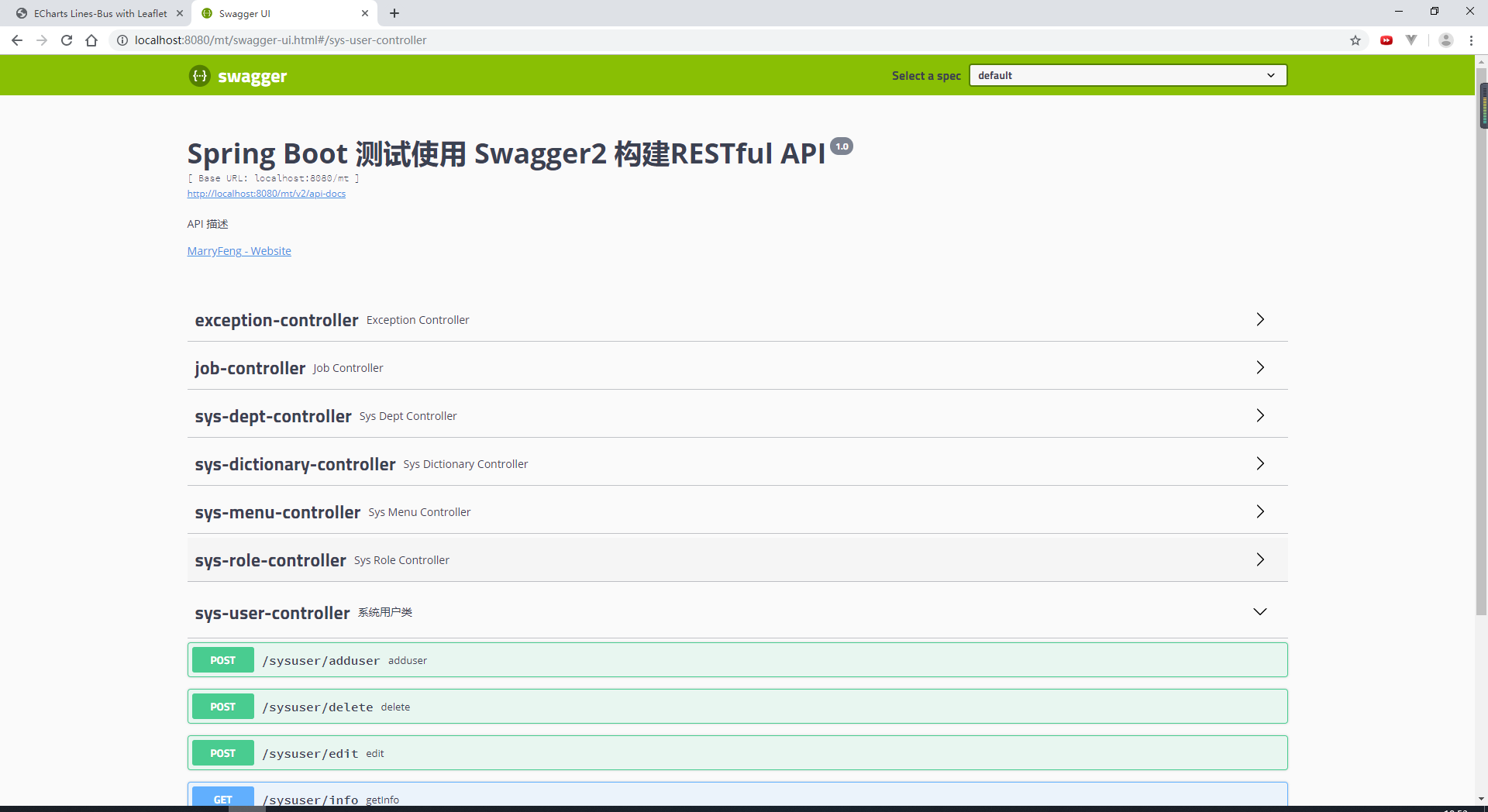

  • 页面显示:访问地址为http://localhost:8080/mt/swagger-ui.html

集成quartz

集成jar包

<dependency>
    <groupId>org.quartz-scheduler</groupId>
    <artifactId>quartz</artifactId>
    <version>2.2.2</version>
</dependency>
<!-- 该依赖必加,里面有sping对schedule的支持 -->
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-context-support</artifactId>
</dependency>
复制代码

文件配置

  • 数据库表导入:因为需要quartz的数据库表,因为最新版本没有数据库表,所以我使用的是2.2.2版本,

    quartz-2.2.2-distribution.tar.gz\quartz-2.2.2\docs\dbTables文件夹下的表导入数据库中

  • 配置文件:

# 固定前缀org.quartz
# 主要分为scheduler、threadPool、jobStore、plugin等部分
#
#
#org.quartz.scheduler.instanceName = DefaultQuartzScheduler
org.quartz.scheduler.rmi.export = false
org.quartz.scheduler.rmi.proxy = false
org.quartz.scheduler.wrapJobExecutionInUserTransaction = false

# 实例化ThreadPool时,使用的线程类为SimpleThreadPool
org.quartz.threadPool.class = org.quartz.simpl.SimpleThreadPool

# threadCount和threadPriority将以setter的形式注入ThreadPool实例
# 并发个数
org.quartz.threadPool.threadCount = 5
# 优先级
org.quartz.threadPool.threadPriority = 5
org.quartz.threadPool.threadsInheritContextClassLoaderOfInitializingThread = true

org.quartz.jobStore.misfireThreshold = 5000

# 默认存储在内存中
#org.quartz.jobStore.class = org.quartz.simpl.RAMJobStore

#持久化
org.quartz.jobStore.class = org.quartz.impl.jdbcjobstore.JobStoreTX

org.quartz.jobStore.tablePrefix = QRTZ_

org.quartz.jobStore.dataSource = qzDS

org.quartz.dataSource.qzDS.driver = com.mysql.jdbc.Driver

org.quartz.dataSource.qzDS.URL = jdbc:mysql://192.168.75.1:3306/mountain?useUnicode=true&characterEncoding=UTF-8

org.quartz.dataSource.qzDS.user = root

org.quartz.dataSource.qzDS.password = root

org.quartz.dataSource.qzDS.maxConnections = 10
复制代码
  • 前端页面展示

  • 后端controller

    package com.site.mountain.controller.sys;

    import com.github.pagehelper.PageInfo;
    import com.site.mountain.entity.JobAndTrigger;
    import com.site.mountain.entity.JobBean;
    import com.site.mountain.job.BaseJob;
    import com.site.mountain.service.IJobAndTriggerService;
    import org.quartz.CronScheduleBuilder;
    import org.quartz.CronTrigger;
    import org.quartz.JobBuilder;
    import org.quartz.JobDetail;
    import org.quartz.JobKey;
    import org.quartz.Scheduler;
    import org.quartz.SchedulerException;
    import org.quartz.TriggerBuilder;
    import org.quartz.TriggerKey;
    import org.slf4j.Logger;
    import org.slf4j.LoggerFactory;
    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.beans.factory.annotation.Qualifier;
    import org.springframework.web.bind.annotation.*;

    import javax.servlet.http.HttpServletRequest;
    import javax.servlet.http.HttpServletResponse;
    import java.util.HashMap;
    import java.util.Map;

    @RestController
    @RequestMapping(value = "/job")
    public class JobController {
        @Autowired
        private IJobAndTriggerService iJobAndTriggerService;

        //加入Qulifier注解,通过名称注入bean
        @Autowired
        private Scheduler scheduler;

        private static Logger log = LoggerFactory.getLogger(JobController.class);


        @PostMapping(value = "/addjob")
        public Map addjob(@RequestBody JobBean jobBean) throws Exception {
            Map map = new HashMap();
            map.put("code", 20000);
            map.put("state", 30000);
            try{
                addJob(jobBean.getJobClassName(), jobBean.getJobGroupName(), jobBean.getCronExpression());
            }catch (Exception e){
                e.printStackTrace();
                map.put("state", 30001);
            }
            return map;
        }

        public void addJob(String jobClassName, String jobGroupName, String cronExpression) throws Exception {

            // 启动调度器
            scheduler.start();

            //构建job信息
            JobDetail jobDetail = JobBuilder.newJob(getClass(jobClassName).getClass()).withIdentity(jobClassName, jobGroupName).build();

            //表达式调度构建器(即任务执行的时间)
            CronScheduleBuilder scheduleBuilder = CronScheduleBuilder.cronSchedule(cronExpression);

            //按新的cronExpression表达式构建一个新的trigger
            CronTrigger trigger = TriggerBuilder.newTrigger().withIdentity(jobClassName, jobGroupName)
                    .withSchedule(scheduleBuilder).build();

            try {
                scheduler.scheduleJob(jobDetail, trigger);

            } catch (SchedulerException e) {
                System.out.println("创建定时任务失败" + e);
                throw new Exception("创建定时任务失败");
            }
        }


        @PostMapping(value = "/pausejob")
        public Map pausejob(@RequestBody JobBean jobBean) throws Exception {
            Map map = new HashMap();
            map.put("code", 20000);
            map.put("state", 30000);
            try {
                jobPause(jobBean.getJobClassName(), jobBean.getJobGroupName());
            } catch (Exception e) {
                e.printStackTrace();
                map.put("state", 30001);
            }
            return map;
        }

        public void jobPause(String jobClassName, String jobGroupName) throws Exception {
            scheduler.pauseJob(JobKey.jobKey(jobClassName, jobGroupName));
        }


        @PostMapping(value = "/resumejob")
        public Map resumejob(@RequestBody JobBean jobBean) throws Exception {
            Map map = new HashMap();
            map.put("code", 20000);
            map.put("state", 30000);
            try {
                jobresume(jobBean.getJobClassName(), jobBean.getJobGroupName());
            } catch (Exception e) {
                e.printStackTrace();
                map.put("state", 30001);
            } finally {

            }
            return map;
        }

        public void jobresume(String jobClassName, String jobGroupName) throws Exception {
            scheduler.resumeJob(JobKey.jobKey(jobClassName, jobGroupName));
        }


        @PostMapping(value = "/reschedulejob")
        public Map rescheduleJob(@RequestBody JobBean jobBean) throws Exception {
            Map map = new HashMap();
            map.put("code", 20000);
            map.put("state", 30000);
            try {
                jobreschedule(jobBean.getJobClassName(), jobBean.getJobGroupName(), jobBean.getCronExpression());
            } catch (Exception e) {
                e.printStackTrace();
                map.put("state", 30001);
            }
            return map;
        }

        public void jobreschedule(String jobClassName, String jobGroupName, String cronExpression) throws Exception {
            try {
                TriggerKey triggerKey = TriggerKey.triggerKey(jobClassName, jobGroupName);
                // 表达式调度构建器
                CronScheduleBuilder scheduleBuilder = CronScheduleBuilder.cronSchedule(cronExpression);

                CronTrigger trigger = (CronTrigger) scheduler.getTrigger(triggerKey);

                // 按新的cronExpression表达式重新构建trigger
                trigger = trigger.getTriggerBuilder().withIdentity(triggerKey).withSchedule(scheduleBuilder).build();

                // 按新的trigger重新设置job执行
                scheduler.rescheduleJob(triggerKey, trigger);
            } catch (SchedulerException e) {
                System.out.println("更新定时任务失败" + e);
                throw new Exception("更新定时任务失败");
            }
        }


        @PostMapping(value = "/deletejob")
        public Map deletejob(@RequestBody JobBean jobBean) throws Exception {
            Map map = new HashMap();
            map.put("code", 20000);
            map.put("state", 30000);
            try {
                jobdelete(jobBean.getJobClassName(), jobBean.getJobGroupName());
            } catch (Exception e) {
                e.printStackTrace();
                map.put("state", 30001);
            }
            return map;
        }

        public void jobdelete(String jobClassName, String jobGroupName) throws Exception {
            scheduler.pauseTrigger(TriggerKey.triggerKey(jobClassName, jobGroupName));
            scheduler.unscheduleJob(TriggerKey.triggerKey(jobClassName, jobGroupName));
            scheduler.deleteJob(JobKey.jobKey(jobClassName, jobGroupName));
        }


        @RequestMapping(value = "/queryjob")
        public Map<String, Object> queryjob(@RequestBody JobBean jobBean) {
            PageInfo<JobAndTrigger> jobAndTrigger = iJobAndTriggerService.getJobAndTriggerDetails(jobBean.getPageNum(), jobBean.getPageSize());
            Map<String, Object> map = new HashMap<String, Object>();
            map.put("JobAndTrigger", jobAndTrigger);
            map.put("number", jobAndTrigger.getTotal());
            map.put("code", 20000);
            return map;
        }

        public static BaseJob getClass(String classname) throws Exception {
            Class<?> class1 = Class.forName(classname);
            return (BaseJob) class1.newInstance();
        }
    }

    复制代码
  • 定时器接口

package com.site.mountain.job;

import org.quartz.Job;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;

public interface BaseJob extends Job {
    @Override
    void execute(JobExecutionContext jobExecutionContext) throws JobExecutionException;
}

复制代码

使用方式

  • 实现定时器接口
package com.site.mountain.job.impl;

import com.site.mountain.job.BaseJob;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.util.Date;

public class HelloJob implements BaseJob {
    private static Logger _log = LoggerFactory.getLogger(HelloJob.class);
    @Override
    public void execute(JobExecutionContext jobExecutionContext) throws JobExecutionException {
        _log.error("Hello Job执行时间: " + new Date());
    }
}
复制代码

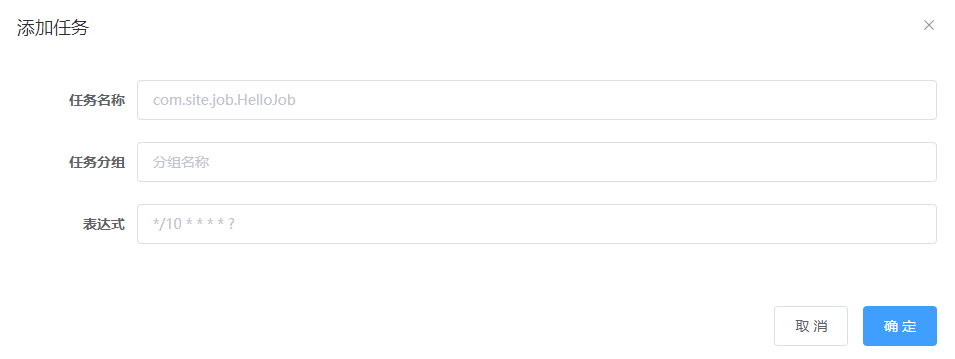

  • 在前端配置定时类

集成Druid 连接池

集成jar包

<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>druid-spring-boot-starter</artifactId>
    <version>1.1.10</version>
</dependency>
复制代码

文件配置

  • 修改application.properties文件

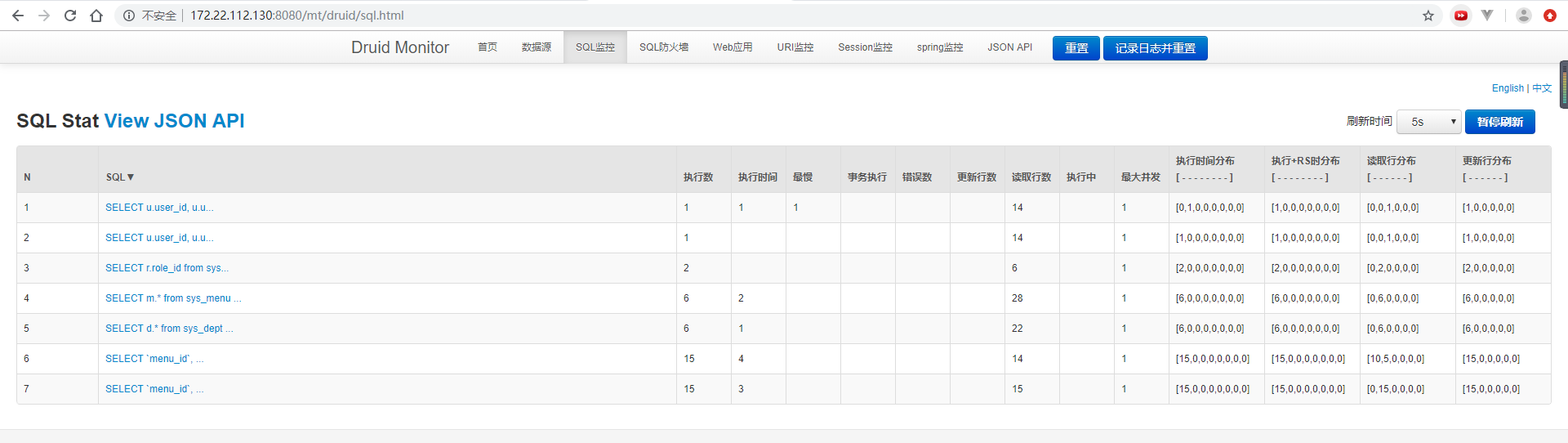

 #配置监控统计拦截的filters,去掉后监控界面SQL无法进行统计,'wall'用于防火墙
 spring.datasource.mysql.filters=stat,wall
 spring.datasource.mysql.driverClassName=com.mysql.jdbc.Driver
 spring.datasource.mysql.type = com.alibaba.druid.pool.DruidDataSource
 spring.datasource.mysql.url=jdbc:mysql://127.0.0.1:3306/mountain
 spring.datasource.mysql.username=root
 spring.datasource.mysql.password=root
复制代码
  • 修改数据源配置类:把MysqlDataSourceConfig类中数据源应用到的类都修改为Druid对应的类
@Configuration
 @MapperScan(basePackages = "com.site.mountain.dao.mysql", sqlSessionTemplateRef = "mysqlSqlSessionTemplate")
 public class MysqlDataSourceConfig {
     // @Primary 确定此数据源为master
     @Bean(name = "mysqlDataSource")
     @ConfigurationProperties(prefix = "spring.datasource.mysql")
     @Primary
     public DruidDataSource mysqlDataSource() {
         return DruidDataSourceBuilder.create().build();
     }
   //....
 }
复制代码
  • 设置Druid配置类DruidConfig.java
package com.site.mountain.datasource;

import com.alibaba.druid.support.http.StatViewServlet;
import com.alibaba.druid.support.http.WebStatFilter;
import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class DruidConfig {

    /**
     * 注册servlet信息,配置监控图
     */
    @Bean
    @ConditionalOnMissingBean
    public ServletRegistrationBean druidServlet() {
        ServletRegistrationBean servletRegistrationBean =
                new ServletRegistrationBean(new StatViewServlet(), "/druid/*");
        //白名单
        servletRegistrationBean.addInitParameter("allow", "172.22.112.130");
        //IP黑名单(存在共同时,deny优先于allow) : 如果满足deny的话提示:Sorry, you are not permitted to view this page.
        servletRegistrationBean.addInitParameter("deny", "127.0.0.1");
        //用于登陆的账号密码
        servletRegistrationBean.addInitParameter("loginUsername", "admin");
        servletRegistrationBean.addInitParameter("loginPassword", "admin");
        //是否能重置数据
        servletRegistrationBean.addInitParameter("resetEnable", "true");
        return servletRegistrationBean;
    }

    /**
     * 注册filter信息,用于拦截
     */
    @Bean
    @ConditionalOnMissingBean
    public FilterRegistrationBean filterRegistrationBean() {
        FilterRegistrationBean filterRegistrationBean = new FilterRegistrationBean();
        filterRegistrationBean.setFilter(new WebStatFilter());
        filterRegistrationBean.addUrlPatterns("/*");
        filterRegistrationBean.addInitParameter("exclusions", "*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/*");
        return filterRegistrationBean;
    }
}
复制代码

注意点

  • 访问[http://172.22.112.130:8080/mt/druid ] 用户名密码是admin/admin。注意访问地址ip需要与DruidConfig类中的配置白名单一致,不然不能访问

  • 访问Druid监控页面URL时,系统必须先登录,因为shiro拦截了访问,但是在shiro放开druid/** 访问拦截,会导致系统主页面等链接不能访问,待解决...

集成Docker

集成jar包

<!-- Docker maven plugin -->
<plugin>
    <groupId>com.spotify</groupId>
    <artifactId>docker-maven-plugin</artifactId>
    <version>1.2.0</version>
    <configuration>
        <!-- docker私服的地址 -->
        <dockerHost>http://192.168.75.129:2375</dockerHost>
        <!--镜像名称以及版本号-->
        <imageName>mountain:1.0.0</imageName>
        <!--依赖的基础镜像-->
        <baseImage>java</baseImage>
        <!--Dockerfile的位置 -->
        <dockerDirectory>${project.basedir}/src/main/docker</dockerDirectory>
        <!-- 这里是复制 jar 包到 docker 容器指定目录配置 -->
        <resources>
            <resource>
                <targetPath>/</targetPath>
                <directory>${project.build.directory}</directory>
                <include>${project.build.finalName}.jar</include>
            </resource>
        </resources>
    </configuration>
</plugin>
<!-- Docker maven plugin -->
复制代码

文件配置

  • 在工程目录src/main/docker中创建Dockerfile文件,内容如下:
# FROM:指明当前镜像继承的基镜像,编译当前镜像时候会自动下载基镜像
FROM java:8
# MAINTAINER:当前镜像的作者和邮箱,使用空格隔开
MAINTAINER jinshw jinshw@xxx.com
# VOLUME:挂载目录
VOLUME /ROOT
# ADD:从当前工作目录复制文件到镜像目录中并重新命名
ADD mountain-0.0.1-SNAPSHOT.jar mountain.jar
# RUN:在当前镜像上执行Linux命令,这里我执行了2个run指令,第二个run指令是为了解决容器和宿主机时间不一致的问题
RUN bash -c 'touch /mountain.jar'

RUN cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime \
&& echo 'Asia/Shanghai' >/etc/timezone

# EXPOSE:监听的端口号
EXPOSE 8080

# ENTRYPOINT:让容器像一个可执行程序一样运行
ENTRYPOINT ["java", "-jar", "mountain.jar"]
复制代码

注意点

  • pom文件中集成docker插件 docker-maven-plugin
  • docker 服务需要开启 2375 端口
    • 编辑docker.service文件,manjaro系统在/usr/lib/systemd/system路径下
    • 配置ExecStart=/usr/bin/dockerd -H unix://var/run/docker.sock -H tcp://0.0.0.0:2375
  • 集成dockerfile文件
  • 执行命令:clean compile install -DskipTests docker:removeImage docker:build
分类:
后端
标签:
分类:
后端
标签:
收藏成功!
已添加到「」, 点击更改
