echarts时间轴显示0-24小时，内容自动填充

效果

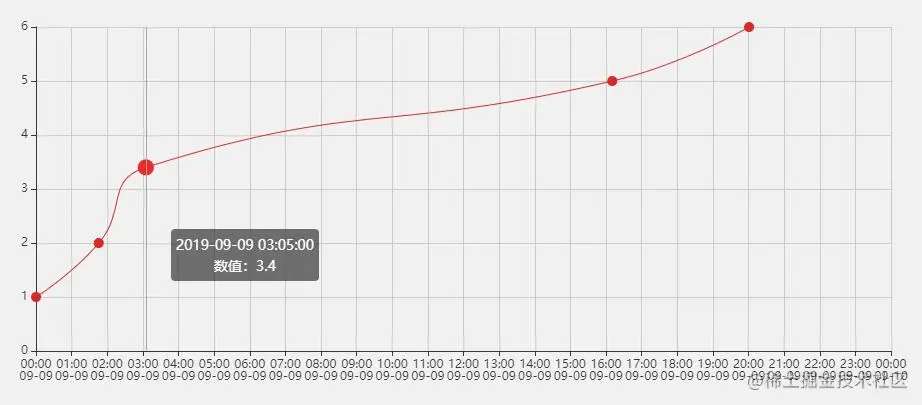

先上效果图 时间轴是0-24小时的排列，内容点是传过来的数据，有数据的显示上去，并自动连成一条线

多条数据

多条数据图表：juejin.cn/post/684490…

代码

<template>
    <div class="echarts-time-container">
        <div class="my-echarts" ref="myEcharts"></div>
    </div>

</template>
<script>
// echarts
let echarts = require('echarts/lib/echarts')
require('echarts/lib/chart/line')
require('echarts/lib/component/tooltip')
require('echarts/lib/component/title')
export default {
    mounted(){
        window.addEventListener("resize", this.resizeCharts);
        this.$once("hook:beforeDestroy", () => {
            window.removeEventListener("resize", this.resizeCharts);
        });
        this.getEcharts()
    },
    methods:{
    	resizeCharts(){
            if(this.$refs.myEcharts){
                echarts.init(this.$refs.myEcharts).resize();
            }
        },
        getEcharts(){
            let myCharts = echarts.init(this.$refs.myEcharts)
            let today = this.getNowFormatDate()
            let xDate = []
            let contentData = []
            let timeShow = ''
            // 有值的数据（模拟数据，时间格式必须和x轴的格式一致）
            let xChartData = [`${today} 00:00:00`,`${today} 01:45:33`,`${today} 03:05:00`,`${today} 16:10:33`,`${today} 20:01:00`]
            let yChartData = [1,2,3.4,5,6]

            // x轴坐标——年月日时必须的
            for(var ii=0;ii<25;ii++){
                timeShow = `${today} ${ii>10?ii:('0'+ii)}:00:00`
                contentData.push([timeShow,''])
                xDate.push(timeShow)
            }
            // 添加x轴数据
            yChartData.map((res,index)=>{
                contentData.push([xChartData[index],res])
            })
            myCharts.setOption({
                tooltip: {
                    trigger: 'axis',
                    formatter:(val)=>{
                        let text = ''
                        val.map((res,index)=>{
                            text =  `${res.data[0]}<br/>数值：`
                            if(res.data[1] === 0 || res.data[1]){
                                text  += `${res.data[1]}`
                            }else{
                                text  += '暂无数据'
                            }
                        })
                        return text
                    },
                    textStyle:{
                        align:'center'
                    }
                },
                grid: {
                    left: '3%',
                    right: '10%',
                    bottom: '3%',
                    top: '8%',
                    containLabel: true
                },
                xAxis: {
                    type: 'time',
                    boundaryGap: false,
                    interval:1000*3600, // 可设置显示间隔
                    data: xDate,
                    min:`${today} 0:00:00`,
                },
                yAxis: {
                    type: 'value',
                    max:function (value) {
                        if(value.max>0){
                            return parseInt(value.max)
                        }
                        else{
                            return 5;
                        }
                    },
                    min:0
                },
                series:[{
                    name: '',
                    stack:'',
                    type: 'line',
                    smooth: true,
                    symbol: 'circle',
                    symbolSize: 10,
                    lineStyle: {
                        normal: {
                            width: 1
                        }
                    },
                    data: contentData,
                }]
            });
        },
        // 获得今天时间
        getNowFormatDate() {
            var date = new Date();
            var month = date.getMonth() + 1;
            var strDate = date.getDate();
            if (month >= 1 && month <= 9) {
                month = "0" + month;
            }
            if (strDate >= 0 && strDate <= 9) {
                strDate = "0" + strDate;
            }
            var currentdate = date.getFullYear() + '-' + month + '-' + strDate
            return currentdate;
        }
    }

}
</script>
<style lang="less">
.echarts-time-container{
    .my-echarts{
        width:1000px;
        height: 400px;
    }
}

</style>
