上篇写到了直接加载矢量瓦片图层比较简单，这篇实现存在底图，只在上面叠加矢量瓦片服务，或着实现底图切换功能。
<template>
<div id="map" class="s-map-panel" ></div>
</template>
<script setup lang="ts">
import {onMounted} from "vue";
import {countryTdtServer} from "@/utils/tdtServer.ts";
import axios from "axios";
const {mapboxgl} = window as any
let map: any = null
const emits = defineEmits(['onMapLoaded']);
const initMap= ()=>{
map=new mapboxgl.Map({
container: 'map',
style:countryTdtServer(),
center: [108.95622, 34.279541],
zoom: 12,
});
map.on('load', async () => {
const vectorStyleUrl= 'https://shaanxi.tianditu.gov.cn/ServiceSystem/Tile/rest/service/sxww2022Geo/IbQuA4mA4-scWA4s/VectorTileServer/styles/default.json'
const vecRes=await axios.get(vectorStyleUrl)
try {
if(vecRes.data){
// 添加数据源
Object.keys(vecRes.data.sources).forEach((sourceId) => {
const prefixedSourceId = getUniqueId('btServer', sourceId);
if (!map.getSource(prefixedSourceId)) {
map.addSource(prefixedSourceId, vecRes.data.sources[sourceId]);
}
});
if (vecRes.data.layers) {
vecRes.data.layers.forEach((layer: any) => {
layer.id = getUniqueId('btServer', layer.id);
if (!map.getLayer(layer.id)) {
map.addLayer({
...layer,
source: getUniqueId('btServer', layer.source)
});
}
});
}
}
} catch (error) {
console.error(error)
}
});
}
const getUniqueId=(customPrefix: string, id: string): string => {
return `${customPrefix}-${id}`;
}
onMounted(()=> {
initMap()
})
</script>
<style scoped lang="scss">
.s-map-panel {
width: 100vw;
height: 100vh;
margin: 0;
padding: 0;
overflow: hidden;
}
</style>

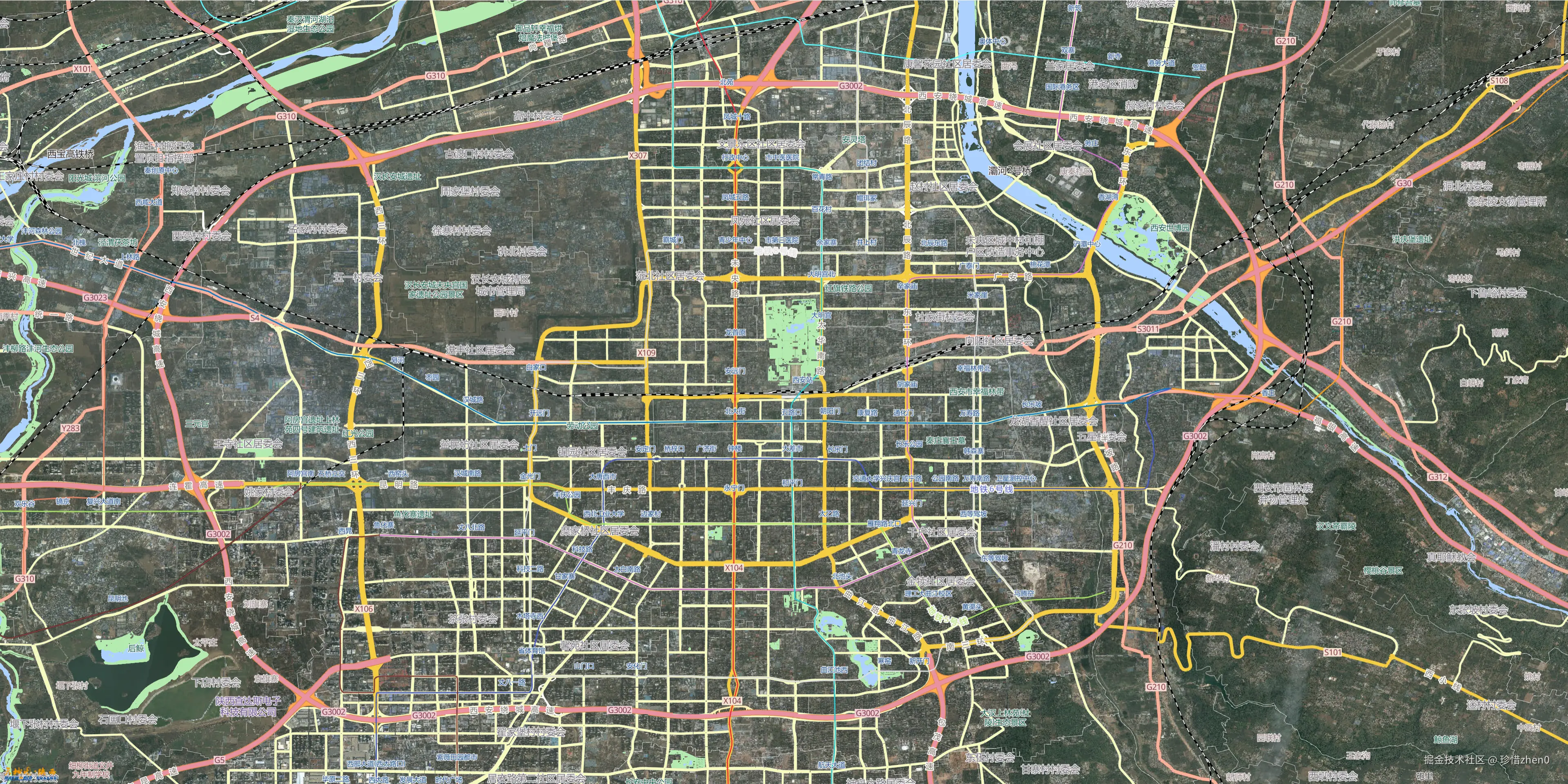

效果图如下：
下载
改造版已经打包好，直接下载即可：
