SpringBoot2接入Knife4j

接入过程

1.引入依赖

pom.xml

<!-- Knife4j -->
<dependency>
    <groupId>com.github.xiaoymin</groupId>
    <artifactId>knife4j-spring-boot-starter</artifactId>
    <version>3.0.3</version>
</dependency>

2.编写配置

src/main/java/com/example/netdisk/config/Knife4jConfig.java

package com.example.netdisk.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;

@Configuration
public class Knife4jConfig {

    @Bean
    public Docket api() {
        return new Docket(DocumentationType.OAS_30)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.example.netdisk.controller"))
                .paths(PathSelectors.any())
                .build();
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("NetDisk API")
                .description("网盘系统接口文档")
                .version("1.0.0")
                .build();
    }
}

3.放行请求

src/main/java/com/example/netdisk/security/config/SecurityConfig.java

.authorizeRequests()// 开始配置URL授权（新版可能用 authorizeHttpRequests）
.antMatchers(HttpMethod.OPTIONS, "/**").permitAll()// 预检请求放行
.antMatchers("/auth/**").permitAll()// 登录接口所有人都可访问
.antMatchers(
        "/swagger-ui.html",
        "/swagger-ui/**",
        "/webjars/**",
        "/v2/api-docs",
        "/v3/api-docs",
        "/swagger-resources/**",
        "/doc.html"
).permitAll()               //swagger路径放行
.anyRequest().authenticated()// 其他所有请求都需要认证

4.处理兼容

运行后报错:Failed to start bean 'documentationPluginsBootstrapper'

这属于 Springfox 和 Spring Boot 2.6 的兼容问题，需要额外配置：

src/main/resources/application.yml

spring:
  mvc:
    pathmatch:
      matching-strategy: ant_path_matcher

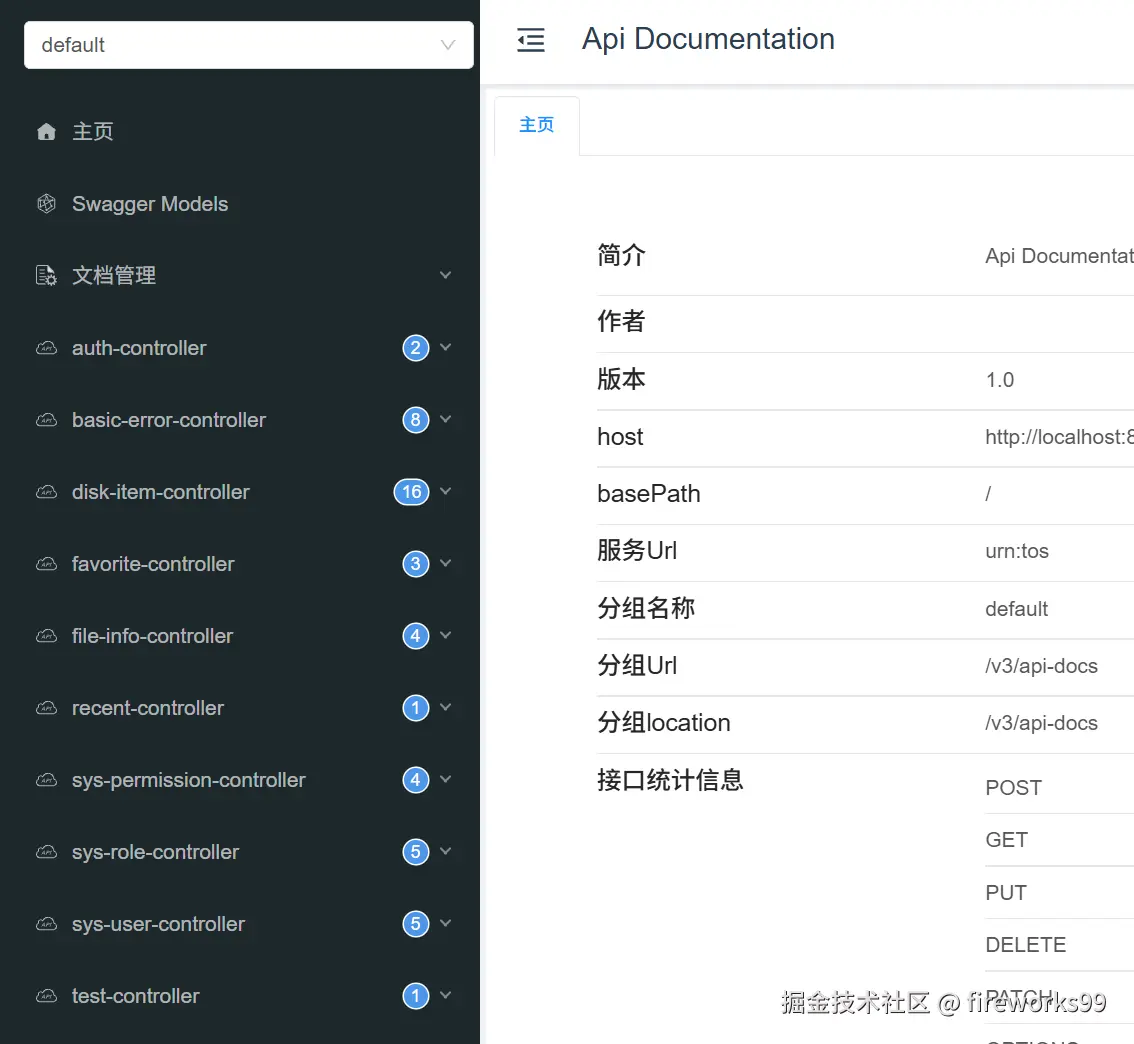

运行项目后访问：http://localhost:8080/doc.html

编写文档

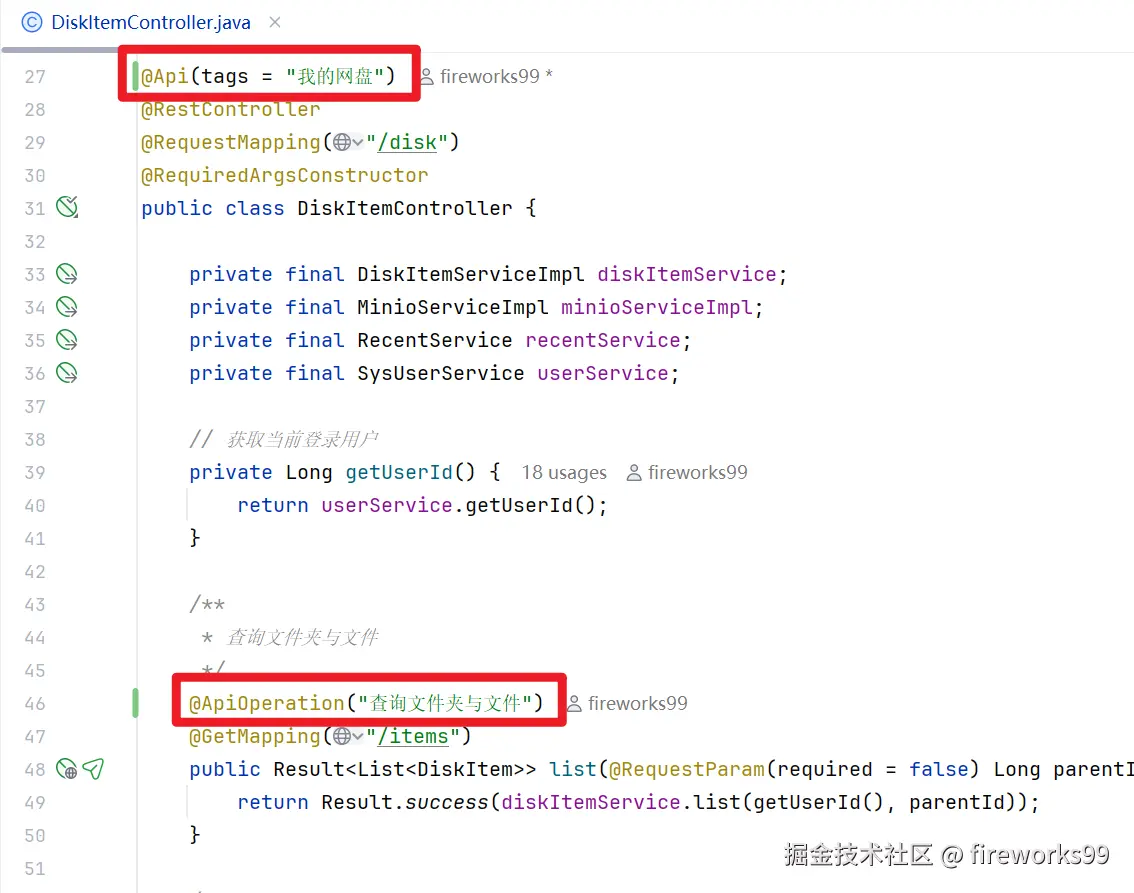

如下图所示，在Controller类上添加@Api(tags = "xxx")注解，在Mapping方法上添加@ApiOperation("xxxx")注解

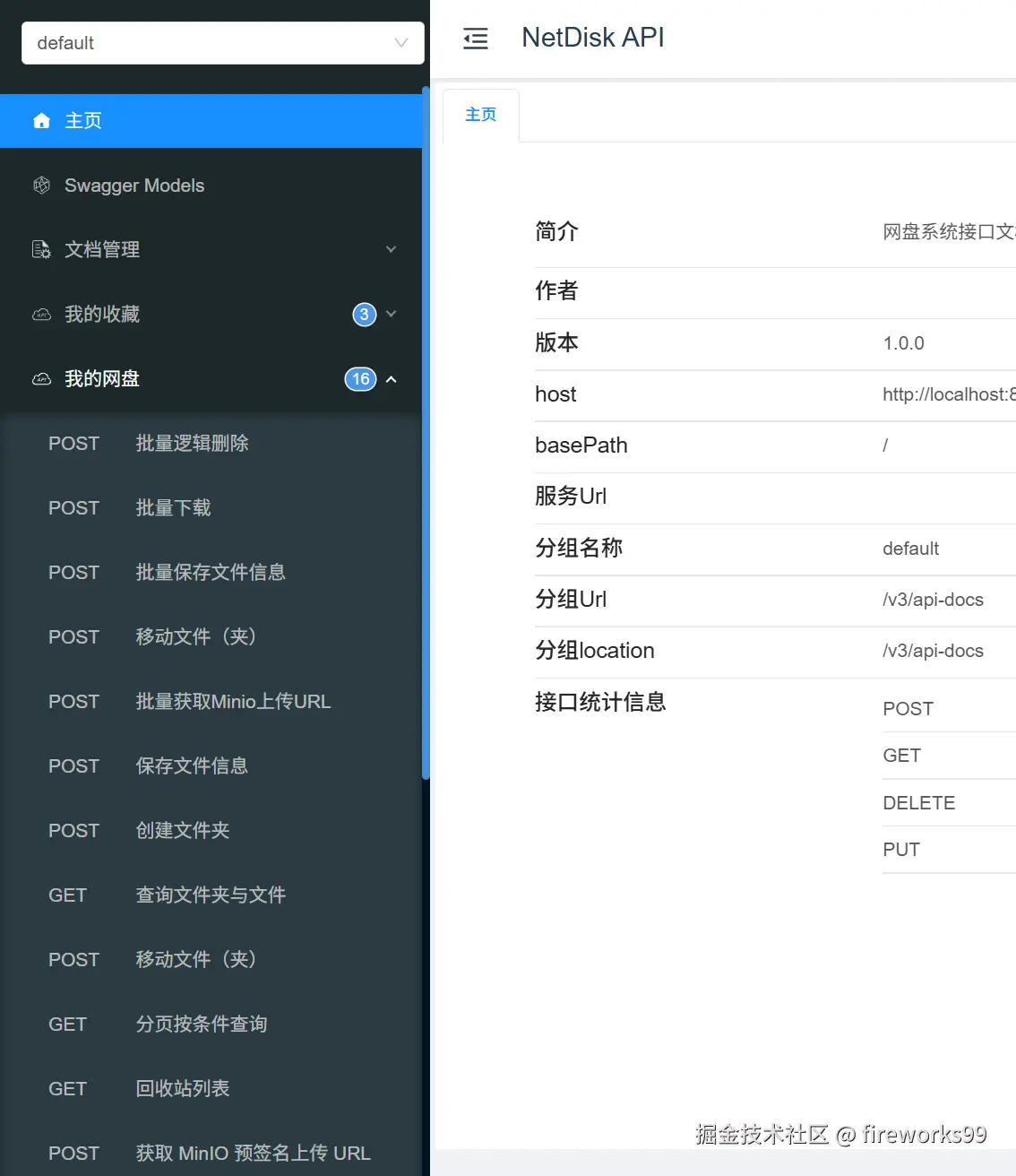

结果：
