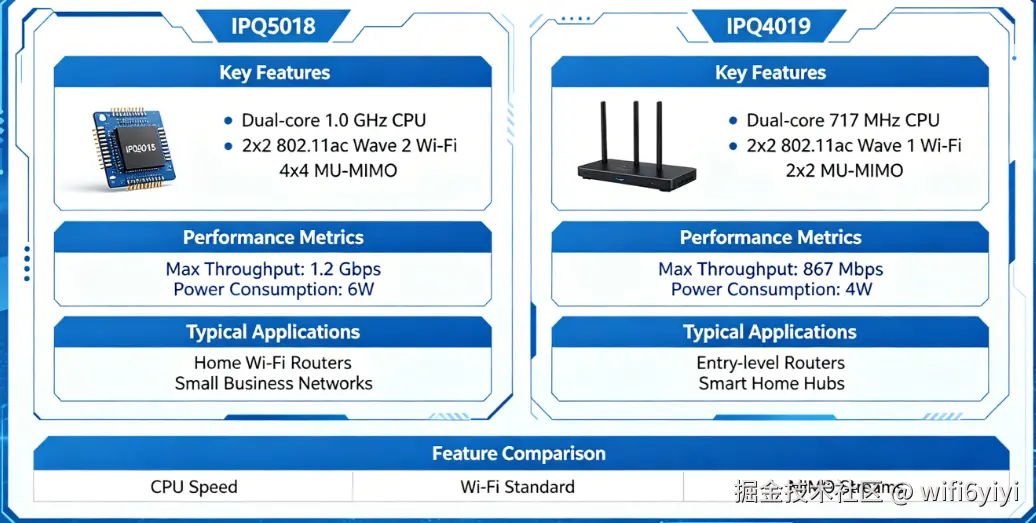

Comprehensive Analysis of Qualcomm IPQ5018 and IPQ4019
In the wireless networking industry, Qualcomm’s IPQ series chips have long played a dominant role in the mainstream entry-level and mid-range markets. As one of the most successful Wi-Fi 5 SoCs, IPQ4019 was widely adopted in home routers, entry-level enterprise access points, and Mesh networking systems. Its successor, IPQ5018, represents Qualcomm’s next-generation Wi-Fi 6 platform, delivering major improvements in manufacturing process, CPU architecture, wireless performance, scalability, and power efficiency.
This article provides a comprehensive comparison between IPQ5018 and IPQ4019 across six key dimensions: architecture, wireless capabilities, interface scalability, power consumption, application scenarios, and market ecosystem, highlighting the technological evolution from Wi-Fi 5 to Wi-Fi 6.
1. Core Architecture and Manufacturing Process
The underlying architecture of a networking SoC directly determines its computing capability, power efficiency, and long-term scalability. The transition from IPQ4019 to IPQ5018 reflects a clear generational leap in semiconductor process technology and CPU performance.
1.1 IPQ4019 — Mature and Cost-Effective Wi-Fi 5 Platform
IPQ4019 is built on a mature 28nm manufacturing process, optimized for low cost and stable thermal performance. It integrates a quad-core ARM Cortex-A7 CPU running at up to 717MHz, supporting basic floating-point acceleration and dynamic frequency scaling.
The platform supports:
- Up to 1GB DDR3L memory
- SPI NOR flash storage
- Integrated Gigabit Ethernet switching
- Dual-band Wi-Fi 5 radios
As a highly mature Wi-Fi 5 solution, IPQ4019 focuses on affordability, stability, and large-scale deployment, making it suitable for entry-level networking devices with moderate bandwidth requirements.
1.2 IPQ5018 — High-Efficiency Wi-Fi 6 Architecture
IPQ5018 adopts a significantly more advanced 14nm process, offering higher transistor density, lower leakage current, and improved energy efficiency.
It features:
- Dual-core ARM Cortex-A53 CPU
- Base frequency of 1.0GHz (up to 1.35GHz)
- Improved IPC performance over Cortex-A7
- Hardware acceleration engines for networking tasks
- Enhanced memory and storage flexibility
Although IPQ5018 uses fewer CPU cores, the Cortex-A53 architecture combined with the 14nm process delivers substantially stronger real-world computing performance than the quad-core Cortex-A7 design of IPQ4019.
The platform is optimized for modern Wi-Fi 6 applications where low latency, efficient packet processing, and high-density device connectivity are essential.
Architectural Advantages of IPQ5018
Compared with IPQ4019, IPQ5018 provides:
- Higher processing efficiency
- Lower overall power consumption
- Better packet forwarding performance
- Improved multitasking capability
- Stronger long-term scalability
In practical deployment, IPQ5018 reduces CPU load during heavy wireless traffic and maintains better system responsiveness under concurrent connections.
2. Wireless Performance: Wi-Fi 5 vs Wi-Fi 6
Wireless capability is the core differentiator between the two platforms. Since the chips belong to different Wi-Fi generations, the performance gap is substantial.
2.1 IPQ4019 — Wi-Fi 5 (802.11ac Wave 2)
IPQ4019 supports mainstream Wi-Fi 5 protocols including:
- 802.11a/b/g/n/ac
- MU-MIMO
- Beamforming
The chip integrates dual-band concurrent radios with:
- 2×2 MIMO for 2.4GHz
- 2×2 MIMO for 5GHz
Its theoretical combined wireless throughput reaches approximately 1267Mbps, which is sufficient for standard home networking applications.
However, IPQ4019 lacks key Wi-Fi 6 technologies such as:
- OFDMA
- TWT (Target Wake Time)
- BSS Coloring
- WPA3 optimization
As device density increases, network latency rises significantly and throughput stability decreases, especially in crowded environments.
2.2 IPQ5018 — Wi-Fi 6 (802.11ax)
IPQ5018 fully supports the Wi-Fi 6 standard and introduces major protocol-level enhancements, including:
- OFDMA
- MU-MIMO improvements
- BSS Coloring
- TWT power-saving technology
- WPA3 security
The platform also supports:
- Dual-band 2×2 MIMO
- 160MHz channel bandwidth
- Much higher spectrum efficiency
Its total theoretical wireless throughput reaches nearly 3000Mbps, more than double the capability of IPQ4019.
In addition, IPQ5018 can support external high-performance RF front-end modules, enabling broader coverage and stronger signal performance for enterprise or industrial deployments.
Wireless Performance Comparison
Compared with IPQ4019, IPQ5018 delivers clear advantages in:
- Wireless throughput
- Multi-device concurrency
- Latency control
- Spectrum efficiency
- Interference resistance
Under high-density environments such as offices, hotels, campuses, and shopping malls, IPQ5018 maintains stable low-latency performance while supporting significantly more simultaneous clients.
3. Interface and Expansion Capability
Modern networking equipment increasingly relies on high-speed interfaces and flexible peripheral expansion. This is another area where IPQ5018 significantly outperforms IPQ4019.
IPQ4019 Interface Capability
IPQ4019 provides:
- Integrated Gigabit Ethernet switch
- PCIe 2.0 interface
- USB 3.0 support
While sufficient for traditional Gigabit networking, the platform is limited when handling:
- 2.5G Ethernet
- High-throughput storage
- Advanced external radio modules
Its scalability is relatively constrained for modern high-speed applications.
IPQ5018 Interface Upgrades
IPQ5018 introduces several key improvements:
- PCIe 3.0 support
- Native 2.5GbE capability
- Higher interface bandwidth
- Better compatibility with external RF modules
These enhancements make IPQ5018 suitable for:
- Gigabit and multi-gig broadband
- High-speed NAS applications
- Enterprise Mesh systems
- Industrial wireless gateways
- Wi-Fi 6 access points
Its stronger interface architecture provides significantly better long-term deployment flexibility.
4. Power Consumption and Thermal Performance
Power efficiency and thermal stability are critical for continuous operation, especially in industrial and outdoor deployments.
IPQ4019 Thermal Characteristics
Typical operating power consumption:
- Around 5W under normal load
- Up to 7W at peak load
Due to the older 28nm process, heat generation is relatively high. In enclosed environments such as weak-current cabinets or compact routers, thermal accumulation may lead to:
- CPU throttling
- Reduced stability
- Occasional disconnections
Therefore, proper heatsink design is generally required.
IPQ5018 Thermal Improvements
Thanks to the 14nm process, IPQ5018 significantly improves energy efficiency:
- Typical power consumption around 3.5W
- Lower thermal output under full load
- Better long-term operational stability
The chip can operate reliably with simpler thermal solutions and is well suited for:
- Outdoor APs
- Industrial gateways
- Embedded networking systems
- Compact fanless devices
Its lower power consumption also benefits PoE-powered deployments.
5. Application Scenarios
The differences in wireless capability, scalability, and power efficiency lead to clearly different market positioning for the two chips.
Typical Applications for IPQ4019
IPQ4019 is mainly used in:
- Entry-level Wi-Fi 5 home routers
- Budget indoor enterprise APs
- Basic Mesh systems
- Low-bandwidth IoT gateways
It remains suitable for environments with:
- Limited broadband speed
- Low client density
- Strict cost constraints
Typical Applications for IPQ5018
IPQ5018 supports a much broader range of modern deployments, including:
- Mainstream Wi-Fi 6 routers
- Whole-home Mesh Wi-Fi systems
- Medium-sized enterprise wireless networks
- Industrial wireless APs
- OpenWRT-based custom routers
- High-speed broadband terminals
Its balance between performance, power efficiency, and cost makes it one of the most attractive Wi-Fi 6 SoCs in the mid-range market.
6. Market Ecosystem and Future Trend
IPQ4019 Market Position
IPQ4019 benefits from:
- Mature supply chain
- Low BOM cost
- Stable software ecosystem
However, as Wi-Fi 5 gradually exits the mainstream market, the platform is increasingly limited to low-cost legacy networking products.
Most major networking vendors are shifting away from new IPQ4019-based product development.
IPQ5018 Market Outlook
IPQ5018 has become one of Qualcomm’s most successful mainstream Wi-Fi 6 platforms due to its:
- Strong cost-performance ratio
- Excellent OpenWRT compatibility
- Modern interface support
- Low power consumption
- Stable wireless performance
It is expected to remain highly competitive in the mid-range Wi-Fi 6 market for years to come, especially in:
- Consumer routers
- SMB networking
- Industrial wireless devices
- Customized open-source networking solutions
7. Conclusion
The transition from IPQ4019 to IPQ5018 represents a complete generational upgrade in Qualcomm’s entry-to-mid-level networking platform strategy.
The evolution includes:
- Wi-Fi 5 → Wi-Fi 6
- 28nm → 14nm manufacturing process
- Cortex-A7 → Cortex-A53 architecture
- Basic wireless networking → high-efficiency intelligent networking
Compared with IPQ4019, IPQ5018 delivers major improvements in:
- Wireless throughput
- Concurrent device capacity
- Latency optimization
- Energy efficiency
- Thermal stability
- Interface scalability
For modern networking applications — including home Mesh Wi-Fi, enterprise wireless coverage, industrial IoT, and customized OpenWRT development — IPQ5018 is clearly the more future-proof and competitive solution.
While IPQ4019 still retains value in ultra-low-cost networking products, IPQ5018 has effectively become the mainstream replacement platform for next-generation Wi-Fi 6 deployments.
