QCN6274 vs QCN6024: A Comprehensive Comparison Between Wi-Fi 7 and Wi-Fi 6 Chipsets
Both QCN6274 and QCN6024 are Qualcomm wireless networking chipsets, but they belong to two completely different Wi-Fi generations: Wi-Fi 7 (802.11be) and Wi-Fi 6 (802.11ax).
The differences between them are not limited to speed improvements alone — they reflect a full generational evolution in wireless standards, RF architecture, bandwidth capability, latency optimization, and multi-device concurrency performance.
This article provides a detailed comparison of the two chipsets from the perspectives of product positioning, technical specifications, hardware architecture, and application scenarios.
1. Product Positioning: Two Different Wi-Fi Generations
QCN6024: Mainstream Wi-Fi 6 Platform
Released around 2020, QCN6024 belongs to Qualcomm’s Wi-Fi 6 “Pine” platform series.
It was widely adopted in:
- Home routers
- Mesh Wi-Fi systems
- SMB access points
- Enterprise wireless devices
Built around the 802.11ax standard, QCN6024 significantly improved wireless efficiency, OFDMA scheduling, MU-MIMO performance, and network capacity compared to Wi-Fi 5. However, its architecture was designed specifically for Wi-Fi 6 and does not include hardware support for future Wi-Fi 7 features.
QCN6274: High-End Wi-Fi 7 Platform
Introduced after 2023, QCN6274 is part of Qualcomm’s next-generation Wi-Fi 7 platform family.
It targets:
- Enterprise Wi-Fi 7 APs
- Gaming routers
- Industrial wireless gateways
- High-density wireless networks
- Fixed Wireless Access (FWA)
- Edge networking platforms
Designed for the 802.11be standard, QCN6274 natively supports advanced Wi-Fi 7 technologies such as:
- 320MHz ultra-wide channels
- 4096-QAM
- Multi-Link Operation (MLO)
- Ultra-low latency transmission
It is built for next-generation applications including:
- 8K streaming
- Cloud gaming
- AR/VR
- Industrial automation
- AI edge networking
In short, the two chips are built upon entirely different wireless generations.
2. Core Technical Specifications
2.1 Frequency Band Support
QCN6024 (Wi-Fi 6)
- Dual-band only: 2.4GHz + 5GHz
- No native 6GHz support
- Optimized for traditional Wi-Fi environments
While it provides solid coverage and throughput, the crowded 5GHz spectrum becomes increasingly congested in dense deployment scenarios.
QCN6274 (Wi-Fi 7)
- Tri-band support: 2.4GHz + 5GHz + 6GHz
- Native support for the new 6GHz spectrum
- Designed for high-capacity and low-interference wireless environments
The addition of 6GHz enables:
- Wider clean spectrum
- Lower interference
- Larger channel bandwidth
- Higher throughput
- Better multi-device performance
2.2 Channel Bandwidth
QCN6024
- Maximum channel width: 160MHz
- Peak theoretical throughput: approximately 4.8Gbps (4×4 MIMO)
QCN6274
- Supports 320MHz ultra-wide channels
- Peak theoretical throughput: up to 11.5Gbps
Compared to QCN6024, QCN6274 nearly doubles the available channel bandwidth and significantly improves data capacity for high-density environments.
2.3 Modulation Technology
QCN6024
Uses:
- 1024-QAM
- 10 bits per symbol
QCN6274
Upgrades to:
- 4096-QAM
- 12 bits per symbol
Benefits include:
- Higher spectral efficiency
- Approximately 20% more data throughput
- Improved transmission efficiency
- Better weak-signal stability

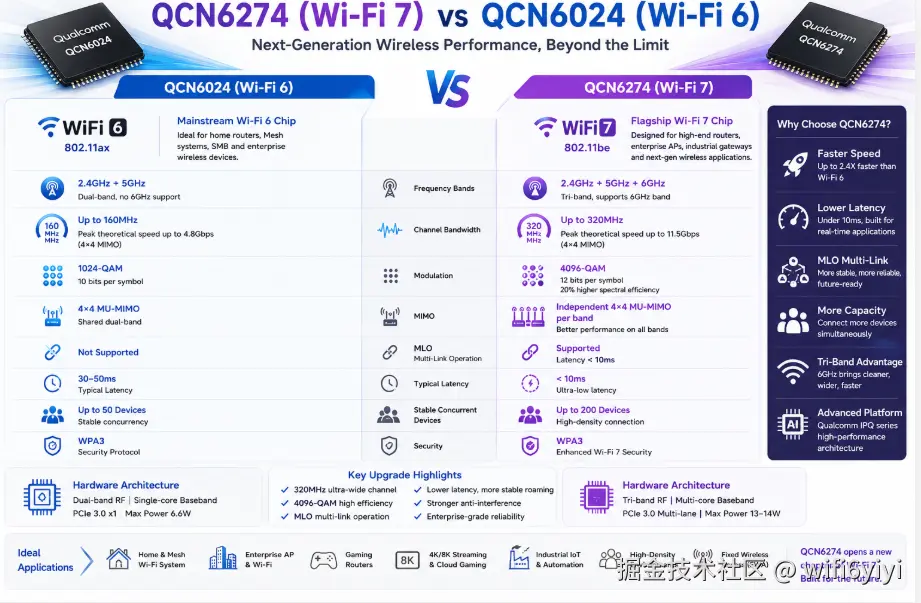

2.4 Feature Comparison
| Feature | QCN6024 (Wi-Fi 6) | QCN6274 (Wi-Fi 7) |
|---|---|---|
| Wi-Fi Standard | 802.11ax | 802.11be |
| Frequency Bands | 2.4GHz + 5GHz | 2.4GHz + 5GHz + 6GHz |
| Channel Width | 160MHz | 320MHz |
| Modulation | 1024-QAM | 4096-QAM |
| MIMO | 4×4 MU-MIMO | Independent 4×4 per band |
| MLO | Not Supported | Supported |
| Typical Latency | 30–50ms | <10ms |
| Concurrent Devices | ~50 | ~200 |
| Security | WPA3 | Enhanced WPA3 |
3. Hardware Architecture Differences
3.1 RF Architecture
QCN6024
- Shared dual-band RF architecture
- No dedicated 6GHz RF chain
- Cannot be upgraded to Wi-Fi 7 via firmware
QCN6274
Features:
-
Independent tri-band RF architecture
-
Dedicated 6GHz radio support
-
Optimized for:
- 320MHz channels
- MLO
- 4096-QAM
- ultra-low latency operation
This represents a major RF architecture redesign rather than a simple upgrade.
3.2 Baseband Processing Capability
QCN6024
Uses a Wi-Fi 6-era baseband architecture optimized for:
- OFDMA scheduling
- Traditional MU-MIMO tasks
QCN6274
Adopts a significantly more powerful multi-core baseband engine capable of:
- Multi-link coordination
- Real-time MLO processing
- Higher concurrent client scheduling
- Ultra-low latency traffic management
Its processing capability is substantially higher than the Wi-Fi 6 generation.
3.3 Interface and Power Consumption
| Item | QCN6024 | QCN6274 |
|---|---|---|
| PCIe Interface | PCIe 3.0 | Multi-channel PCIe 3.0 |
| Power Consumption | ~6.6W | ~13–14W |
| System Complexity | Lower | Higher |
The higher power draw of QCN6274 comes from:
- Additional RF chains
- 6GHz support
- Larger bandwidth processing
- MLO computation requirements
4. Application Scenarios
QCN6024
QCN6024 remains an excellent solution for:
- Home routers
- SMB networking
- Smart home systems
- Standard enterprise APs
It offers:
- Good balance between performance and cost
- Lower power consumption
- Mature Wi-Fi 6 ecosystem
Suitable for:
- 4K streaming
- General gaming
- Video conferencing
- Daily wireless networking
QCN6274
QCN6274 is designed for demanding next-generation environments:
- Enterprise Wi-Fi 7 APs
- Industrial wireless systems
- High-density public Wi-Fi
- Gaming networks
- Smart factories
- AGV/robotics communication
- AI edge gateways
Its strengths include:
- Extremely high throughput
- Ultra-low latency
- Massive device concurrency
- Advanced roaming capability
- Better wireless stability under load
The trade-offs are:
- Higher hardware cost
- Higher power consumption
- More advanced thermal requirements
5. Conclusion
The difference between QCN6274 and QCN6024 is far more than a simple speed upgrade — it represents a complete generational leap in wireless technology.
Key Differences
Different Wireless Standards
- QCN6024: Wi-Fi 6 (802.11ax)
- QCN6274: Wi-Fi 7 (802.11be)
Different Hardware Architectures
- Dual-band legacy design vs advanced tri-band architecture
Significant Performance Improvements
- Wider bandwidth
- Higher modulation efficiency
- Lower latency
- MLO support
- Better concurrency
Different Market Positioning
- Cost-effective mainstream networking
- Future-oriented high-performance wireless infrastructure
QCN6024 represents the maturity and stability of the Wi-Fi 6 era, while QCN6274 marks the beginning of next-generation Wi-Fi 7 networking focused on ultra-low latency, multi-link operation, and high-density wireless connectivity.
