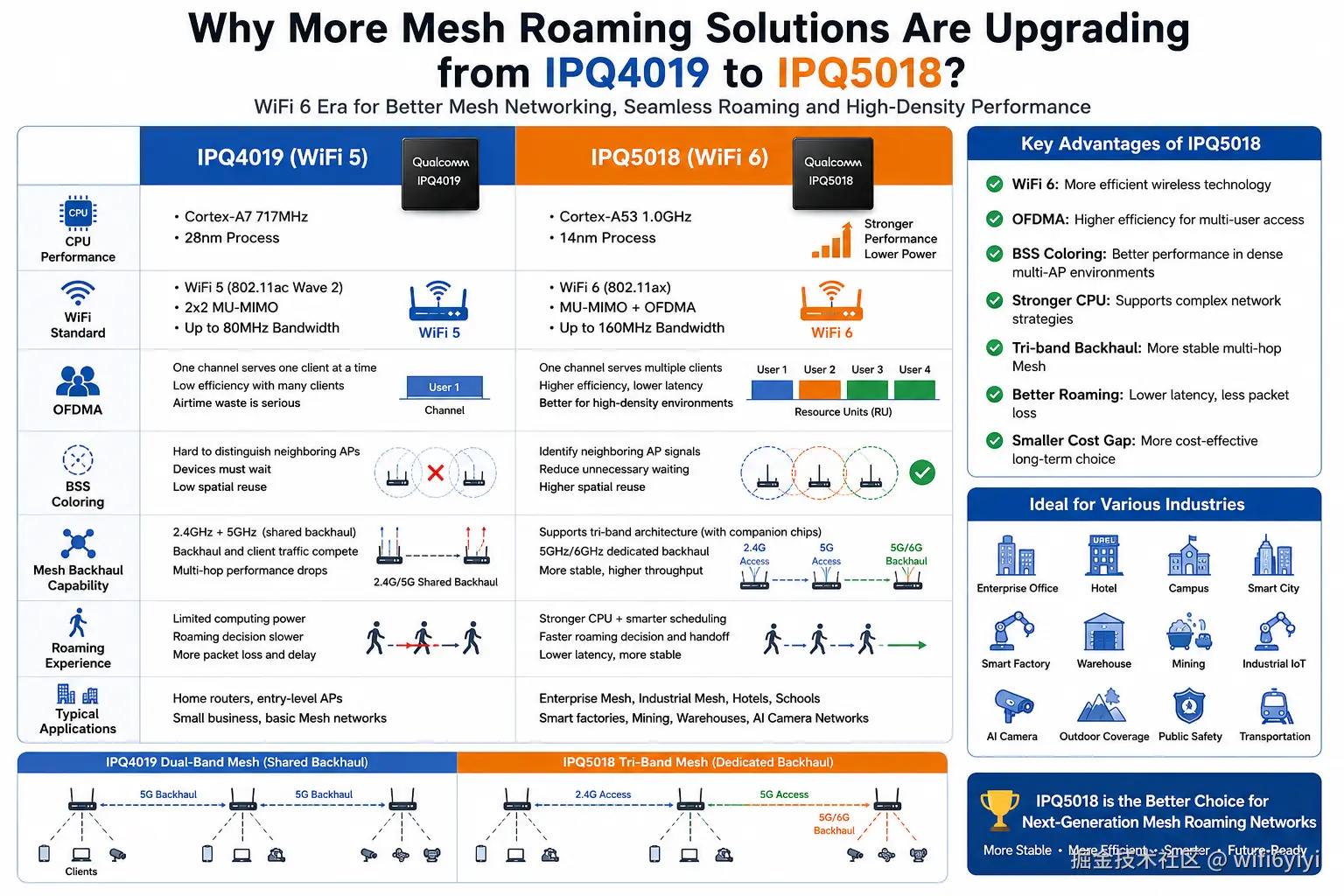

Why IPQ5018 Is Gradually Replacing IPQ4019 for Mesh Roaming Networks
As enterprise and industrial wireless networks continue evolving, more manufacturers and solution providers are migrating from Qualcomm IPQ4019 platforms to IPQ5018-based Mesh Roaming solutions.
This transition is not simply an upgrade from WiFi 5 to WiFi 6.
It reflects a major shift in how modern wireless networks are designed for:
- Seamless roaming
- Multi-node Mesh networking
- High-density client environments
- Industrial automation
- Low-latency applications
- Dedicated wireless backhaul
Today, IPQ5018 has become one of the most popular platforms for next-generation Mesh and Roaming deployments.
What Is Qualcomm IPQ4019?
The Qualcomm IPQ4019 is a classic WiFi 5 (802.11ac Wave 2) networking SoC widely used in:
- Home routers
- Entry-level enterprise APs
- Mesh WiFi systems
- Industrial wireless gateways
Key features of IPQ4019:
- Dual-band WiFi 5
- 2x2 MU-MIMO
- Cortex-A7 CPU
- 717MHz architecture
- 80MHz bandwidth support
For many years, IPQ4019 was considered an excellent low-cost Mesh platform.
However, modern roaming and Mesh requirements are now pushing beyond the limitations of WiFi 5 architectures.
What Makes IPQ5018 Different?
The Qualcomm IPQ5018 is a newer WiFi 6 networking platform designed for:
- High-density wireless environments
- Low-latency applications
- Large-scale Mesh deployments
- Industrial wireless systems
- Smart city and IoT networking
Key advantages include:
- WiFi 6 (802.11ax)
- OFDMA support
- BSS Coloring
- Target Wake Time (TWT)
- Higher CPU performance
- Better roaming coordination
- Improved wireless scheduling
This is why many new enterprise Mesh systems are shifting toward IPQ5018-based designs.
Why Mesh Networks Are Moving from IPQ4019 to IPQ5018
1. WiFi 6 Is Better for Mesh Networking
Traditional WiFi 5 networks mainly focused on peak throughput.
But Mesh systems require much more:
- Stable wireless backhaul
- Low roaming latency
- Better airtime efficiency
- Multi-user scheduling
- Reduced interference
WiFi 6 technologies inside IPQ5018 solve many of these issues directly.
Especially in environments such as:
- Hotels
- Warehouses
- Schools
- Smart factories
- Mining sites
- Outdoor wireless coverage
WiFi 6 delivers significantly better network stability than WiFi 5 Mesh systems.
2. OFDMA Greatly Improves Mesh Efficiency
One of the biggest reasons IPQ5018 is replacing IPQ4019 is OFDMA.
IPQ4019 (WiFi 5)
In WiFi 5:
- One client occupies the entire channel during transmission
- Small packets waste airtime
- Many IoT devices create congestion
- Mesh backhaul becomes unstable
IPQ5018 (WiFi 6)
With OFDMA:
- One channel is divided into multiple Resource Units (RU)
- Multiple devices communicate simultaneously
- Airtime usage becomes far more efficient
- Roaming management packets respond faster
This dramatically improves:
- Voice roaming
- Video streaming
- AGV robot communication
- AI camera systems
- Industrial IoT
3. BSS Coloring Improves Dense Mesh Deployments
Dense AP deployments are a major challenge for Mesh systems.
Problem with IPQ4019
In WiFi 5:
- Neighboring AP transmissions trigger unnecessary channel waiting
- More Mesh nodes reduce total efficiency
This becomes problematic in:
- Apartments
- Hotels
- Campuses
- Shopping malls
Advantage of IPQ5018
WiFi 6 introduces BSS Coloring:
- APs can identify neighboring traffic
- Devices avoid unnecessary waiting
- Spatial reuse improves dramatically
This allows much better performance in multi-AP environments.
4. IPQ4019 CPU Performance Is Becoming a Bottleneck
Modern roaming systems require far more processing power than older WiFi networks.
IPQ4019 CPU
- Cortex-A7
- 717MHz
- Older 28nm architecture
IPQ5018 CPU
- Cortex-A53
- 1GHz
- More efficient 14nm process
Although clock speeds look similar, the architectural improvement is massive.
Modern Mesh systems now require:
- EasyMesh
- 802.11k/v/r
- Band steering
- Load balancing
- Cloud management
- QoS optimization
- VPN services
- Fast transition management
Under heavy client loads, IPQ4019 can experience:
- High CPU usage
- Roaming delays
- Backhaul jitter
- Management latency
IPQ5018 handles these workloads much more effectively.
5. IPQ5018 Supports Better Tri-Band Mesh Architecture
One major limitation of IPQ4019 is wireless backhaul sharing.
Typically:
- 2.4GHz serves clients
- 5GHz serves both clients and Mesh backhaul
This reduces throughput significantly in multi-hop Mesh networks.
IPQ5018 platforms can integrate:
- QCN6102
- QCN6122
This enables:
- Dedicated 5GHz backhaul
- 6GHz backhaul
- Tri-band Mesh architecture
As a result:
- Wireless backhaul becomes more stable
- Multi-hop performance improves
- Roaming quality increases
Dedicated backhaul is now becoming standard in modern enterprise Mesh systems.
6. Roaming Quality Depends on Scheduling and Intelligence
Many people believe fast roaming only depends on 802.11r.
In reality, roaming performance depends on:
- RSSI decision algorithms
- Airtime fairness
- Neighbor reports
- Client steering
- Packet queue optimization
- Load balancing
These features require both:
- Better CPU capability
- Better WiFi scheduling technology
IPQ5018 is significantly more capable in these areas.
7. The Cost Difference Is Shrinking
Previously, IPQ4019 had a major price advantage.
But today:
- WiFi 5 demand is declining
- WiFi 6 production scale is increasing
- IPQ4019 is approaching platform aging
As a result:
- The price gap between IPQ4019 and IPQ5018 is becoming smaller
- But performance differences are becoming much larger
This makes IPQ5018 a better long-term investment for manufacturers and system integrators.
8. Industrial and Outdoor Mesh Networks Are Rapidly Upgrading
Industrial wireless environments have strict requirements:
- Stable roaming
- Low latency
- Long uptime
- Reliable multi-hop Mesh
Applications include:
- Mining networks
- Oil field communication
- Smart factories
- Outdoor surveillance
- Warehouse automation
- Autonomous robots
IPQ5018 performs better because of:
- OFDMA
- BSS Coloring
- Higher processing capability
- Better backhaul efficiency
This is why many industrial wireless vendors are now adopting IPQ5018-based Mesh solutions.
Conclusion
The migration from IPQ4019 to IPQ5018 is becoming inevitable for modern Mesh Roaming networks.
While IPQ4019 remains suitable for basic WiFi 5 deployments, IPQ5018 provides major advantages for:
- Enterprise Mesh
- Industrial wireless
- High-density roaming
- Outdoor Mesh systems
- AI camera networks
- Smart city deployments
With WiFi 6 technologies such as OFDMA and BSS Coloring, combined with stronger CPU performance and dedicated backhaul capabilities, IPQ5018 has become one of the best platforms for next-generation Mesh networking.
For manufacturers, ISPs, system integrators, and industrial wireless providers, IPQ5018 offers a more scalable and future-ready solution than IPQ4019.
