说明
在计算机视觉领域，图像分割一直是一项极具挑战性的任务。传统方法往往需要大量标注数据、长时间模型训练，以及针对不同物体类别的反复微调。但今天，这一切将被彻底改变——INSID3 横空出世，它以一种全新的 In-Context（上下文学习） 范式，让你仅需提供一张参考图像和其掩码，就能在任意目标图像中精准分割出同款物体，完全无需任何训练！
更令人兴奋的是，通过 ONNX Runtime 的加持，我们可以将 INSID3 高效地部署 到生产环境中，实现跨平台、跨语言的高性能推理。本文将从零开始，带你了解 INSID3 的原理、优势，并手把手教你如何使用 Python + ONNX Runtime 快速部署 INSID3，让你轻松拥有一次标注、处处分割的“超能力”。
INSID3（In-context Segmentation with a Non‑trainable DINOv3 encoder）是一种无需训练的分割模型，它的核心思想非常简单：
利用一个冻结的大型视觉编码器（DINOv3）提取图像特征，然后通过巧妙的特征匹配和聚类机制，将参考物体的语义“传递”到目标图像上。
换句话说，你只需要在参考图上勾画或选择一个物体，INSID3 就能自动在其他图像中找到同样的物体，并生成精确的分割掩码。整个过程没有训练、没有梯度下降、不依赖特定类别，真正做到了开箱即用、万物皆可分割。

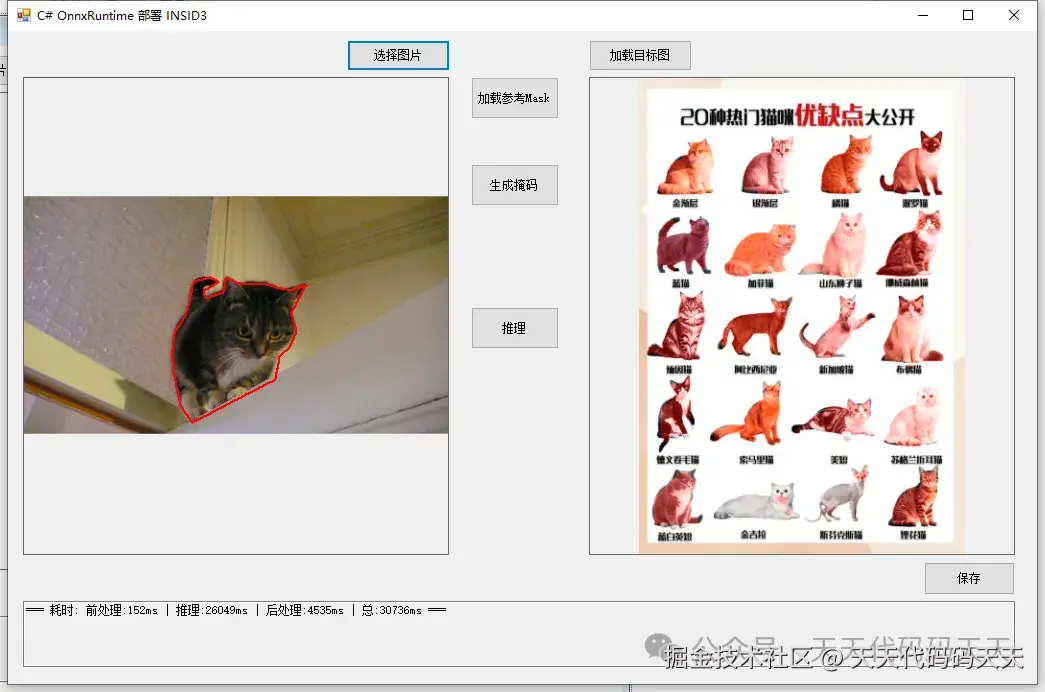

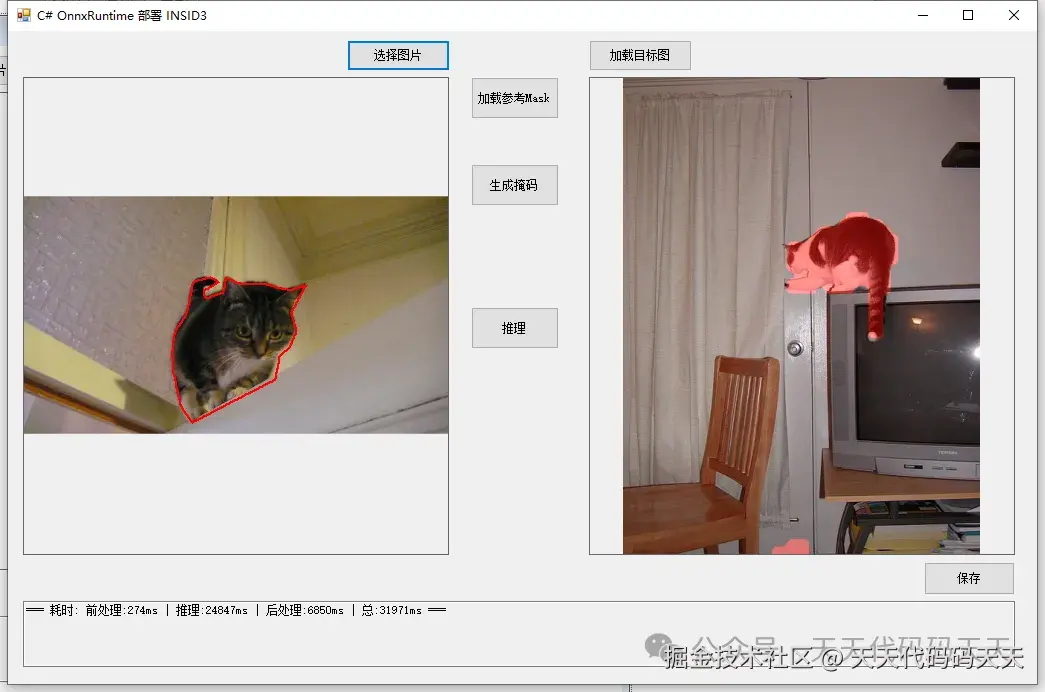

效果
C# CPU版本速度有点慢，需要提速可以上GPU！
模型信息
Model Properties
-------------------------
---------------------------------------------------------------
Inputs
-------------------------
name：imgs
tensor：Float[-1, 3, 1024, 1024]
---------------------------------------------------------------
Outputs
-------------------------
name：f_norm
tensor：Float[-1, 1024, 64, 64]
name：f_debias
tensor：Float[-1, 1024, 64, 64]
---------------------------------------------------------------

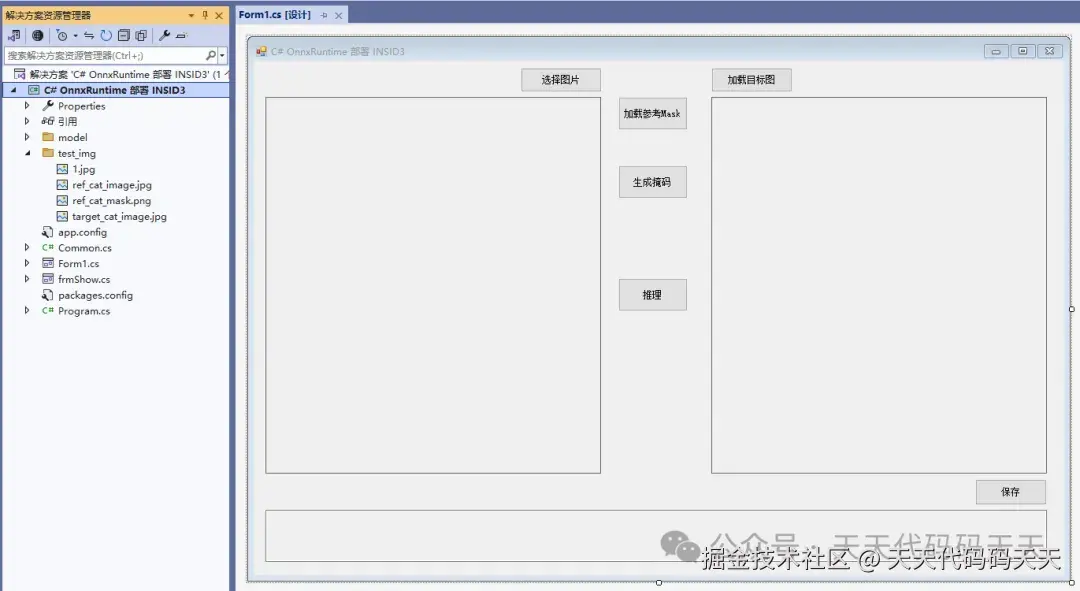

项目
代码
using Microsoft.ML.OnnxRuntime;
using Microsoft.ML.OnnxRuntime.Tensors;
using OpenCvSharp;
using System;
using System.Collections.Generic;
using System.Drawing;
using System.IO;
using System.Linq;
using System.Threading.Tasks;
using System.Windows.Forms;
namespace Onnx_Demo
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
string fileFilter = "*.*|*.bmp;*.jpg;*.jpeg;*.tiff;*.tiff;*.png";
string image_path = "";
string startupPath;
string model_path;
Mat refImage;
Mat tgtImage;
Mat refMask;
List<System.Drawing.Point> polyPoints = new List<System.Drawing.Point>();
SessionOptions options;
InferenceSession onnx_session;
bool log = false;
private Rectangle imageRect = Rectangle.Empty;
// INSID3 参数
private const int ModelSize = 1024;
private const int FeatC = 1024, FeatH = 64, FeatW = 64;
private readonly float[] mean = { 0.485f, 0.456f, 0.406f };
private readonly float[] std = { 0.229f, 0.224f, 0.225f };
public float CandidateSigma = 0.5f;
public float PixelSimSigma = 0.5f;
public float ClusterScoreRatio = 0.6f;
private void Form1_Load(object sender, EventArgs e)
{
startupPath = Application.StartupPath;
model_path = "model/insid3_encoder.onnx";
options = new SessionOptions();
options.LogSeverityLevel = OrtLoggingLevel.ORT_LOGGING_LEVEL_WARNING;
options.AppendExecutionProvider_CPU(0);
options.GraphOptimizationLevel = GraphOptimizationLevel.ORT_ENABLE_ALL;
options.IntraOpNumThreads = Environment.ProcessorCount;
options.EnableMemoryPattern = true;
onnx_session = new InferenceSession(model_path, options);
pictureBox1.MouseDown += PictureBox1_MouseDown;
pictureBox1.Paint += PictureBox1_Paint;
}
private void PictureBox1_MouseDown(object sender, MouseEventArgs e)
{
if (refImage == null || imageRect == Rectangle.Empty) return;
if (!imageRect.Contains(e.Location)) return;
if (e.Button == MouseButtons.Left)
{
polyPoints.Add(e.Location);
pictureBox1.Invalidate();
}
else if (e.Button == MouseButtons.Right)
{
if (polyPoints.Count == 0) return;
float minDist = float.MaxValue; int idx = -1;
for (int i = 0; i < polyPoints.Count; i++)
{
float d = (polyPoints[i].X - e.X) * (polyPoints[i].X - e.X) + (polyPoints[i].Y - e.Y) * (polyPoints[i].Y - e.Y);
if (d < minDist) { minDist = d; idx = i; }
}
if (idx >= 0) { polyPoints.RemoveAt(idx); pictureBox1.Invalidate(); }
}
}
private void PictureBox1_Paint(object sender, PaintEventArgs e)
{
// 绘制 mask 叠加层（只绘制有效图像区域，忽略 letterbox 黑边）
if (refMask != null && !refMask.Empty() && imageRect != Rectangle.Empty)
{
// 计算 letterbox 参数（与推理时一致）
float scale = ModelSize / (float)Math.Max(refImage.Width, refImage.Height);
int nw = (int)(refImage.Width * scale);
int nh = (int)(refImage.Height * scale);
int dx = (ModelSize - nw) / 2;
int dy = (ModelSize - nh) / 2;
// 从完整 1024x1024 mask 中裁剪出图像区域
using (Mat roi = new Mat(refMask, new Rect(dx, dy, nw, nh)))
using (Mat resized = new Mat())
{
Cv2.Resize(roi, resized, new OpenCvSharp.Size(imageRect.Width, imageRect.Height), 0, 0, InterpolationFlags.Nearest);
Cv2.Threshold(resized, resized, 128, 255, ThresholdTypes.Binary);
OpenCvSharp.Point[][] contours; HierarchyIndex[] hier;
Cv2.FindContours(resized, out contours, out hier, RetrievalModes.External, ContourApproximationModes.ApproxSimple);
using (Pen p = new Pen(Color.Red, 2))
foreach (var c in contours)
if (c.Length >= 2)
{
var pts = c.Select(pt => new System.Drawing.Point(imageRect.X + pt.X, imageRect.Y + pt.Y)).ToArray();
e.Graphics.DrawPolygon(p, pts);
}
}
}
// 用户多边形（控件坐标）
if (polyPoints.Count == 0) return;
using (Pen p = new Pen(Color.Green, 3))
using (Brush b = new SolidBrush(Color.Lime))
{
foreach (var pt in polyPoints) e.Graphics.FillEllipse(b, pt.X - 4, pt.Y - 4, 8, 8);
if (polyPoints.Count > 1) e.Graphics.DrawLines(p, polyPoints.ToArray());
}
}
private void button1_Click(object sender, EventArgs e)
{
using (OpenFileDialog ofd = new OpenFileDialog()) { ofd.Filter = fileFilter; if (ofd.ShowDialog() != DialogResult.OK) return; image_path = ofd.FileName; }
refImage = Cv2.ImRead(image_path);
// 计算保持比例的显示区域
float scale = Math.Min((float)pictureBox1.Width / refImage.Width, (float)pictureBox1.Height / refImage.Height);
int dispW = (int)(refImage.Width * scale);
int dispH = (int)(refImage.Height * scale);
imageRect = new Rectangle(
(pictureBox1.Width - dispW) / 2,
(pictureBox1.Height - dispH) / 2,
dispW,
dispH);
// 绘制不拉伸的图片
Bitmap bmp = new Bitmap(pictureBox1.Width, pictureBox1.Height);
using (Graphics g = Graphics.FromImage(bmp))
{
g.Clear(SystemColors.Control);
using (Mat disp = new Mat())
{
Cv2.Resize(refImage, disp, new OpenCvSharp.Size(dispW, dispH));
using (var ms = disp.ToMemoryStream())
using (var img = System.Drawing.Image.FromStream(ms))
{
g.DrawImage(img, imageRect);
}
}
}
pictureBox1.Image = bmp;
polyPoints.Clear(); refMask = null; textBox1.Text = "";
}
private void button2_Click(object sender, EventArgs e)
{
using (OpenFileDialog ofd = new OpenFileDialog())
{
ofd.Filter = fileFilter;
if (ofd.ShowDialog() != DialogResult.OK) return;
tgtImage = Cv2.ImRead(ofd.FileName);
pictureBox2.Image = new Bitmap(tgtImage.ToMemoryStream());
}
textBox1.Text = "目标图像已加载";
}
private void button4_Click(object sender, EventArgs e)
{
if (refImage == null) { MessageBox.Show("请先加载参考图像"); return; }
using (OpenFileDialog ofd = new OpenFileDialog())
{
ofd.Filter = "Mask|*.png;*.jpg;*.bmp";
if (ofd.ShowDialog() != DialogResult.OK) return;
using (Mat m = Cv2.ImRead(ofd.FileName, ImreadModes.Grayscale))
{
// 外部 mask 必须与 letterbox 对齐，不能直接 resize
// 这里按原图尺寸处理，再转为 letterbox 后的 mask
refMask = LetterboxMask(m, refImage.Width, refImage.Height);
}
}
pictureBox1.Invalidate();
}
private void button5_Click(object sender, EventArgs e)
{
if (refImage == null || polyPoints.Count < 3) { MessageBox.Show("至少需要3个顶点"); return; }
if (imageRect == Rectangle.Empty) return;
float displayScale = (float)imageRect.Width / refImage.Width; // 显示缩放比例
// 1. 映射到原始图像坐标
var ptsOnImage = polyPoints.Select(p => new PointF(
(p.X - imageRect.X) / displayScale,
(p.Y - imageRect.Y) / displayScale)).ToList();
// 2. 计算 letterbox 参数（与推理完全一致）
float modelScale = ModelSize / (float)Math.Max(refImage.Width, refImage.Height);
int nw = (int)(refImage.Width * modelScale);
int nh = (int)(refImage.Height * modelScale);
int dx = (ModelSize - nw) / 2;
int dy = (ModelSize - nh) / 2;
// 3. 映射到 1024x1024 空间（加上填充偏移）
var modelPts = ptsOnImage.Select(p => new OpenCvSharp.Point(
(int)(p.X * modelScale + dx),
(int)(p.Y * modelScale + dy))).ToList();
// 4. 生成掩码
refMask = new Mat(ModelSize, ModelSize, MatType.CV_8UC1, Scalar.All(0));
Cv2.FillPoly(refMask, new List<List<OpenCvSharp.Point>> { modelPts }, Scalar.All(255));
pictureBox1.Invalidate();
}
private Mat LetterboxMask(Mat mask, int imgW, int imgH)
{
float scale = ModelSize / (float)Math.Max(imgW, imgH);
int nw = (int)(imgW * scale);
int nh = (int)(imgH * scale);
int dx = (ModelSize - nw) / 2;
int dy = (ModelSize - nh) / 2;
using (Mat resized = new Mat())
using (Mat canvas = new Mat(ModelSize, ModelSize, MatType.CV_8UC1, Scalar.All(0)))
{
Cv2.Resize(mask, resized, new OpenCvSharp.Size(nw, nh));
resized.CopyTo(canvas[new Rect(dx, dy, nw, nh)]);
return canvas.Clone();
}
}
private async void button6_Click(object sender, EventArgs e)
{
if (refImage == null || refMask == null || tgtImage == null) { MessageBox.Show("请加载参考图、掩码、目标图"); return; }
button6.Enabled = false;
textBox1.Clear();
textBox1.Text = "开始推理……\n";
Application.DoEvents();
Cv2.ImWrite("refImage.jpg", refImage);
Cv2.ImWrite("refMask.jpg", refMask);
Mat resultMask = null;
TimeSpan preT = default, infT = default, postT = default, totalT = default;
await Task.Run(() =>
{
var swT = System.Diagnostics.Stopwatch.StartNew();
var sw = System.Diagnostics.Stopwatch.StartNew();
float[] refIn = LetterboxAndNormalize(refImage, out _, out _, out _, out _, out int refOw, out int refOh);
float[] tgtIn = LetterboxAndNormalize(tgtImage, out int dxT, out int dyT, out int nwT, out int nhT, out int tgtOw, out int tgtOh);
PrintTensorStats("refIn_normalized", refIn, new[] { 3, ModelSize, ModelSize });
PrintTensorStats("tgtIn_normalized", tgtIn, new[] { 3, ModelSize, ModelSize });
SaveArrayToFile("refIn", refIn);
SaveArrayToFile("tgtIn", tgtIn);
float[] combined = new float[2 * 3 * ModelSize * ModelSize];
Buffer.BlockCopy(refIn, 0, combined, 0, refIn.Length * sizeof(float));
Buffer.BlockCopy(tgtIn, 0, combined, 3 * ModelSize * ModelSize * sizeof(float), tgtIn.Length * sizeof(float));
preT = sw.Elapsed;
sw.Restart();
var inputTensor = new DenseTensor<float>(combined, new[] { 2, 3, ModelSize, ModelSize });
var inputs = new List<NamedOnnxValue> { NamedOnnxValue.CreateFromTensor("imgs", inputTensor) };
using (var results = onnx_session.Run(inputs))
{
var fNorm = results[0].AsTensor<float>();
var fDebias = results[1].AsTensor<float>();
PrintTensorStats("fNorm_output", fNorm);
PrintTensorStats("fDebias_output", fDebias);
SaveArrayToFile("fNorm", fNorm.ToArray());
SaveArrayToFile("fDebias", fDebias.ToArray());
SafeLog($"[Shape] fNorm: [{string.Join(",", fNorm.Dimensions.ToArray())}]");
SafeLog($"[Shape] fDebias: [{string.Join(",", fDebias.Dimensions.ToArray())}]");
SafeLog($"fNorm_output mean={fNorm.ToArray().Average():F4}, std={Math.Sqrt(fNorm.ToArray().Select(v => v * v).Average()):F4}");
SafeLog($"fDebias_output mean={fDebias.ToArray().Average():F4}, std={Math.Sqrt(fDebias.ToArray().Select(v => v * v).Average()):F4}");
infT = sw.Elapsed;
sw.Restart();
float[][] refNormNC = ToFlatFeaturesNC(fNorm, 0);
float[][] refDebNC = ToFlatFeaturesNC(fDebias, 0);
float[][] tgtNormNC = ToFlatFeaturesNC(fNorm, 1);
float[][] tgtDebNC = ToFlatFeaturesNC(fDebias, 1);
PrintTensorStats("refDebNC_flat", refDebNC);
PrintTensorStats("tgtDebNC_flat", tgtDebNC);
float[] refMask64 = ResizeMaskFlat(refMask, FeatH, FeatW);
PrintTensorStats("refMask_64x64", refMask64, new[] { FeatH, FeatW });
float[] refProto = ComputePrototypeFlat(refDebNC, refMask64);
PrintTensorStats("refProto", refProto, new[] { FeatC });
SaveArrayToFile("refProto", refProto);
int N = FeatH * FeatW;
float[] simFwd = new float[N];
for (int i = 0; i < N; i++)
{
float dot = 0; for (int c = 0; c < FeatC; c++) dot += tgtDebNC[i][c] * refProto[c];
simFwd[i] = dot;
}
PrintTensorStats("simFwd", simFwd, new[] { FeatH, FeatW });
SaveArrayToFile("simFwd", simFwd);
bool[] candidate = LocateCandidatesFlat(refDebNC, refMask64, tgtDebNC, simFwd);
PrintTensorStats("candidate_mask", candidate.Select(b => b ? 1f : 0f).ToArray(), new[] { FeatH, FeatW });
int[] clusterLabels = ClusterFeatures(tgtNormNC, 0.6f);
PrintTensorStats("clusterLabels", clusterLabels.Select(l => (float)l).ToArray(), new[] { FeatH, FeatW });
bool[] final64 = SeedAndAggregateFlat(candidate, clusterLabels, tgtNormNC, tgtDebNC, refProto, simFwd);
PrintTensorStats("final64_mask", final64.Select(b => b ? 1f : 0f).ToArray(), new[] { FeatH, FeatW });
SaveArrayToFile("final64", final64.Select(b => b ? 1f : 0f).ToArray());
//bool[] final64 = SeedAndAggregateFlat(candidate, clusterLabels, tgtNormNC, tgtDebNC, refProto, simFwd);
//final64 = CleanMask64(final64); // 🔑 新增：形态学去噪
//PrintTensorStats("final64_mask", final64.Select(b => b ? 1f : 0f).ToArray(), new[] { FeatH, FeatW });
float[] mask1024 = BilinearUpsampleFlat(final64, FeatH, FeatW, ModelSize, ModelSize);
PrintTensorStats("mask1024_upsampled", mask1024, new[] { ModelSize, ModelSize });
SaveArrayToFile("mask1024", mask1024);
resultMask = RecoverOriginalMask(mask1024, dxT, dyT, nwT, nhT, tgtOw, tgtOh);
Cv2.ImWrite("resultMask.jpg", resultMask);
byte[] maskBytes;
resultMask.GetArray(out maskBytes);
float[] maskFloats = Array.ConvertAll(maskBytes, b => b / 255f);
PrintTensorStats("resultMask_final", maskFloats, new[] { resultMask.Height, resultMask.Width });
}
postT = sw.Elapsed; totalT = swT.Elapsed;
});
if (resultMask != null)
{
using (Mat ov = OverlayMask(tgtImage, resultMask))
using (var ms = ov.ToMemoryStream()) { pictureBox2.Image = new Bitmap(ms); }
resultMask.Dispose();
}
textBox1.Text = $"\n=== 耗时: 前处理:{preT.TotalMilliseconds:F0}ms | 推理:{infT.TotalMilliseconds:F0}ms | 后处理:{postT.TotalMilliseconds:F0}ms | 总:{totalT.TotalMilliseconds:F0}ms ===\n";
button6.Enabled = true;
}
private void button3_Click(object sender, EventArgs e)
{
if (pictureBox2.Image == null) return;
using (SaveFileDialog s = new SaveFileDialog()) { s.Filter = "PNG|*.png"; if (s.ShowDialog() == DialogResult.OK) pictureBox2.Image.Save(s.FileName); }
}
private float[] LetterboxAndNormalize(Mat src, out int dx, out int dy, out int nw, out int nh, out int ow, out int oh)
{
ow = src.Width; oh = src.Height;
float scale = ModelSize / (float)Math.Max(ow, oh);
nw = (int)(ow * scale); nh = (int)(oh * scale);
dx = (ModelSize - nw) / 2; dy = (ModelSize - nh) / 2;
using (Mat resized = new Mat())
using (Mat canvas = new Mat(ModelSize, ModelSize, MatType.CV_8UC3, Scalar.All(0)))
using (Mat rgb = new Mat())
{
Cv2.Resize(src, resized, new OpenCvSharp.Size(nw, nh));
resized.CopyTo(canvas[new Rect(dx, dy, nw, nh)]);
Cv2.CvtColor(canvas, rgb, ColorConversionCodes.BGR2RGB);
float[] outF = new float[3 * ModelSize * ModelSize];
for (int c = 0; c < 3; c++)
{
int chOffset = c * ModelSize * ModelSize;
for (int y = 0; y < ModelSize; y++)
{
int rowOffset = y * ModelSize;
for (int x = 0; x < ModelSize; x++)
{
float val = rgb.At<Vec3b>(y, x)[c] / 255.0f;
outF[chOffset + rowOffset + x] = (val - mean[c]) / std[c];
}
}
}
return outF;
}
}
private float[][] ToFlatFeaturesNC(Tensor<float> t, int b)
{
var dims = t.Dimensions.ToArray();
if (dims.Length != 4 || dims[0] < 2 || dims[1] != FeatC || dims[2] != FeatH || dims[3] != FeatW)
{
SafeLog($"Tensor维度异常: [{string.Join(",", dims)}]，预期 [N,1024,64,64]");
}
int C = dims[1], H = dims[2], W = dims[3];
int N = H * W;
float[][] f = new float[N][];
float[] flat = t.ToArray();
int batchOffset = b * C * H * W;
for (int i = 0; i < N; i++)
{
int y = i / W, x = i % W;
f[i] = new float[C];
int spatialOffset = y * W + x;
for (int c = 0; c < C; c++)
{
f[i][c] = flat[batchOffset + c * H * W + spatialOffset];
}
}
return f;
}
private float[] ResizeMaskFlat(Mat m, int h, int w)
{
using (Mat r = new Mat())
{
Cv2.Resize(m, r, new OpenCvSharp.Size(w, h), 0, 0, InterpolationFlags.Nearest);
float[] res = new float[h * w];
for (int y = 0; y < h; y++) for (int x = 0; x < w; x++) res[y * w + x] = r.At<byte>(y, x) > 128 ? 1f : 0f;
return res;
}
}
private float[] ComputePrototypeFlat(float[][] debNC, float[] mask)
{
int N = mask.Length;
float[] p = new float[FeatC]; int cnt = 0;
for (int i = 0; i < N; i++)
{
if (mask[i] > 0) { for (int c = 0; c < FeatC; c++) p[c] += debNC[i][c]; cnt++; }
}
if (cnt == 0) return p;
float inv = 1f / cnt; for (int c = 0; c < FeatC; c++) p[c] *= inv;
float norm = (float)Math.Sqrt(p.Sum(v => v * v));
if (norm > 0) for (int c = 0; c < FeatC; c++) p[c] /= norm;
return p;
}
private bool[] LocateCandidatesFlat(float[][] refDeb, float[] refMask, float[][] tgtDeb, float[] simFwd)
{
int N = FeatH * FeatW;
//自适应阈值替代固定分位数
float mean = 0f; foreach (var v in simFwd) mean += v; mean /= N;
float var = 0f; foreach (var v in simFwd) var += (v - mean) * (v - mean); var /= N;
float std = (float)Math.Sqrt(var);
// 仅保留显著高于背景均值 + 0.5倍标准差的区域 (约 top 25%)
float thr = mean + CandidateSigma * std;
bool[] fwd = new bool[N];
for (int i = 0; i < N; i++) fwd[i] = simFwd[i] > thr;
var fgIdx = new List<int>();
for (int i = 0; i < N; i++) if (refMask[i] > 0) fgIdx.Add(i);
int[] votes = new int[N];
for (int my = 0; my < N; my++)
{
int best = -1; float mx = float.MinValue;
foreach (int ry in fgIdx)
{
float dot = 0; for (int c = 0; c < FeatC; c++) dot += refDeb[ry][c] * tgtDeb[my][c];
if (dot > mx) { mx = dot; best = ry; }
}
if (best >= 0) votes[my] = 1;
}
bool[] cand = new bool[N];
for (int i = 0; i < N; i++) cand[i] = fwd[i] && votes[i] >= 1;
return cand;
}
private bool[] SeedAndAggregateFlat(bool[] candidate, int[] labels,
float[][] tgtNormNC, float[][] tgtDebNC, float[] refProto, float[] simFwd)
{
int N = FeatH * FeatW;
bool[] matched = new bool[N]; int mCnt = 0;
for (int i = 0; i < N; i++) if (candidate[i] && labels[i] >= 0) { matched[i] = true; mCnt++; }
if (mCnt == 0) return new bool[N];
var lblToK = new Dictionary<int, int>(); int K = 0;
for (int i = 0; i < N; i++) if (matched[i] && !lblToK.ContainsKey(labels[i])) lblToK[labels[i]] = K++;
if (K == 0) return new bool[N];
int[] mCounts = new int[K]; float[][] debSum = new float[K][];
for (int k = 0; k < K; k++) debSum[k] = new float[FeatC];
for (int i = 0; i < N; i++) if (matched[i])
{
int k = lblToK[labels[i]]; mCounts[k]++;
for (int c = 0; c < FeatC; c++) debSum[k][c] += tgtDebNC[i][c];
}
float[][] debProtos = new float[K][];
for (int k = 0; k < K; k++)
{
debProtos[k] = new float[FeatC];
if (mCounts[k] > 0) { float inv = 1f / mCounts[k]; for (int c = 0; c < FeatC; c++) debProtos[k][c] = debSum[k][c] * inv; }
}
int[] vCounts = new int[K];
for (int i = 0; i < N; i++) if (labels[i] >= 0 && lblToK.TryGetValue(labels[i], out int k)) vCounts[k]++;
float[] crossSim = new float[K];
for (int k = 0; k < K; k++) { float d = 0; for (int c = 0; c < FeatC; c++) d += debProtos[k][c] * refProto[c]; crossSim[k] = d; }
int seedK = 0; float mx = float.MinValue;
for (int k = 0; k < K; k++) if (crossSim[k] > mx) { mx = crossSim[k]; seedK = k; }
float[][] normSum = new float[K][]; for (int k = 0; k < K; k++) normSum[k] = new float[FeatC];
for (int i = 0; i < N; i++) if (labels[i] >= 0 && lblToK.TryGetValue(labels[i], out int k))
for (int c = 0; c < FeatC; c++) normSum[k][c] += tgtNormNC[i][c];
float[][] normProtos = new float[K][];
for (int k = 0; k < K; k++)
{
normProtos[k] = new float[FeatC];
if (vCounts[k] > 0) { float inv = 1f / vCounts[k]; for (int c = 0; c < FeatC; c++) normProtos[k][c] = normSum[k][c] * inv; }
float norm = (float)Math.Sqrt(normProtos[k].Sum(v => v * v)) + 1e-8f;
for (int c = 0; c < FeatC; c++) normProtos[k][c] /= norm;
}
float[] intraSim = new float[K]; float[] seedP = normProtos[seedK];
for (int k = 0; k < K; k++) { float d = 0; for (int c = 0; c < FeatC; c++) d += seedP[c] * normProtos[k][c]; intraSim[k] = d; }
float[] crossSum = new float[K];
for (int i = 0; i < N; i++) if (labels[i] >= 0 && lblToK.TryGetValue(labels[i], out int k)) crossSum[k] += simFwd[i];
float[] crossScore = new float[K];
for (int k = 0; k < K; k++) crossScore[k] = vCounts[k] > 0 ? crossSum[k] / vCounts[k] : 0f;
float[] areaW = new float[K];
for (int k = 0; k < K; k++) areaW[k] = vCounts[k] > 0 ? (float)mCounts[k] / vCounts[k] : 0f;
areaW[seedK] = 1.0f;
float[] combined = new float[K];
for (int k = 0; k < K; k++) combined[k] = crossScore[k] * intraSim[k] * areaW[k];
SafeLog($"[Seed] K={K} | seedK={seedK} | comb={combined[seedK]:F3}");
bool[] final = new bool[N];
//针对高位分布的 simFwd 收紧阈值
float sum = 0, sumSq = 0;
foreach (var v in simFwd) { sum += v; sumSq += v * v; }
float meanSim = sum / N;
float stdSim = (float)Math.Sqrt(sumSq / N - meanSim * meanSim);
// 像素阈值：均值 + 0.7倍标准差 (硬切 ~0.29 以上，精准拦截中等背景)
float pixelThresh = meanSim + PixelSimSigma * stdSim;
// 簇阈值：最高得分的 (只保留强相关主簇)
float bestComb = float.MinValue; for (int k = 0; k < K; k++) if (combined[k] > bestComb) bestComb = combined[k];
float clusterThresh = bestComb * ClusterScoreRatio;
for (int i = 0; i < N; i++)
{
if (labels[i] >= 0 && lblToK.TryGetValue(labels[i], out int k))
{
if (combined[k] > clusterThresh && simFwd[i] > pixelThresh)
final[i] = true;
}
}
for (int i = 0; i < N; i++)
{
if (labels[i] >= 0 && lblToK.TryGetValue(labels[i], out int k))
{
if (combined[k] > clusterThresh && simFwd[i] > pixelThresh)
final[i] = true;
}
}
// 连通域过滤，切除远处孤立小块
// 找 seedK 簇中任意一个点作为种子（用于连通域搜索）
//int seedPoint = -1;
//for (int i = 0; i < N; i++)
//{
// if (labels[i] == seedK && final[i]) { seedPoint = i; break; }
//}
//if (seedPoint >= 0)
//{
// final = KeepLargestConnectedComponent(final, seedPoint);
// SafeLog($"[Connectivity] Kept component with seed@{seedPoint}");
//}
return final;
}
// 连通域过滤：只保留包含种子点的最大连通区域，切除远处孤立小块
private bool[] KeepLargestConnectedComponent(bool[] mask, int seedIdx)
{
int H = FeatH, W = FeatW, N = H * W;
if (!mask[seedIdx]) return new bool[N]; // 种子点本身被过滤则直接返回空
// BFS 找种子点所在的连通域
bool[] visited = new bool[N];
Queue<int> queue = new Queue<int>();
queue.Enqueue(seedIdx);
visited[seedIdx] = true;
List<int> component = new List<int>();
int[] dx = { -1, 1, 0, 0 }, dy = { 0, 0, -1, 1 }; // 4邻域
while (queue.Count > 0)
{
int cur = queue.Dequeue();
component.Add(cur);
int cy = cur / W, cx = cur % W;
for (int d = 0; d < 4; d++)
{
int ny = cy + dy[d], nx = cx + dx[d];
if (ny < 0 || ny >= H || nx < 0 || nx >= W) continue;
int ni = ny * W + nx;
if (mask[ni] && !visited[ni])
{
visited[ni] = true;
queue.Enqueue(ni);
}
}
}
// 生成新掩码：仅保留该连通域
bool[] result = new bool[N];
foreach (int idx in component) result[idx] = true;
return result;
}
private int[] ClusterFeatures(float[][] featsNC, float tau)
{
int N = featsNC.Length;
const int K = 6;
int[] labels = new int[N];
float[][] centroids = new float[K][];
float[][] normFeats = new float[N][];
for (int i = 0; i < N; i++)
{
float s = 0;
for (int c = 0; c < FeatC; c++) s += featsNC[i][c] * featsNC[i][c];
float inv = 1f / (float)Math.Sqrt(s) + 1e-8f;
normFeats[i] = new float[FeatC];
for (int c = 0; c < FeatC; c++) normFeats[i][c] = featsNC[i][c] * inv;
}
System.Random rand = new System.Random(42);
centroids[0] = normFeats[rand.Next(N)];
for (int k = 1; k < K; k++)
{
float[] dists = new float[N];
float sum = 0;
for (int i = 0; i < N; i++)
{
float minD = float.MaxValue;
for (int c = 0; c < k; c++)
{
float d = 0;
var ci = centroids[c]; var fi = normFeats[i];
for (int j = 0; j < FeatC; j++) { float v = fi[j] - ci[j]; d += v * v; }
if (d < minD) minD = d;
}
dists[i] = minD; sum += minD;
}
float r = (float)rand.NextDouble() * sum;
float cum = 0;
for (int i = 0; i < N; i++) { cum += dists[i]; if (cum >= r) { centroids[k] = normFeats[i]; break; } }
}
for (int iter = 0; iter < 10; iter++)
{
for (int i = 0; i < N; i++)
{
int bestK = 0; float minD = float.MaxValue;
for (int k = 0; k < K; k++)
{
float d = 0;
var ck = centroids[k]; var fi = normFeats[i];
for (int c = 0; c < FeatC; c++) { float v = fi[c] - ck[c]; d += v * v; }
if (d < minD) { minD = d; bestK = k; }
}
labels[i] = bestK;
}
int[] counts = new int[K];
float[][] sums = new float[K][];
for (int k = 0; k < K; k++) sums[k] = new float[FeatC];
for (int i = 0; i < N; i++)
{
int k = labels[i]; counts[k]++;
for (int c = 0; c < FeatC; c++) sums[k][c] += normFeats[i][c];
}
for (int k = 0; k < K; k++)
{
if (counts[k] == 0) continue;
float inv = 1f / counts[k];
for (int c = 0; c < FeatC; c++) centroids[k][c] = sums[k][c] * inv;
}
}
int[] cnt = new int[K];
for (int i = 0; i < N; i++) if (labels[i] >= 0) cnt[labels[i]]++;
int curLbl = 0;
int[] map = new int[K];
for (int i = 0; i < K; i++) map[i] = -1;
for (int i = 0; i < N; i++)
{
int l = labels[i];
if (cnt[l] < 30) { labels[i] = -1; continue; }
if (map[l] == -1) map[l] = curLbl++;
labels[i] = map[l];
}
return labels;
}
private float[] BilinearUpsampleFlat(bool[] mask, int sh, int sw, int dh, int dw)
{
float[] res = new float[dh * dw];
for (int ty = 0; ty < dh; ty++) for (int tx = 0; tx < dw; tx++)
{
float sx = (tx + 0.5f) * sw / dw - 0.5f, sy = (ty + 0.5f) * sh / dh - 0.5f;
int x0 = (int)Math.Floor(sx), x1 = Math.Min(x0 + 1, sw - 1);
int y0 = (int)Math.Floor(sy), y1 = Math.Min(y0 + 1, sh - 1);
x0 = Math.Max(x0, 0); y0 = Math.Max(y0, 0);
float dx = sx - x0, dy = sy - y0;
float v00 = mask[y0 * sw + x0] ? 1f : 0f, v10 = mask[y0 * sw + x1] ? 1f : 0f;
float v01 = mask[y1 * sw + x0] ? 1f : 0f, v11 = mask[y1 * sw + x1] ? 1f : 0f;
res[ty * dw + tx] = (1 - dx) * (1 - dy) * v00 + dx * (1 - dy) * v10 + (1 - dx) * dy * v01 + dx * dy * v11;
}
return res;
}
private Mat RecoverOriginalMask(float[] m1024, int dx, int dy, int nw, int nh, int ow, int oh)
{
using (Mat full = new Mat(ModelSize, ModelSize, MatType.CV_8UC1))
{
for (int y = 0; y < ModelSize; y++) for (int x = 0; x < ModelSize; x++)
full.At<byte>(y, x) = m1024[y * ModelSize + x] > 0.5f ? (byte)255 : (byte)0;
using (Mat cr = new Mat(full, new Rect(dx, dy, nw, nh)))
using (Mat outM = new Mat()) { Cv2.Resize(cr, outM, new OpenCvSharp.Size(ow, oh), 0, 0, InterpolationFlags.Nearest); return outM.Clone(); }
}
}
private Mat OverlayMask(Mat src, Mat mask)
{
Mat ov = src.Clone();
for (int y = 0; y < ov.Height; y++) for (int x = 0; x < ov.Width; x++)
if (mask.At<byte>(y, x) > 128) { var c = ov.At<Vec3b>(y, x); c[2] = (byte)Math.Min(255, c[2] + 100); ov.Set(y, x, c); }
return ov;
}
private float Percentile(float[] arr, float p)
{
var s = (float[])arr.Clone(); Array.Sort(s); int idx = (int)Math.Round(p * (s.Length - 1));
return s[Math.Max(0, Math.Min(idx, s.Length - 1))];
}
// 形态学清理：去除 64x64 掩码中的孤立噪声点与毛刺
private bool[] CleanMask64(bool[] mask64)
{
using (Mat m = new Mat(FeatH, FeatW, MatType.CV_8UC1))
{
for (int i = 0; i < mask64.Length; i++)
m.At<byte>(i / FeatW, i % FeatW) = mask64[i] ? (byte)255 : (byte)0;
using (var kernel = Cv2.GetStructuringElement(MorphShapes.Ellipse, new OpenCvSharp.Size(3, 3)))
{
// Open: 腐蚀+膨胀 → 消除 <3x3 的孤立噪点
Cv2.MorphologyEx(m, m, MorphTypes.Open, kernel);
// Close: 膨胀+腐蚀 → 平滑边缘，填充目标内部微小空洞
Cv2.MorphologyEx(m, m, MorphTypes.Close, kernel);
}
bool[] cleaned = new bool[mask64.Length];
for (int i = 0; i < mask64.Length; i++)
cleaned[i] = m.At<byte>(i / FeatW, i % FeatW) > 128;
return cleaned;
}
}
private void PrintTensorStats(string label, float[] data, int[] shape = null)
{
if (!log) return;
if (data == null || data.Length == 0) { SafeLog($"{label}: NULL\n"); return; }
float sum = 0, min = data[0], max = data[0], sumSq = 0;
for (int i = 0; i < data.Length; i++)
{
float v = data[i]; sum += v; sumSq += v * v;
if (v < min) min = v; if (v > max) max = v;
}
float mean = sum / data.Length;
float std = (float)Math.Sqrt(sumSq / data.Length - mean * mean);
string preview = string.Join(", ", data.Take(10).Select(v => v.ToString("F4")));
string shapeStr = shape != null ? $"[{string.Join(",", shape)}]" : $"[{data.Length}]";
SafeLog($"{label} {shapeStr}: mean={mean:F4}, std={std:F4}, min={min:F4}, max={max:F4}, preview=[{preview}...]\n");
}
private void PrintTensorStats(string label, float[][] data2D)
{
if (!log) return;
if (data2D == null || data2D.Length == 0) { SafeLog($"{label}: NULL\n"); return; }
var flat = data2D.SelectMany(row => row).ToArray();
PrintTensorStats(label, flat, new[] { data2D.Length, data2D[0]?.Length ?? 0 });
}
private void PrintTensorStats(string label, Tensor<float> tensor, int batchIdx = 0)
{
if (!log) return;
var shape = tensor.Dimensions.ToArray();
var flat = tensor.ToArray();
if (shape.Length == 4)
{
int C = shape[1], H = shape[2], W = shape[3];
float[] batchData = new float[C * H * W];
int offset = batchIdx * C * H * W;
Array.Copy(flat, offset, batchData, 0, batchData.Length);
PrintTensorStats(label, batchData, new[] { C, H, W });
}
else
{
PrintTensorStats(label, flat, shape);
}
}
private void SaveArrayToFile(string label, float[] data, string folder = "debug_output")
{
if (!log) return;
Directory.CreateDirectory(folder);
string path = Path.Combine(folder, $"{label}_{DateTime.Now:HHmmssfff}.txt");
using (var sw = new StreamWriter(path))
{
sw.WriteLine($"# {label} length={data.Length}");
foreach (var v in data) sw.WriteLine(v.ToString("F8"));
}
SafeLog($"[DEBUG] Saved {label} to {path}\n");
}
private void SafeLog(string msg)
{
if (!log) return;
if (this.InvokeRequired)
{
this.Invoke(new Action<string>(m => textBox1.AppendText(m + Environment.NewLine)), msg);
}
else
{
textBox1.AppendText(msg + Environment.NewLine);
}
}
}
}
