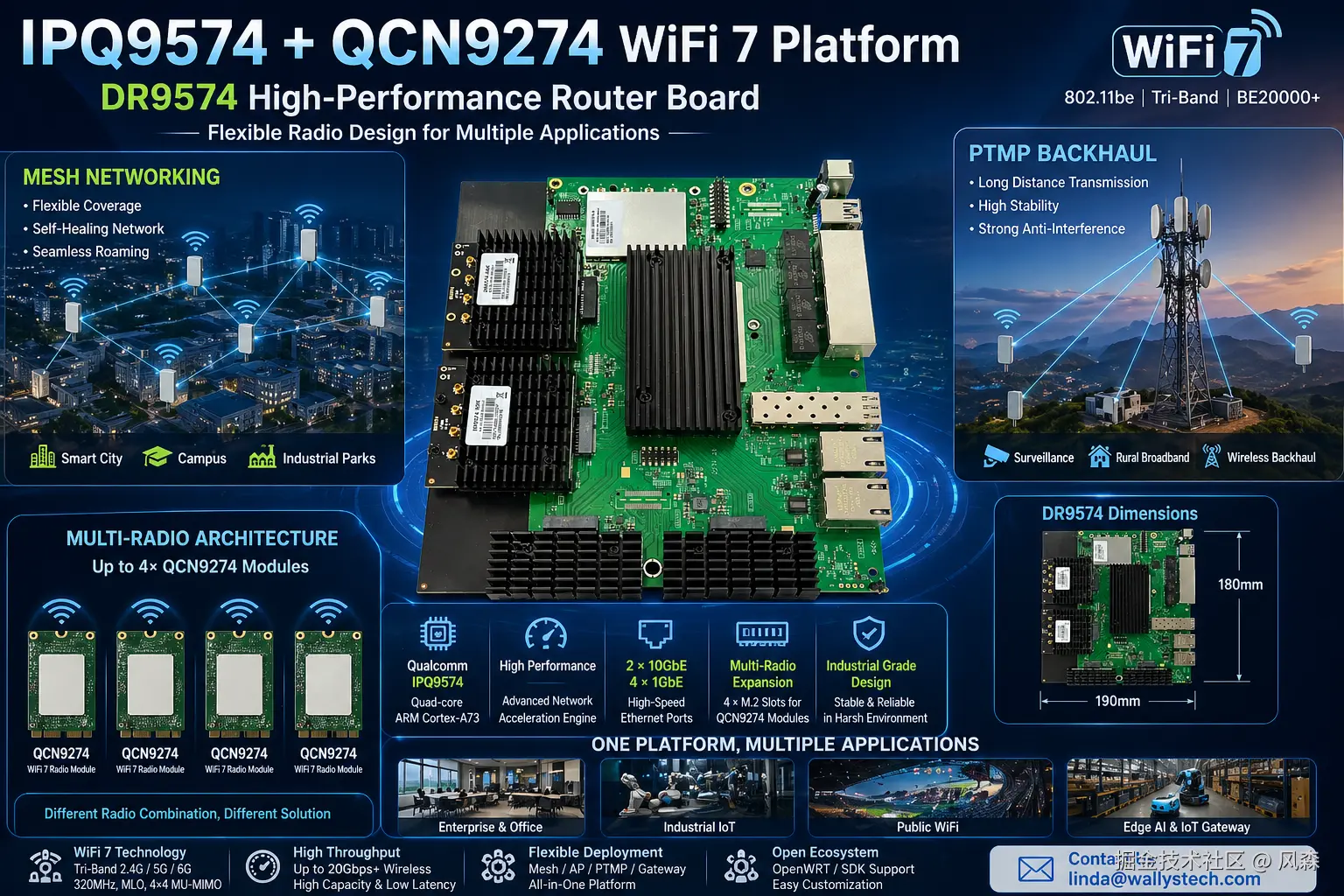

🔹 Built for Scalable Wireless Architecture
Powered by Qualcomm IPQ9574, the DR9574 delivers enterprise-grade performance with flexible radio expansion.
With up to 4× M.2 slots, it supports multiple QCN9274 WiFi 7 radio modules, enabling customizable wireless architectures for different deployment needs.
🔹 High-Performance Core Platform
• Quad-core ARM Cortex-A73 processor
• Advanced network acceleration engine
• 2 × 10GbE + 4 × 1GbE high-speed interfaces
• Industrial-grade design for stable operation
Built to handle high-throughput data, multi-service networking, and demanding environments.
🔹 WiFi 7 with Flexible Radio Scaling
With QCN9274 WiFi 7 modules, the platform supports:
• 320MHz ultra-wide bandwidth
• Multi-Link Operation (MLO)
• High concurrency & low latency
• Multi-radio architecture (up to 4 radios or more expansion)
This enables high-speed wireless transmission and improved spectrum efficiency.
🔹 One Platform, Multiple Deployment Modes
🔸 Multi-Radio Mesh Network
• Multiple QCN9274 radios for multi-hop coverage
• Seamless roaming & large-area deployment
• Self-healing network architecture
👉 Ideal for:
Smart City · Campus Network · Industrial Parks
🔸 High-Density AP (Access Point)
• Multi-radio concurrent transmission
• High client capacity
• Stable performance in crowded environments
👉 Ideal for:
Enterprise · Stadium · Public WiFi
🔸 PTMP / Backhaul Network
• Dedicated radio for long-distance transmission
• High throughput point-to-multipoint links
• Reduced interference with radio separation
👉 Ideal for:
Surveillance · Rural Broadband · Wireless Backhaul
🔸 Edge AI & IoT Gateway
• Multi-radio for different device groups
• Real-time data processing
• Low latency communication
👉 Ideal for:
AIoT · Smart Factory · Logistics
🔹 Why It Stands Out
Unlike fixed wireless solutions, DR9574 allows you to configure different QCN9274 radio combinations based on your project:
✔ Flexible radio scaling
✔ Custom frequency planning
✔ Multi-scenario deployment
✔ Future-ready WiFi 7 architecture
