As enterprise networking, industrial IoT, and remote connectivity demands continue to grow, wireless infrastructure is rapidly evolving from basic connectivity to high reliability, low latency, and scalable performance.
In this transformation, Qualcomm’s IPQ series SoCs have become a core platform for building next-generation wireless devices. This article provides an in-depth comparison of two key chipsets: IPQ5018 (WiFi 6) and IPQ5424 (WiFi 7) , including their technical differences and application scenarios.
1. IPQ5018: A Mature and Cost-Effective WiFi 6 Solution
1.1 Positioning
Qualcomm IPQ5018 is designed for cost-sensitive and large-scale deployments, widely used in:
- Industrial routers
- Outdoor CPE devices
- Mesh nodes
- IoT gateways
It focuses on stability, power efficiency, and affordability.
1.2 Key Specifications
-
CPU: Dual-core ARM Cortex-A53
-
WiFi Standard: WiFi 6 (802.11ax)
-
Frequency Bands:
- 2.4GHz
- 5GHz (via external radio)
-
MIMO: Up to 2x2
-
Interfaces: PCIe / USB / Ethernet
1.3 Key Advantages
✅ Proven Ecosystem
IPQ5018 is widely deployed and supports:
- OpenWRT / OpenWiFi
- Industrial customization
- Long lifecycle supply
✅ High Cost Efficiency
Ideal for large-scale deployments such as:
- Smart agriculture (connected machinery)
- Oil & mining communications
- Video surveillance networks

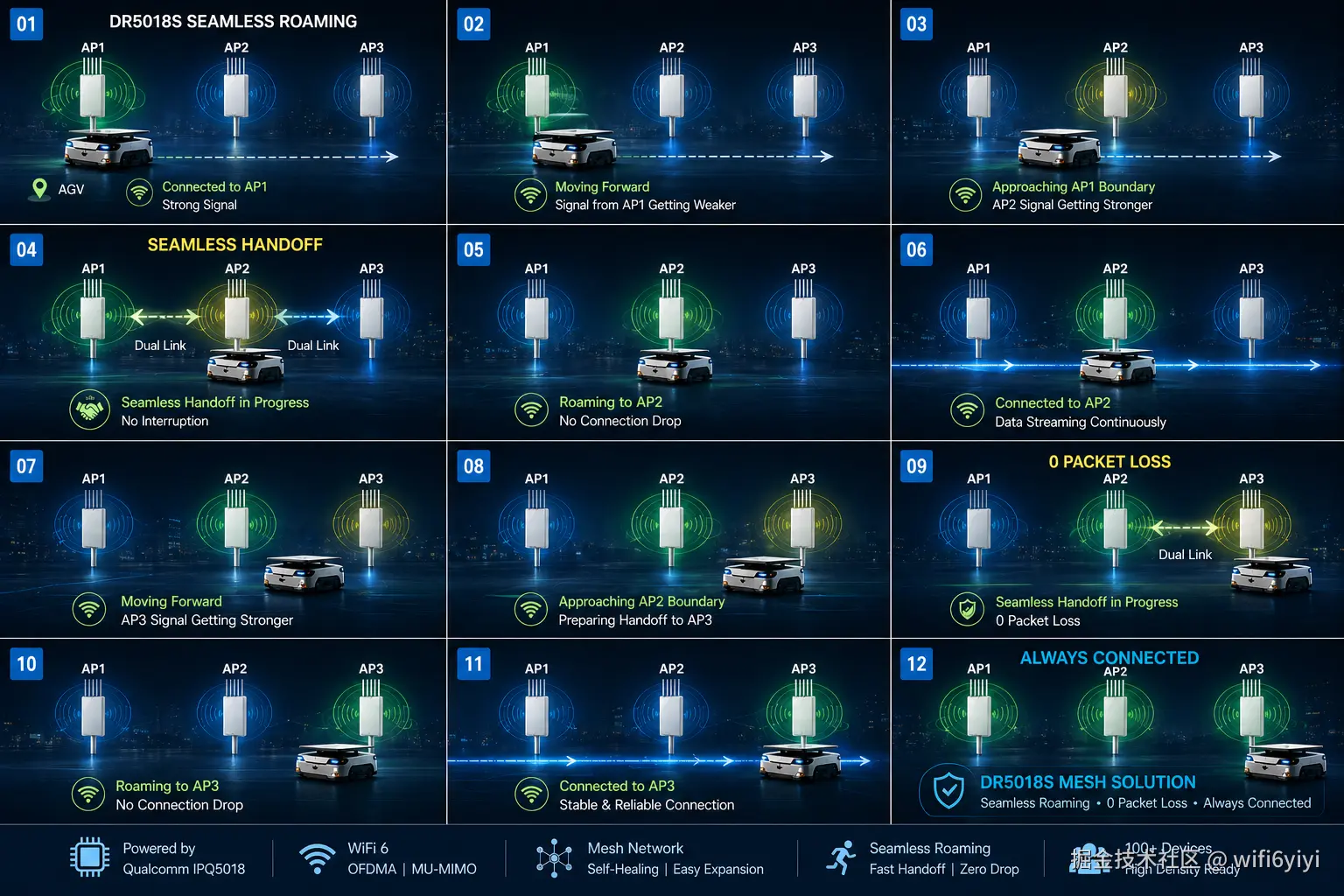

✅ Mesh & Roaming Support
With software support such as:
- 802.11k/v/r
- BATMAN Mesh
It enables stable roaming and seamless handoff.
👉 This makes it a strong fit for solutions like DR5018S.
1.4 Limitations
- No 6GHz support
- Limited throughput compared to WiFi 7
- Not ideal for ultra-high density or ultra-low latency scenarios
2. IPQ5424: A Future-Ready WiFi 7 Platform
2.1 Positioning
Qualcomm IPQ5424 is a next-generation platform designed for:
- Enterprise wireless networks
- High-density environments
- Low-latency industrial applications
2.2 Key Specifications
-
CPU: Quad-core ARM Cortex-A53 (higher performance)
-
WiFi Standard: WiFi 7 (802.11be)
-
Supported Bands:
- 2.4GHz
- 5GHz
- 6GHz (key advantage)
-
Advanced Features:
- 320MHz bandwidth
- Multi-Link Operation (MLO)
- 4K-QAM
2.3 Core Technologies
🚀 Multi-Link Operation (MLO)
Allows devices to connect across multiple bands simultaneously, delivering:
- Lower latency
- Higher throughput
- Seamless switching
👉 This is critical for achieving “0ms roaming” -type performance.
🚀 Ultra-Wide Bandwidth (320MHz)
Compared to WiFi 6:
- 2–4× higher throughput
- Ideal for video, AI data transmission, and high-load environments
🚀 6GHz Spectrum
- Cleaner spectrum
- Less interference
- More stable connections
Especially valuable in industrial deployments.
2.4 Challenges
❗ Software Ecosystem Still Evolving
- Limited support in OpenWRT / OpenWiFi
- Higher development and debugging complexity
❗ Higher Cost
- Increased BOM cost
- Not suitable for low-end mass deployment
3. IPQ5018 vs IPQ5424 Comparison
| Feature | IPQ5018 | IPQ5424 |
|---|---|---|
| WiFi Standard | WiFi 6 | WiFi 7 |
| Bands | 2.4G / 5G | 2.4G / 5G / 6G |
| MIMO | Up to 2x2 | Higher scalability |
| Bandwidth | ≤160MHz | ≤320MHz |
| MLO | ❌ | ✅ |
| Cost | Low | High |
| Maturity | High | Medium |
| Use Cases | Industrial / IoT / basic networking | Enterprise / high-density / low-latency |
4. Application Recommendations
✔ IPQ5018 Use Cases
- Smart agriculture (e.g., AGCO-type deployments)
- Oil & mining communications
- Surveillance networks
- Medium-scale Mesh deployments
👉 Keywords: Stable, Cost-effective, Scalable
✔ IPQ5424 Use Cases
- Enterprise WiFi 7 access points
- High-density office / campus networks
- Industrial automation (low latency control)
- AR/VR and AI data transmission
👉 Keywords: High speed, Low latency, Future-ready
5. Conclusion
IPQ5018 and IPQ5424 are not simply “old vs new” replacements. Instead, they serve different market segments:
- IPQ5018 → Drives revenue today (mature market)
- IPQ5424 → Builds future competitiveness (next-gen market)
For solution providers like Wallys, the optimal strategy is:
👉 Scale with WiFi 6, Lead with WiFi 7
